Fig. 12: Drive Belt Routing Power Steering Pump Belt)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
SPECIFICATIONS COOLING SYSTEM SPECIFICATIONS COOLING SYSTEM SPECIFICATIONS Application
Specification
Coolant Replacement Interval
60,000 Miles
Coolant CapacityAWDWith Towing Kit
10.1 Qts. (9.6L)
Without Towing Kit
9.5 Qts. (9.0L)
FWD
9.5 Qts. (9.0L)
Pressure Cap
14-18 psi (.98-1.27
2004 Mitsubishi Endeavor Limited
2004 ENGINE COOLING Specifications & Drive Belt Routing - Endeavor

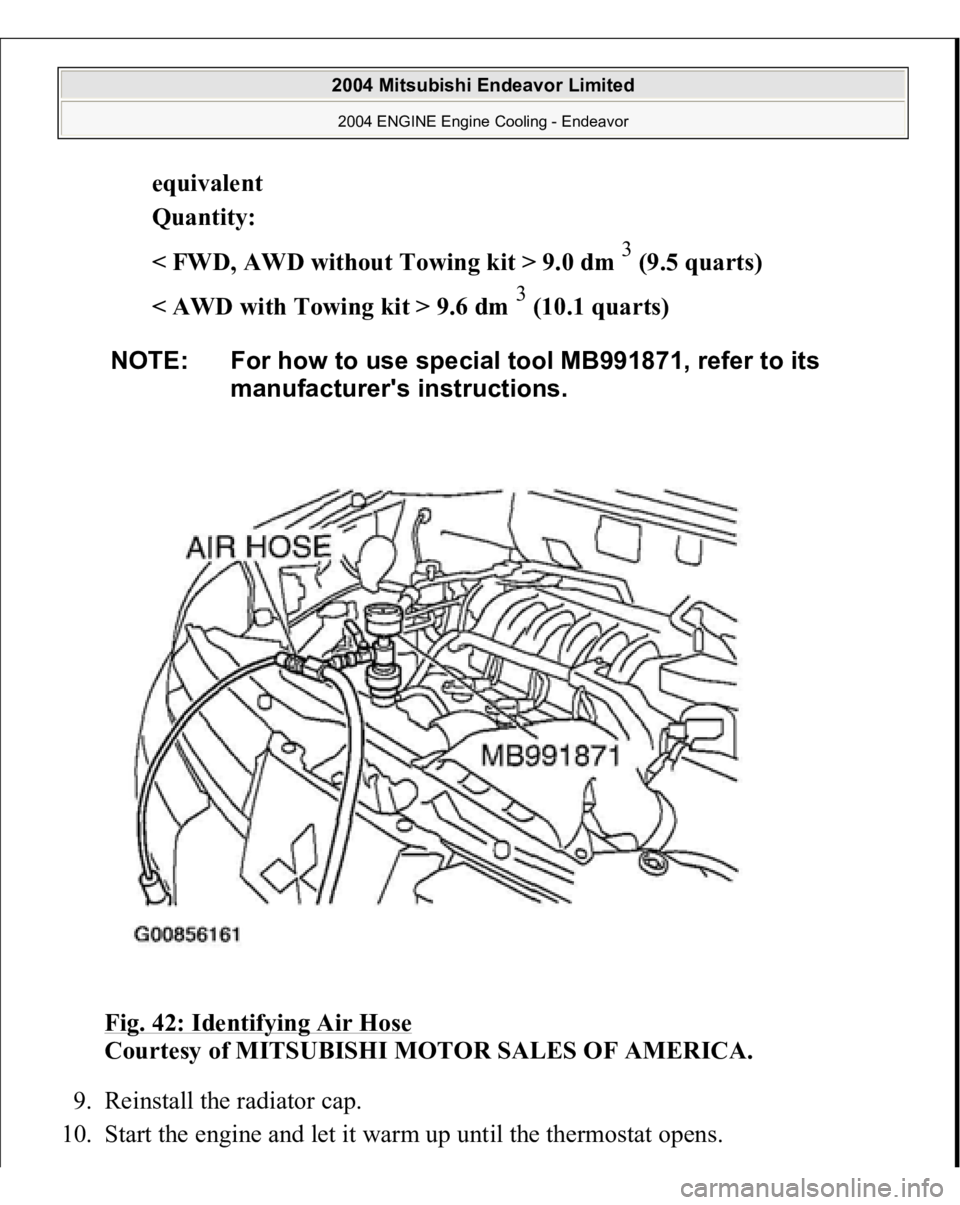

equivalen
t
Quantity:
< FWD, AWD without Towing kit > 9.0 dm
3 (9.5 quarts)
< AWD with Towing kit > 9.6 dm
3 (10.1 quarts)
Fig. 42: Identifying Air Hose
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
9. Reinstall the radiator cap.
10. Start the en
gine and let it warm u
p until the thermostat o
pens.
NOTE: For how to use special tool MB991871, refer to its
manufacturer's instructions.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Cooling - Endeavor
