Page 609 of 3870

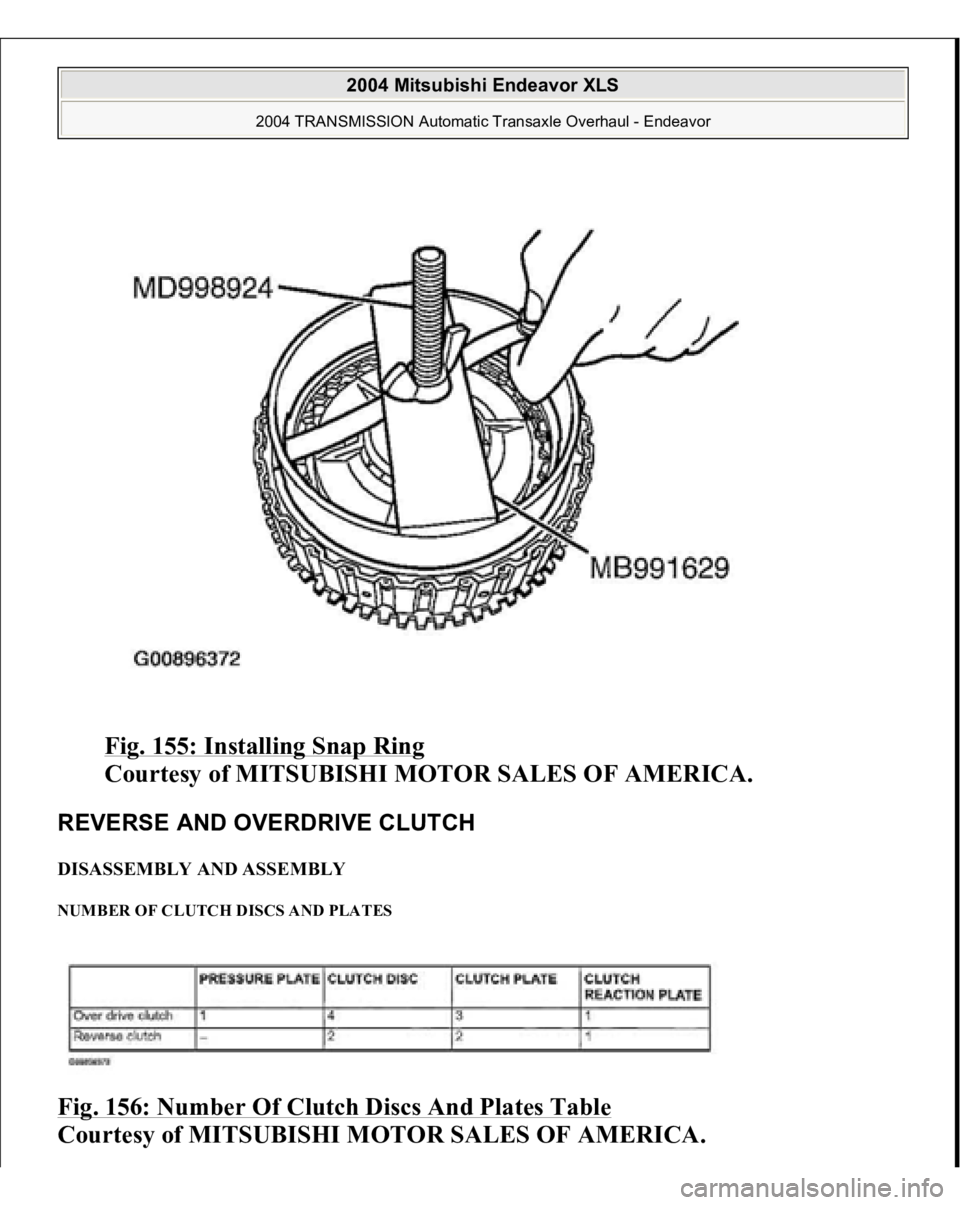

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 155: Installing Snap Ring Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REVERSE AND OVERDRIVE CLUTCH DISASSEMBLY AND ASSEMBLY NUMBER OF CLUTCH DISCS AND PLATES Fig. 156: Number Of Clutch Disc

Page 610 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 157: Exploded View Of Reverse And Overdrive Clutch Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Required Special Tools: MB991629: Spring Compressor MB991789: Spring Compressor MD998924:

Page 611 of 3870

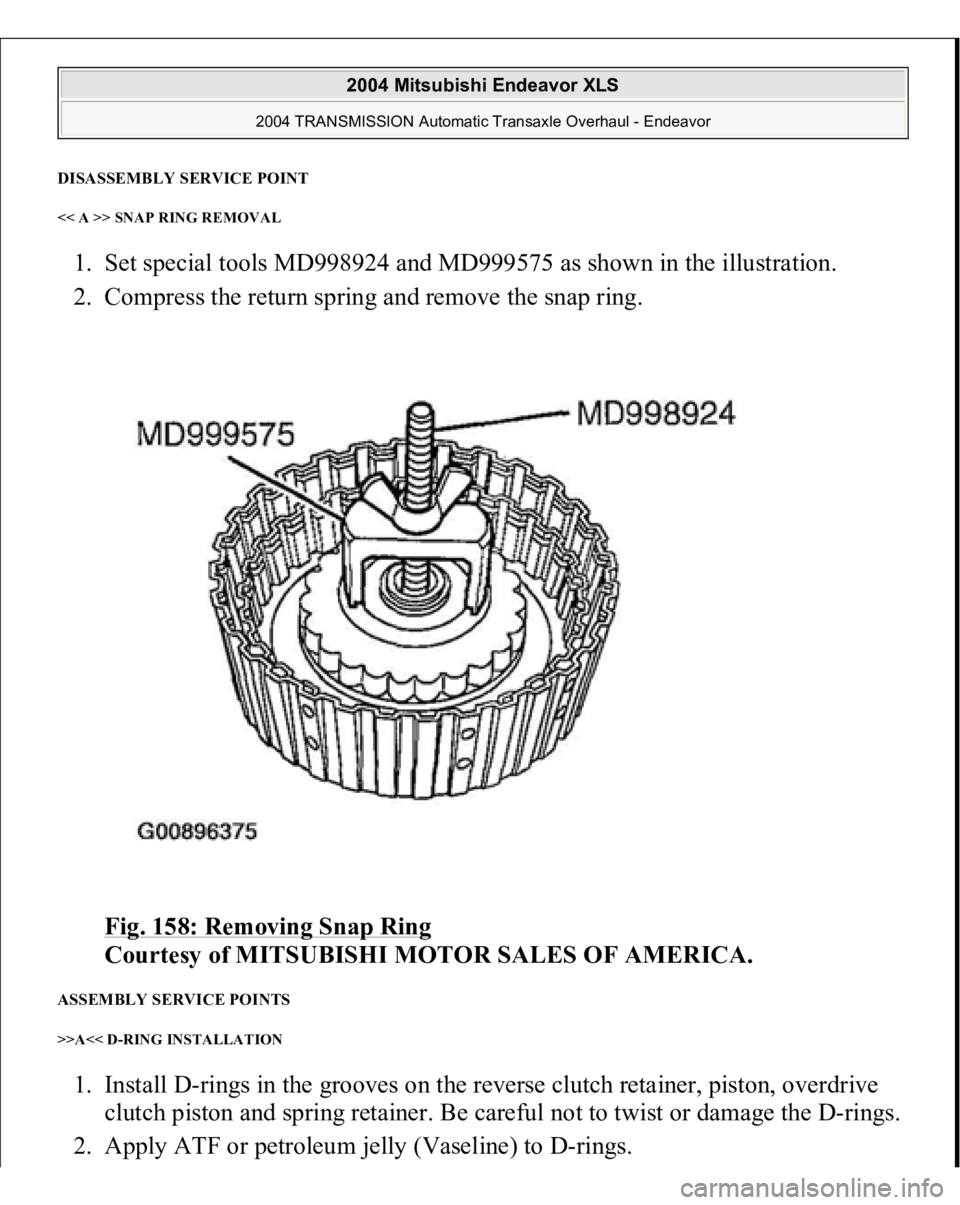

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DISASSEMBLY SERVICE POINT << A >> SNAP RING REMOVAL 1. Set special tools MD998924 and MD999575 as shown in the illustration. 2. Compress the return spring and remove the snap ring. Fig. 158: Removi

Page 612 of 3870

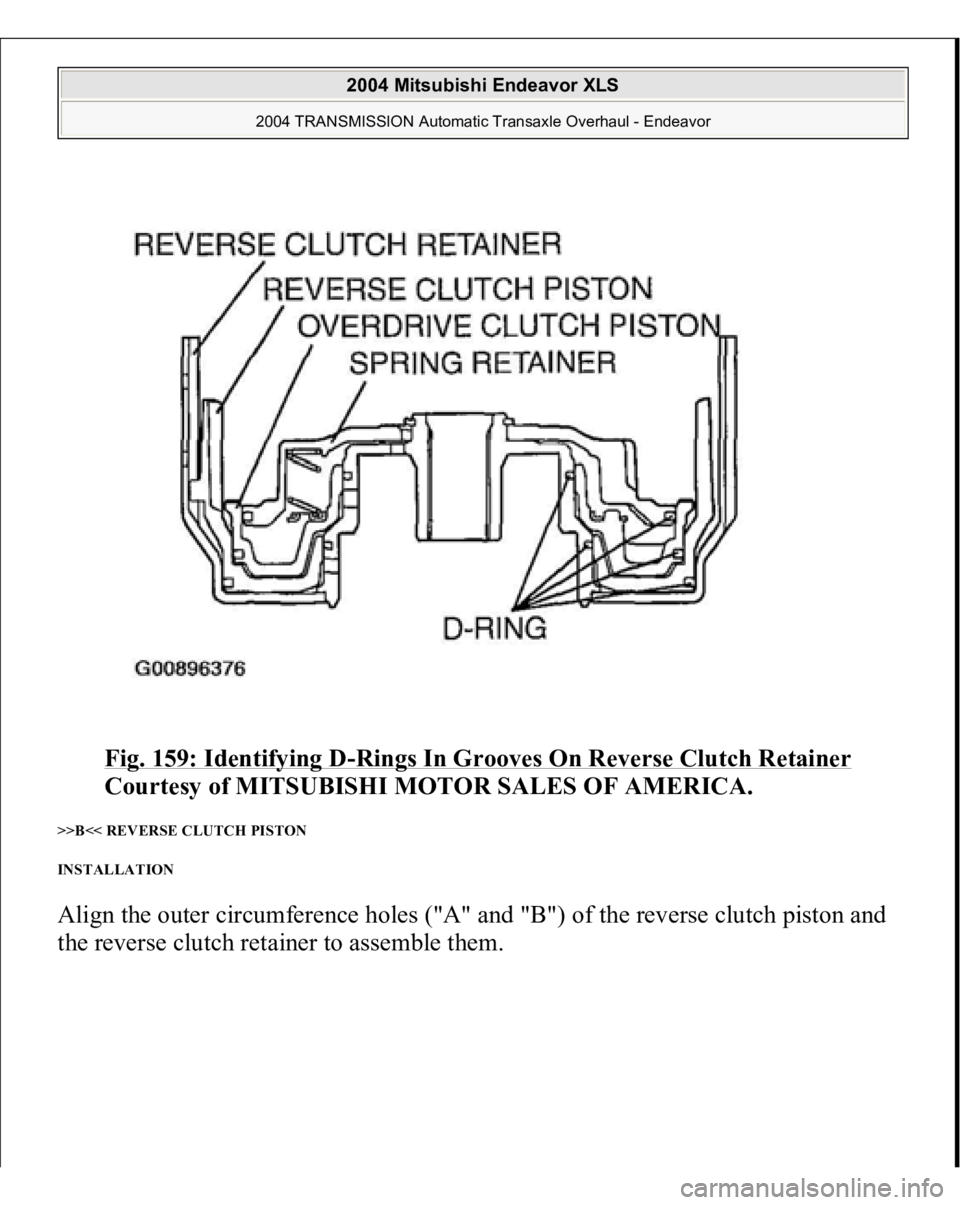

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 159: Identifying D -Rings In Grooves On Reverse Clutch Retainer Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>B<< REVERSE CLUTCH PISTON INSTALLATION Align the outer circumference holes (&#

Page 613 of 3870

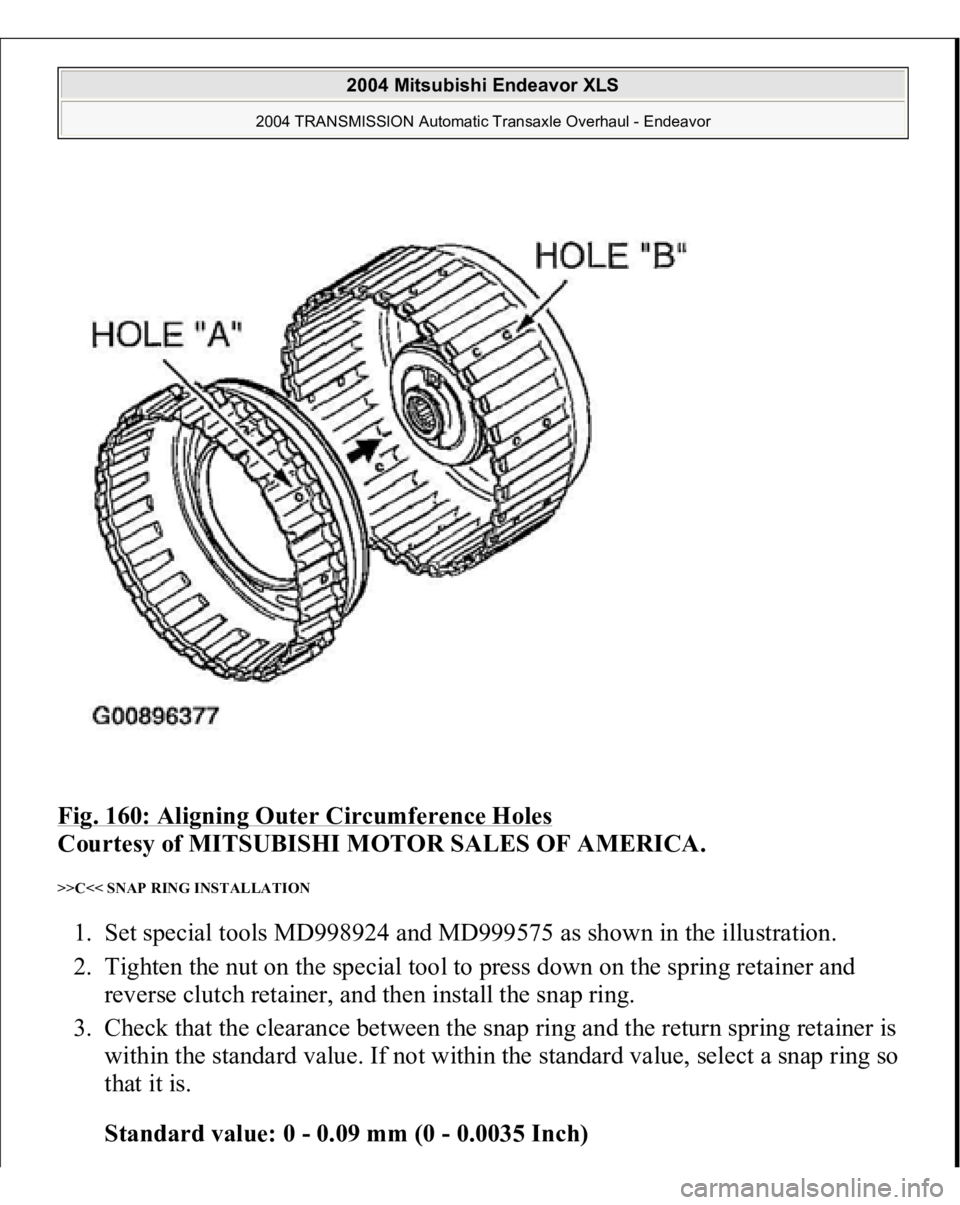

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 160: Aligning Outer Circumference Holes Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>C<< SNAP RING INSTALLATION 1. Set special tools MD998924 and MD999575 as shown in the illustration. 2

Page 614 of 3870

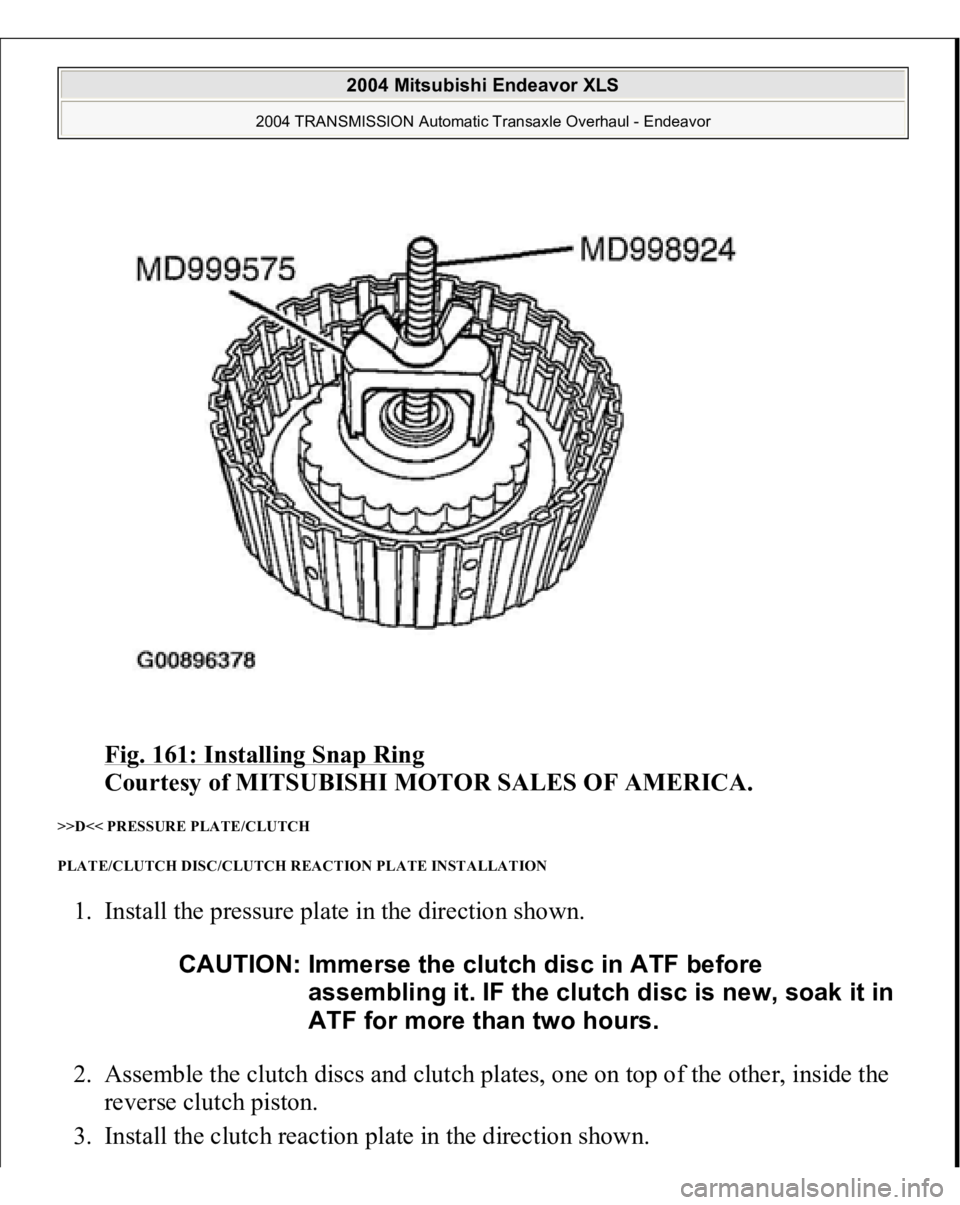

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 161: Installing Snap Ring Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>D<< PRESSURE PLATE/CLUTCH PLATE/CLUTCH DISC/CLUTCH REACTION PLATE INSTALLATION 1. Install the pressure plate in the

Page 615 of 3870

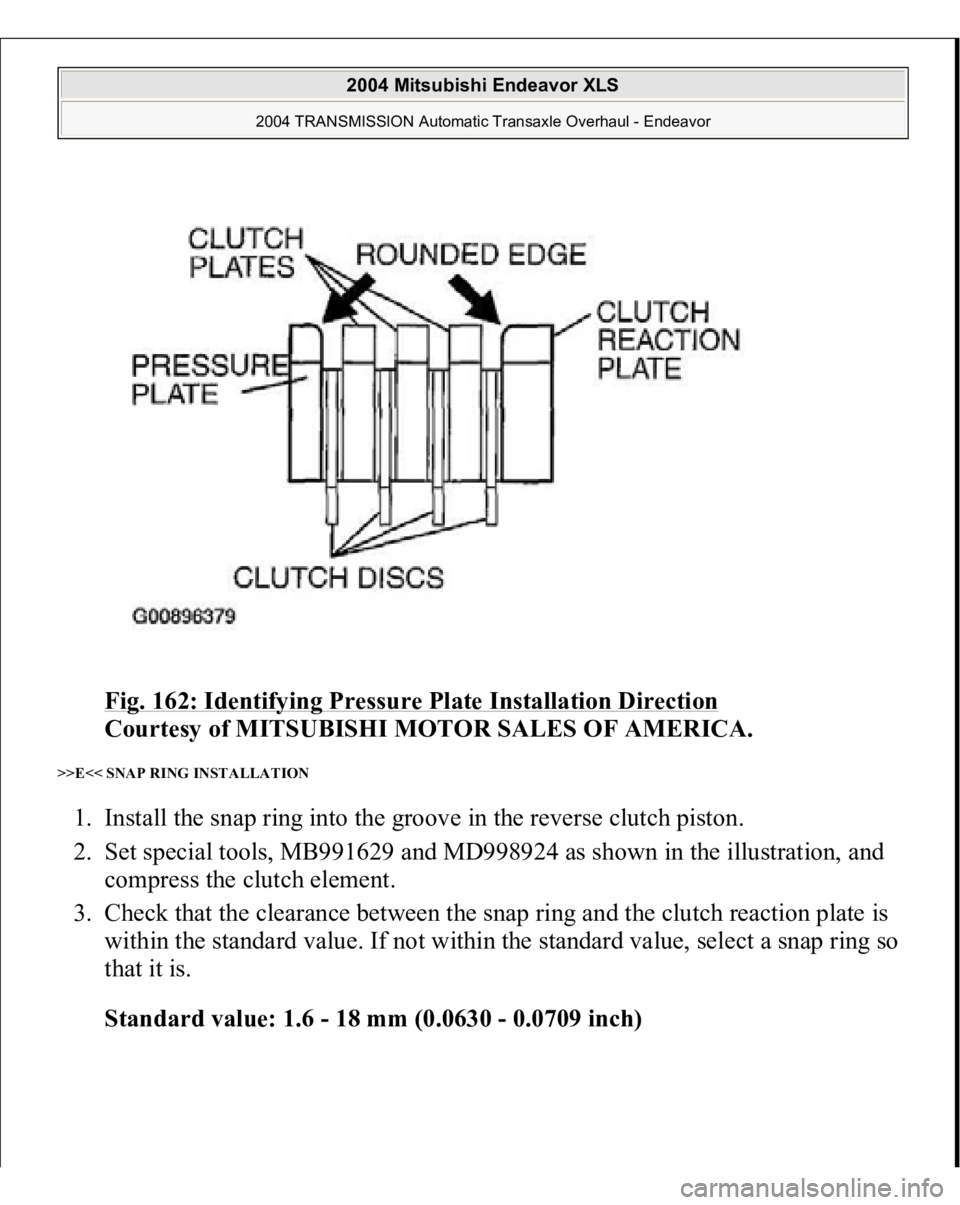

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 162: Identifying Pressure Plate Installation Direction Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>E<< SNAP RING INSTALLATION 1. Install the snap ring into the groove in the reverse clutc

Page 616 of 3870

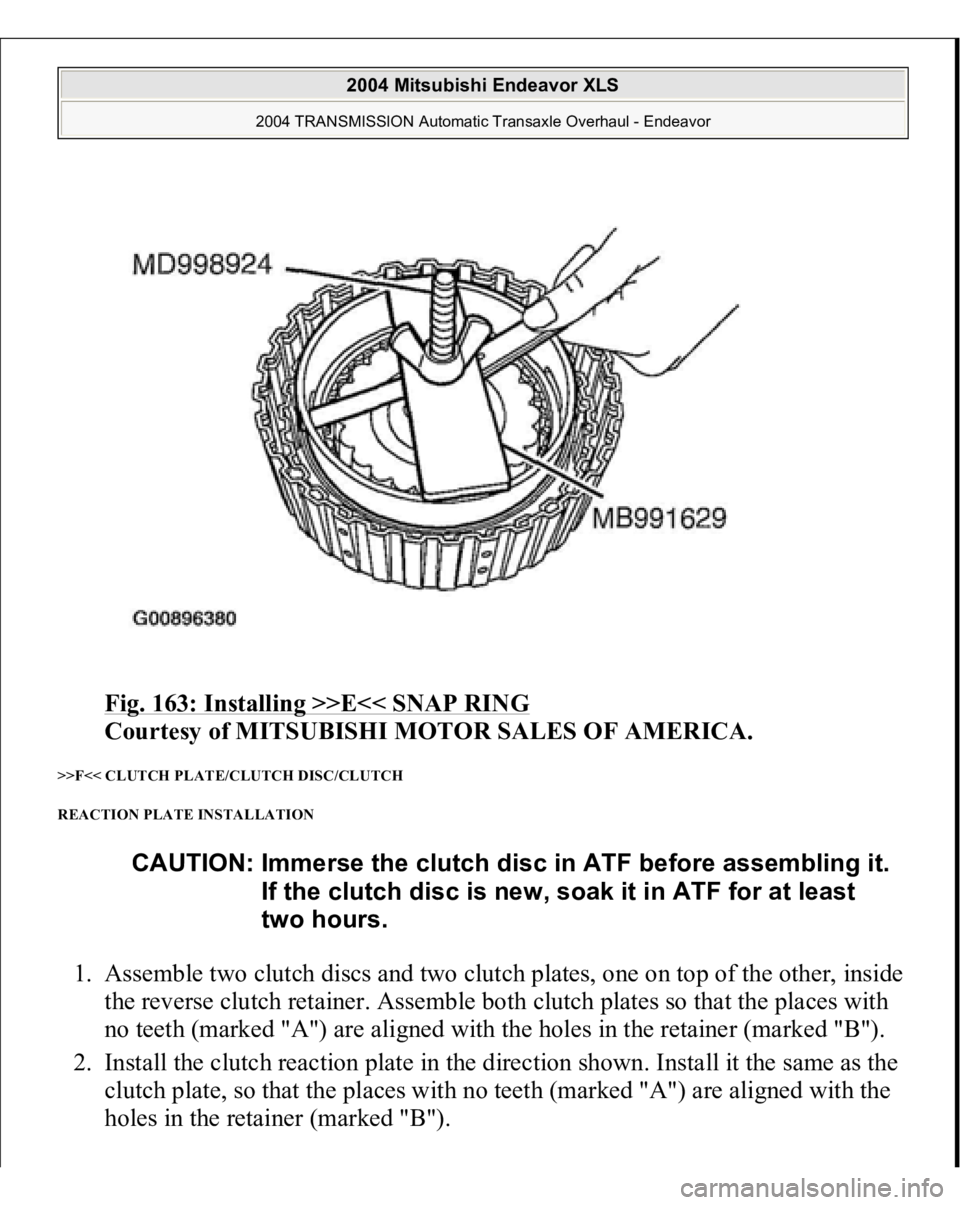

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 163: Installing >>E<< SNAP RING Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>F<< CLUTCH PLATE/CLUTCH DISC/CLUTCH REACTION PLATE INSTALLATION 1. Assemble two clutch discs and two clutch pl
