Page 1465 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Remove oil from the crankshaft pin and the bearing inner surface. 2. Cut plastic gauging material to the same length as the width of the bearing and place it on the pin in parallel with its axis

Page 1466 of 3870

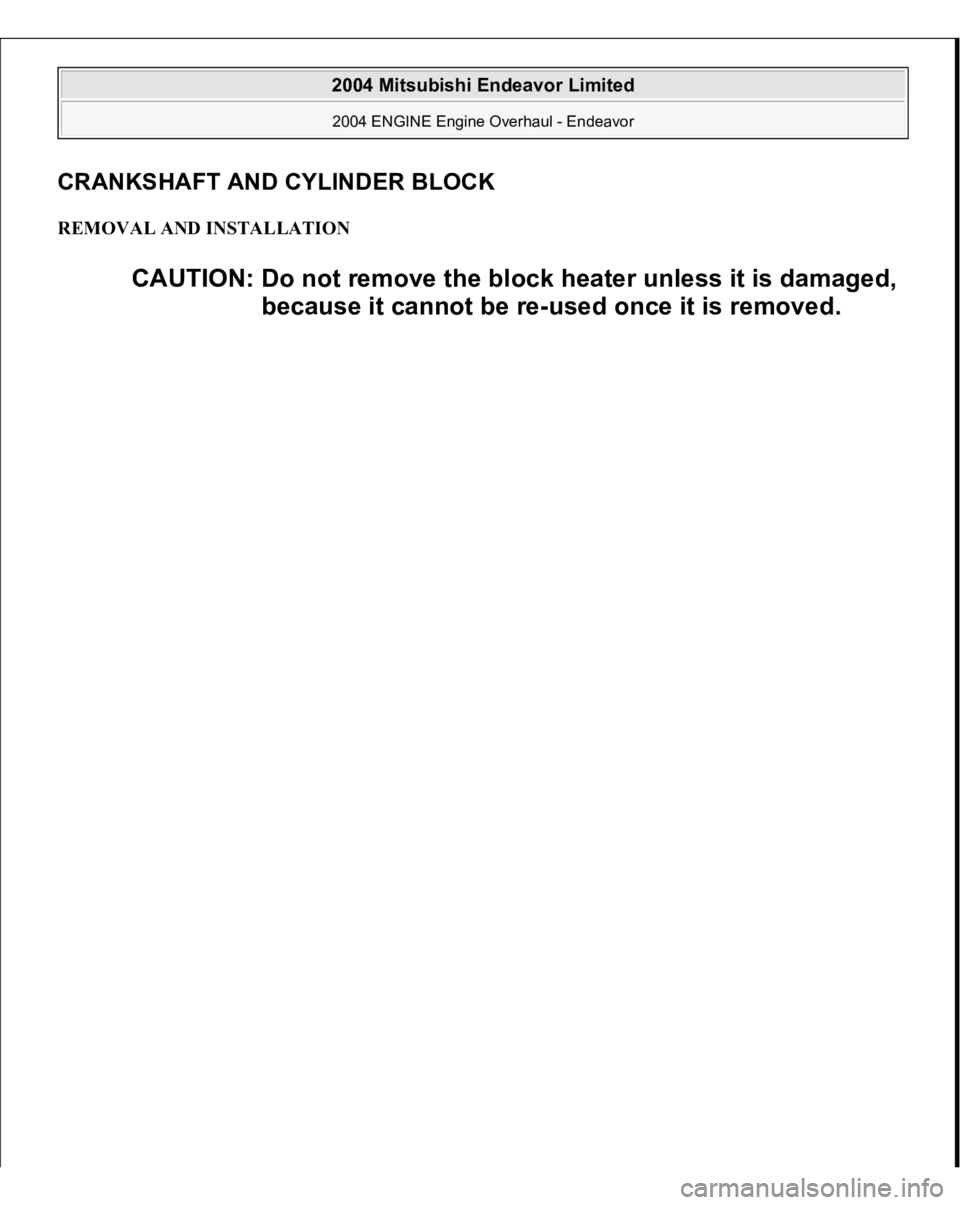

MITSUBISHI ENDEAVOR 2004 Service Repair Manual CRANKSHAFT AND CYLINDER BLOCKREMOVAL AND INSTALLATION CAUTION: Do not remove the block heater unless it is damaged, because it cannot be re-used once it is removed. 2004 Mitsubishi Endeavor Limite

Page 1467 of 3870

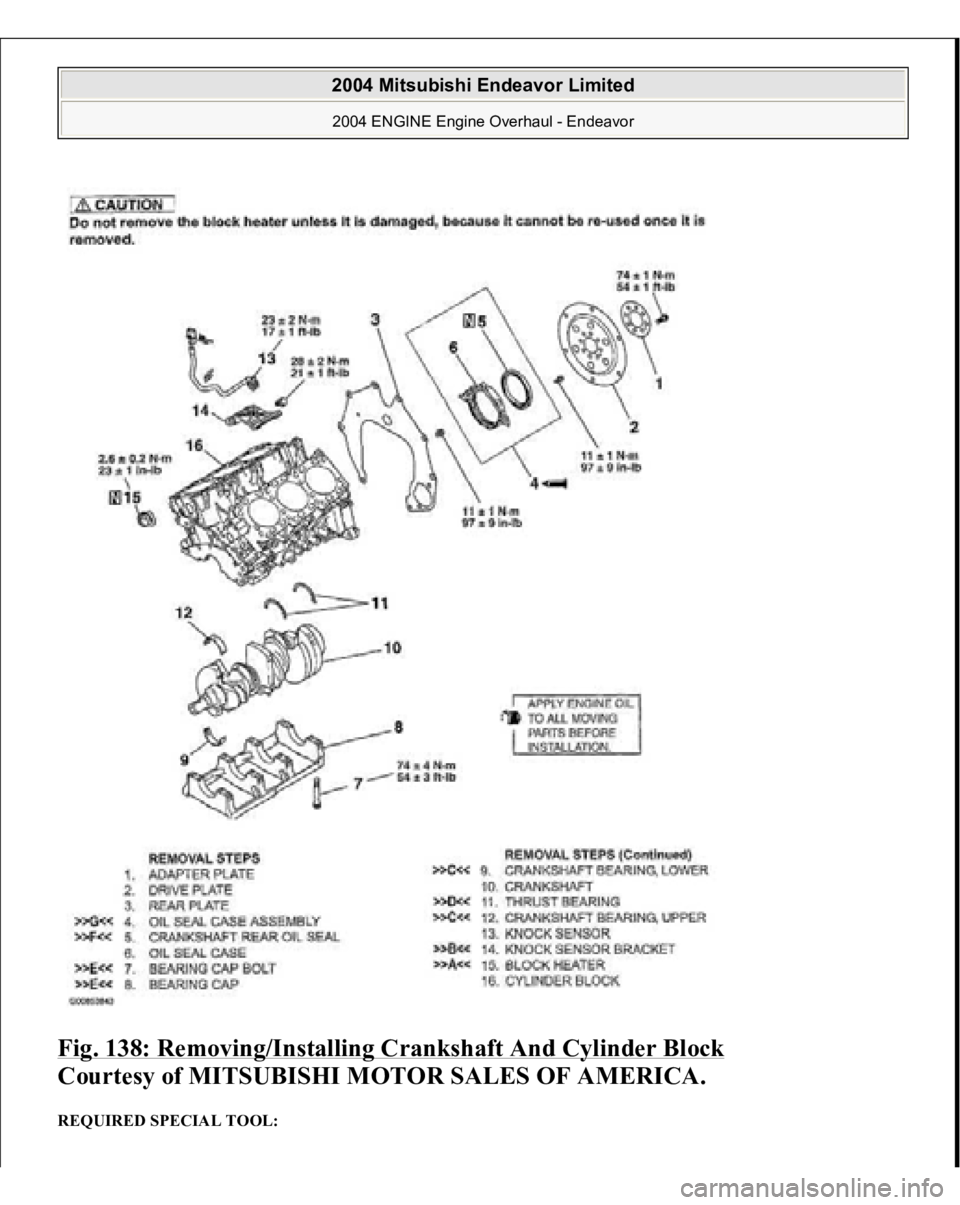

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 138: Removing/Installing Crankshaft And Cylinder Block Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REQUIRED SPECIAL TOOL: 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - En

Page 1468 of 3870

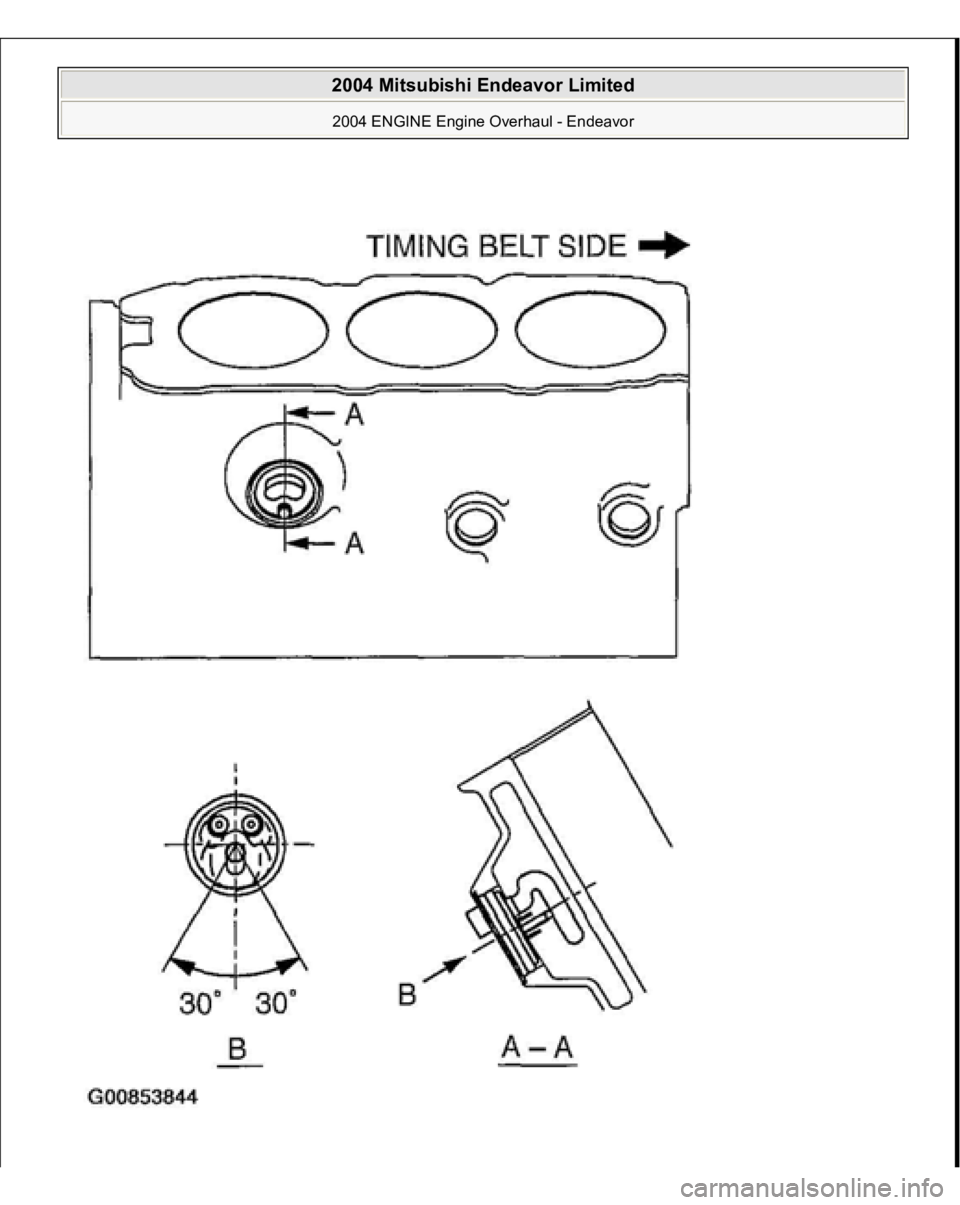

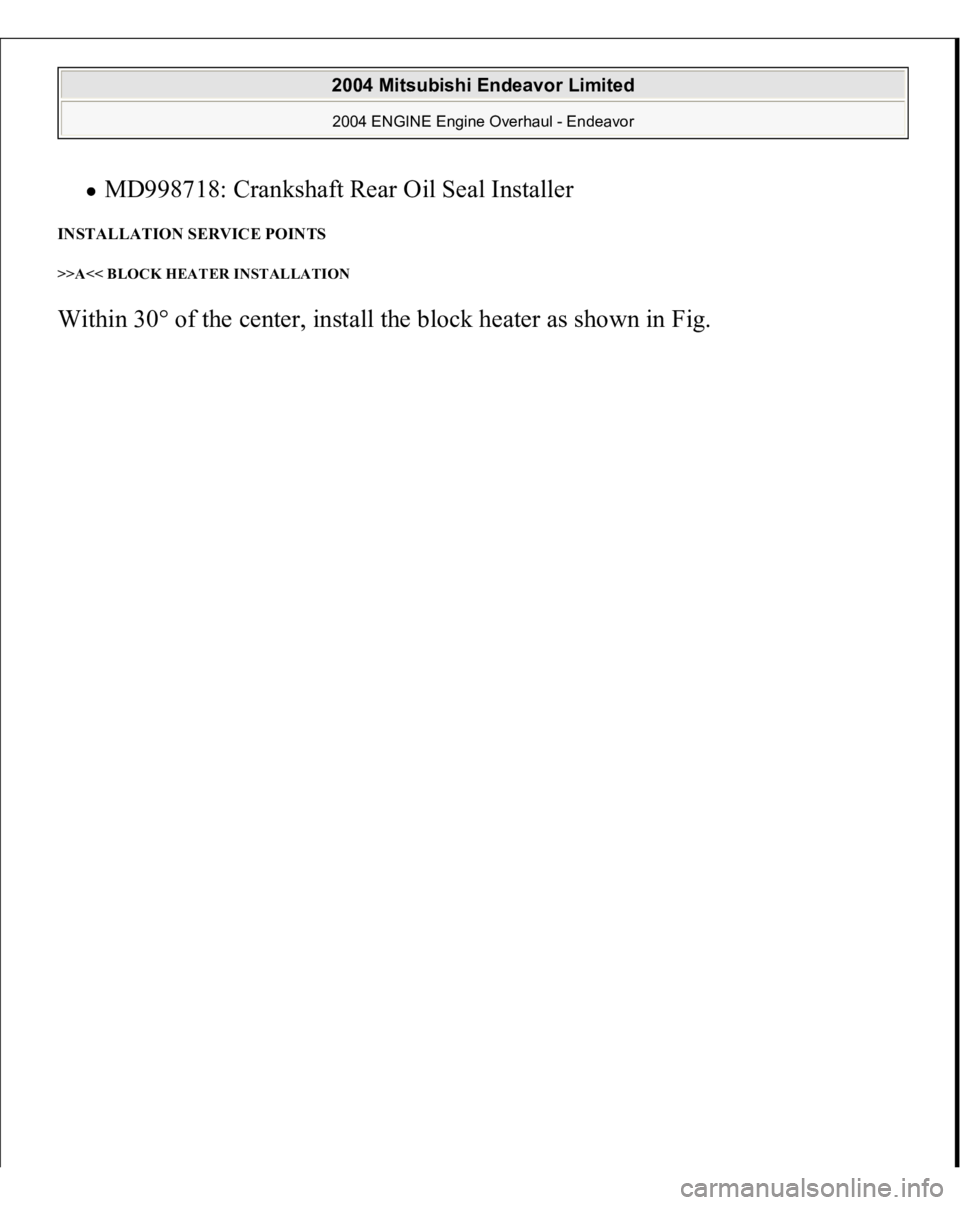

MITSUBISHI ENDEAVOR 2004 Service Repair Manual MD998718: Crankshaft Rear Oil Seal Installer INSTALLATION SERVICE POINTS >>A<< BLOCK HEATER INSTALLATION Within 30° of the center, install the block heater as shown in Fi g. 2004 Mitsubishi Endea

Page 1469 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor

Page 1470 of 3870

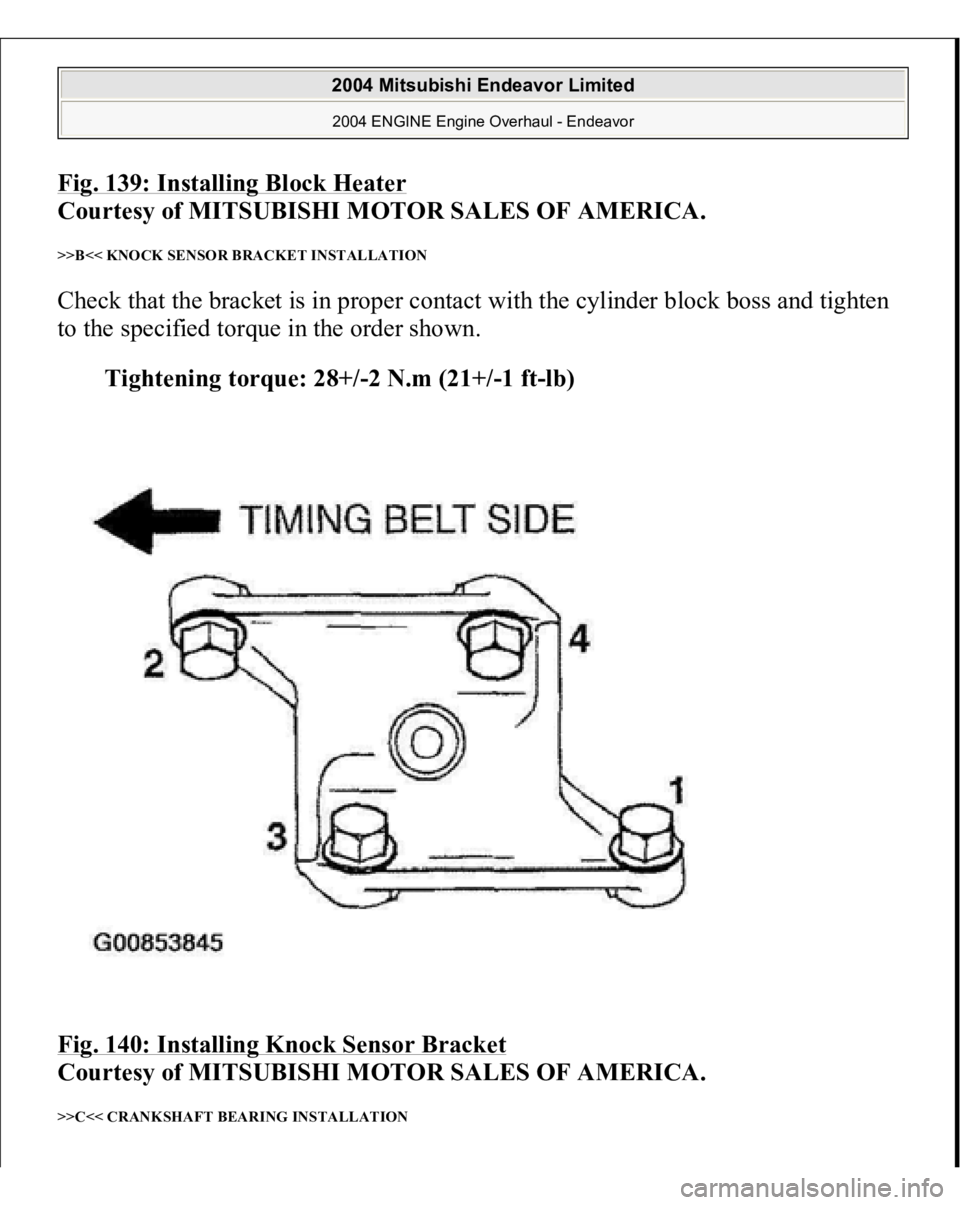

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 139: Installing Block Heater Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>B<< KNOCK SENSOR BRACKET INSTALLATION Check that the bracket is in proper contact with the cylinder block boss and

Page 1471 of 3870

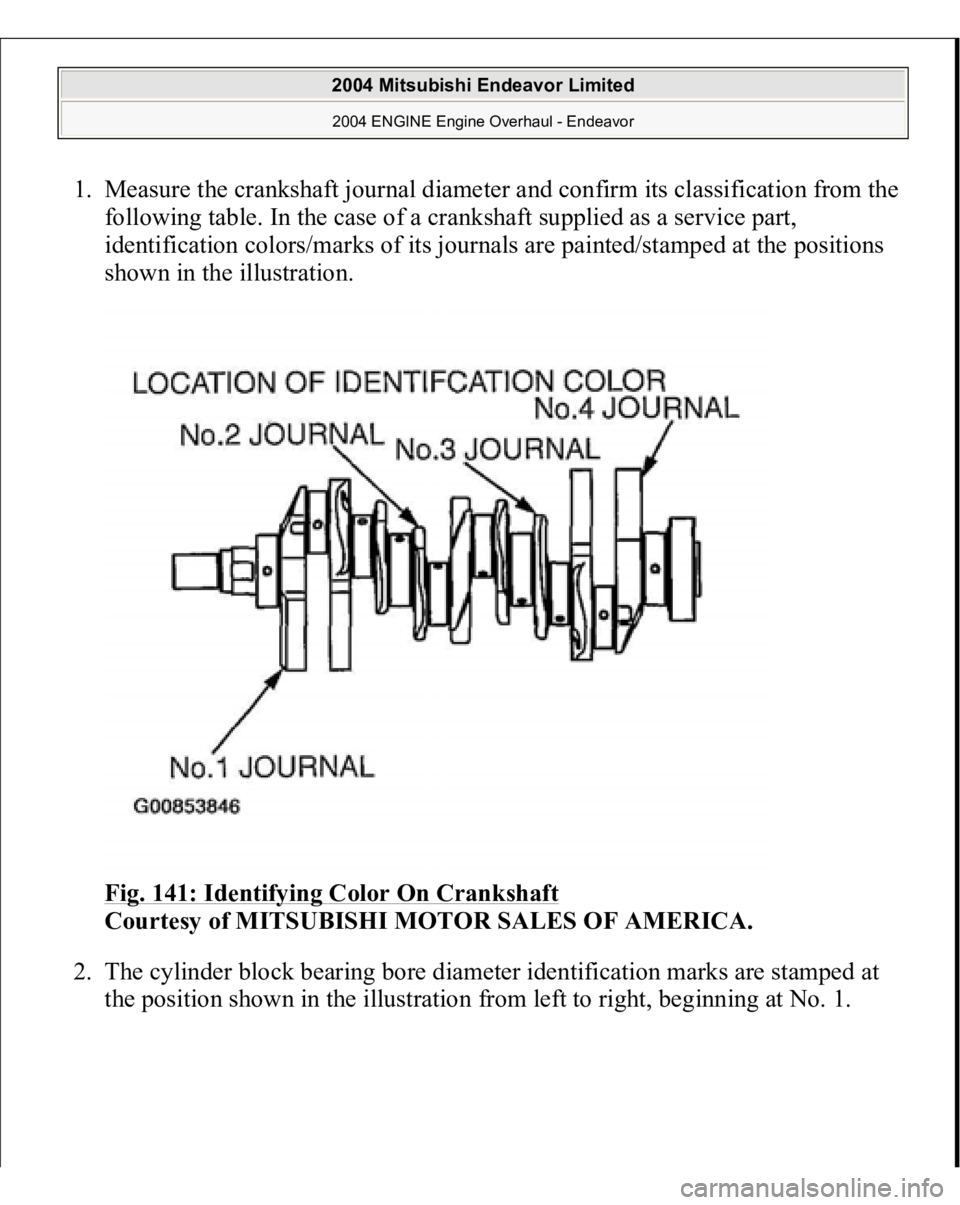

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Measure the crankshaft journal diameter and confirm its classification from the following table. In the case of a crankshaft supplied as a service part, identification colors/marks of its journal

Page 1472 of 3870

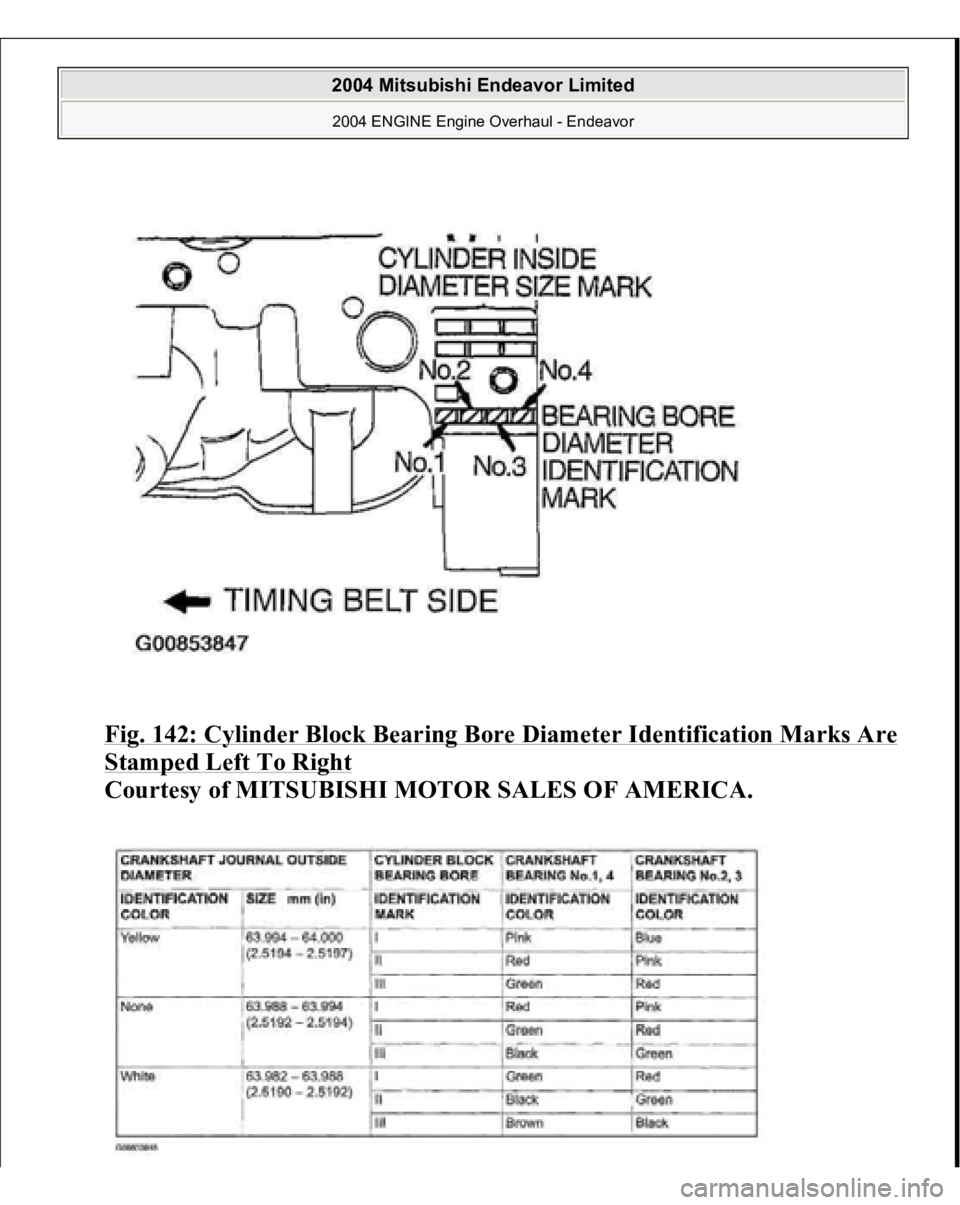

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 142: Cylinder Block Bearing Bore Diameter Identification Marks Are Stamped Left To Right Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Ov
