Page 2465 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 31: Identifying Connector C -209 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 6. Measure the voltage between terminal 3 and ground. The measured value should be approximately 12 volts (bat

Page 2466 of 3870

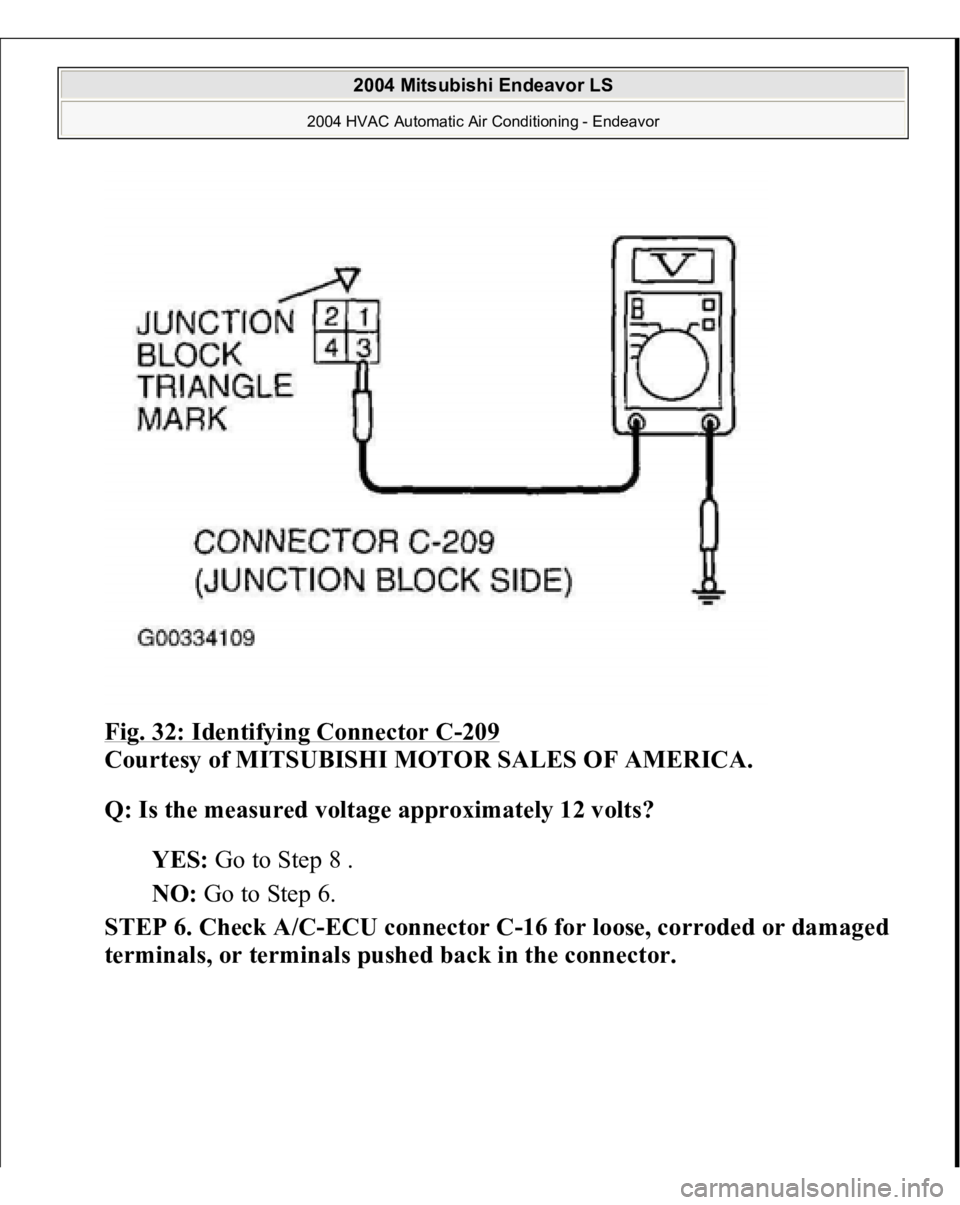

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 32: Identifying Connector C -209 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the measured voltage approximately 12 volts? YES: Go to Step 8 . NO: Go to Step 6. STEP 6. Check

Page 2467 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 33: Identifying Connector C -16 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is A/C-ECU connector C-16 in good condition? YES: Go to Step 7. NO: Repair or replace the connector. Re

Page 2468 of 3870

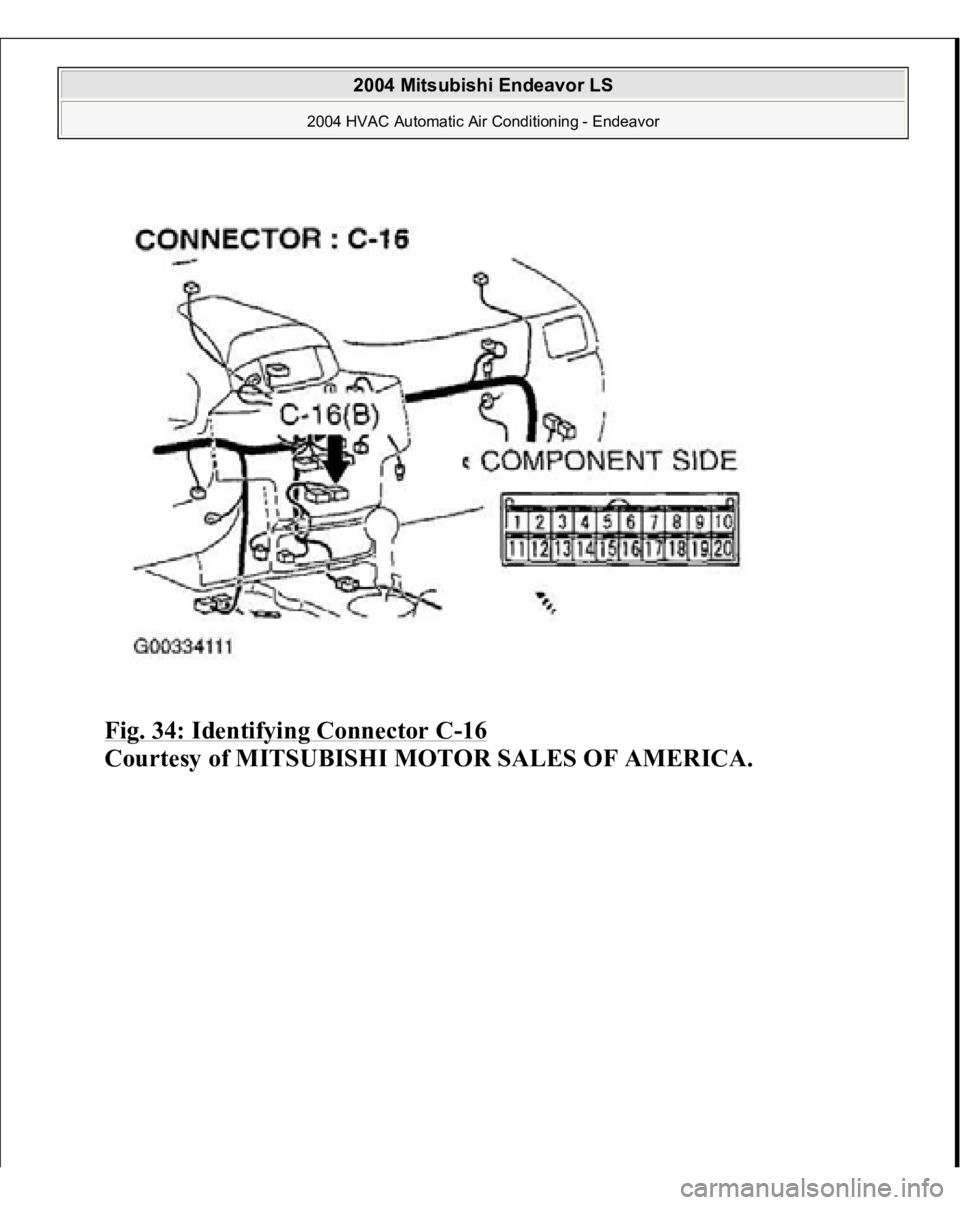

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 34: Identifying Connector C -16 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Automatic Air Conditioning - Endeavor

Page 2469 of 3870

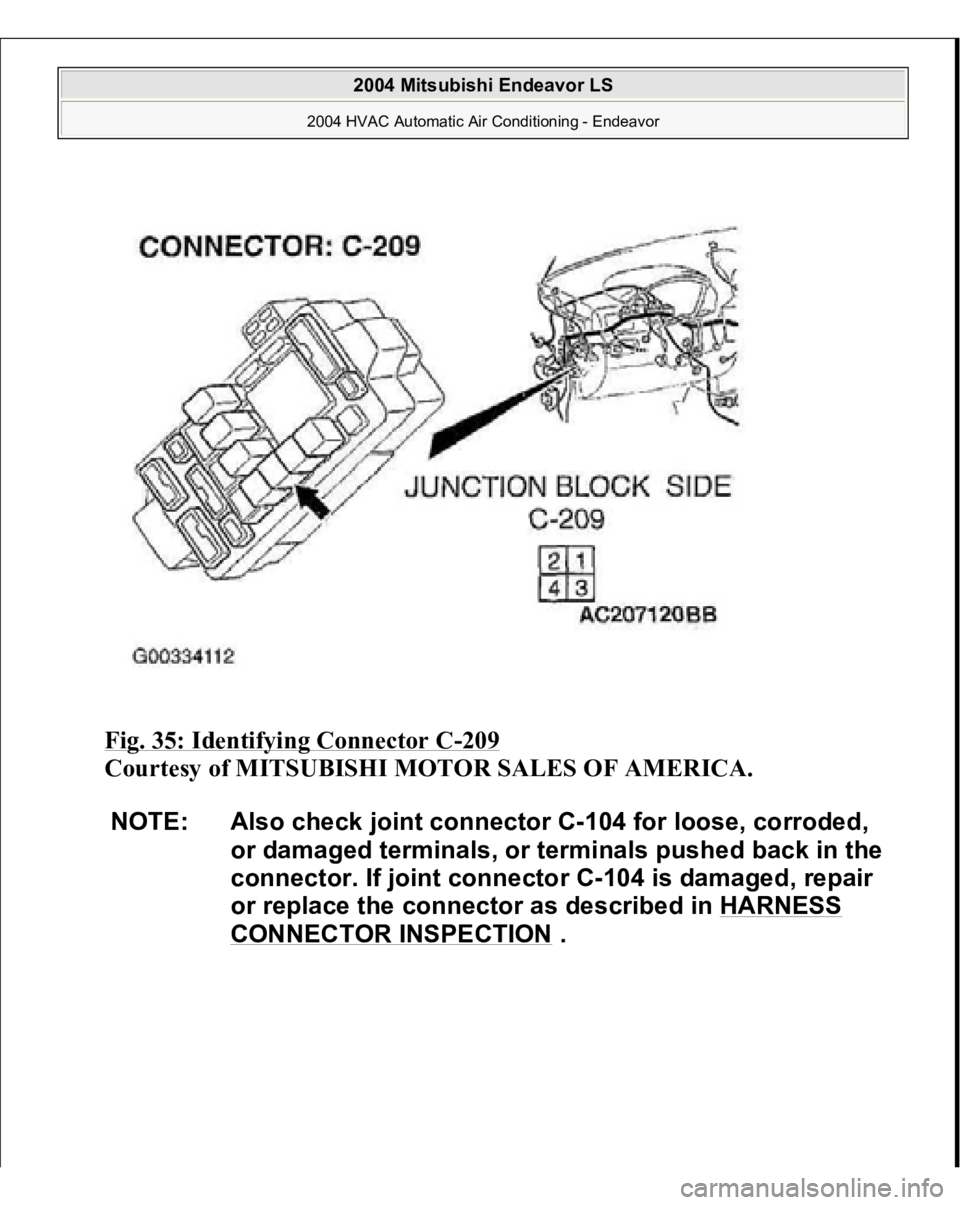

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 35: Identifying Connector C -209 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. NOTE: Also check joint connector C-104 for loose, corroded, or damaged terminals, or terminals pushed back in

Page 2470 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 36: Identifying Connector C -104 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between A/C-ECU connector C-16 (terminal 7) and rear blower relay connector C-209 (te

Page 2471 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 37: Identifying Connector C -209 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Measure the voltage between terminal 4 and ground. The measured value should be approximately 12 volts (bat

Page 2472 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 38: Measuring Voltage Between Terminal 4 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the measured voltage approximately 12 volts? YES: Go to Step 10 . NO: Go to Ste
