Page 3345 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Disconnect the G and yaw rate sensor connector C-36, and measure at the harness side connector. 2. Measure the resistance between terminal 4 and body ground. 2004 Mitsubishi Endeavor LS 2004

Page 3346 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 152: Measuring Resistance At G And Yaw Rate Sensor 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3347 of 3870

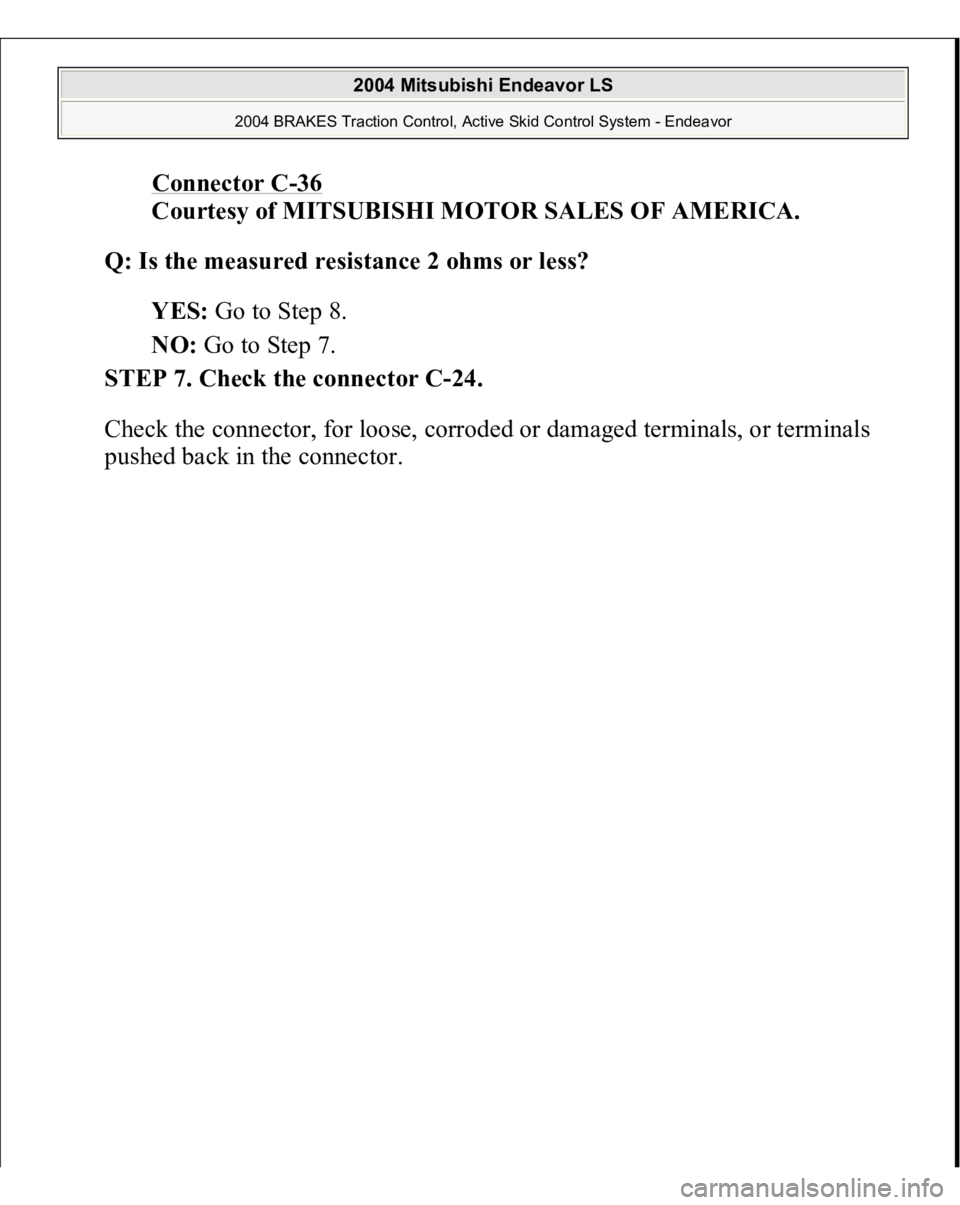

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Connector C -36 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the measured resistance 2 ohms or less? YES: Go to Step 8. NO: Go to Step 7. STEP 7. Check the connector C-24. Check the c

Page 3348 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 153: Checking Connector C -24 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the connector and terminals in good condition? YES: Open circuit may be present in the G and yaw rate sensor

Page 3349 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual replaced . Replace the G-sensor, and check whether DTC C1381, C1382 or C1383 is reset. 1. Replace the G-sensor. 2. Connect scan tool MB991958 to the data link connec tor. CAUTION: To prevent dam

Page 3350 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 154: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3351 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 3. Turn the ignition switch to the "ON" position. 4. Erase the DTC. 5. Turn the ignition switch to the "LOCK" (OFF) position. 6.

Page 3352 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 155: Rechecking For Diagnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor
