Page 2601 of 3870

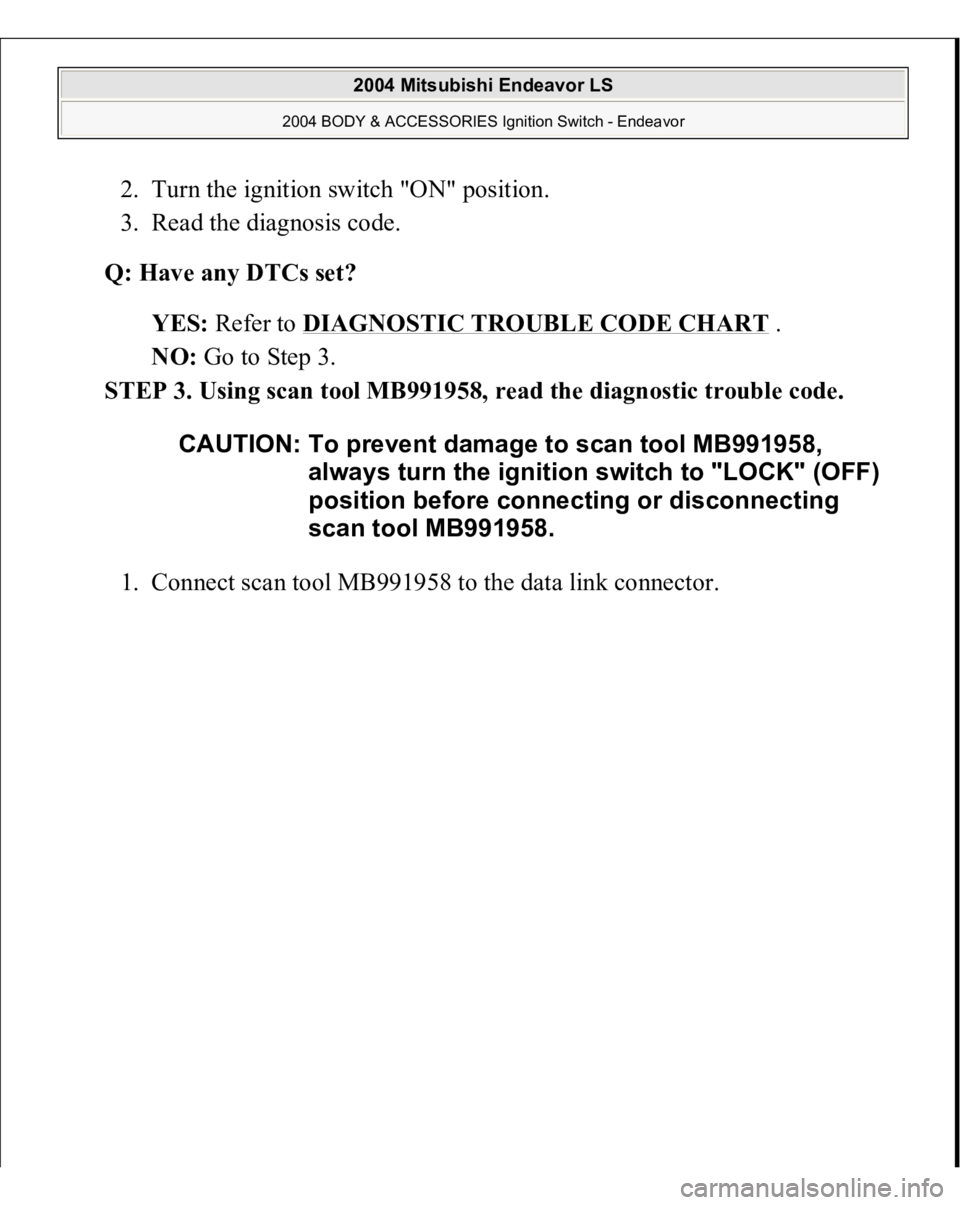

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch "ON" position. 3. Read the diagnosis code. Q: Have any DTCs set? YES: Refer to DIAGNOSTIC TROUBLE CODE CHART . NO: Go to Step 3. STEP 3. Using scan tool

Page 2602 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 65: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2603 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch "ON" position. 3. Read the diagnosis code. Q: Have any MFI system DTCs set? YES: Refer to DIAGNOSTIC TROUBLE

Page 2604 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 66: Immobilizer Indicator Light Circuit Diagram & Connector Identification Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch

Page 2605 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 67: Identifying Connector C -310 -1 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CIRCUIT OPERATION If the requirements for starting the engine are not satisfied, the immobilizer-ECU flashes

Page 2606 of 3870

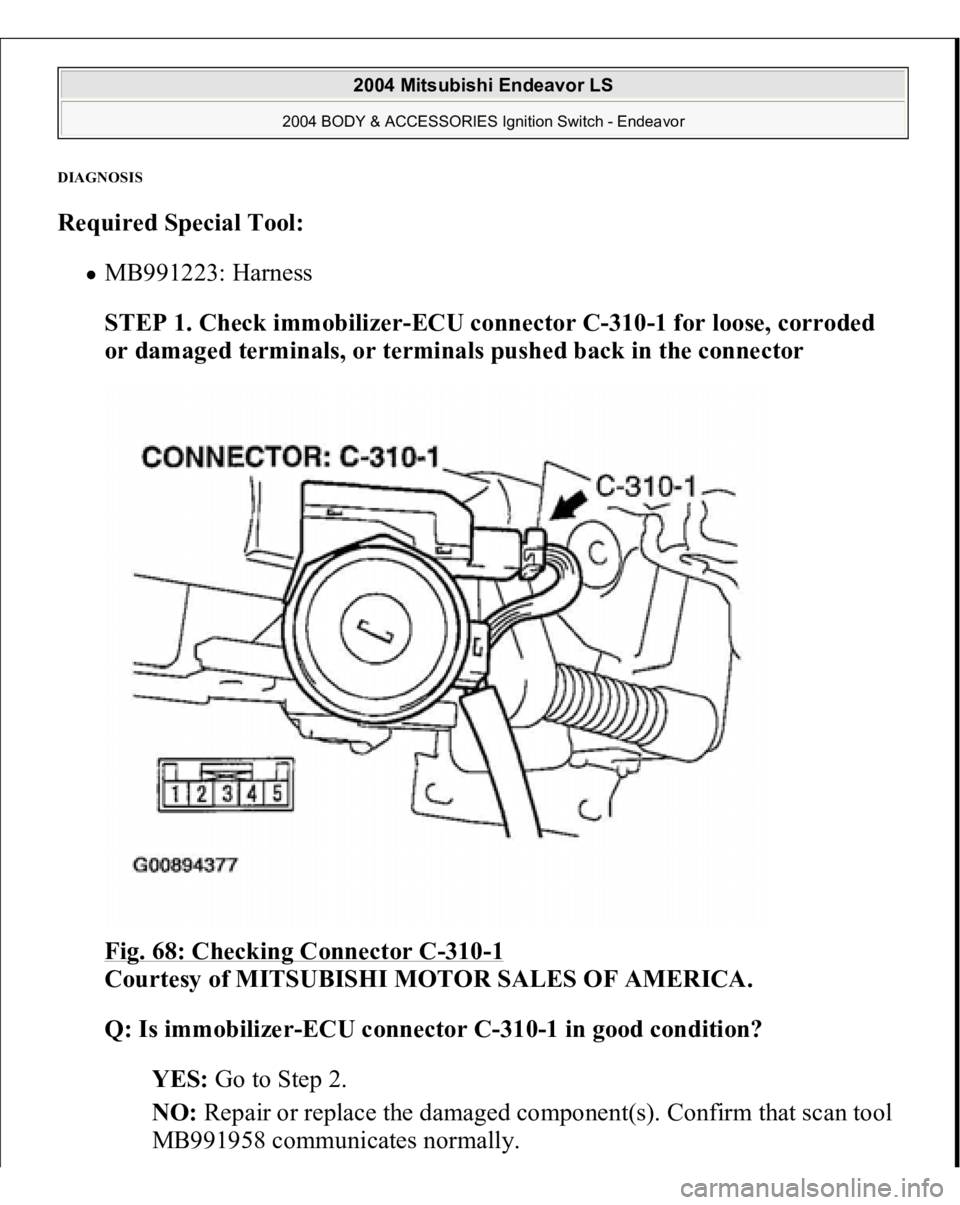

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DIAGNOSI S Required Special Tool: MB991223: Harness STEP 1. Check immobilizer-ECU connector C-310-1 for loose, corroded or damaged terminals, or terminals pushed back in the connector Fig. 68:

Page 2607 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 2. Check the immobilizer indicator light circuit of immobilizer-ECU connector C-310-1. 1. Disconnect the immobilizer-ECU connector C-310-1 and measure at the harness side. Fig. 69: Identifyin

Page 2608 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 70: Connecting Terminal 1 To Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Does only the immobilizer indicator light illuminate? (other indicator lights are in good condition) YE
