Page 425 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1527 is retrieved, go to
next step. If DTC B1527 is not retrieved, an intermittent condition may exist.
3. Disconnect negative batte

step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1527 is retrieved, go to
next step. If DTC B1527 is not retrieved, an intermittent condition may exist.
3. Disconnect negative battery cable. Disconnect passenger-side seat belt buckle
connector D-39. See Fig. 30
. Latch seat belt into seat belt buckle. Measure
resistance between connector D-39, terminals No. 1 and 3. See Fig. 43
.
Resistance should be 800-840 ohms. Resistance between ground and terminal
No. 1 and 3 should be infinite. Unlatch seat belt buckle. Measure resistance
between terminal No. 2 and 3 of connector D-39. Resistance should be 800-
840 ohms. Resistance between ground and terminal No. 2 and 3 should be
infinite. If resistance is as specified, go to next step. If resistance is not as
specified, replace front seat belt buckle. Go to step 6 .
4. Reconnect seat belt buckle connector D-39. Disconnect SRS ECU connector
C-25. See SRS ELECTRONIC CONTROL UNIT (SRS ECU)
under
REMOVAL & INSTALLATION. Measure resistance between SRS ECU
connector C-25, terminal No. 51 (Brown/Red wire) and No. 65 (Orange/Black
wire). See Fig. 33
. If resistance is 738-902 ohms, reconnect SRS components.
Erase, then retrieve DTCs. If DTC B1527 is retrieved, replace SRS ECU. Go to
step 6 . If DTC B1527 is not retrieved, go to next step.
5. Inspect wire harness between SRS ECU connector C-25 and passenger seat
belt buckle connector D-29 for damage. If wires are okay, go to next step. If
wires are not okay, replace wire harness. Go to next step.
6. Erase, then retrieve DTCs. If DTC B1527 is retrieved, go to step 1 . If DTC
B1527 is not retrieved, system is normal at this time.
DTC B1528: SEAT BELT SWITCH (RH) GROUND-SIDE CIRCUIT SHORTED FOR COM
TERMINAL 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1528 is retrieved, go to
next ste
p. If DTC B1528 is not retrieved, an intermittent condition ma
y exist.

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

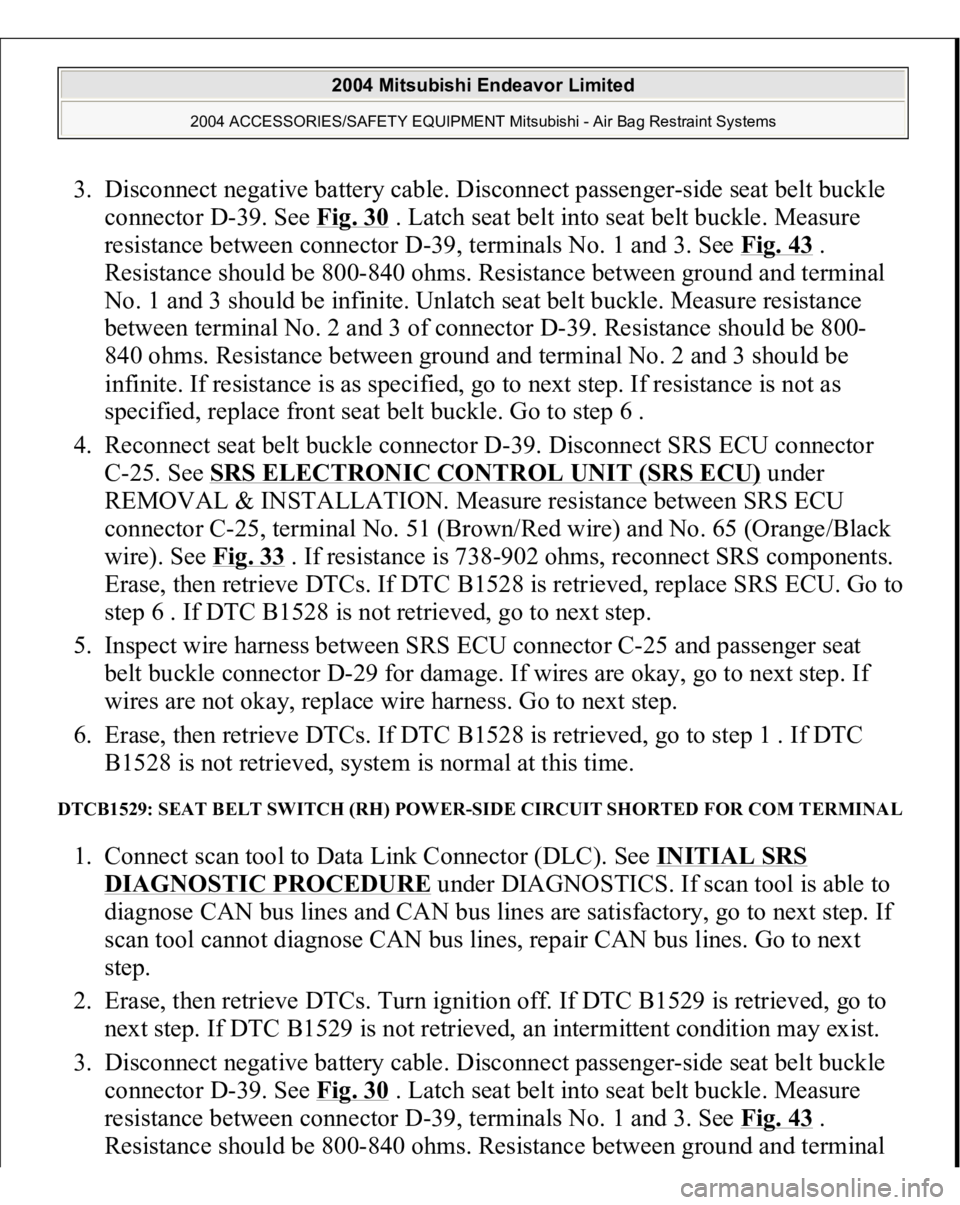

Page 426 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. Disconnect negative battery cable. Disconnect passenger-side seat belt buckle
connector D-39. See Fig. 30
. Latch seat belt into seat belt buckle. Measure
resistance between connector D-39, term

3. Disconnect negative battery cable. Disconnect passenger-side seat belt buckle
connector D-39. See Fig. 30
. Latch seat belt into seat belt buckle. Measure
resistance between connector D-39, terminals No. 1 and 3. See Fig. 43
.
Resistance should be 800-840 ohms. Resistance between ground and terminal
No. 1 and 3 should be infinite. Unlatch seat belt buckle. Measure resistance
between terminal No. 2 and 3 of connector D-39. Resistance should be 800-
840 ohms. Resistance between ground and terminal No. 2 and 3 should be
infinite. If resistance is as specified, go to next step. If resistance is not as
specified, replace front seat belt buckle. Go to step 6 .
4. Reconnect seat belt buckle connector D-39. Disconnect SRS ECU connector
C-25. See SRS ELECTRONIC CONTROL UNIT (SRS ECU)
under
REMOVAL & INSTALLATION. Measure resistance between SRS ECU
connector C-25, terminal No. 51 (Brown/Red wire) and No. 65 (Orange/Black
wire). See Fig. 33
. If resistance is 738-902 ohms, reconnect SRS components.
Erase, then retrieve DTCs. If DTC B1528 is retrieved, replace SRS ECU. Go to
step 6 . If DTC B1528 is not retrieved, go to next step.
5. Inspect wire harness between SRS ECU connector C-25 and passenger seat
belt buckle connector D-29 for damage. If wires are okay, go to next step. If
wires are not okay, replace wire harness. Go to next step.
6. Erase, then retrieve DTCs. If DTC B1528 is retrieved, go to step 1 . If DTC
B1528 is not retrieved, system is normal at this time.
DTCB1529: SEAT BELT SWITCH (RH) POWER-SIDE CIRCUIT SHORTED FOR COM TERMINAL1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1529 is retrieved, go to
next step. If DTC B1529 is not retrieved, an intermittent condition may exist.
3. Disconnect negative battery cable. Disconnect passenger-side seat belt buckle
connector D-39. See Fig. 30
. Latch seat belt into seat belt buckle. Measure
resistance between connector D-39, terminals No. 1 and 3. See Fig. 43
.
Resistance should be 80
0-840 ohms. Resistance between
ground and terminal

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

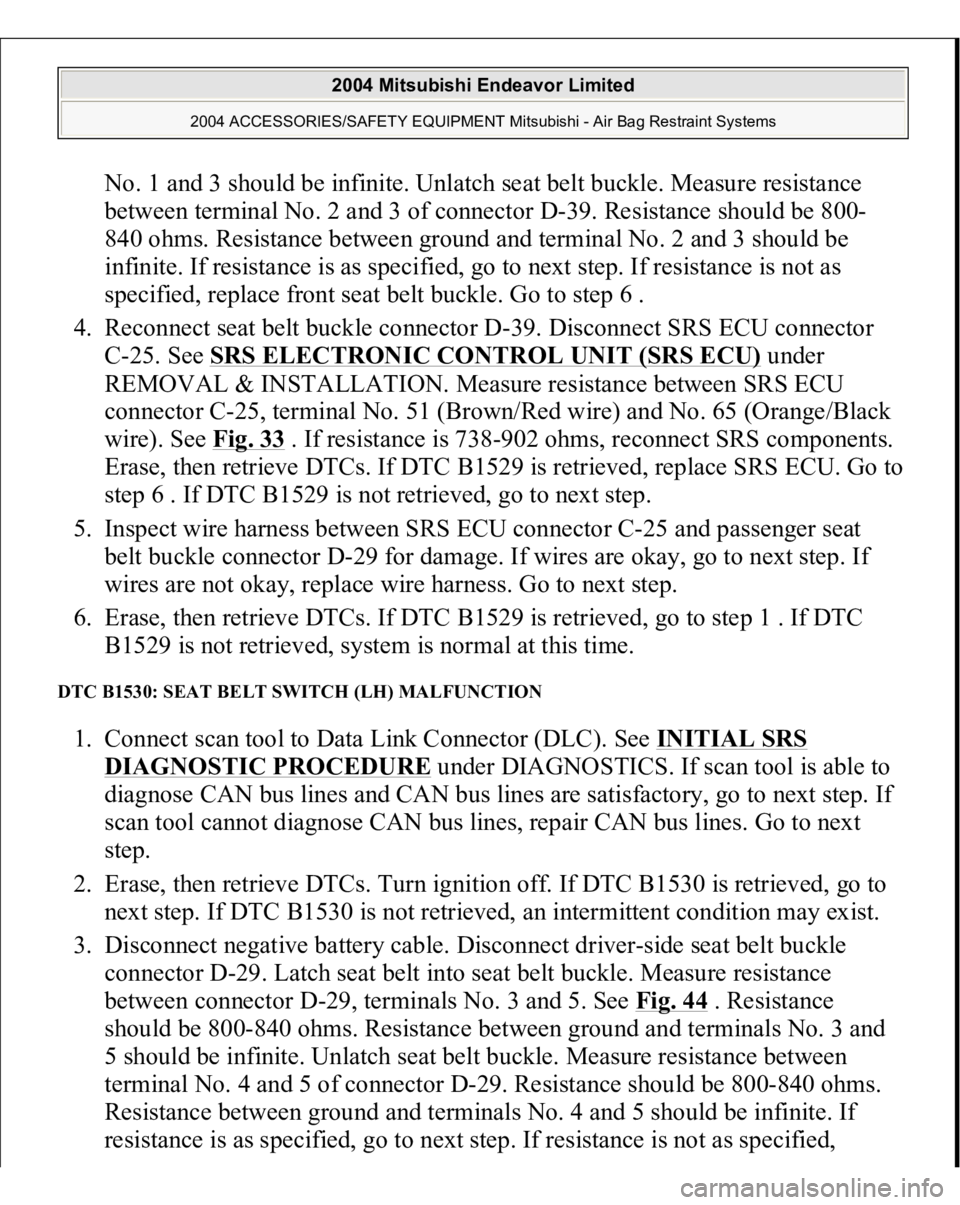

Page 427 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual No. 1 and 3 should be infinite. Unlatch seat belt buckle. Measure resistance
between terminal No. 2 and 3 of connector D-39. Resistance should be 800-
840 ohms. Resistance between ground and terminal

No. 1 and 3 should be infinite. Unlatch seat belt buckle. Measure resistance
between terminal No. 2 and 3 of connector D-39. Resistance should be 800-
840 ohms. Resistance between ground and terminal No. 2 and 3 should be
infinite. If resistance is as specified, go to next step. If resistance is not as
specified, replace front seat belt buckle. Go to step 6 .
4. Reconnect seat belt buckle connector D-39. Disconnect SRS ECU connector
C-25. See SRS ELECTRONIC CONTROL UNIT (SRS ECU)
under
REMOVAL & INSTALLATION. Measure resistance between SRS ECU
connector C-25, terminal No. 51 (Brown/Red wire) and No. 65 (Orange/Black
wire). See Fig. 33
. If resistance is 738-902 ohms, reconnect SRS components.
Erase, then retrieve DTCs. If DTC B1529 is retrieved, replace SRS ECU. Go to
step 6 . If DTC B1529 is not retrieved, go to next step.
5. Inspect wire harness between SRS ECU connector C-25 and passenger seat
belt buckle connector D-29 for damage. If wires are okay, go to next step. If
wires are not okay, replace wire harness. Go to next step.
6. Erase, then retrieve DTCs. If DTC B1529 is retrieved, go to step 1 . If DTC
B1529 is not retrieved, system is normal at this time.
DTC B1530: SEAT BELT SWITCH (LH) MALFUNCTION 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1530 is retrieved, go to
next step. If DTC B1530 is not retrieved, an intermittent condition may exist.

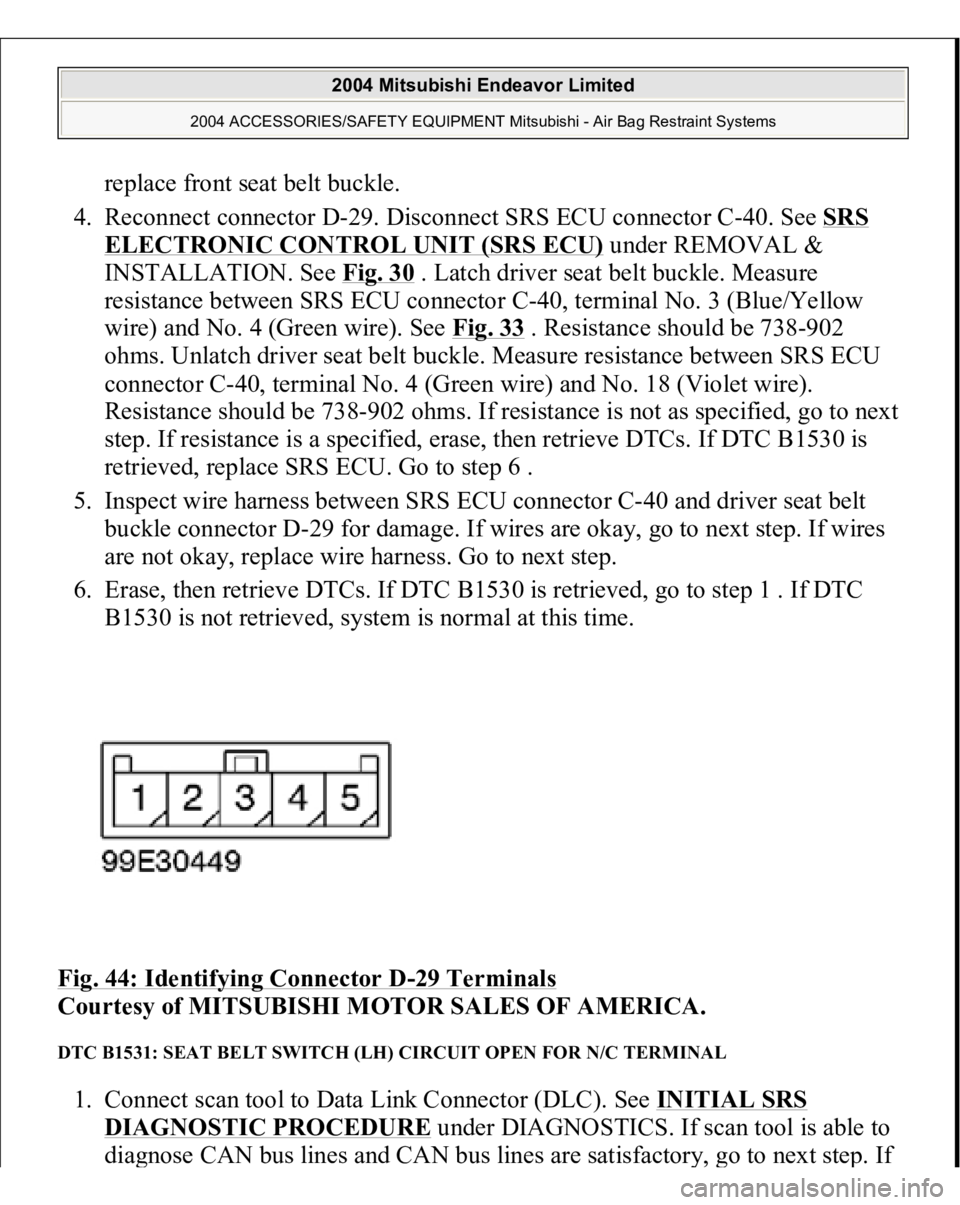

3. Disconnect negative battery cable. Disconnect driver-side seat belt buckle
connector D-29. Latch seat belt into seat belt buckle. Measure resistance
between connector D-29, terminals No. 3 and 5. See Fig. 44
. Resistance
should be 800-840 ohms. Resistance between ground and terminals No. 3 and
5 should be infinite. Unlatch seat belt buckle. Measure resistance between
terminal No. 4 and 5 of connector D-29. Resistance should be 800-840 ohms.
Resistance between ground and terminals No. 4 and 5 should be infinite. If
resistance is as s
pecified,
go to next ste
p. If resistance is not as s
pecified,

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

Page 428 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual replace front seat belt buckle.
4. Reconnect connector D-29. Disconnect SRS ECU connector C-40. See SRS ELECTRONIC CONTROL UNIT (SRS ECU)
under REMOVAL &
INSTALLATION. See Fig. 30
. Latch driver

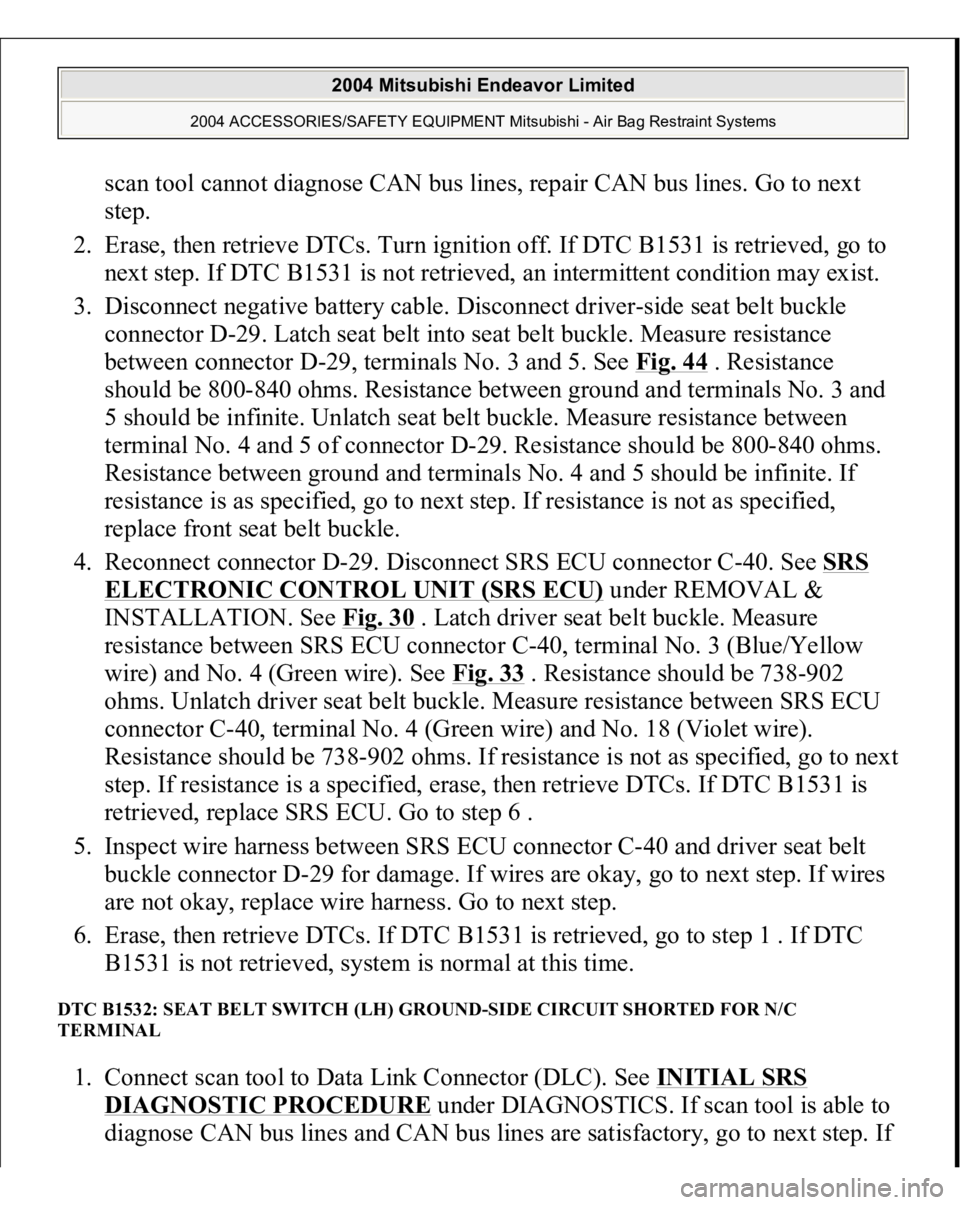

Page 429 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1531 is retrieved, go to
next step. If DTC B1531 is not ret

scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1531 is retrieved, go to
next step. If DTC B1531 is not retrieved, an intermittent condition may exist.
3. Disconnect negative battery cable. Disconnect driver-side seat belt buckle
connector D-29. Latch seat belt into seat belt buckle. Measure resistance
between connector D-29, terminals No. 3 and 5. See Fig. 44
. Resistance
should be 800-840 ohms. Resistance between ground and terminals No. 3 and
5 should be infinite. Unlatch seat belt buckle. Measure resistance between
terminal No. 4 and 5 of connector D-29. Resistance should be 800-840 ohms.
Resistance between ground and terminals No. 4 and 5 should be infinite. If
resistance is as specified, go to next step. If resistance is not as specified,
replace front seat belt buckle.
4. Reconnect connector D-29. Disconnect SRS ECU connector C-40. See SRS
ELECTRONIC CONTROL UNIT (SRS ECU)
under REMOVAL &
INSTALLATION. See Fig. 30
. Latch driver seat belt buckle. Measure
resistance between SRS ECU connector C-40, terminal No. 3 (Blue/Yellow
wire) and No. 4 (Green wire). See Fig. 33
. Resistance should be 738-902
ohms. Unlatch driver seat belt buckle. Measure resistance between SRS ECU
connector C-40, terminal No. 4 (Green wire) and No. 18 (Violet wire).
Resistance should be 738-902 ohms. If resistance is not as specified, go to next
step. If resistance is a specified, erase, then retrieve DTCs. If DTC B1531 is
retrieved, replace SRS ECU. Go to step 6 .
5. Inspect wire harness between SRS ECU connector C-40 and driver seat belt
buckle connector D-29 for damage. If wires are okay, go to next step. If wires
are not okay, replace wire harness. Go to next step.
6. Erase, then retrieve DTCs. If DTC B1531 is retrieved, go to step 1 . If DTC
B1531 is not retrieved, system is normal at this time.
DTC B1532: SEAT BELT SWITCH (LH) GROUND-SIDE CIRCUIT SHORTED FOR N/C
TERMINAL 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satis
factory, go to next step. If

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

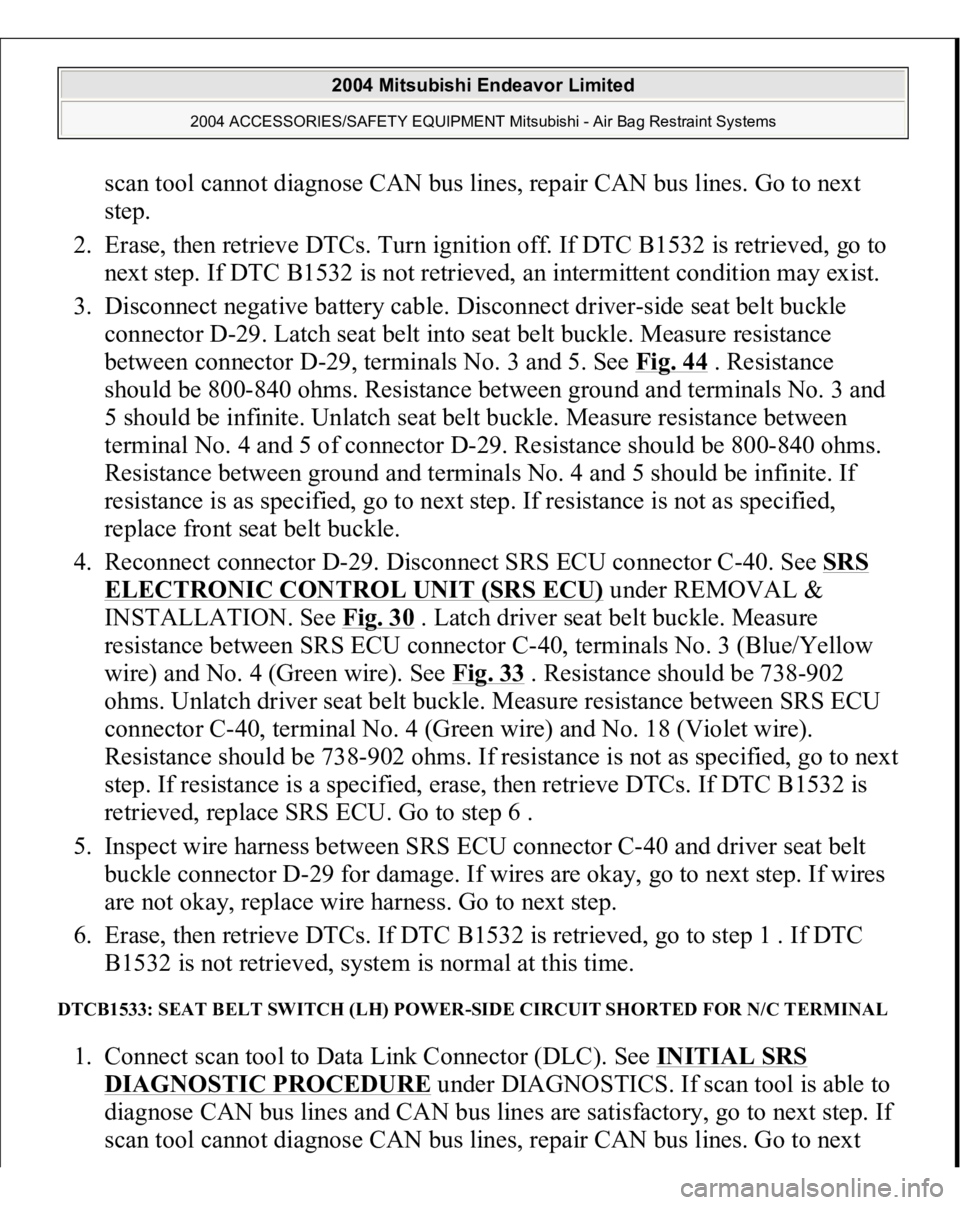

Page 430 of 3870

scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1532 is retrieved, go to
next step. If DTC B1532 is not retrieved, an intermittent condition may exist.
3. Disconnect negative battery cable. Disconnect driver-side seat belt buckle
connector D-29. Latch seat belt into seat belt buckle. Measure resistance
between connector D-29, terminals No. 3 and 5. See Fig. 44
. Resistance
should be 800-840 ohms. Resistance between ground and terminals No. 3 and
5 should be infinite. Unlatch seat belt buckle. Measure resistance between
terminal No. 4 and 5 of connector D-29. Resistance should be 800-840 ohms.
Resistance between ground and terminals No. 4 and 5 should be infinite. If
resistance is as specified, go to next step. If resistance is not as specified,
replace front seat belt buckle.
4. Reconnect connector D-29. Disconnect SRS ECU connector C-40. See SRS
ELECTRONIC CONTROL UNIT (SRS ECU)
under REMOVAL &
INSTALLATION. See Fig. 30
. Latch driver seat belt buckle. Measure
resistance between SRS ECU connector C-40, terminals No. 3 (Blue/Yellow
wire) and No. 4 (Green wire). See Fig. 33
. Resistance should be 738-902
ohms. Unlatch driver seat belt buckle. Measure resistance between SRS ECU
connector C-40, terminal No. 4 (Green wire) and No. 18 (Violet wire).
Resistance should be 738-902 ohms. If resistance is not as specified, go to next
step. If resistance is a specified, erase, then retrieve DTCs. If DTC B1532 is
retrieved, replace SRS ECU. Go to step 6 .
5. Inspect wire harness between SRS ECU connector C-40 and driver seat belt
buckle connector D-29 for damage. If wires are okay, go to next step. If wires
are not okay, replace wire harness. Go to next step.
6. Erase, then retrieve DTCs. If DTC B1532 is retrieved, go to step 1 . If DTC
B1532 is not retrieved, system is normal at this time.
DTCB1533: SEAT BELT SWITCH (LH) POWER-SIDE CIRCUIT SHORTED FOR N/C TERMINAL 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot dia
gnose CAN bus lines, re
pair CAN bus lines. Go to next

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

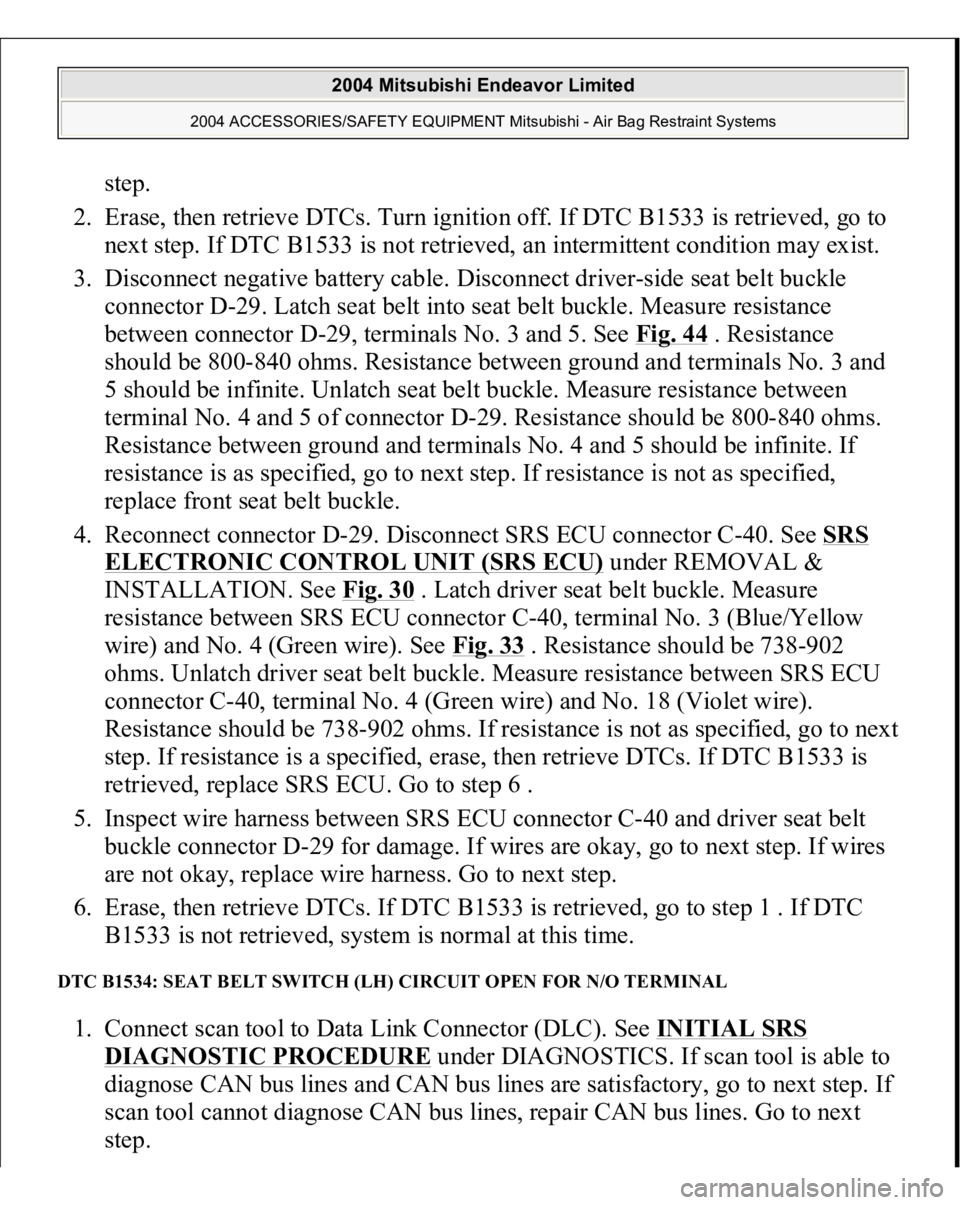

Page 431 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1533 is retrieved, go to
next step. If DTC B1533 is not retrieved, an intermittent condition may exist.
3. Disconnect negative batte

step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1533 is retrieved, go to
next step. If DTC B1533 is not retrieved, an intermittent condition may exist.
3. Disconnect negative battery cable. Disconnect driver-side seat belt buckle
connector D-29. Latch seat belt into seat belt buckle. Measure resistance
between connector D-29, terminals No. 3 and 5. See Fig. 44
. Resistance
should be 800-840 ohms. Resistance between ground and terminals No. 3 and
5 should be infinite. Unlatch seat belt buckle. Measure resistance between
terminal No. 4 and 5 of connector D-29. Resistance should be 800-840 ohms.
Resistance between ground and terminals No. 4 and 5 should be infinite. If
resistance is as specified, go to next step. If resistance is not as specified,
replace front seat belt buckle.
4. Reconnect connector D-29. Disconnect SRS ECU connector C-40. See SRS
ELECTRONIC CONTROL UNIT (SRS ECU)
under REMOVAL &
INSTALLATION. See Fig. 30
. Latch driver seat belt buckle. Measure
resistance between SRS ECU connector C-40, terminal No. 3 (Blue/Yellow
wire) and No. 4 (Green wire). See Fig. 33
. Resistance should be 738-902
ohms. Unlatch driver seat belt buckle. Measure resistance between SRS ECU
connector C-40, terminal No. 4 (Green wire) and No. 18 (Violet wire).
Resistance should be 738-902 ohms. If resistance is not as specified, go to next
step. If resistance is a specified, erase, then retrieve DTCs. If DTC B1533 is
retrieved, replace SRS ECU. Go to step 6 .
5. Inspect wire harness between SRS ECU connector C-40 and driver seat belt
buckle connector D-29 for damage. If wires are okay, go to next step. If wires
are not okay, replace wire harness. Go to next step.
6. Erase, then retrieve DTCs. If DTC B1533 is retrieved, go to step 1 . If DTC
B1533 is not retrieved, system is normal at this time.
DTC B1534: SEAT BELT SWITCH (LH) CIRCUIT OPEN FOR N/O TERMINAL 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
ste
p.

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

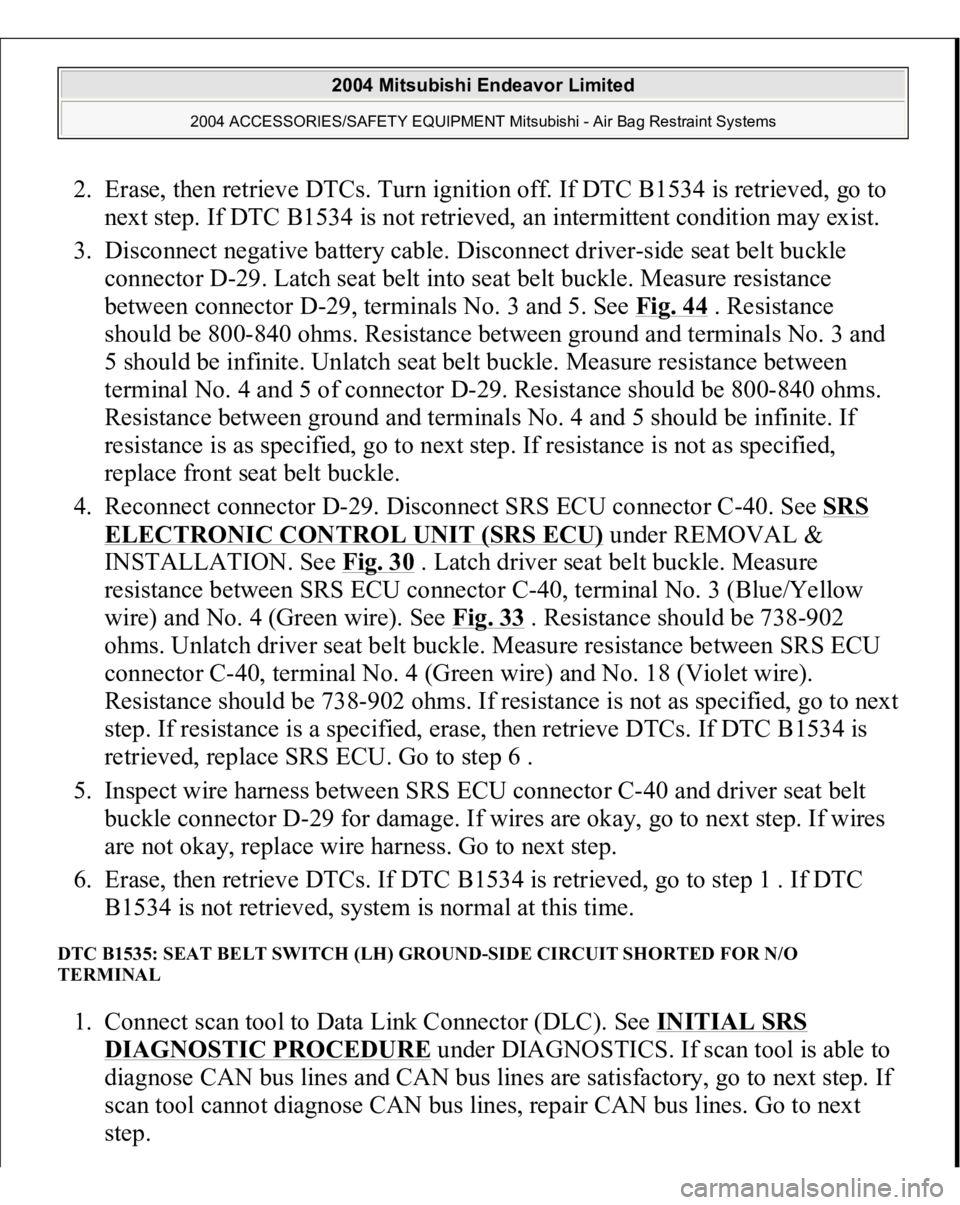

Page 432 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1534 is retrieved, go to
next step. If DTC B1534 is not retrieved, an intermittent condition may exist.
3. Disconnect negative battery cable

2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1534 is retrieved, go to
next step. If DTC B1534 is not retrieved, an intermittent condition may exist.
3. Disconnect negative battery cable. Disconnect driver-side seat belt buckle
connector D-29. Latch seat belt into seat belt buckle. Measure resistance
between connector D-29, terminals No. 3 and 5. See Fig. 44
. Resistance
should be 800-840 ohms. Resistance between ground and terminals No. 3 and
5 should be infinite. Unlatch seat belt buckle. Measure resistance between
terminal No. 4 and 5 of connector D-29. Resistance should be 800-840 ohms.
Resistance between ground and terminals No. 4 and 5 should be infinite. If
resistance is as specified, go to next step. If resistance is not as specified,
replace front seat belt buckle.
4. Reconnect connector D-29. Disconnect SRS ECU connector C-40. See SRS
ELECTRONIC CONTROL UNIT (SRS ECU)
under REMOVAL &
INSTALLATION. See Fig. 30
. Latch driver seat belt buckle. Measure
resistance between SRS ECU connector C-40, terminal No. 3 (Blue/Yellow
wire) and No. 4 (Green wire). See Fig. 33
. Resistance should be 738-902
ohms. Unlatch driver seat belt buckle. Measure resistance between SRS ECU
connector C-40, terminal No. 4 (Green wire) and No. 18 (Violet wire).
Resistance should be 738-902 ohms. If resistance is not as specified, go to next
step. If resistance is a specified, erase, then retrieve DTCs. If DTC B1534 is
retrieved, replace SRS ECU. Go to step 6 .
5. Inspect wire harness between SRS ECU connector C-40 and driver seat belt
buckle connector D-29 for damage. If wires are okay, go to next step. If wires
are not okay, replace wire harness. Go to next step.
6. Erase, then retrieve DTCs. If DTC B1534 is retrieved, go to step 1 . If DTC
B1534 is not retrieved, system is normal at this time.
DTC B1535: SEAT BELT SWITCH (LH) GROUND-SIDE CIRCUIT SHORTED FOR N/O
TERMINAL 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

Load next 8 pages

Page: < prev 1-10 ... 393-400 401-408 409-416 417-424 425-432 433-440 441-448 449-456 457-464 ... 3872 next >

radiator cap spare tire location tire type steering airbag off android auto
