Page 305 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DUAL-STAGE AIR BAG SYSTE M DTC Possible Cause B1400 Driver-side air bag first-stage short circuit B1401 Driver-side air bag module first-stage open circuit B1402 Driver-side air bag module firs

Page 306 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual B1430 Side impact air bag module (LH) short circuit B1431 Side impact air bag module (LH) open circuit B1432 Side impact air bag module (LH) circuit short to voltage B1433 Side impact air bag

Page 307 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual B1481 Driver-side air bag module second-stage open circuit B1482 Driver-side air bag module second-stage short to voltage B1483 Driver-side air bag module second-stage short to ground B1484 Dr

Page 308 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual B1523 Seat belt switch (RH) power-side circuit shorted for N/C terminal B1524 Seat belt switch (RH) circuit open for N/O terminal B1525 Seat belt switch (RH) ground-side circuit shorted for N/O

Page 309 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DIAGNOSTIC TESTS INSPECTION PROCEDURE 1 No communication between scan tool and all systems is most likely in power supply or ground circuits to Data Link Connector (DLC). Check wire harness and conn

Page 310 of 3870

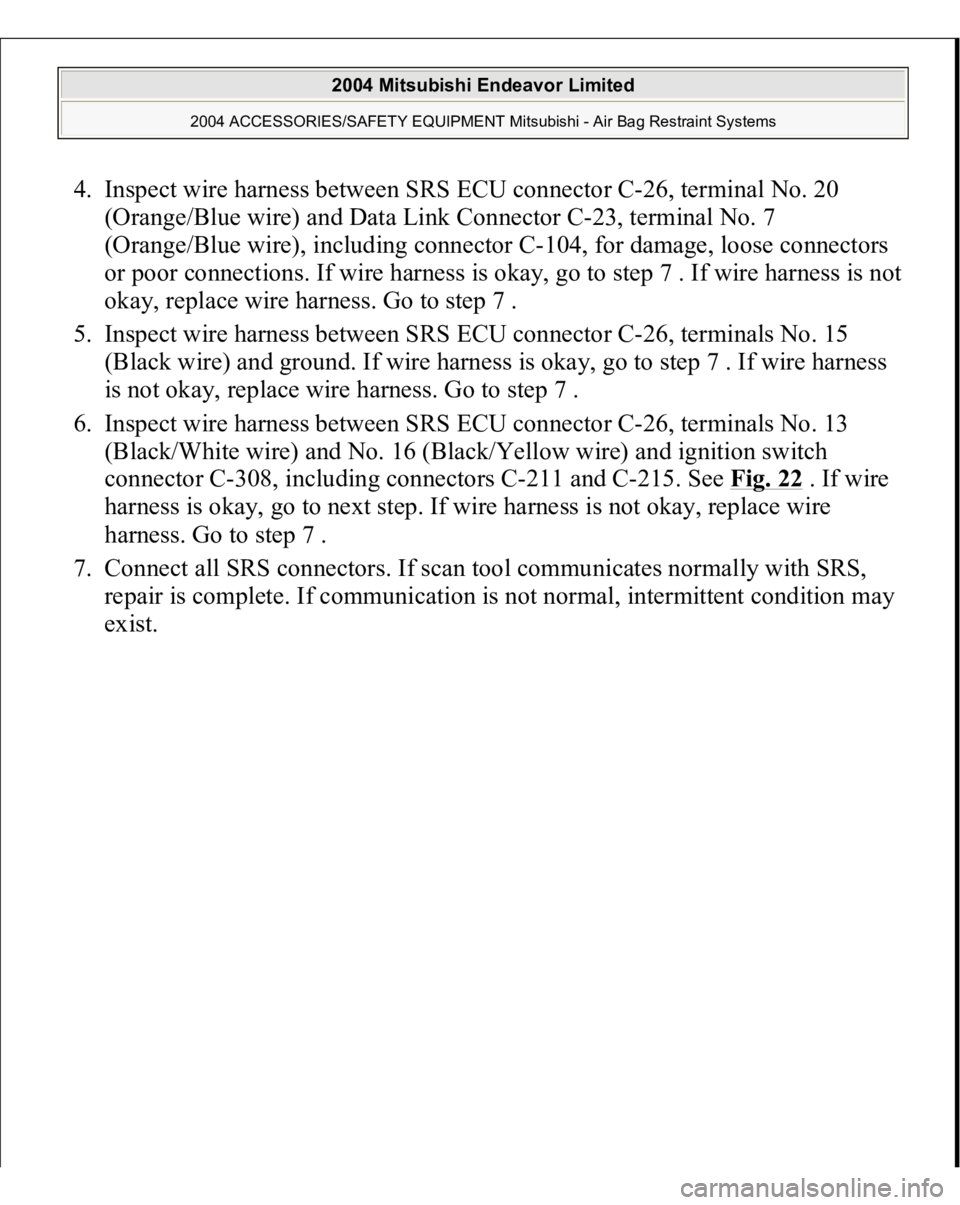

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 4. Inspect wire harness between SRS ECU connector C-26, terminal No. 20 (Orange/Blue wire) and Data Link Connector C-23, terminal No. 7 (Orange/Blue wire), including connector C-104, for damage, loo

Page 311 of 3870

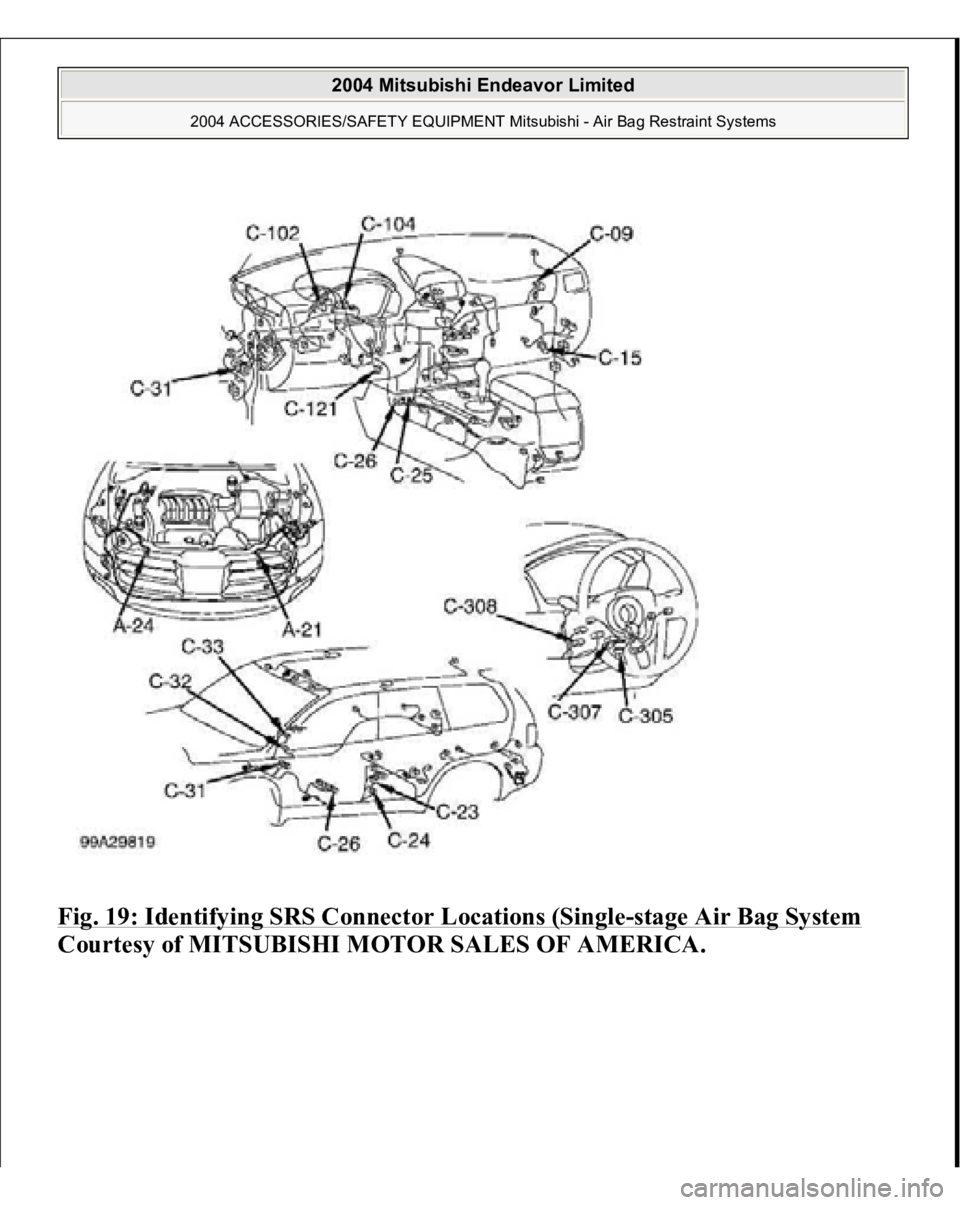

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 19: Identifying SRS Connector Locations (Single -stage Air Bag System Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limited 2004 ACCESSORIES/SAFETY EQUIPMENT Mitsub

Page 312 of 3870

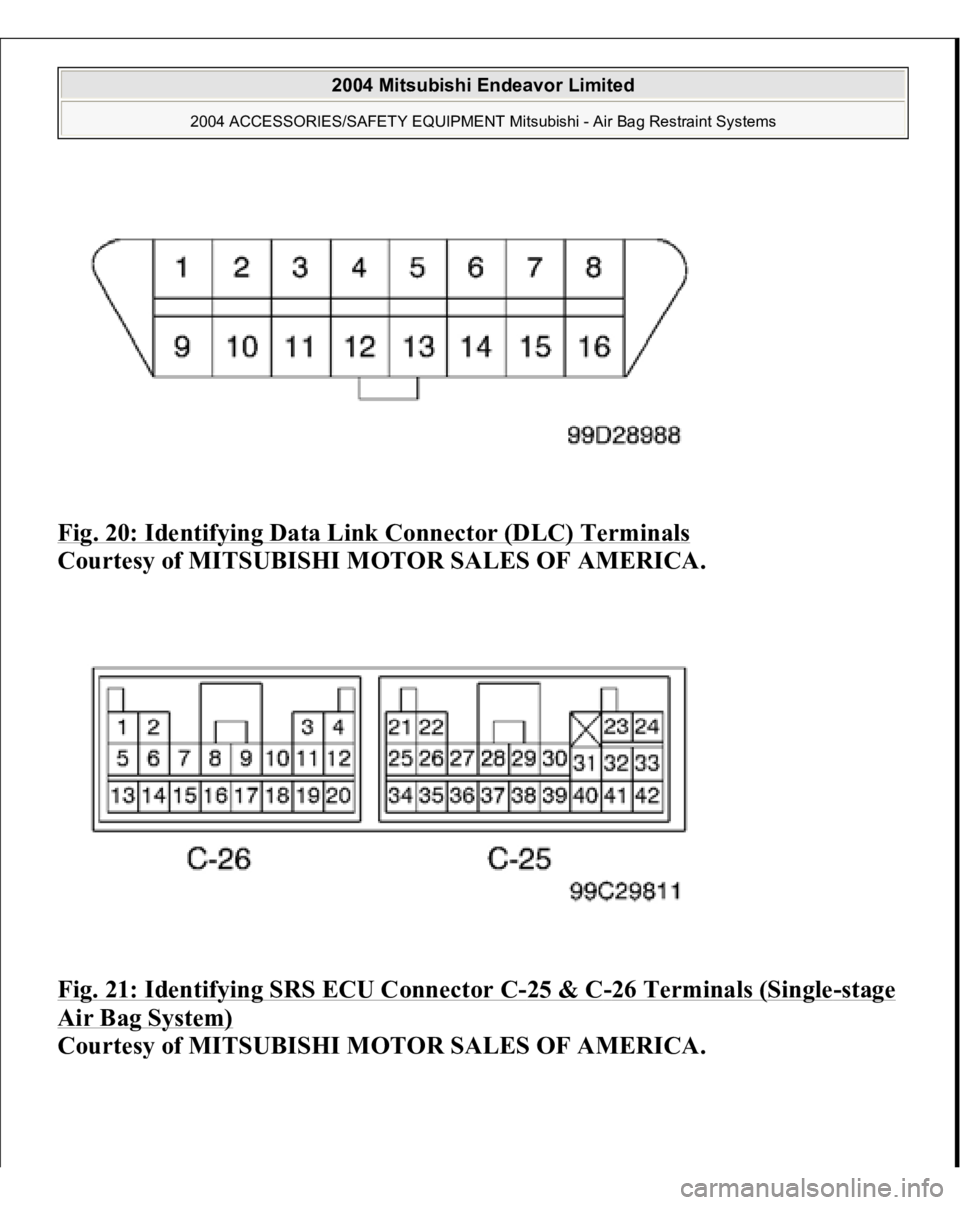

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 20: Identifying Data Link Connector (DLC) Terminals Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 21: Identifying SRS ECU Connector C -25 & C -26 Terminals (Single -stage Air Bag System
