Page 3257 of 3870

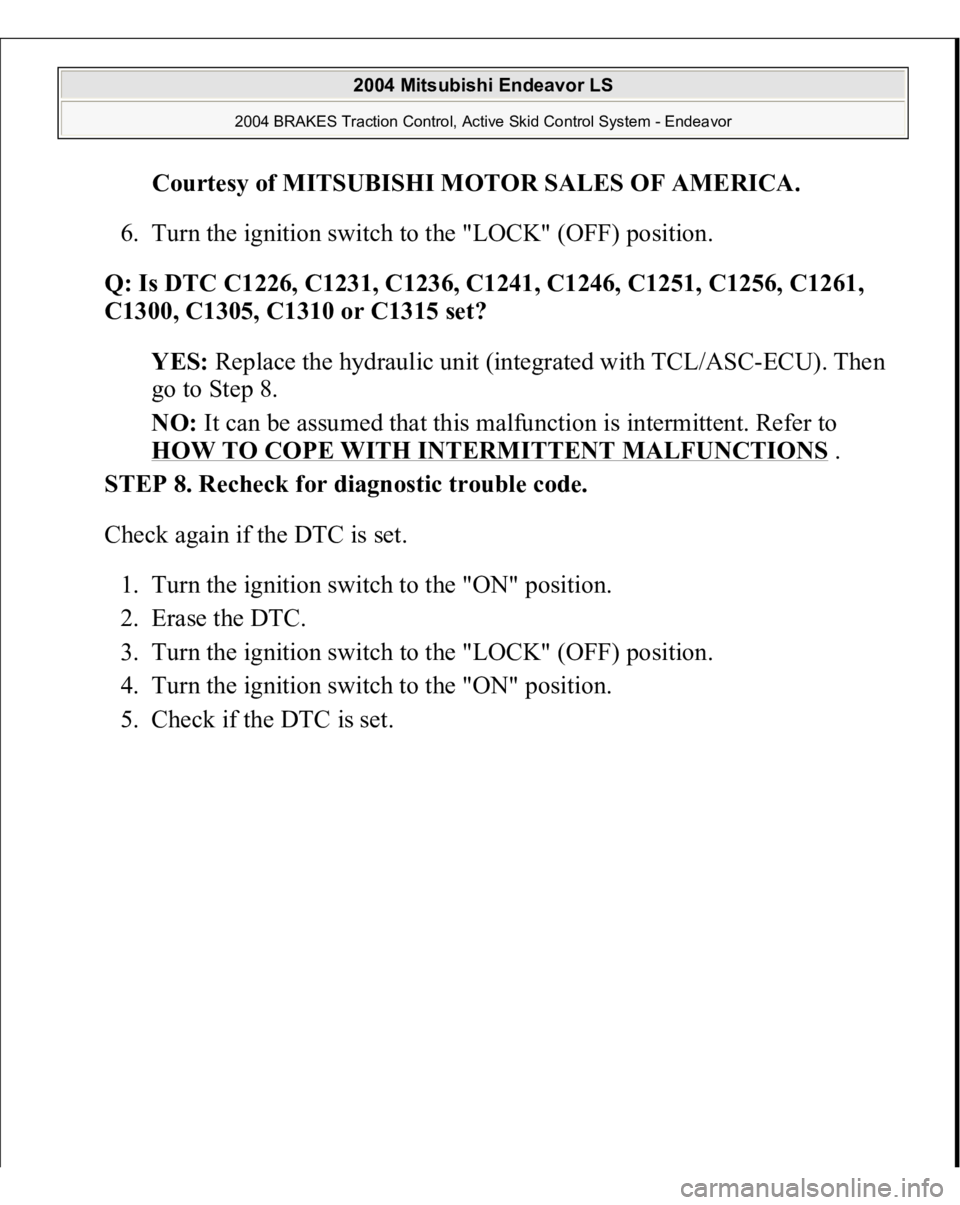

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1226, C1231, C1236, C1241, C1246, C1251, C1256, C1261, C1300, C1305, C1

Page 3258 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 104: Rechecking For Diagnostic Trouble Code Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3259 of 3870

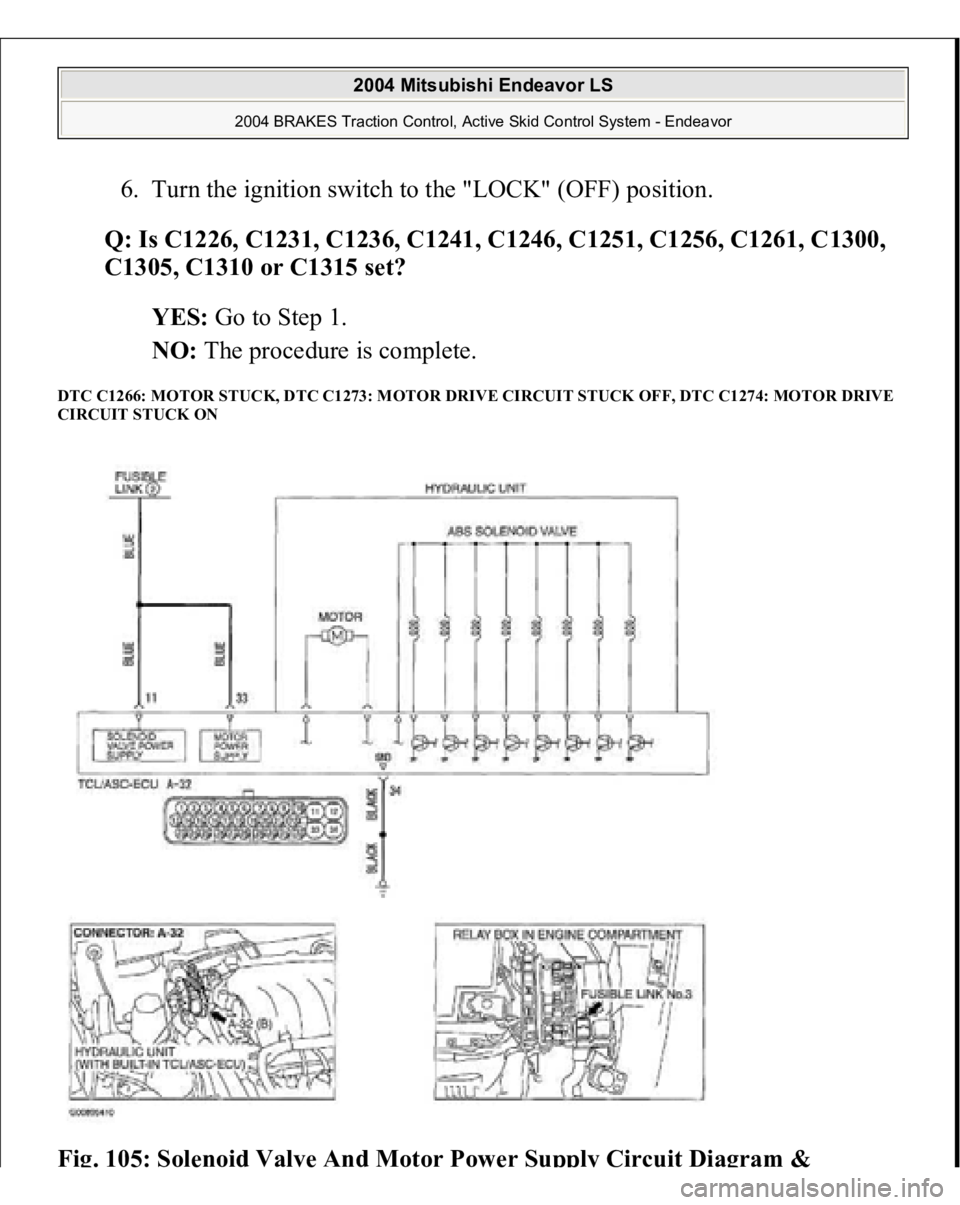

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is C1226, C1231, C1236, C1241, C1246, C1251, C1256, C1261, C1300, C1305, C1310 or C1315 set? YES: Go to Step 1. NO: The proc

Page 3260 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Connector Identificatio n Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CIRCUIT OPERATION The TCL/ASC-ECU contains the power supply circuit (terminal 33) for the pump motor. The pump motor is ene

Page 3261 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Current trouble Damaged wiring harness or connector Malfunction of the hydraulic unit (integrated with TCL/ASC-ECU) Past trouble Carry out diagnosis with particular emphasis on connector(s) or wi

Page 3262 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 106: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3263 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus line. 4. Turn the ignition switch to the "LOCK" (OFF) pos

Page 3264 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 107: Rechecking For Diagnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor
