Page 497 of 3870

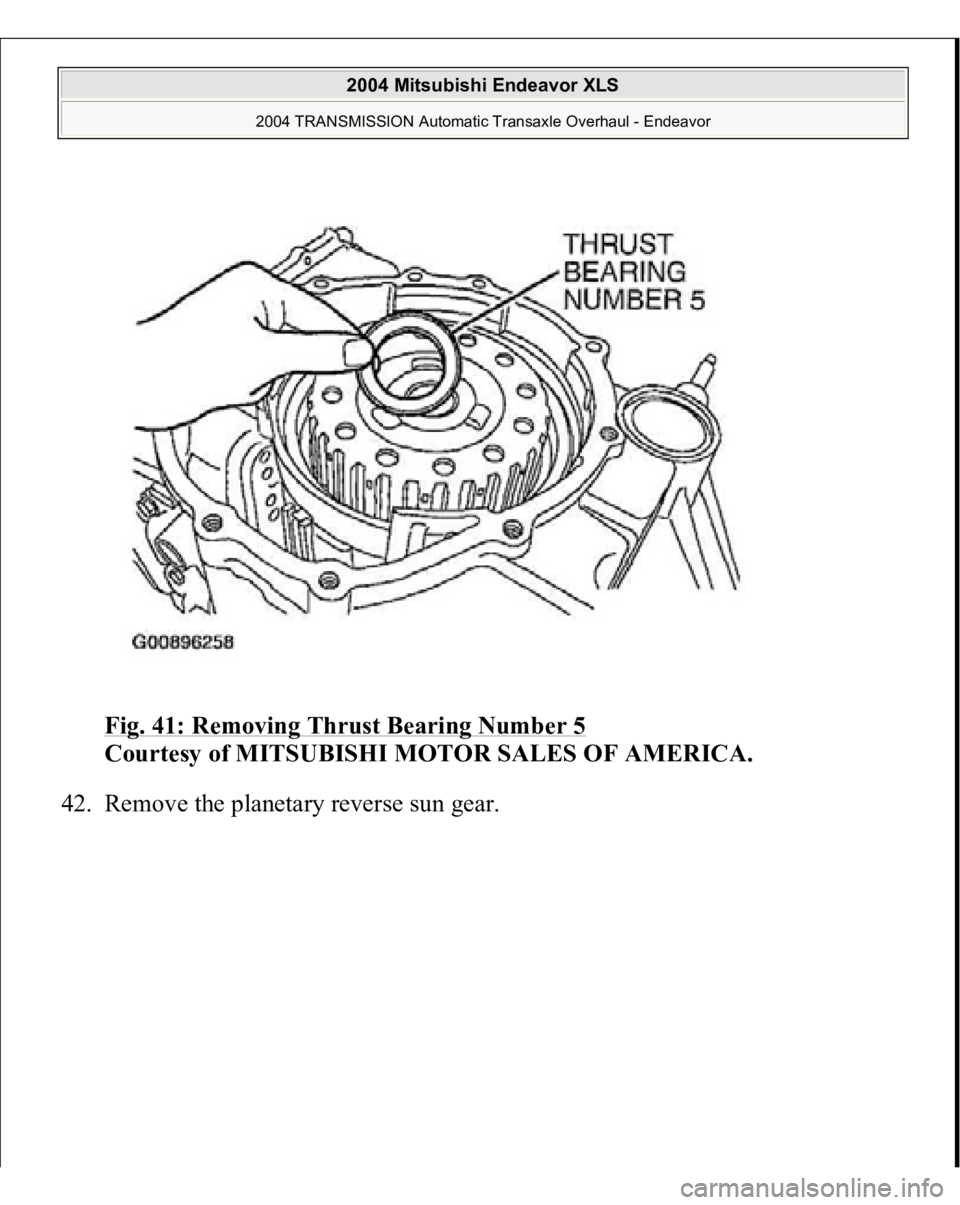

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 41: Removing Thrust Bearing Number 5 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 42. Remove the planetary reverse sun gear. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Tran

Page 498 of 3870

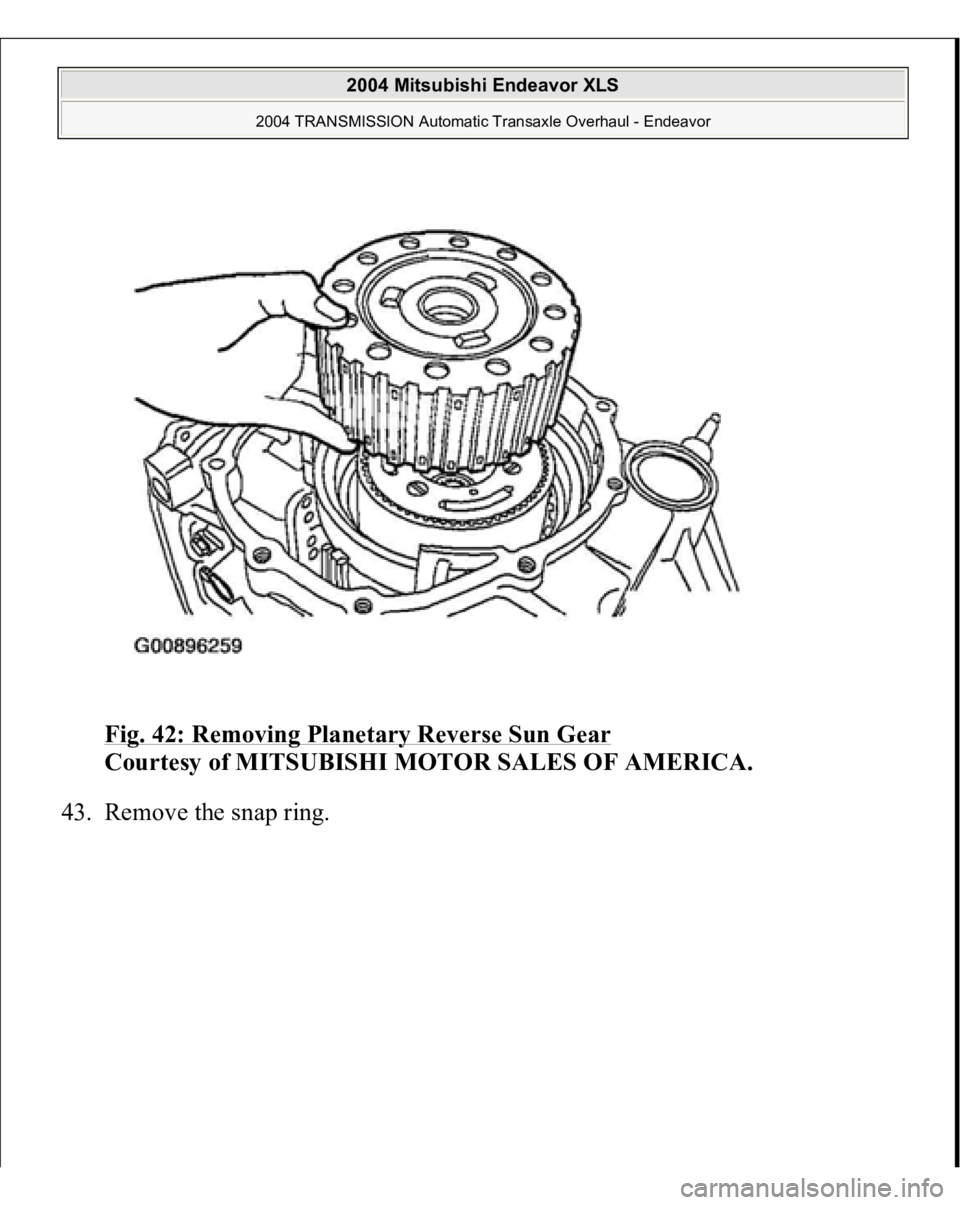

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 42: Removing Planetary Reverse Sun Gear Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 43. Remove the snap ring. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul

Page 499 of 3870

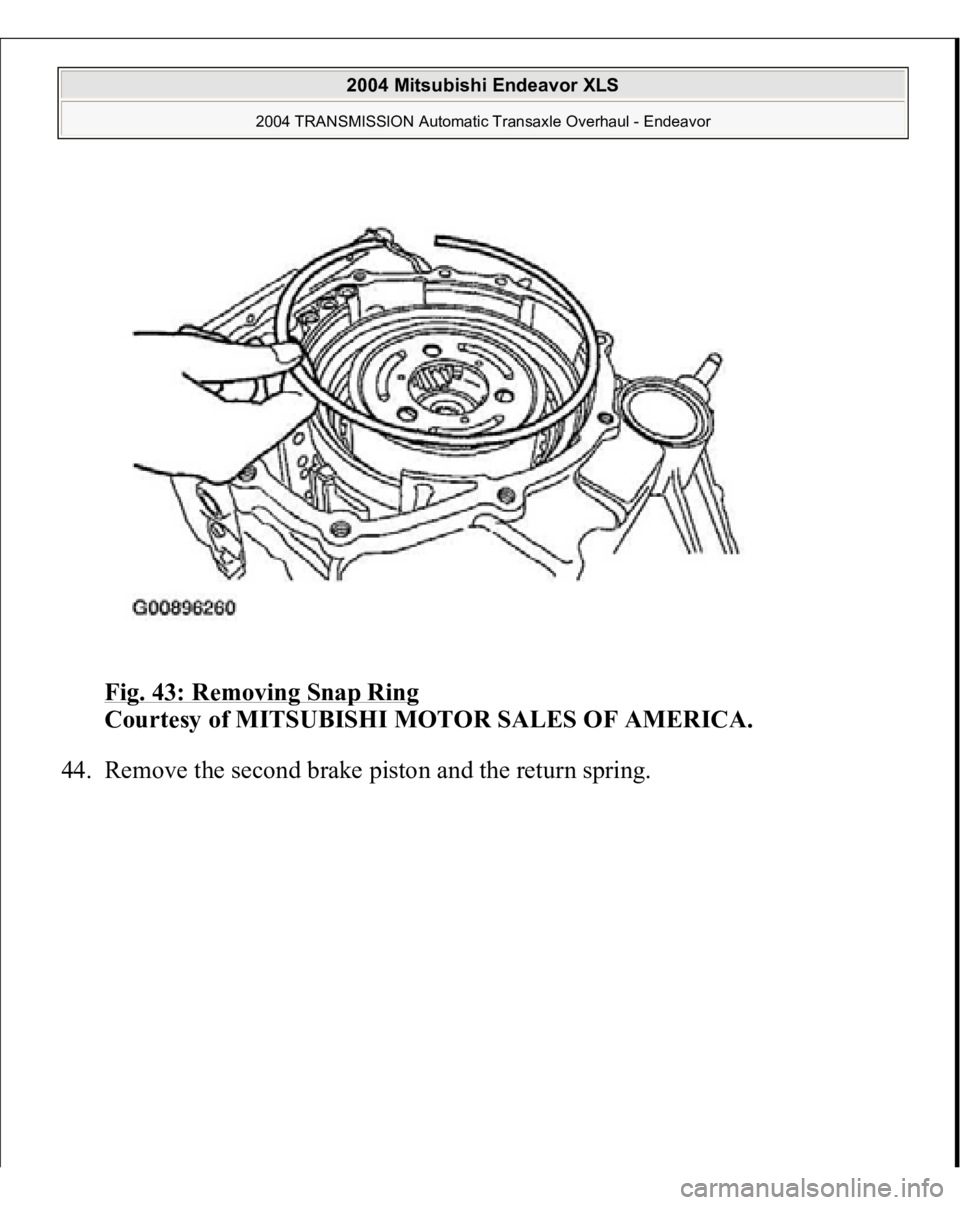

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 43: Removing Snap Ring Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 44. Remove the second brake piston and the return s prin g. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic

Page 500 of 3870

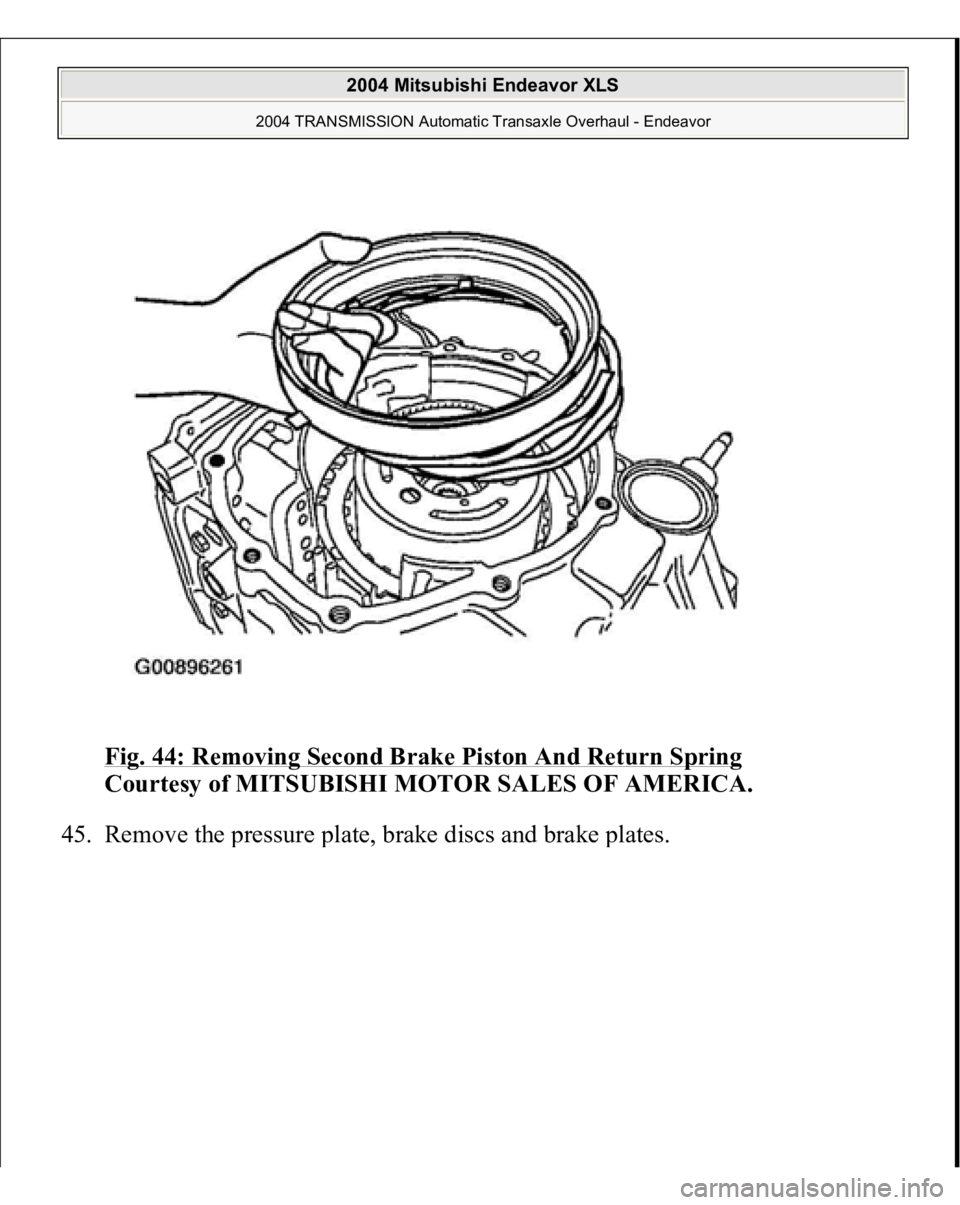

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 44: Removing Second Brake Piston And Return Spring Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 45. Remove the pressure plate, brake discs and brake plates. 2004 Mitsubishi Endeavor XL

Page 501 of 3870

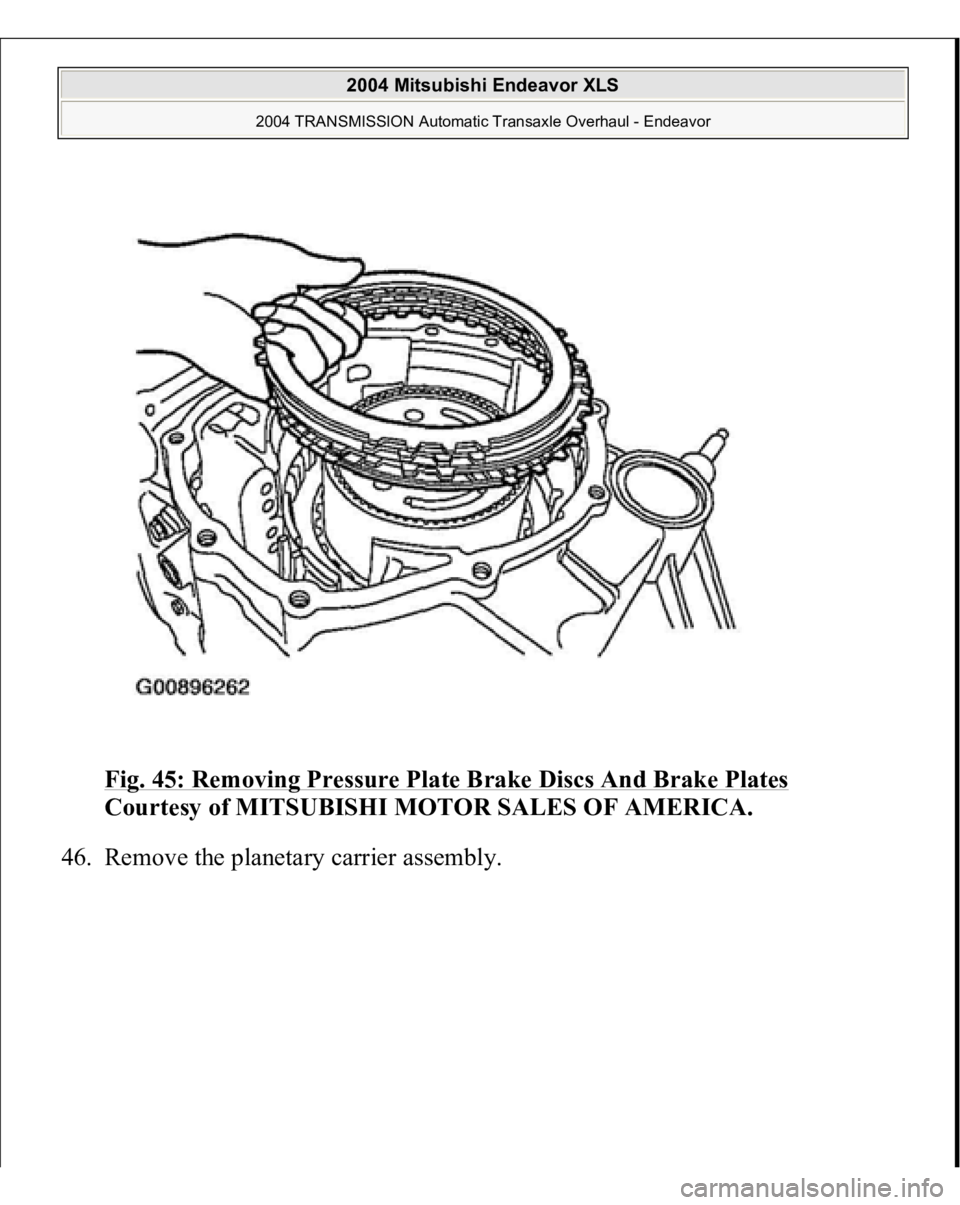

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 45: Removing Pressure Plate Brake Discs And Brake Plates Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 46. Remove the planetar y carrier assembl y. 2004 Mitsubishi Endeavor XLS 2004 TRAN

Page 502 of 3870

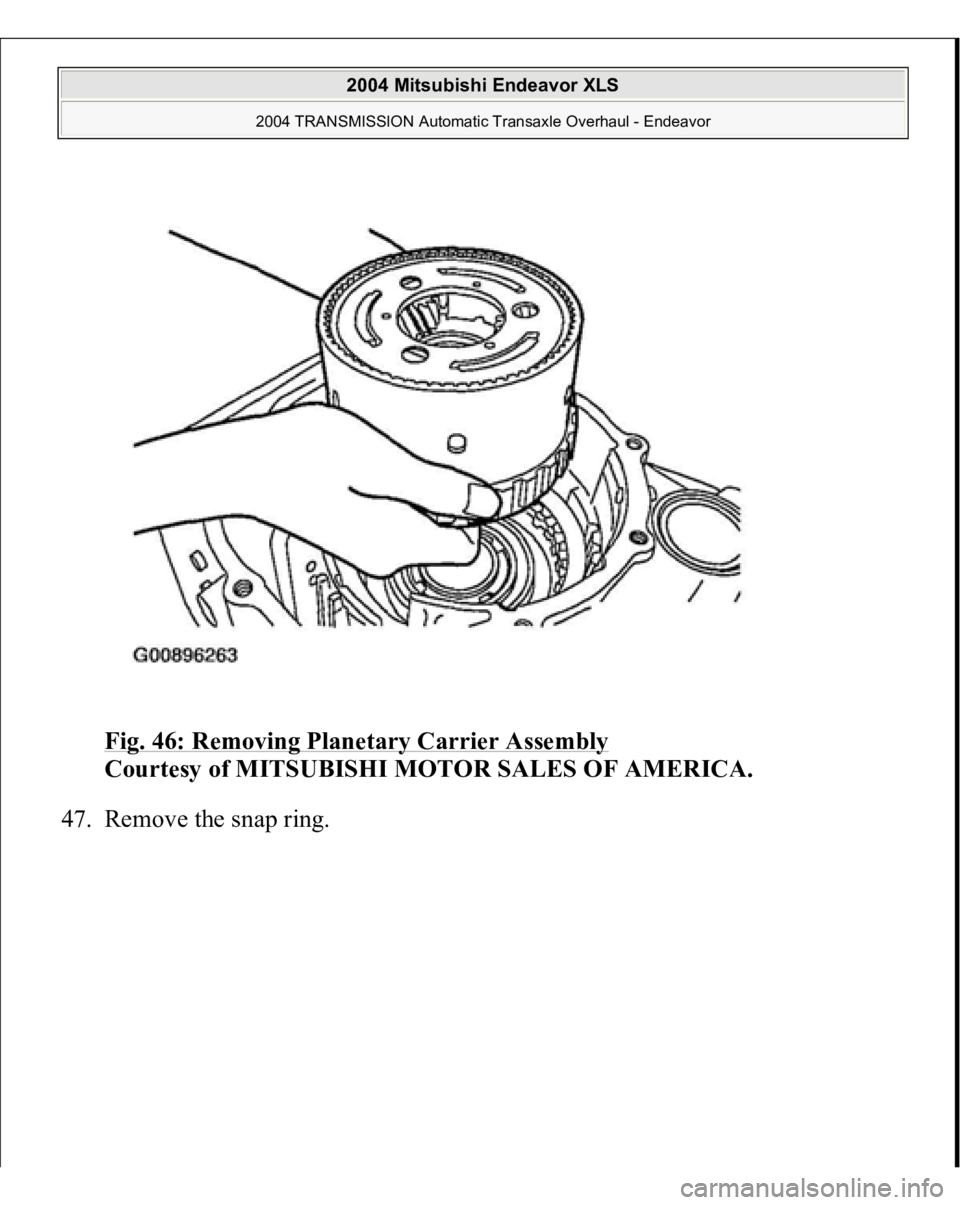

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 46: Removing Planetary Carrier Assembly Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 47. Remove the sna p rin g. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overha

Page 503 of 3870

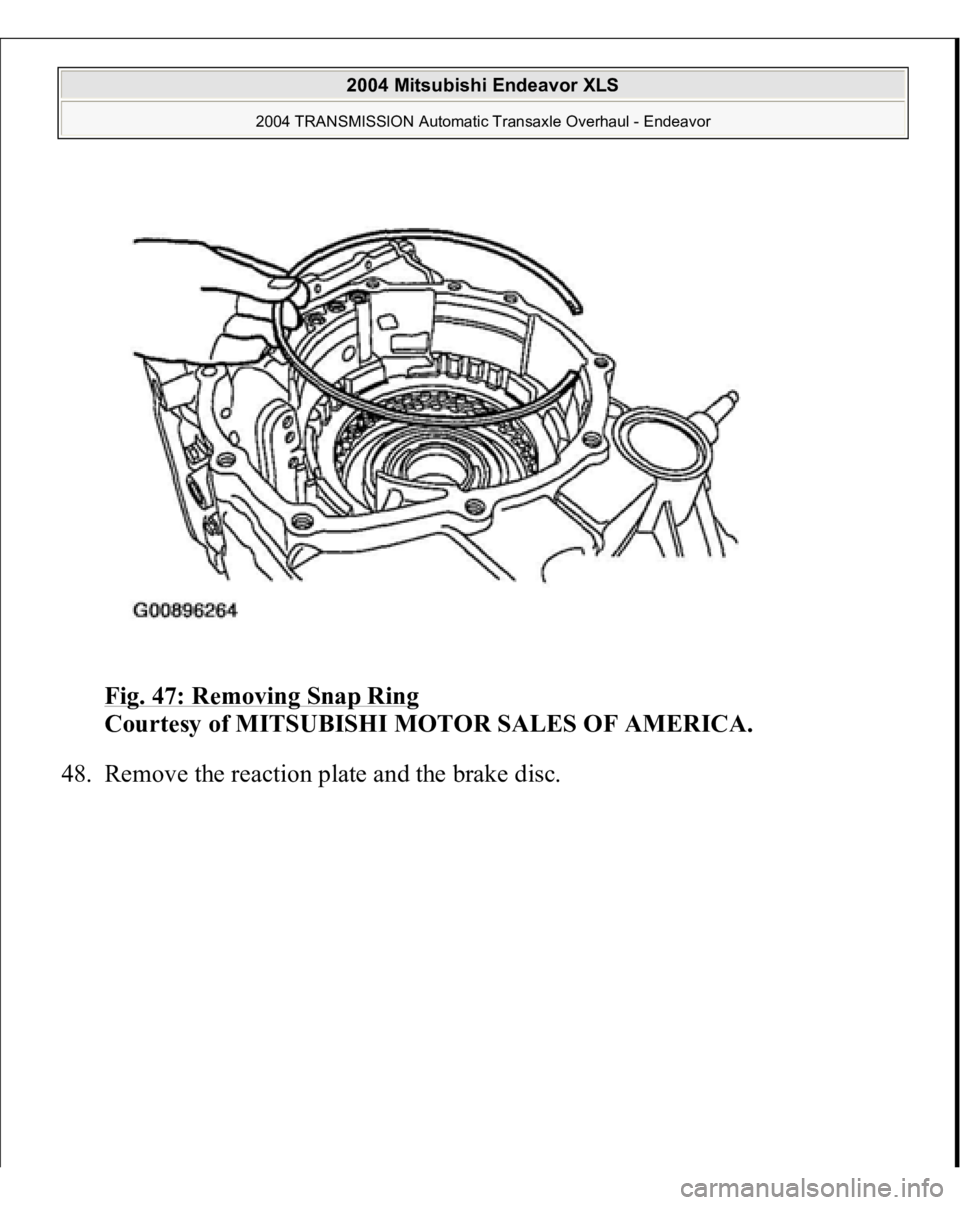

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 47: Removing Snap Ring Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 48. Remove the reaction plate and the brake disc. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle

Page 504 of 3870

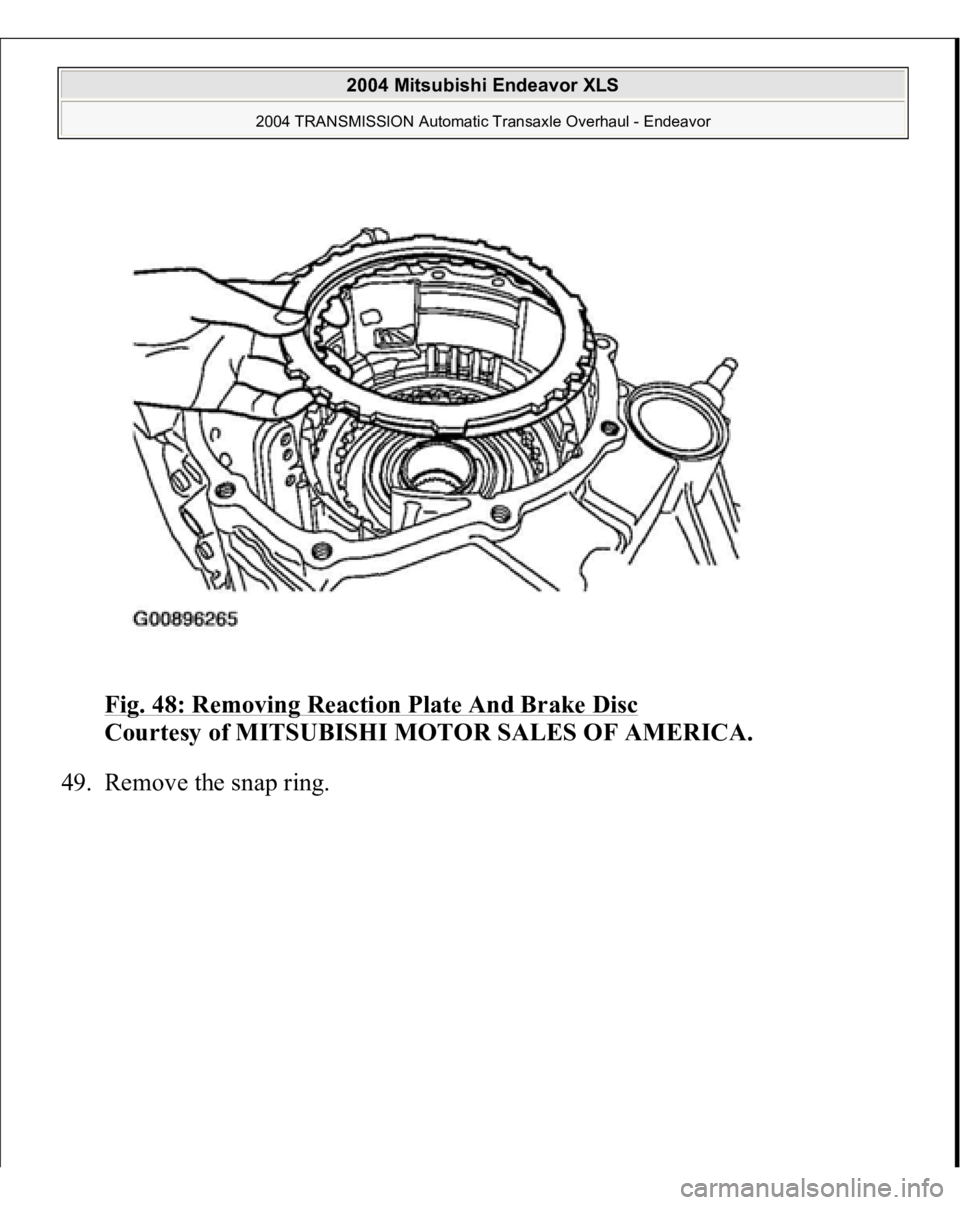

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 48: Removing Reaction Plate And Brake Disc Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 49. Remove the sna p rin g. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Ove
