Page 1561 of 3870

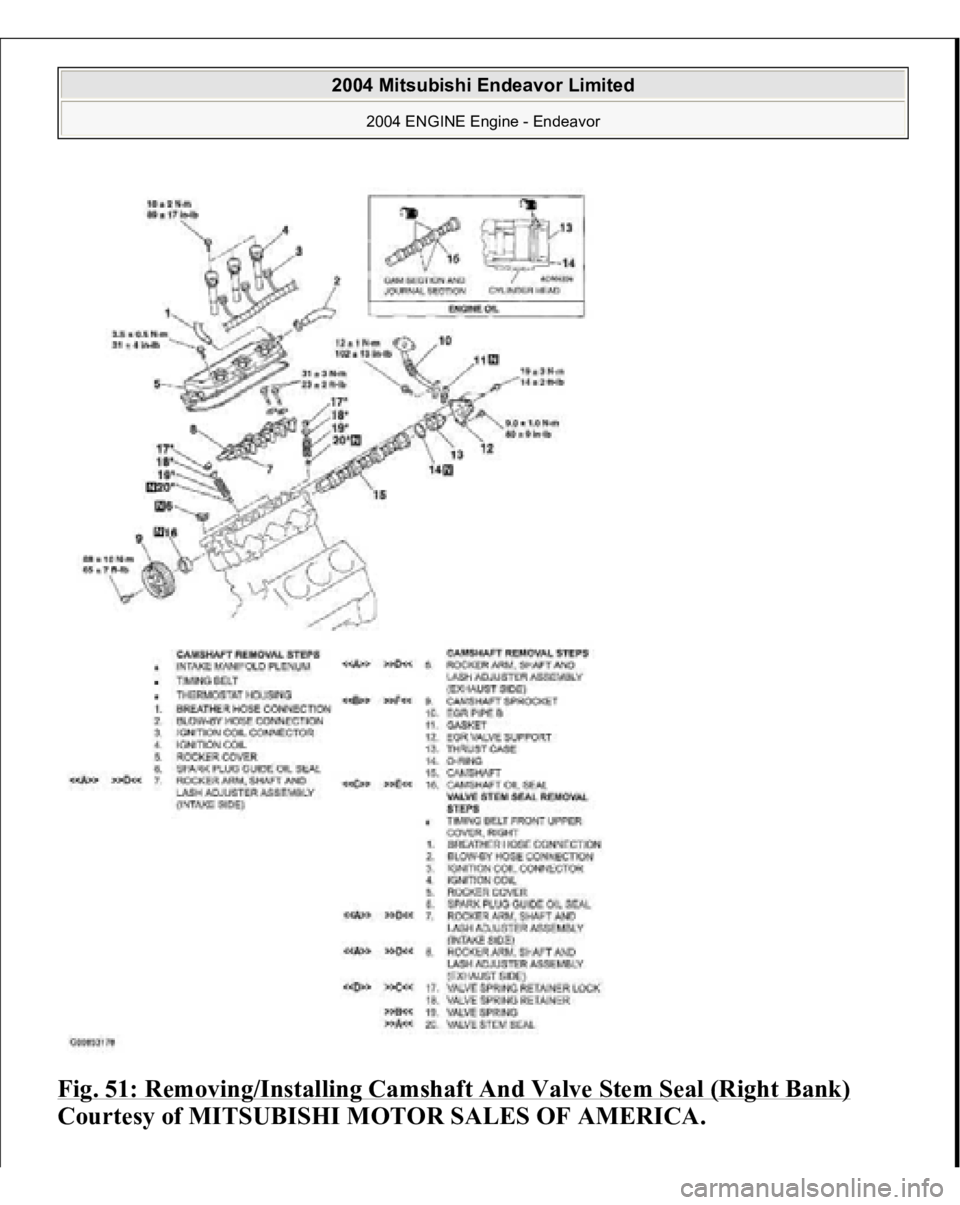

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 51: Removing/Installing Camshaft And Valve Stem Seal (Right Bank) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine - Endeavor

Page 1562 of 3870

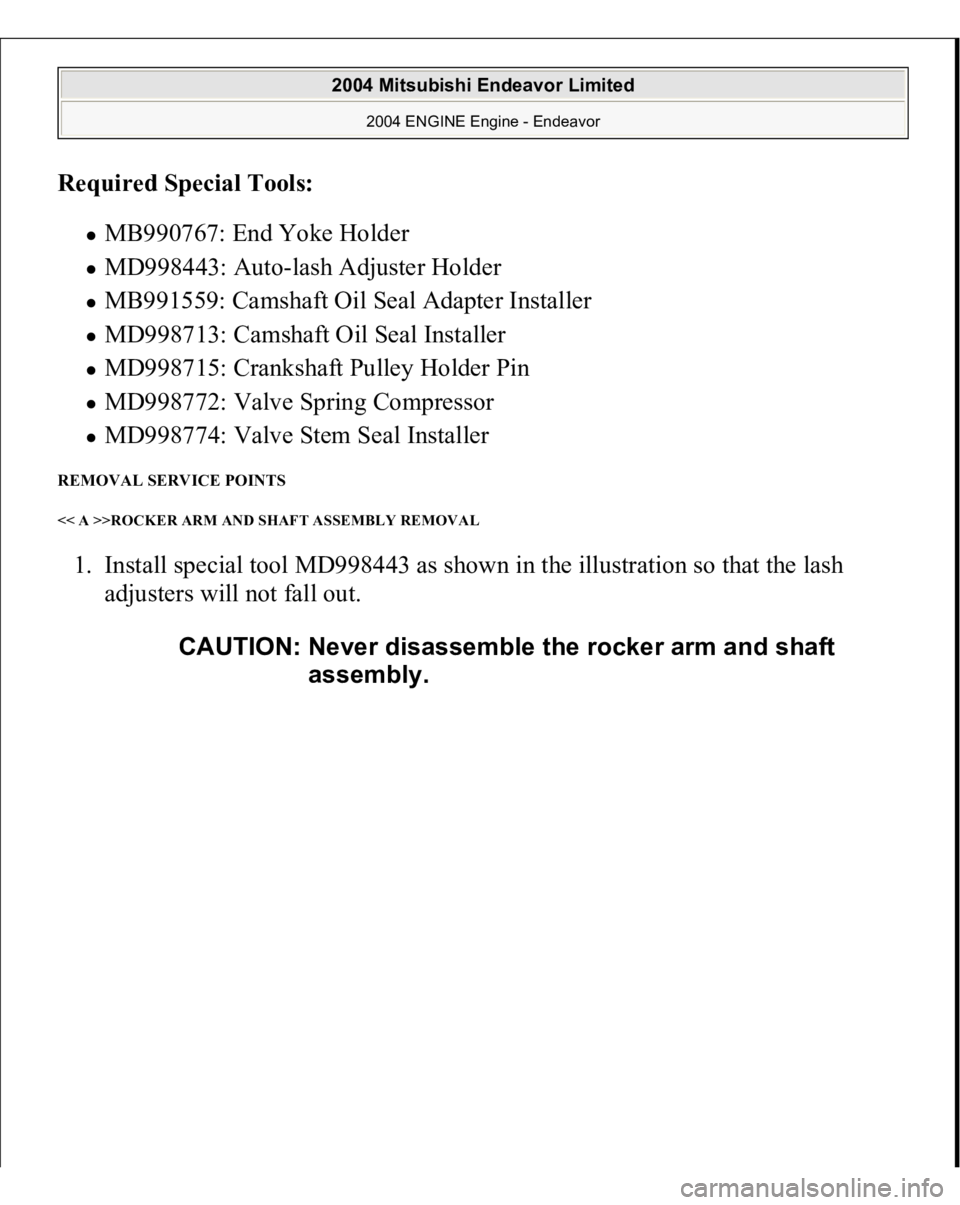

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Required Special Tools: MB990767: End Yoke Holder MD998443: Auto-lash Adjuster Holder MB991559: Camshaft Oil Seal Adapter Installer MD998713: Camshaft Oil Seal Installer MD998715: Crankshaft Pul

Page 1563 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 52: Installing Special Tool MD998443 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Loosen the rocker arm and shaft assembly mounting bolt, and then remove the rocker arm and shaft assembl

Page 1564 of 3870

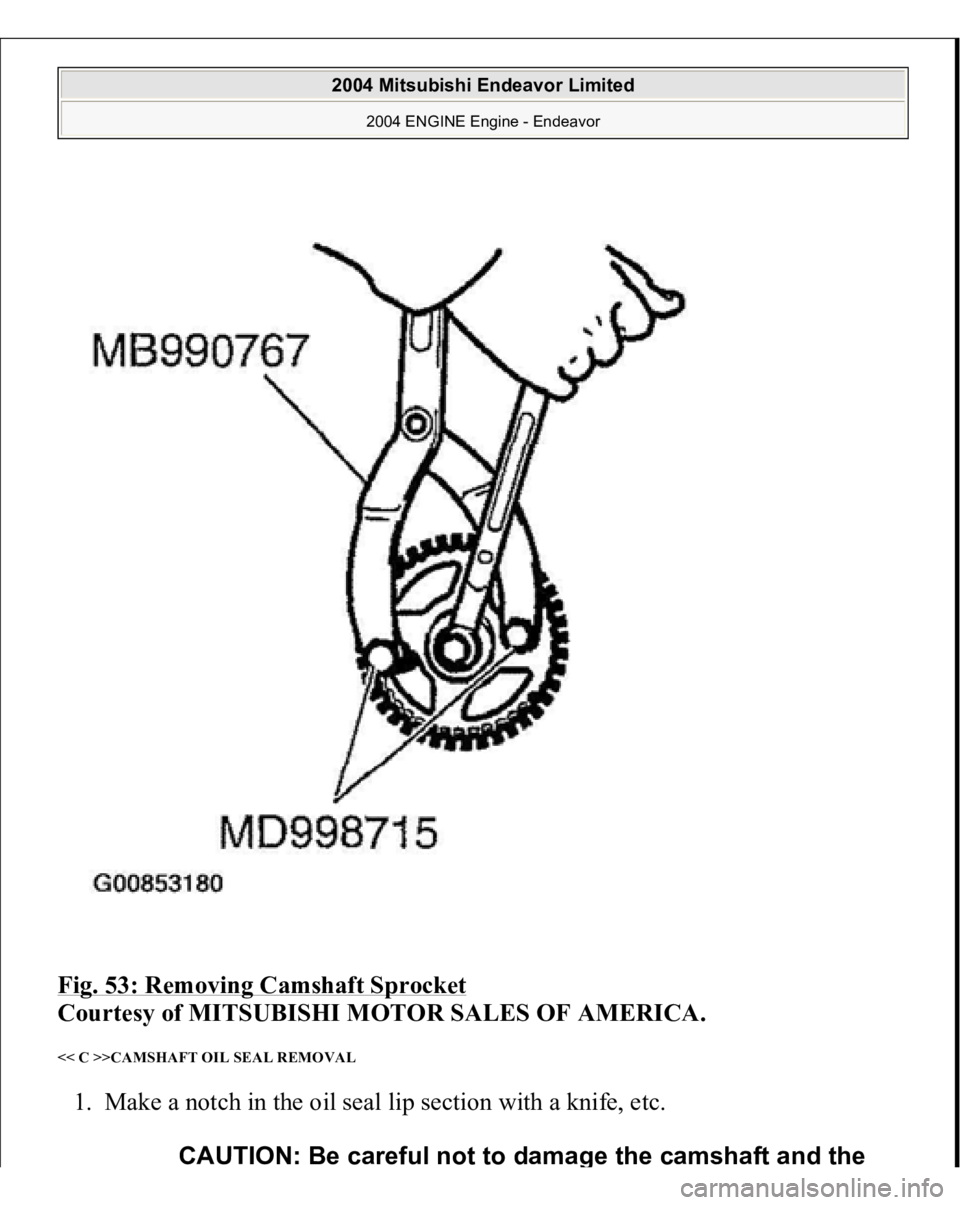

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 53: Removing Camshaft Sprocket Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. << C >>CAMSHAFT OIL SEAL REMOVAL 1. Make a notch in the oil seal lip section with a knife, etc. CAUTION: Be caref

Page 1565 of 3870

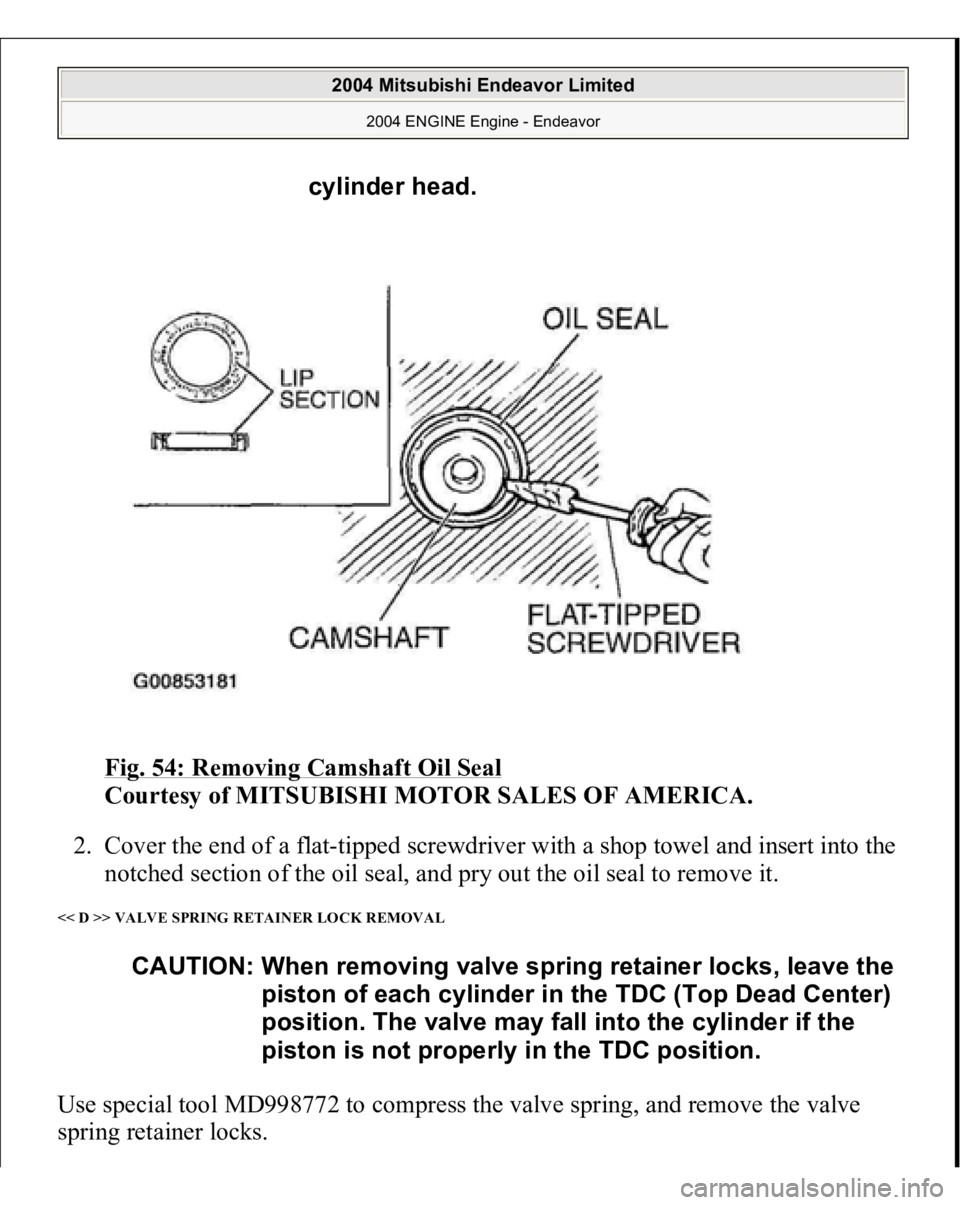

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 54: Removing Camshaft Oil Seal Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Cover the end of a flat-tipped screwdriver with a shop towel and insert into the notched section of the oil se

Page 1566 of 3870

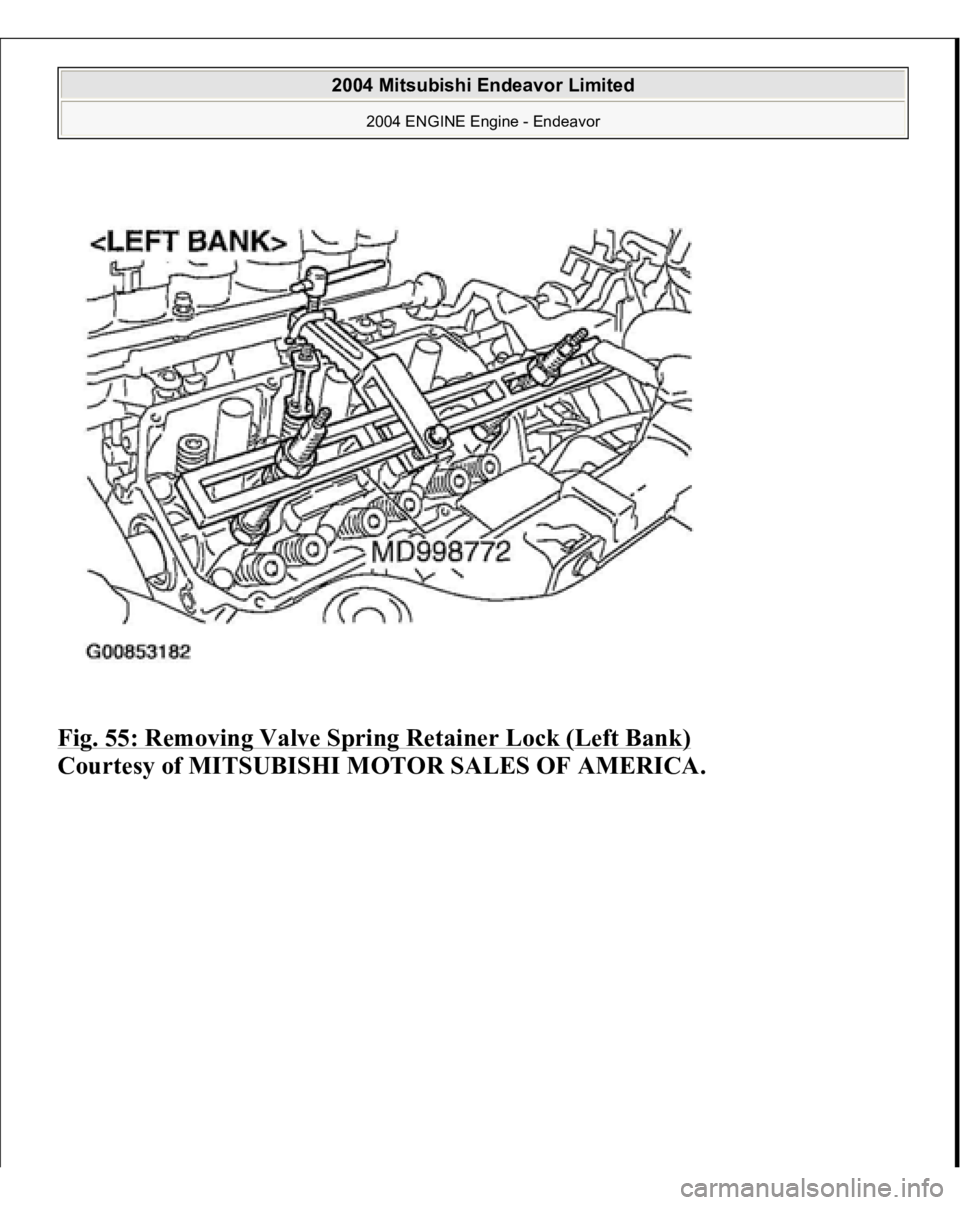

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 55: Removing Valve Spring Retainer Lock (Left Bank) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine - Endeavor

Page 1567 of 3870

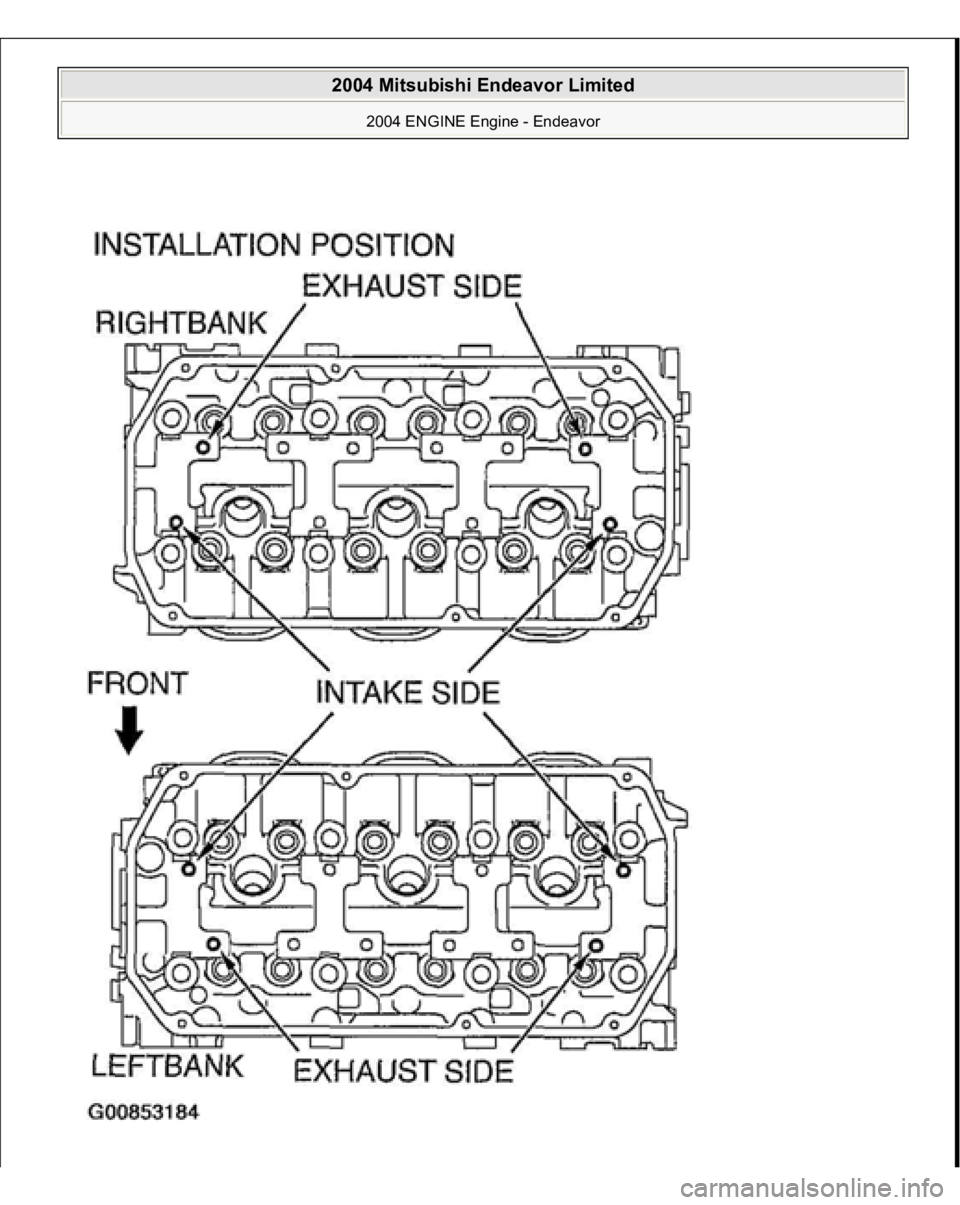

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 56: Removing Valve Spring Retainer Lock (Right Bank) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine - Endeavor

Page 1568 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine - Endeavor
