Page 945 of 3870

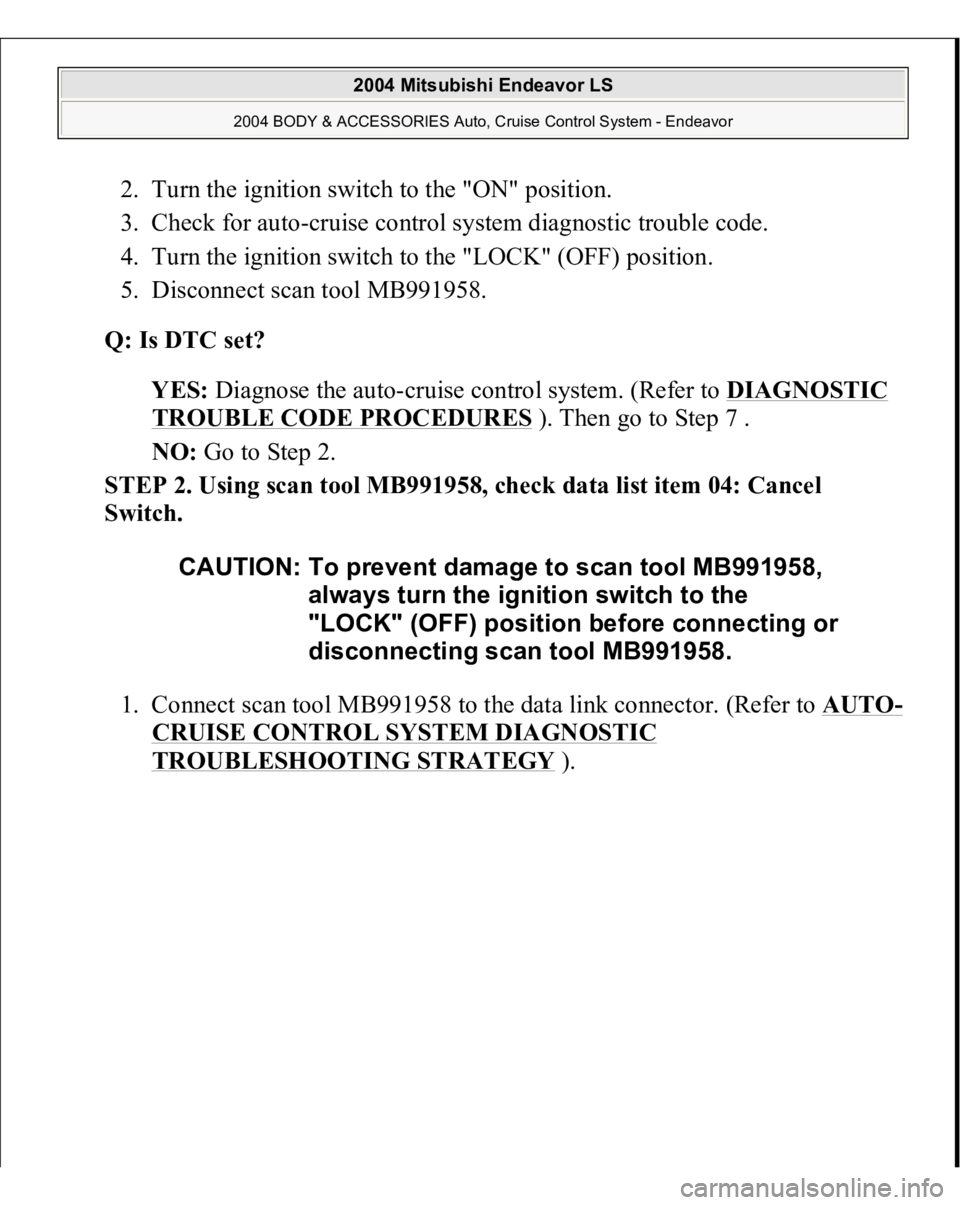

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Check for auto-cruise control system diagnostic trouble code. 4. Turn the ignition switch to the "LOCK" (OFF) position. 5. Di

Page 946 of 3870

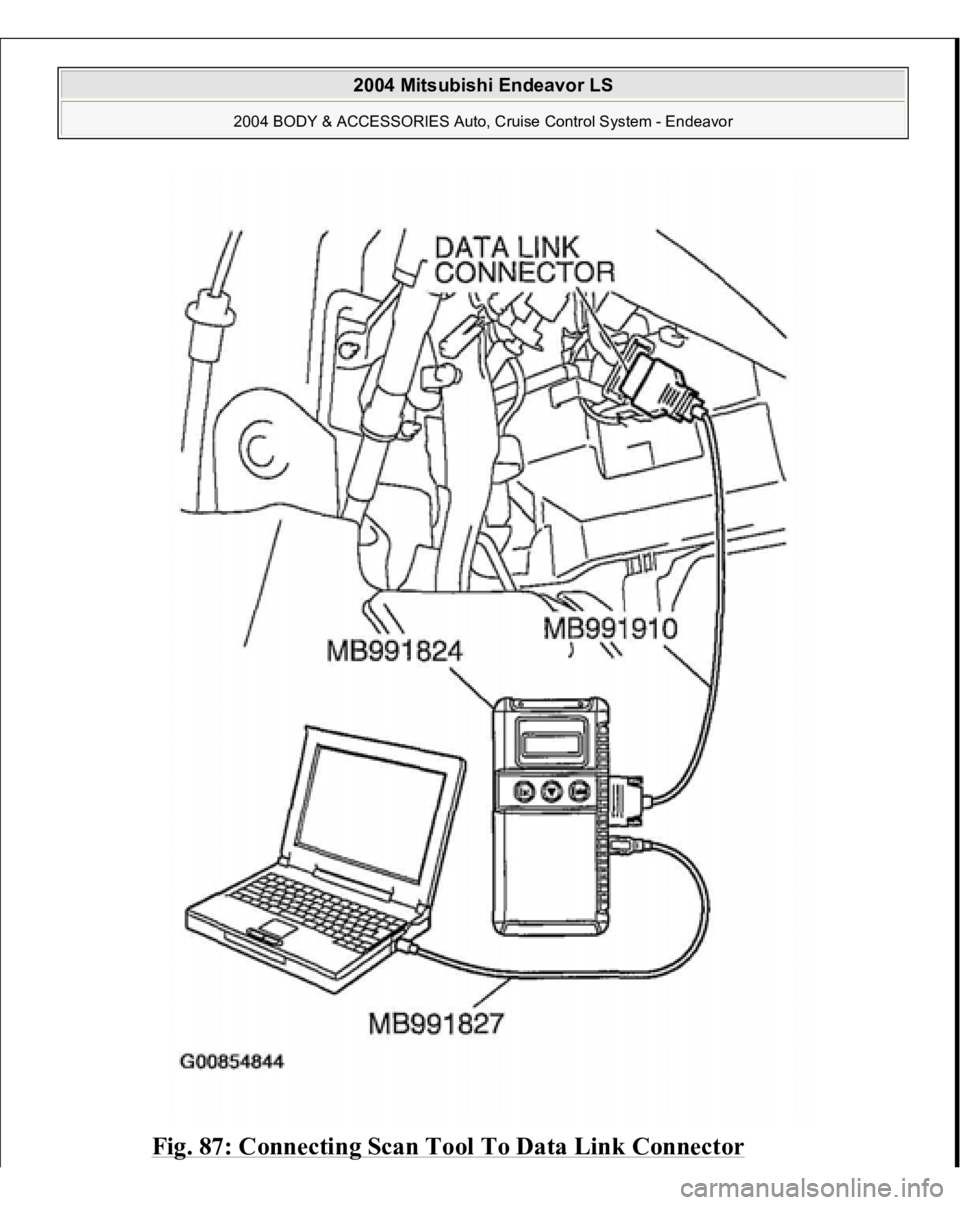

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 87: Connectin g Scan Tool To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 947 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Set scan tool MB991958 to data reading mode for auto-cruise control system. Item 04, C

Page 948 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 88: Connecting Scan Tool To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 949 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Set scan tool MB991958 to data reading mode for auto-cruise control system. Item 05: S

Page 950 of 3870

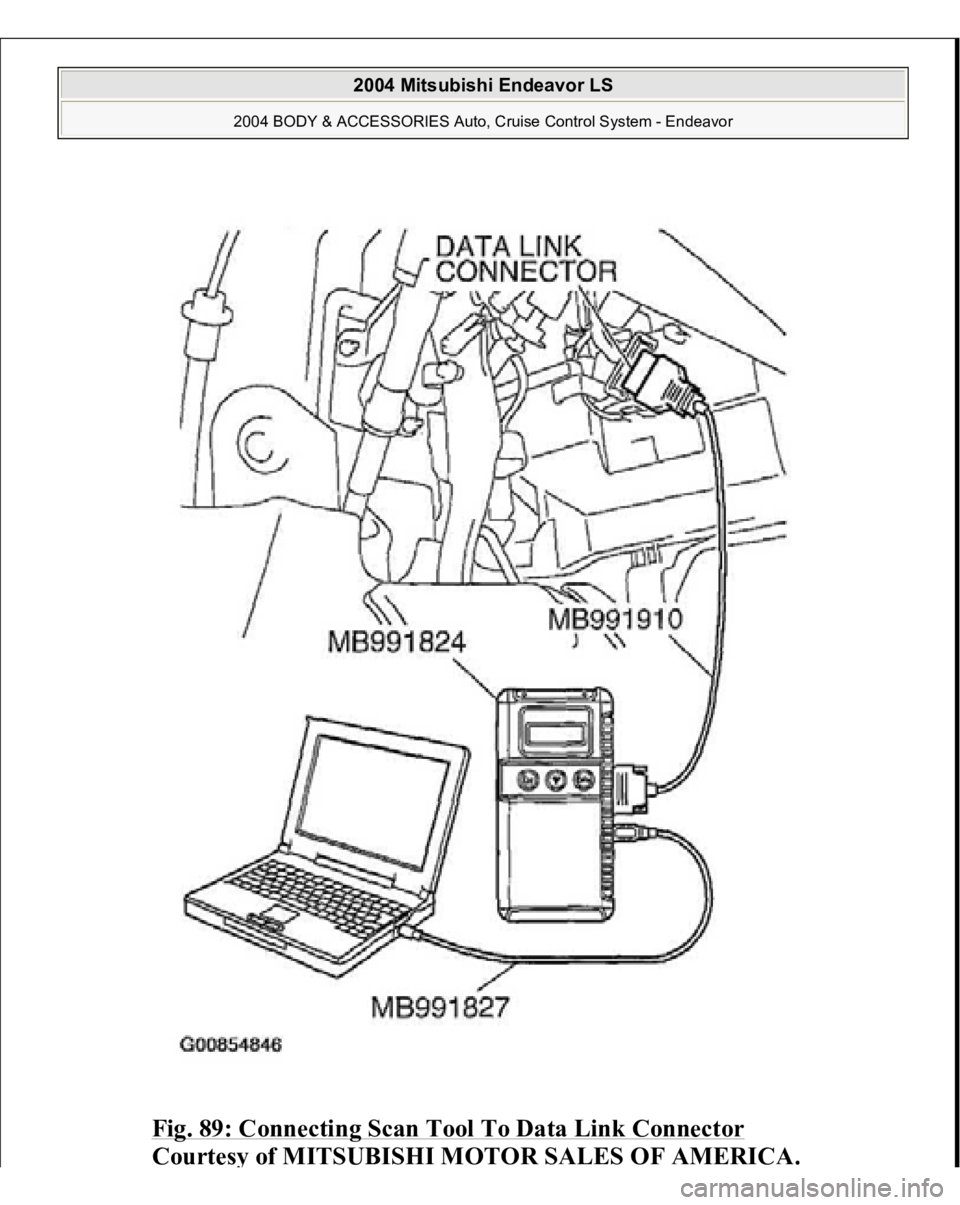

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 89: Connecting Scan Tool To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 951 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Set scan tool MB991958 to data reading mode for auto-cruise control system. Item 06, Brake Switch. When brake pedal is depressed, the

Page 952 of 3870

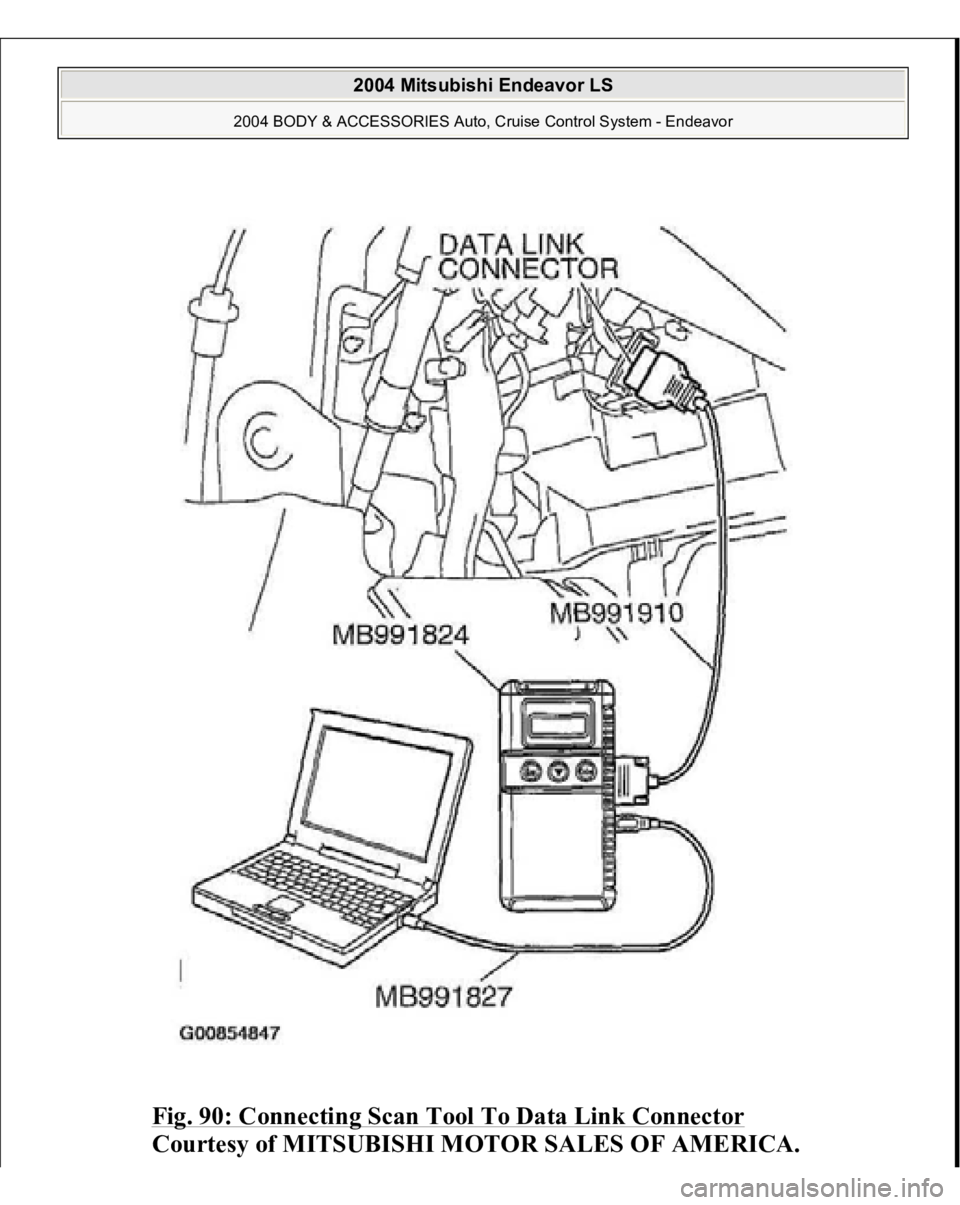

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 90: Connecting Scan Tool To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor
