Page 753 of 3870

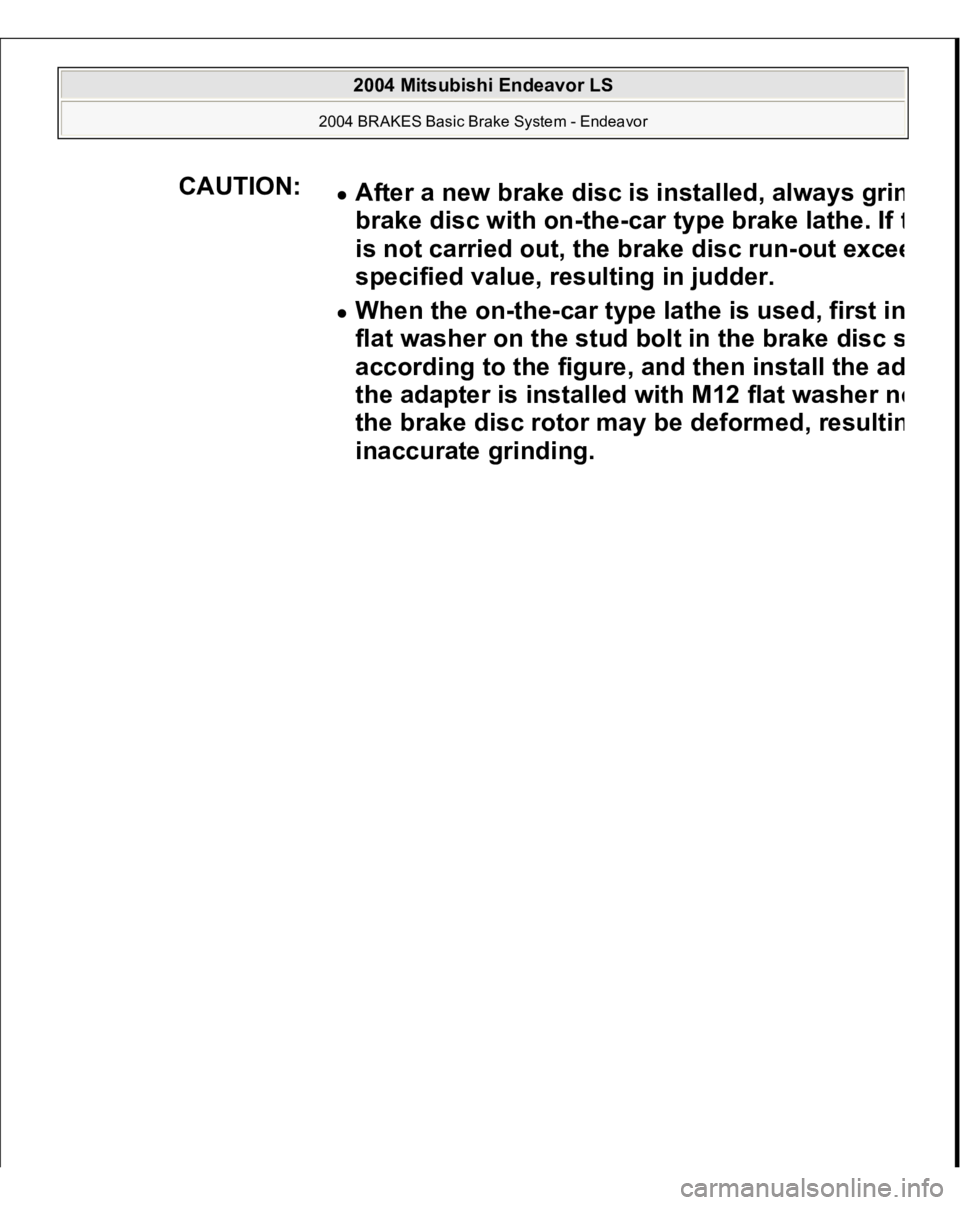

MITSUBISHI ENDEAVOR 2004 Service Repair Manual CAUTION: After a new brake disc is installed, alwa ys grin brake disc with on-the-car t ype brake lathe. If t is not carried out, the brake disc run-out exce e specified value, resulting in judder.

Page 754 of 3870

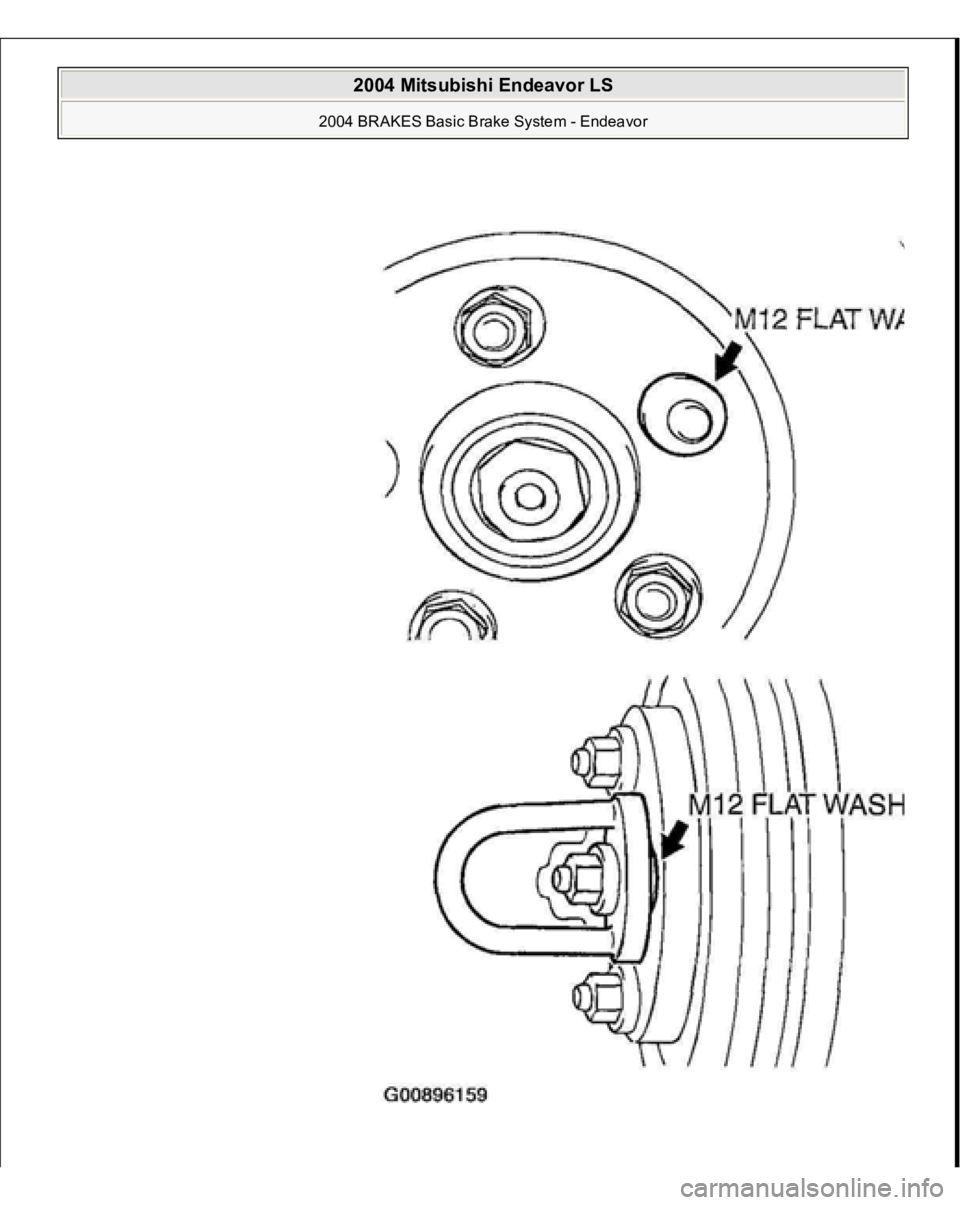

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BRAKES Basic Brake System - Endeavor

Page 755 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. If the disc thickness is less than the limits, replace it with a new one. If thickness variation exceeds the specification, turn rotor with an on-the-car type brake lathe ("Accuturn-8750"

Page 756 of 3870

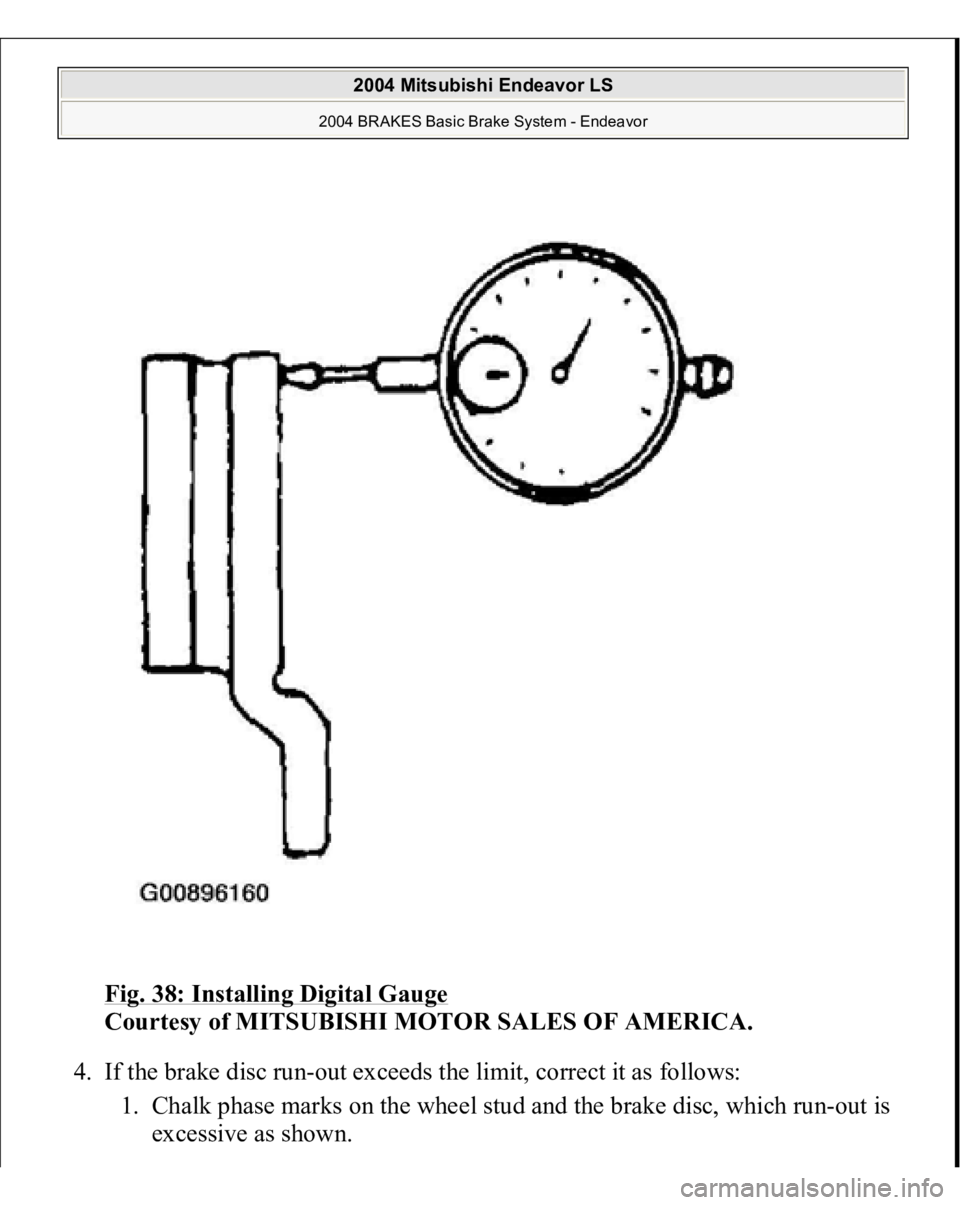

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 38: Installing Digital Gauge Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 4. If the brake disc run-out exceeds the limit, correct it as follows: 1. Chalk phase marks on the wheel stud and t

Page 757 of 3870

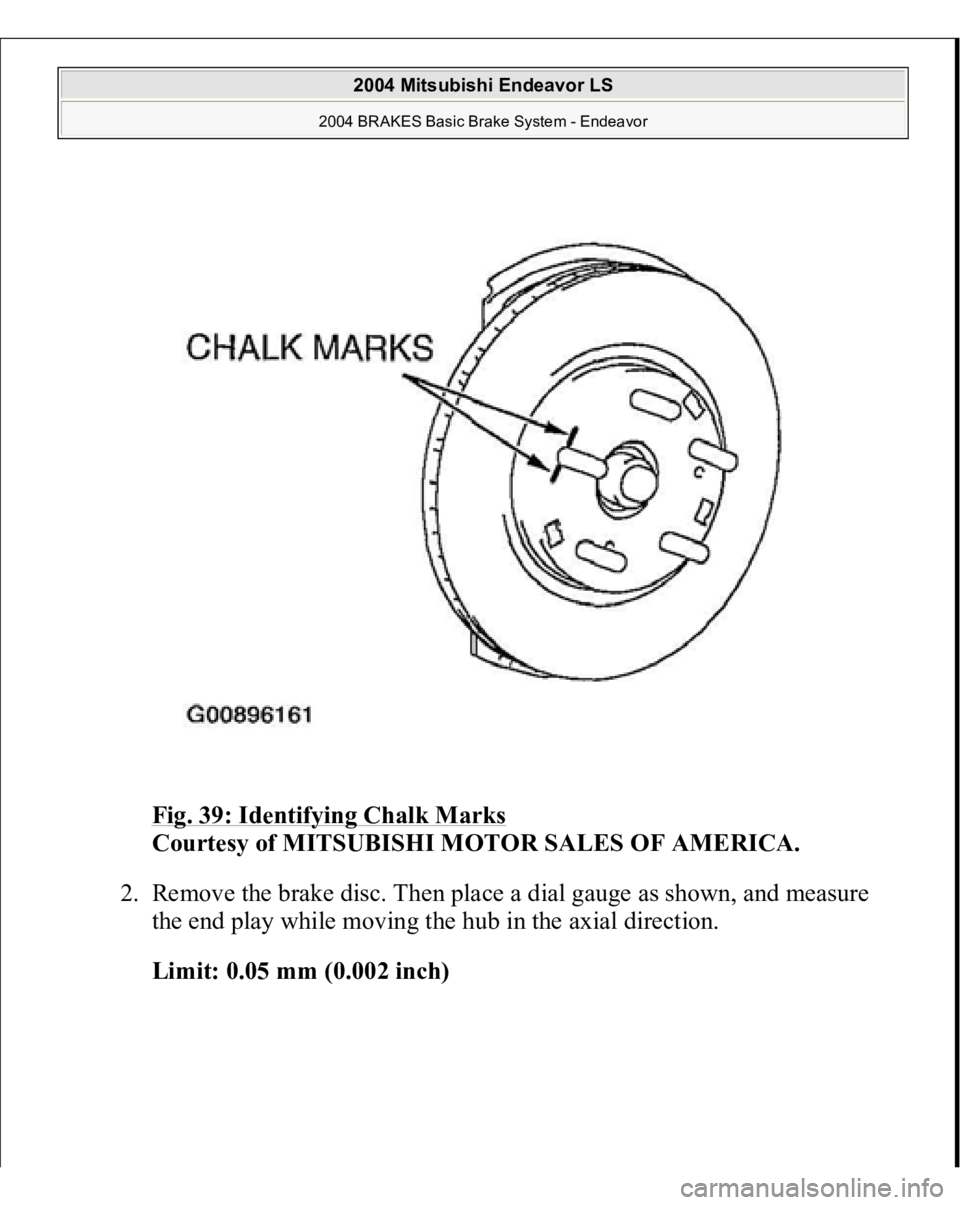

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 39: Identifying Chalk Marks Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Remove the brake disc. Then place a dial gauge as shown, and measure the end play while moving the hub in the axi

Page 758 of 3870

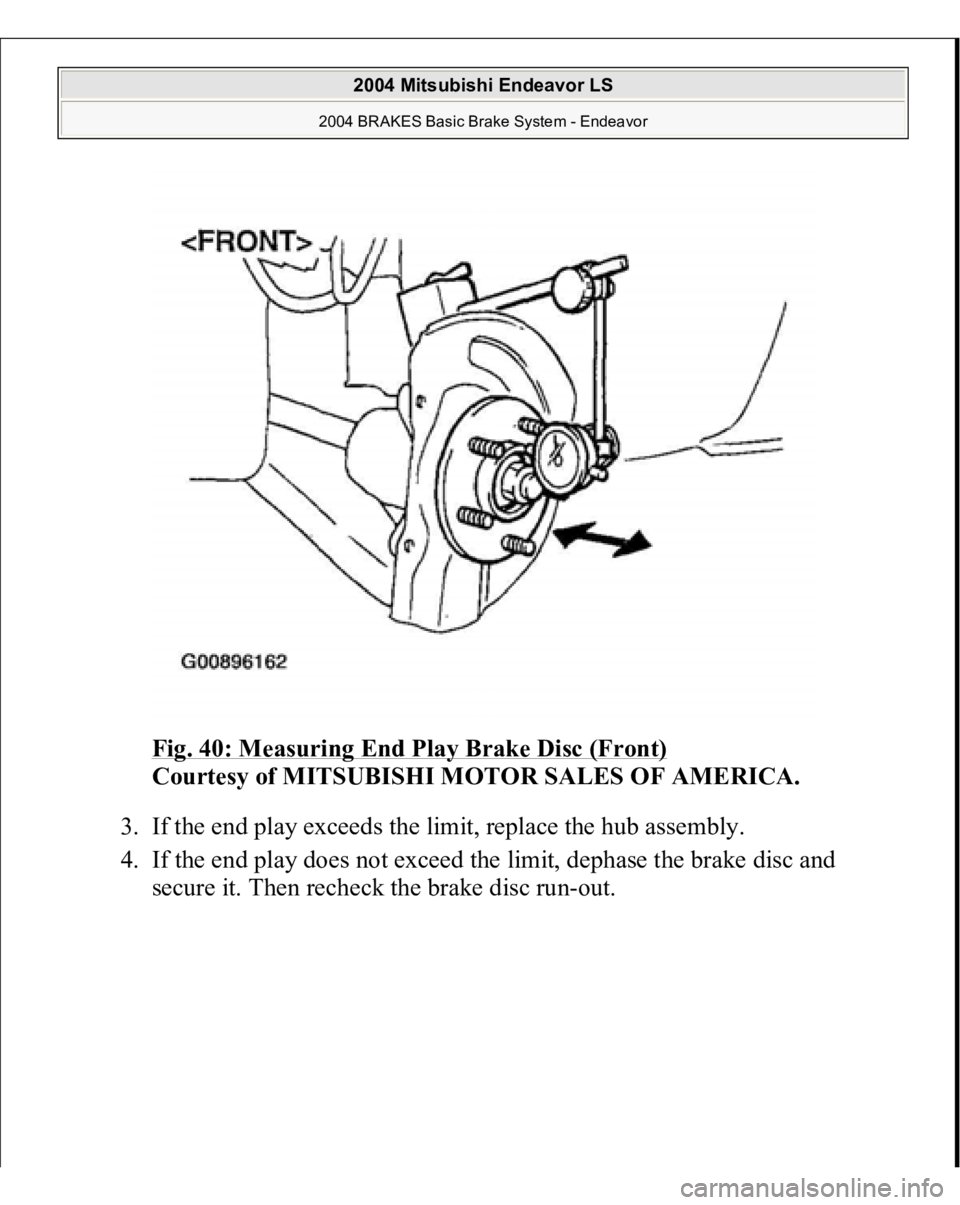

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 40: Measuring End Play Brake Disc (Front) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. If the end play exceeds the limit, replace the hub assembly. 4. If the end play does not exceed th

Page 759 of 3870

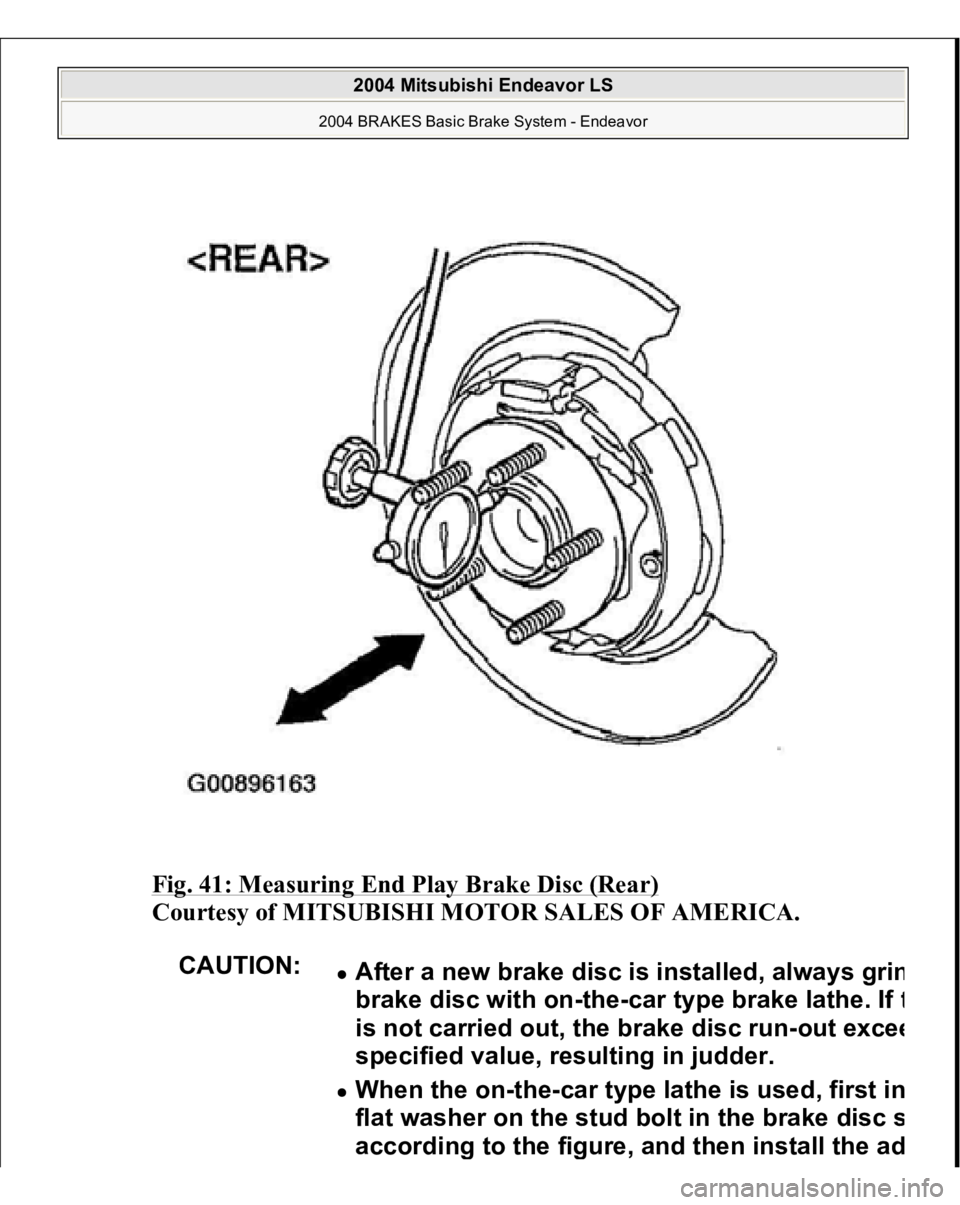

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 41: Measuring End Play Brake Disc (Rear) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CAUTION: After a new brake disc is installed, alwa ys grin brake disc with on-the-car t ype brake lathe.

Page 760 of 3870

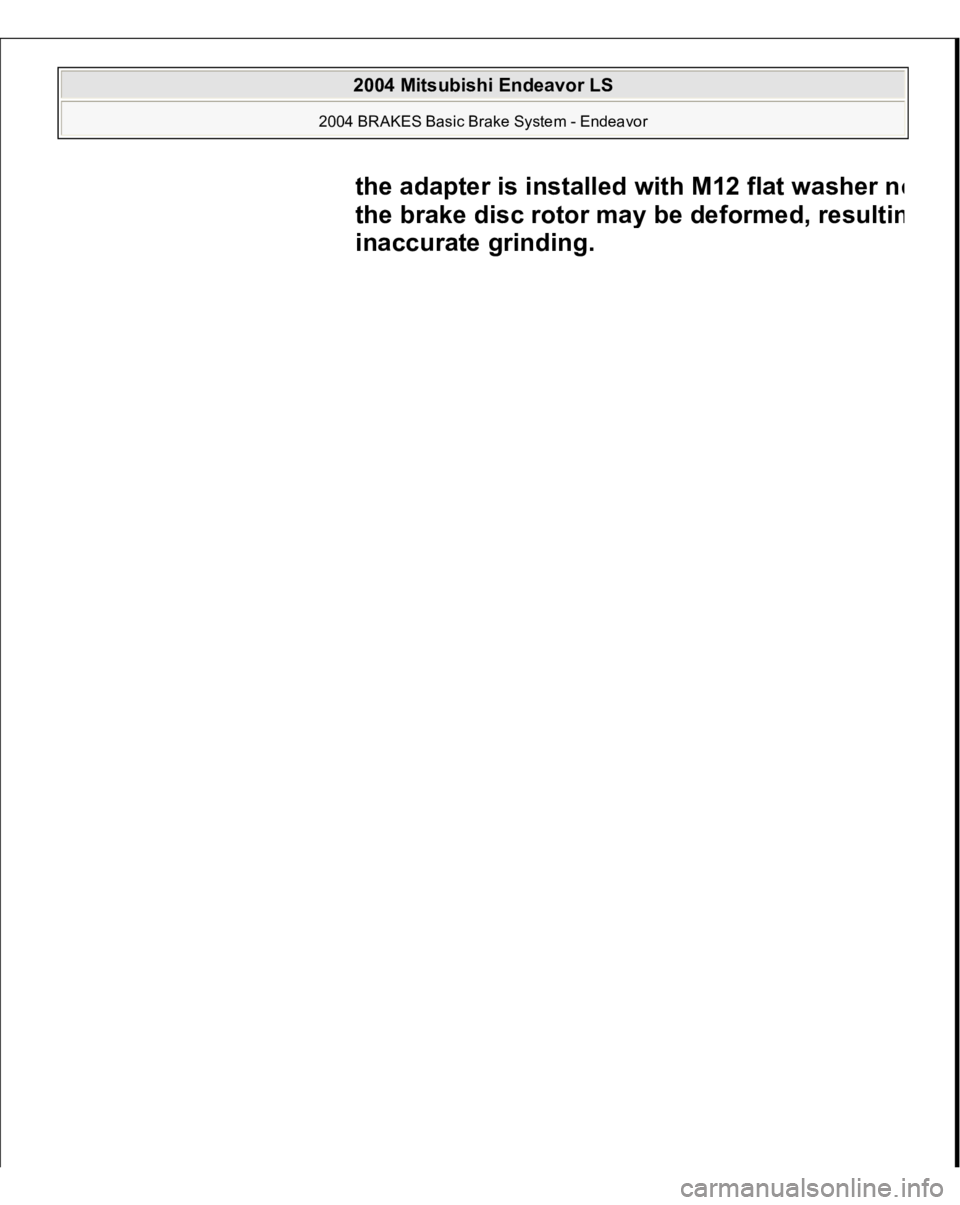

MITSUBISHI ENDEAVOR 2004 Service Repair Manual the adapter is installed with M12 flat washer n o the brake disc rotor ma y be deformed, resulti n inaccurate grinding. 2004 Mitsubishi Endeavor LS 2004 BRAKES Basic Brake System - Endeavor
