Page 1449 of 3870
Number 1 ring: 1T
Number 2 ring: 2T

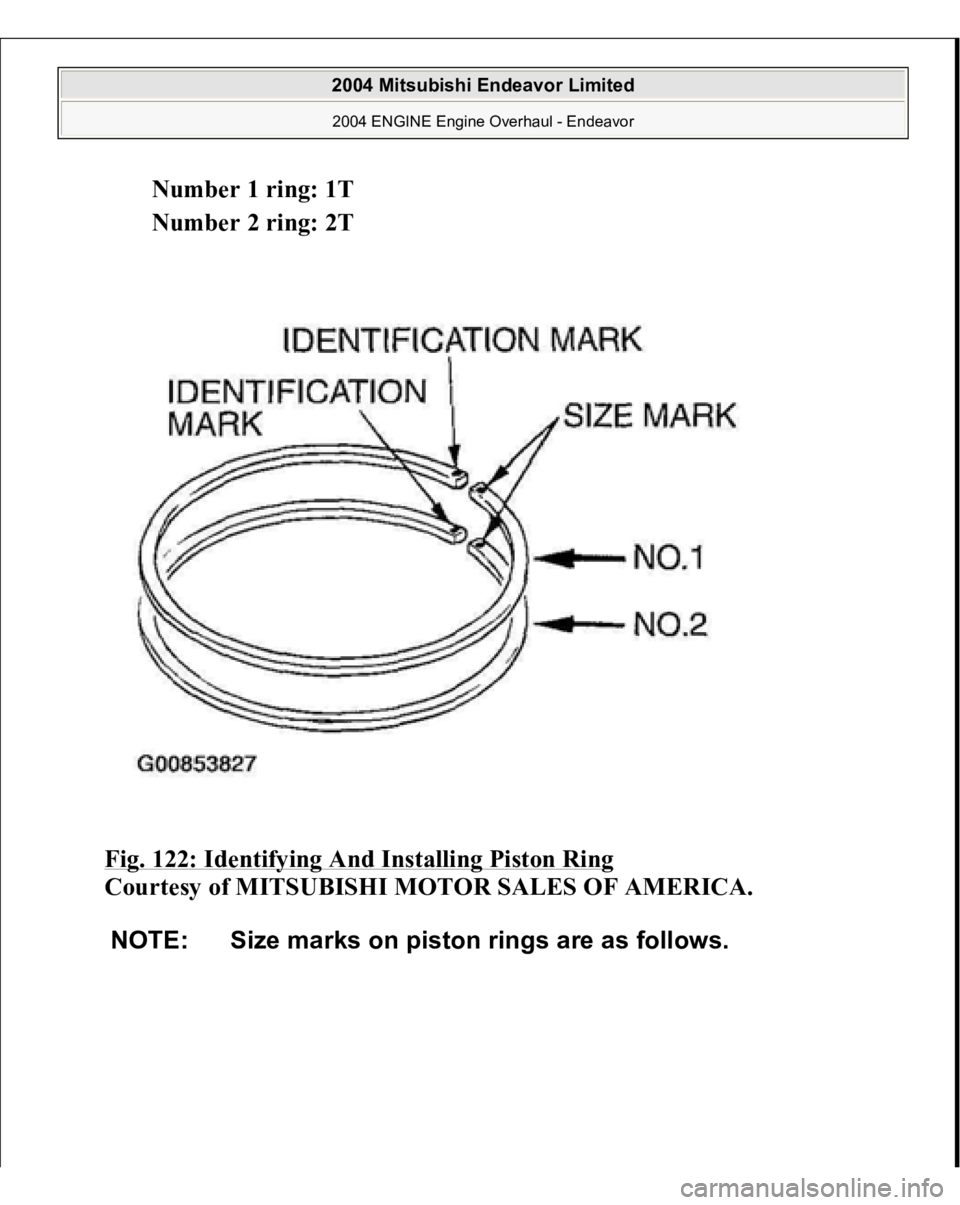

Fig. 122: Identifying And Installing Piston Ring
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
NOTE: Size marks on piston rings are as follows.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
Page 1450 of 3870

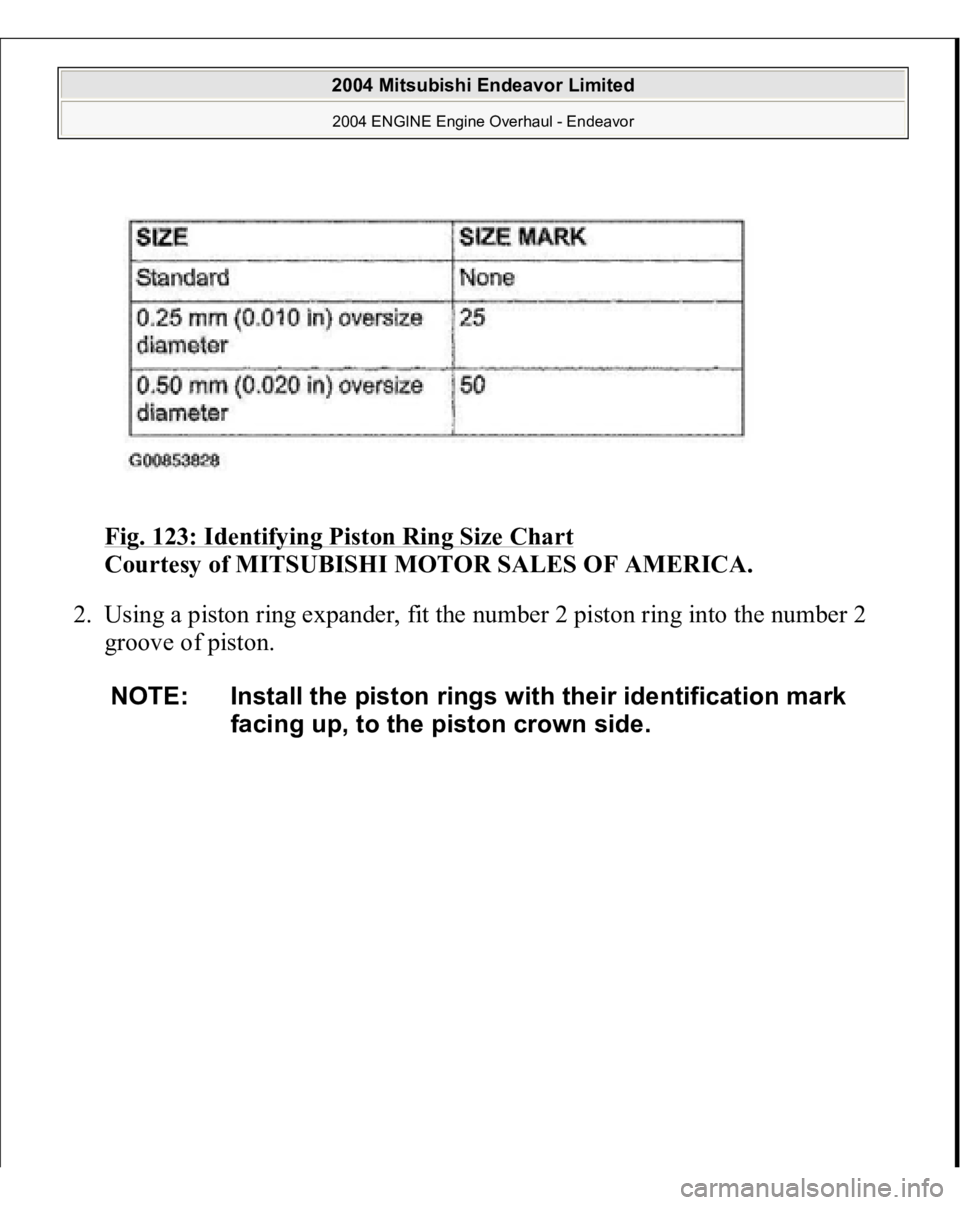

Fig. 123: Identifying Piston Ring Size Chart
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Using a piston ring expander, fit the number 2 piston ring into the number 2
groove of piston.
NOTE: Install the piston rings with their identification mark
facing up, to the piston crown side.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
Page 1451 of 3870

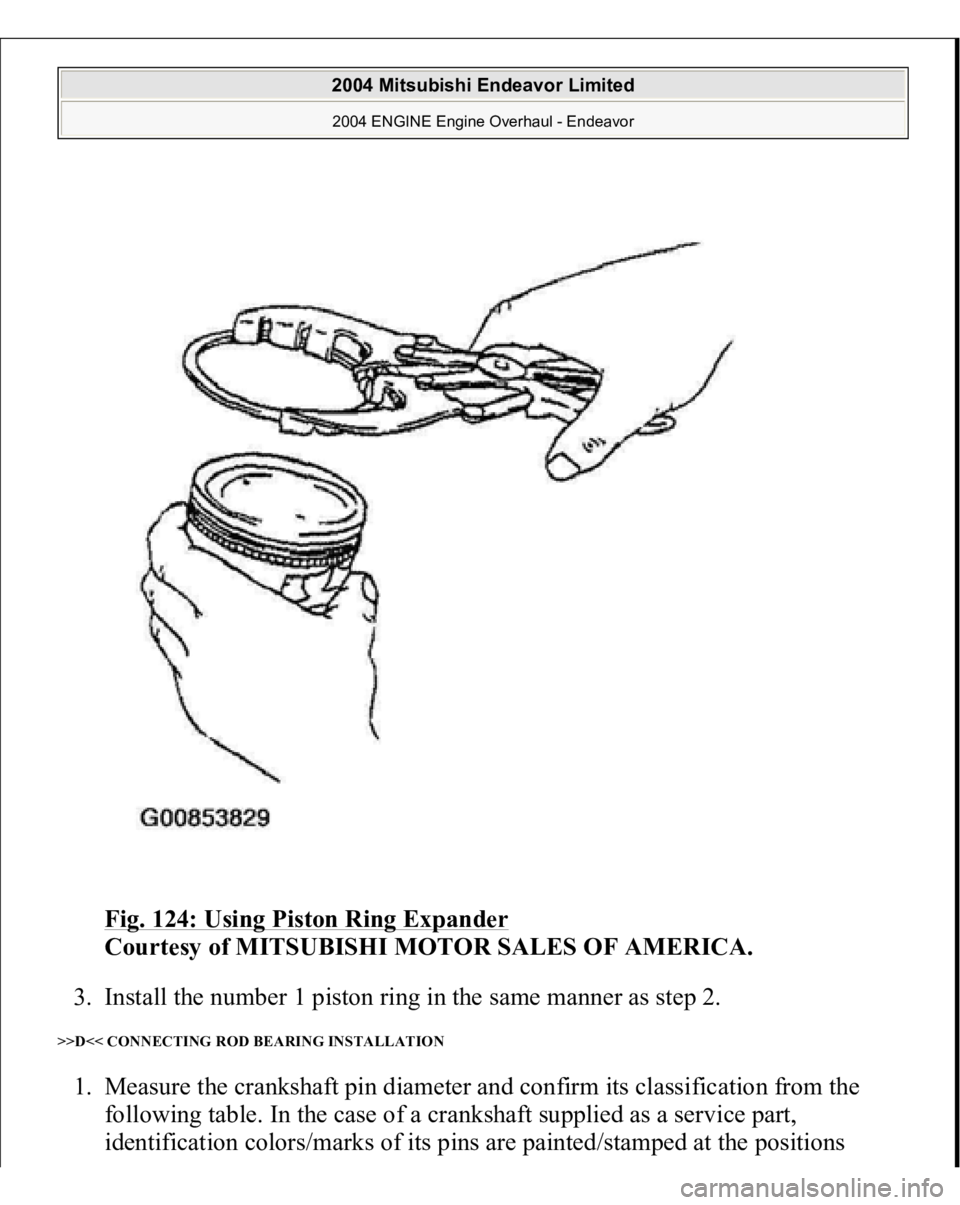

Fig. 124: Using Piston Ring Expander
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Install the number 1 piston ring in the same manner as step 2.
>>D<< CONNECTING ROD BEARING INSTALLATION 1. Measure the crankshaft pin diameter and confirm its classification from the
following table. In the case of a crankshaft supplied as a service part,
identification colors/marks of its
pins are
painte
d/stam
ped at the
positions
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
Page 1452 of 3870
shown in the illustration.

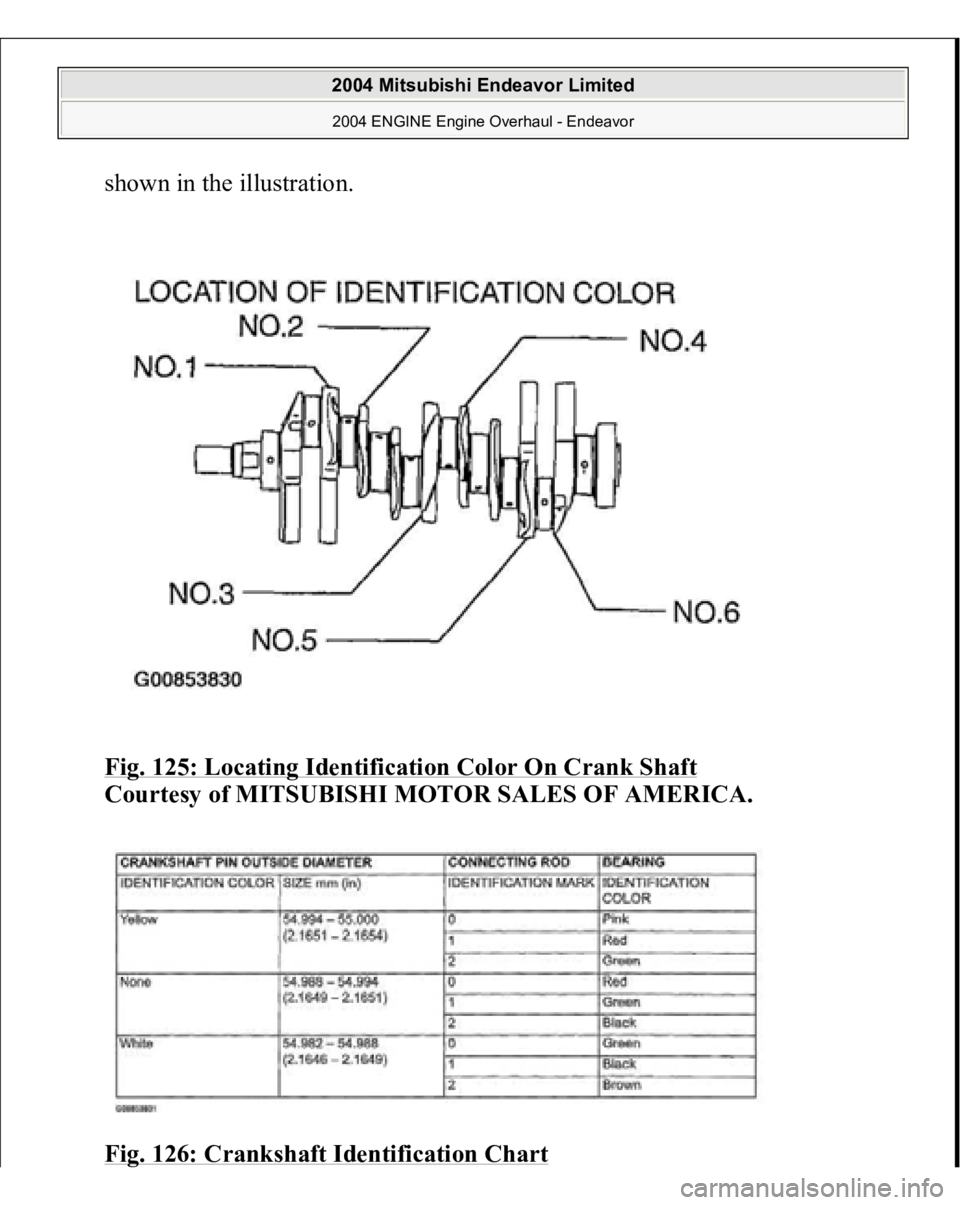

Fig. 125: Locating Identification Color On Crank Shaft
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 126: Crankshaft Identification Chart
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
Page 1453 of 3870
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. From the above table, select a bearing whose size is appropriate for the
crankshaft pin outside the diameter. For example, if the crankshaft pin outside
diameter Identification color is "yellow" and the connecting rod Identification
mark is "2," select a bearing whose Identification color is "green."
For example, if the crankshaft pin outside diameter Identification color is
"yellow" and the connecting rod Identification mark is "2," select a bearing
whose Identification color is "green."
If there is no identification color paint on the crankshaft, measure the pin
outside diameter and select bearing appropriate for the measured value.

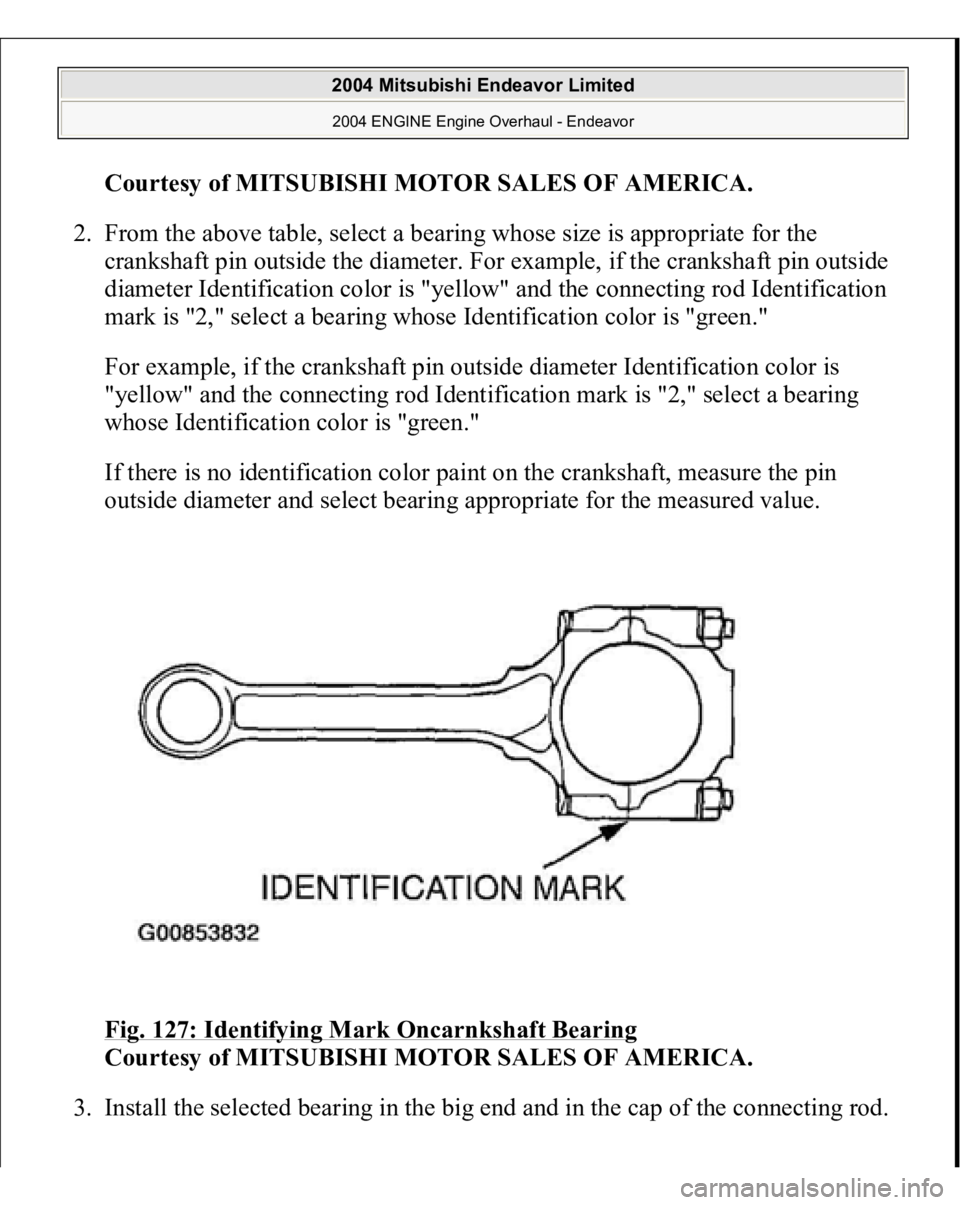

Fig. 127: Identifying Mark Oncarnkshaft Bearing
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Install the selected bearin
g in the bi
g end and in the ca
p of the connectin
g rod.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
Page 1454 of 3870

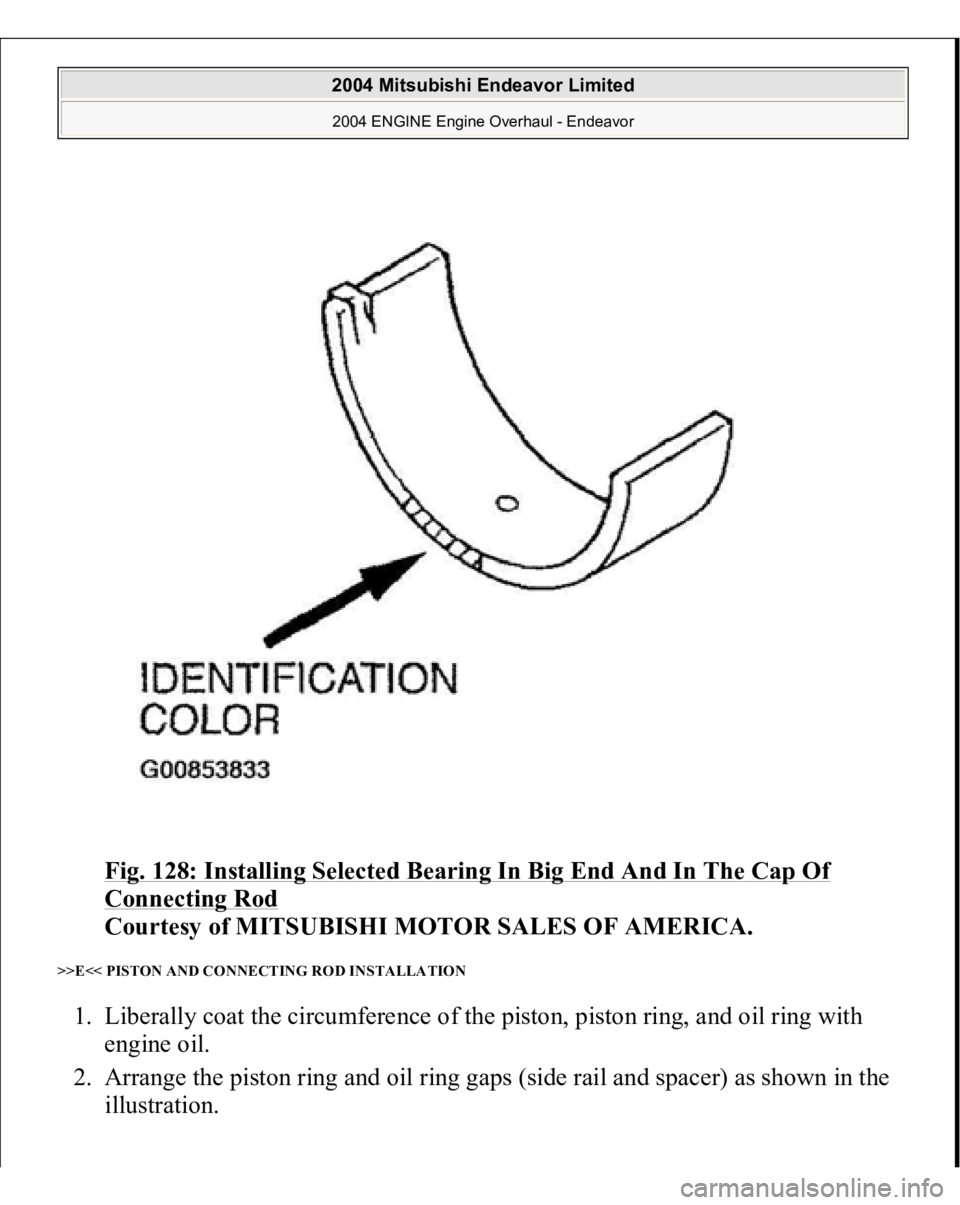

Fig. 128: Installing Selected Bearing In Big End And In The Cap Of Connecting Rod
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
>>E<< PISTON AND CONNECTING ROD INSTALLATION 1. Liberally coat the circumference of the piston, piston ring, and oil ring with
engine oil.
2. Arrange the piston ring and oil ring gaps (side rail and spacer) as shown in the
illustration.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
Page 1455 of 3870

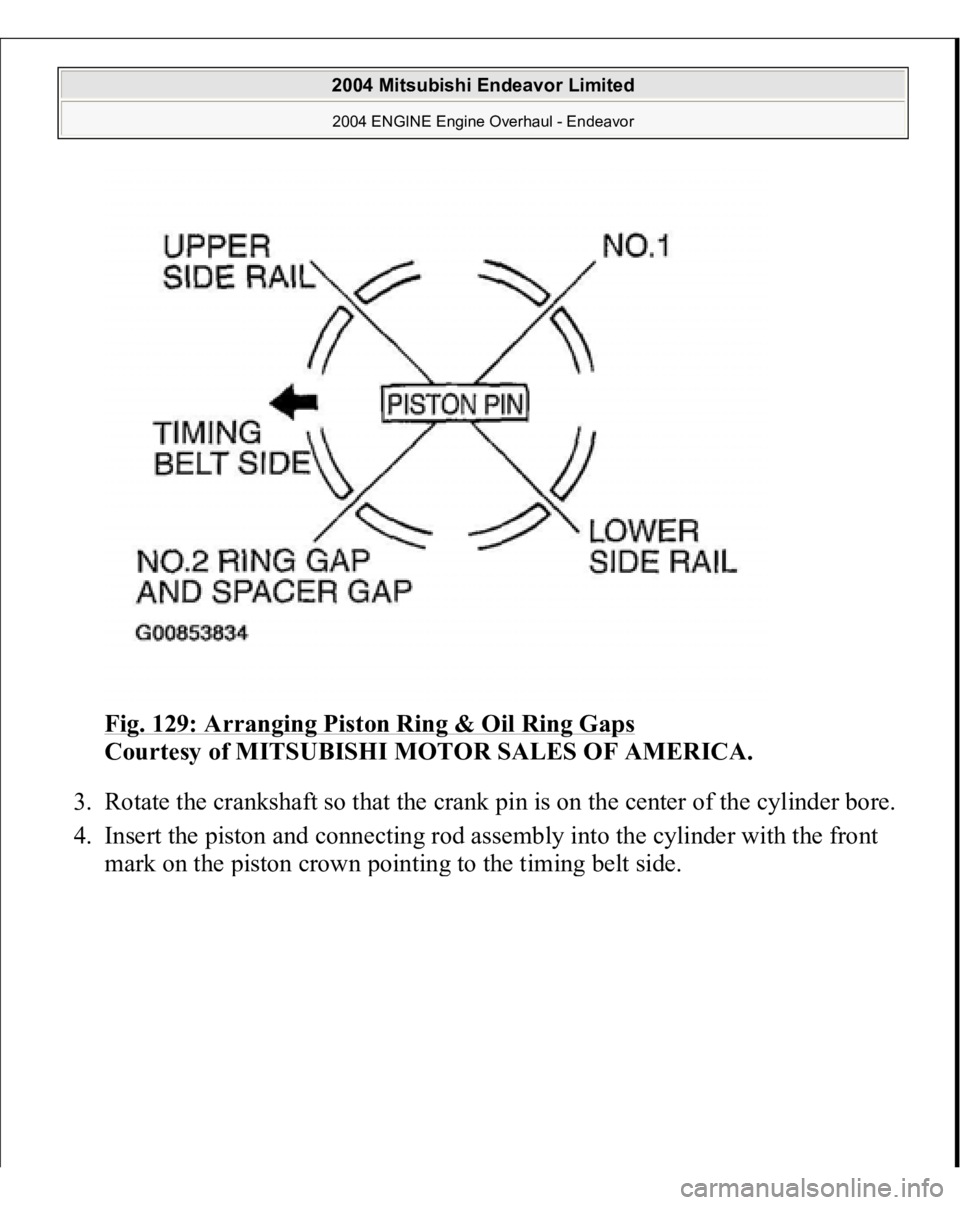

Fig. 129: Arranging Piston Ring & Oil Ring Gaps
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
3. Rotate the crankshaft so that the crank pin is on the center of the cylinder bore.
4. Insert the piston and connecting rod assembly into the cylinder with the front
mark on the
piston crown
pointin
g to the timin
g belt side.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
Page 1456 of 3870

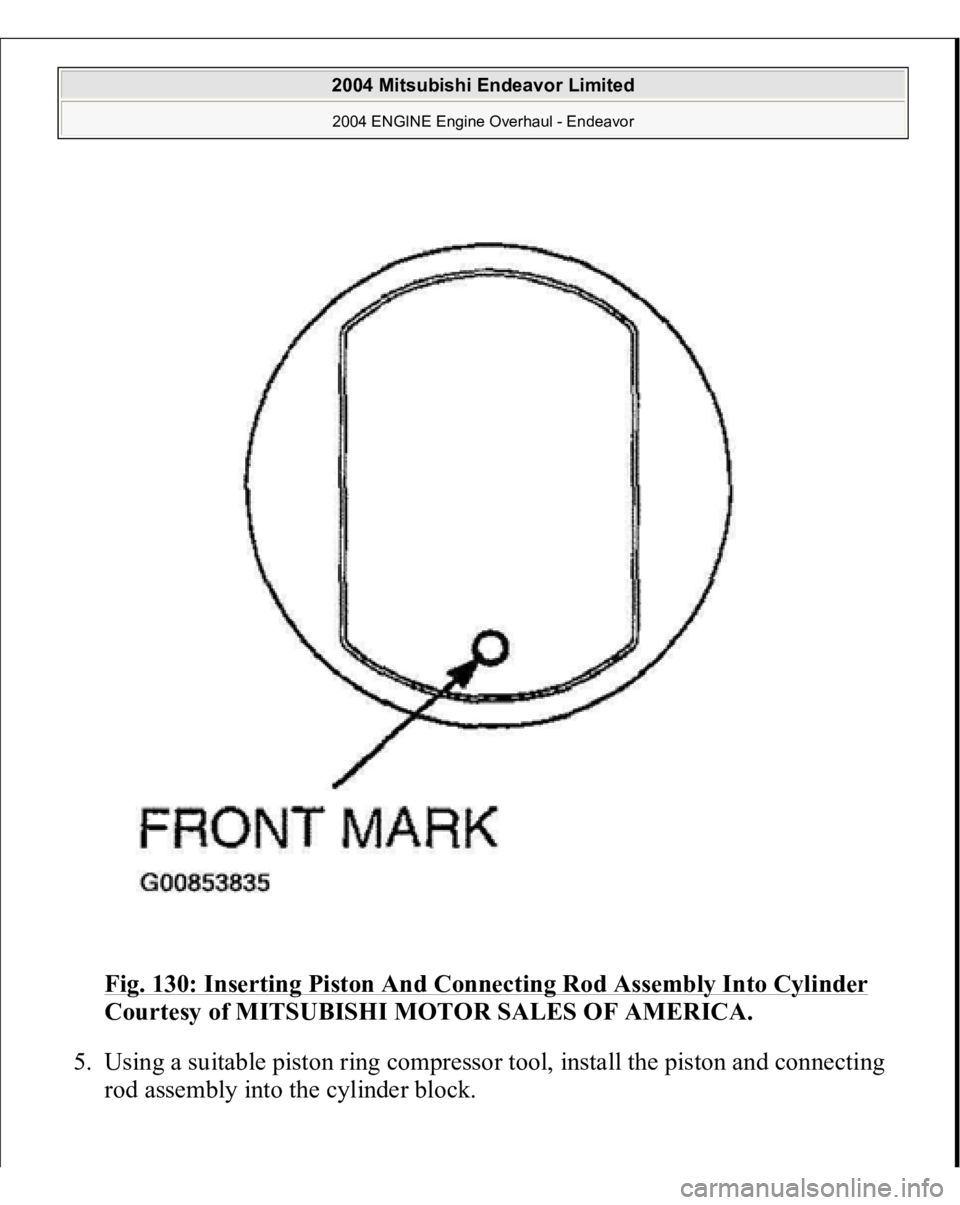

Fig. 130: Inserting Piston And Connecting Rod Assembly Into Cylinder
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
5. Using a suitable piston ring compressor tool, install the piston and connecting
rod assembly into the cylinder block.
2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
