Page 705 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual brake assembly. Q: Do (does) the piston(s) move correctly? YES: Go to Step 3. NO: Disassemble and inspect the brake assembly (Front: refer to DISASSEMBLY AND ASSEMBLY < FRONT> , Rear: refer to

Page 706 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual and no contamination is found . Q: Is there a fault? YES: Refill or replace with the specified brake fluid DOT 3 or DOT 4. Bleed the brakes if necessary (Refer to PROPORTIONING VALVE FUNCTION TES

Page 707 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual to Step 7 . NO: Go to Step 5. STEP 5. Check for oil, water, etc., on the pad contact surfaces of all brakes. Q: Is oil, water, etc., on the pad contact surface? YES: Replace the part and deter

Page 708 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. With the brake pedal fully released, depress the brake pedal slowly until it stops. 3. With a measuring device (ruler, etc.) next to the brake pedal, depress the pedal firmly and measure the di

Page 709 of 3870

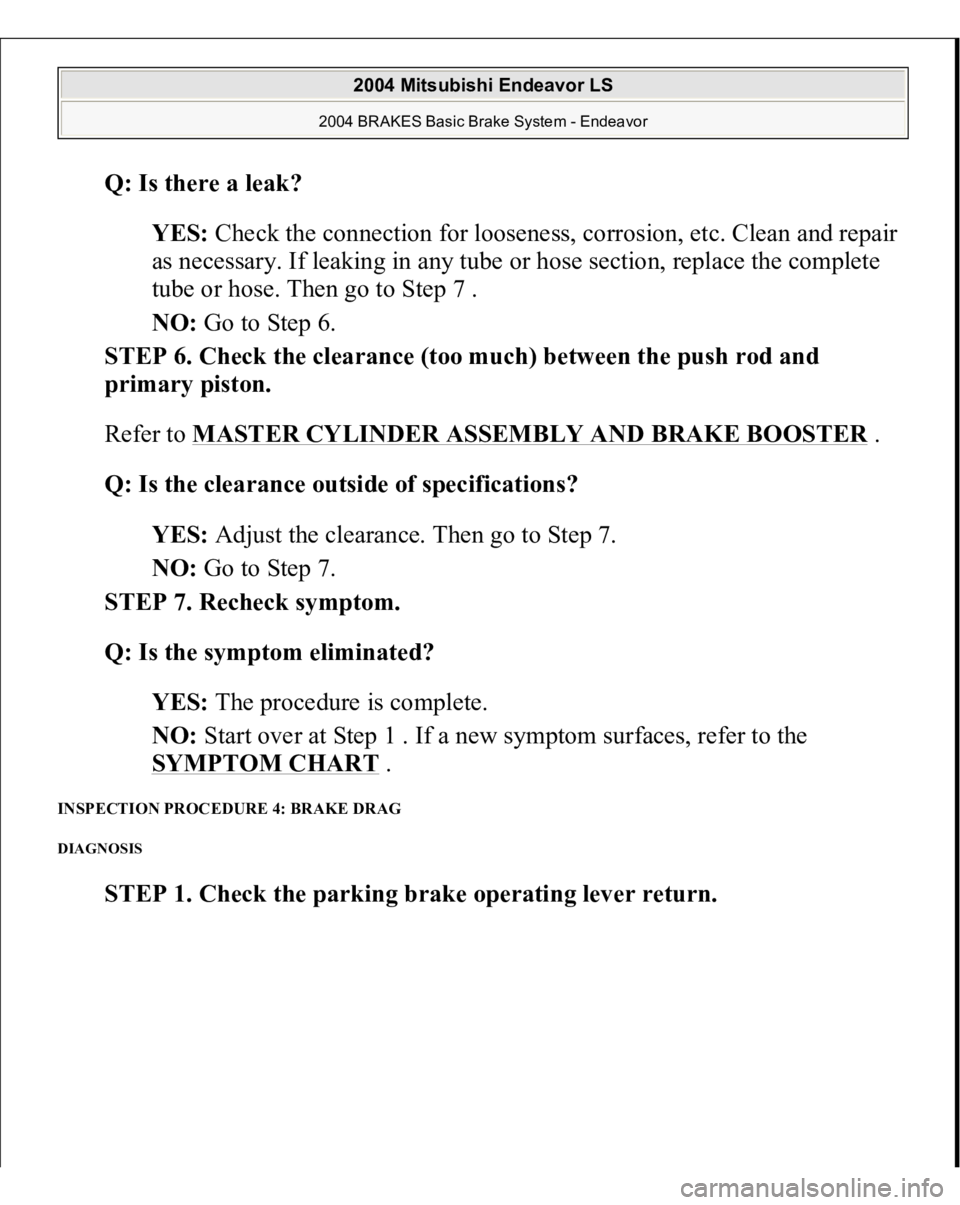

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is there a leak? YES: Check the connection for looseness, corrosion, etc. Clean and repair as necessary. If leaking in any tube or hose section, replace the complete tube or hose. Then go to St

Page 710 of 3870

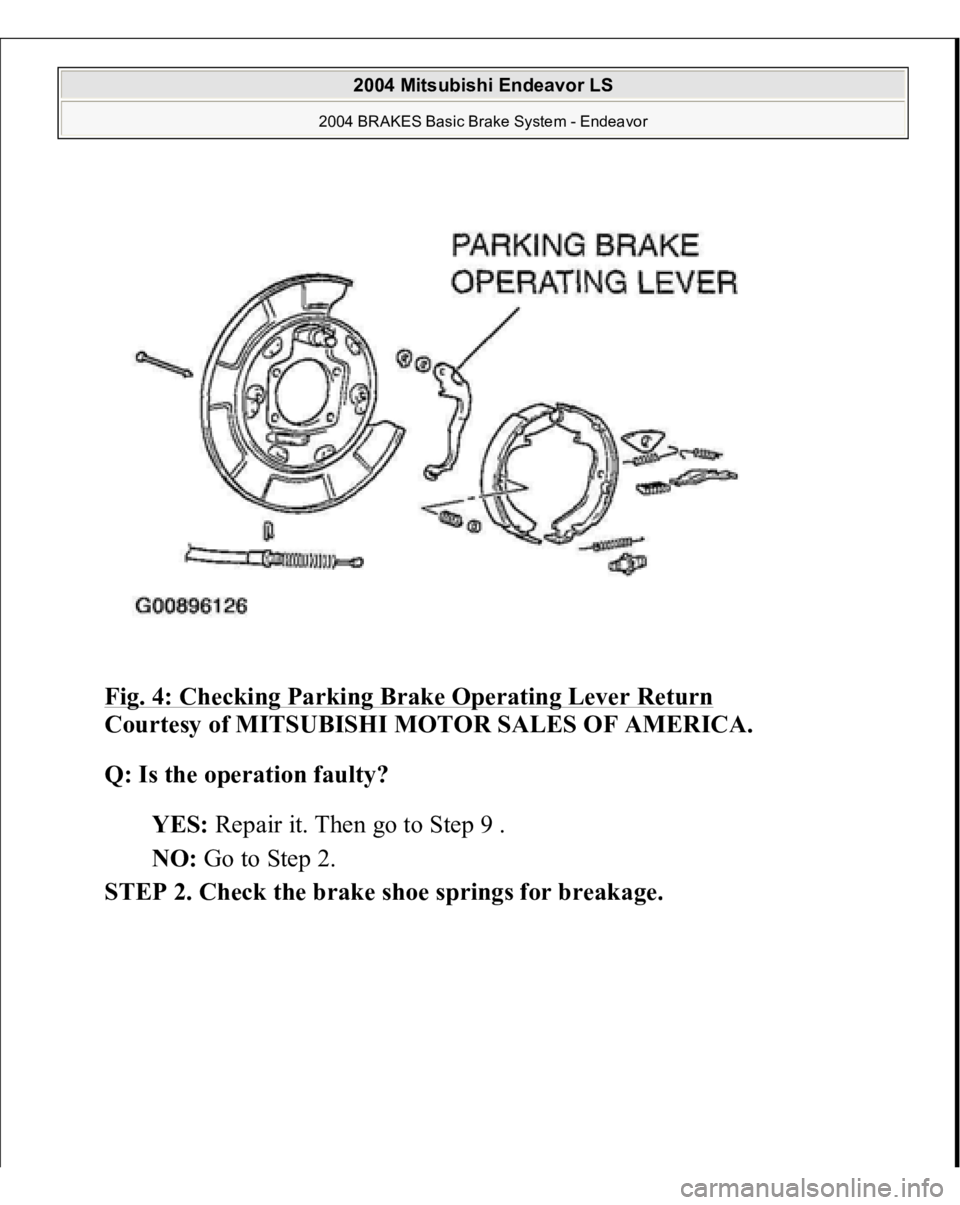

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 4: Checking Parking Brake Operating Lever Return Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the operation faulty? YES: Repair it. Then go to Step 9 . NO: Go to Step 2. STEP 2.

Page 711 of 3870

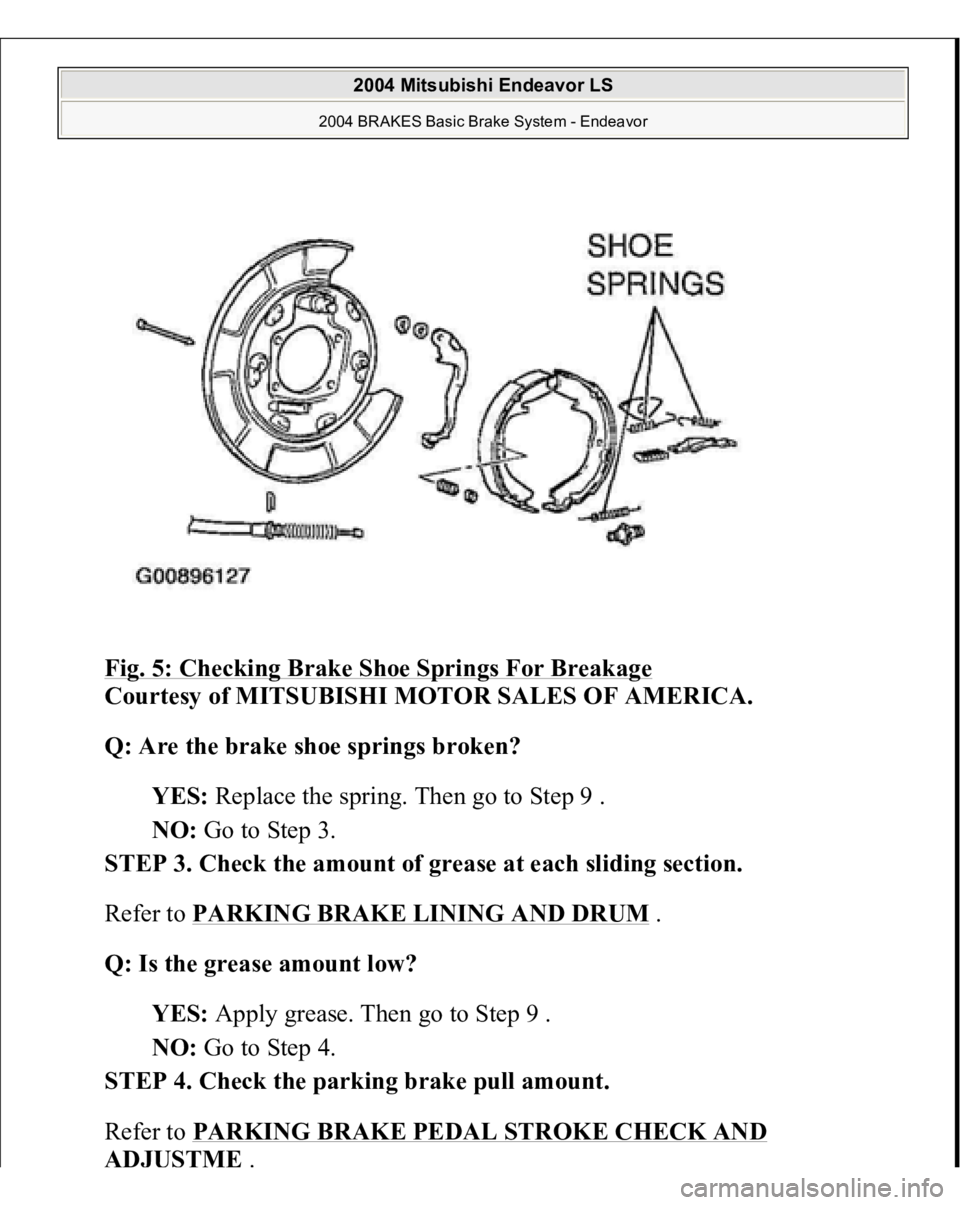

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 5: Checking Brake Shoe Springs For Breakage Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are the brake shoe springs broken? YES: Replace the spring. Then go to Step 9 . NO: Go to Step

Page 712 of 3870

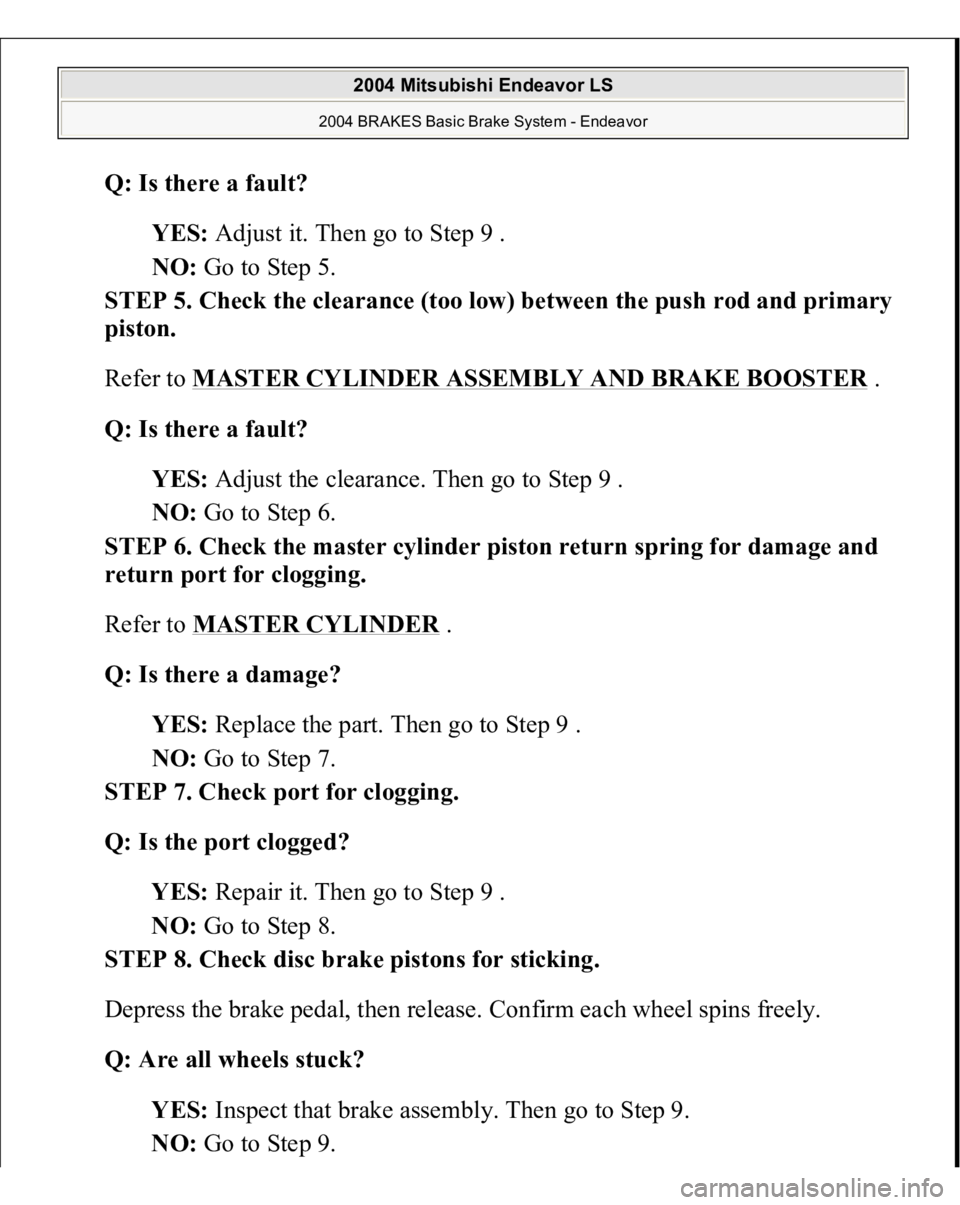

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is there a fault? YES: Adjust it. Then go to Step 9 . NO: Go to Step 5. STEP 5. Check the clearance (too low) between the push rod and primary piston. Refer to MASTER CYLINDER ASSEMBLY AND
