MITSUBISHI ENDEAVOR 2004 Service Repair Manual connector C-23 (terminal 2) Q: Is any harness wire damaged? YES: Repair the harness wire. Then go to Step 13 . NO: Go to Step 11. STEP 11. Recheck for diagnostic trouble code after the G-senso

Page 170 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 100: Connecting Scan Tool MB991958 To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 171 of 3870

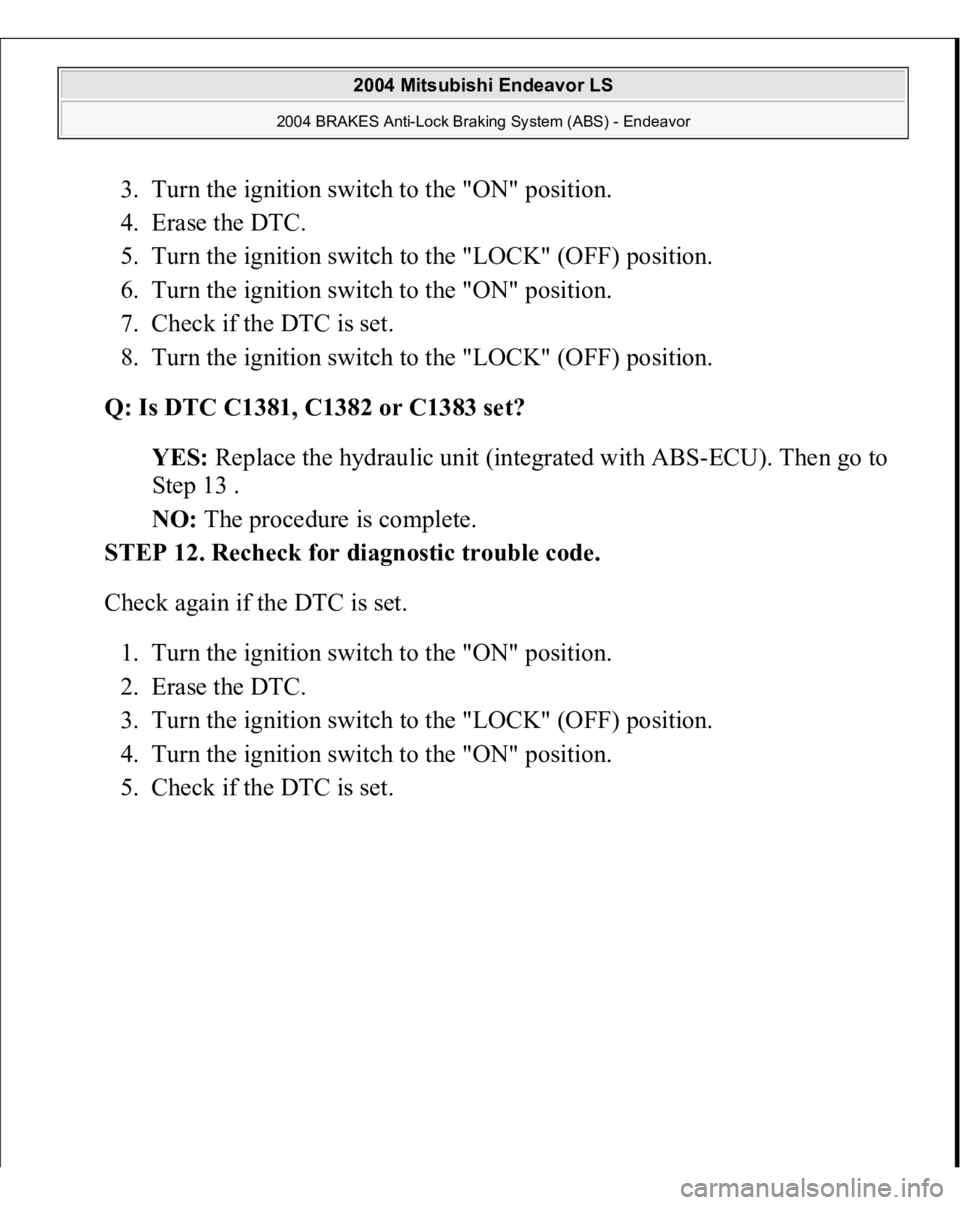

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. Turn the ignition switch to the "ON" position. 4. Erase the DTC. 5. Turn the ignition switch to the "LOCK" (OFF) position. 6. Turn the ignition switch to the "ON" posi

Page 172 of 3870

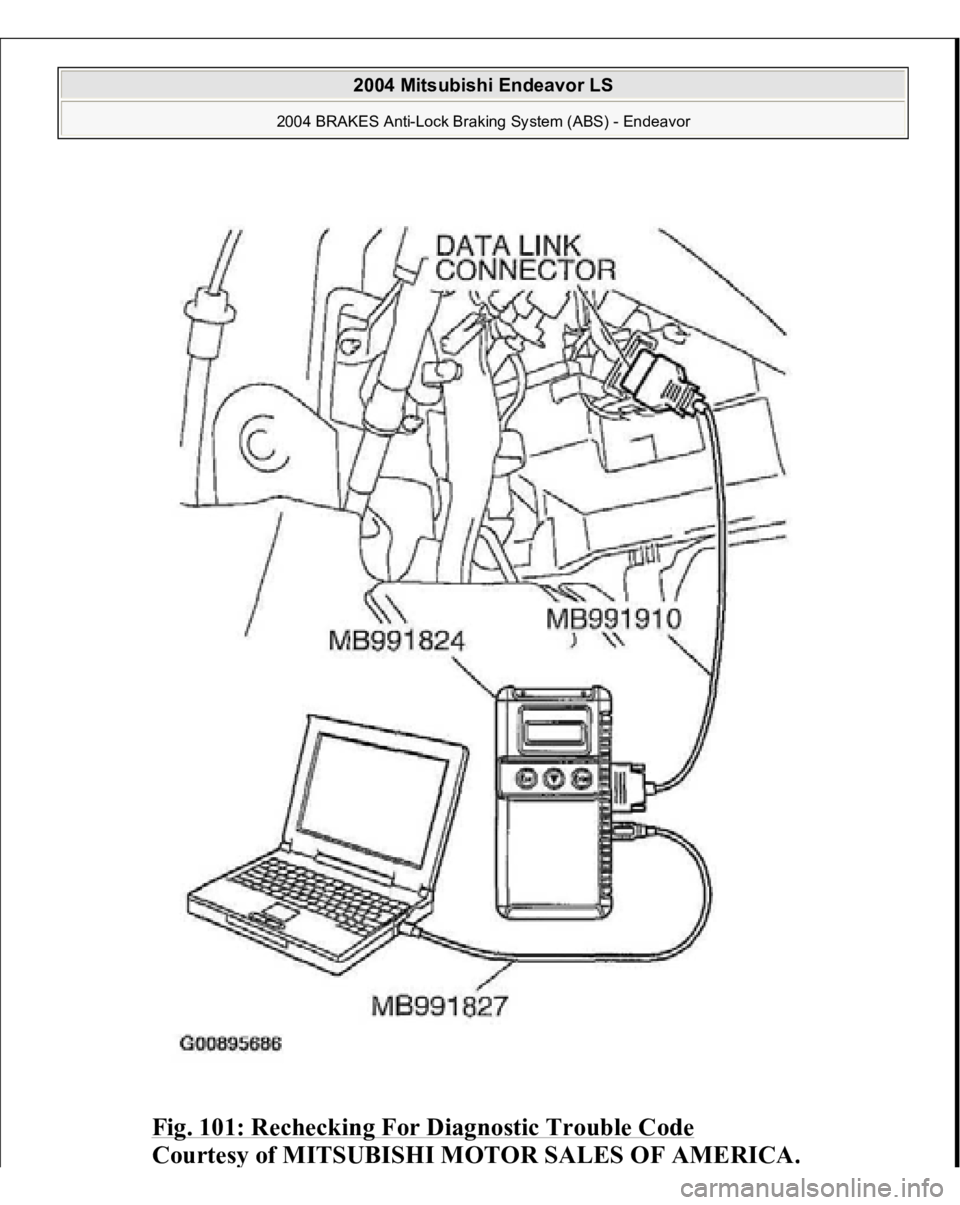

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 101: Rechecking For Diagnostic Trouble Code Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 173 of 3870

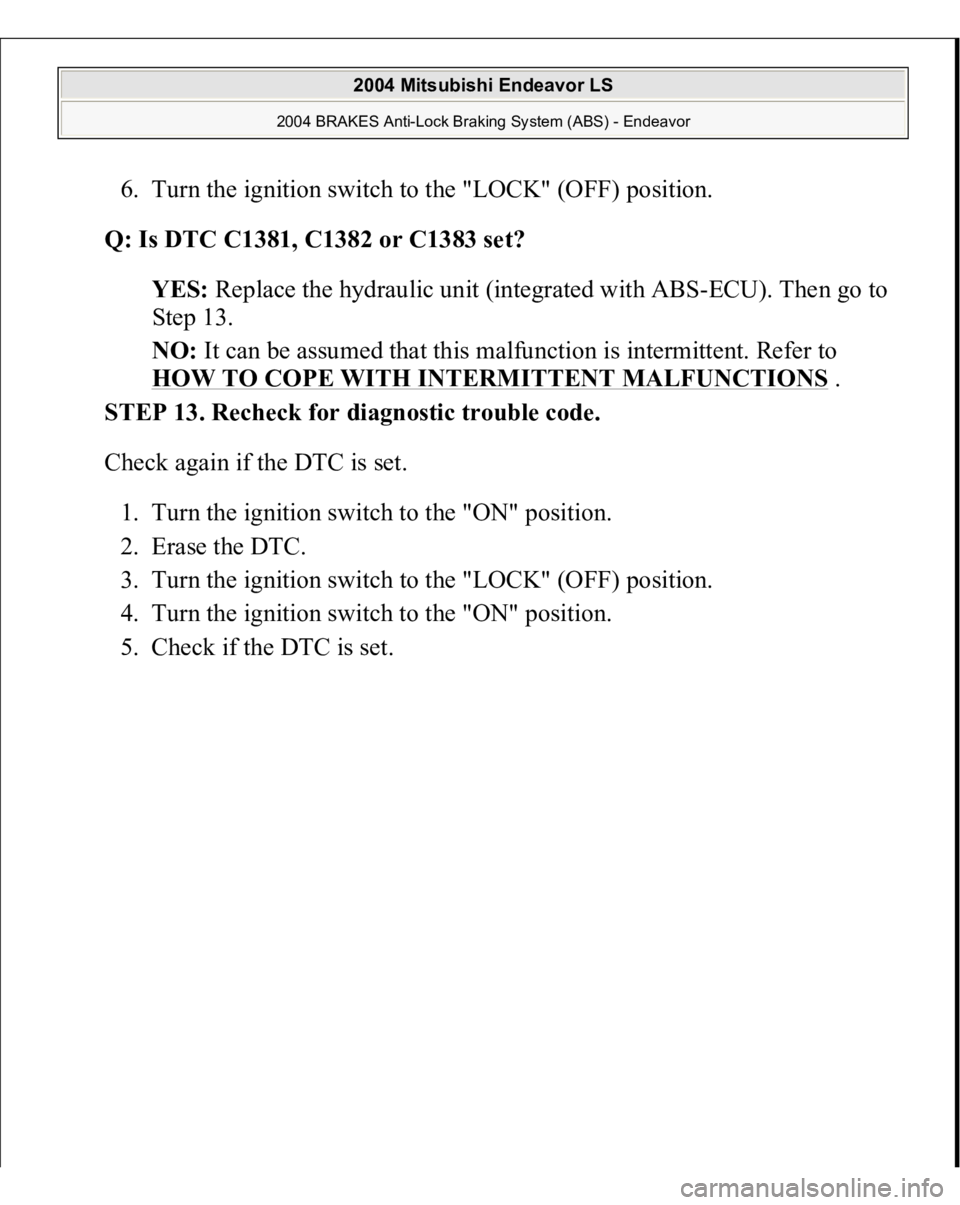

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1381, C1382 or C1383 set? YES: Replace the hydraulic unit (integrated with ABS-ECU). Then go to Step 13. NO: It can

Page 174 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 102: Rechecking For Diagnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 175 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1381, C1382 or C1383 set? YES: Go to Step 1 . NO: The procedure is c

Page 176 of 3870

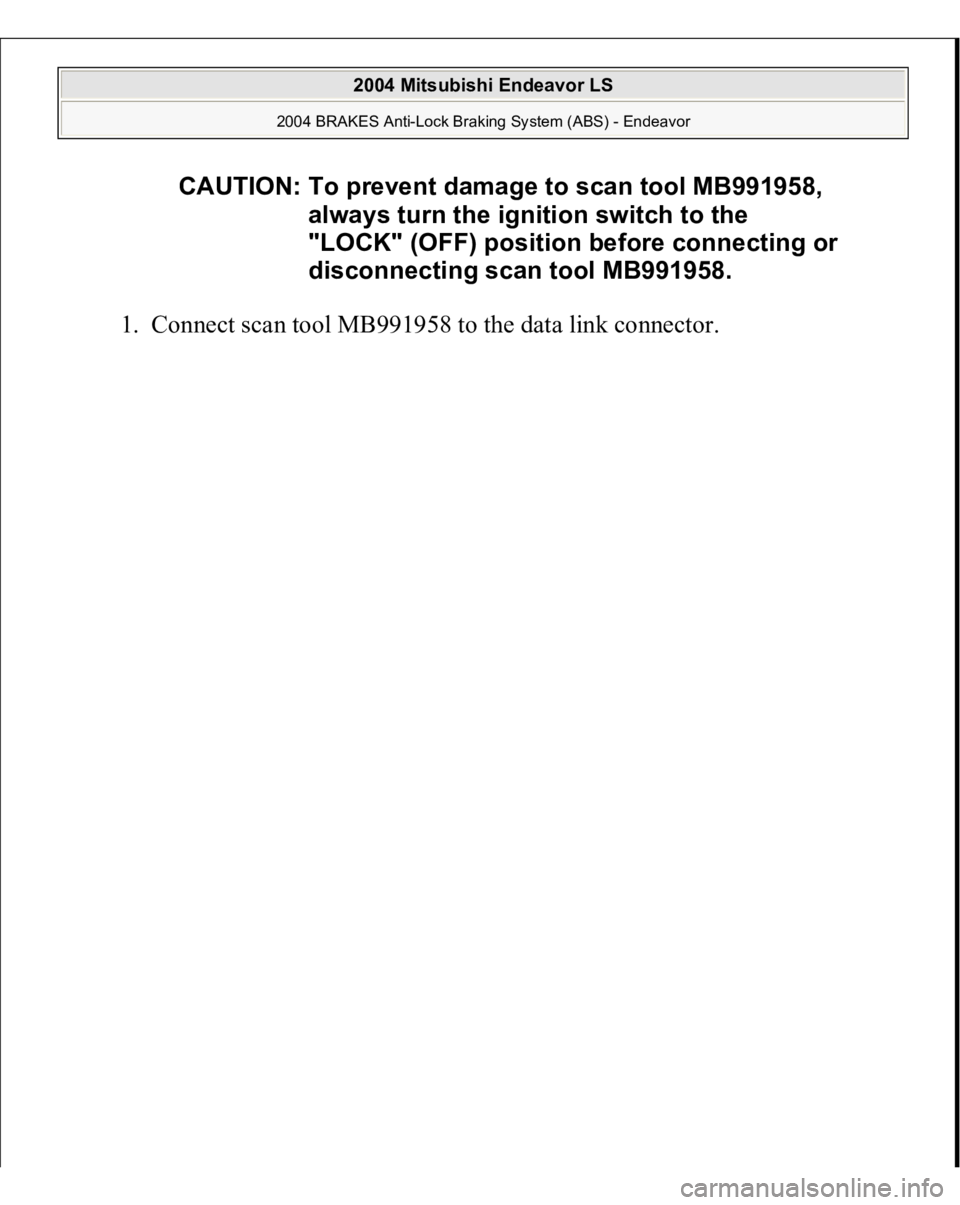

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Connect scan tool MB991958 to the data link connec tor. CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting o
