Page 3225 of 3870

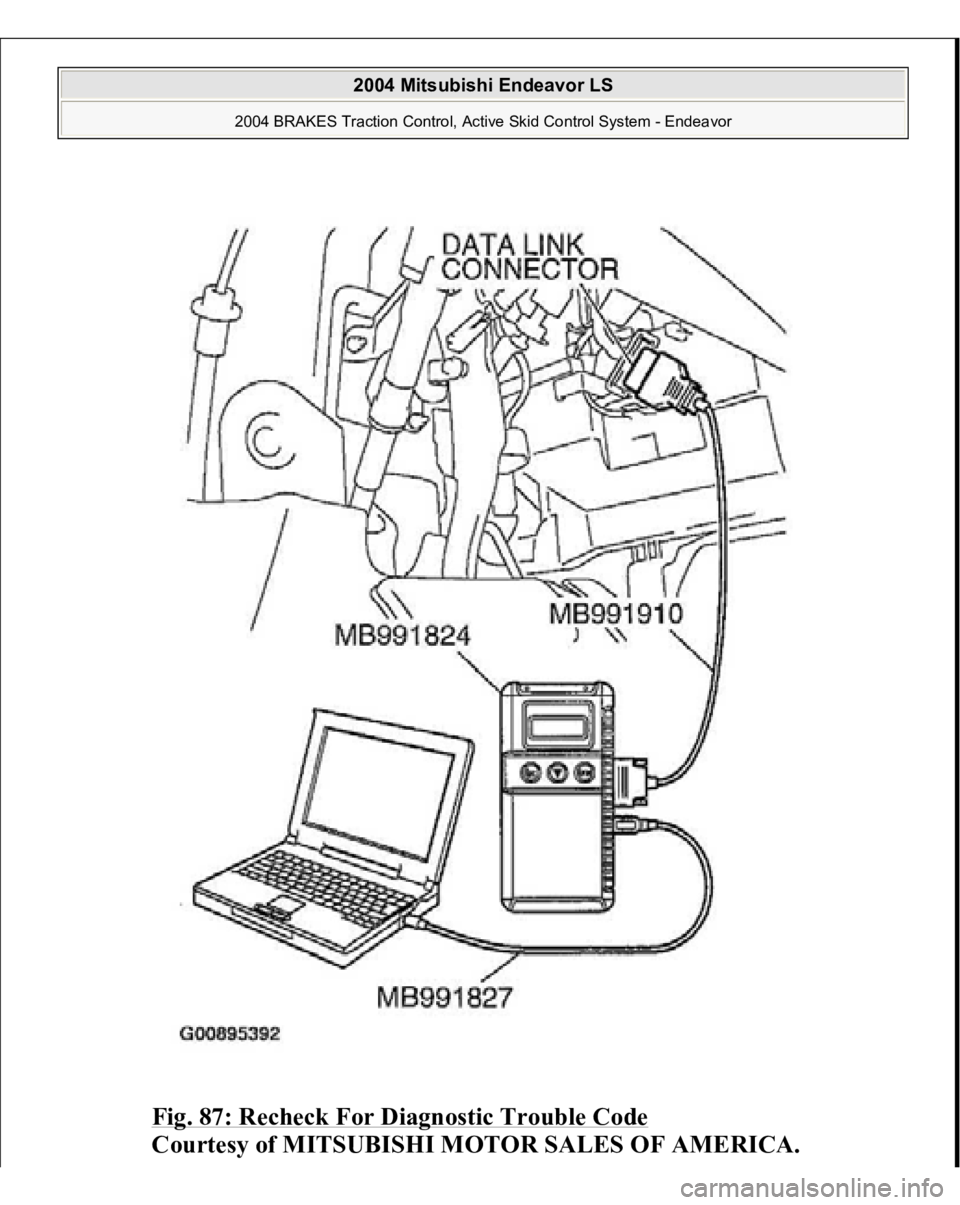

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 87: Recheck For Diagnostic Trouble Code Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3226 of 3870

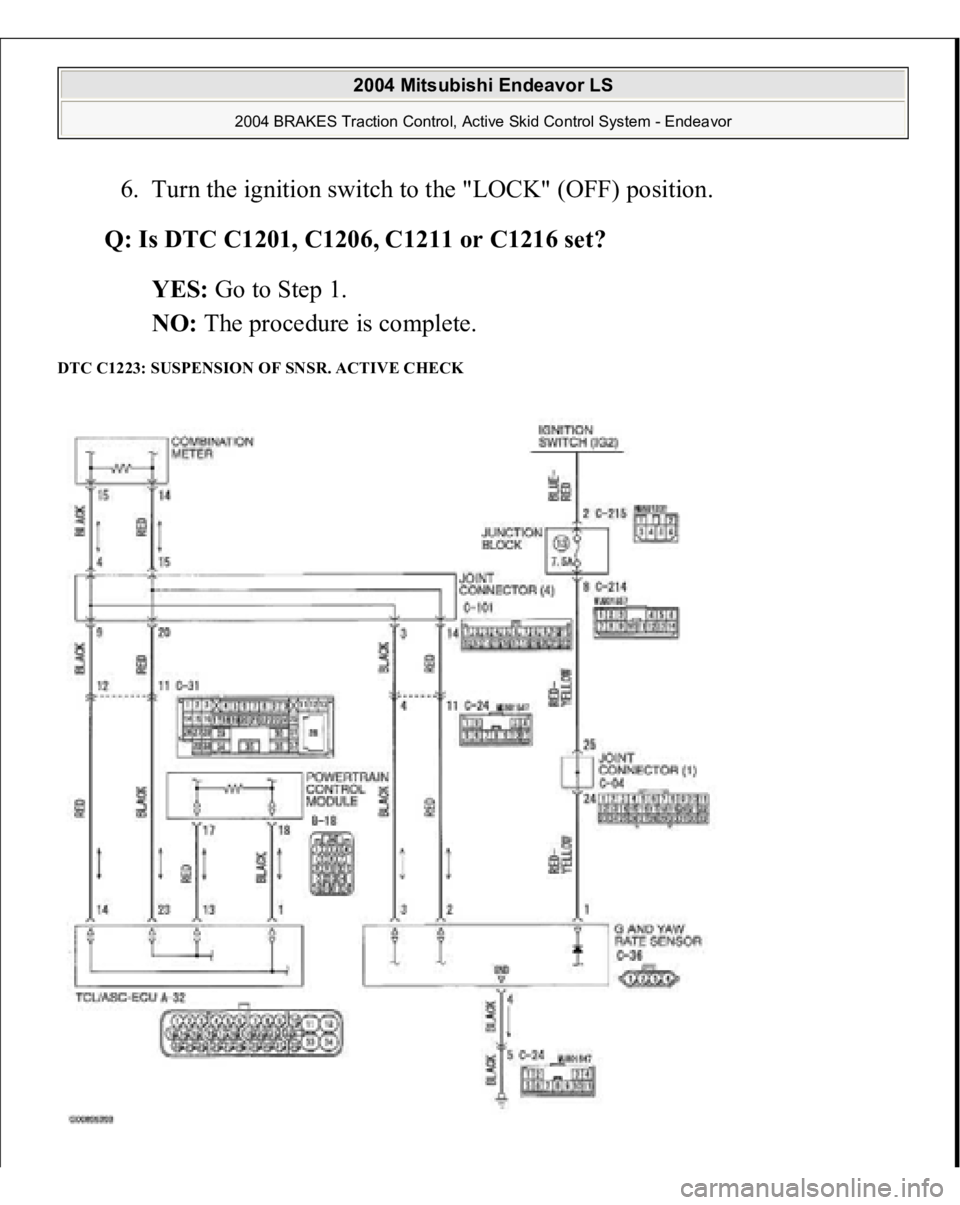

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1201, C1206, C1211 or C1216 set? YES: Go to Step 1. NO: The procedure is complete. DTC C1223: SUSPENSION OF SNSR. A

Page 3227 of 3870

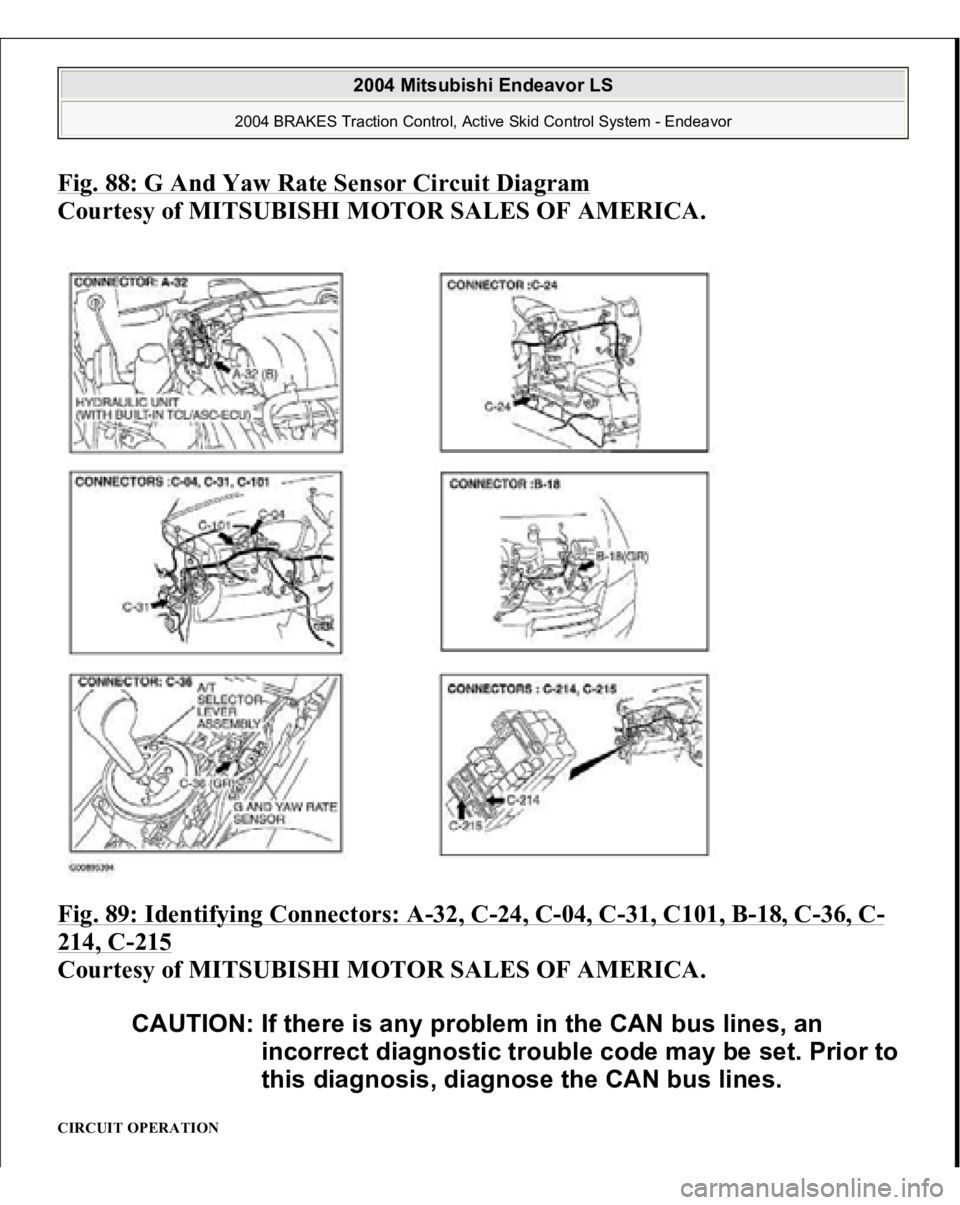

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 88: G And Yaw Rate Sensor Circuit Diagra m Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 89: Identifying Connectors: A -32, C -24, C -04, C -31, C101, B -18, C -36, C - 214, C -215 Cour

Page 3228 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual The TCL/ASC-ECU gathers information regarding lateral and longitudinal accelerations and yaw rate, through the CAN bus line from the G and yaw rate sensor. TCL/ASC DTC SET CONDITIONS The TCL/ASC-ECU

Page 3229 of 3870

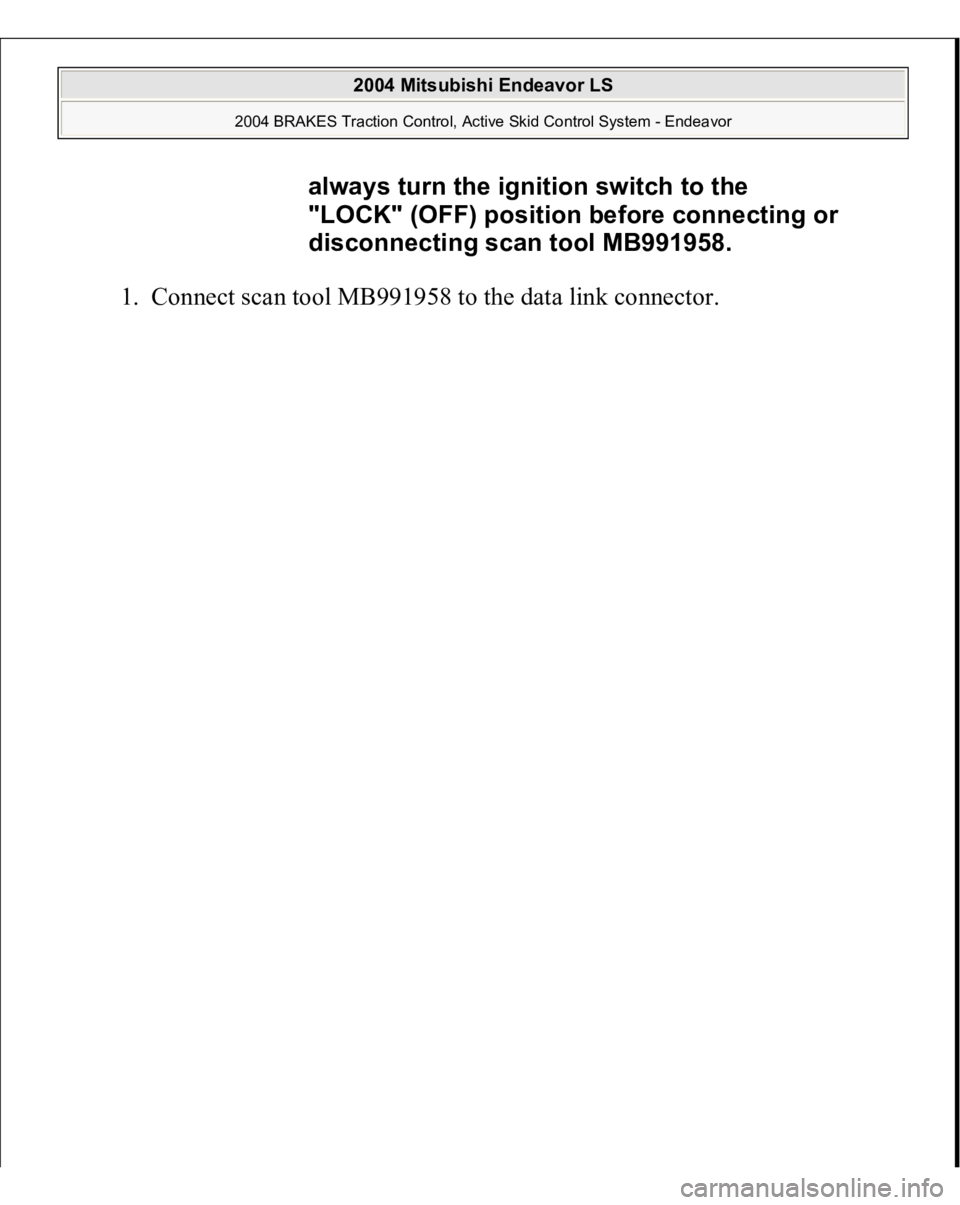

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Connect scan tool MB991958 to the data link connec tor. always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958. 2004 Mitsubi

Page 3230 of 3870

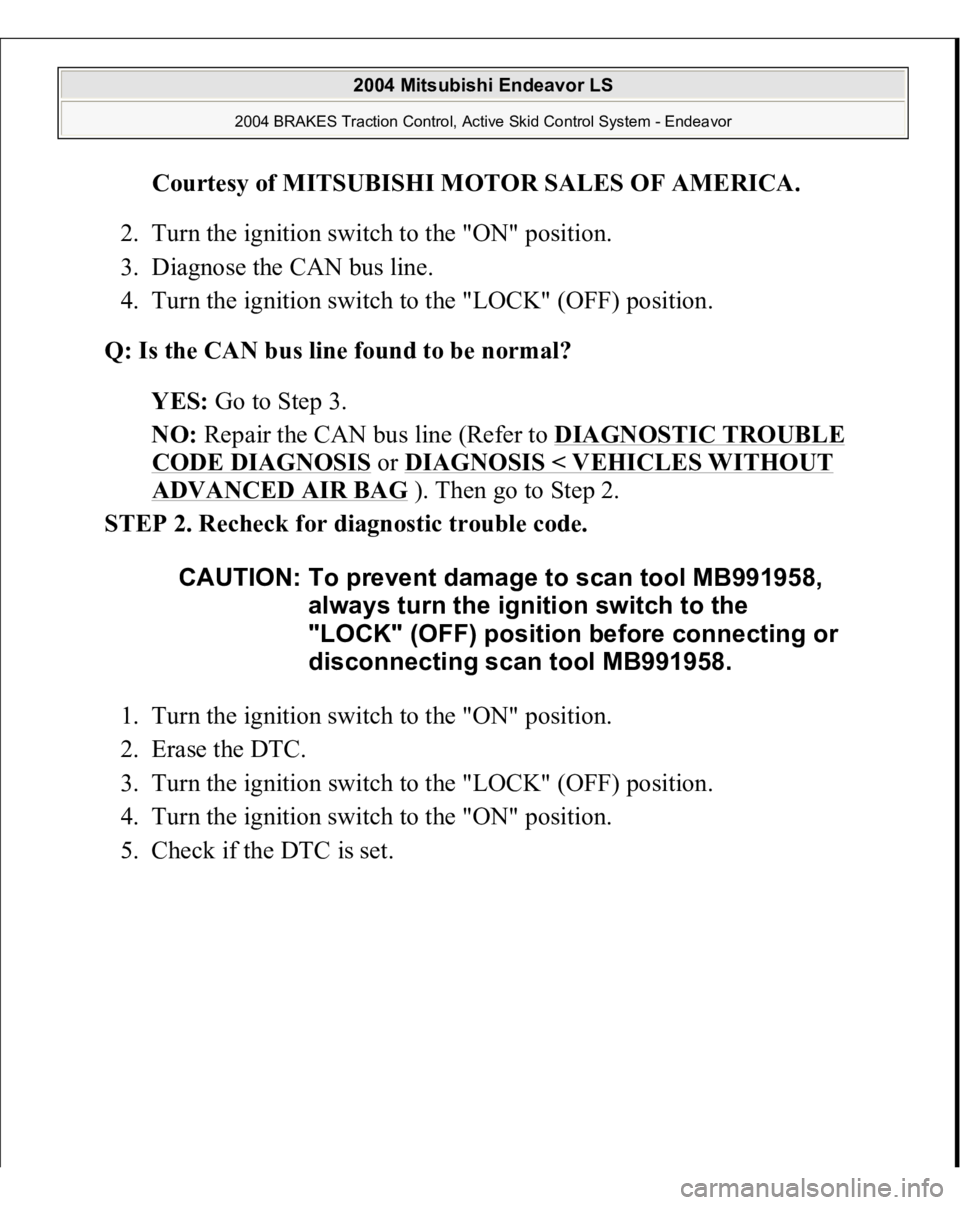

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 90: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3231 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus line. 4. Turn the ignition switch to the "LOCK" (OFF) pos

Page 3232 of 3870

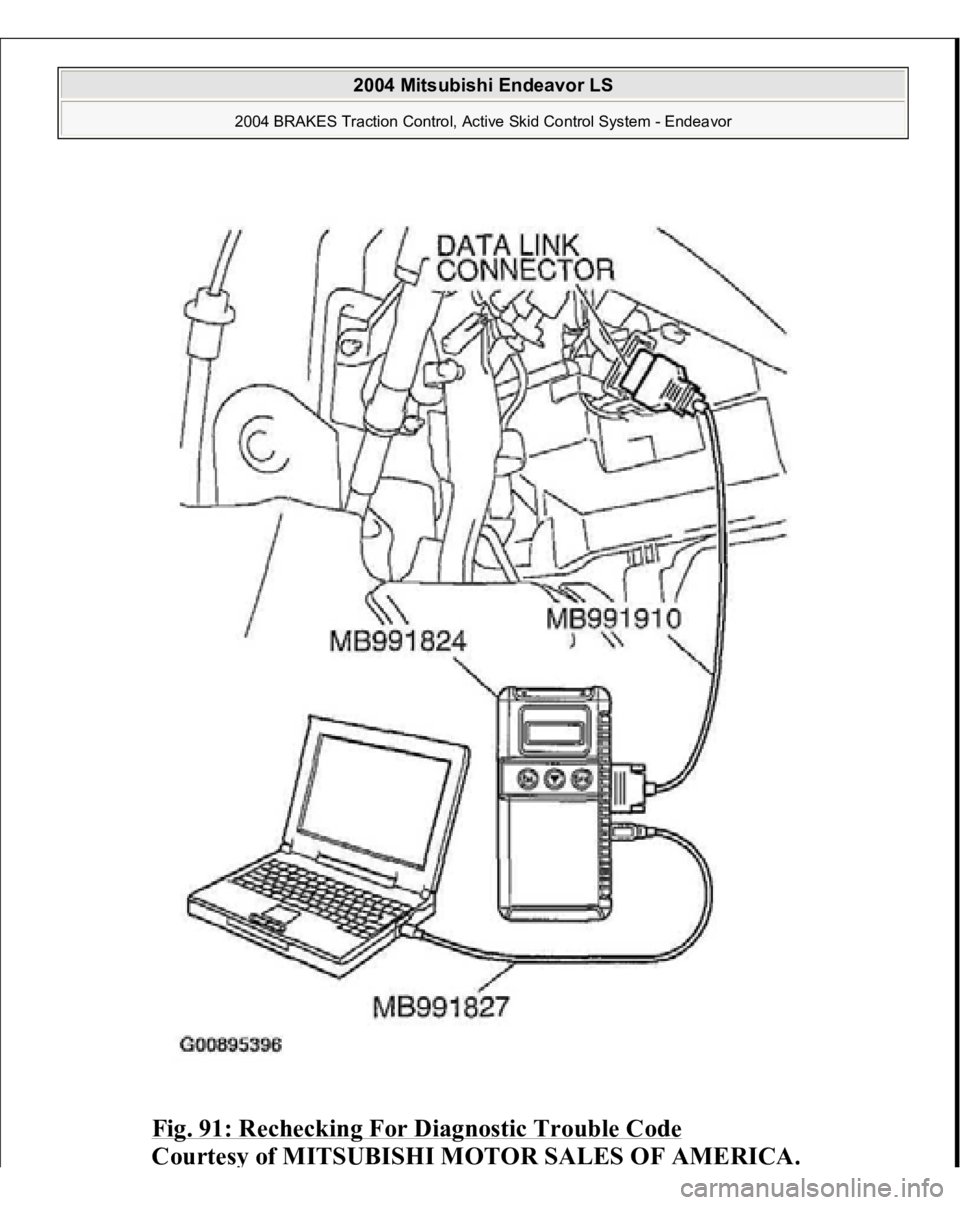

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 91: Rechecking For Diagnostic Trouble Code Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor
