Page 3497 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Read the TCL/ASC diagnostic trouble code. Q: Is the DTC U1105 (current trouble) set?

Page 3498 of 3870

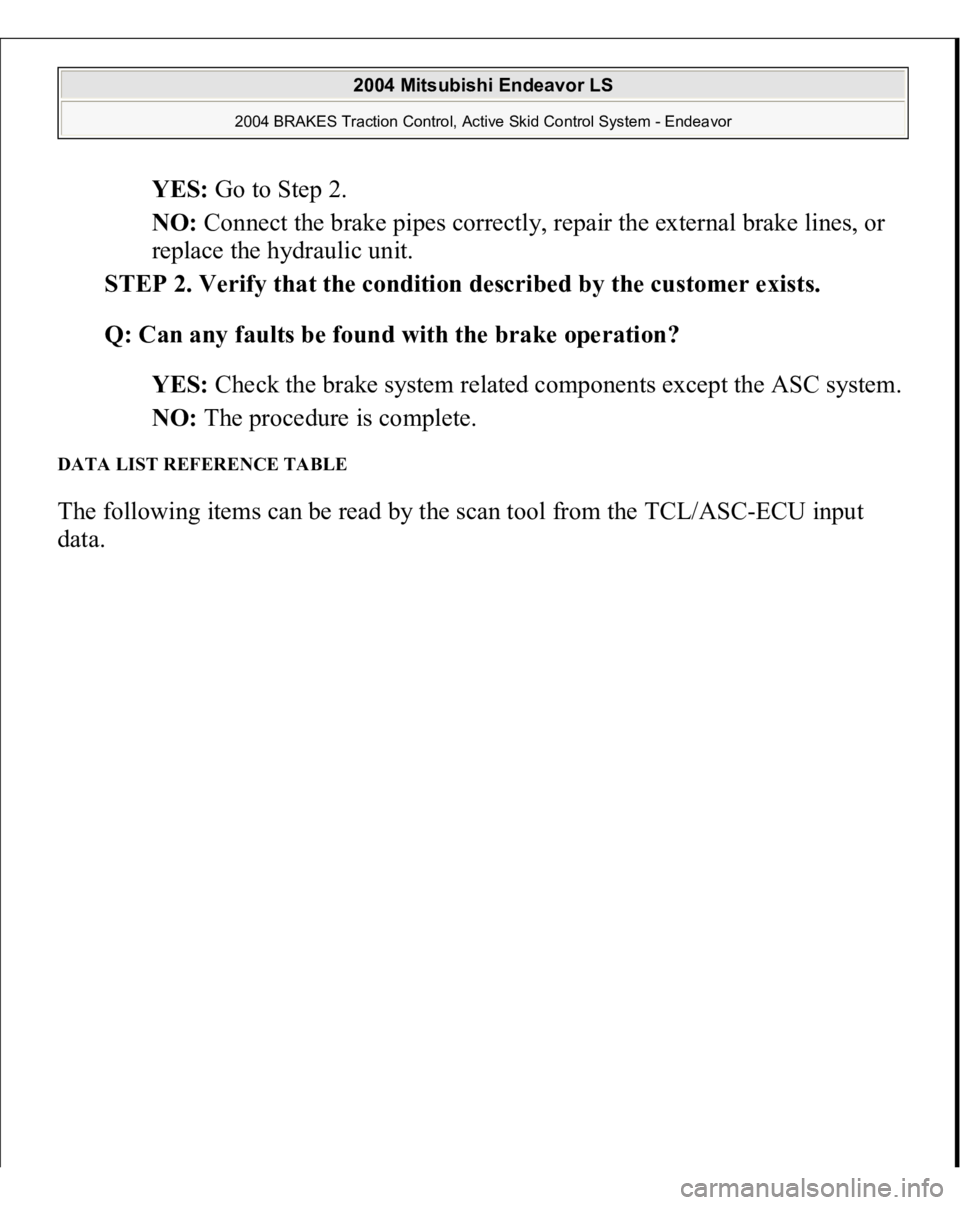

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Go to Step 2. NO: Connect the brake pipes correctly, repair the external brake lines, or replace the hydraulic unit. STEP 2. Verify that the condition described by the customer exists. Q: C

Page 3499 of 3870

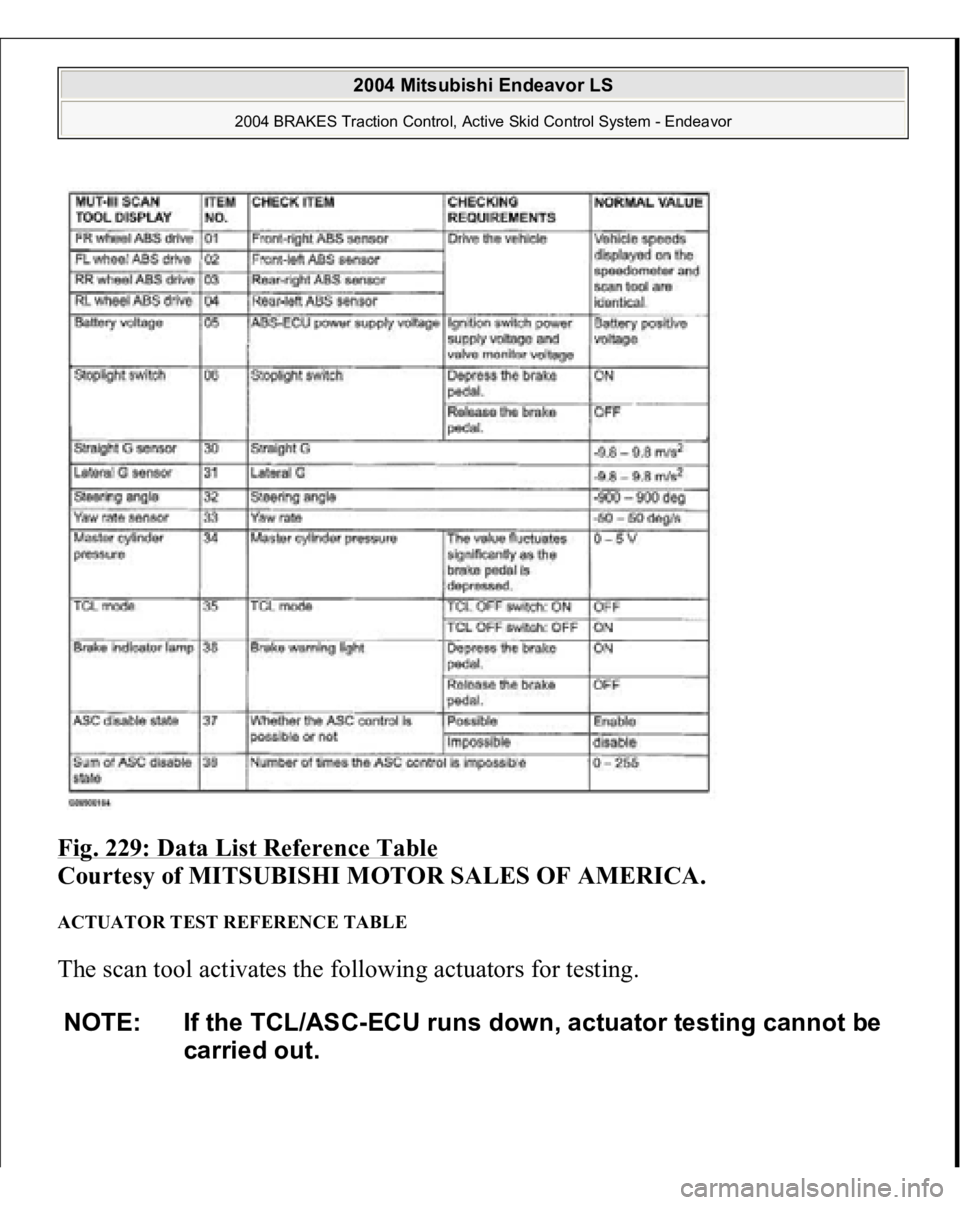

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 229: Data List Reference Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ACTUATOR TEST REFERENCE TABLE The scan tool activates the following actuators for testing. NOTE: If the TCL/ASC-EC

Page 3500 of 3870

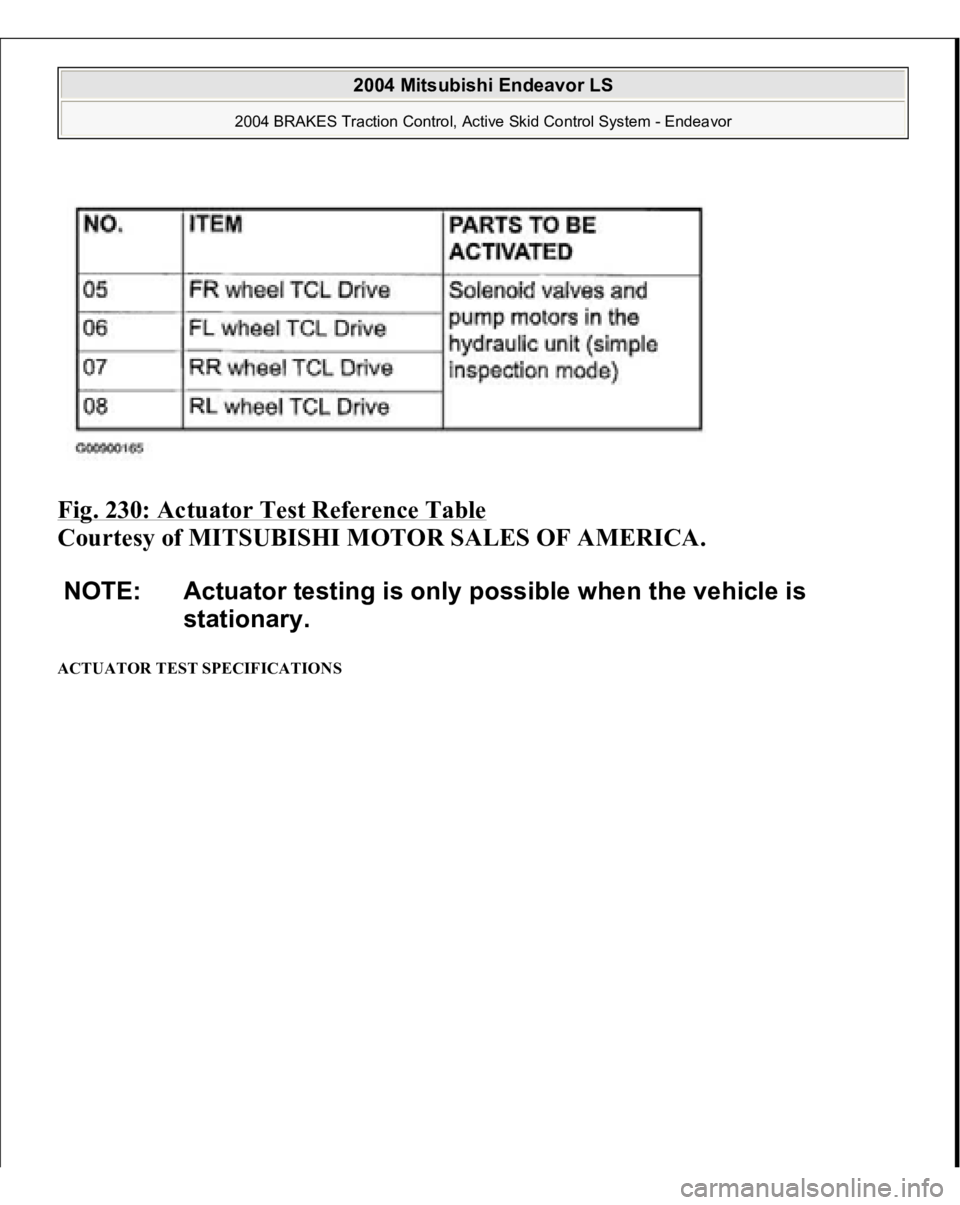

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 230: Actuator Test Reference Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ACTUATOR TEST SPECIFICATIONS NOTE: Actuator testing is only possible when the vehicle is stationary. 2004 Mi

Page 3501 of 3870

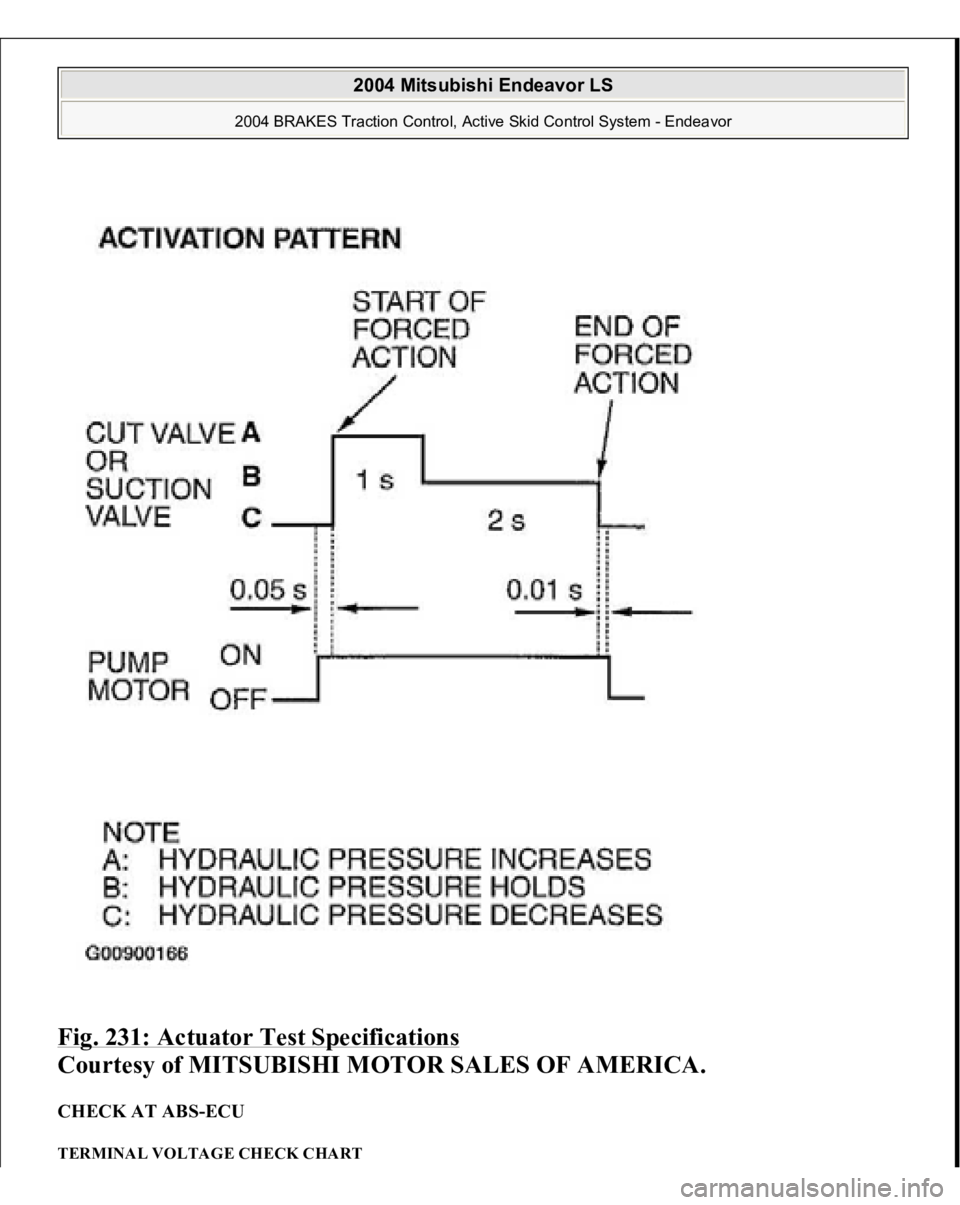

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 231: Actuator Test Specifications Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CHECK AT ABS-ECU TERMINAL VOLTAGE CHECK CHART 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Acti

Page 3502 of 3870

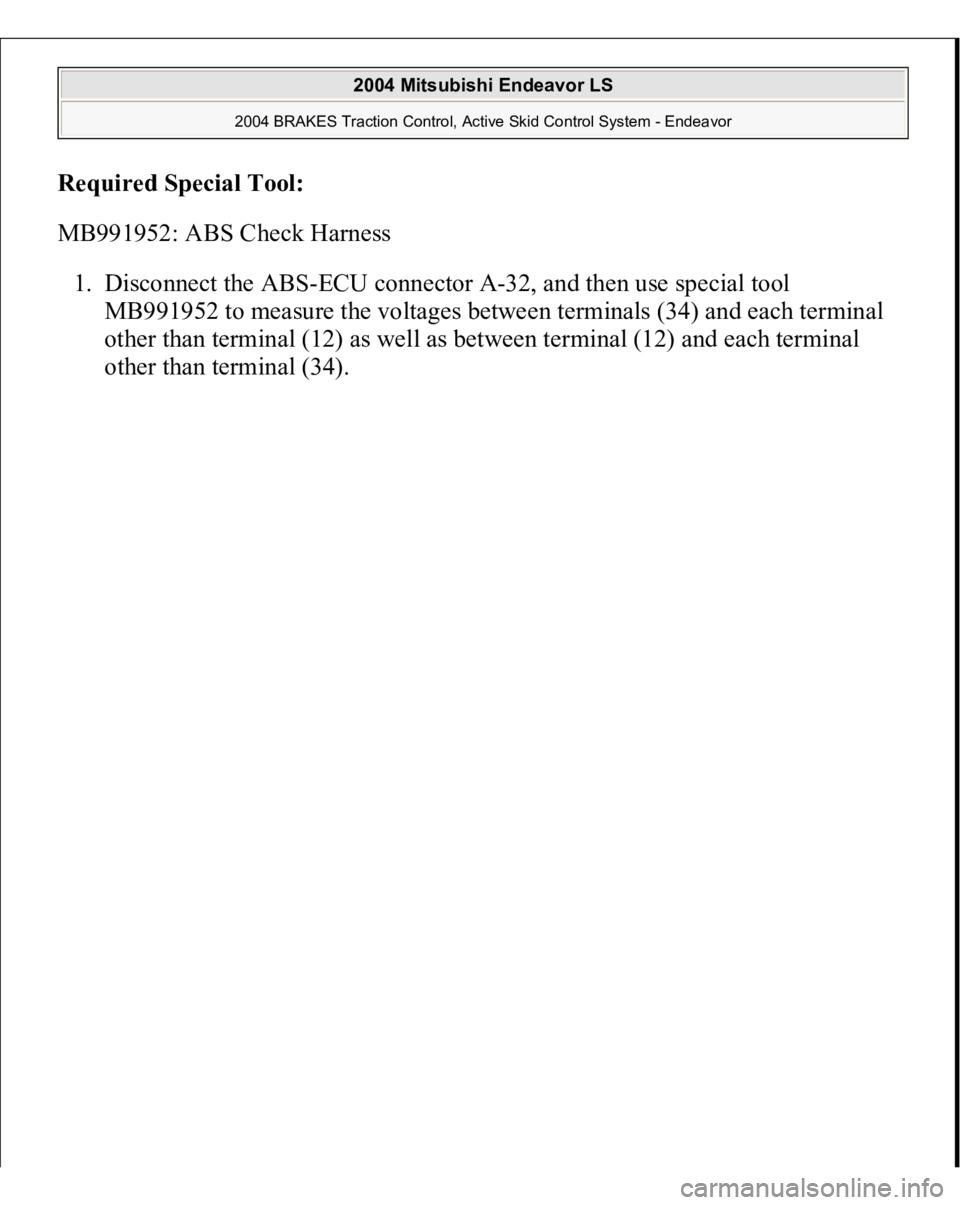

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Required Special Tool : MB991952: ABS Check Harness 1. Disconnect the ABS-ECU connector A-32, and then use special tool MB991952 to measure the voltages between terminals (34) and each terminal o

Page 3503 of 3870

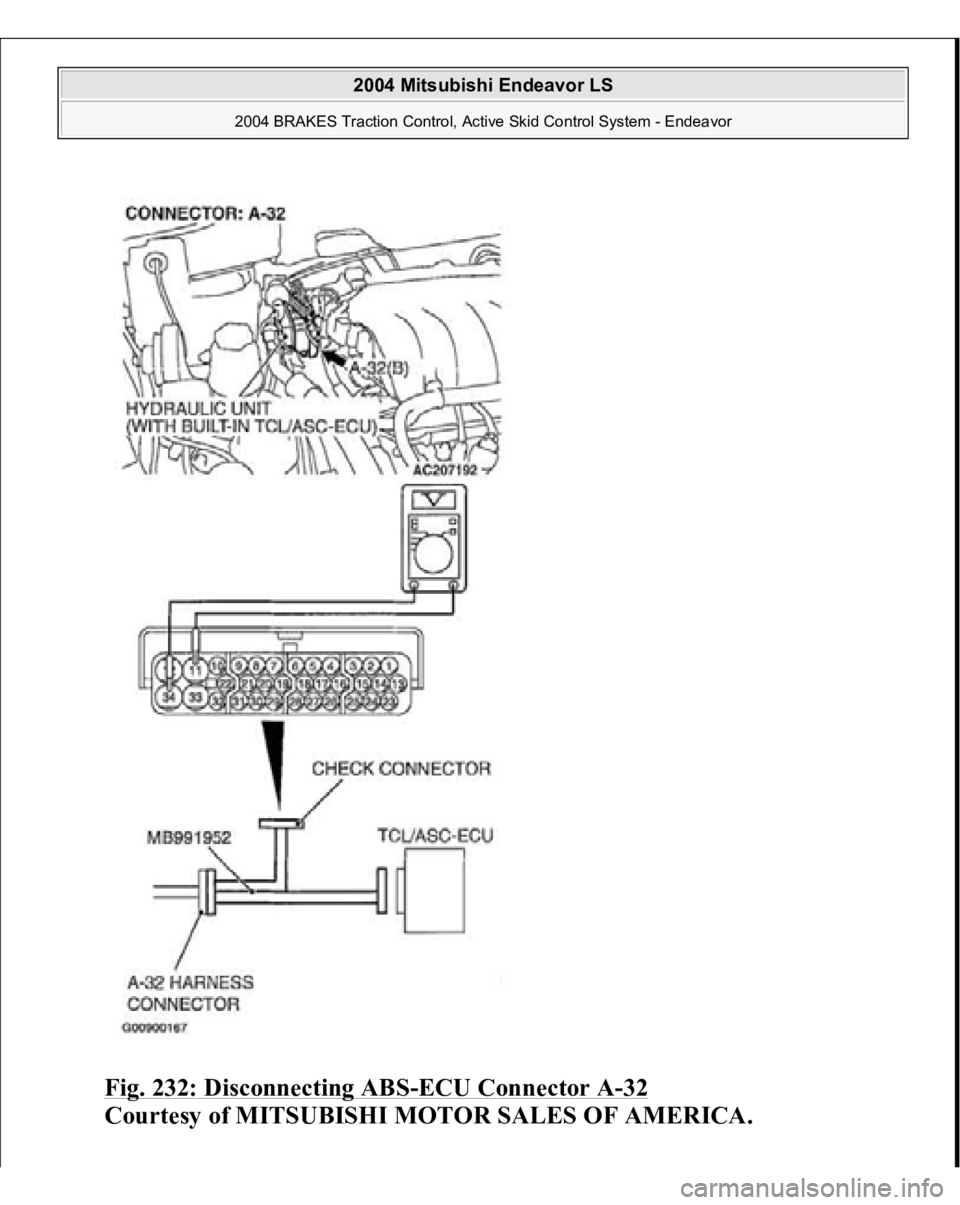

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 232: Disconnecting ABS -ECU Connector A -32 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3504 of 3870

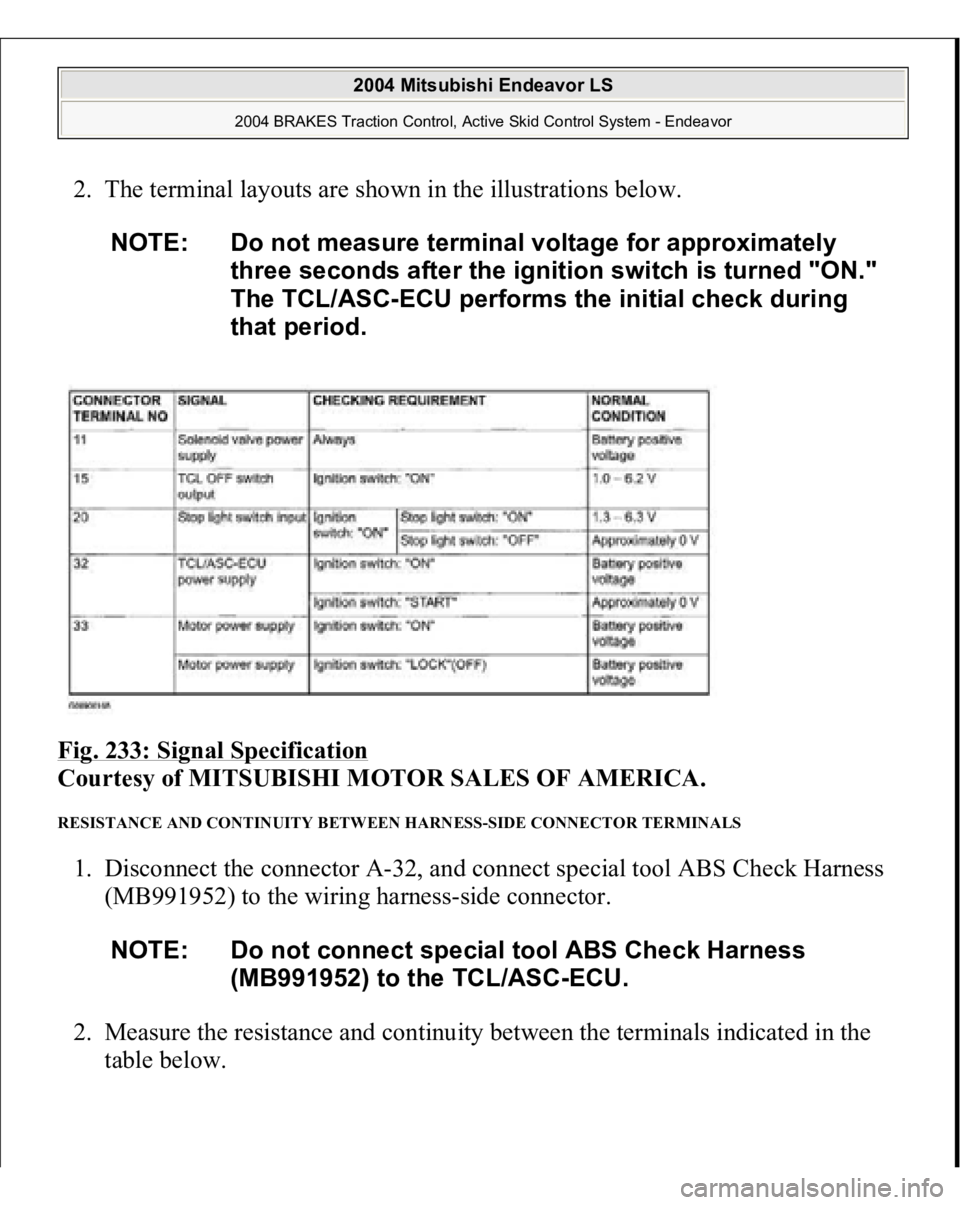

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. The terminal layouts are shown in the illustrations below. Fig. 233: Signal Specification Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. RESISTANCE AND CONTINUITY BETWEEN HARNESS-SIDE CONNECTOR
