Page 3457 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 203: TCL/ASC -ECU Power Supply and Ground Circuit Diagram & Connector Identification Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control,

Page 3458 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 204: Identifying Connectors: C -214, C -215 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CIRCUIT OPERATION The TCL/ASC-ECU is energized by the ignition switch (IG2) through multi- purpose f

Page 3459 of 3870

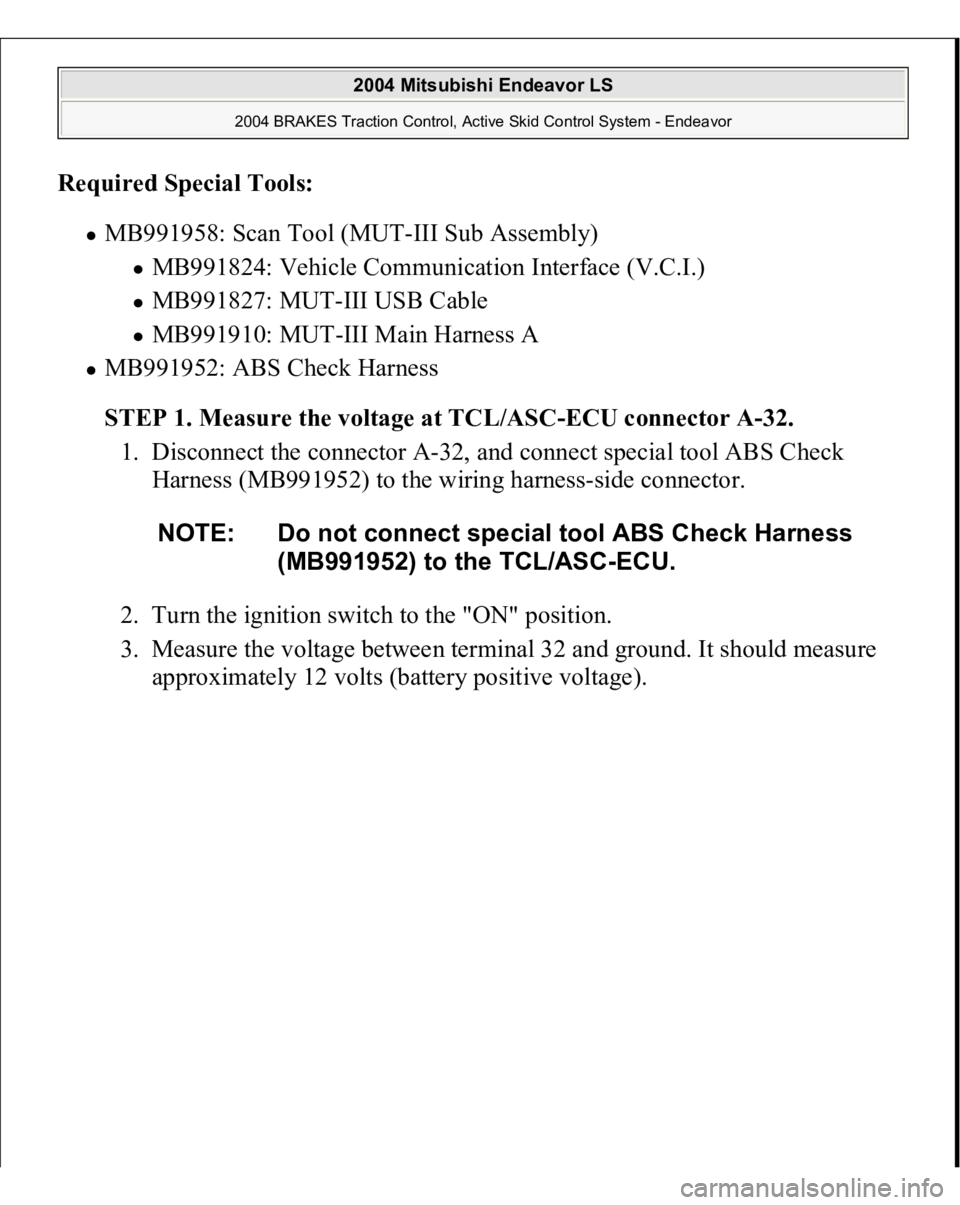

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Required Special Tools: MB991958: Scan Tool (MUT-III Sub Assembly) MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A MB991952: ABS

Page 3460 of 3870

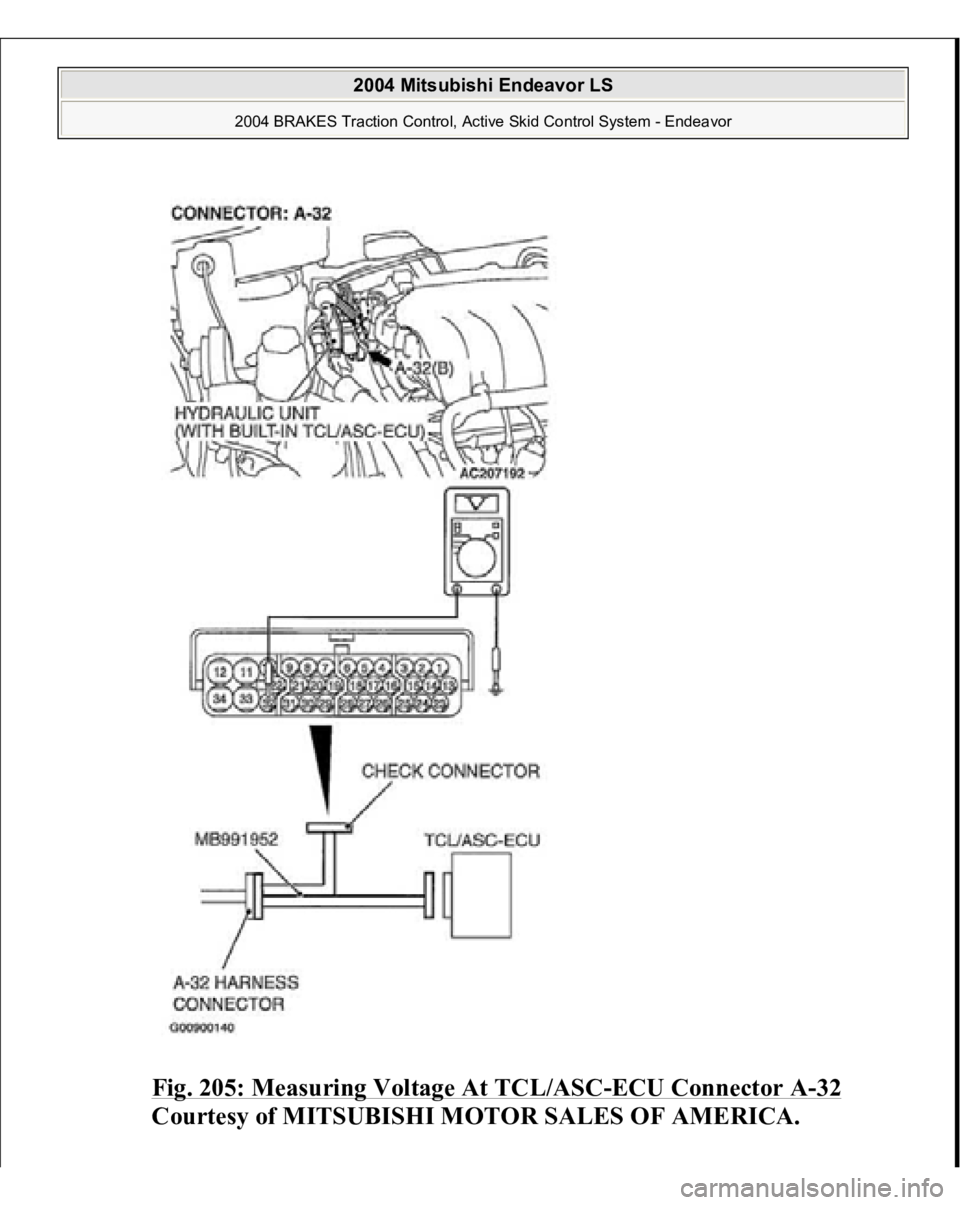

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 205: Measuring Voltage At TCL/ASC -ECU Connector A -32 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - En

Page 3461 of 3870

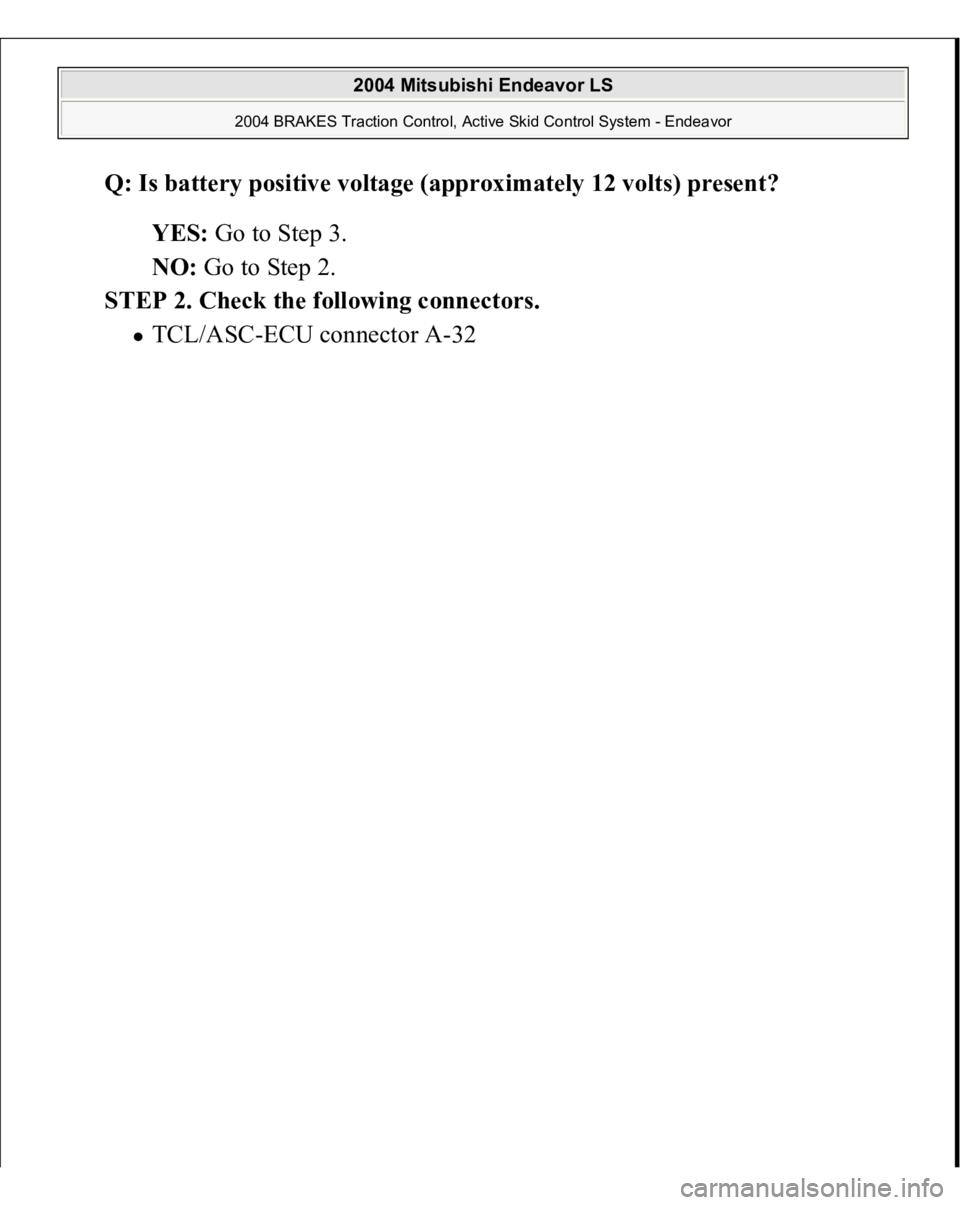

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is battery positive voltage (approximately 12 volts) present? YES: Go to Step 3. NO: Go to Step 2. STEP 2. Check the following connectors. TCL/ASC-ECU connector A-32 2004 Mitsubishi Endea

Page 3462 of 3870

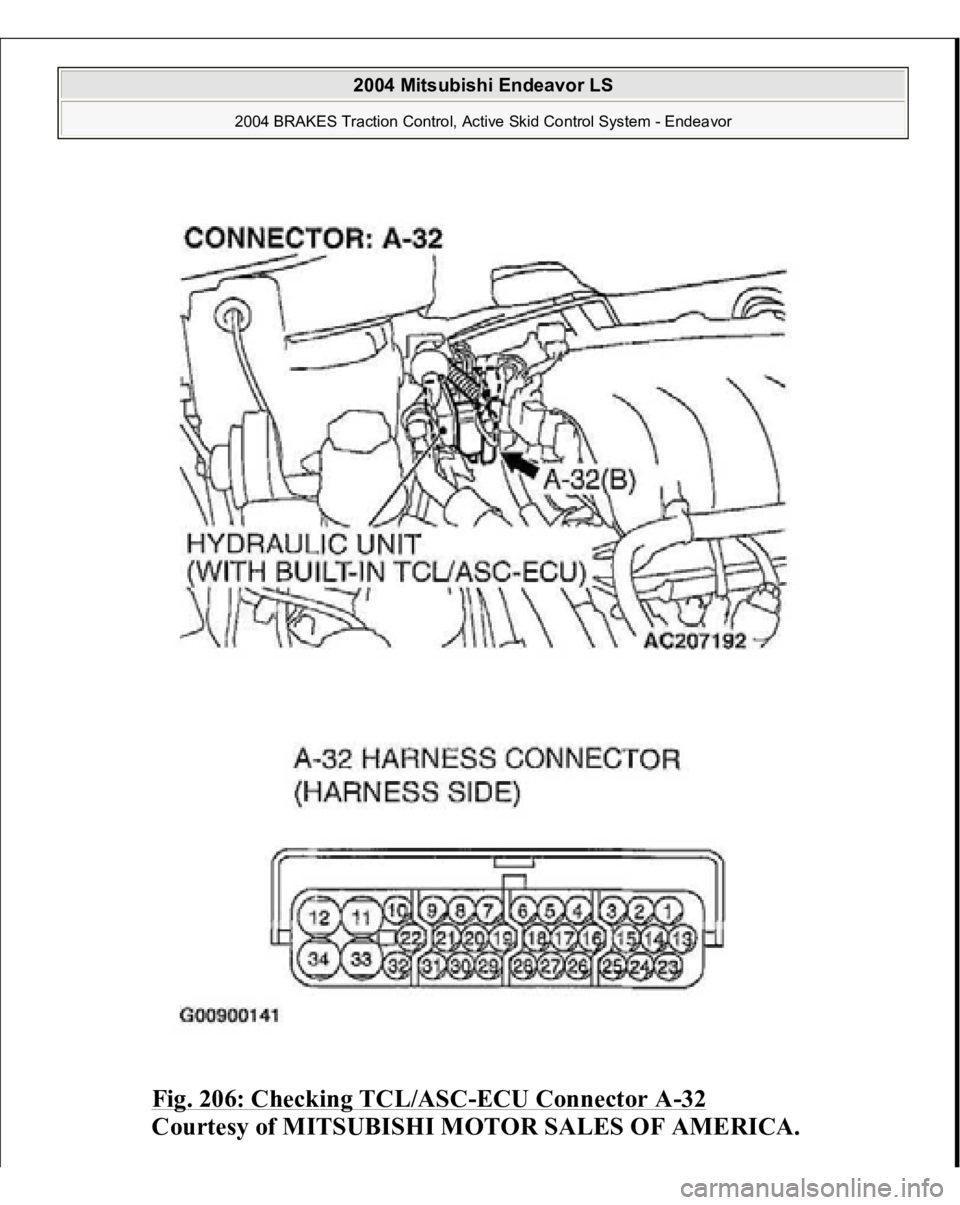

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 206: Checking TCL/ASC -ECU Connector A -32 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3463 of 3870

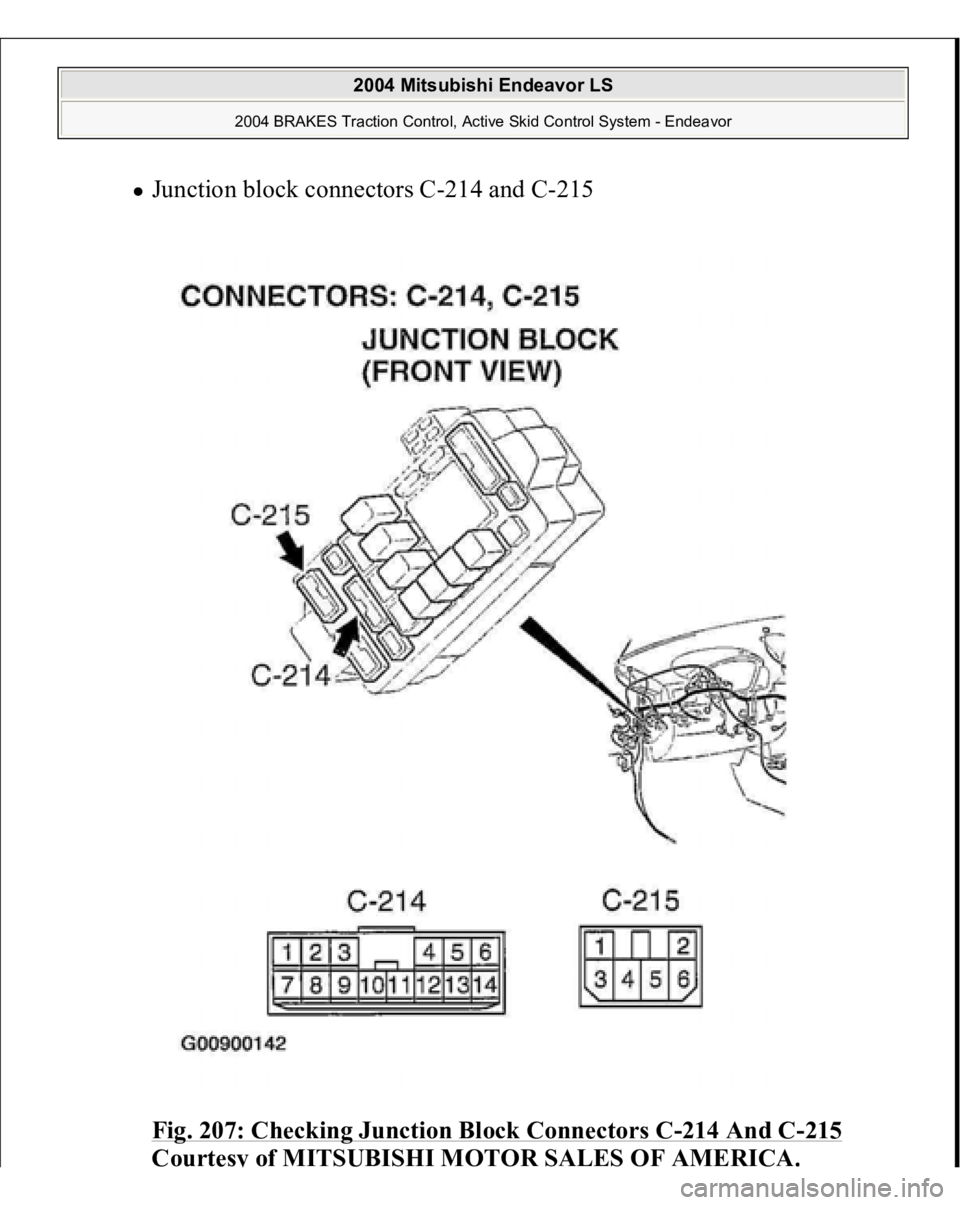

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Junction block connectors C-214 and C-215 Fig. 207: Checking Junction Block Connectors C -214 And C -215 Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES

Page 3464 of 3870

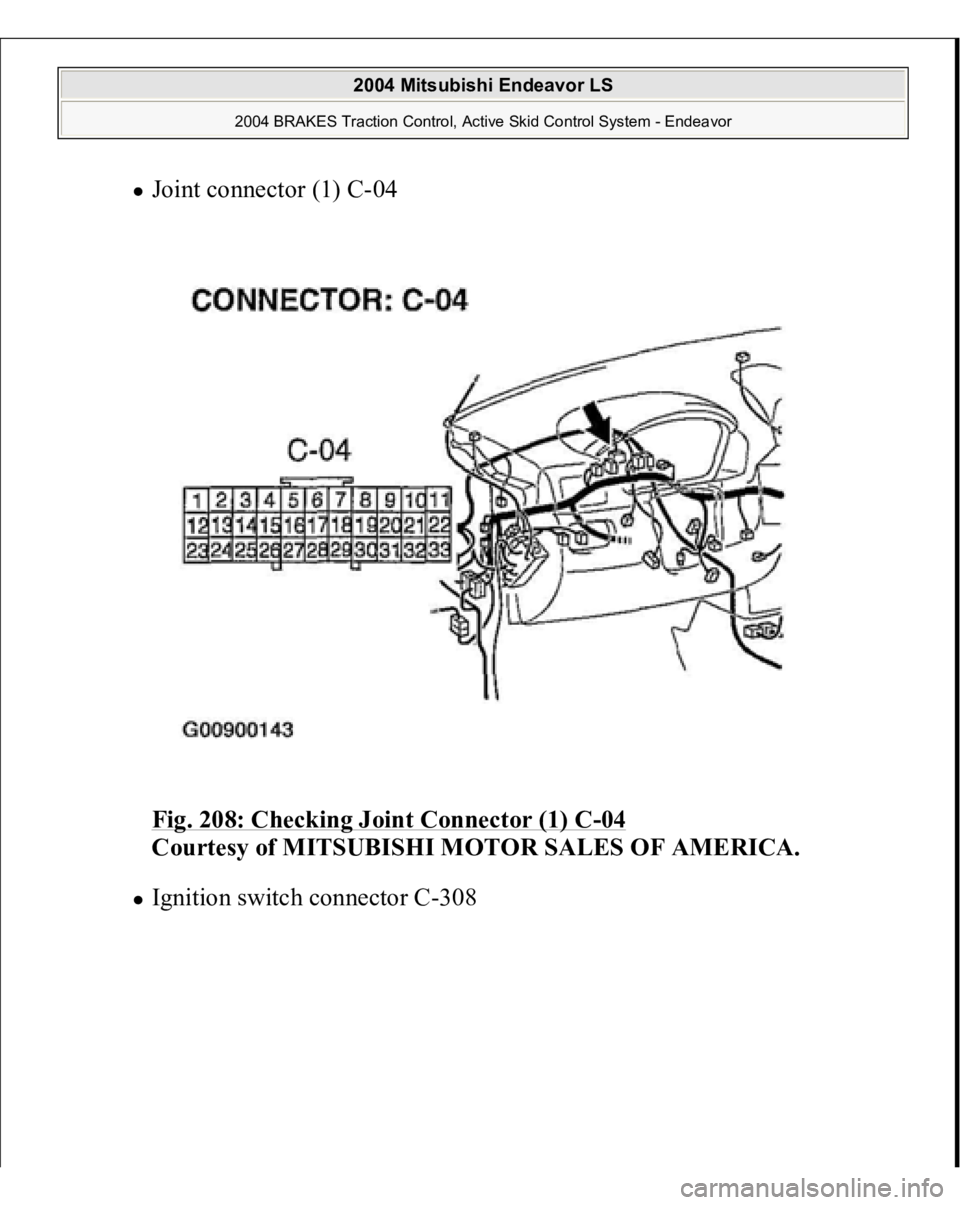

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Joint connector (1) C-04 Fig. 208: Checking Joint Connector (1) C -04 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Ignition switch connector C-308 2004 Mitsubishi Endeavor LS 2004 BRAKES Trac
