2004 MITSUBISHI ENDEAVOR Service Repair Manual

coolant reservoir phone brake sensor check oil cruise control tires

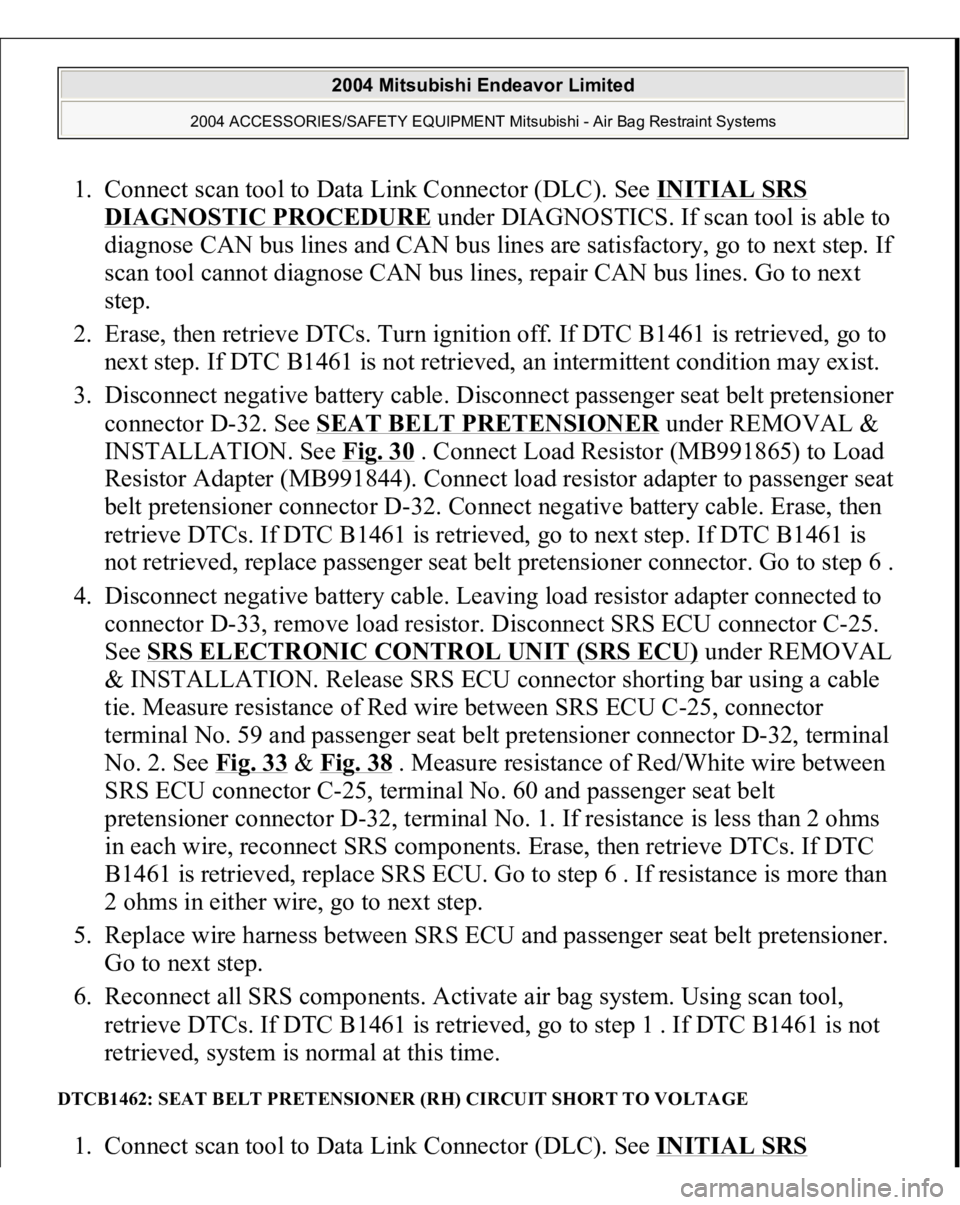

Page 385 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to n

1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1461 is retrieved, go to
next step. If DTC B1461 is not retrieved, an intermittent condition may exist.
3. Disconnect negative battery cable. Disconnect passenger seat belt pretensioner
connector D-32. See SEAT BELT PRETENSIONER
under REMOVAL &
INSTALLATION. See Fig. 30
. Connect Load Resistor (MB991865) to Load
Resistor Adapter (MB991844). Connect load resistor adapter to passenger seat
belt pretensioner connector D-32. Connect negative battery cable. Erase, then
retrieve DTCs. If DTC B1461 is retrieved, go to next step. If DTC B1461 is
not retrieved, replace passenger seat belt pretensioner connector. Go to step 6 .
4. Disconnect negative battery cable. Leaving load resistor adapter connected to
connector D-33, remove load resistor. Disconnect SRS ECU connector C-25.
See SRS ELECTRONIC CONTROL UNIT (SRS ECU)
under REMOVAL
& INSTALLATION. Release SRS ECU connector shorting bar using a cable
tie. Measure resistance of Red wire between SRS ECU C-25, connector
terminal No. 59 and passenger seat belt pretensioner connector D-32, terminal
No. 2. See Fig. 33
& Fig. 38
. Measure resistance of Red/White wire between
SRS ECU connector C-25, terminal No. 60 and passenger seat belt
pretensioner connector D-32, terminal No. 1. If resistance is less than 2 ohms
in each wire, reconnect SRS components. Erase, then retrieve DTCs. If DTC
B1461 is retrieved, replace SRS ECU. Go to step 6 . If resistance is more than
2 ohms in either wire, go to next step.
5. Replace wire harness between SRS ECU and passenger seat belt pretensioner.
Go to next step.
6. Reconnect all SRS components. Activate air bag system. Using scan tool,
retrieve DTCs. If DTC B1461 is retrieved, go to step 1 . If DTC B1461 is not
retrieved, system is normal at this time.
DTCB1462: SEAT BELT PRETENSIONER (RH) CIRCUIT SHORT TO VOLTAGE 1. Connect scan tool to Data Link Connector
(DLC
). SeeINITIAL SRS

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

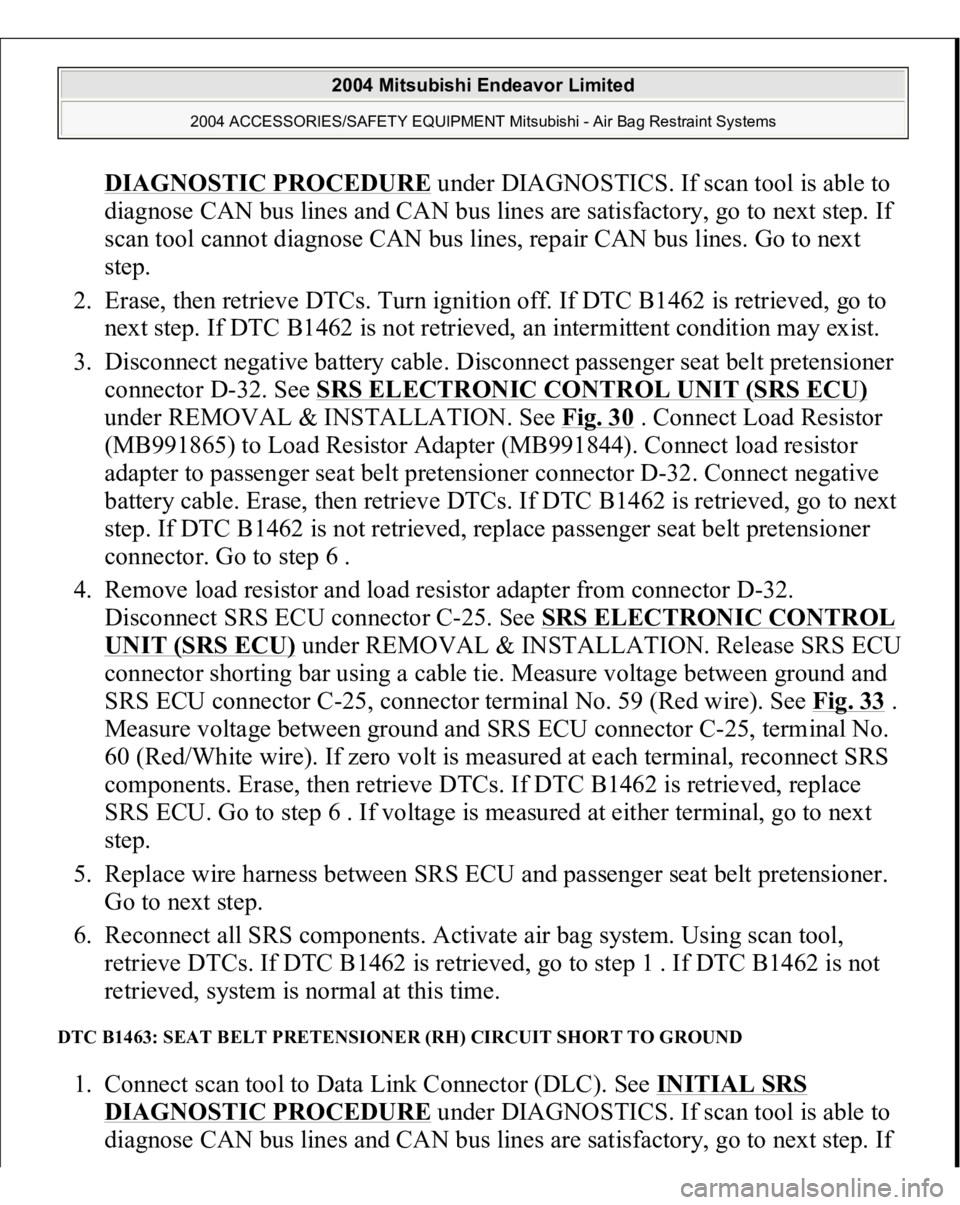

Page 386 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bu

DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1462 is retrieved, go to
next step. If DTC B1462 is not retrieved, an intermittent condition may exist.
3. Disconnect negative battery cable. Disconnect passenger seat belt pretensioner
connector D-32. See SRS ELECTRONIC CONTROL UNIT (SRS ECU)

under REMOVAL & INSTALLATION. See Fig. 30
. Connect Load Resistor
(MB991865) to Load Resistor Adapter (MB991844). Connect load resistor
adapter to passenger seat belt pretensioner connector D-32. Connect negative
battery cable. Erase, then retrieve DTCs. If DTC B1462 is retrieved, go to next
step. If DTC B1462 is not retrieved, replace passenger seat belt pretensioner
connector. Go to step 6 .
4. Remove load resistor and load resistor adapter from connector D-32.
Disconnect SRS ECU connector C-25. See SRS ELECTRONIC CONTROL
UNIT (SRS ECU)
under REMOVAL & INSTALLATION. Release SRS ECU
connector shorting bar using a cable tie. Measure voltage between ground and
SRS ECU connector C-25, connector terminal No. 59 (Red wire). See Fig. 33
.
Measure voltage between ground and SRS ECU connector C-25, terminal No.
60 (Red/White wire). If zero volt is measured at each terminal, reconnect SRS
components. Erase, then retrieve DTCs. If DTC B1462 is retrieved, replace
SRS ECU. Go to step 6 . If voltage is measured at either terminal, go to next
step.
5. Replace wire harness between SRS ECU and passenger seat belt pretensioner.
Go to next step.
6. Reconnect all SRS components. Activate air bag system. Using scan tool,
retrieve DTCs. If DTC B1462 is retrieved, go to step 1 . If DTC B1462 is not
retrieved, system is normal at this time.
DTC B1463: SEAT BELT PRETENSIONER (RH) CIRCUIT SHORT TO GROUND 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
dia
gnose CAN bus lines and CAN bus lines are satis
factor
y, go to next ste
p. If

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

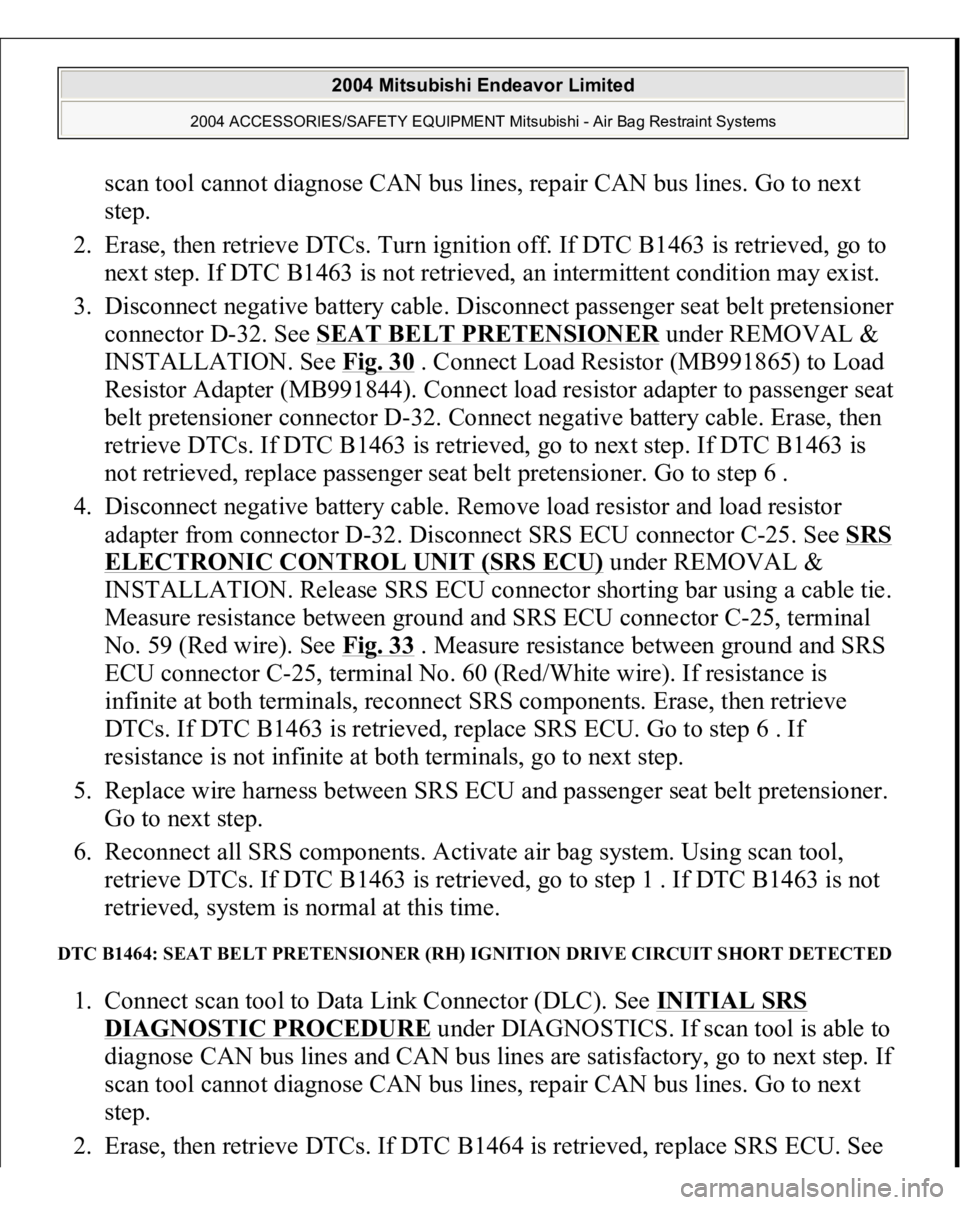

Page 387 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1463 is retrieved, go to
next step. If DTC B1463 is not ret

scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1463 is retrieved, go to
next step. If DTC B1463 is not retrieved, an intermittent condition may exist.
3. Disconnect negative battery cable. Disconnect passenger seat belt pretensioner
connector D-32. See SEAT BELT PRETENSIONER
under REMOVAL &
INSTALLATION. See Fig. 30
. Connect Load Resistor (MB991865) to Load
Resistor Adapter (MB991844). Connect load resistor adapter to passenger seat
belt pretensioner connector D-32. Connect negative battery cable. Erase, then
retrieve DTCs. If DTC B1463 is retrieved, go to next step. If DTC B1463 is
not retrieved, replace passenger seat belt pretensioner. Go to step 6 .
4. Disconnect negative battery cable. Remove load resistor and load resistor
adapter from connector D-32. Disconnect SRS ECU connector C-25. See SRS
ELECTRONIC CONTROL UNIT (SRS ECU)
under REMOVAL &
INSTALLATION. Release SRS ECU connector shorting bar using a cable tie.
Measure resistance between ground and SRS ECU connector C-25, terminal
No. 59 (Red wire). See Fig. 33
. Measure resistance between ground and SRS
ECU connector C-25, terminal No. 60 (Red/White wire). If resistance is
infinite at both terminals, reconnect SRS components. Erase, then retrieve
DTCs. If DTC B1463 is retrieved, replace SRS ECU. Go to step 6 . If
resistance is not infinite at both terminals, go to next step.
5. Replace wire harness between SRS ECU and passenger seat belt pretensioner.
Go to next step.
6. Reconnect all SRS components. Activate air bag system. Using scan tool,
retrieve DTCs. If DTC B1463 is retrieved, go to step 1 . If DTC B1463 is not
retrieved, system is normal at this time.
DTC B1464: SEAT BELT PRETENSIONER (RH) IGNITION DRIVE CIRCUIT SHORT DETECTED 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. If DTC B1464 is retrieved, re
place SRS ECU. See

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

Page 388 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual SRS ELECTRONIC CONTROL UNIT (SRS ECU)
under REMOVAL &
INSTALLATION. If DTC B1464 is not retrieved, an intermittent condition
may exist.
DTC B1465: BELT PRETENSIONER (RH) IGNITION DRIVE CIRCUIT SH

Page 389 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual INSTALLATION. If DTC B1467 is not retrieved, an intermittent condition
may exist.
DTC B1468: SAFING G SENSOR SHORT CIRCUIT (FRONTAL IMPACT) 1. Connect scan tool to Data Link Connector (DLC). See IN

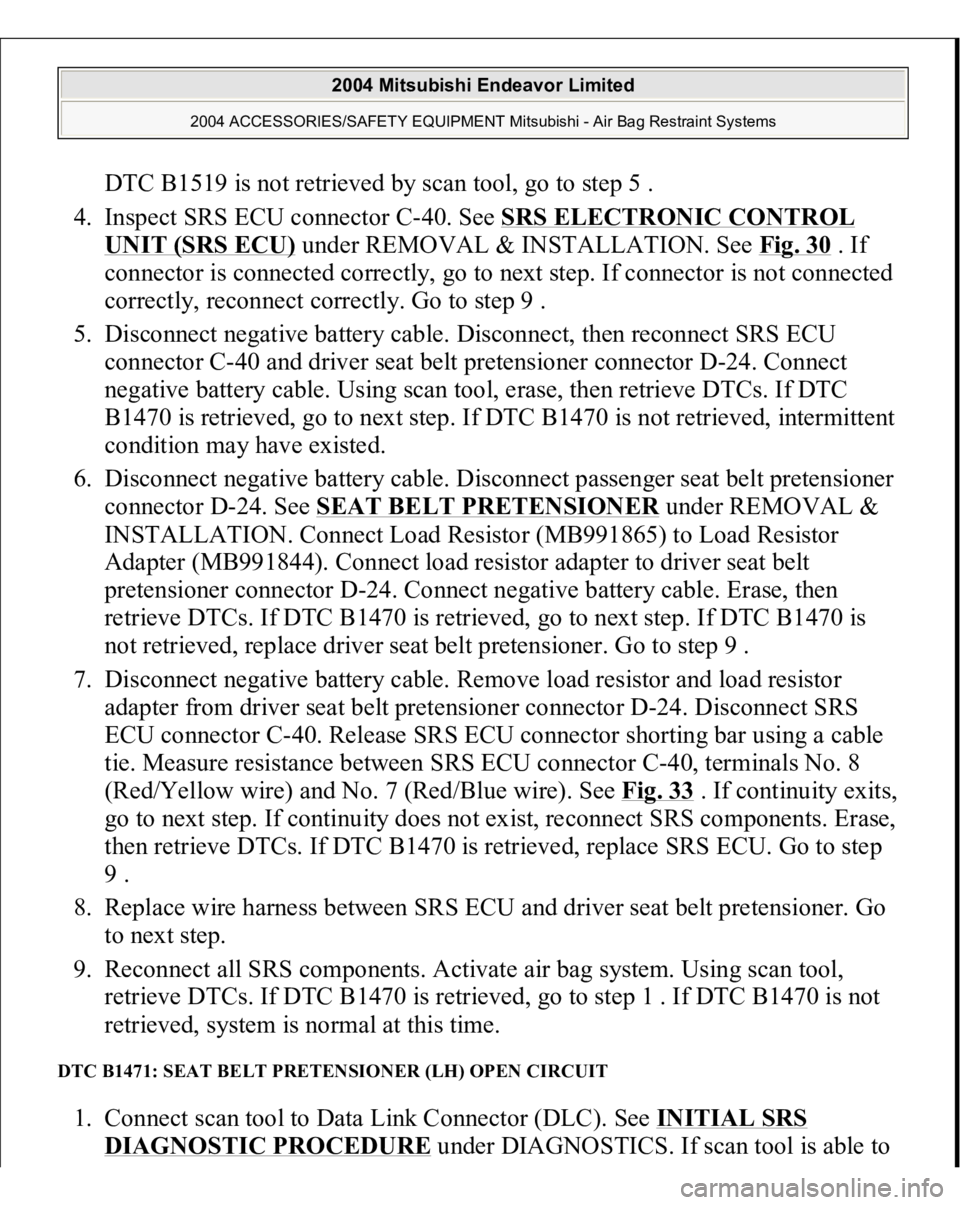

Page 390 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DTC B1519 is not retrieved by scan tool, go to step 5 .
4. Inspect SRS ECU connector C-40. See SRS ELECTRONIC CONTROL UNIT (SRS ECU)
under REMOVAL & INSTALLATION. See Fig. 30
. If
connector is co

DTC B1519 is not retrieved by scan tool, go to step 5 .
4. Inspect SRS ECU connector C-40. See SRS ELECTRONIC CONTROL UNIT (SRS ECU)
under REMOVAL & INSTALLATION. See Fig. 30
. If
connector is connected correctly, go to next step. If connector is not connected
correctly, reconnect correctly. Go to step 9 .
5. Disconnect negative battery cable. Disconnect, then reconnect SRS ECU
connector C-40 and driver seat belt pretensioner connector D-24. Connect
negative battery cable. Using scan tool, erase, then retrieve DTCs. If DTC
B1470 is retrieved, go to next step. If DTC B1470 is not retrieved, intermittent
condition may have existed.
6. Disconnect negative battery cable. Disconnect passenger seat belt pretensioner
connector D-24. See SEAT BELT PRETENSIONER
under REMOVAL &
INSTALLATION. Connect Load Resistor (MB991865) to Load Resistor
Adapter (MB991844). Connect load resistor adapter to driver seat belt
pretensioner connector D-24. Connect negative battery cable. Erase, then
retrieve DTCs. If DTC B1470 is retrieved, go to next step. If DTC B1470 is
not retrieved, replace driver seat belt pretensioner. Go to step 9 .
7. Disconnect negative battery cable. Remove load resistor and load resistor
adapter from driver seat belt pretensioner connector D-24. Disconnect SRS
ECU connector C-40. Release SRS ECU connector shorting bar using a cable
tie. Measure resistance between SRS ECU connector C-40, terminals No. 8
(Red/Yellow wire) and No. 7 (Red/Blue wire). See Fig. 33
. If continuity exits,
go to next step. If continuity does not exist, reconnect SRS components. Erase,
then retrieve DTCs. If DTC B1470 is retrieved, replace SRS ECU. Go to step
9 .
8. Replace wire harness between SRS ECU and driver seat belt pretensioner. Go
to next step.
9. Reconnect all SRS components. Activate air bag system. Using scan tool,
retrieve DTCs. If DTC B1470 is retrieved, go to step 1 . If DTC B1470 is not
retrieved, system is normal at this time.
DTC B1471: SEAT BELT PRETENSIONER (LH) OPEN CIRCUIT 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

Page 391 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ig

diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1471 is retrieved, go to
next step. If DTC B1471 is not retrieved, an intermittent condition may exist.
3. Disconnect negative battery cable. Disconnect driver seat belt pretensioner
connector D-24. See SEAT BELT PRETENSIONER
under REMOVAL &
INSTALLATION. See Fig. 30
. Connect Load Resistor (MB991865) to Load
Resistor Adapter (MB991844). Connect load resistor adapter to driver seat belt
pretensioner connector D-24. Connect negative battery cable. Erase, then
retrieve DTCs. If DTC B1471 is retrieved, go to next step. If DTC B1471 is
not retrieved, replace driver seat belt pretensioner connector. Go to step 6 .
4. Disconnect negative battery cable. Leaving load resistor adapter connected to
connector D-24, remove load resistor. Disconnect SRS ECU connector C-40.
Release SRS ECU connector shorting bar using a cable tie. Measure resistance
of Red/Yellow wire between SRS ECU C-40, connector terminal No. 8 and
driver seat belt pretensioner connector D-24, terminal No. 2. See Fig. 33
&
Fig. 38
. Measure resistance of Red/Blue wire between SRS ECU connector C-
40, terminal No. 7 and driver seat belt pretensioner connector D-24, terminal
No. 1. If resistance is less than 2 ohms in each wire, reconnect SRS
components. Erase, then retrieve DTCs. If DTC B1471 is retrieved, replace
SRS ECU. Go to step 6 . If resistance is more than 2 ohms in either wire, go to
next step.
5. Replace wire harness between SRS ECU and driver seat belt pretensioner. Go
to next step.
6. Reconnect all SRS components. Activate air bag system. Using scan tool,
retrieve DTCs. If DTC B1471 is retrieved, go to step 1 . If DTC B1471 is not
retrieved, system is normal at this time.
DTC B1472: SEAT BELT PRETENSIONER (LH) SHORT TO VOLTAGE 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot dia
gnose CAN bus lines, re
pair CAN bus lines. Go to next

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

Page 392 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1472 is retrieved, go to
next step. If DTC B1472 is not retrieved, an intermittent condition may exist.
3. Disconnect negative batte

step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1472 is retrieved, go to
next step. If DTC B1472 is not retrieved, an intermittent condition may exist.
3. Disconnect negative battery cable. Disconnect driver seat belt pretensioner
connector D-24. See SEAT BELT PRETENSIONER
under REMOVAL &
INSTALLATION. See Fig. 30
. Connect Load Resistor (MB991865) to Load
Resistor Adapter (MB991844). Connect load resistor adapter to driver seat belt
pretensioner connector D-24. Connect negative battery cable. Erase, then
retrieve DTCs. If DTC B1472 is retrieved, go to next step. If DTC B1472 is
not retrieved, replace driver seat belt pretensioner connector. Go to step 6 .
4. Remove load resistor and load resistor adapter from connector D-24.
Disconnect SRS ECU connector C-40 See SRS ELECTRONIC CONTROL
UNIT (SRS ECU)
under REMOVAL & INSTALLATION. Release SRS ECU
connector shorting bar using a cable tie. Measure voltage between ground and
SRS ECU connector C-40, connector terminal No. 8 (Red/Yellow wire). See
Fig. 33
. Measure voltage between ground and SRS ECU connector C-40,
terminal No. 7 (Red/Blue wire). If zero volt is measured at each terminal,
reconnect SRS components. Erase, then retrieve DTCs. If DTC B1472 is
retrieved, replace SRS ECU. Go to step 6 . If voltage is measured at either
terminal, go to next step.
5. Replace wire harness between SRS ECU and driver seat belt pretensioner. Go
to next step.
6. Reconnect all SRS components. Activate air bag system. Using scan tool,
retrieve DTCs. If DTC B1472 is retrieved, go to step 1 . If DTC B1472 is not
retrieved, system is normal at this time.
DTC B1473: SEAT BELT PRETENSIONER (LH) CIRCUIT SHORT TO GROUND 1. Connect scan tool to Data Link Connector (DLC). See INITIAL SRS
DIAGNOSTIC PROCEDURE
under DIAGNOSTICS. If scan tool is able to
diagnose CAN bus lines and CAN bus lines are satisfactory, go to next step. If
scan tool cannot diagnose CAN bus lines, repair CAN bus lines. Go to next
step.
2. Erase, then retrieve DTCs. Turn ignition off. If DTC B1473 is retrieved, go to
next ste
p. If DTC B1473 is not retrieved, an intermittent condition ma
y exist.

2004 Mitsubishi Endeavor Limited
2004 ACCESSORIES/SAFETY EQUIPMENT Mitsubishi - Air Bag Restraint Systems

Load next 8 pages

Page: < prev 1-10 ... 353-360 361-368 369-376 377-384 385-392 393-400 401-408 409-416 417-424 ... 3872 next >

glove box towing capacity service indicator oil dipstick relay horn
