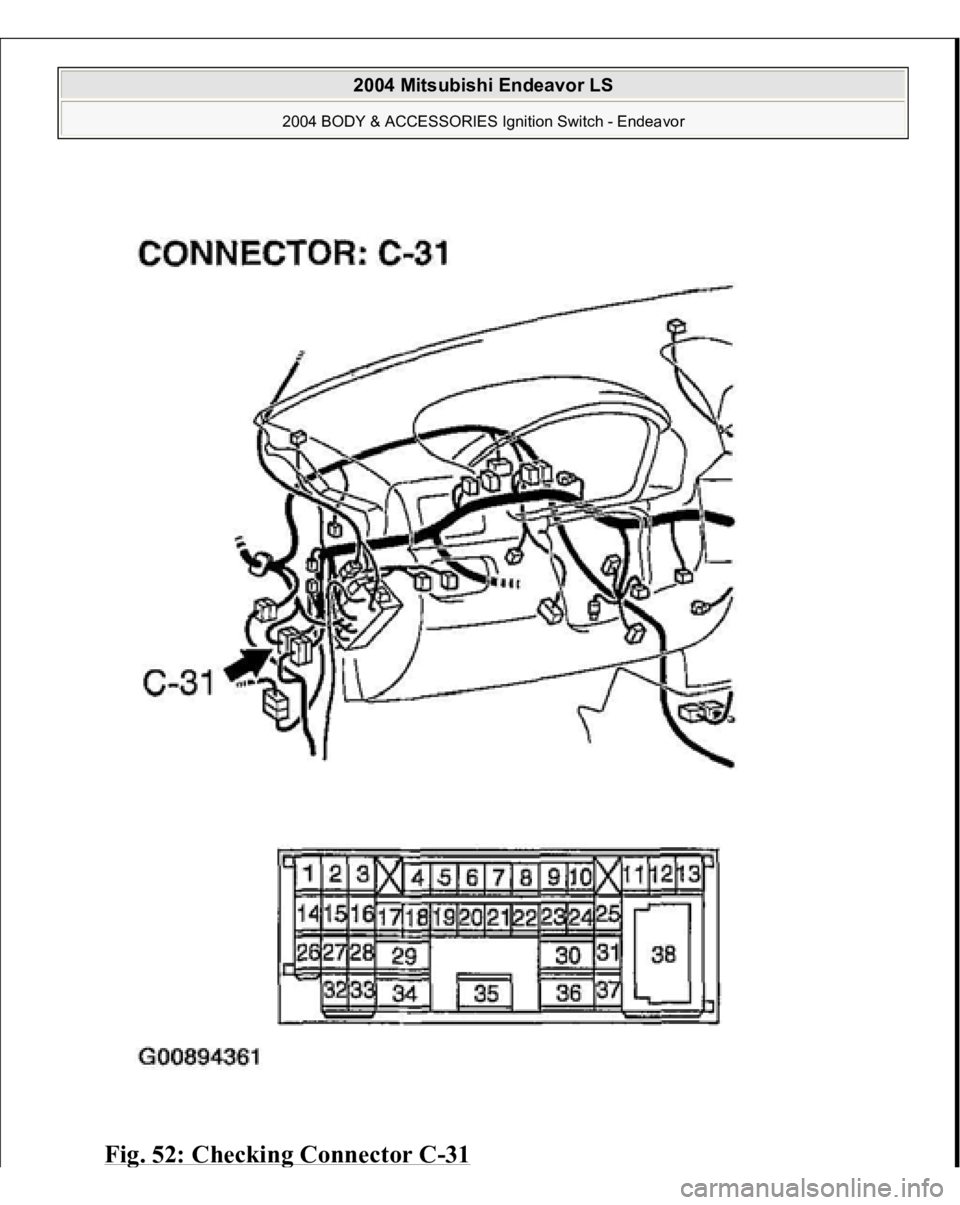

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 52: Checkin g Connector C -31 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor

Page 2586 of 3870

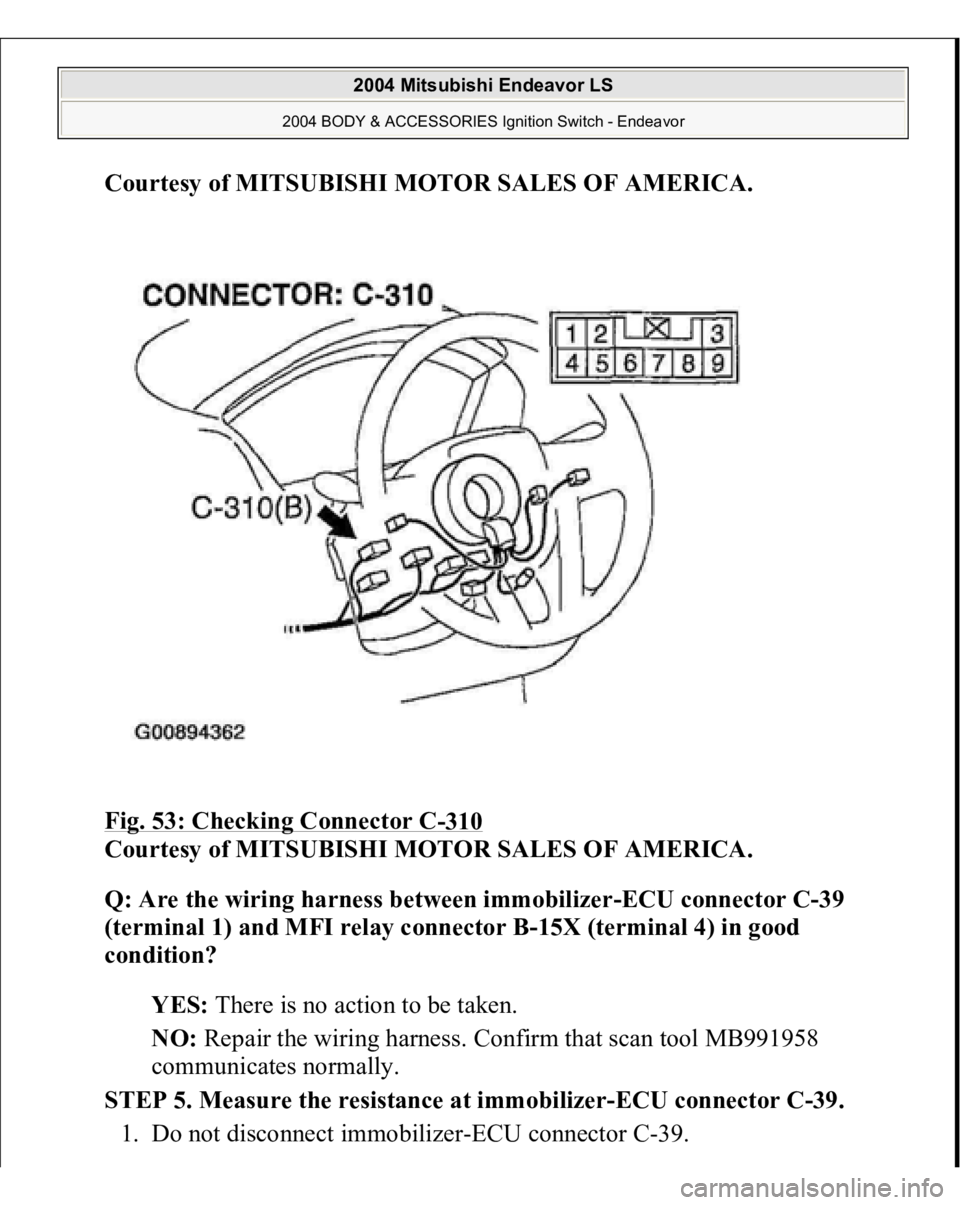

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . Fig. 53: Checking Connector C -310 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Are the wiring harness between immobilizer-ECU connector C-39

Page 2587 of 3870

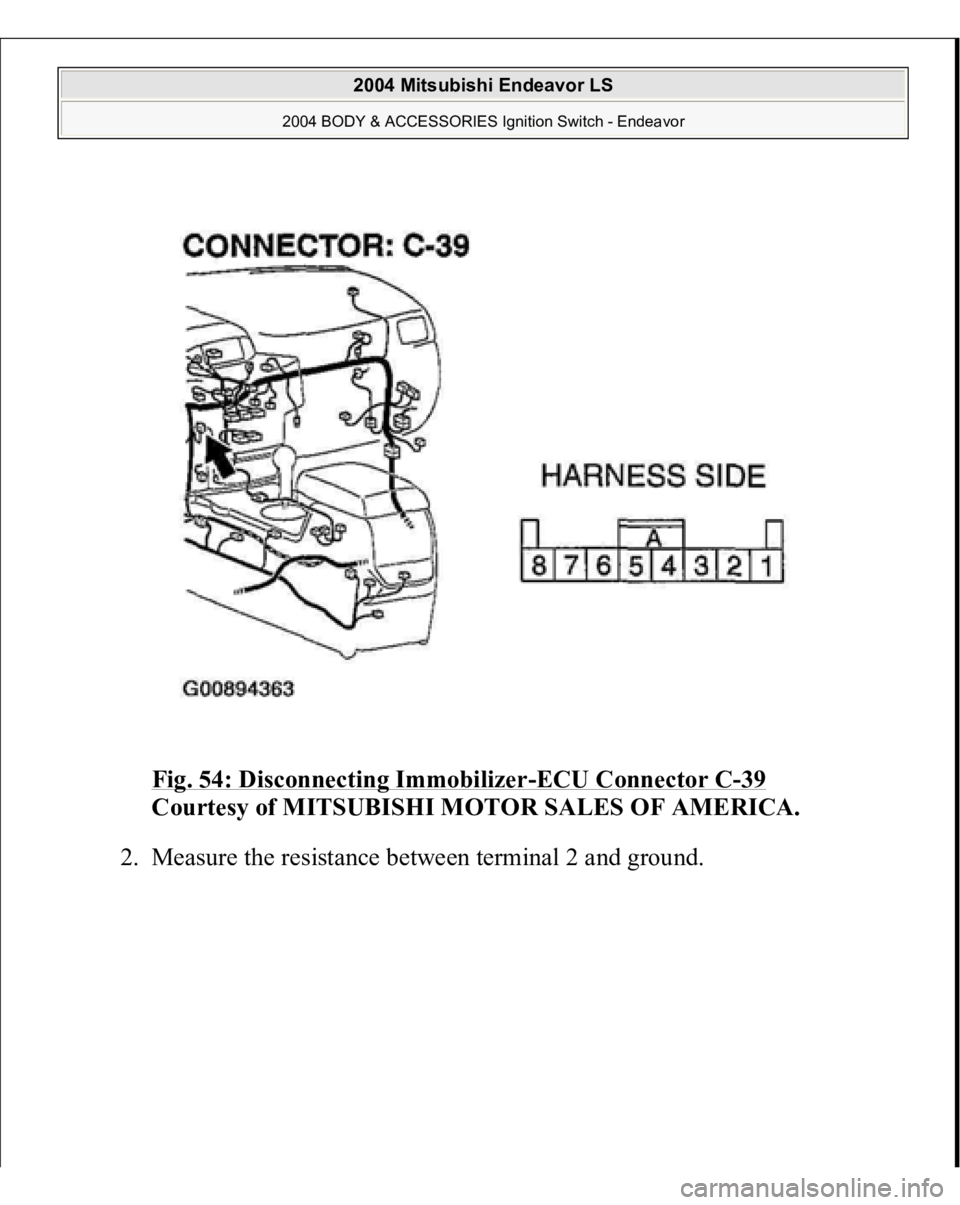

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 54: Disconnecting Immobilizer -ECU Connector C -39 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Measure the resistance between terminal 2 and ground. 2004 Mitsubishi Endeavor LS 2004

Page 2588 of 3870

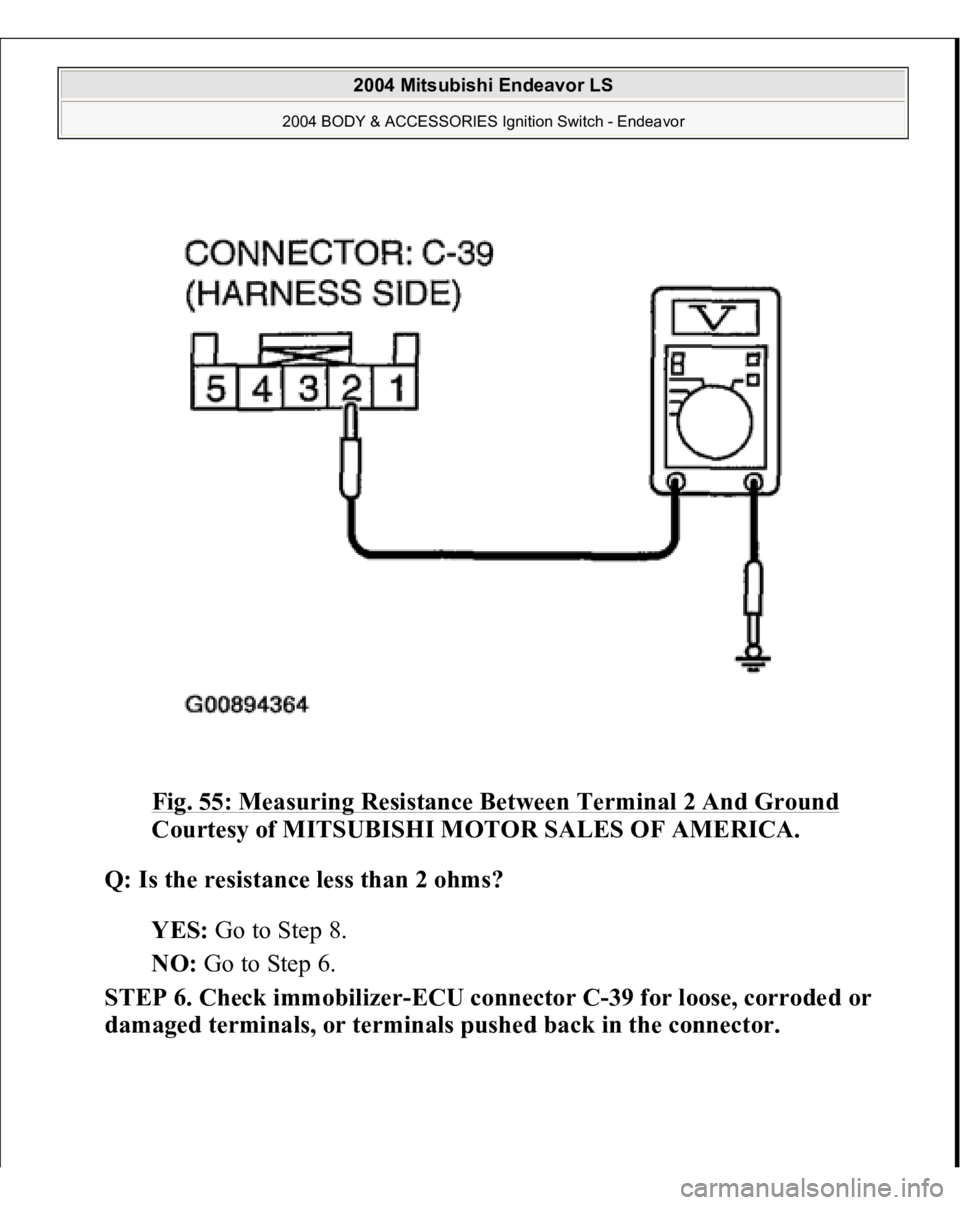

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 55: Measuring Resistance Between Terminal 2 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the resistance less than 2 ohms? YES: Go to Step 8. NO: Go to Step 6. STEP 6.

Page 2589 of 3870

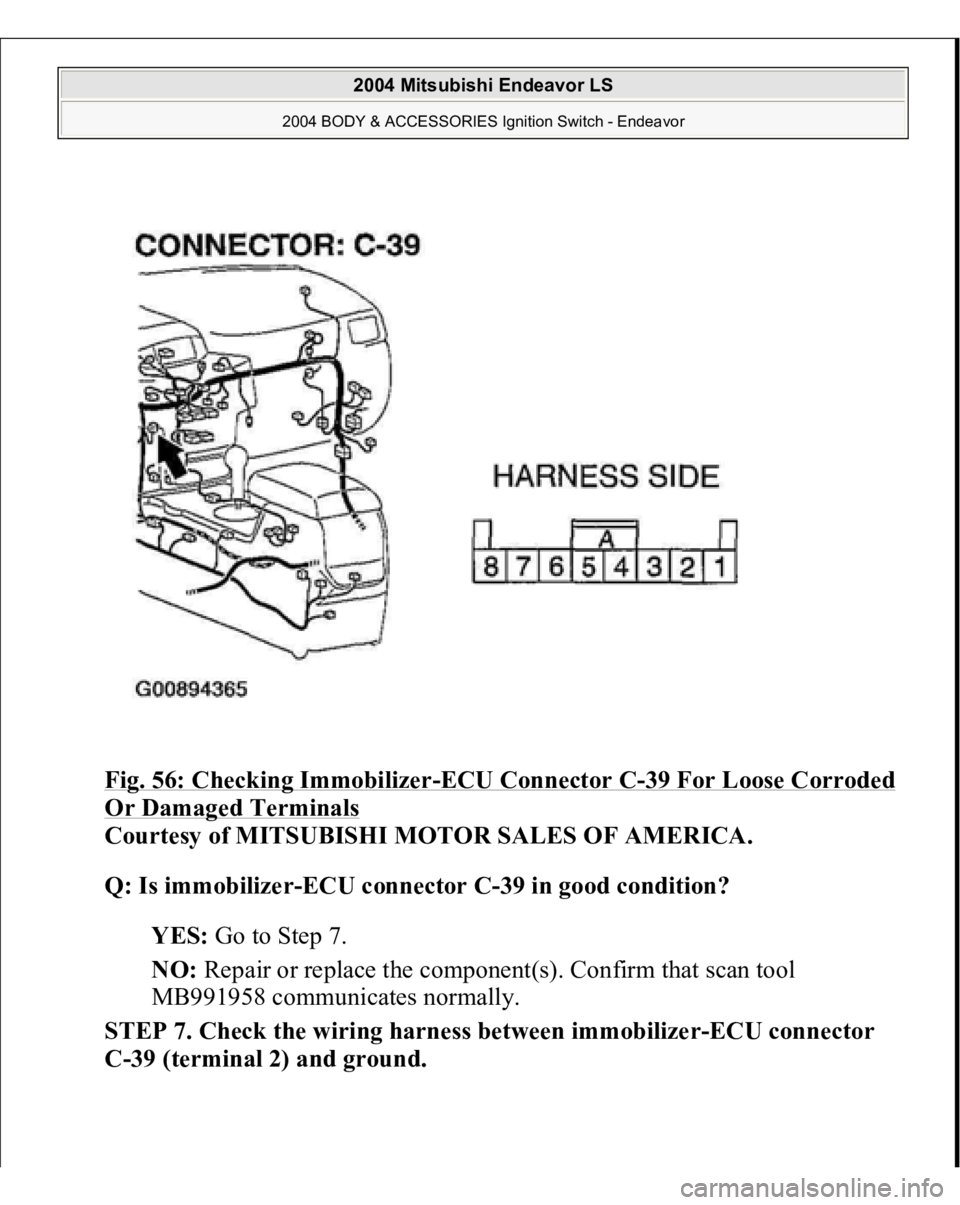

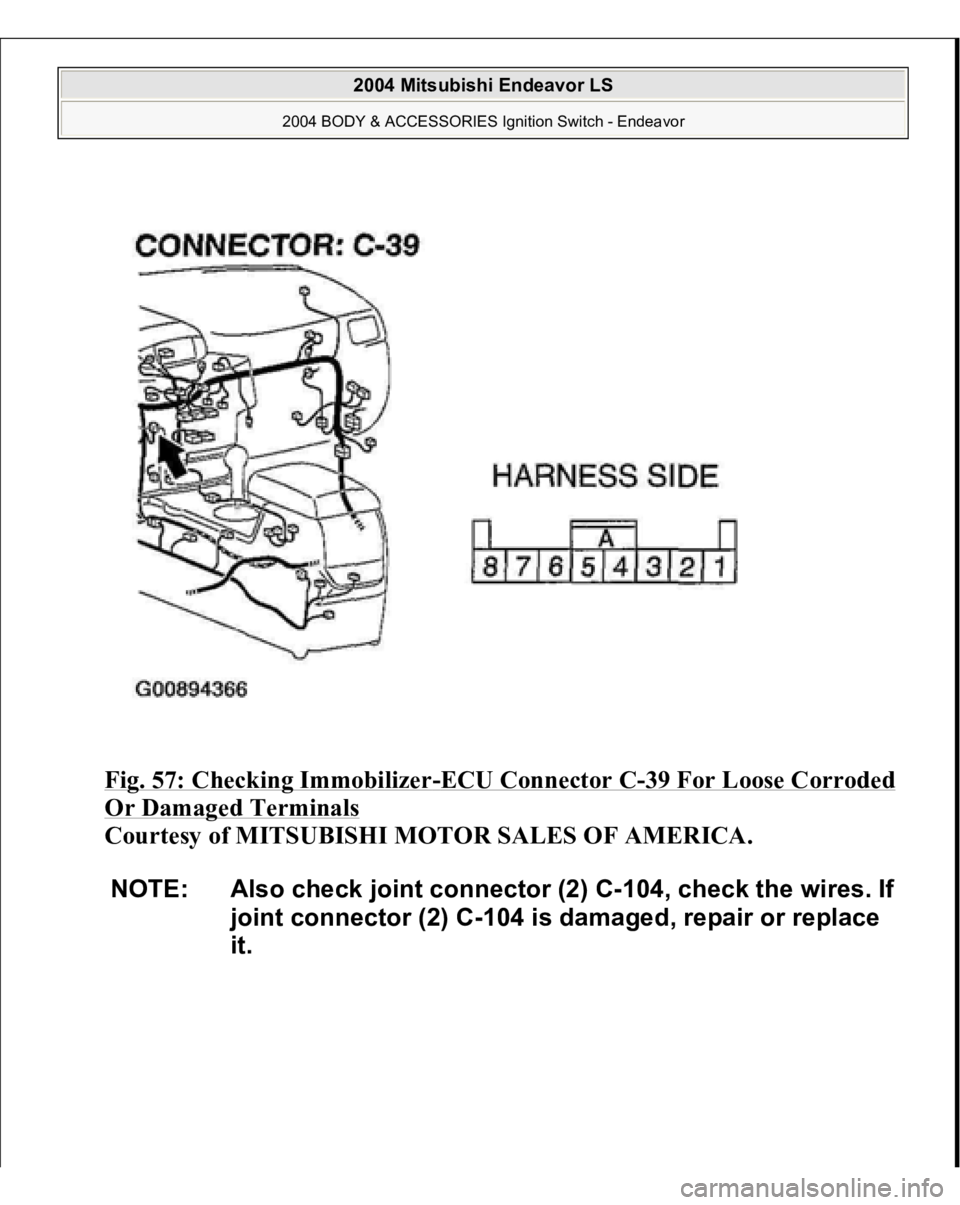

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 56: Checking Immobilizer -ECU Connector C -39 For Loose Corroded Or Damaged Terminals Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is immobilizer-ECU connector C-39 in good condition?

Page 2590 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 57: Checking Immobilizer -ECU Connector C -39 For Loose Corroded Or Damaged Terminals Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. NOTE: Also check joint connector (2) C-104, check the wire

Page 2591 of 3870

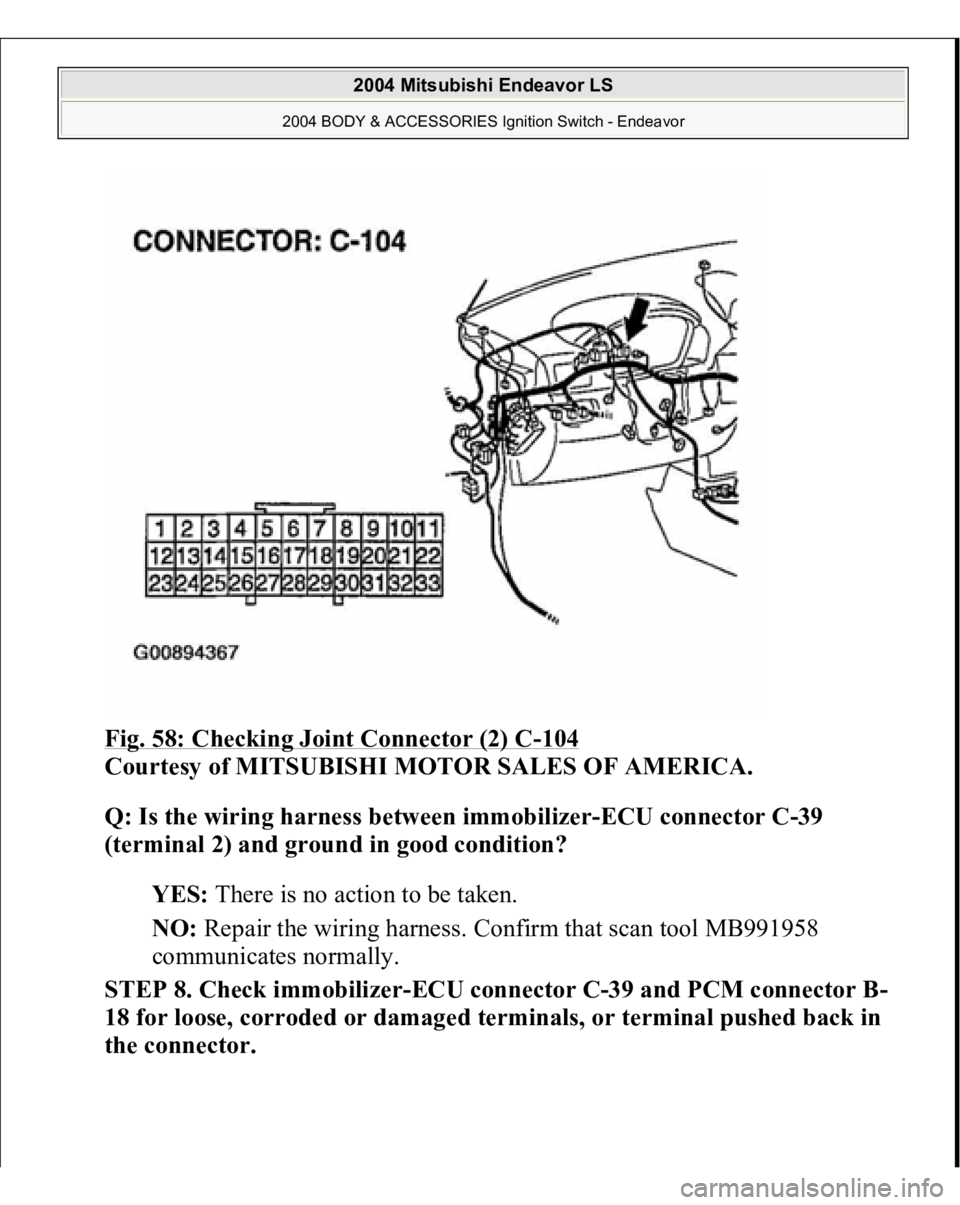

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 58: Checking Joint Connector (2) C -104 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is the wiring harness between immobilizer-ECU connector C-39 (terminal 2) and ground in good conditio

Page 2592 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 59: Checking Immobilizer -ECU Connector B -18 For Loose Corroded Or Damaged Terminals Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Igni
