Page 1369 of 3870

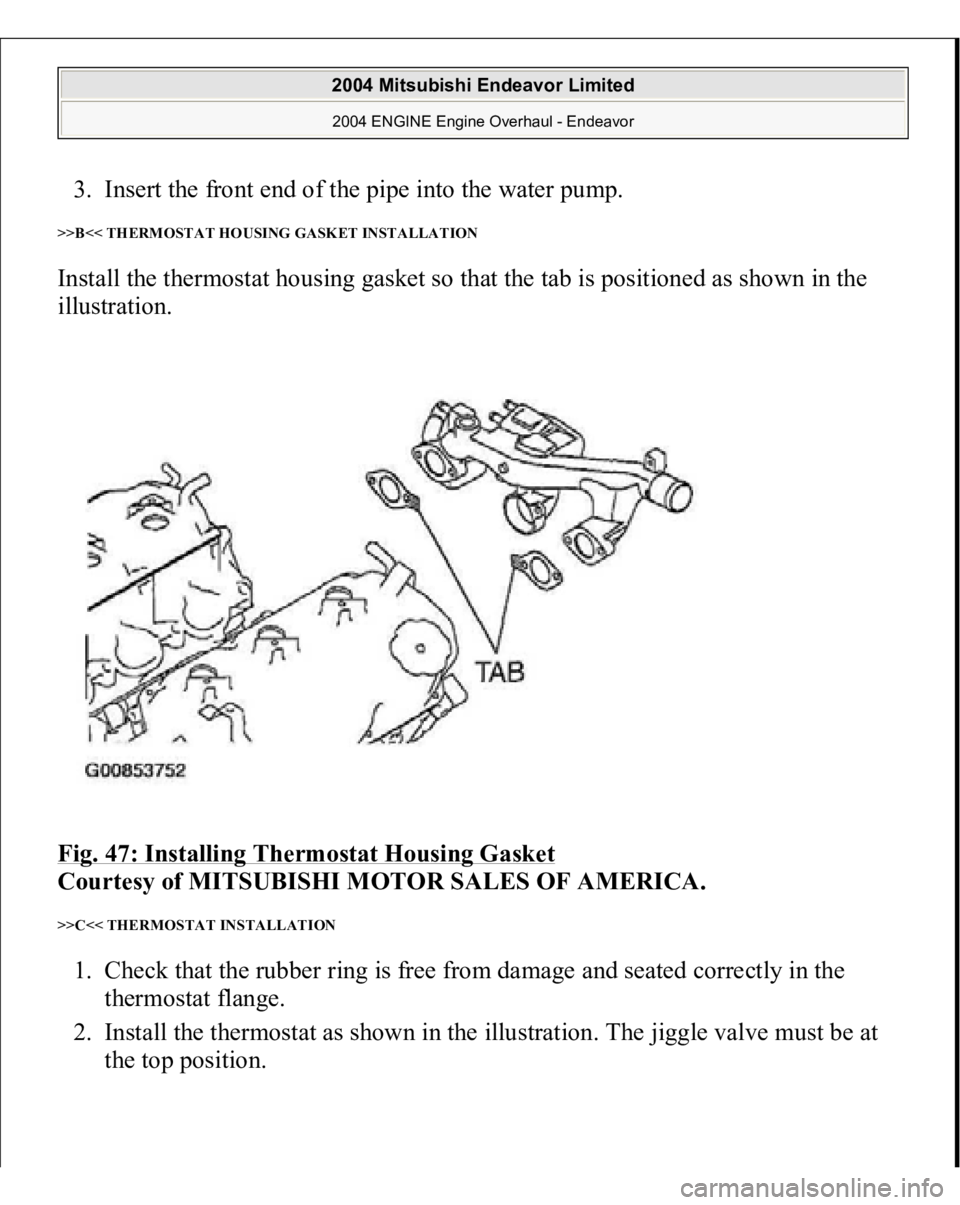

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. Insert the front end of the pipe into the water pump. >>B<< THERMOSTAT HOUSING GASKET INSTALLATION Install the thermostat housing gasket so that the tab is positioned as shown in the illustration

Page 1370 of 3870

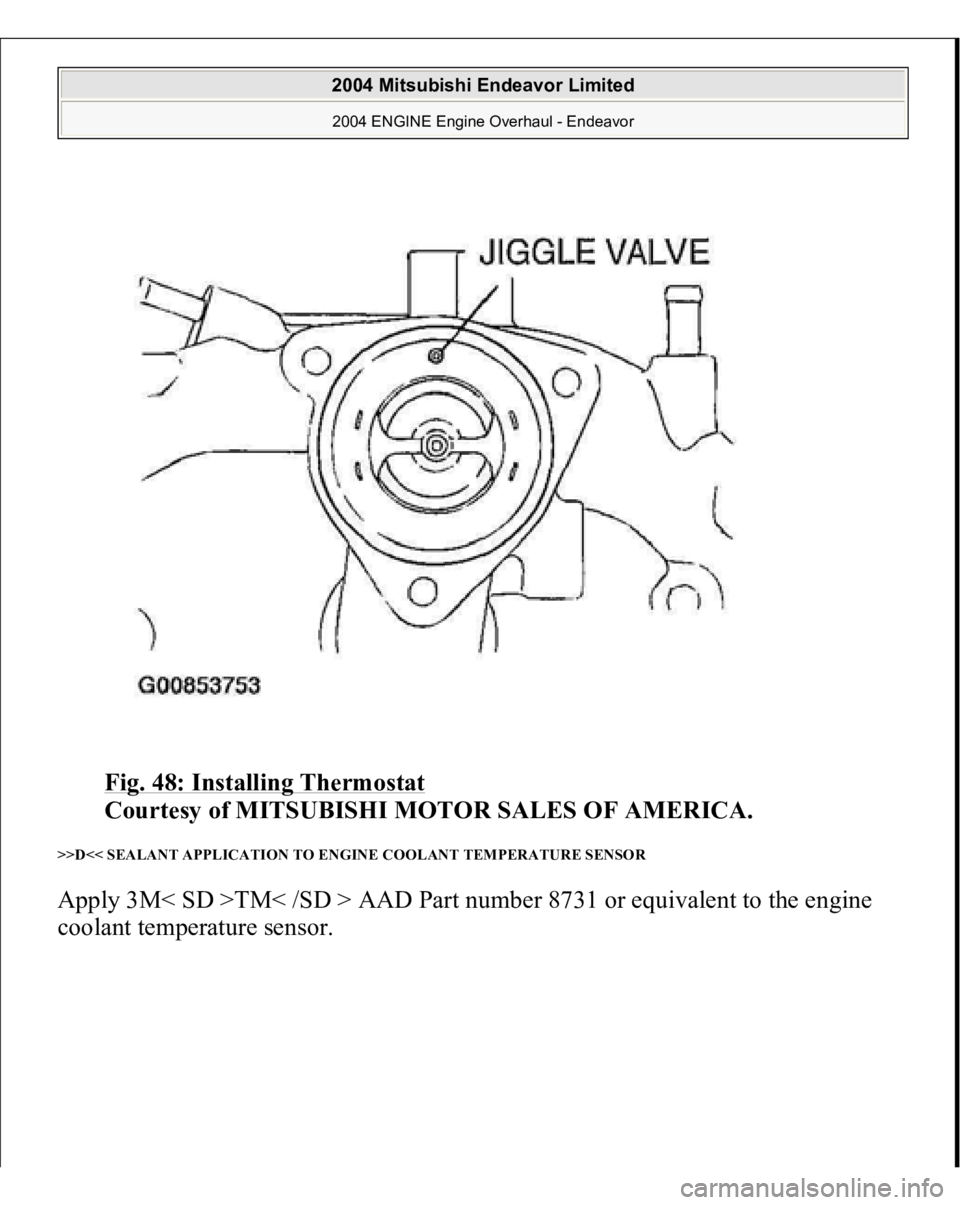

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 48: Installing Thermostat Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>D<< SEALANT APPLICATION TO ENGINE COOLANT TEMPERATURE SENSOR Apply 3M< SD >TM< /SD > AAD Part number 8731 or equivale

Page 1371 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 49: Apply 3M Aad Part Number 8731 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. EXHAUST MANIFOLD REMOVAL AND INSTALLATION 2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Ende

Page 1372 of 3870

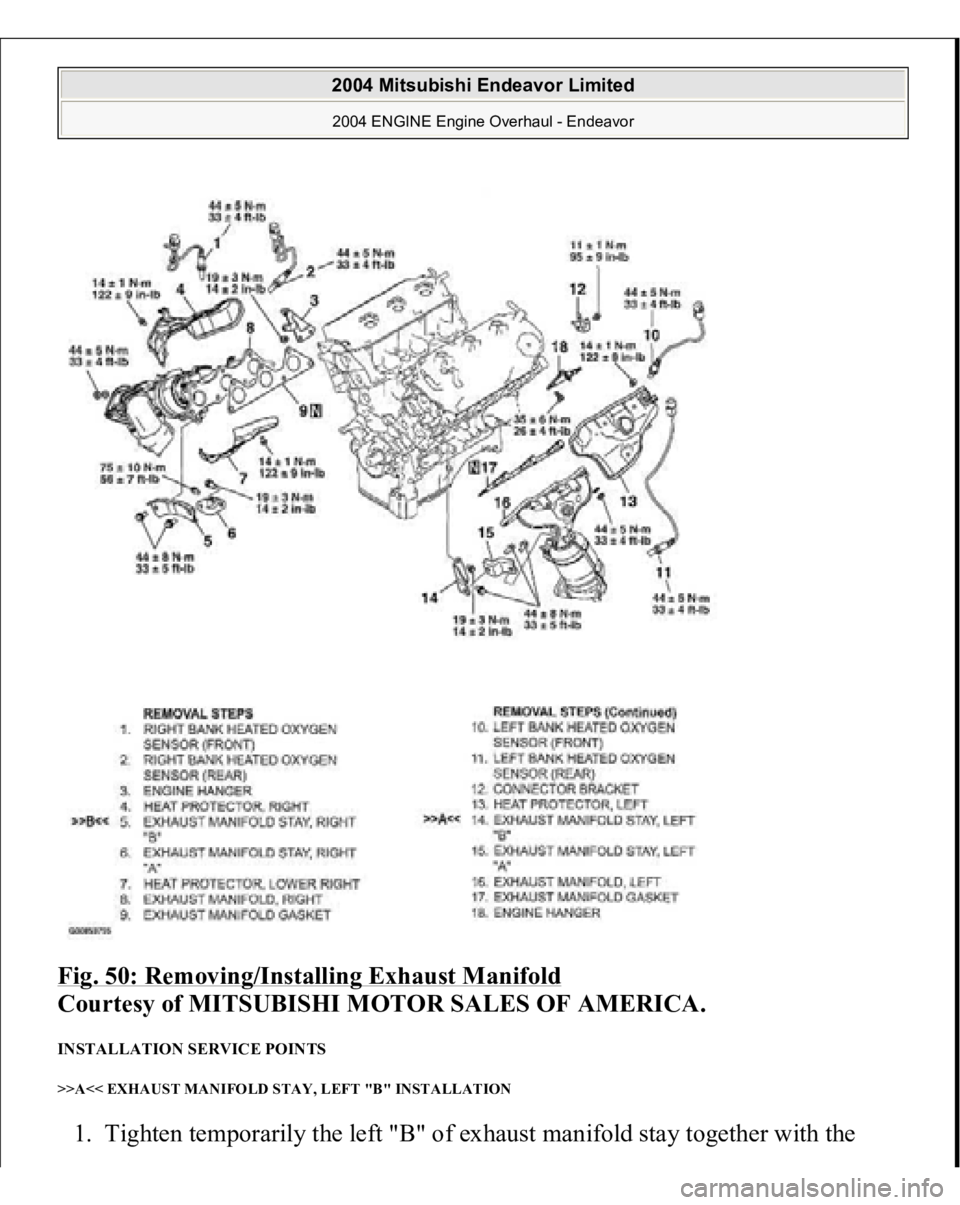

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 50: Removing/Installing Exhaust Manifold Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINTS >>A<< EXHAUST MANIFOLD STAY, LEFT "B" INSTALLATION 1. Ti ghten tem p

Page 1373 of 3870

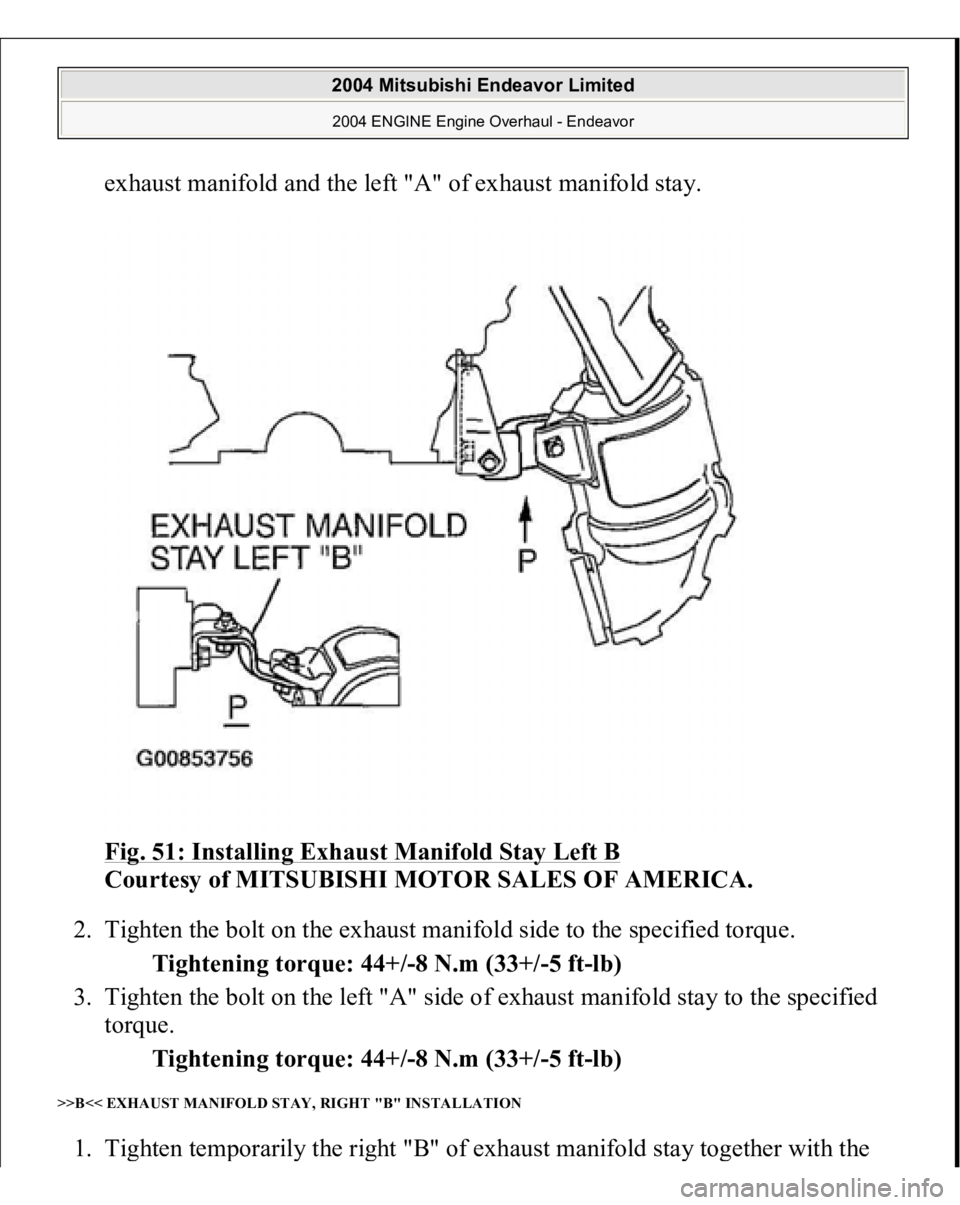

MITSUBISHI ENDEAVOR 2004 Service Repair Manual exhaust manifold and the left "A" of exhaust manifold stay. Fig. 51: Installing Exhaust Manifold Stay Left B Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Tighten the bolt on the exhau

Page 1374 of 3870

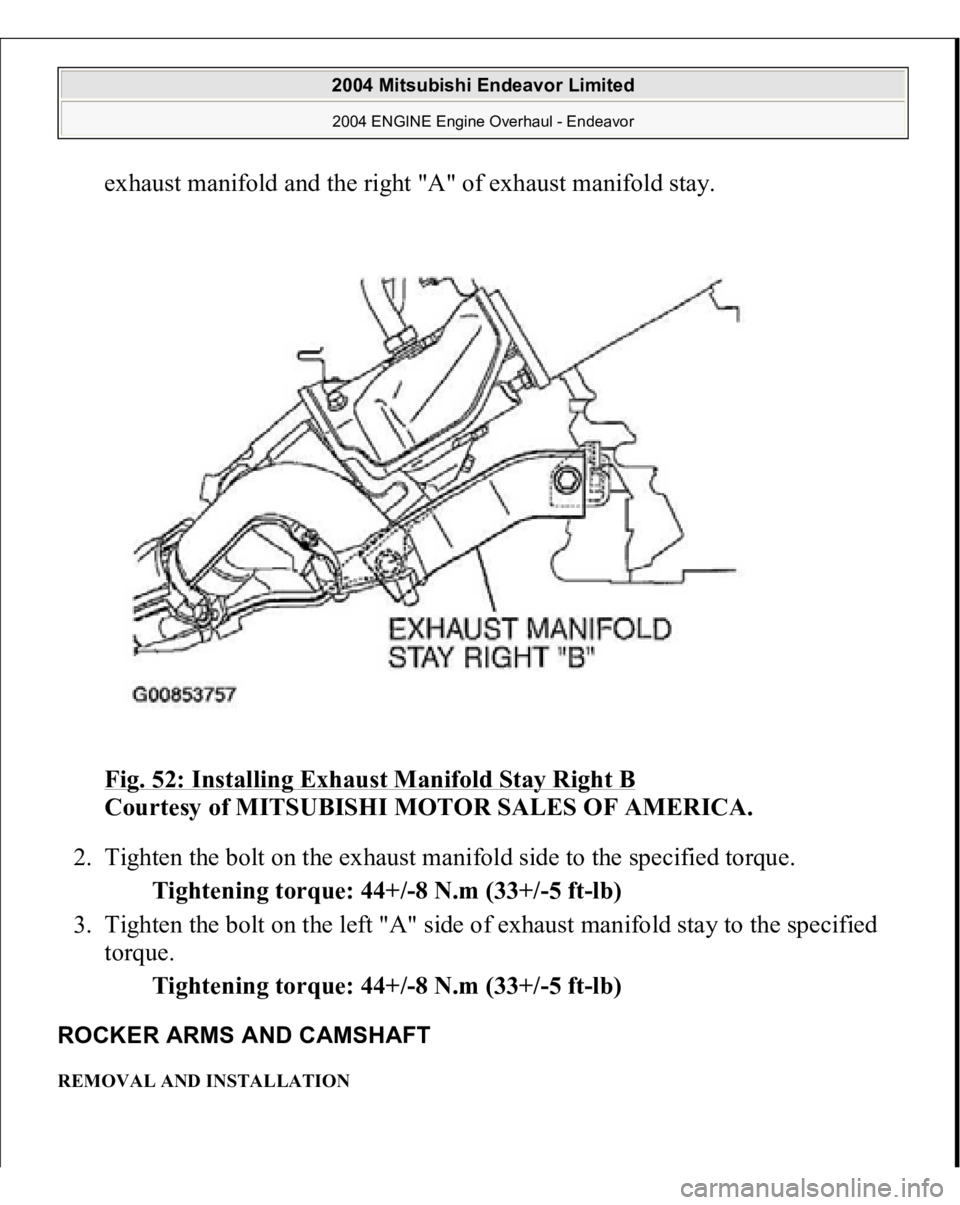

MITSUBISHI ENDEAVOR 2004 Service Repair Manual exhaust manifold and the right "A" of exhaust manifold stay. Fig. 52: Installing Exhaust Manifold Stay Right B Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Tighten the bolt on the exh

Page 1375 of 3870

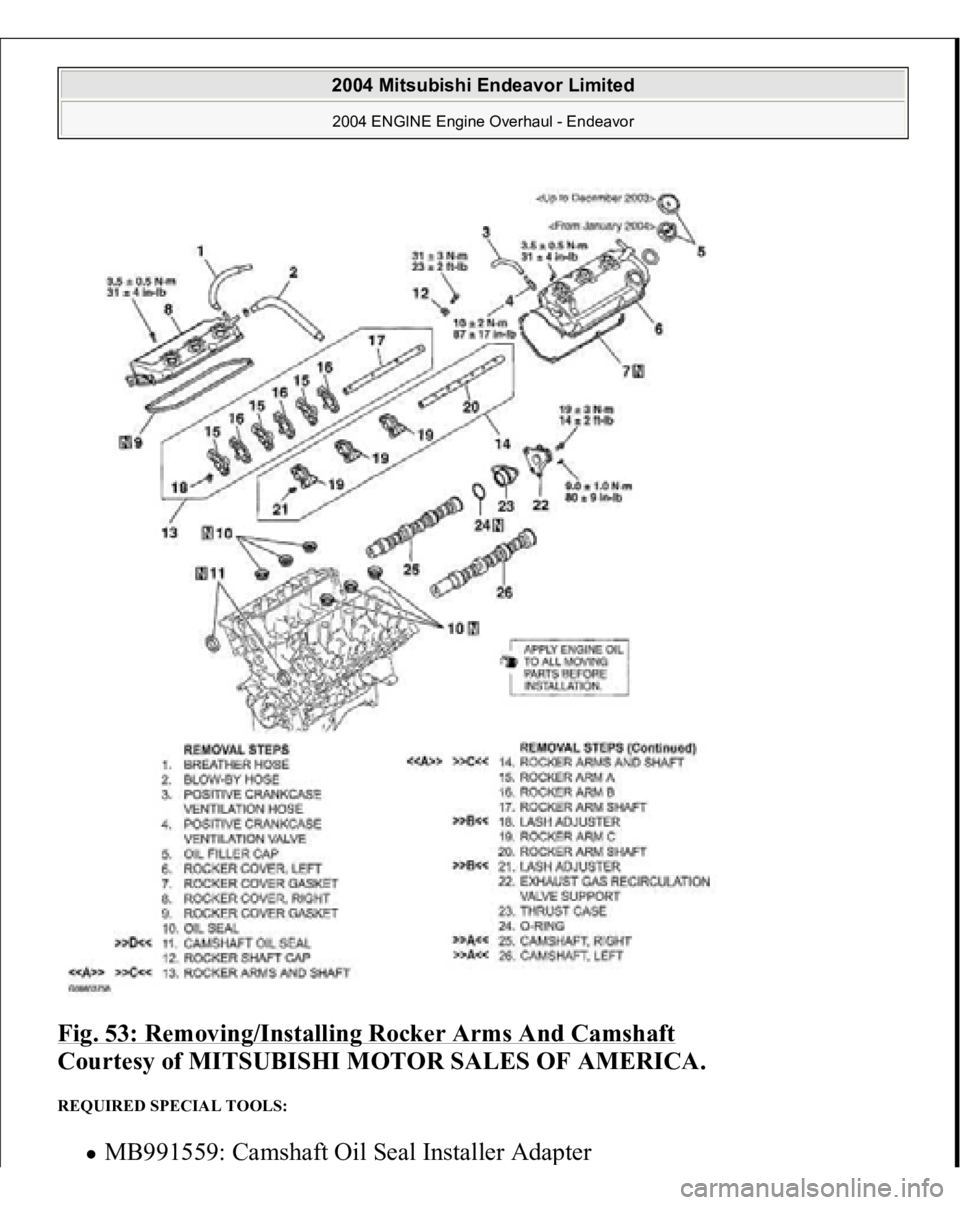

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 53: Removing/Installing Rocker Arms And Camshaft Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REQUIRED SPECIAL TOOLS: MB991559: Camshaft Oil Seal Installer Ada pter 2004 Mitsubishi Ende

Page 1376 of 3870

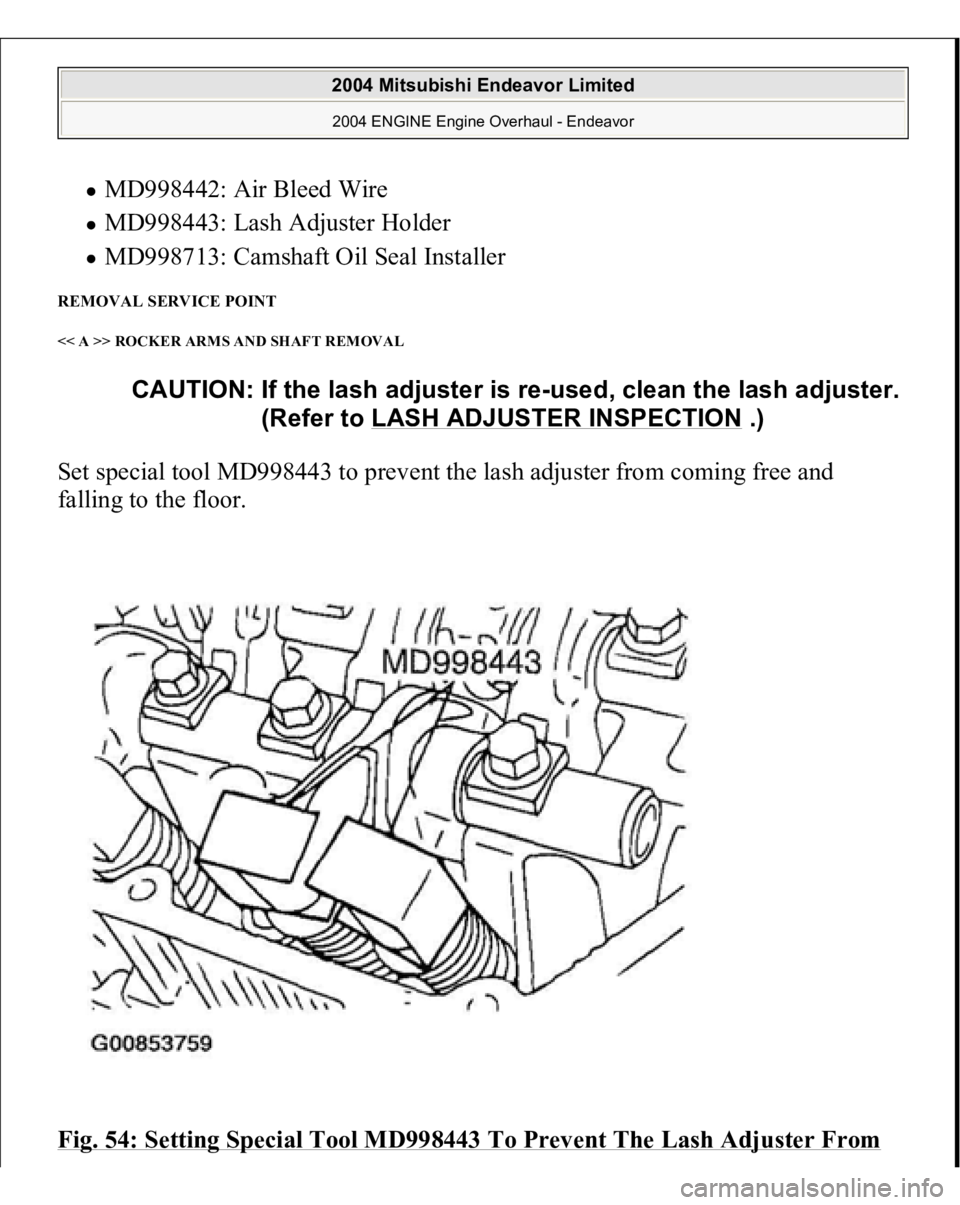

MITSUBISHI ENDEAVOR 2004 Service Repair Manual MD998442: Air Bleed Wire MD998443: Lash Adjuster Holder MD998713: Camshaft Oil Seal Installer REMOVAL SERVICE POINT << A >> ROCKER ARMS AND SHAFT REMOVAL Set special tool MD998443 to prevent the l
