Page 137 of 3870

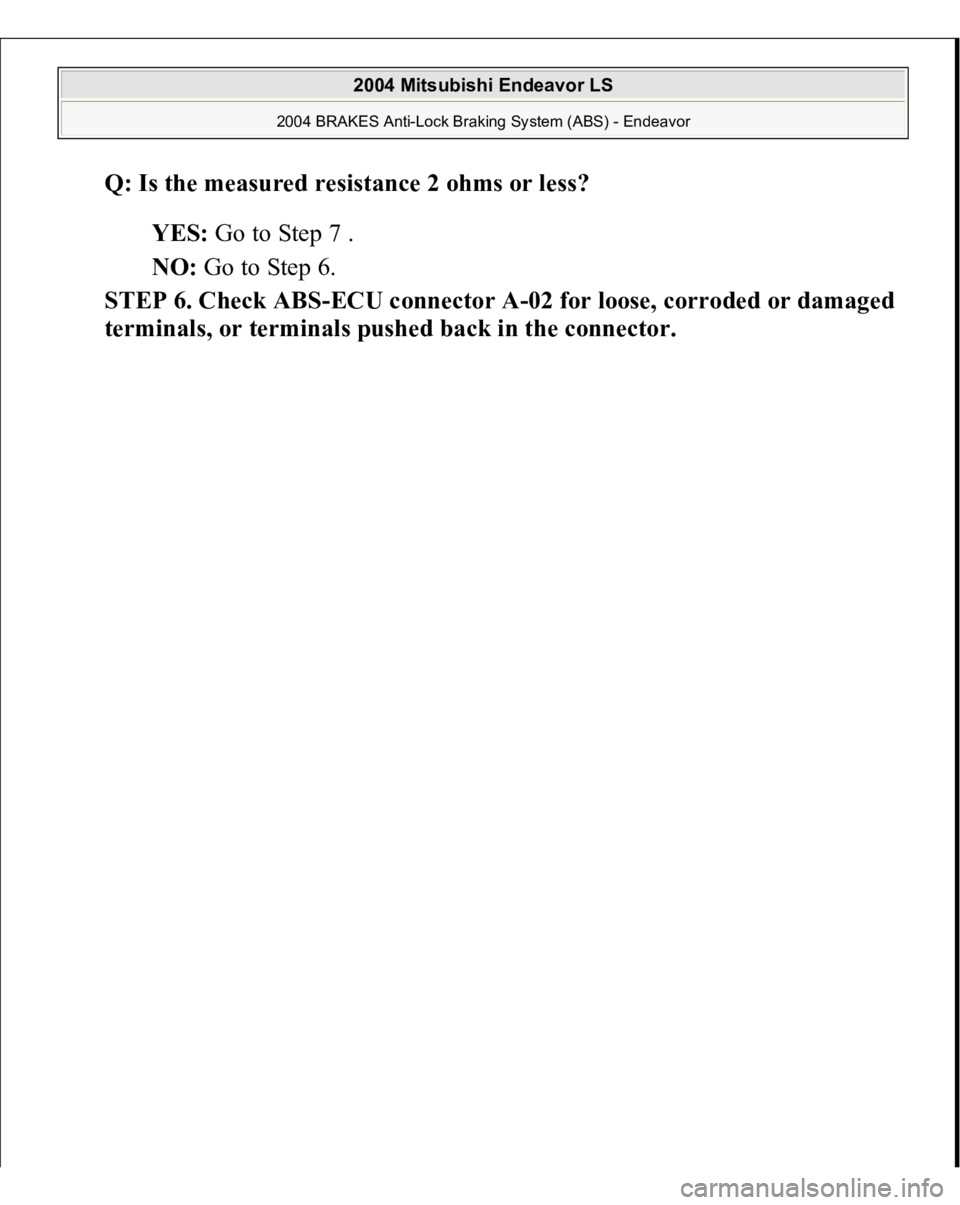

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Q: Is the measured resistance 2 ohms or less? YES: Go to Step 7 . NO: Go to Step 6. STEP 6. Check ABS-ECU connector A-02 for loose, corroded or damaged terminals, or terminals pushed back in t

Page 138 of 3870

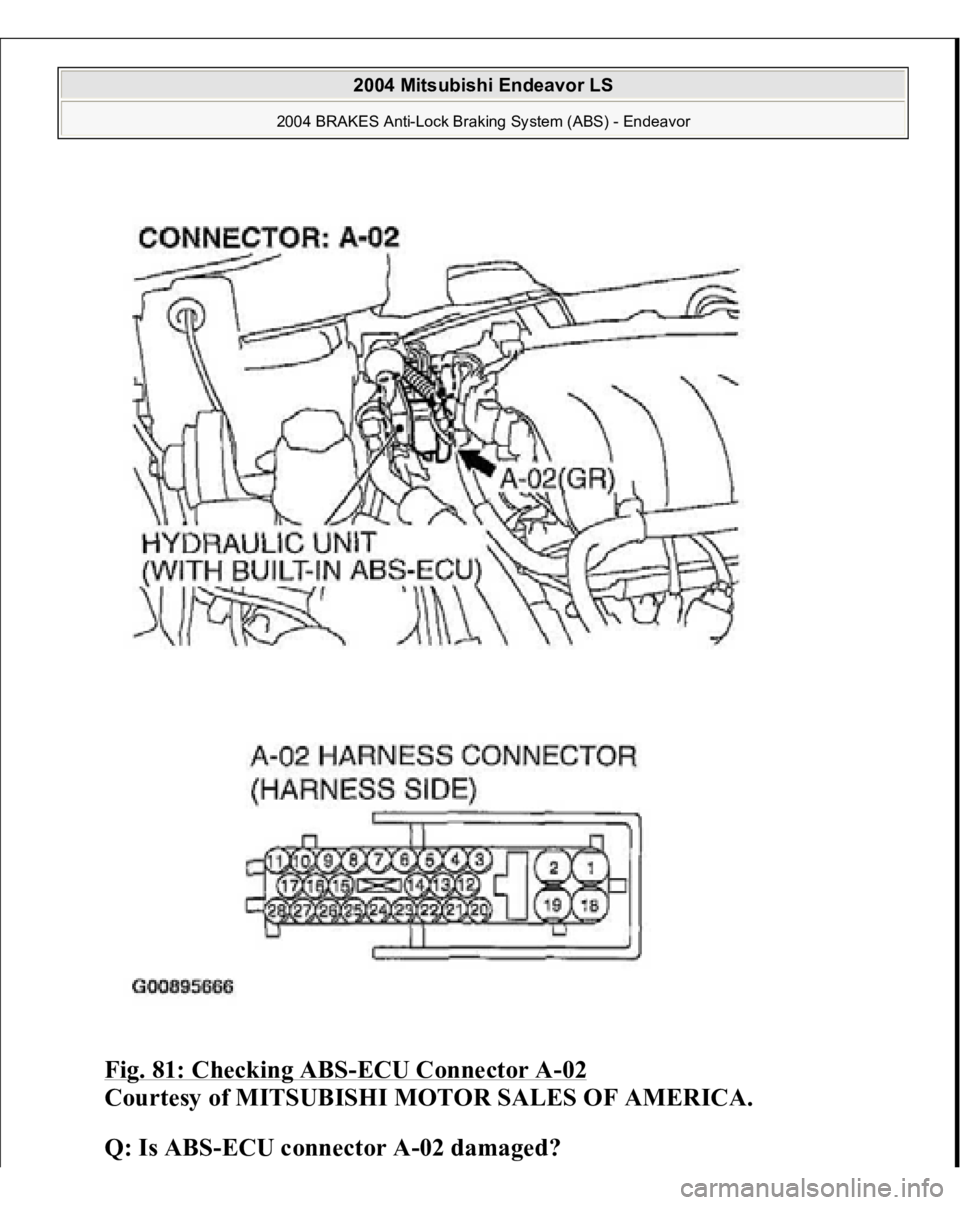

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 81: Checking ABS -ECU Connector A -02 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Q: Is ABS-ECU connector A-02 damaged? 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System

Page 139 of 3870

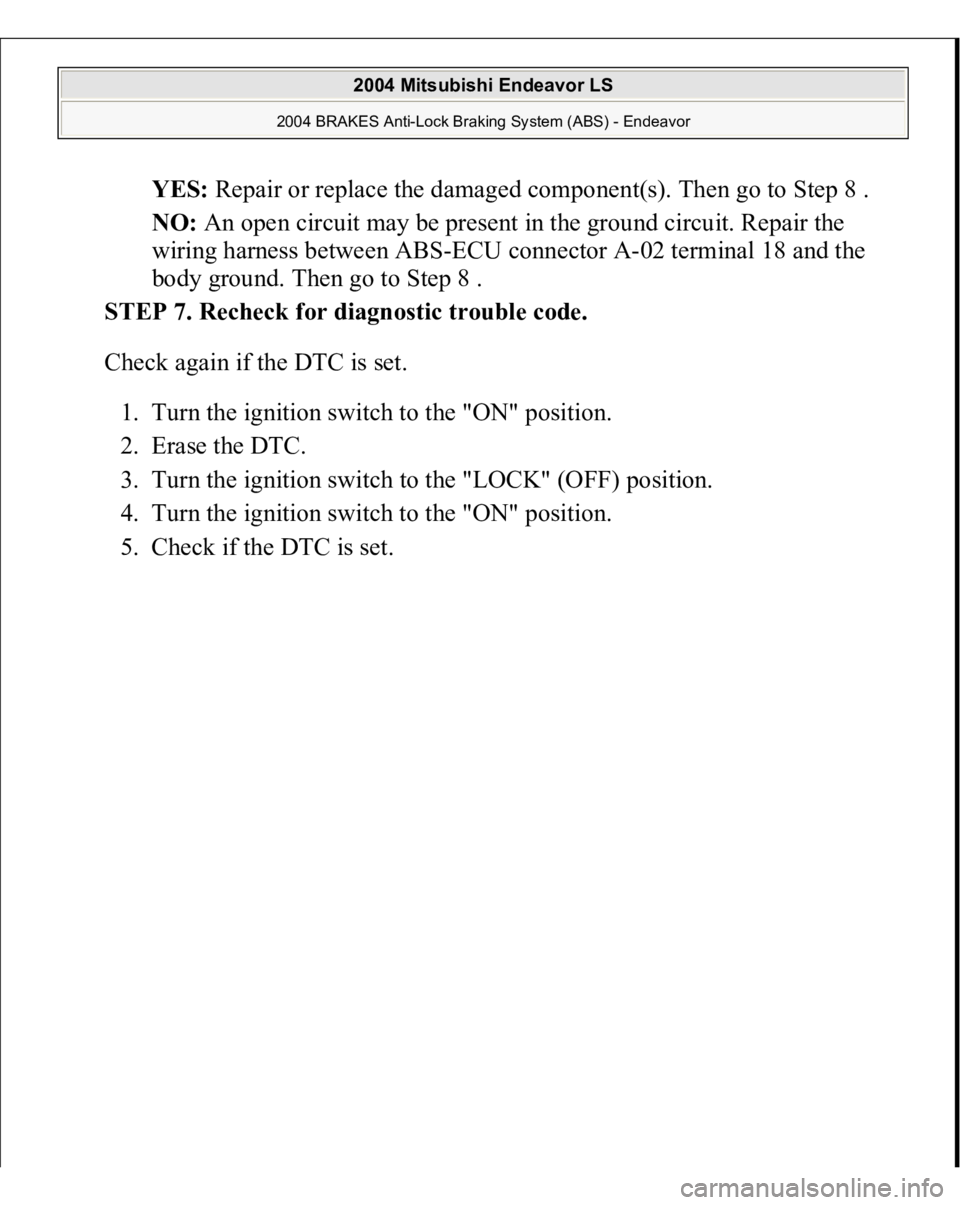

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Repair or replace the damaged component(s). Then go to Step 8 . NO: An open circuit may be present in the ground circuit. Repair the wiring harness between ABS-ECU connector A-02 terminal 18 a

Page 140 of 3870

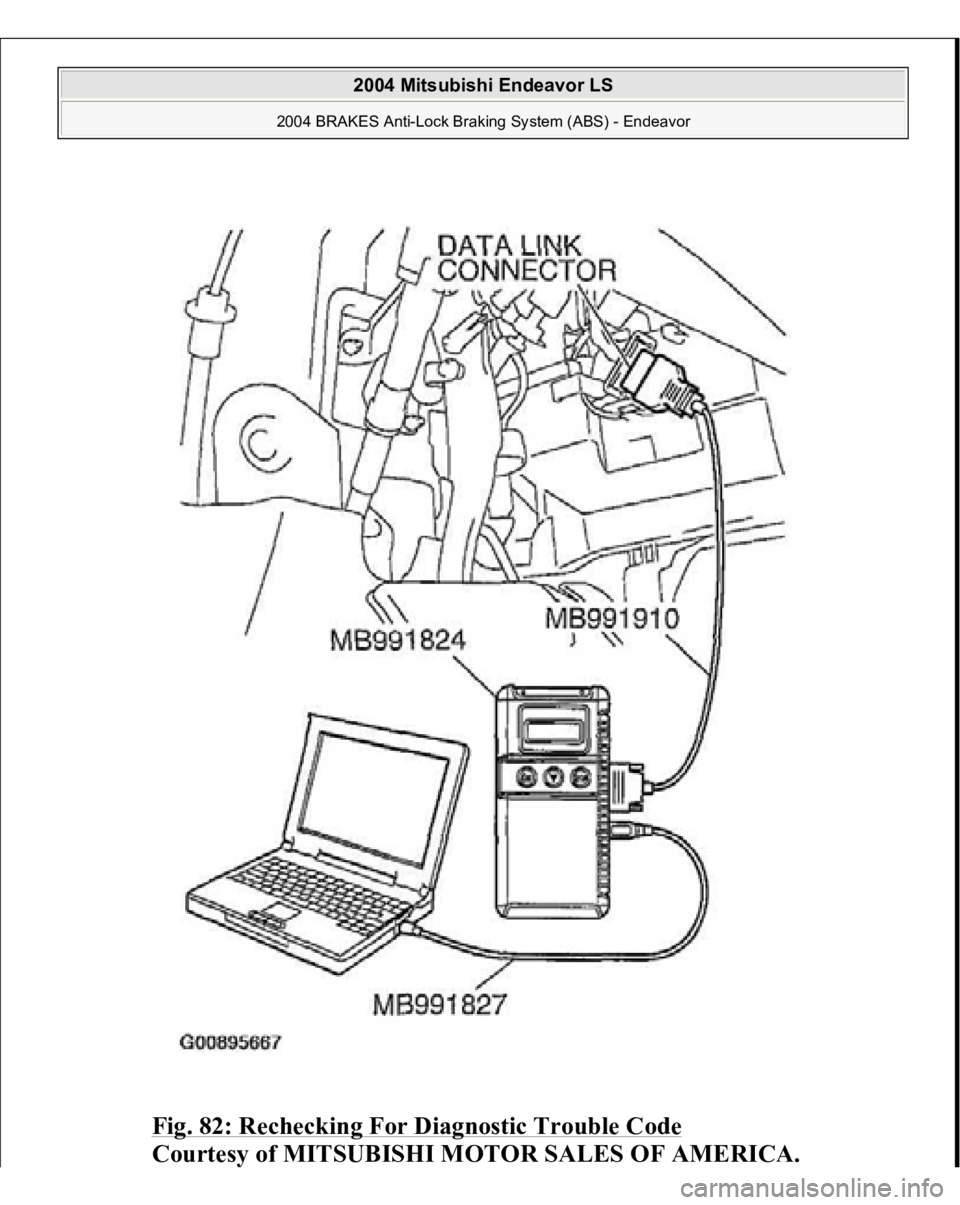

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 82: Rechecking For Diagnostic Trouble Code Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 141 of 3870

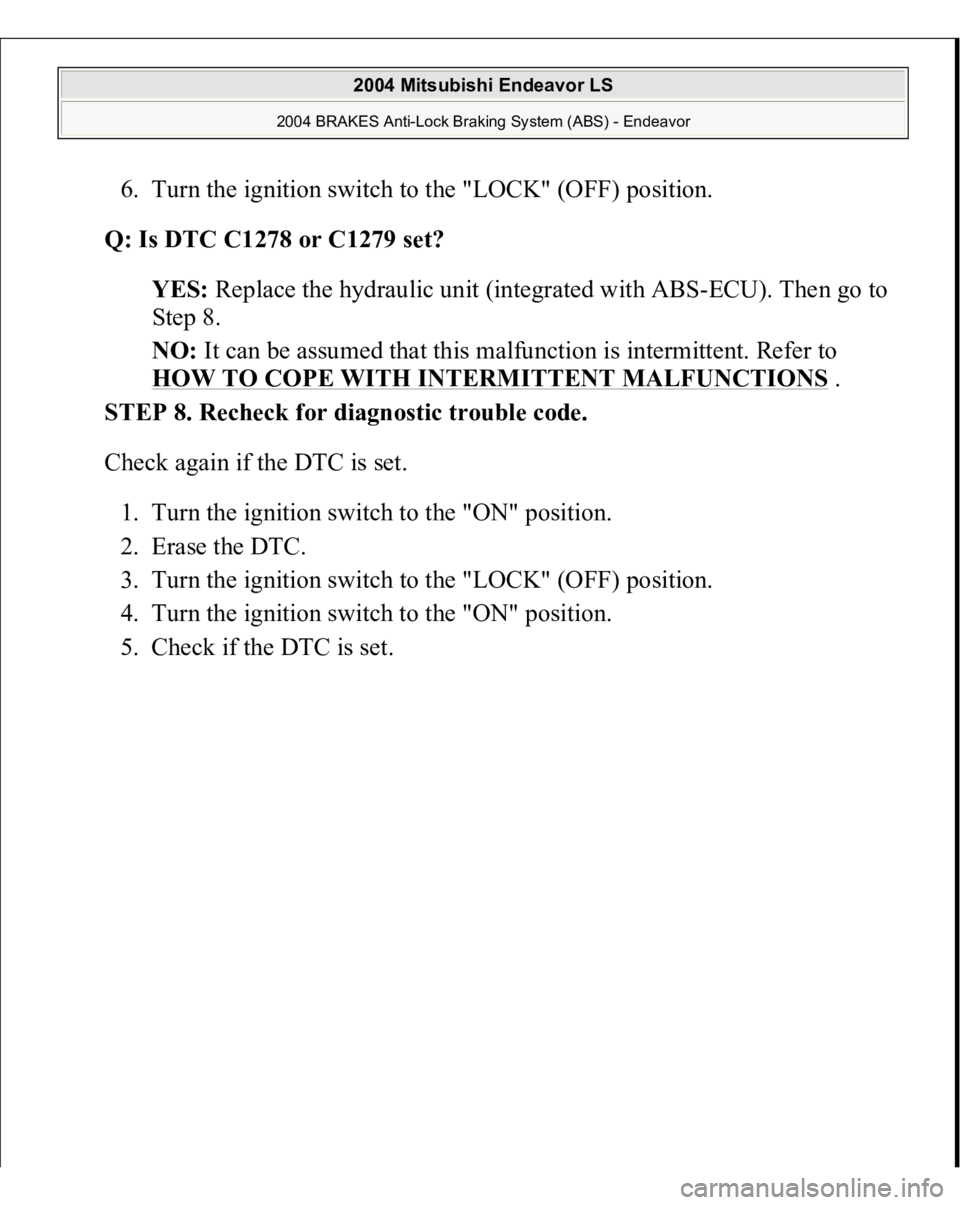

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1278 or C1279 set? YES: Replace the hydraulic unit (integrated with ABS-ECU). Then go to Step 8. NO: It can be assum

Page 142 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 83: Rechecking For Diagnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 143 of 3870

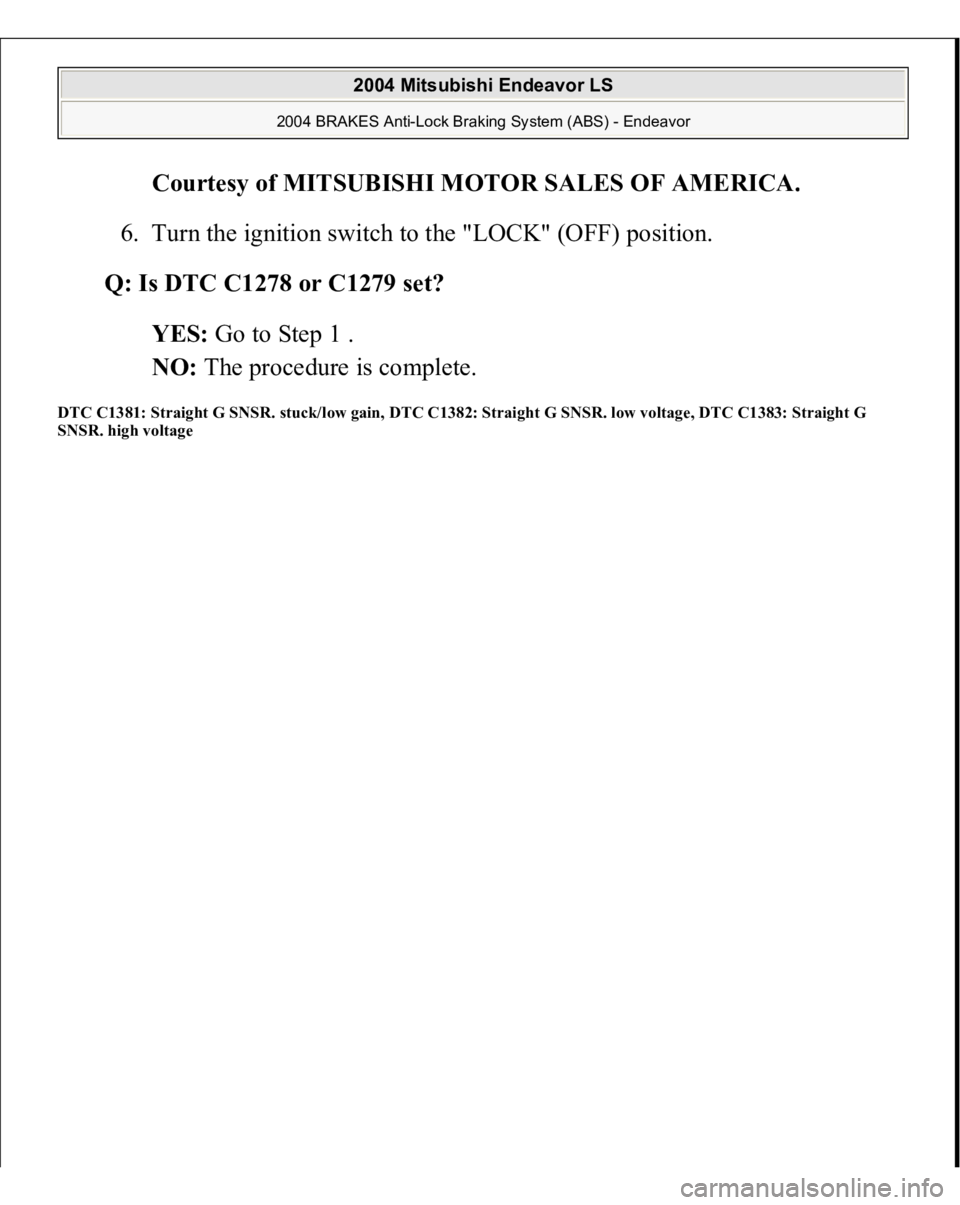

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1278 or C1279 set? YES: Go to Step 1 . NO: The procedure is complete

Page 144 of 3870

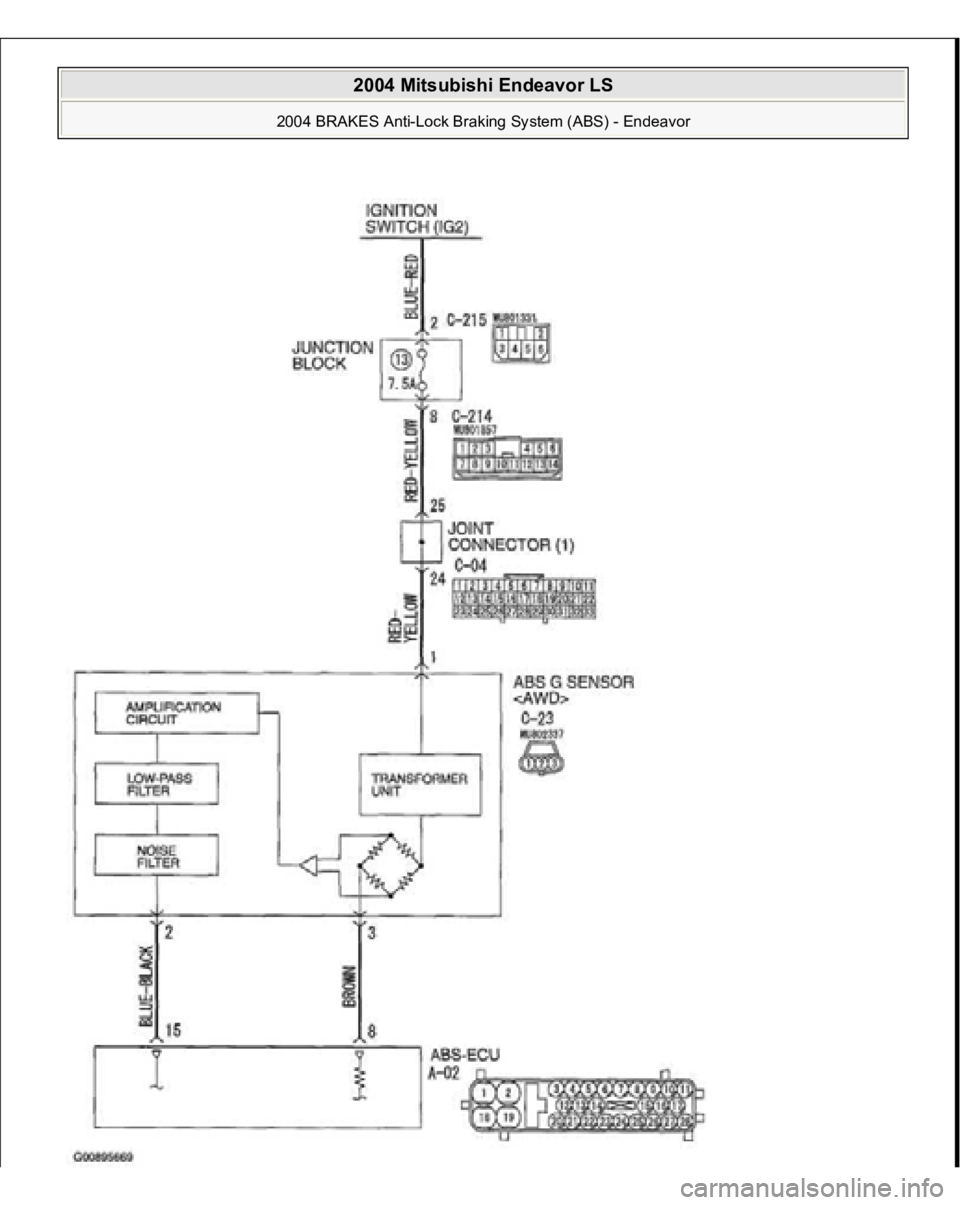

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
