Page 2985 of 3870

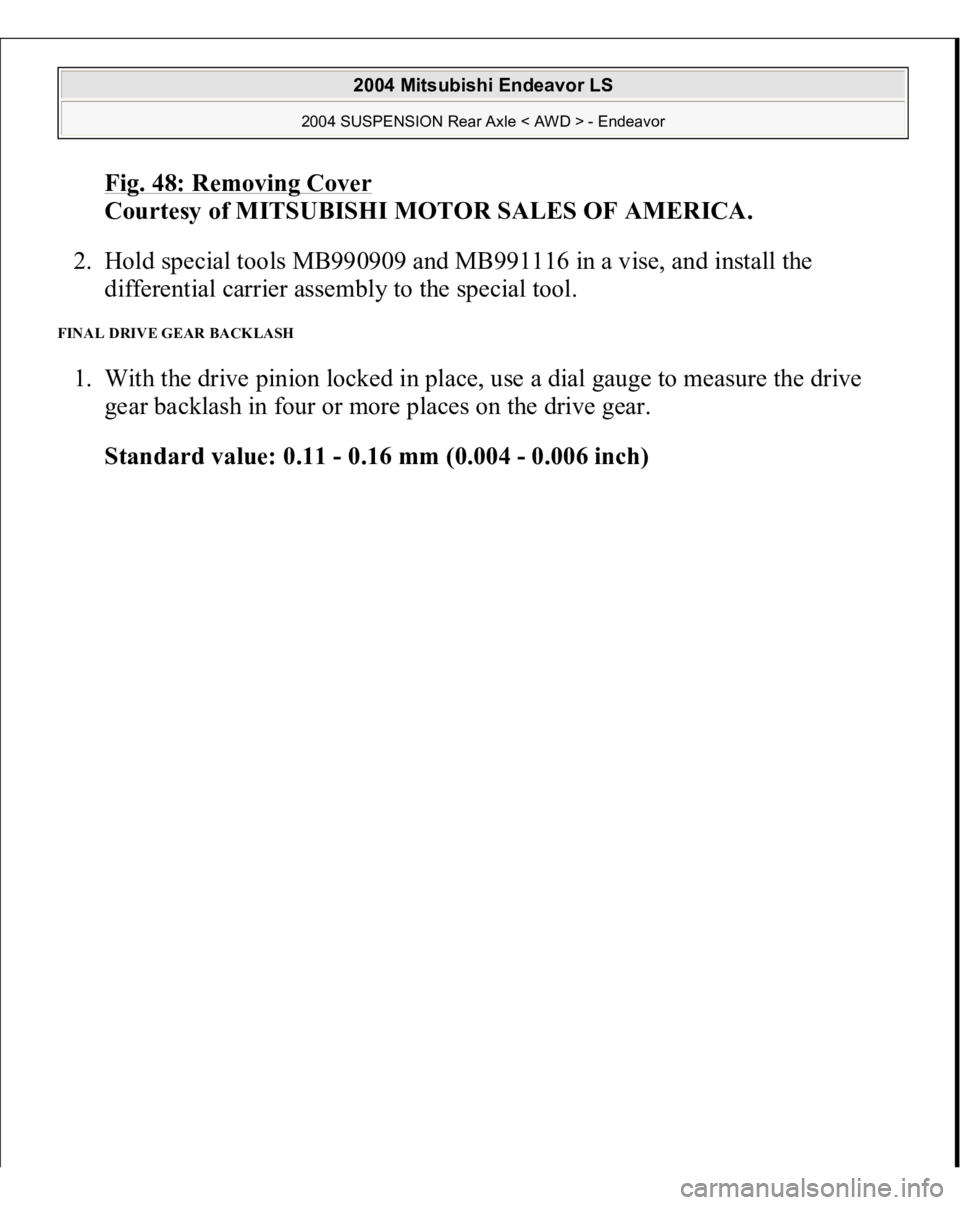

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 48: Removing Cover Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Hold special tools MB990909 and MB991116 in a vise, and install the differential carrier assembly to the special tool. F

Page 2986 of 3870

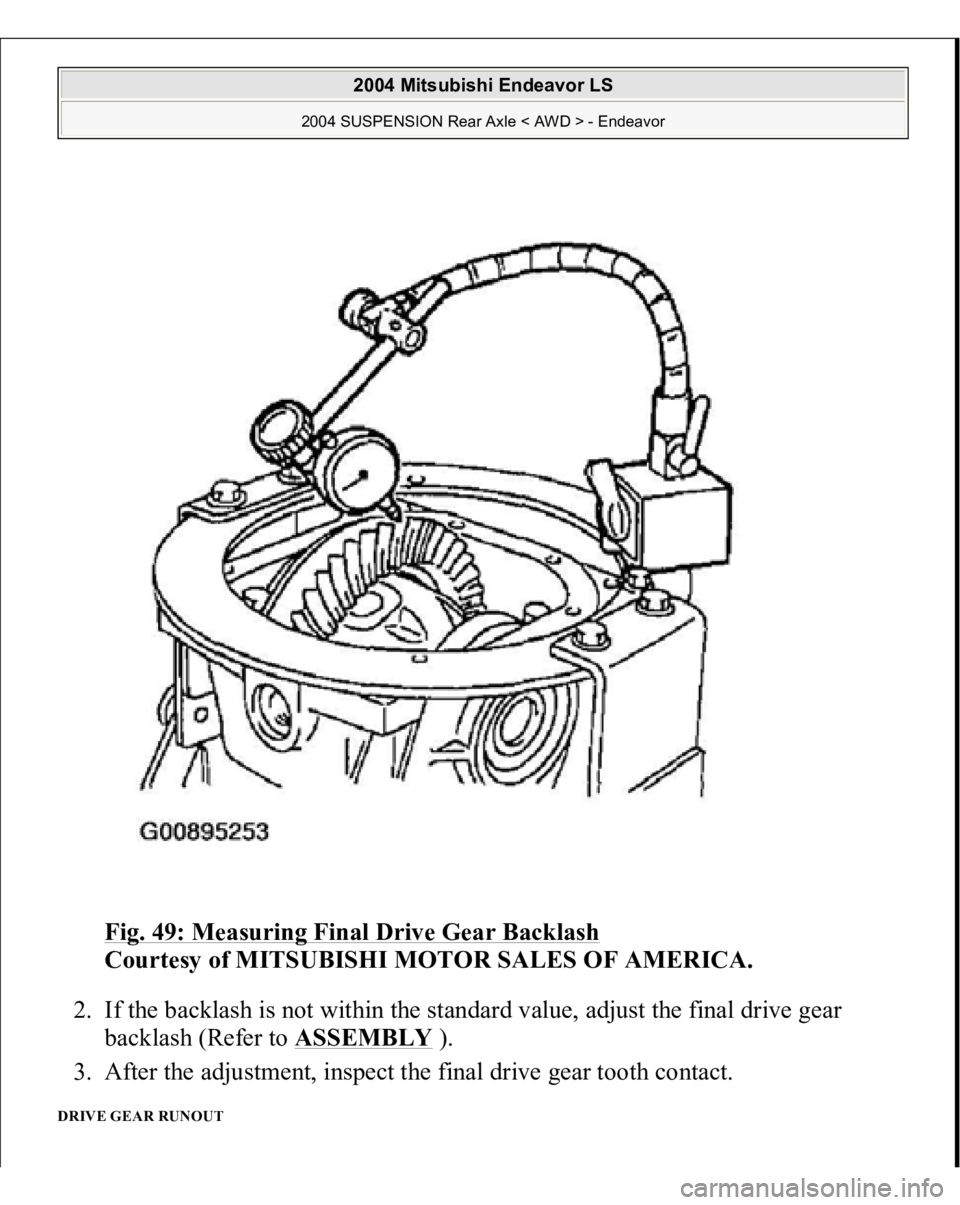

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 49: Measuring Final Drive Gear Backlash Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. If the backlash is not within the standard value, adjust the final drive gear backlash (Refer to ASSE

Page 2987 of 3870

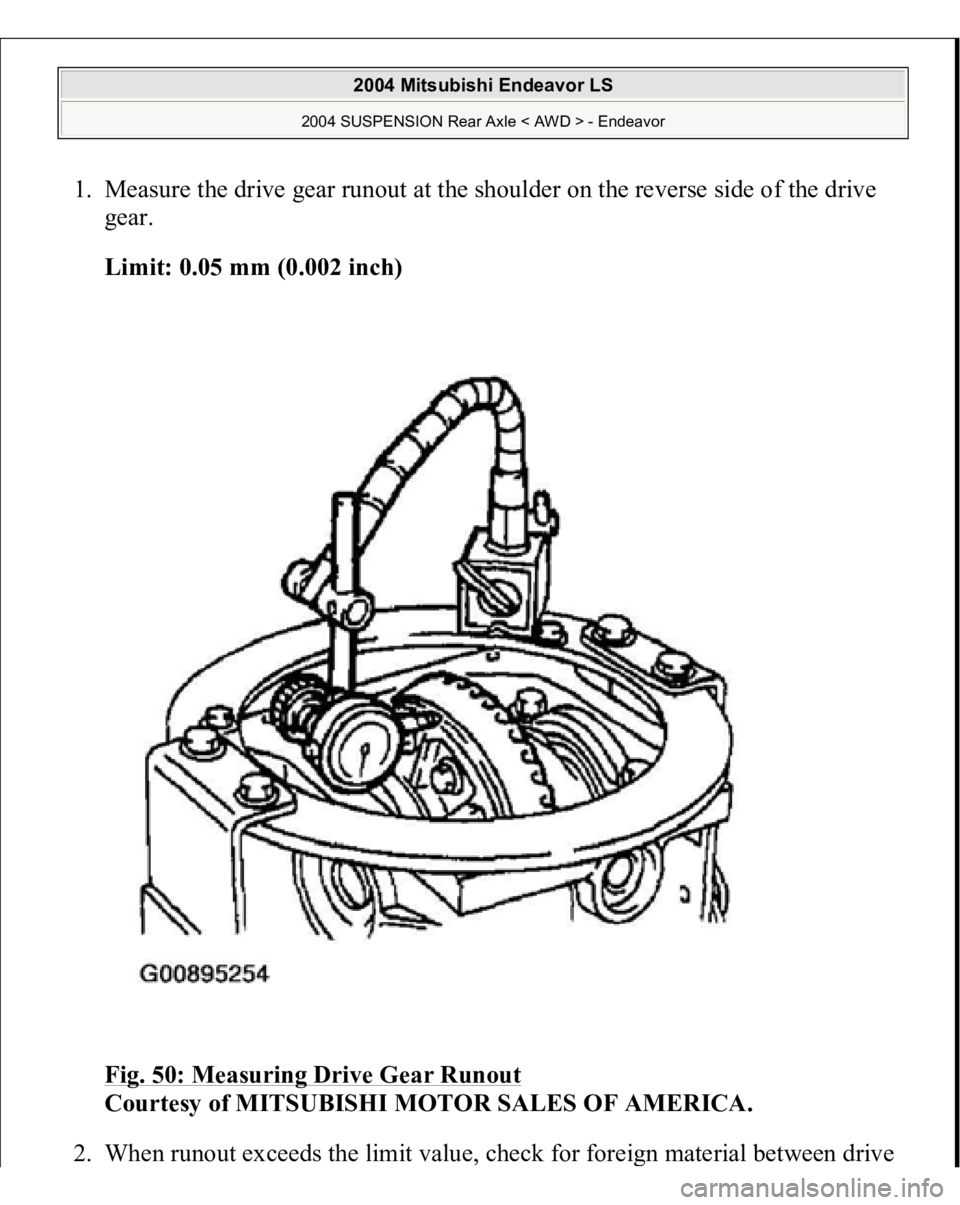

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Measure the drive gear runout at the shoulder on the reverse side of the drive gear. Limit: 0.05 mm (0.002 inch) Fig. 50: Measuring Drive Gear Runout Courtesy of MITSUBISHI MOTOR SALES OF AME

Page 2988 of 3870

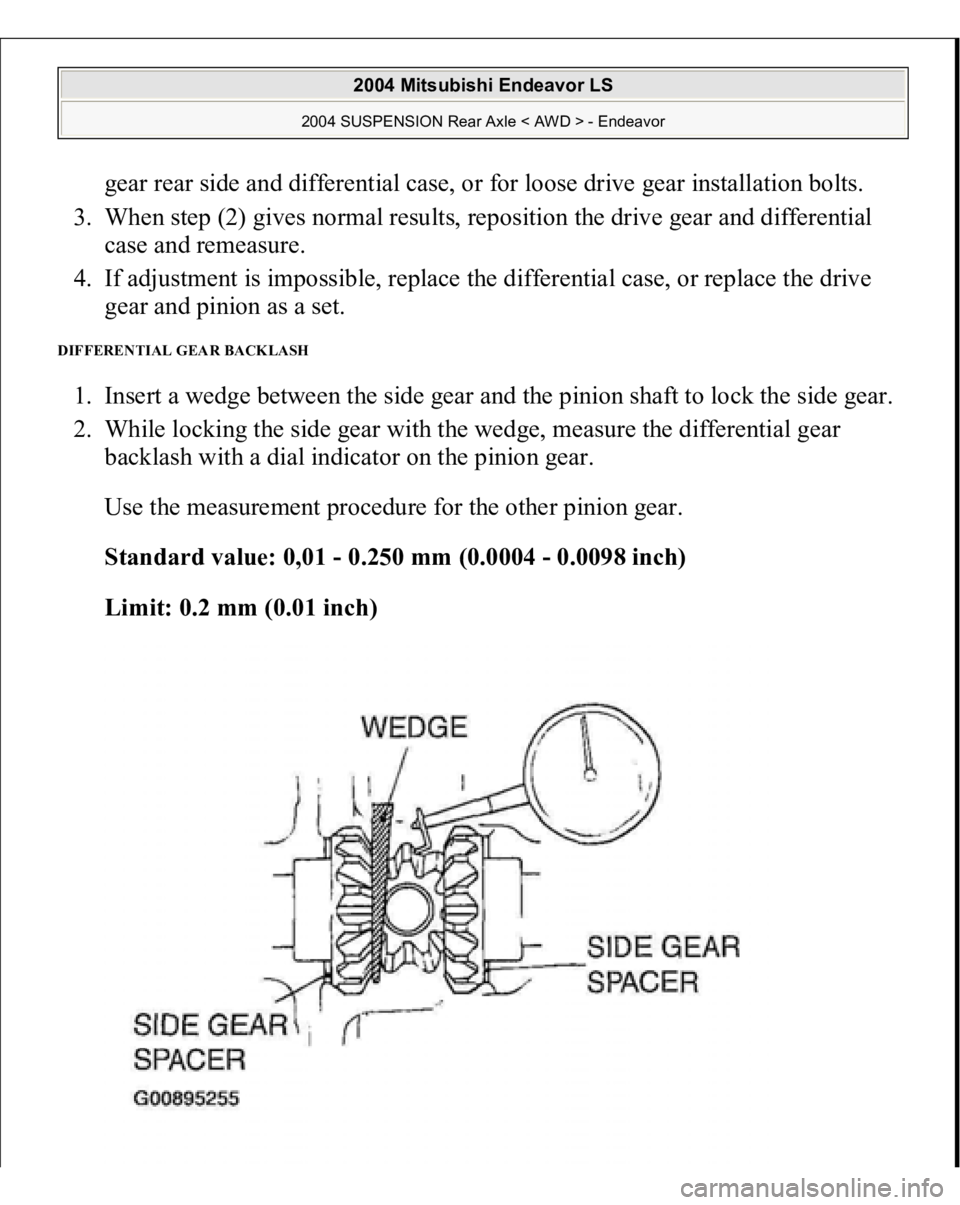

MITSUBISHI ENDEAVOR 2004 Service Repair Manual gear rear side and differential case, or for loose drive gear installation bolts. 3. When step (2) gives normal results, reposition the drive gear and differential case and remeasure. 4. If adjus

Page 2989 of 3870

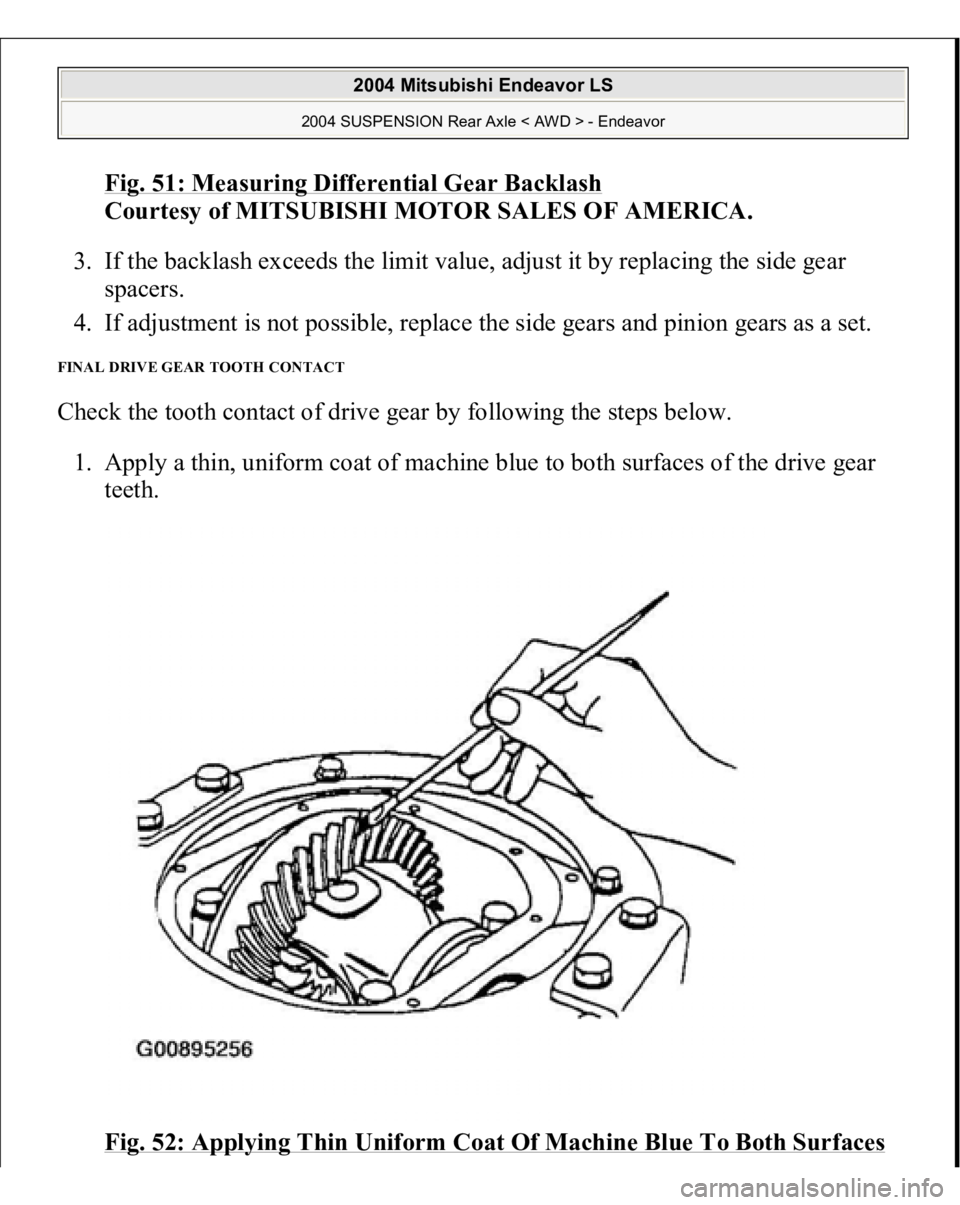

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 51: Measuring Differential Gear Backlas h Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. If the backlash exceeds the limit value, adjust it by replacing the side gear spacers. 4. If adjus

Page 2990 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Of The Drive Gear Teet h Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Insert special tool MB990939 between the differential carrier and the differential case, and then rotate the companion fla

Page 2991 of 3870

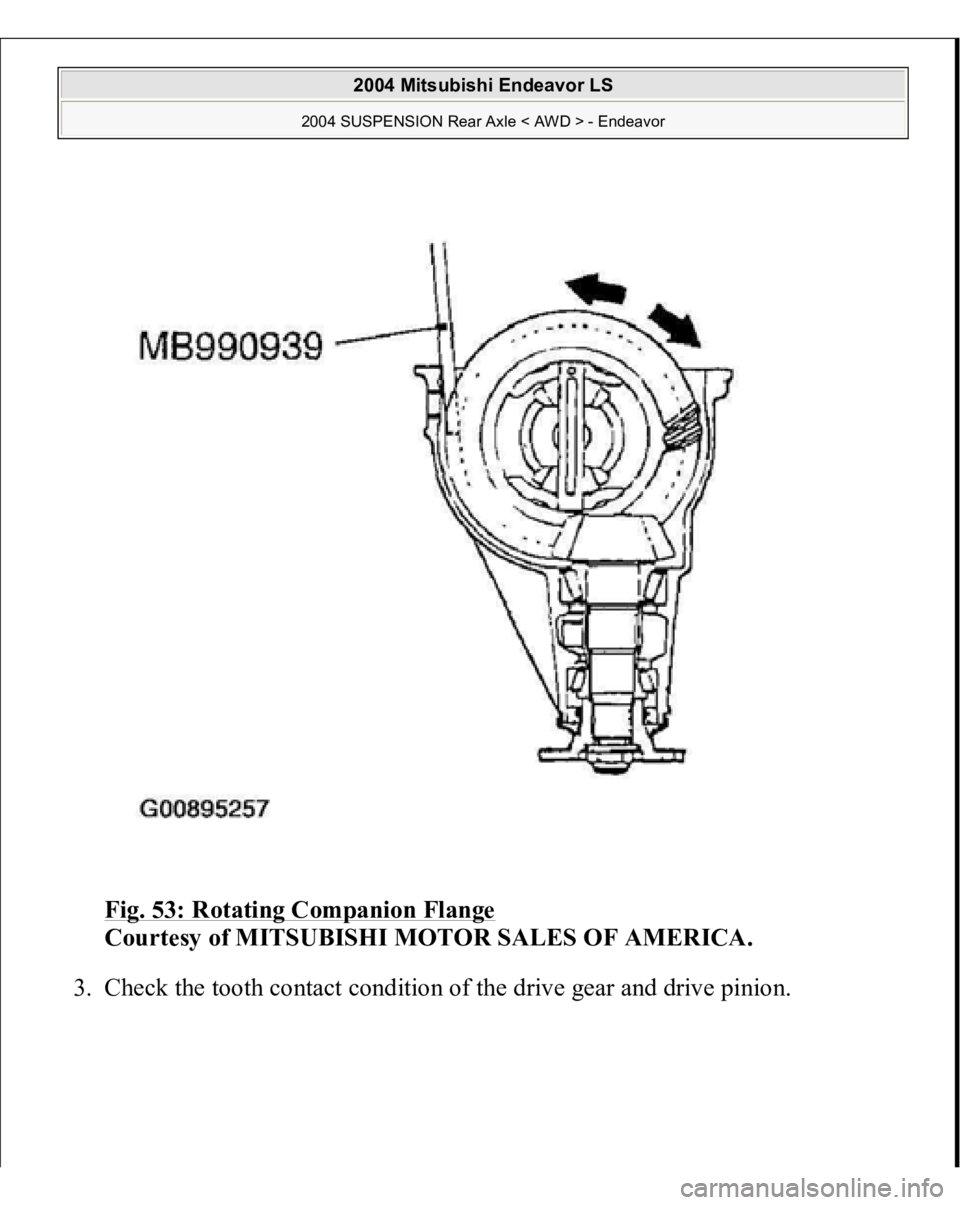

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 53: Rotating Companion Flange Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Check the tooth contact condition of the drive gear and drive pinion. 2004 Mitsubishi Endeavor LS 2004 SUS

Page 2992 of 3870

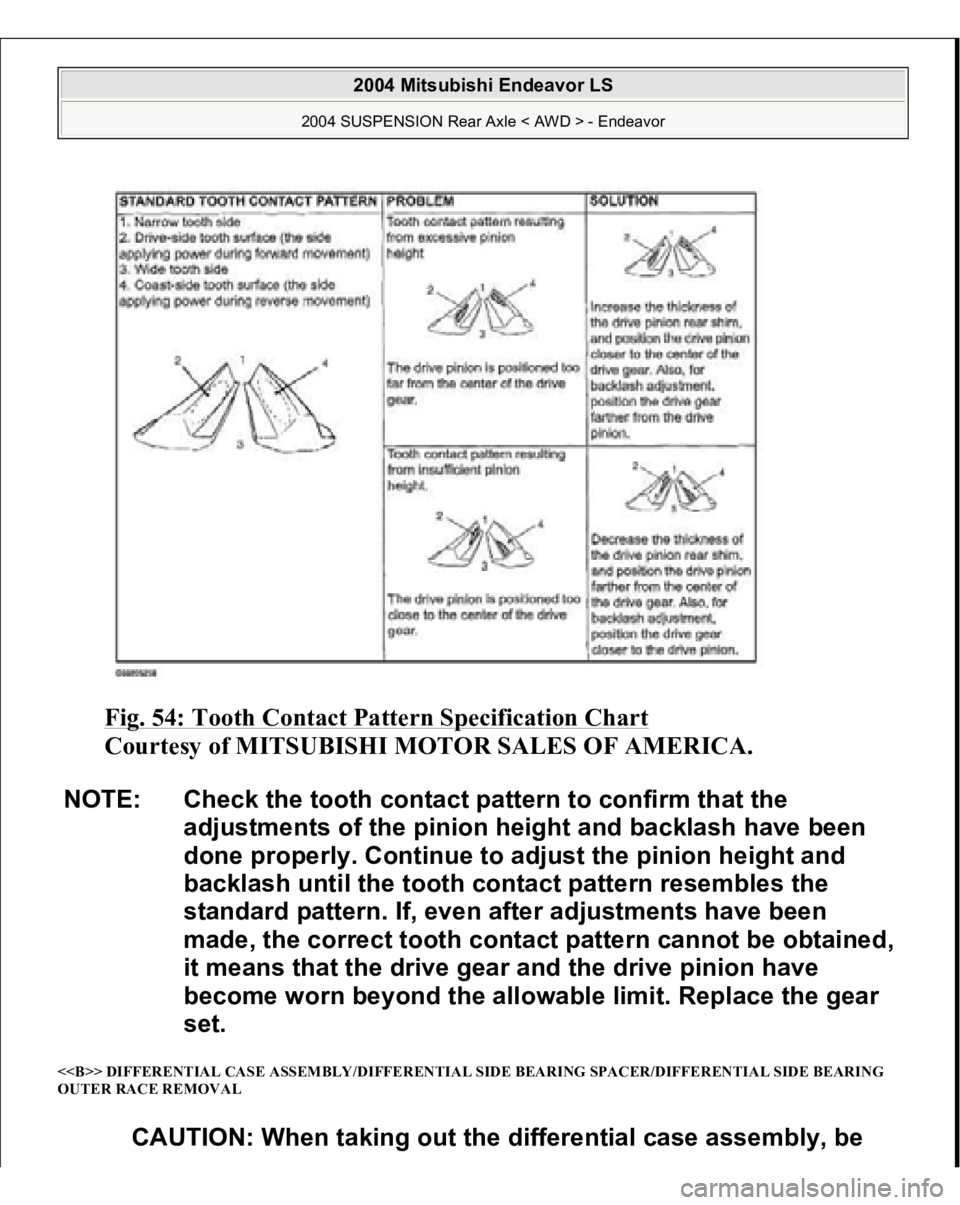

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 54: Tooth Contact Pattern Specification Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. <<B>> DIFFERENTIAL CASE ASSEMBLY/DIFFERENTIAL SIDE BEARING SPACER/DIFFERENTIAL SIDE BEARING OUTER
