Page 3409 of 3870

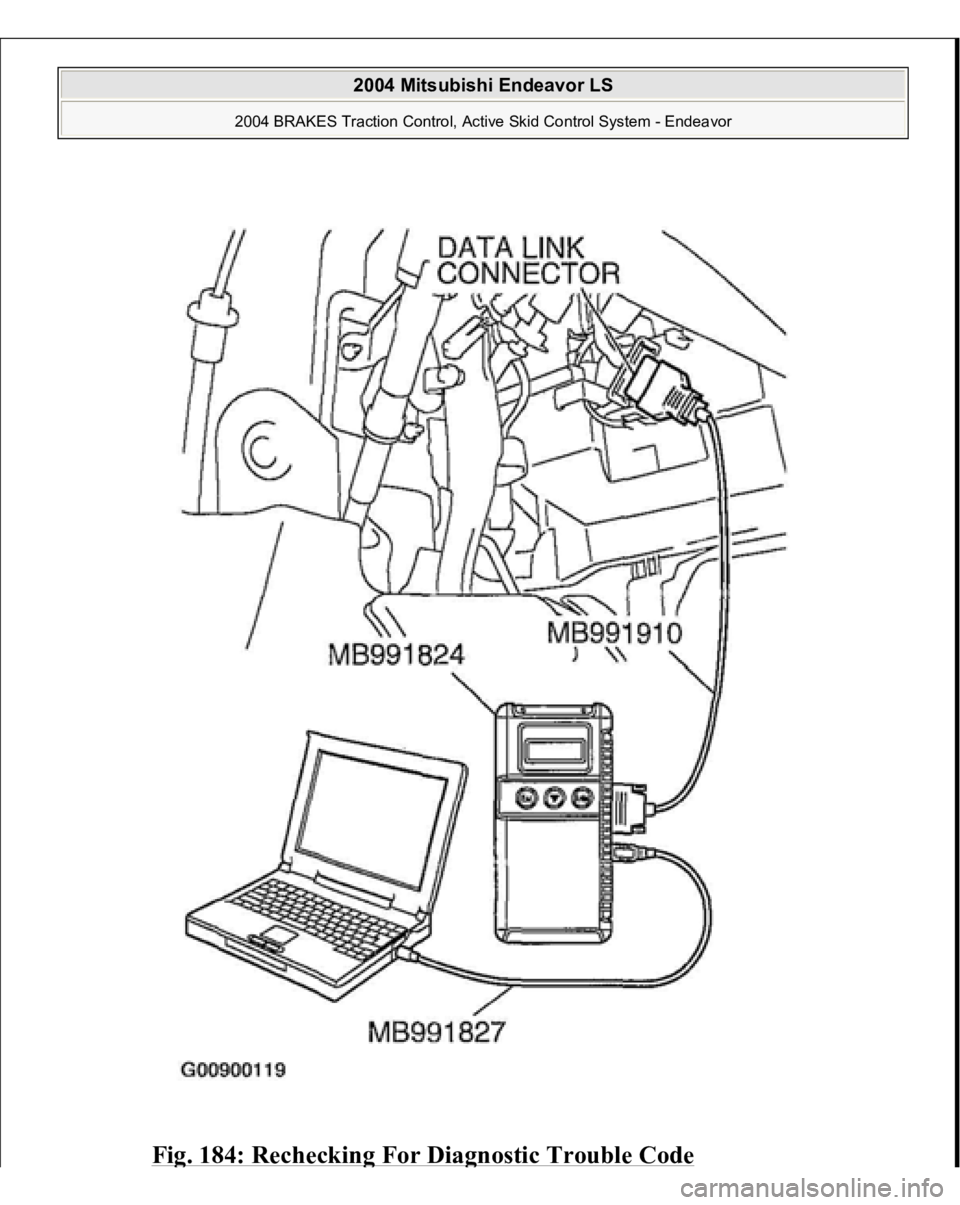

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 184: Recheckin g For Dia gnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3410 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . DTC U1073: BUS OFF TROUBLE JUDGMENT This code is stored when the TCL/ASC-ECU has ceased the CAN communication (bus off). Then, if a penalty mode is en

Page 3411 of 3870

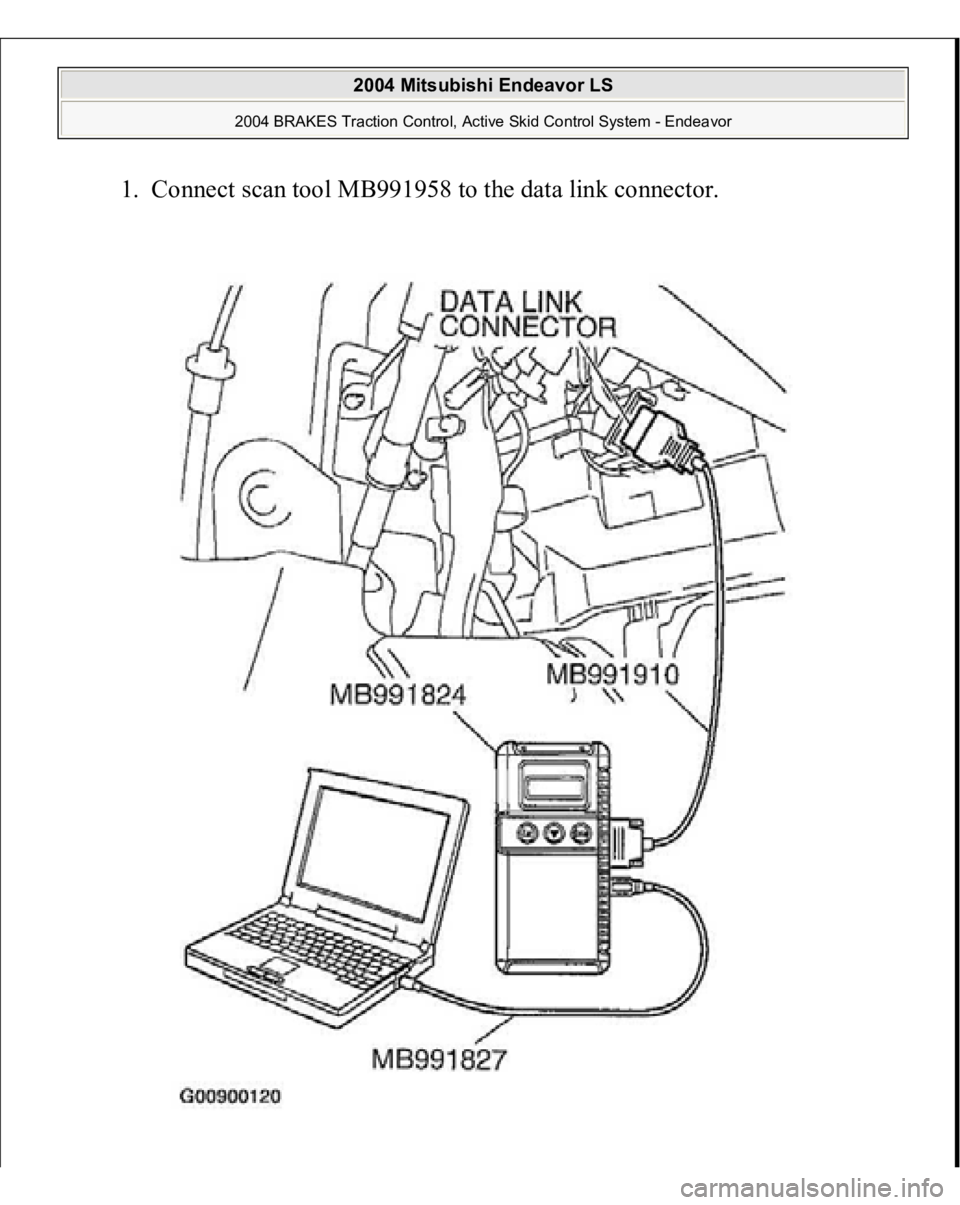

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Connect scan tool MB991958 to the data link connector. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3412 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 185: Connecting Scan Tool MB991958 To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus lin

Page 3413 of 3870

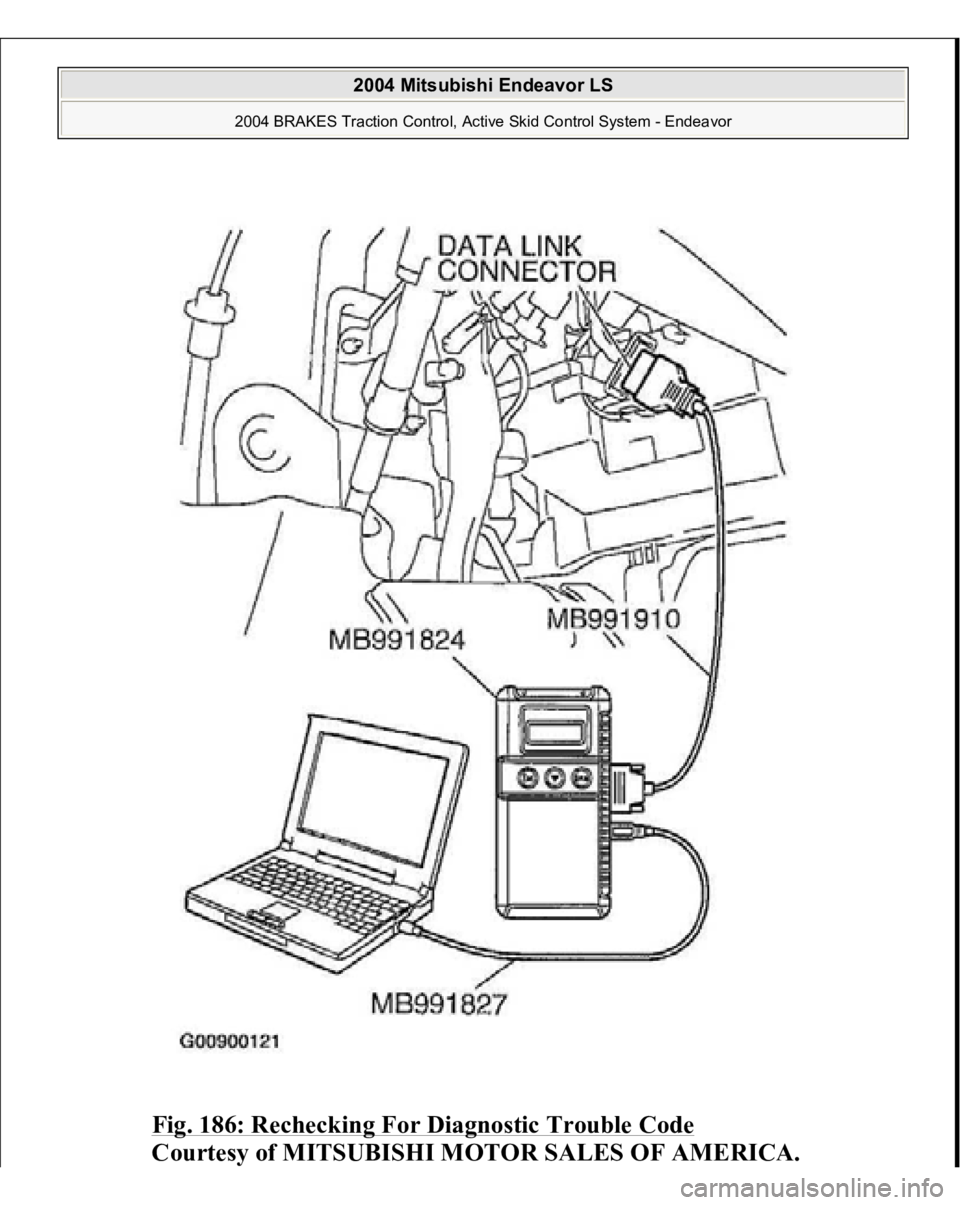

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 186: Rechecking For Diagnostic Trouble Code Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3414 of 3870

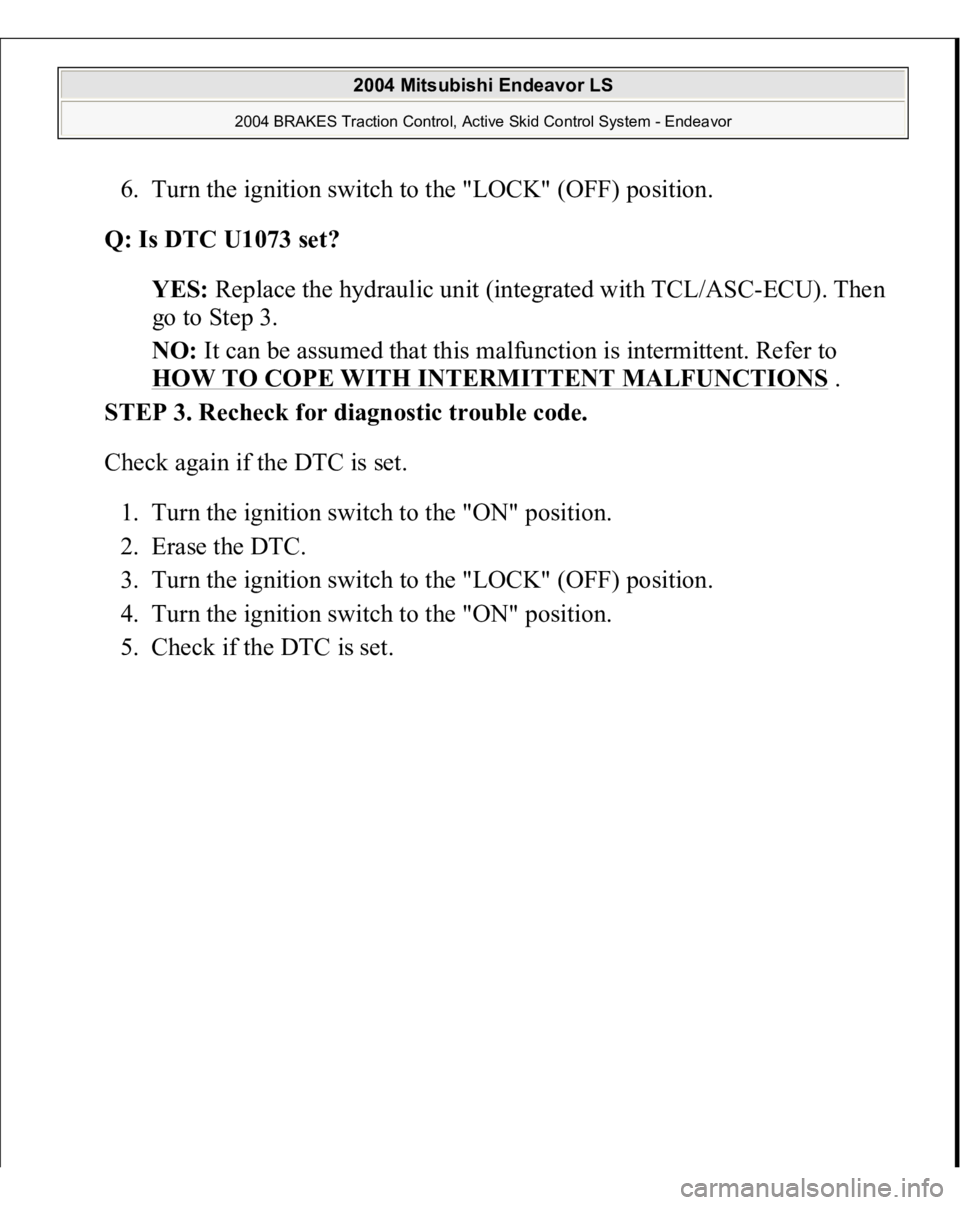

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC U1073 set? YES: Replace the hydraulic unit (integrated with TCL/ASC-ECU). Then go to Step 3. NO: It can be assumed th

Page 3415 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 187: Recheckin g For Dia gnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3416 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC U1073 set? YES: Go to Step 1. NO: The procedure is complete. DTC U1
