Page 2849 of 3870

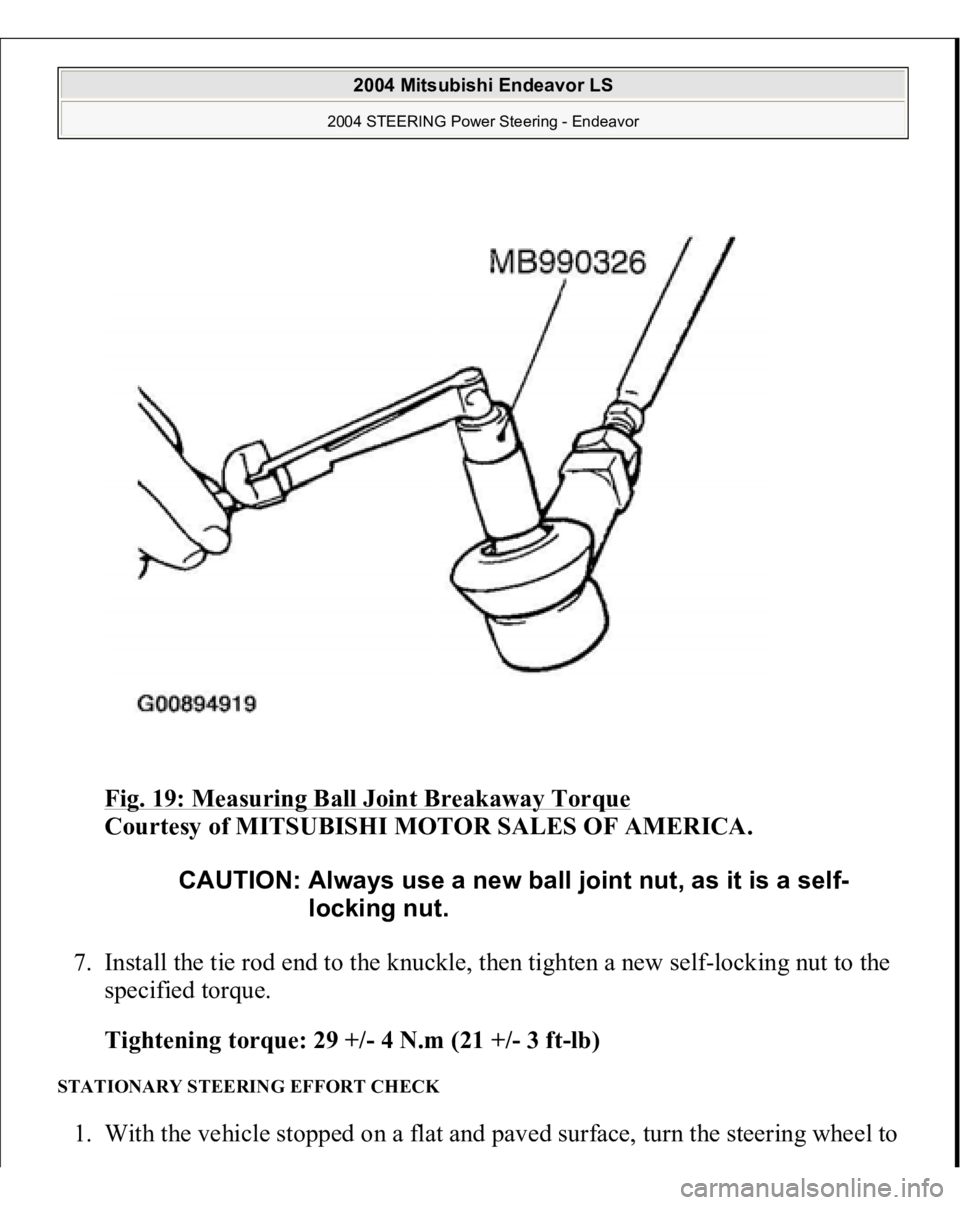

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 19: Measuring Ball Joint Breakaway Torque Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 7. Install the tie rod end to the knuckle, then tighten a new self-locking nut to the specified torque

Page 2850 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual the straight ahead position. 2. Start the engine and allow to idle. Standard value: 700 +/- 100 r/min 3. Attach a spring scale to the outer circumference of the steering wheel and measure the st

Page 2851 of 3870

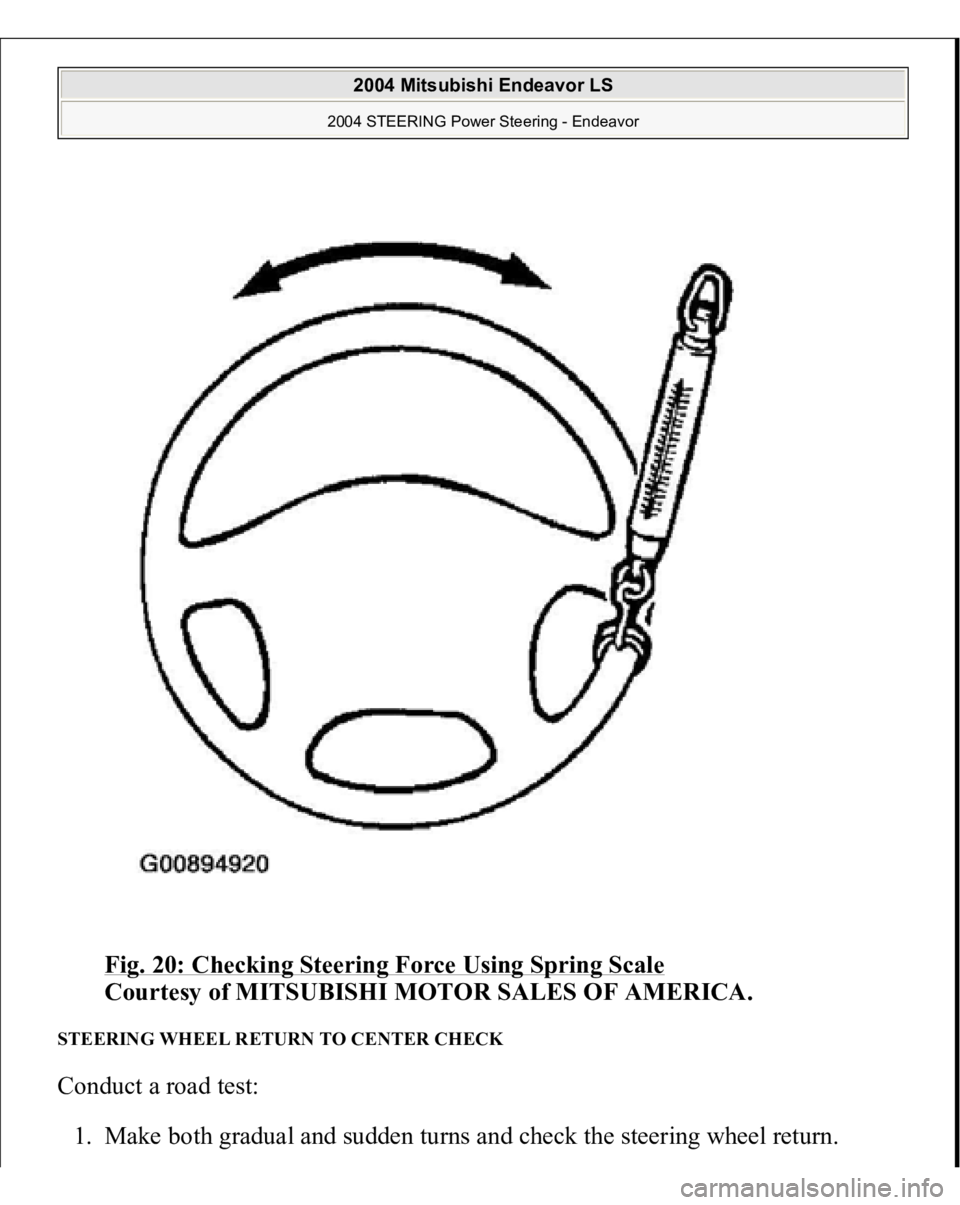

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 20: Checking Steering Force Using Spring Scale Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEERING WHEEL RETURN TO CENTER CHECK Conduct a road test: 1. Make both gradual and sudden turns

Page 2852 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. At a vehicle speed of approximately 35 km/h (22 mph), turn the steering wheel 90 degrees, hold a few seconds, then release. If the steering wheel then returns 70 degrees or more, the return can b

Page 2853 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 21: Checking Steering Wheel Return To Center Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DRIVE BELT TENSION CHECK Refer to 7. DRIVE BELTS (FOR GENERATOR, POWER STEERING OIL PUMP AND AIR CON

Page 2854 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Park the vehicle on a flat, level surface. 2. Start the engine, and then turn the steering wheel several times to raise the temperature of the fluid to approximately 50 - 60°C (122 - 140°F).

Page 2855 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Raise and support the front wheels. 2. Disconnect the return hose connection, and then connect a vinyl hose to the return hose, and drain the fluid into a container. Fig. 23: Disconnecting Retu

Page 2856 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Perform air bleeding procedure as necessary after replacing the steering gear, oil pump or the steering fluid lines. 1. Raise and support the front wheels. 2. Disconnect the ignition coil connecto
