Page 1297 of 3870

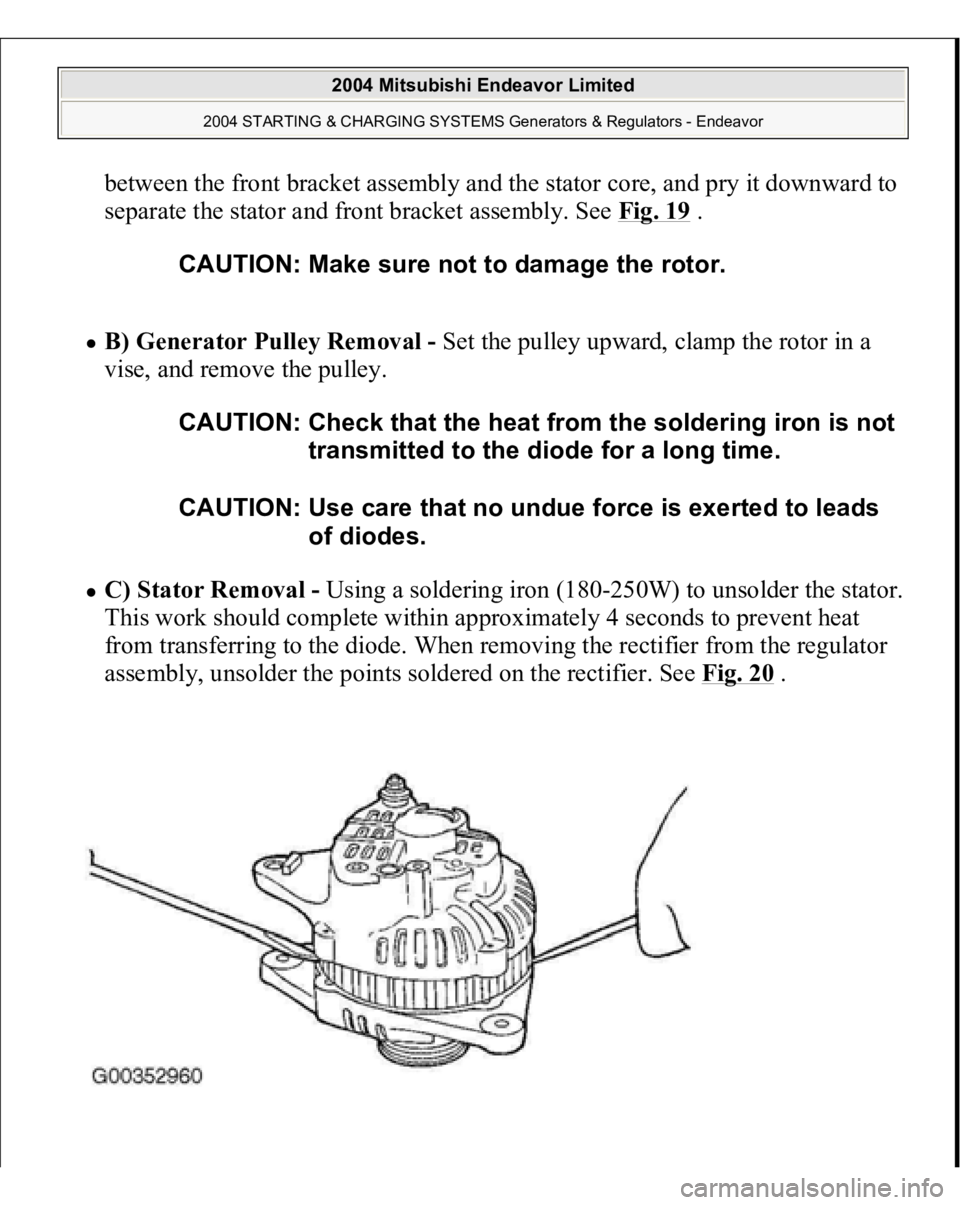

MITSUBISHI ENDEAVOR 2004 Service Repair Manual between the front bracket assembly and the stator core, and pry it downward to separate the stator and front bracket assembly. See Fig. 19 . B) Generator Pulley Removal - Set the pulley upward, cla

Page 1298 of 3870

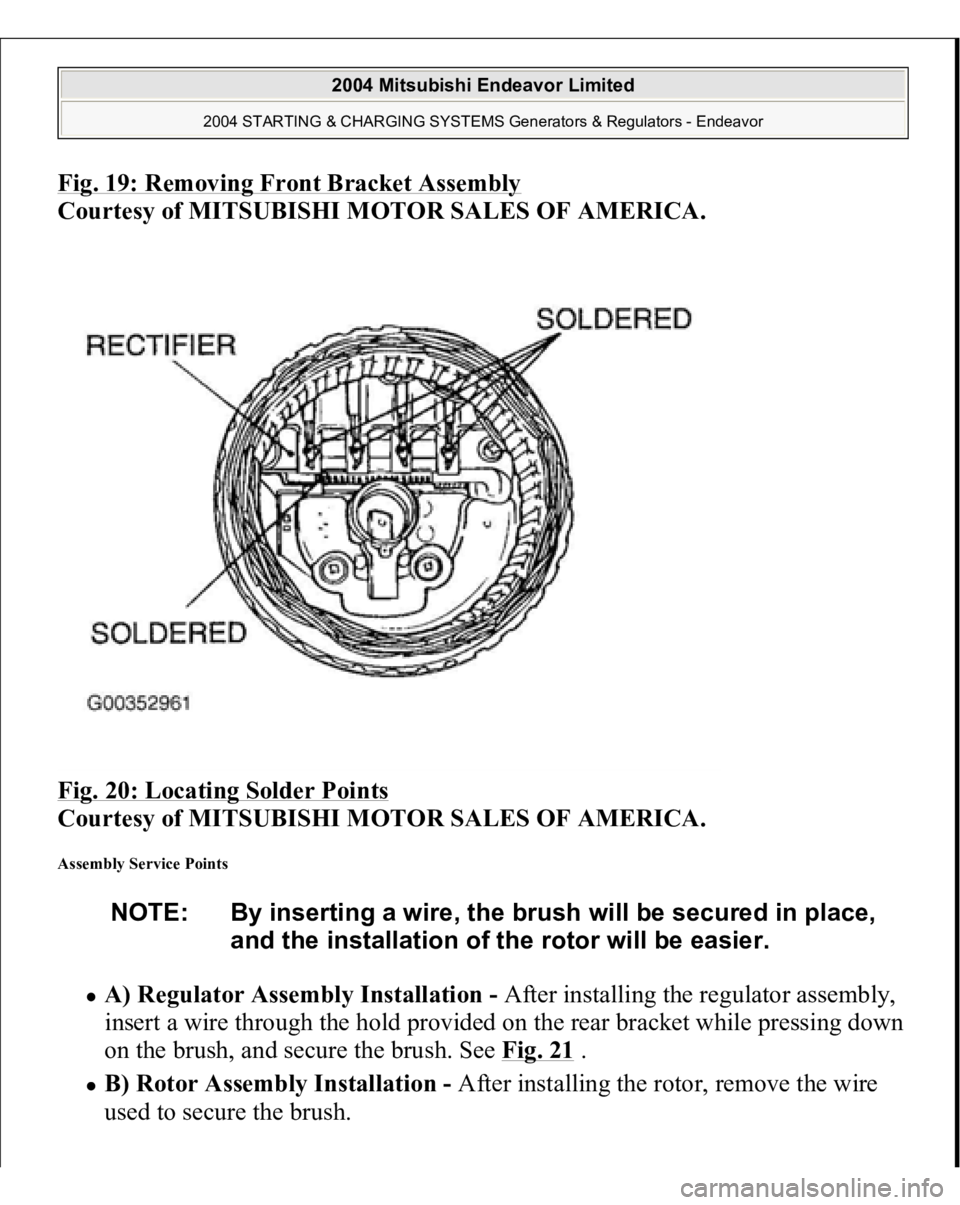

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 19: Removing Front Bracket Assembly Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 20: Locating Solder Points Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Assembly Service Points A)

Page 1299 of 3870

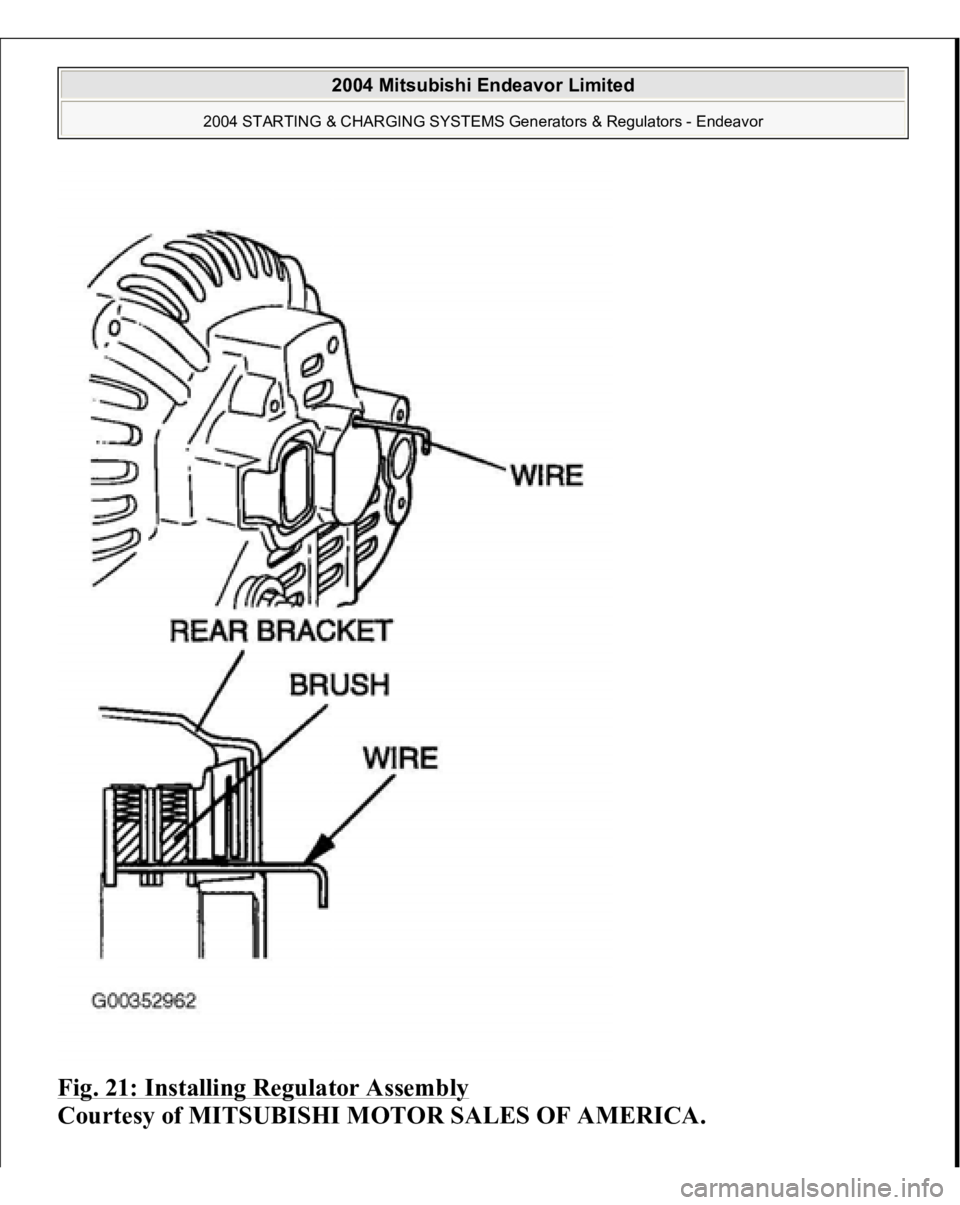

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 21: Installing Regulator Assembly Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor Limited 2004 STARTING & CHARGING SYSTEMS Generators & Regulators - Endeavor

Page 1300 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual TORQUE SPECIFICATION S See illustration in REMOVAL & INSTALLATION or OVERHAUL . WIRING DIAGRAMS For wiring diagrams, see STARTING/CHARGING . 2004 Mitsubishi Endeavor Limited 2004 STARTING & CH

Page 1301 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 ENGINE Engine Lubrication - Endeavor GENERAL DESCRIPTION The lubrication method is a fully force-fed, full-flow filtration type LUBRICATION SPECIFICATION ENGINE OILS RECOMMENDED PRECAUTIONS The

Page 1302 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual cleaned regularly and kept separate from personal clothing. Where there is a risk of eye contact, eye protection should be worn i.e. chemical goggles or face shields. In addition, an eye wash facili

Page 1303 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 2: Checking Engine Oil Level Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ENGINE OIL REPLACEMENT 1. Start the engine and allow it to warm up until the temperature of the coolant reaches 80

Page 1304 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 3: Removing Drain Plug Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 5. Refill the specified quantity of oil. Specified Engine Oil: < Up to December 2003 >: Engine oils displaying ILSAC ce
