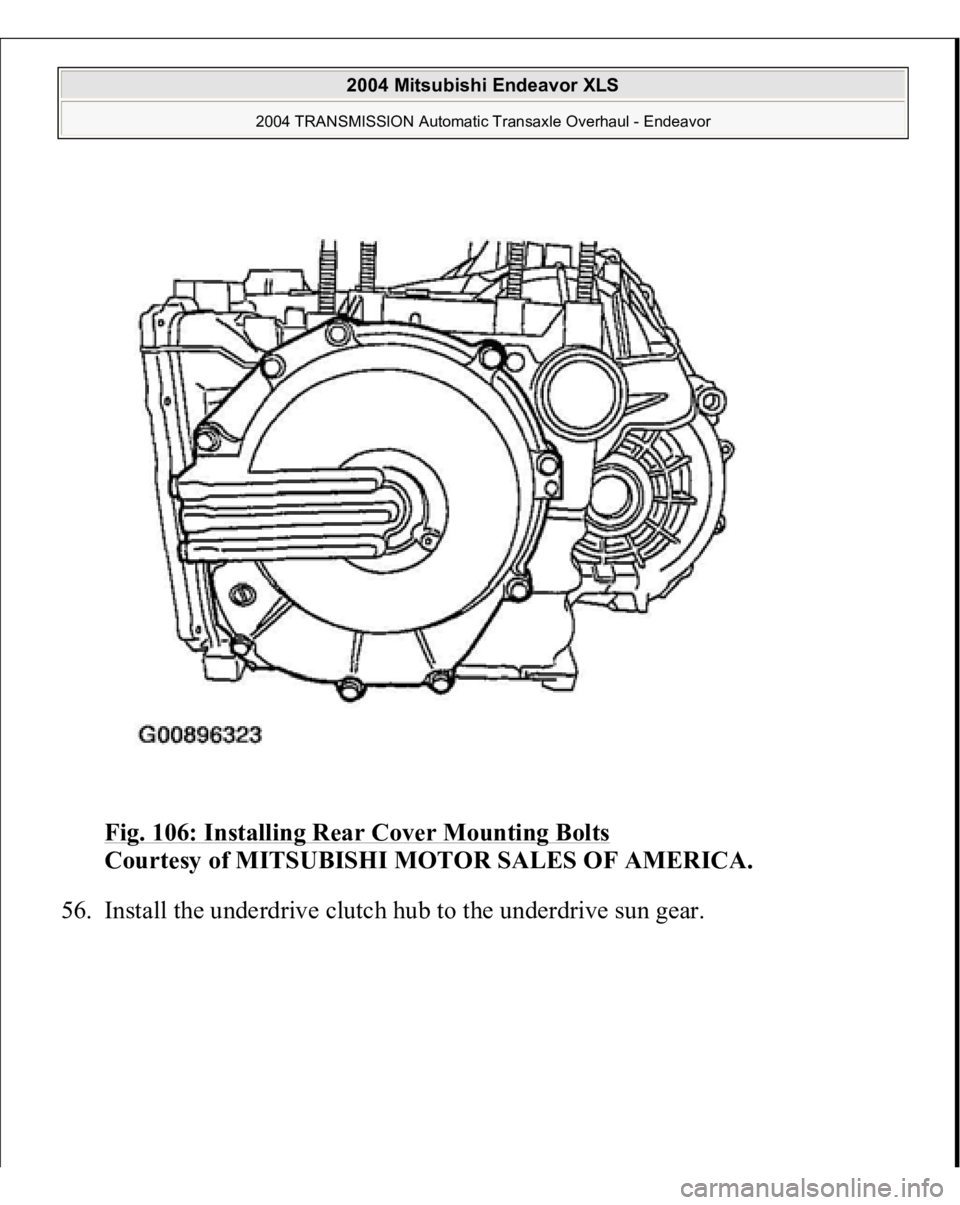

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 106: Installing Rear Cover Mounting Bolts Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 56. Install the underdrive clutch hub to the underdrive sun gear. 2004 Mitsubishi Endeavor XLS 2004

Page 562 of 3870

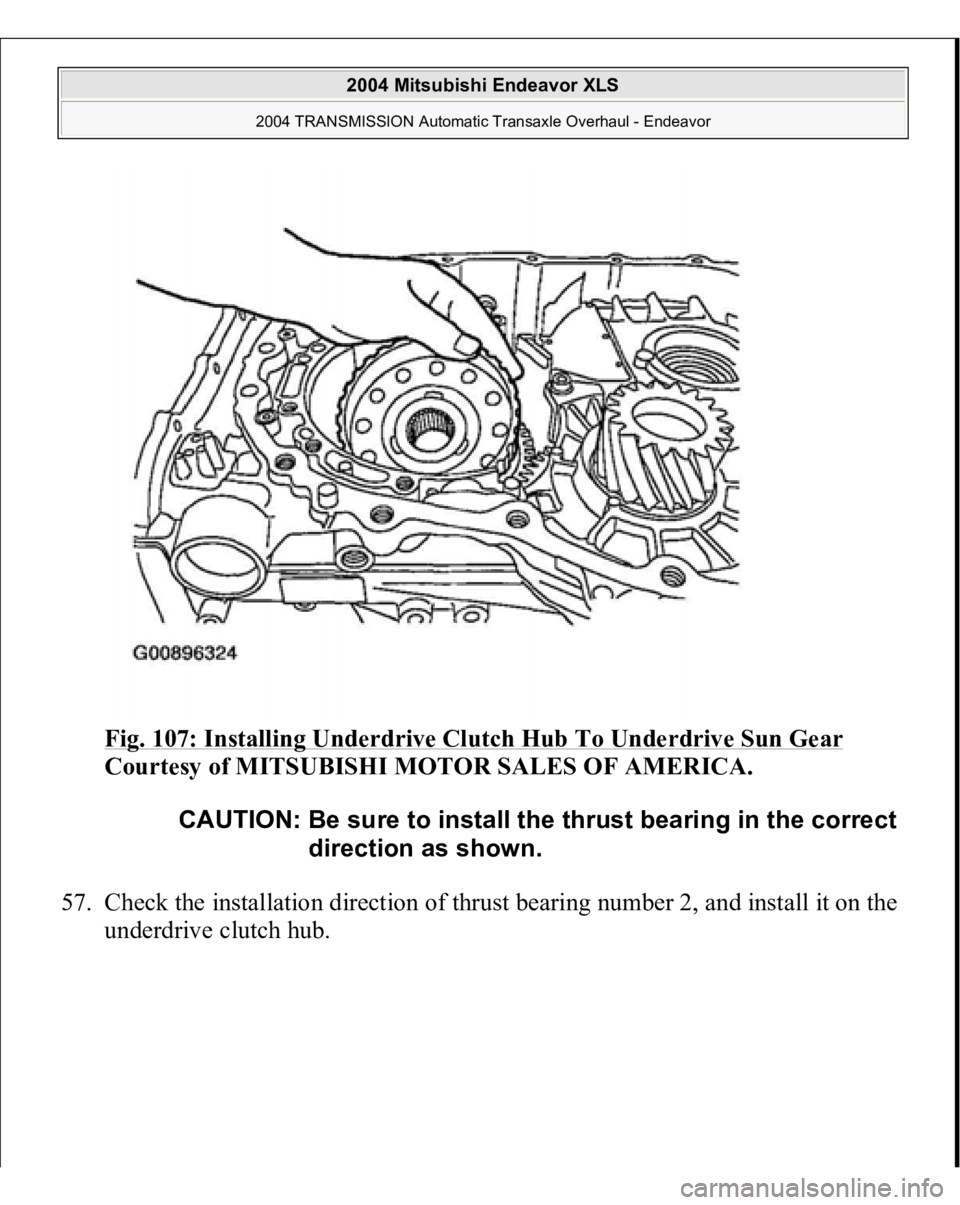

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 107: Installing Underdrive Clutch Hub To Underdrive Sun Gear Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 57. Check the installation direction of thrust bearing number 2, and install it on t

Page 563 of 3870

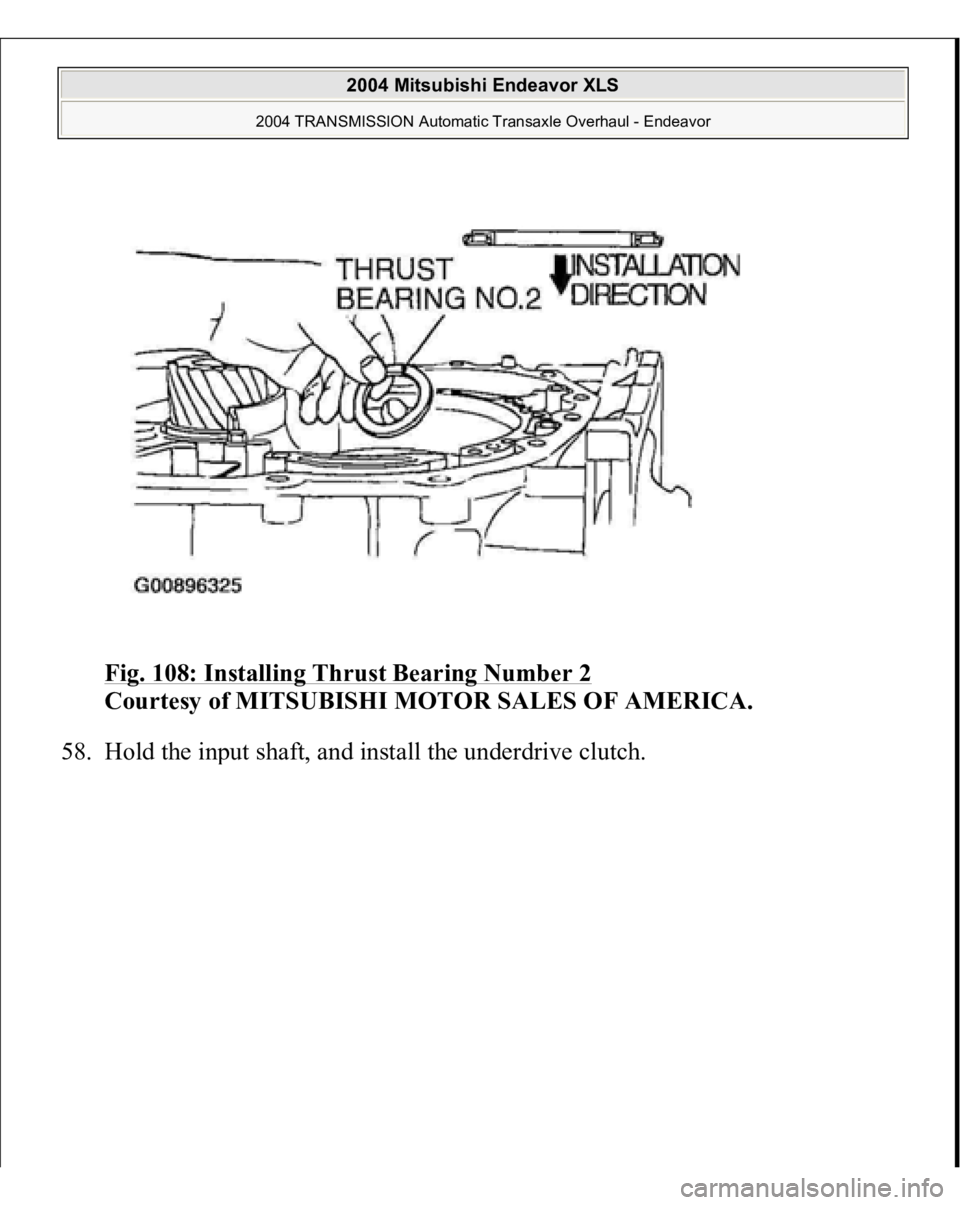

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 108: Installing Thrust Bearing Number 2 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 58. Hold the in put shaft, and install the underdrive clutch. 2004 Mitsubishi Endeavor XLS 2004 TRANS

Page 564 of 3870

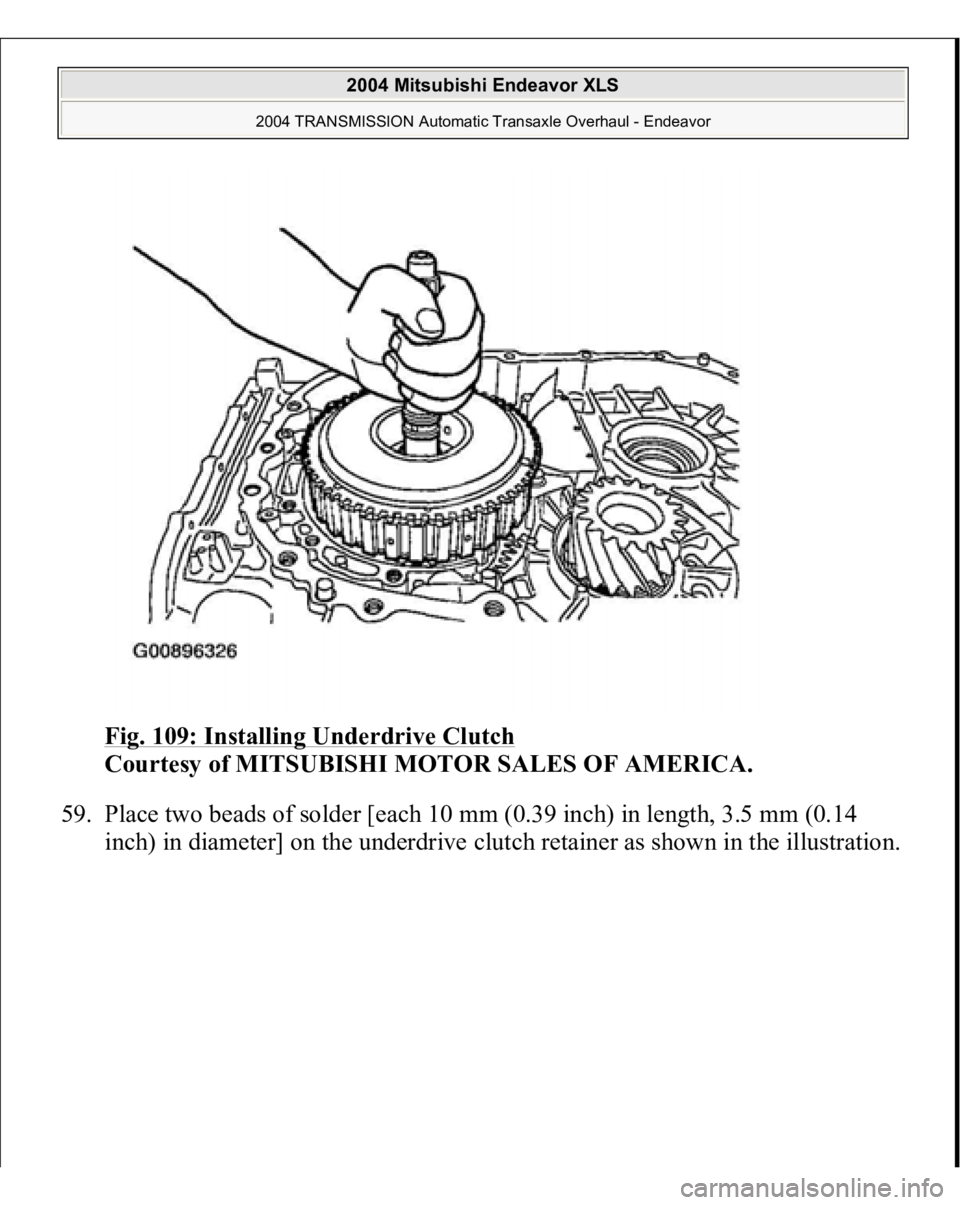

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 109: Installing Underdrive Clutch Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 59. Place two beads of solder [each 10 mm (0.39 inch) in length, 3.5 mm (0.14 inch) in diameter] on the underd

Page 565 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 110: Placing Two Beads Of Solder On Underdrive Clutch Retainer Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 60. Install special tool MD998412 as shown. 61. Install the oil pump to the tran

Page 566 of 3870

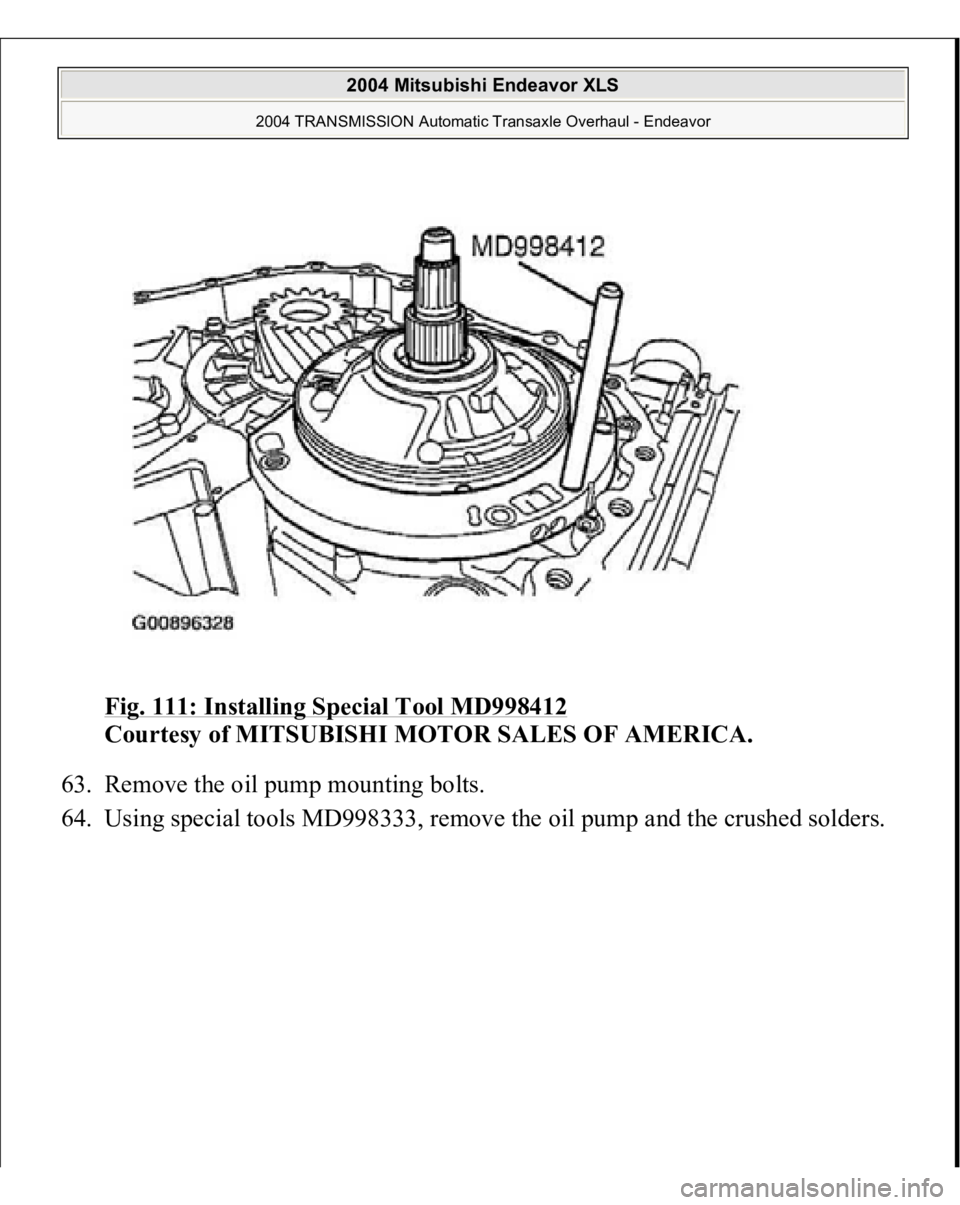

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 111: Installing Special Tool MD998412 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 63. Remove the oil pump mounting bolts. 64. Using special tools MD998333, remove the oil pump and the cru

Page 567 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 112: Using Special Tools And Removing Oil Pump Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 65. Use a micrometer to measure the thickness of the crushed solder beads and record the measured

Page 568 of 3870

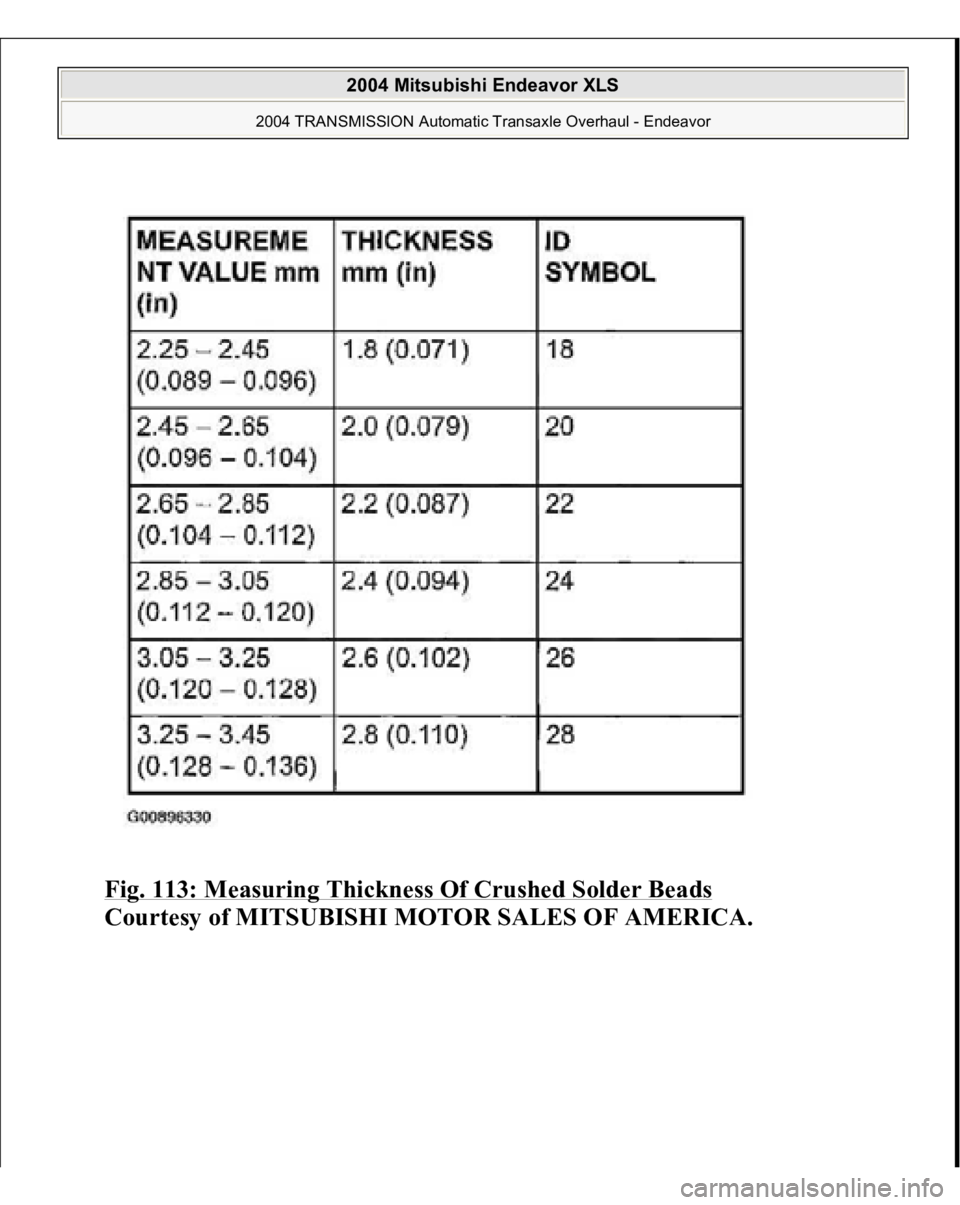

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 113: Measuring Thickness Of Crushed Solder Beads Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor
