Page 2305 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Follow the table below to check the defogger relay for continuity. DEFOGGER RELAY CONTINUITY Q: Is the defogger relay in good condition? YES: Go to Step 4. NO: Replace the defogger relay. The

Page 2306 of 3870

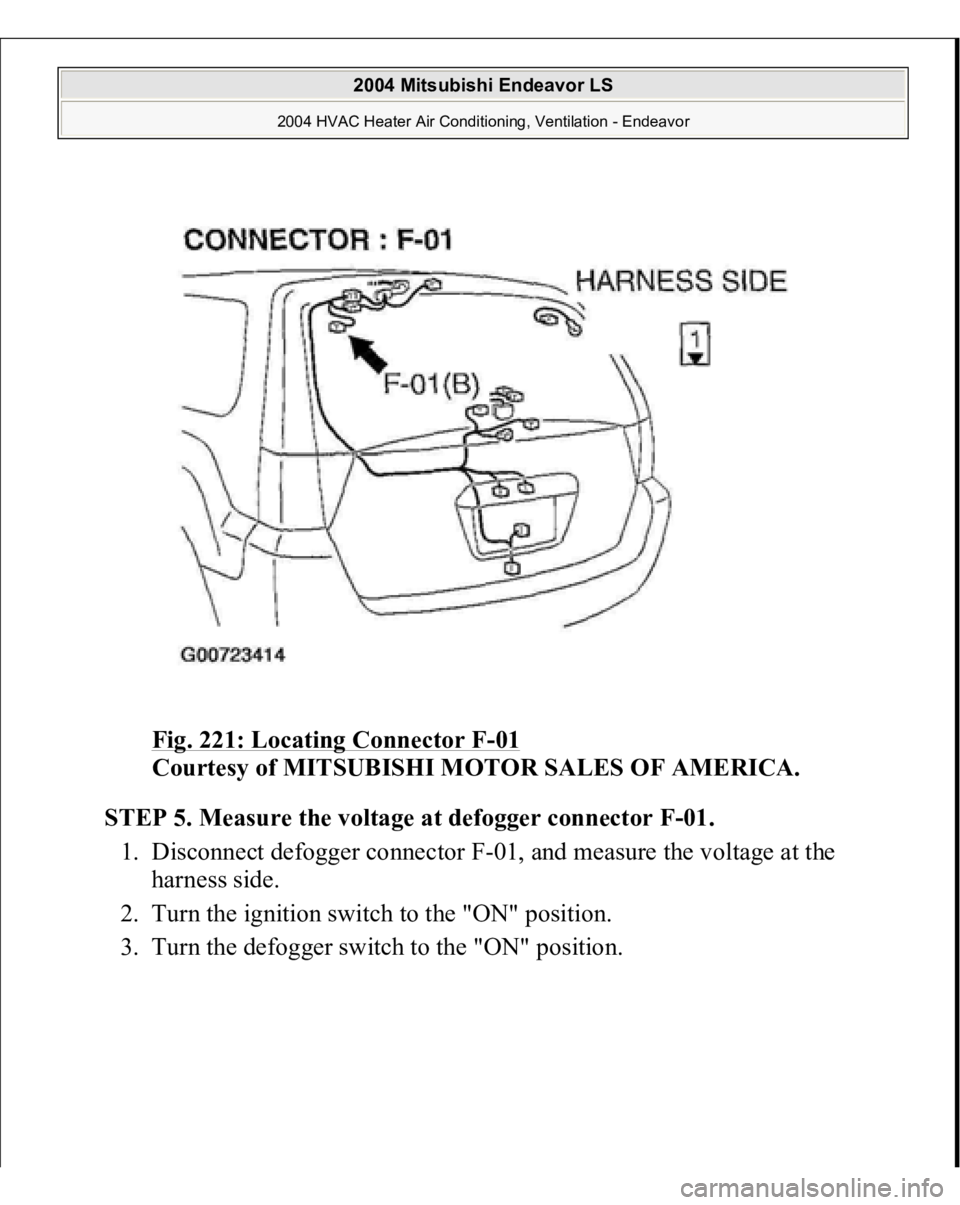

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 221: Locating Connector F -01 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 5. Measure the voltage at defogger connector F-01. 1. Disconnect defogger connector F-01, and measure the vo

Page 2307 of 3870

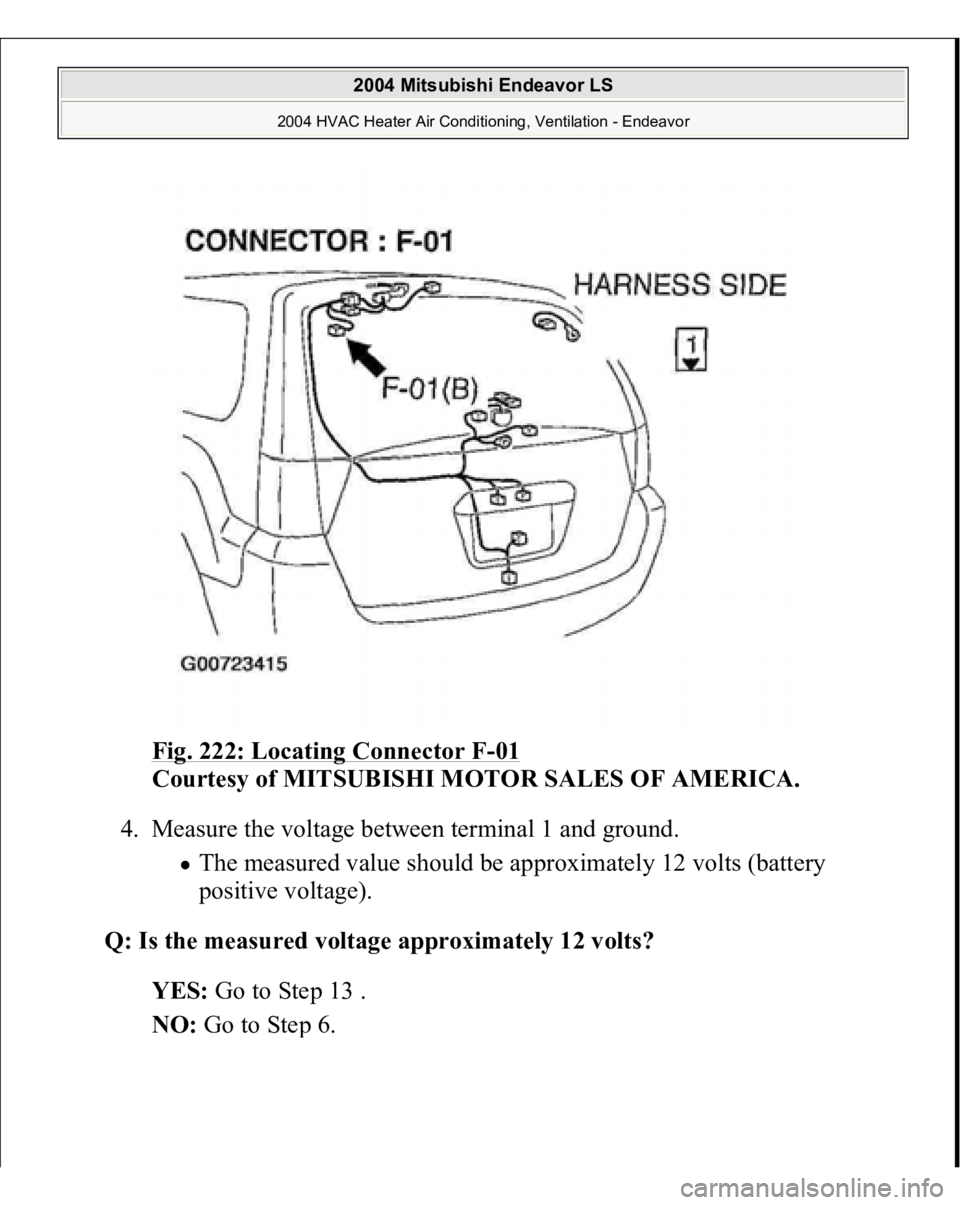

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 222: Locating Connector F -01 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 4. Measure the voltage between terminal 1 and ground. The measured value should be approximately 12 volts (battery

Page 2308 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 223: Measuring Voltage Between Terminal 1 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 6. Measure the voltage at defogger relay connector C-201. 1. Disconnect defogger rel

Page 2309 of 3870

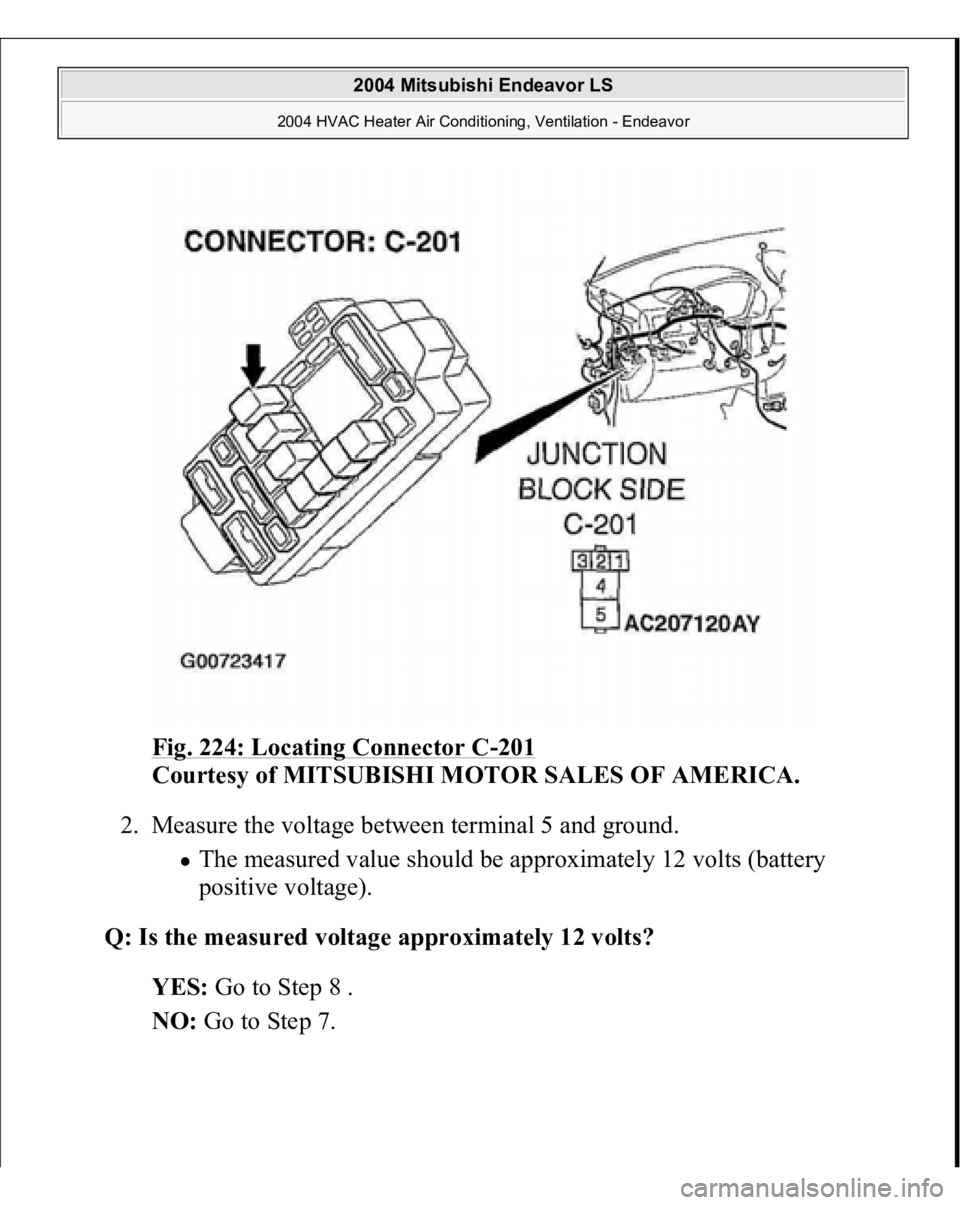

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 224: Locating Connector C -201 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Measure the voltage between terminal 5 and ground. The measured value should be approximately 12 volts (batte

Page 2310 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 225: Measuring Voltage Between Terminal 5 And Ground Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. STEP 7. Check the wiring harness between defogger relay connector C- 201 (terminal 5) and t

Page 2311 of 3870

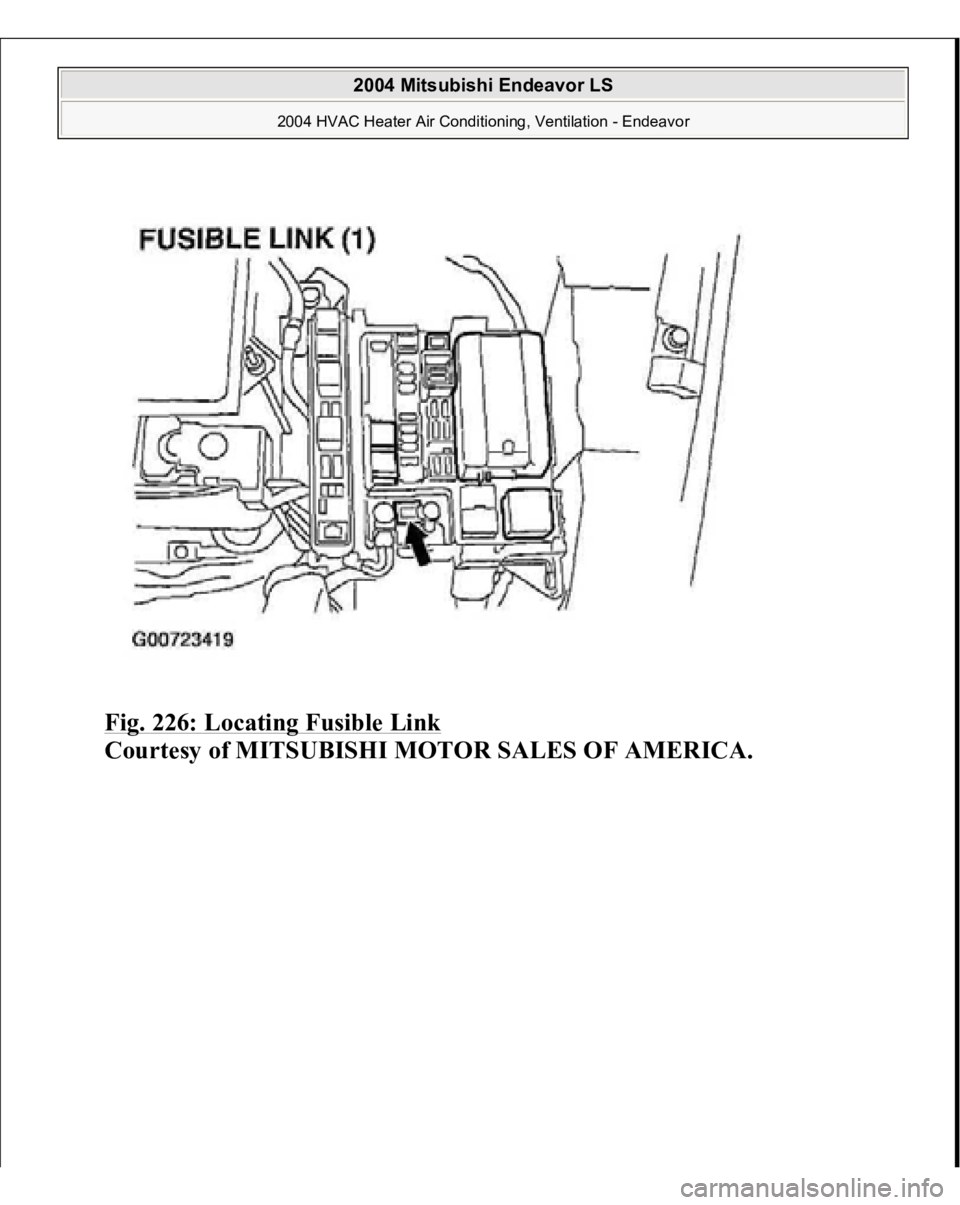

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 226: Locating Fusible Link Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2312 of 3870

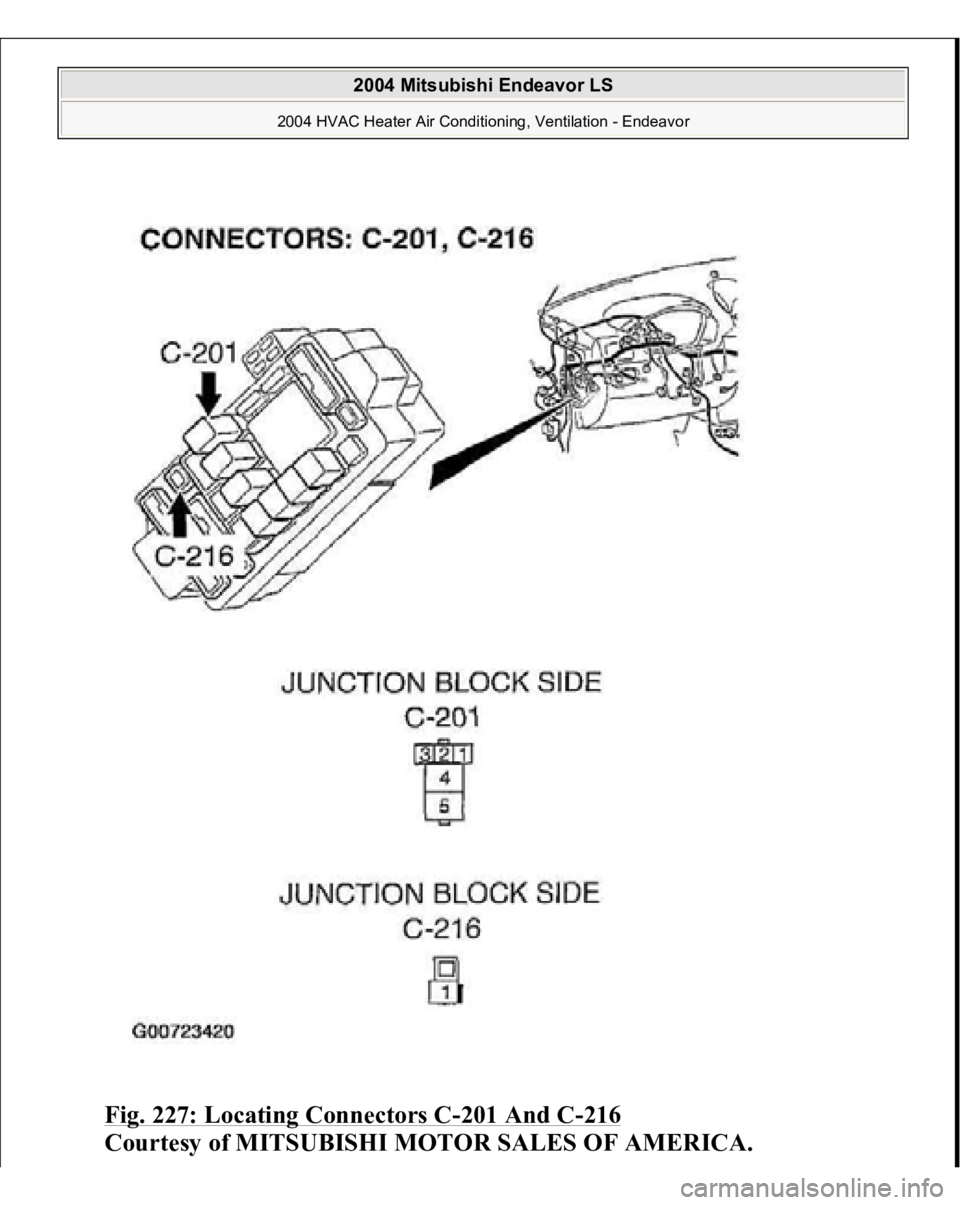

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 227: Locating Connectors C -201 And C -216 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
