Page 1657 of 3870
1. Disconnect the clock spring connector C-306.
Fig. 29: Disconnecting Clock Spring Connector C
-306
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2. Measure the resistance between clock spring connector C-306 (clock
spring side) terminals 2 and 3. Operate the right and left remote controlled
radio switches, and check that the table below is satisfied.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1658 of 3870

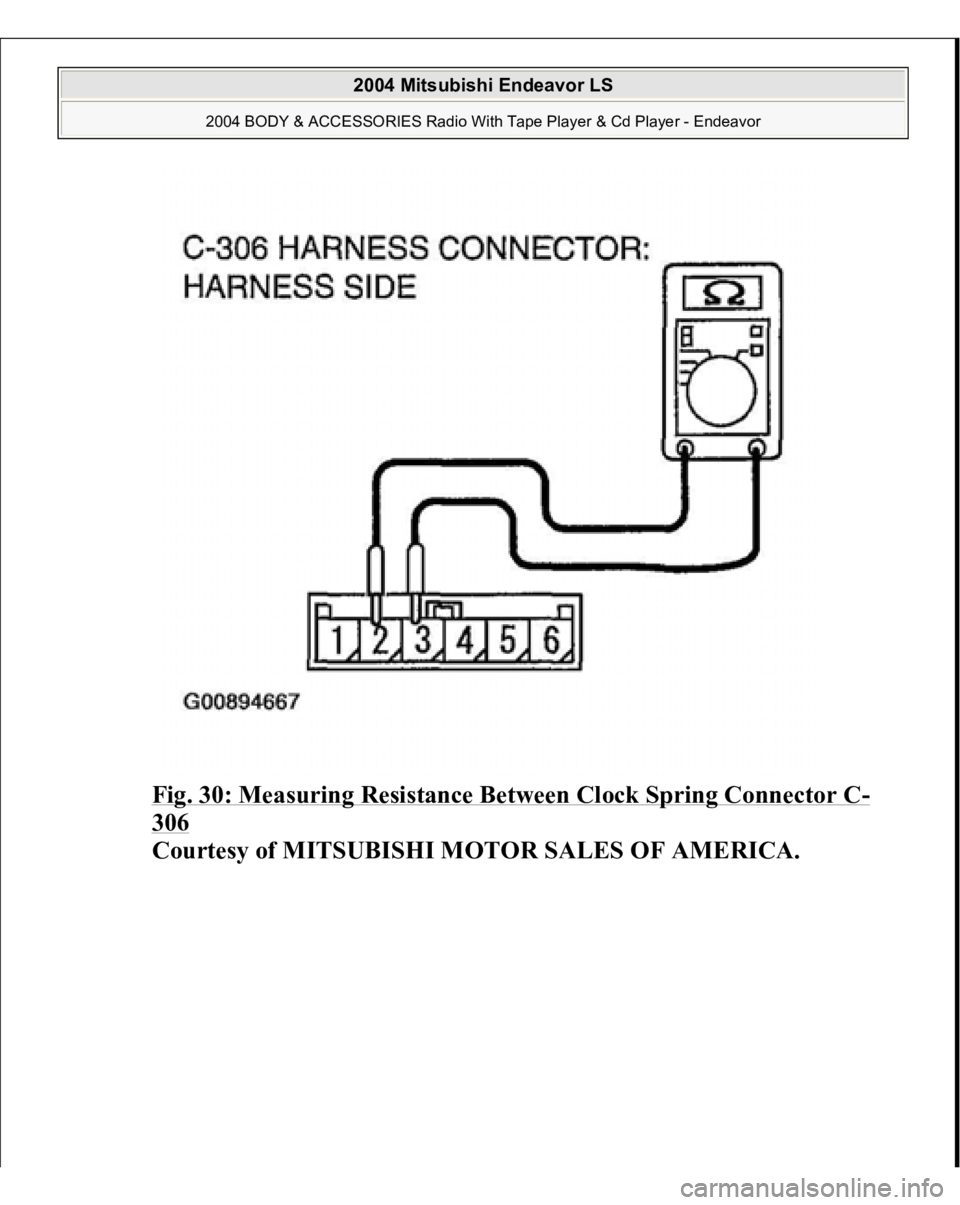

Fig. 30: Measuring Resistance Between Clock Spring Connector C
-
306
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1659 of 3870

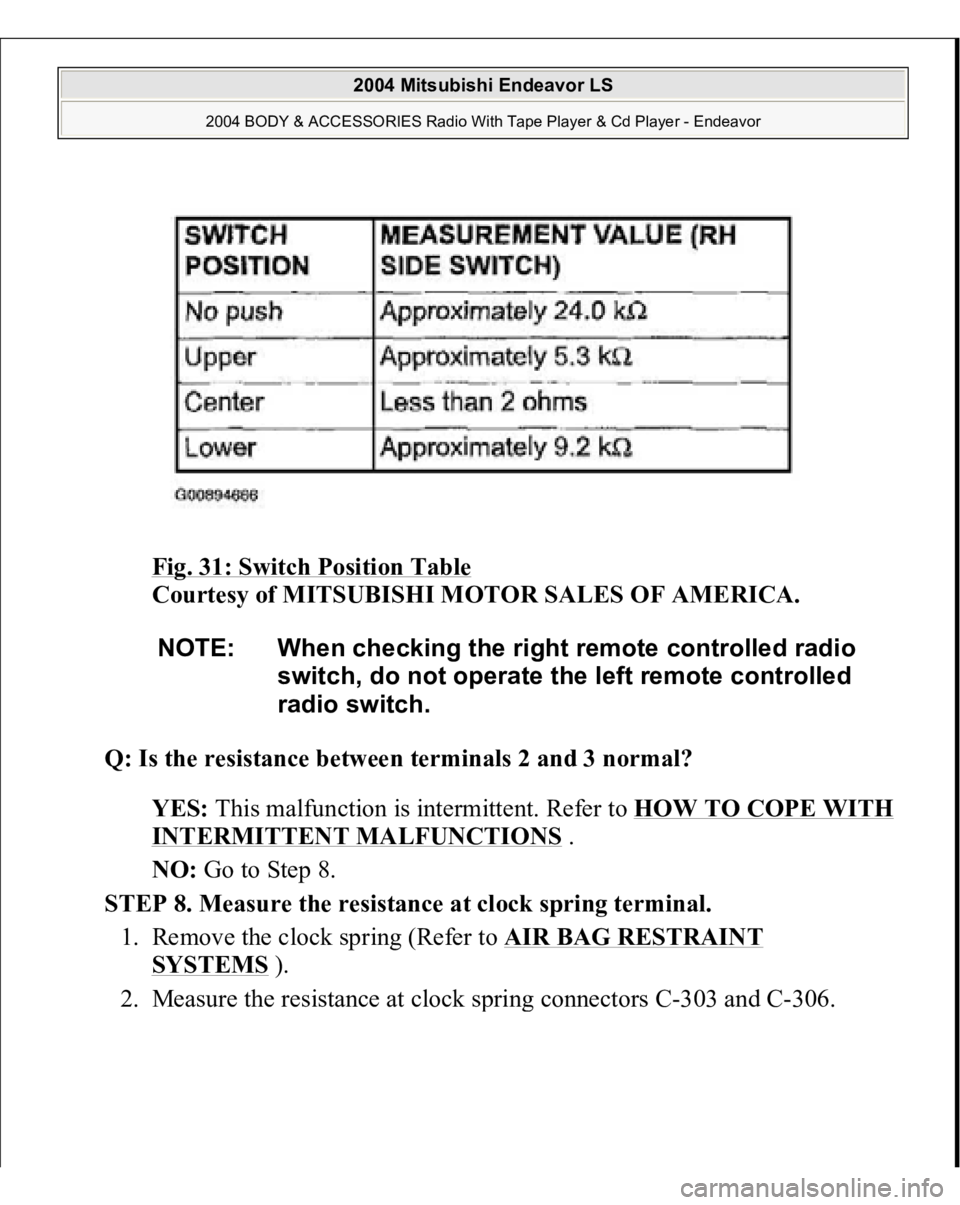

Fig. 31: Switch Position Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the resistance between terminals 2 and 3 normal?
YES: This malfunction is intermittent. Refer to HOW TO COPE WITH
INTERMITTENT MALFUNCTIONS
.
NO: Go to Step 8.
STEP 8. Measure the resistance at clock spring terminal.
1. Remove the clock spring (Refer to AIR BAG RESTRAINT
SYSTEMS
).
2. Measure the resistance at clock s
prin
g connectors C-303 and C-306.
NOTE: When checking the right remote controlled radio
switch, do not operate the left remote controlled
radio switch.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1660 of 3870

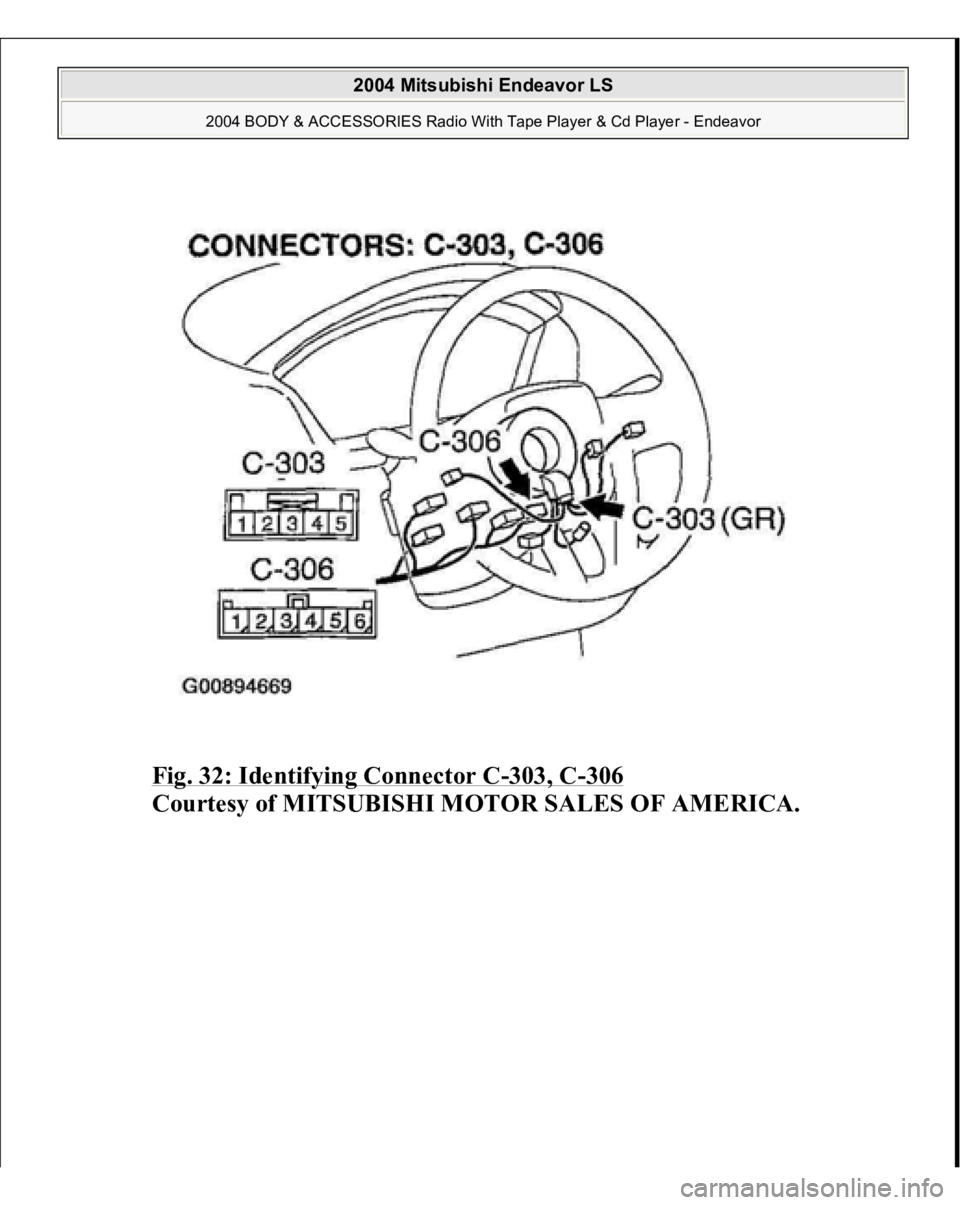

Fig. 32: Identifying Connector C
-303, C
-306
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1661 of 3870
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1662 of 3870

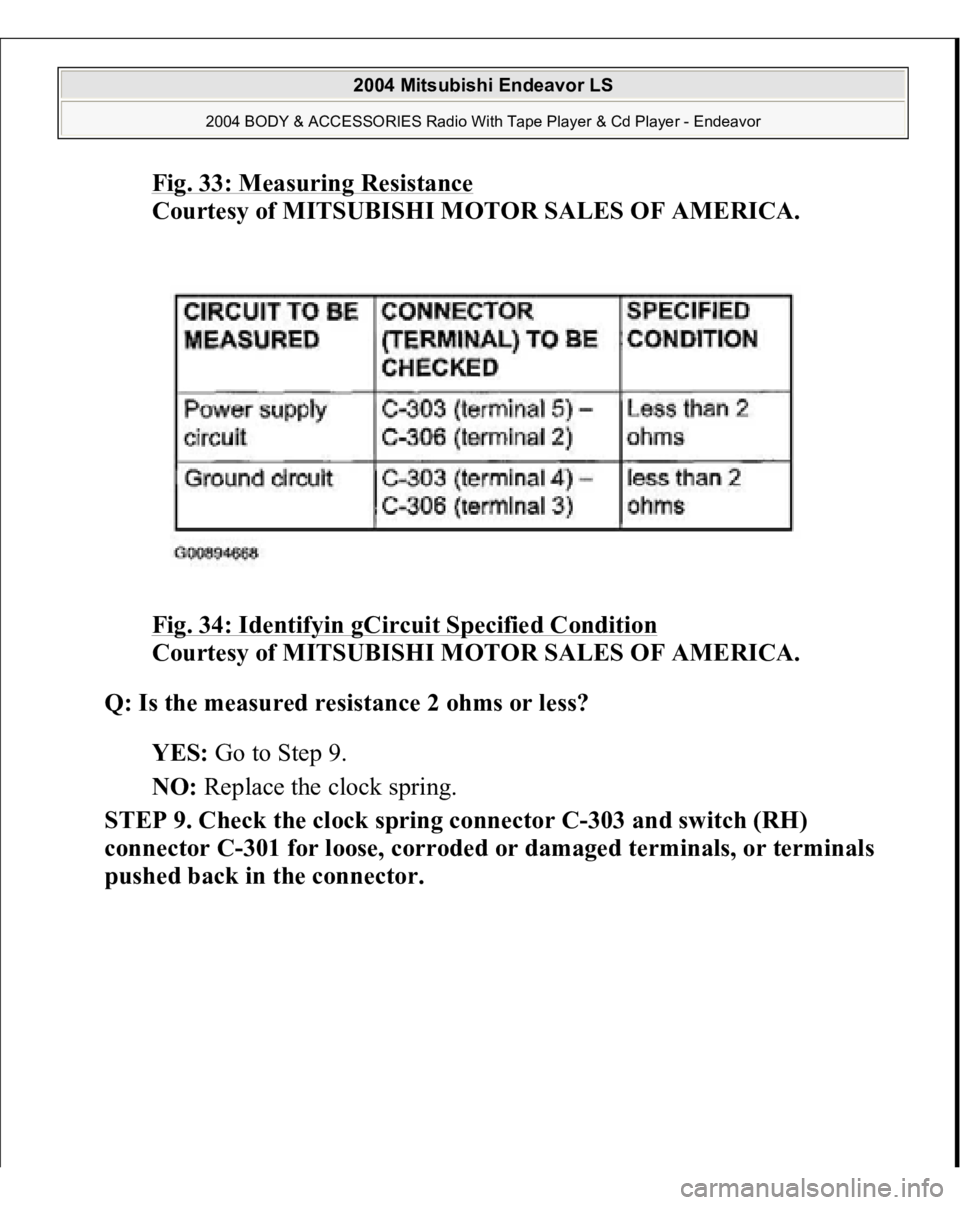

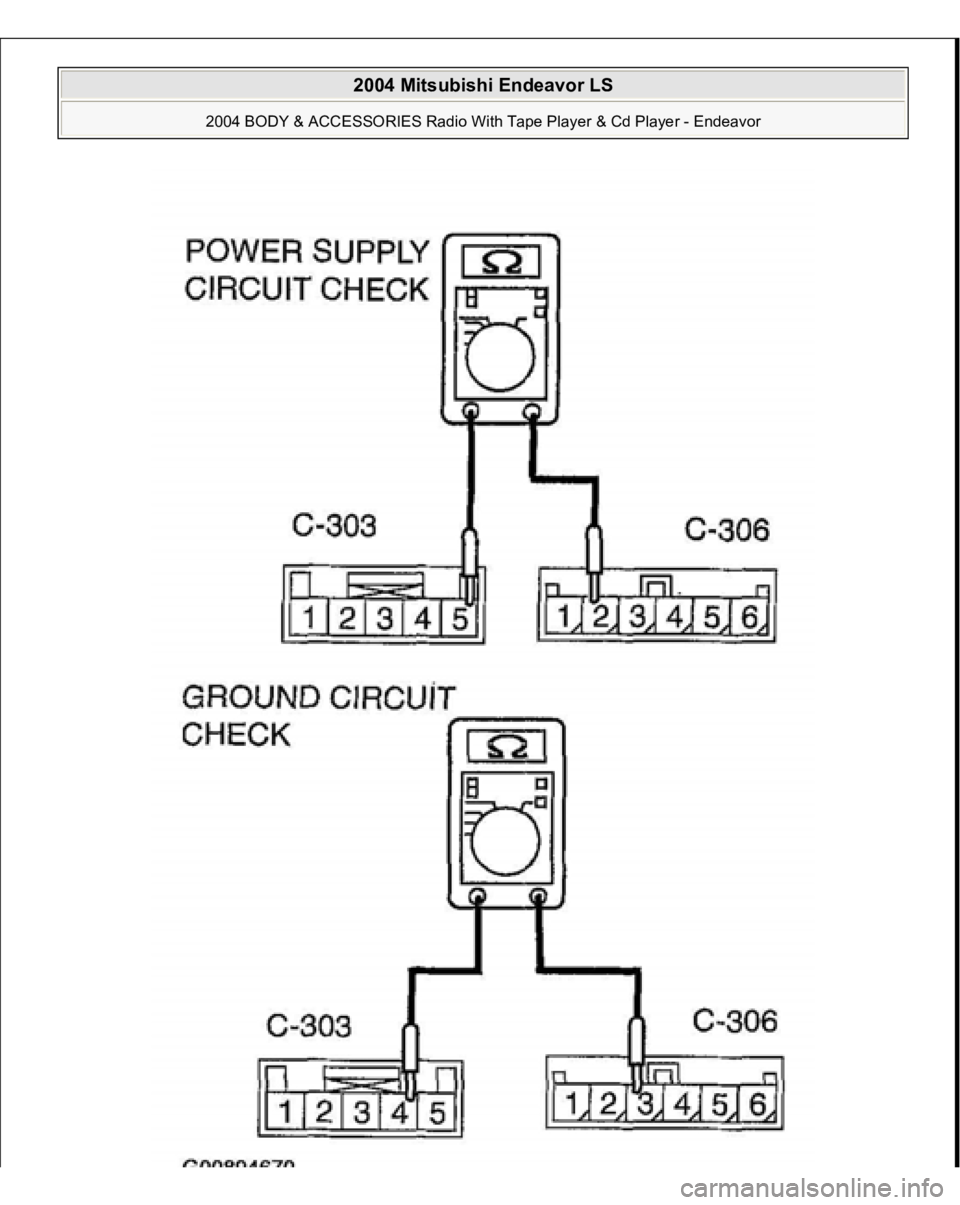

Fig. 33: Measuring Resistance
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig. 34: Identifyin gCircuit Specified Condition
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the measured resistance 2 ohms or less?
YES: Go to Step 9.
NO: Replace the clock spring.
STEP 9. Check the clock spring connector C-303 and switch (RH)
connector C-301 for loose, corroded or damaged terminals, or terminals
pushed back in the connector.
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1663 of 3870

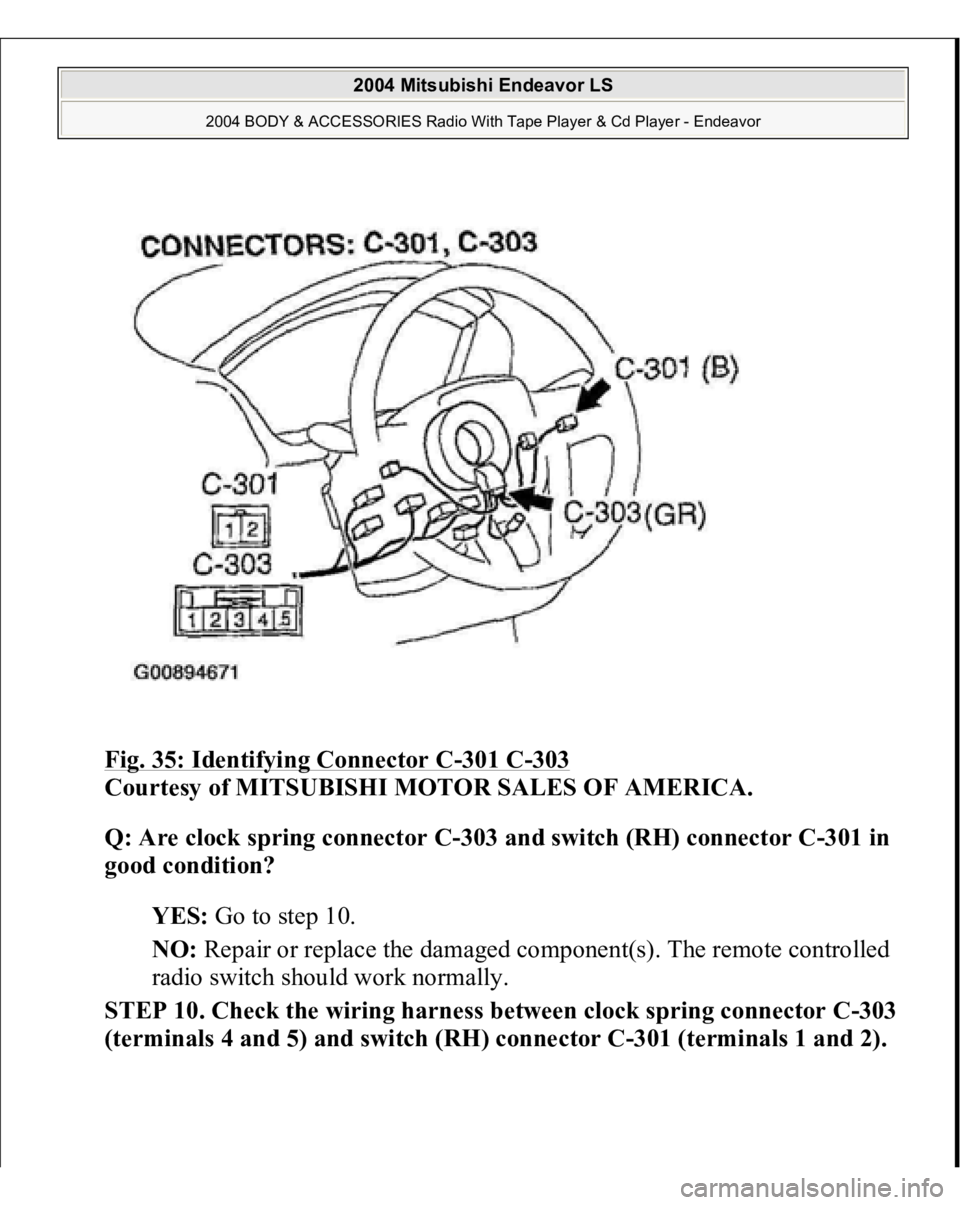

Fig. 35: Identifying Connector C
-301 C
-303
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Are clock spring connector C-303 and switch (RH) connector C-301 in
good condition?
YES: Go to step 10.
NO: Repair or replace the damaged component(s). The remote controlled
radio switch should work normally.
STEP 10. Check the wiring harness between clock spring connector C-303
(terminals 4 and 5) and switch (RH) connector C-301 (terminals 1 and 2).
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
Page 1664 of 3870

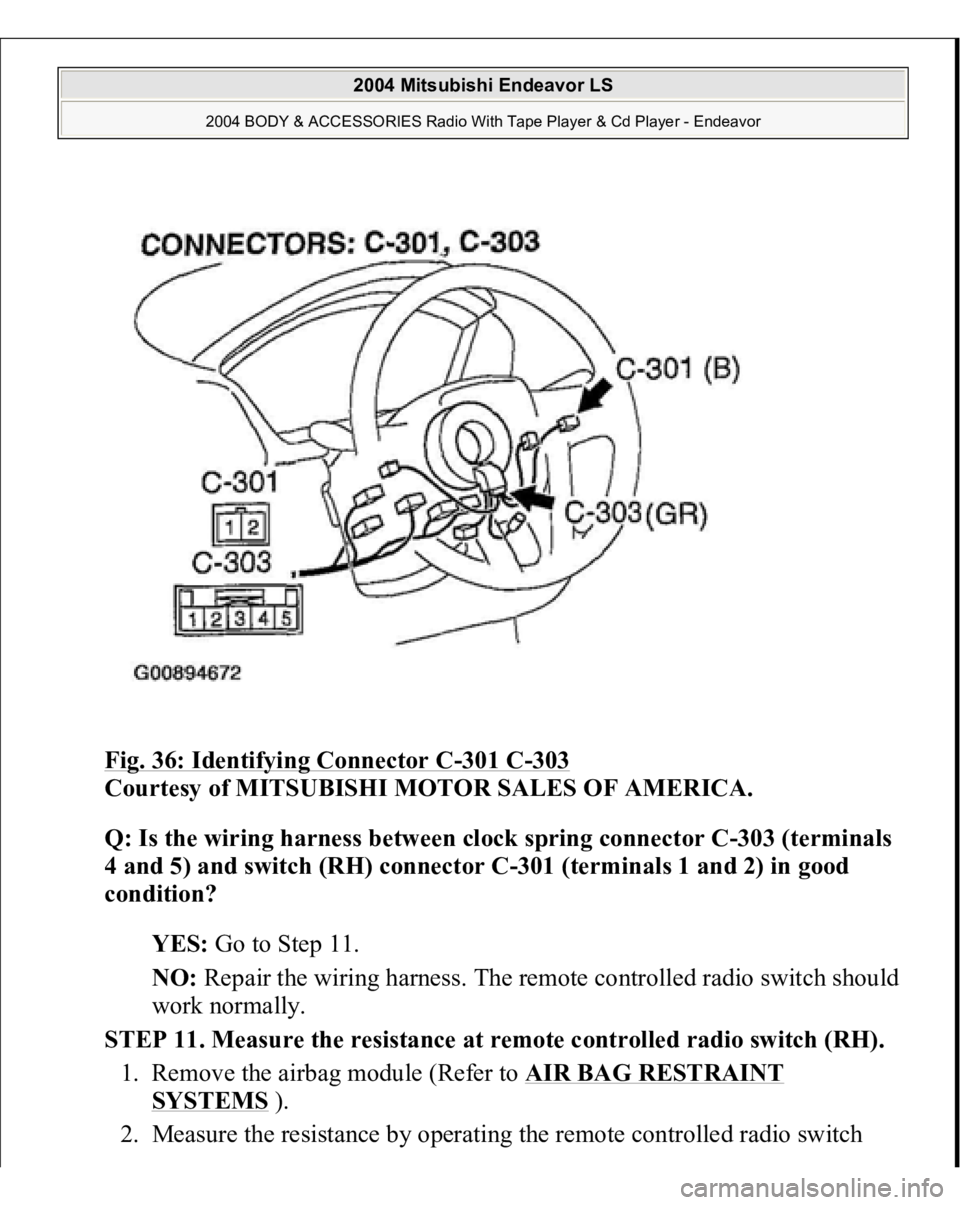

Fig. 36: Identifying Connector C
-301 C
-303
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Is the wiring harness between clock spring connector C-303 (terminals
4 and 5) and switch (RH) connector C-301 (terminals 1 and 2) in good
condition?
YES: Go to Step 11.
NO: Repair the wiring harness. The remote controlled radio switch should
work normally.
STEP 11. Measure the resistance at remote controlled radio switch (RH).
1. Remove the airbag module (Refer to AIR BAG RESTRAINT
SYSTEMS
).
2. Measure the resistance b
y operatin
g the remote controlled radio switch
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Radio With Tape Player & Cd Player - Endeavor
