Page 2649 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to "ON" position. 3. Select "Interactive Diagnosis" from the start-up screen. 4. Select "System sel

Page 2650 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 102: Displaying "Immobilizer" Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 6. Choose "S pecial Function" from "IMMOBILIZER" screen. 2004 Mitsubishi Endeavor LS 20

Page 2651 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 103: Displaying "Special Function" Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 7. Choose "Ke y re gistration" from "S pecial Function" screen. 2004 Mitsubishi End

Page 2652 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 104: Displaying "Key Registration" (1 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 8. Enter the vehicle's password (secret code) on the "Key registration" screen, a

Page 2653 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 105: Displaying "Key Registration" (2 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 9. If the key ID was registered successfully, "Progress" indication will turn active

Page 2654 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 106: Displaying "Progress" Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 10. The number of keys currently registered will be displayed. To register an additional key, replace the ign

Page 2655 of 3870

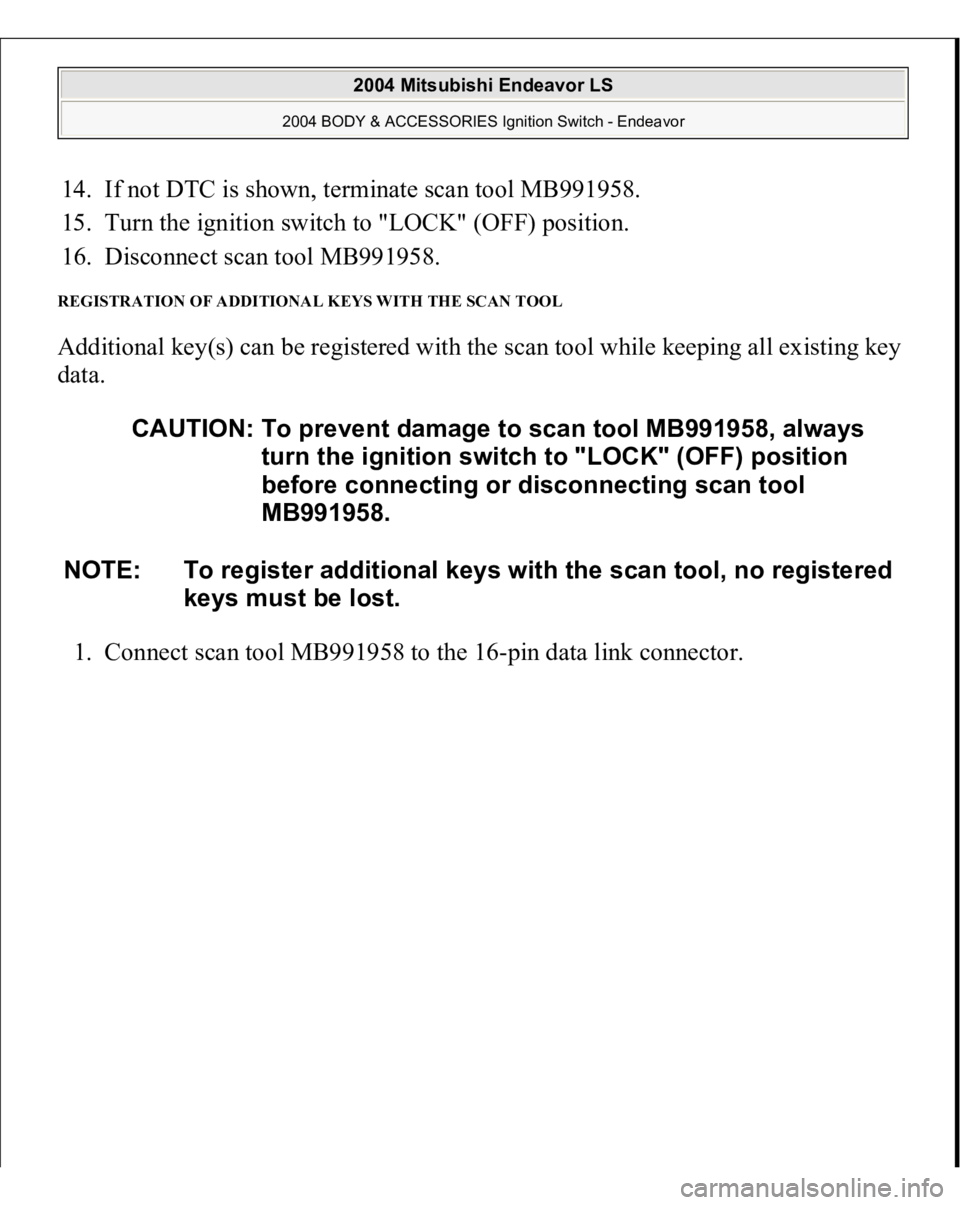

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 14. If not DTC is shown, terminate scan tool MB991958. 15. Turn the ignition switch to "LOCK" (OFF) position. 16. Disconnect scan tool MB991958. REGISTRATION OF ADDITIONAL KEYS WITH THE S

Page 2656 of 3870

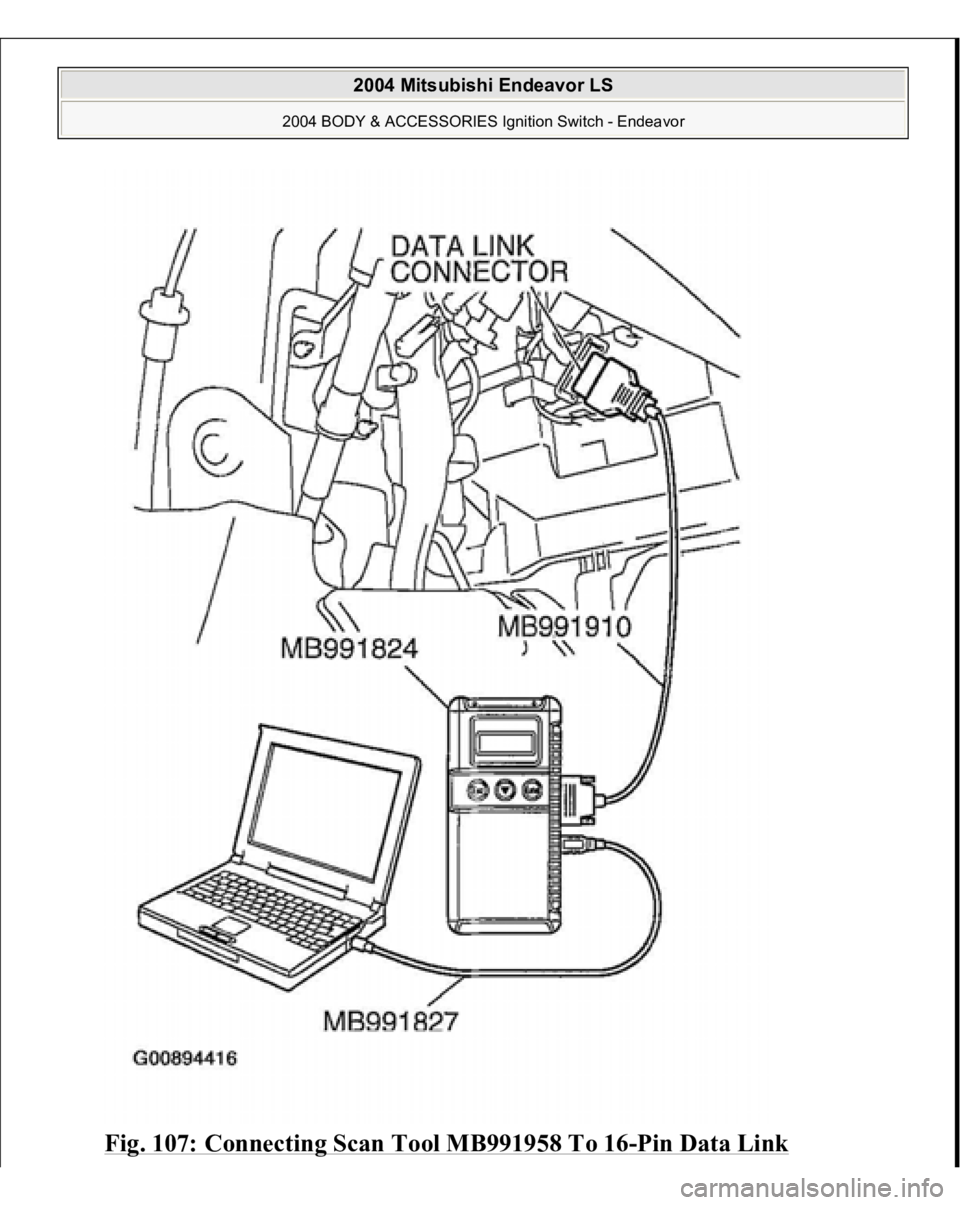

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 107: Connecting Scan Tool MB991958 To 16 -Pin Data Link 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Ignition Switch - Endeavor
