Page 233 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Required Special Tools: MB991958: Scan Tool (MUT-III Sub Assembly) MB991824: Vehicle Communication Interface (V. C. I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A STEP 1. Usin

Page 234 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 136: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 235 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus line. Q: Is the check result satisfactory? YES: Go to Step 2. NO: Repair the CAN bus lines (Refer to DIAGNOSTI

Page 236 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 137: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 237 of 3870

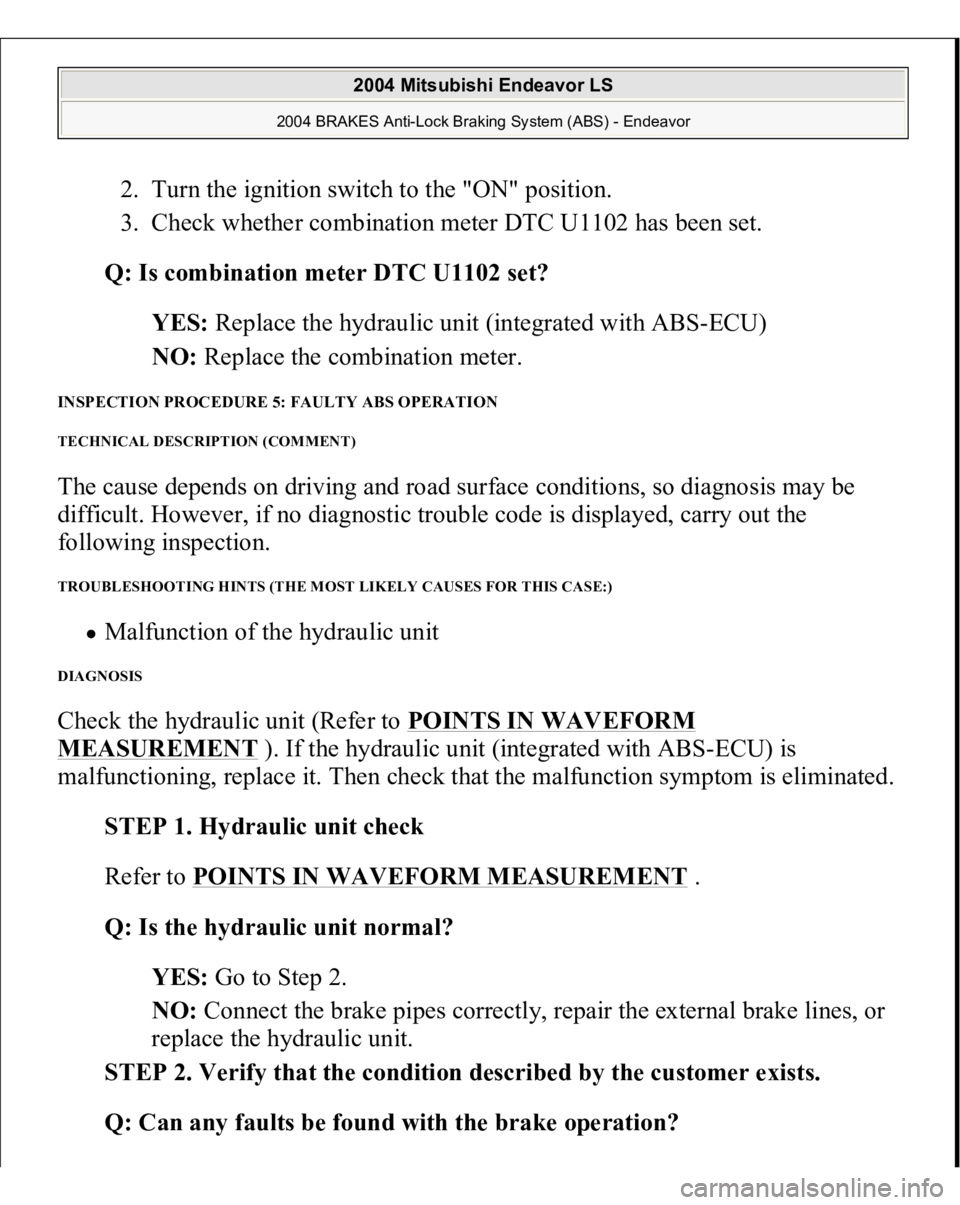

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Check whether combination meter DTC U1102 has been set. Q: Is combination meter DTC U1102 set? YES: Replace the hydraulic unit (integ

Page 238 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual YES: Check the brake system related components except the ABS system. NO: The procedure is complete. DATA LIST REFERENCE TABLE The following items can be read by the scan tool from the ABS-ECU inpu

Page 239 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 139: Identifying Scan Tool Activates Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 240 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 140: Actuator Test Specifications Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CHECK AT ABS-ECU 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
