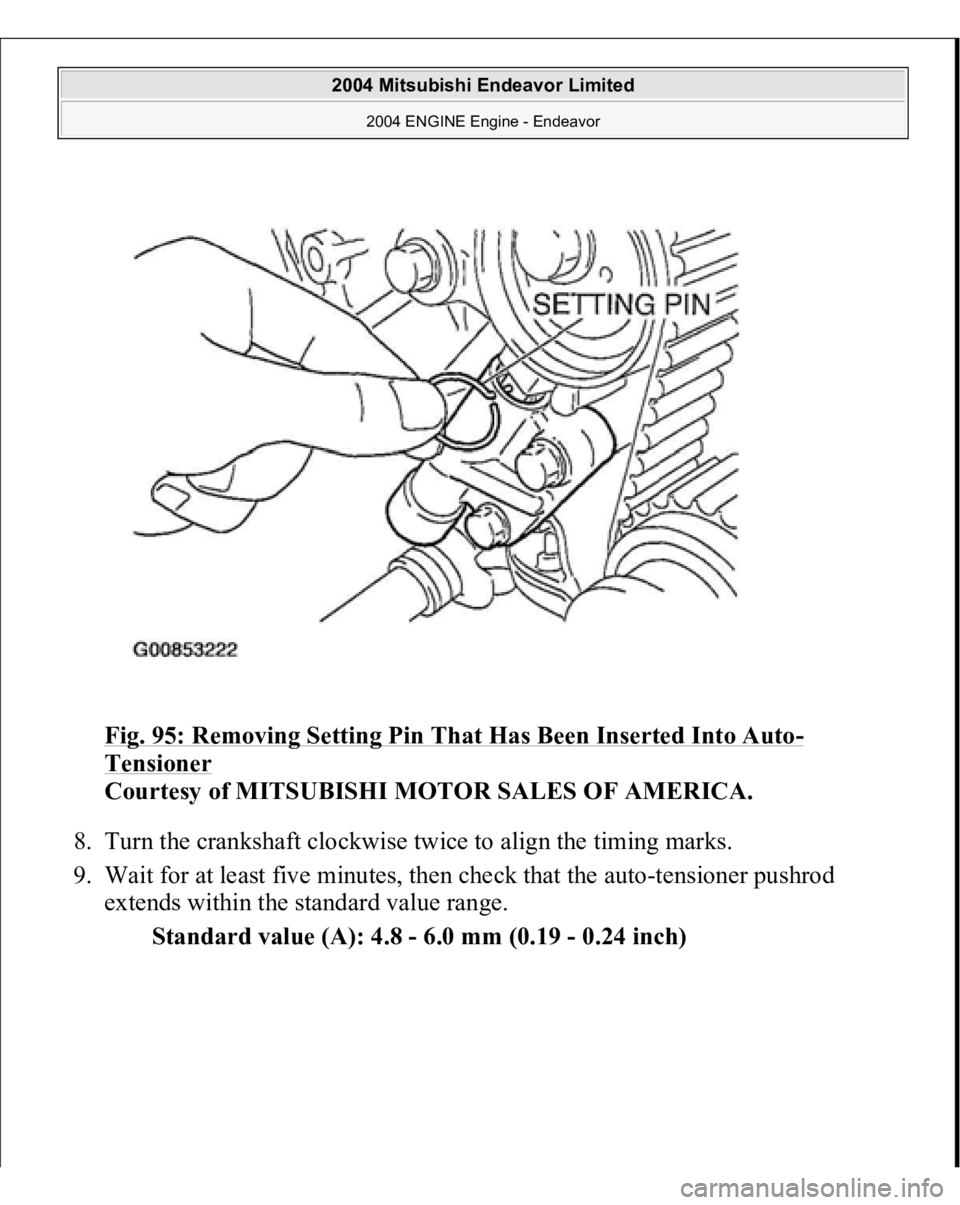

Fig. 95: Removing Setting Pin That Has Been Inserted Into Auto
-
Tensioner
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
8. Turn the crankshaft clockwise twice to align the timing marks.
9. Wait for at least five minutes, then check that the auto-tensioner pushrod
extends within the standard value range.
Standard value (A): 4.8 - 6.0 mm (0.19 - 0.24 inch)
2004 Mitsubishi Endeavor Limited
2004 ENGINE Engine - Endeavor
