2004 MITSUBISHI ENDEAVOR Ac pressure switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

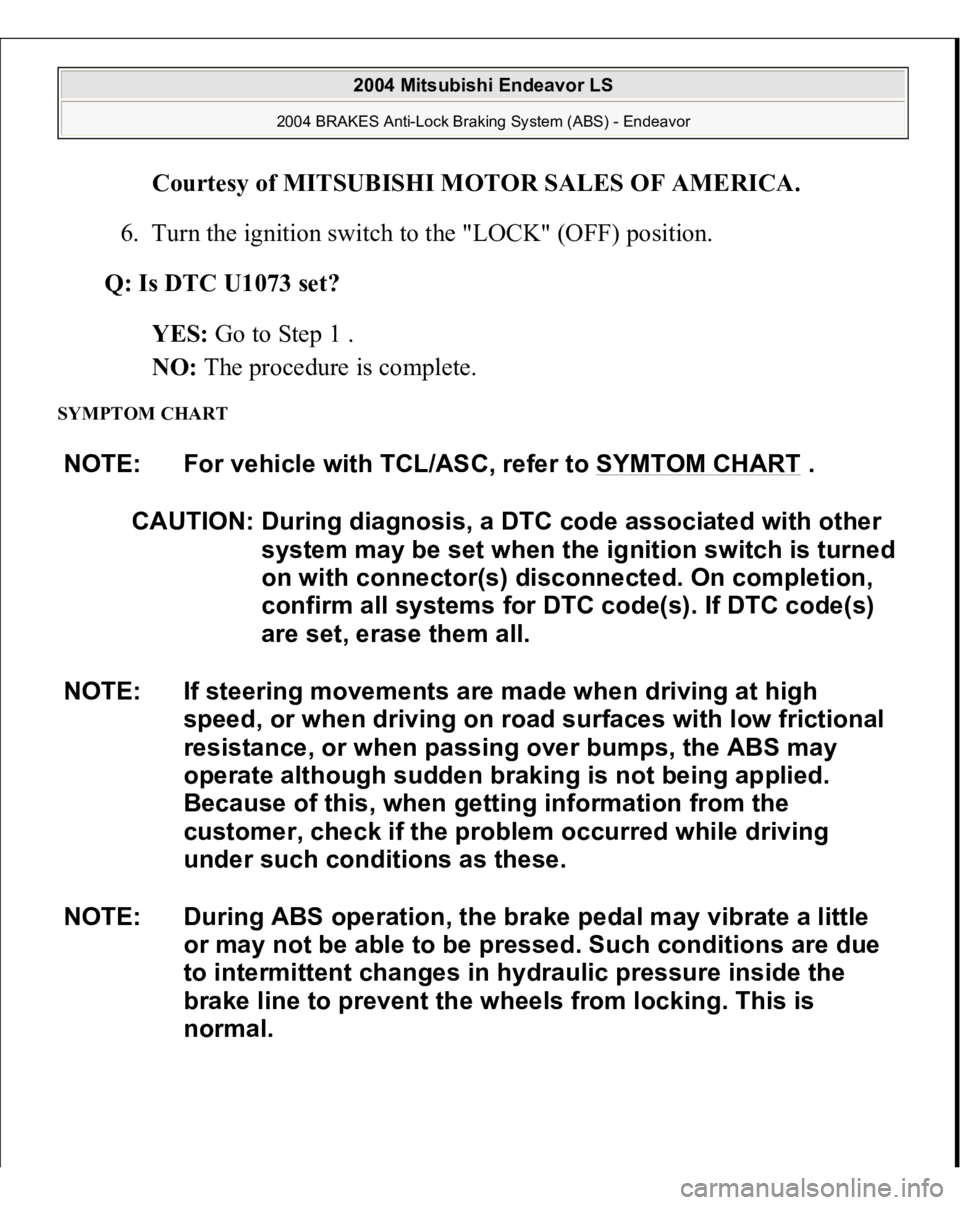

6. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is DTC U1073 set?
YES: Go to Step 1 .
NO: The procedure is complete.
SYMPTOM CHART NOTE: For vehicle with TCL/ASC, refer to SYMTOM CHART
.
CAUTION: During diagnosis, a DTC code associated with other
system may be set when the ignition switch is turned
on with connector(s) disconnected. On completion,
confirm all systems for DTC code(s). If DTC code(s)
are set, erase them all.
NOTE: If steering movements are made when driving at high
speed, or when driving on road surfaces with low frictional
resistance, or when passing over bumps, the ABS may
operate although sudden braking is not being applied.
Because of this, when getting information from the
customer, check if the problem occurred while driving
under such conditions as these.
NOTE: During ABS operation, the brake pedal may vibrate a little
or may not be able to be pressed. Such conditions are due
to intermittent changes in hydraulic pressure inside the
brake line to prevent the wheels from locking. This is
normal.

2004 Mitsubishi Endeavor LS
2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

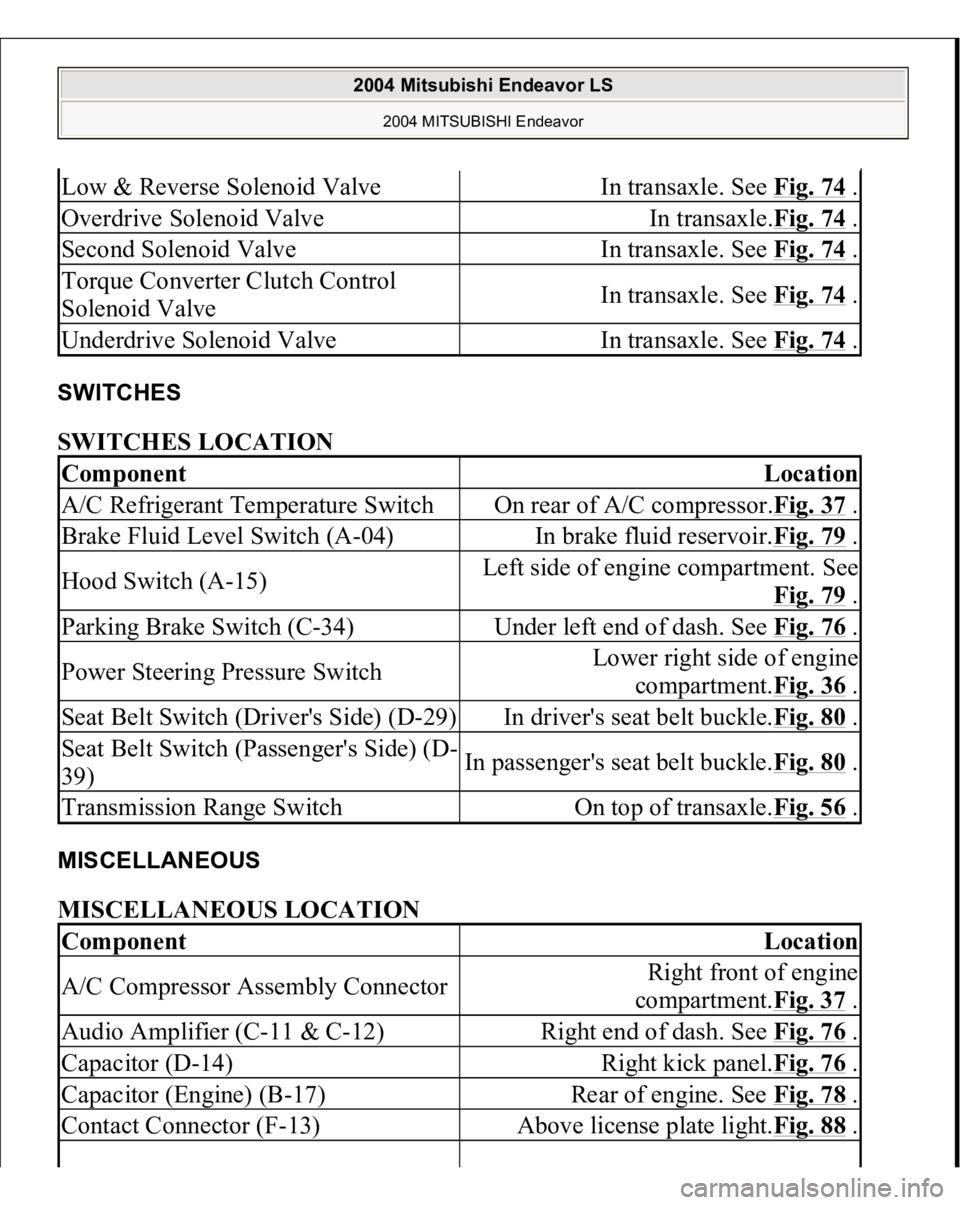

SWITCHES SWITCHES LOCATION MISCELLANEOUS MISCELLANEOUS LOCATION Low & Reverse Solenoid Valve
In transaxle. See Fig. 74
.
Overdrive Solenoid Valve
In transaxle.Fig. 74
.
Second Solenoid Valve
In transaxle. See Fig. 74
.
Torque Converter Clutch Control
Solenoid Valve
In transaxle. See Fig. 74
.
Underdrive Solenoid Valve
In transaxle. See Fig. 74
.
Component
Location
A/C Refrigerant Temperature Switch
On rear of A/C compressor.Fig. 37
.
Brake Fluid Level Switch (A-04)
In brake fluid reservoir.Fig. 79
.
Hood Switch (A-15)
Left side of engine compartment. See
Fig. 79
.
Parking Brake Switch (C-34)
Under left end of dash. See Fig. 76
.
Power Steering Pressure Switch
Lower right side of engine
compartment.Fig. 36
.
Seat Belt Switch (Driver's Side) (D-29)
In driver's seat belt buckle.Fig. 80
.
Seat Belt Switch (Passenger's Side) (D-
39)
In passenger's seat belt buckle.Fig. 80
.
Transmission Range Switch
On top of transaxle.Fig. 56
.
Component
Location
A/C Compressor Assembly Connector
Right front of engine
compartment.Fig. 37
.
Audio Amplifier (C-11 & C-12)
Right end of dash. See Fig. 76
.
Capacitor (D-14)
Right kick panel.Fig. 76
.
Capacitor (Engine) (B-17)
Rear of engine. See Fig. 78
.
Contact Connector (F-13)
Above license plate light.Fig. 88
.

2004 Mitsubishi Endeavor LS
2004 MITSUBISHI Endeavor

Required Special Tool
:
MD998054: Engine Oil Pressure Switch Wrench

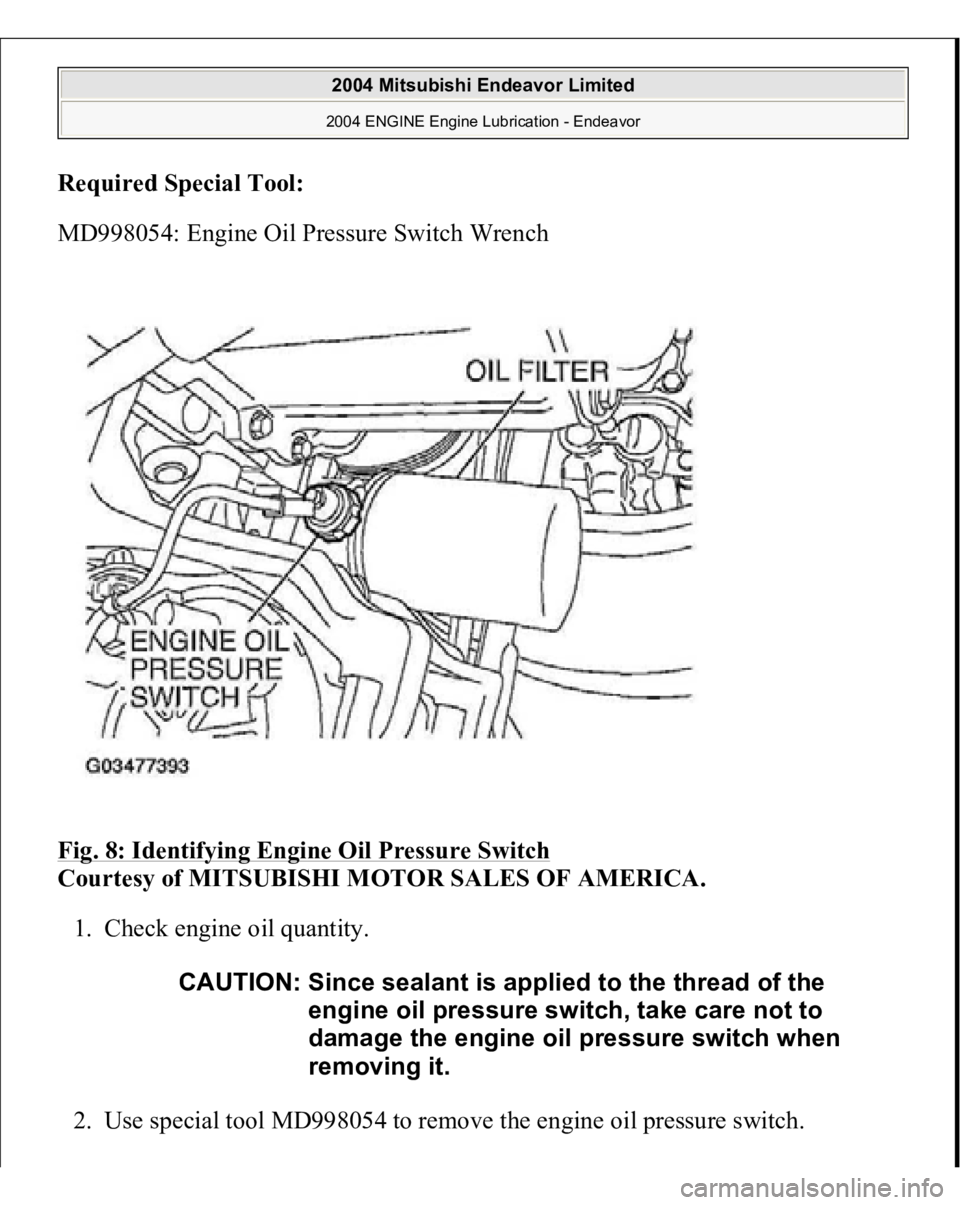

Fig. 8: Identifying Engine Oil Pressure Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
1. Check engine oil quantity.
2. Use special tool MD998054 to remove the engine oil pressure switch.
CAUTION: Since sealant is applied to the thread of the
engine oil pressure switch, take care not to
damage the engine oil pressure switch when
removing it.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

3. Install the engine oil pressure gauge.

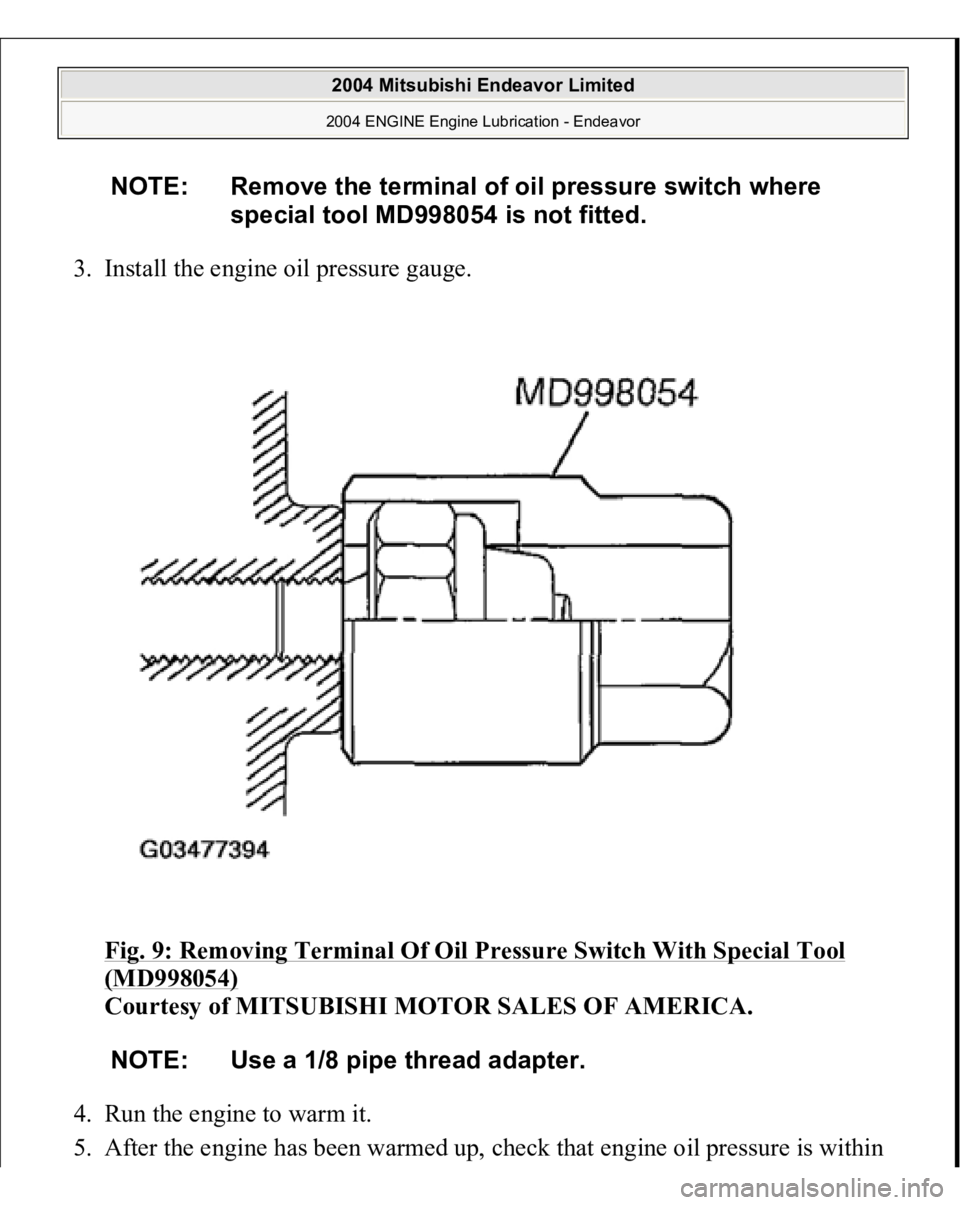

Fig. 9: Removing Terminal Of Oil Pressure Switch With Special Tool
(MD998054)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
4. Run the engine to warm it.
5. After the engine has been warmed up, check that engine oil pressure is within
NOTE: Remove the terminal of oil pressure switch where
special tool MD998054 is not fitted.NOTE: Use a 1/8 pipe thread adapter.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

the standard value.
Standard value:
At idle: 29 kPa (4.2 psi) or more
At 3,500 r/min: 294 - 686 kPa (43 - 100 psi)
6. Remove the engine oil pressure gauge.
7. Apply the specified sealant 3M
TM
AAD Part number 8672 or equivalent to the
threads of the engine oil pressure switch.

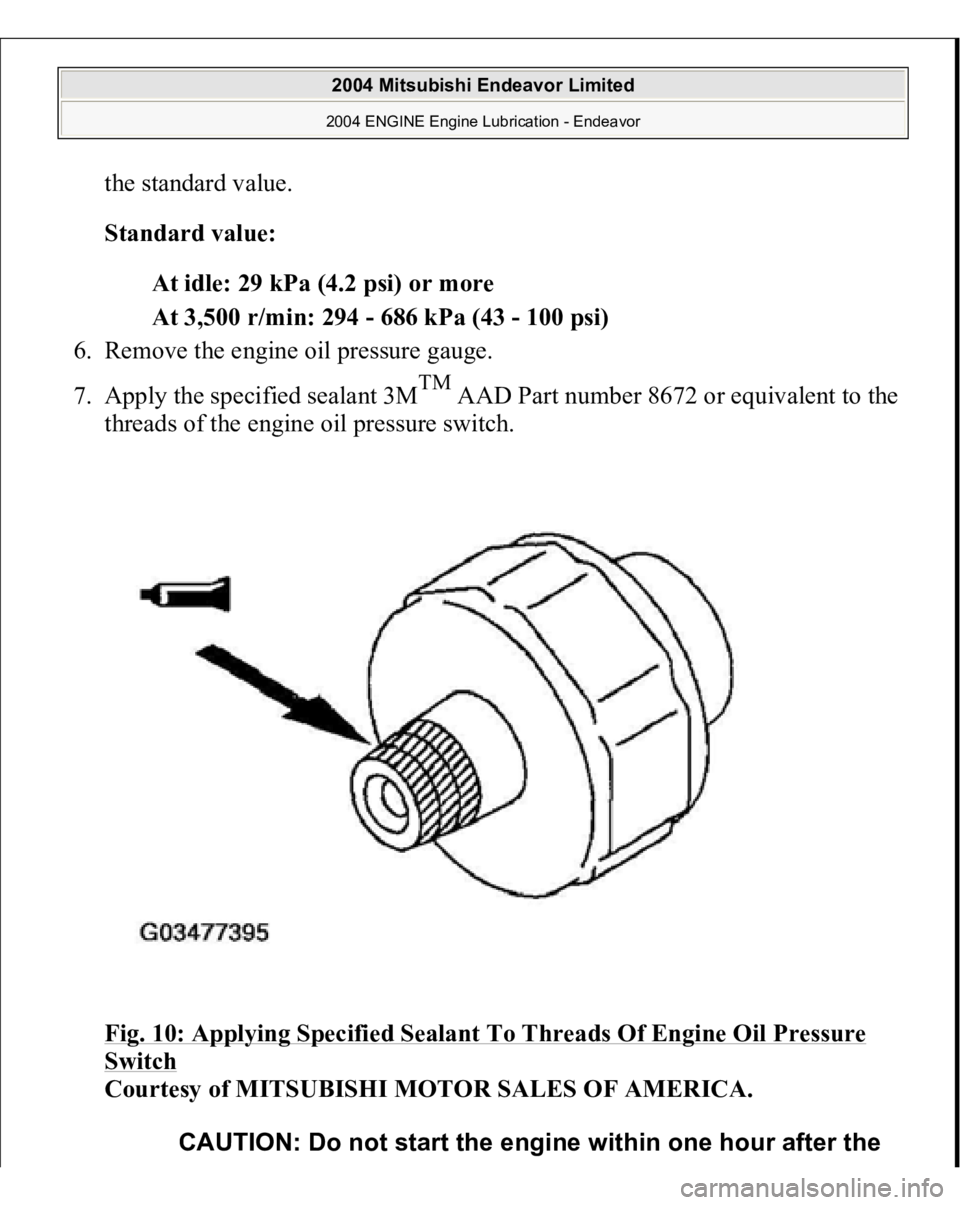

Fig. 10: Applying Specified Sealant To Threads Of Engine Oil Pressure
Switch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. CAUTION: Do not start the engine within one hour after the

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

8. Use special tool MD998054 to tighten the engine oil pressure switch to the
specified torque.

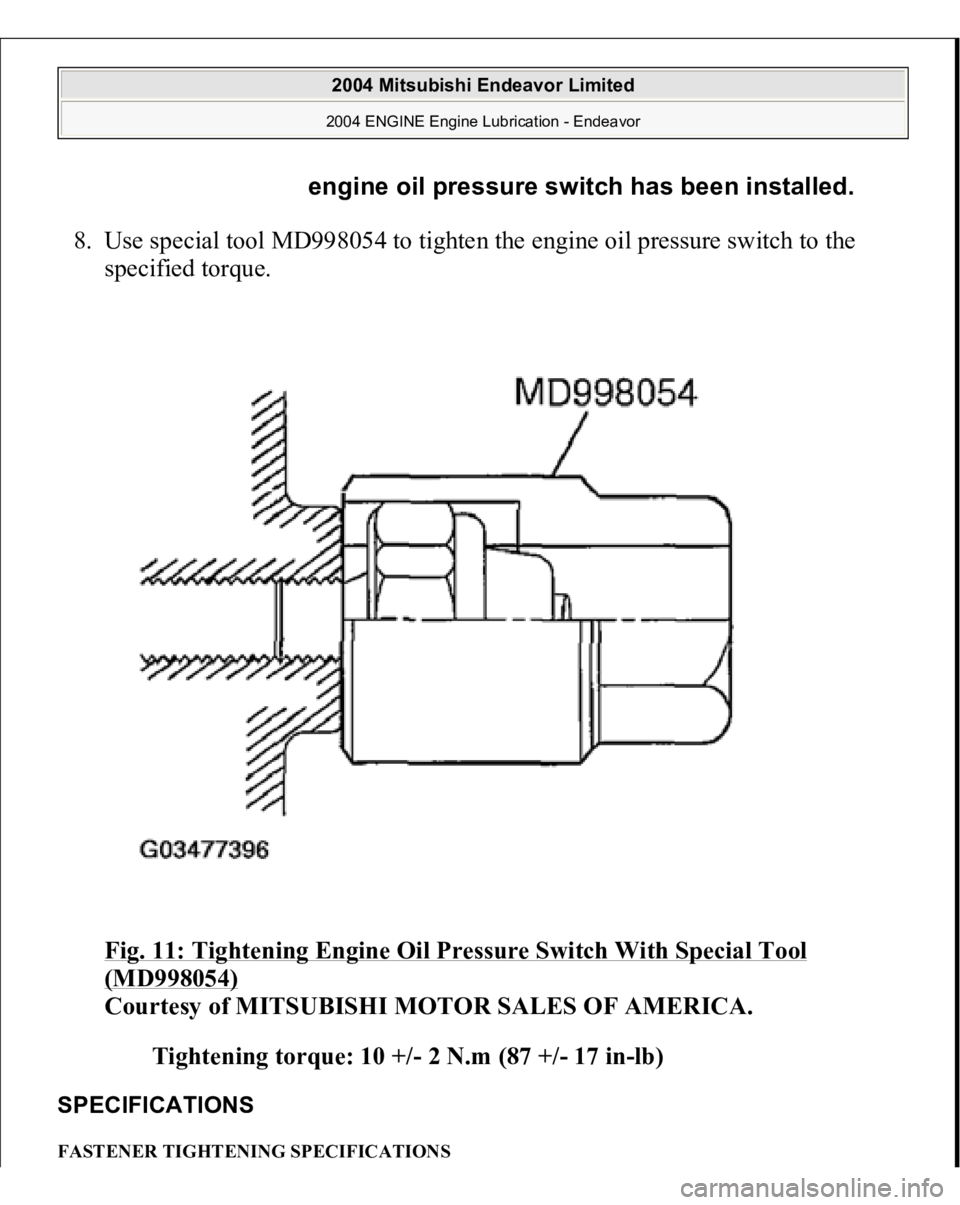

Fig. 11: Tightening Engine Oil Pressure Switch With Special Tool
(MD998054)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Tightening torque: 10 +/- 2 N.m (87 +/- 17 in-lb)

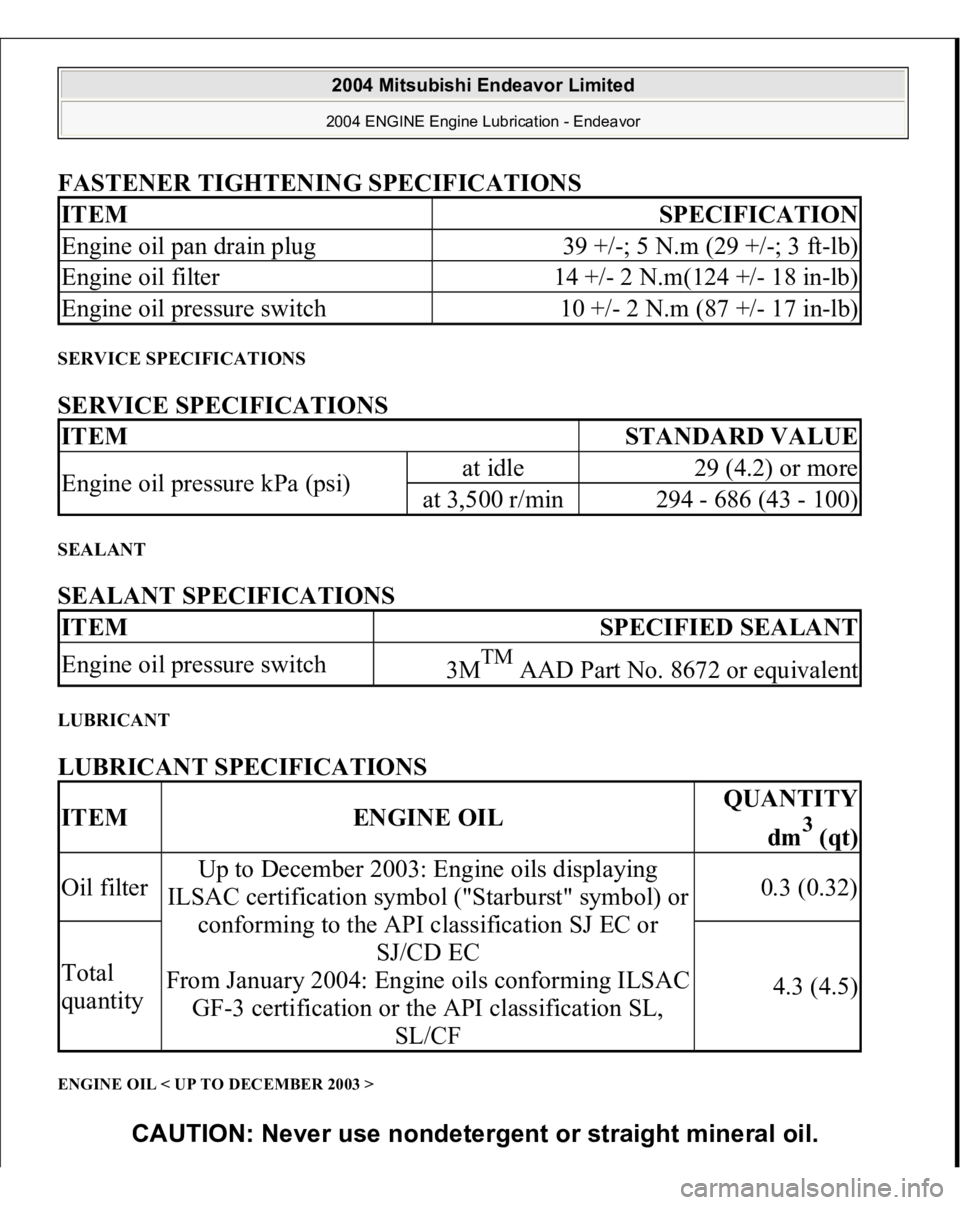

SPECIFICATIONS FASTENER TIGHTENING SPECIFICATIONS
engine oil pressure switch has been installed.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

FASTENER TIGHTENING SPECIFICATIONS SERVICE SPECIFICATIONS SERVICE SPECIFICATIONS SEALANT SEALANT SPECIFICATIONS LUBRICANT LUBRICANT SPECIFICATIONS ENGINE OIL < UP TO DECEMBER 2003 > ITEM
SPECIFICATION
Engine oil pan drain plug
39 +/-; 5 N.m (29 +/-; 3 ft-lb)
Engine oil filter
14 +/- 2 N.m(124 +/- 18 in-lb)
Engine oil pressure switch
10 +/- 2 N.m (87 +/- 17 in-lb)
ITEM
STANDARD VALUE
Engine oil pressure kPa (psi)
at idle
29 (4.2) or more
at 3,500 r/min
294 - 686 (43 - 100)
ITEM
SPECIFIED SEALANT
Engine oil pressure switch
3M
TM
AAD Part No. 8672 or equivalent
ITEM
ENGINE OIL
QUANTITY
dm
3 (qt)
Oil filter
Up to December 2003: Engine oils displaying
ILSAC certification symbol ("Starburst" symbol) or
conforming to the API classification SJ EC or
SJ/CD EC
From January 2004: Engine oils conforming ILSAC
GF-3 certification or the API classification SL,
SL/CF
0.3 (0.32)
Total
quantity
4.3 (4.5)
CAUTION: Never use nondetergent or straight mineral oil.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Lubrication - Endeavor

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.

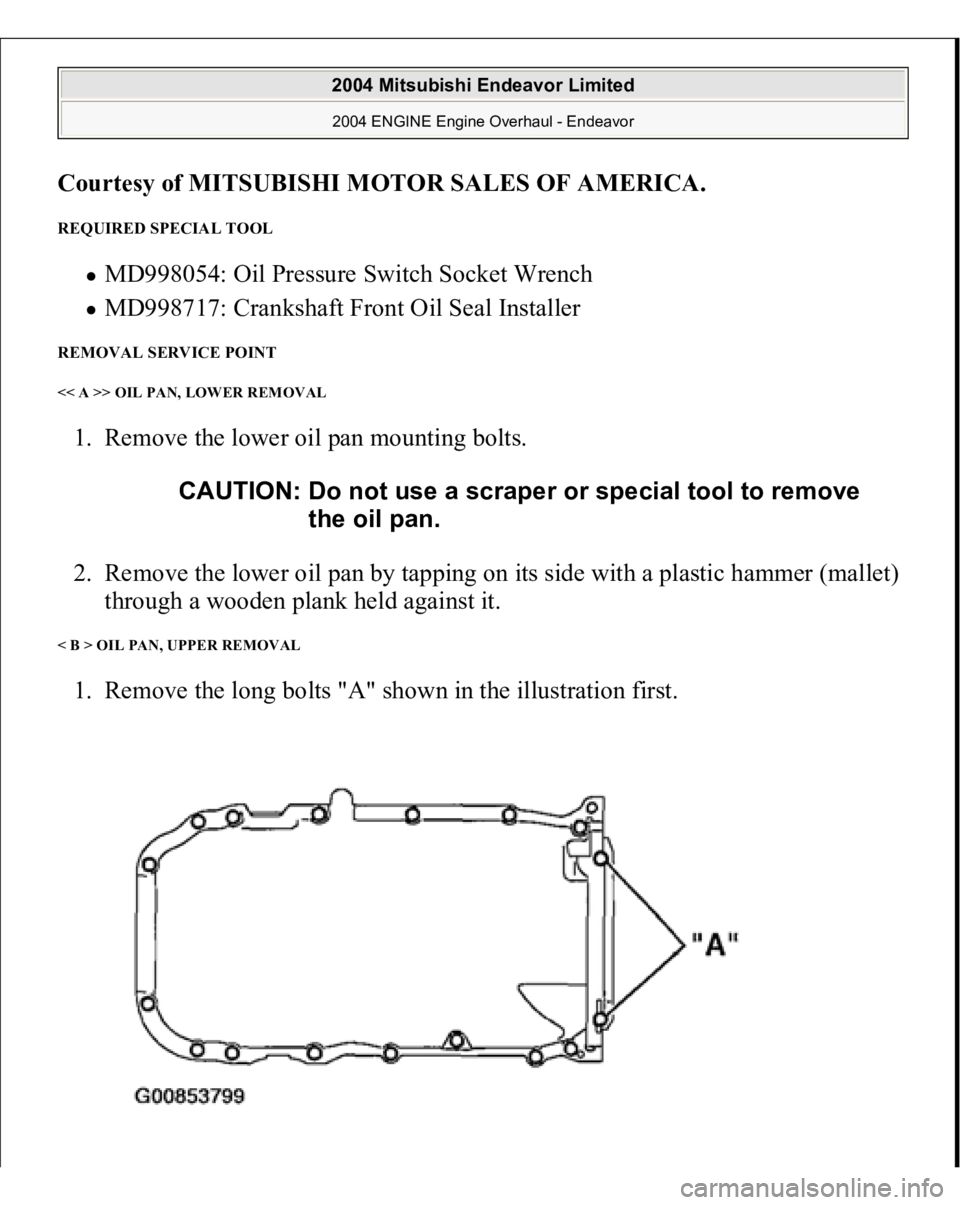

REQUIRED SPECIAL TOOL
MD998054: Oil Pressure Switch Socket Wrench MD998717: Crankshaft Front Oil Seal Installer
REMOVAL SERVICE POINT << A >> OIL PAN, LOWER REMOVAL 1. Remove the lower oil pan mounting bolts.
2. Remove the lower oil pan by tapping on its side with a plastic hammer (mallet)
through a wooden plank held against it. < B > OIL PAN, UPPER REMOVAL 1. Remove the long bolts "A" shown in the illustration first.
CAUTION: Do not use a scraper or special tool to remove
the oil pan.

2004 Mitsubishi Endeavor Limited 2004 ENGINE Engine Overhaul - Endeavor
