2004 MITSUBISHI ENDEAVOR service indicator

STEP 8. Replace the power transistor.

Q: Does the blower motor operate normally?

YES:
It can be assumed that this malfunction is intermittent. Refer to
HOW TO USE TROUBLESHOOTING/ INSPECTION SERVICE POINTS
.
NO:
Replace the A/C-ECU. Check that the air conditioning works
normally.
INSPECTION PROCEDURE 7: THE A/C INDICATOR FLASHES TECHNICAL DESCRIPTION (COMMENT) If the A/C indicator flashes, inadequate refrigerant quantity, the ambient air
temperature sensor circuit or the A/C pressure sensor circuit is suspected. TROUBLESHOOTING HINTS
Malfunction of the A/C pressure sensor Malfunction of the ambient air temperature sensor Malfunction of the A/C-ECU
DIAGNOSIS Required Special Tools:

MB991223: Test Harness Set MB991958: Scan Tool (MUT-III Sub Assembly)
MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A (Vehicles with CAN
communication system)
STEP 1. Using scan tool MB991958, read the diagnostic trouble code.

Check if an A/
C-ECU DTC is set.

2004 Mitsubishi Endeavor LS
2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

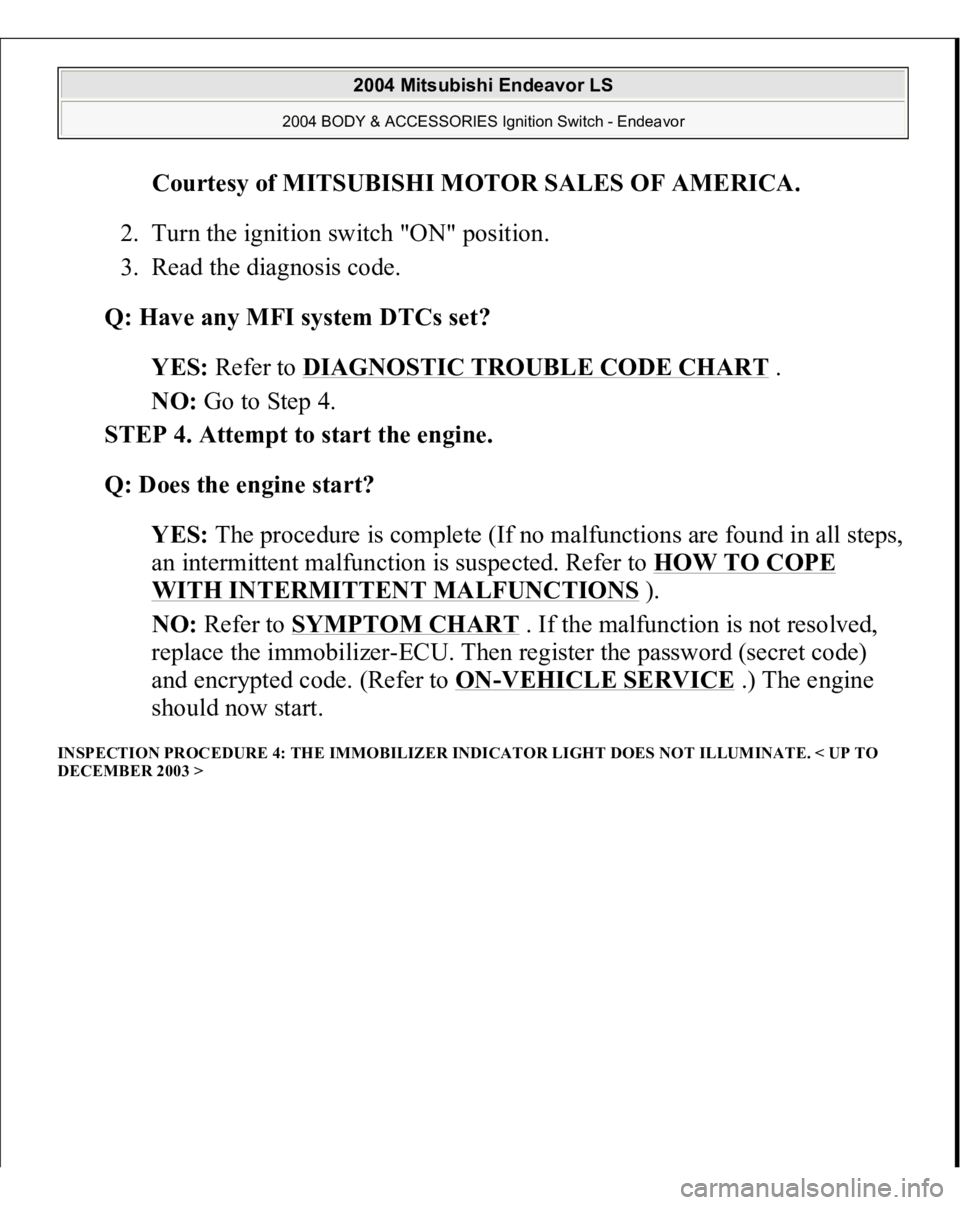

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA
.
2. Turn the ignition switch "ON" position.
3. Read the diagnosis code.
Q: Have any MFI system DTCs set?
YES: Refer to DIAGNOSTIC TROUBLE CODE CHART
.
NO: Go to Step 4.
STEP 4. Attempt to start the engine.
Q: Does the engine start?
YES: The procedure is complete (If no malfunctions are found in all steps,
an intermittent malfunction is suspected. Refer to HOW TO COPE
WITH INTERMITTENT MALFUNCTIONS
).
NO: Refer to SYMPTOM CHART
. If the malfunction is not resolved,
replace the immobilizer-ECU. Then register the password (secret code)
and encrypted code. (Refer to ON
-VEHICLE SERVICE
.) The engine
should now start.
INSPECTION PROCEDURE 4: THE IMMOBILIZER INDICATOR LIGHT DOES NOT ILLUMINATE. < UP TO
DECEMBER 2003
>

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

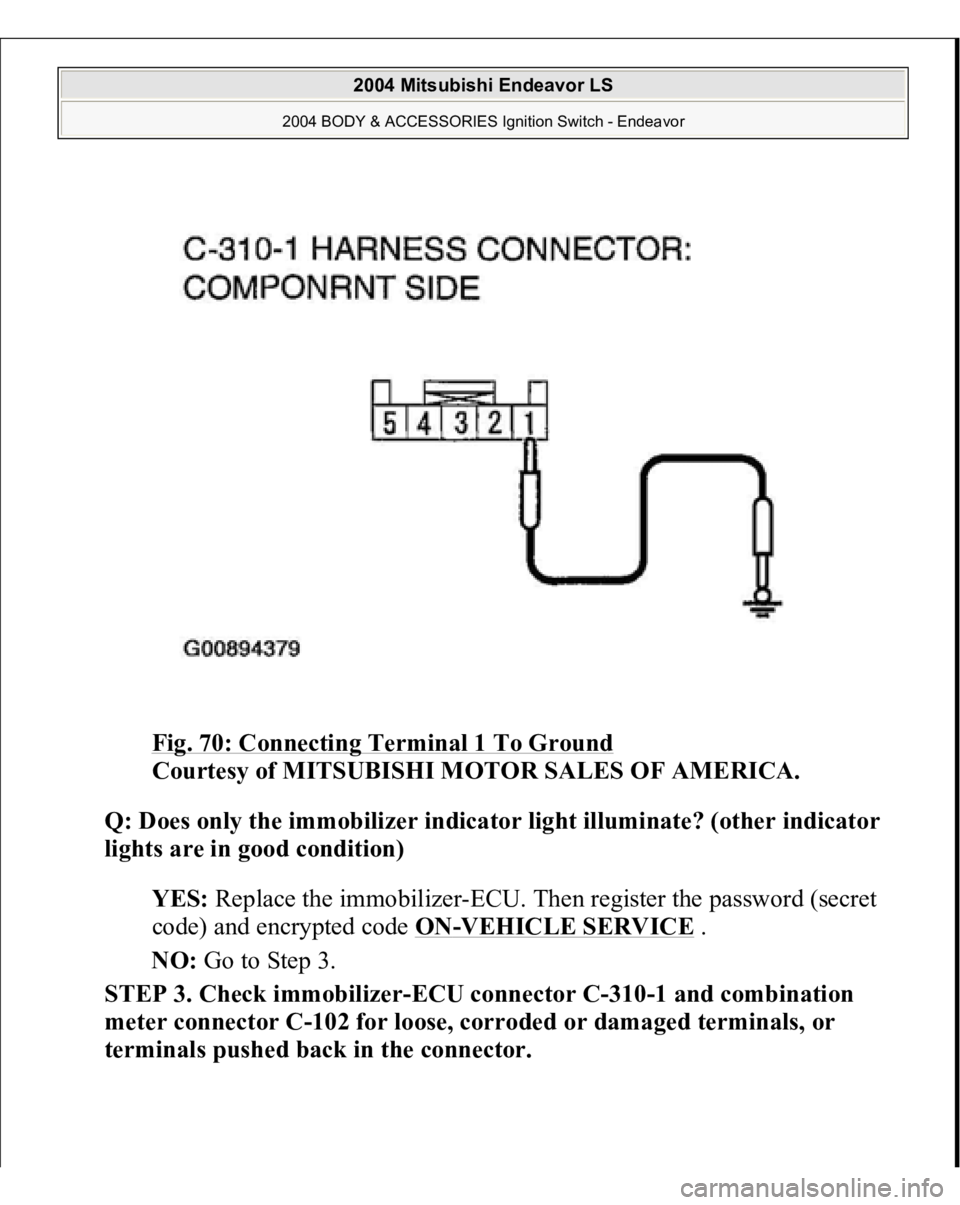

Fig. 70: Connecting Terminal 1 To Ground

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Does only the immobilizer indicator light illuminate? (other indicator
lights are in good condition)
YES: Replace the immobilizer-ECU. Then register the password (secret
code) and encrypted code ON
-VEHICLE SERVICE
.
NO: Go to Step 3.
STEP 3. Check immobilizer-ECU connector C-310-1 and combination
meter connector C-102 for loose, corroded or damaged terminals, or
terminals pushed back in the connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

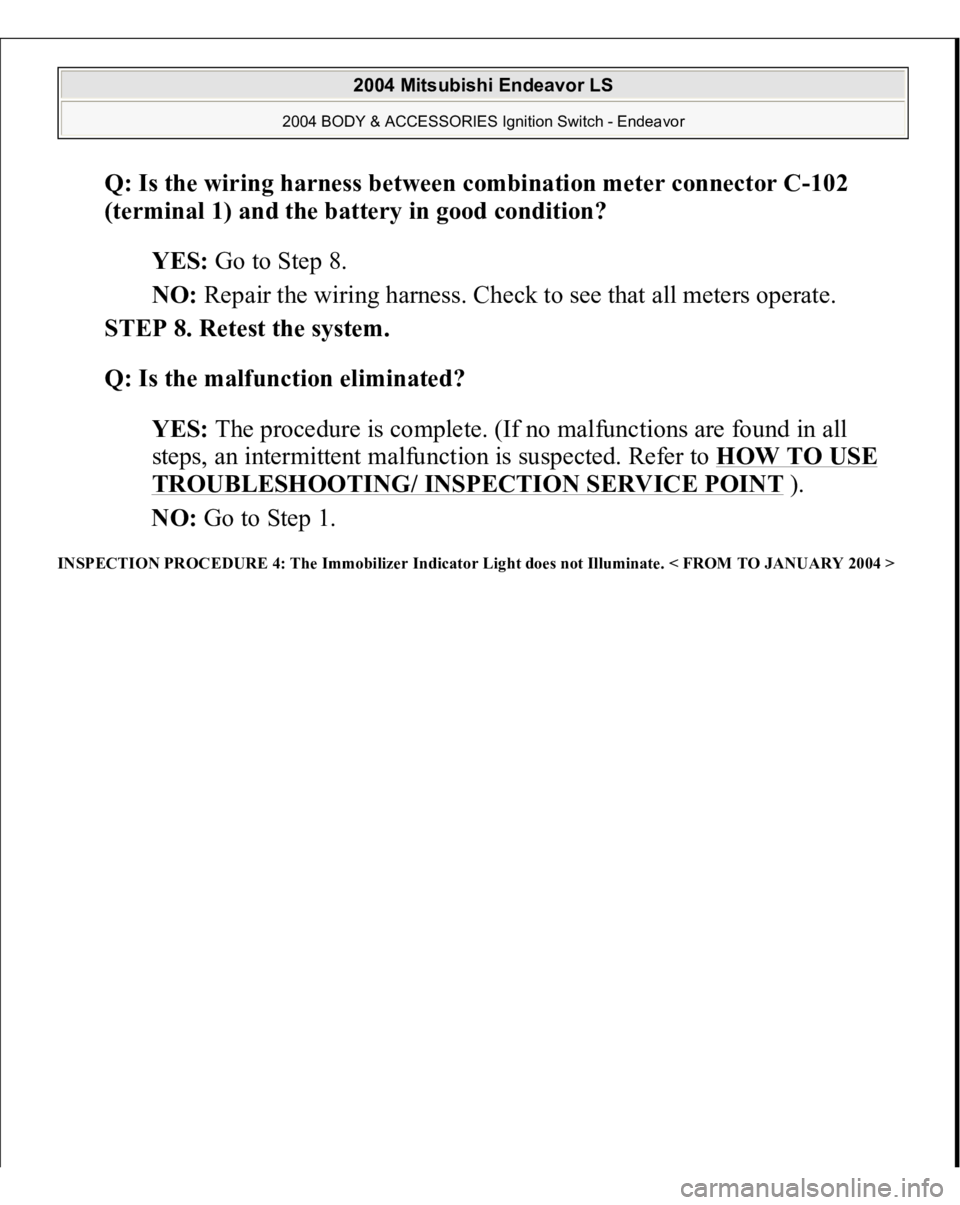

Q: Is the wiring harness between combination meter connector C-102
(terminal 1) and the battery in good condition?
YES: Go to Step 8.
NO: Repair the wiring harness. Check to see that all meters operate.
STEP 8. Retest the system.
Q: Is the malfunction eliminated?
YES: The procedure is complete. (If no malfunctions are found in all
steps, an intermittent malfunction is suspected. Refer to HOW TO USE
TROUBLESHOOTING/ INSPECTION SERVICE POINT
).
NO: Go to Step 1.
INSPECTION PROCEDURE 4: The Immobilizer Indicator Light does not Illuminate. < FROM TO JANUARY 2004 >
2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

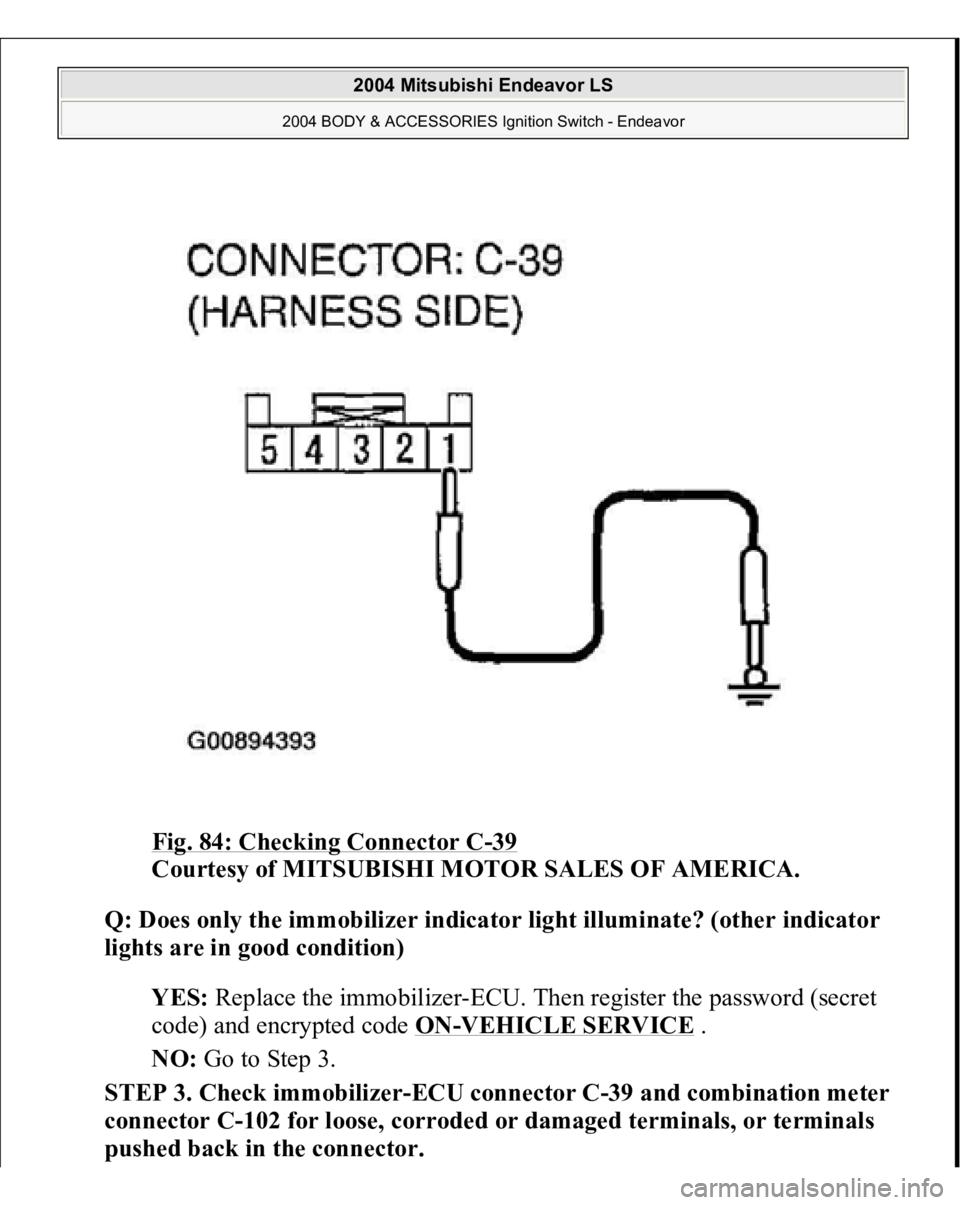

Fig. 84: Checking Connector C
-39
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Q: Does only the immobilizer indicator light illuminate? (other indicator
lights are in good condition)
YES: Replace the immobilizer-ECU. Then register the password (secret
code) and encrypted code ON
-VEHICLE SERVICE
.
NO: Go to Step 3.
STEP 3. Check immobilizer-ECU connector C-39 and combination meter
connector C-102 for loose, corroded or damaged terminals, or terminals
pushed back in the connector.

2004 Mitsubishi Endeavor LS
2004 BODY & ACCESSORIES Ignition Switch - Endeavor

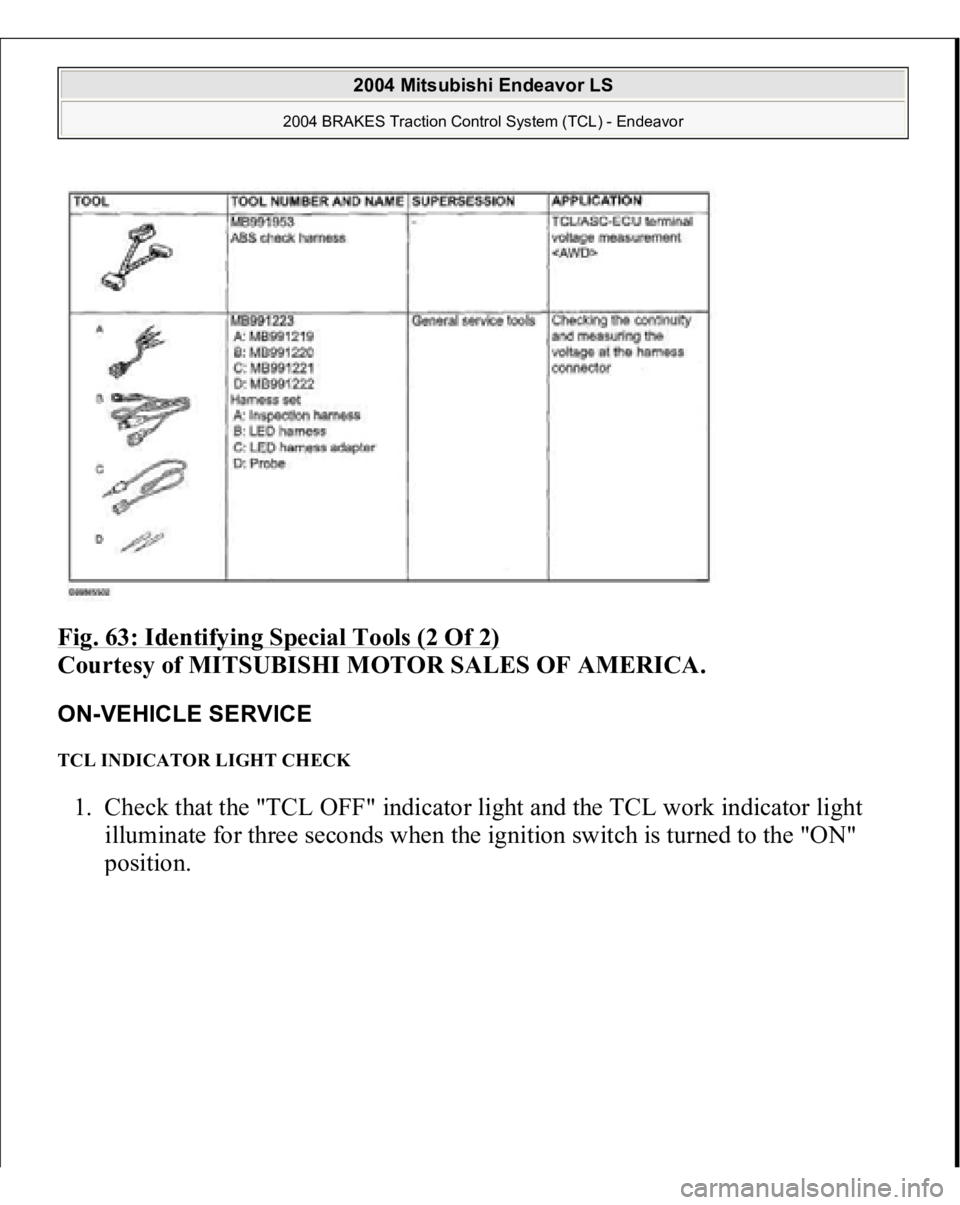

Fig. 63: Identifying Special Tools (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
ON-VEHICLE SERVICE TCL INDICATOR LIGHT CHECK 1. Check that the "TCL OFF" indicator light and the TCL work indicator light
illuminate for three seconds when the ignition switch is turned to the "ON"
position.

2004 Mitsubishi Endeavor LS
2004 BRAKES Traction Control System (TCL) - Endeavor
