Page 817 of 3870

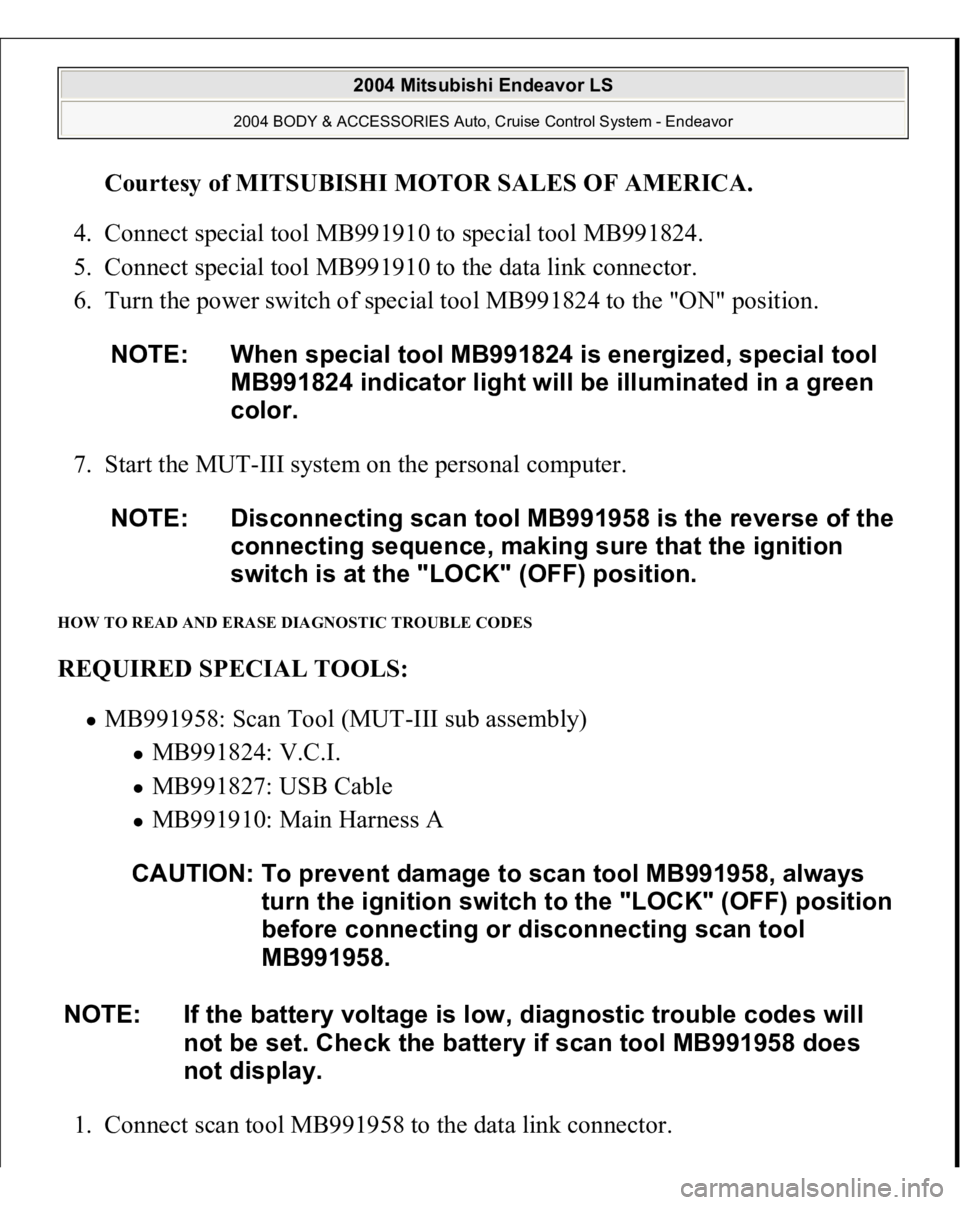

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 4. Connect special tool MB991910 to special tool MB991824. 5. Connect special tool MB991910 to the data link connector. 6. Turn the power switch of

Page 818 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 5: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endeavor

Page 819 of 3870

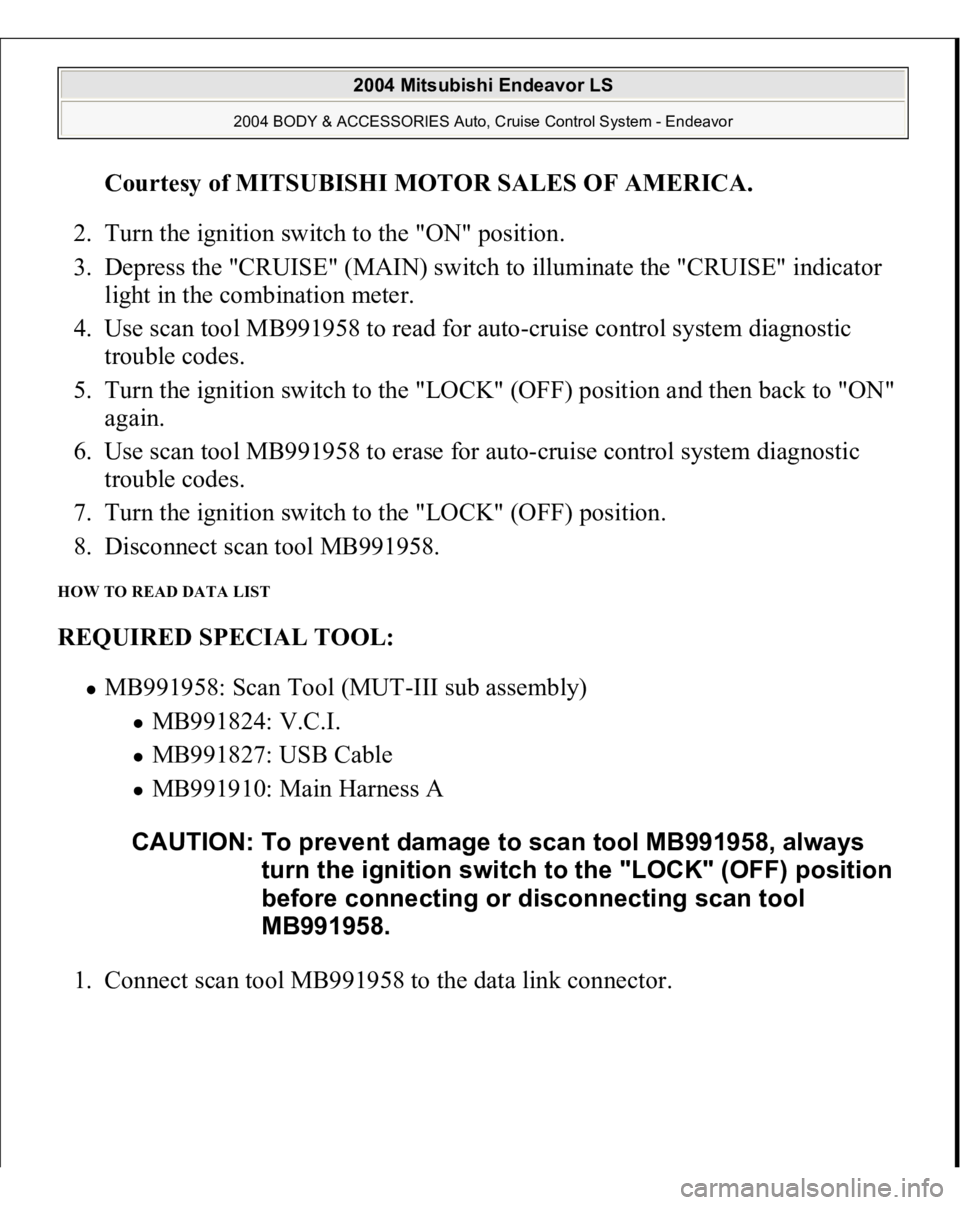

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to the "ON" position. 3. Depress the "CRUISE" (MAIN) switch to illuminate the "CRUISE" indicator

Page 820 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 6: Connecting Scan Tool MB991958 To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endea

Page 821 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Carry out inspection by means of the data list. If there is an abnormality, check and repair the chassis harnesses and components. (Refe

Page 822 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 7: Connecting Scan Tool MB991958 To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Auto, Cruise Control System - Endea

Page 823 of 3870

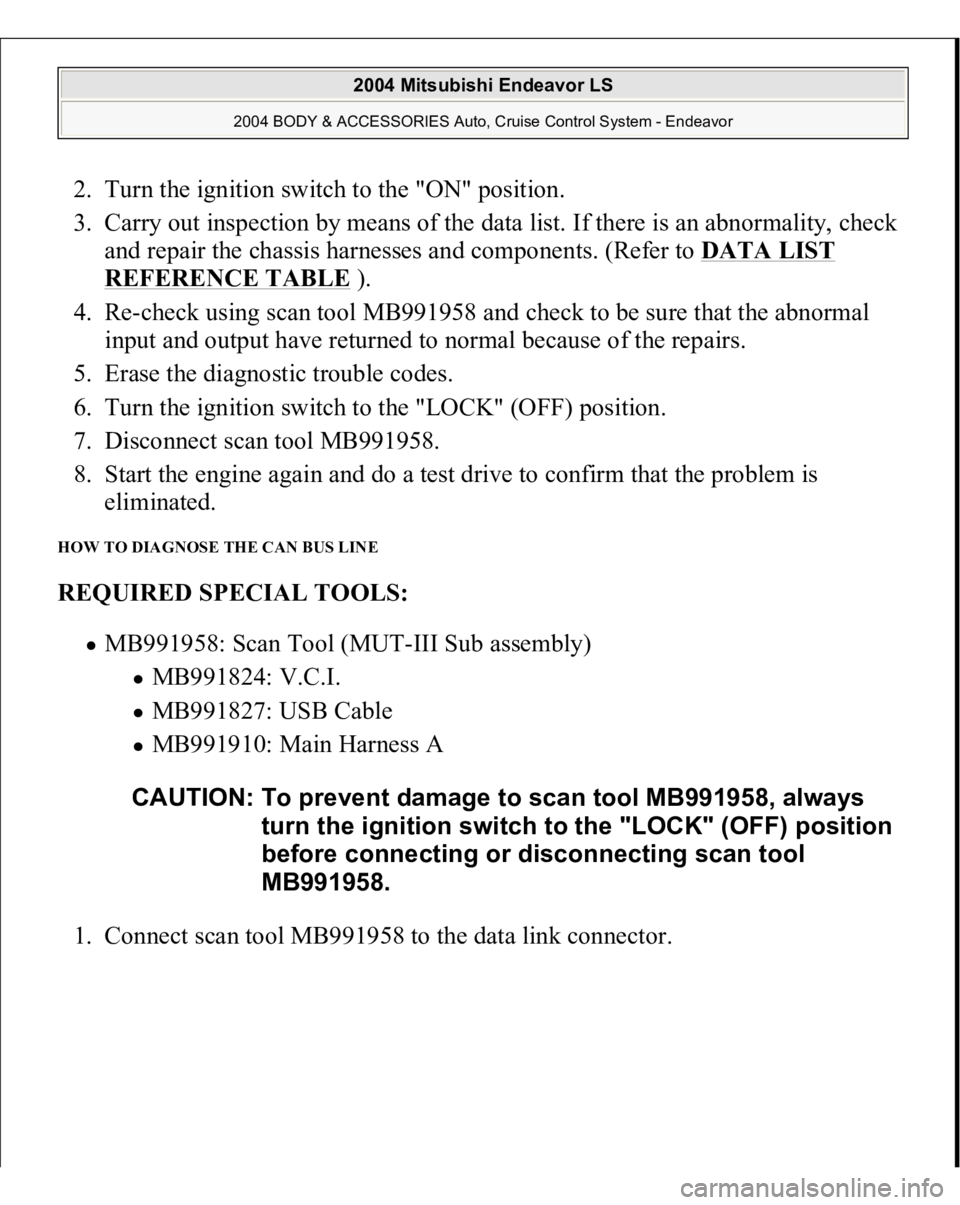

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Select "CAN bus diagnosis" from the start-up screen. 4. When the vehicle information is displayed, confirm that it matches the

Page 824 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual DIAGNOSTIC TROUBLE CODE PROCEDURESDTC 15: Auto-cruise Control Switch System Fig. 9: Identifying Auto Cruise Control Switch System Circuit Diagram Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 200
