Page 2089 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 64: Air Mixing Damper Control Motor Circuit Diagram 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2090 of 3870

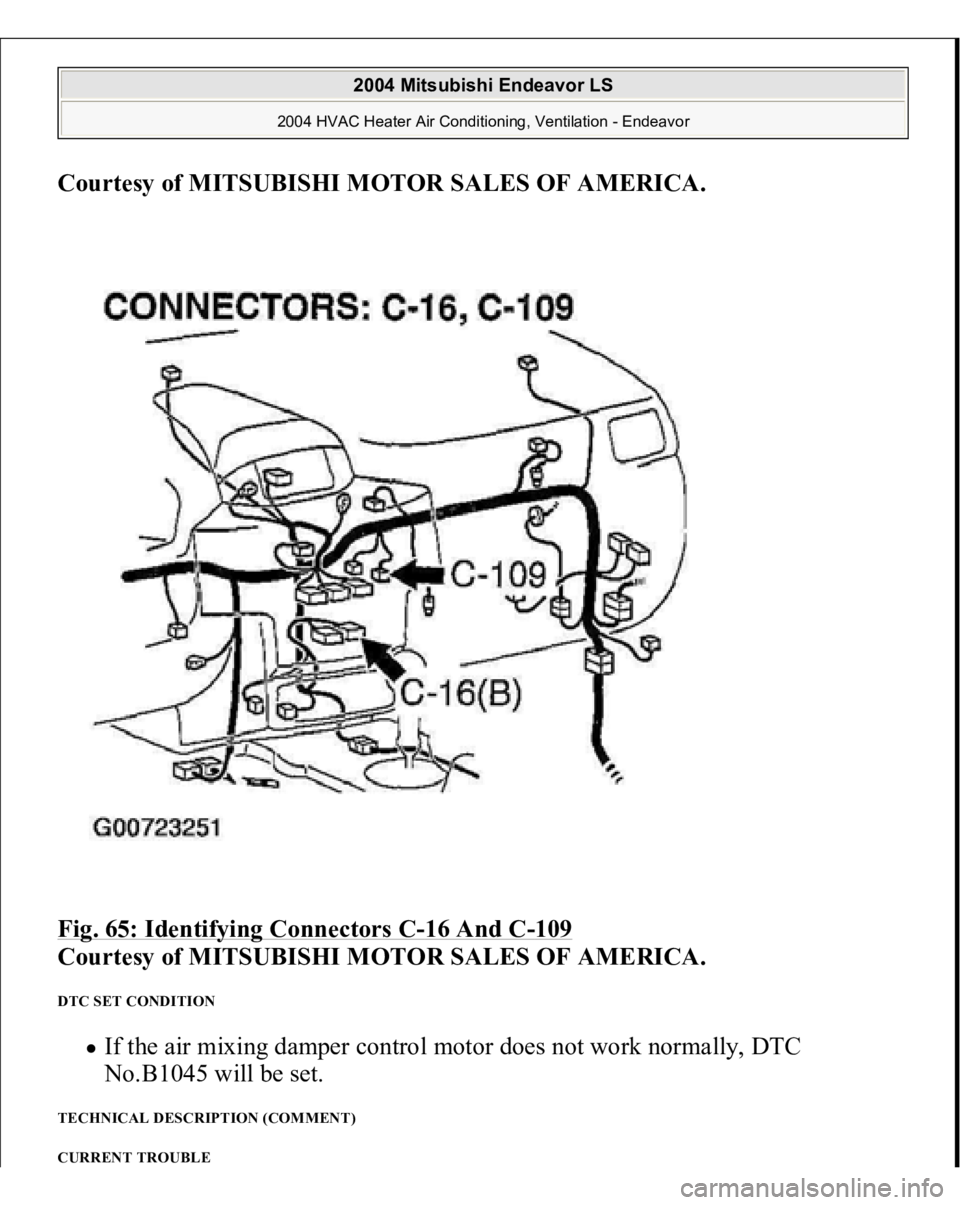

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . Fig. 65: Identifying Connectors C -16 And C -109 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DTC SET CONDITION If the air mixing damper control

Page 2091 of 3870

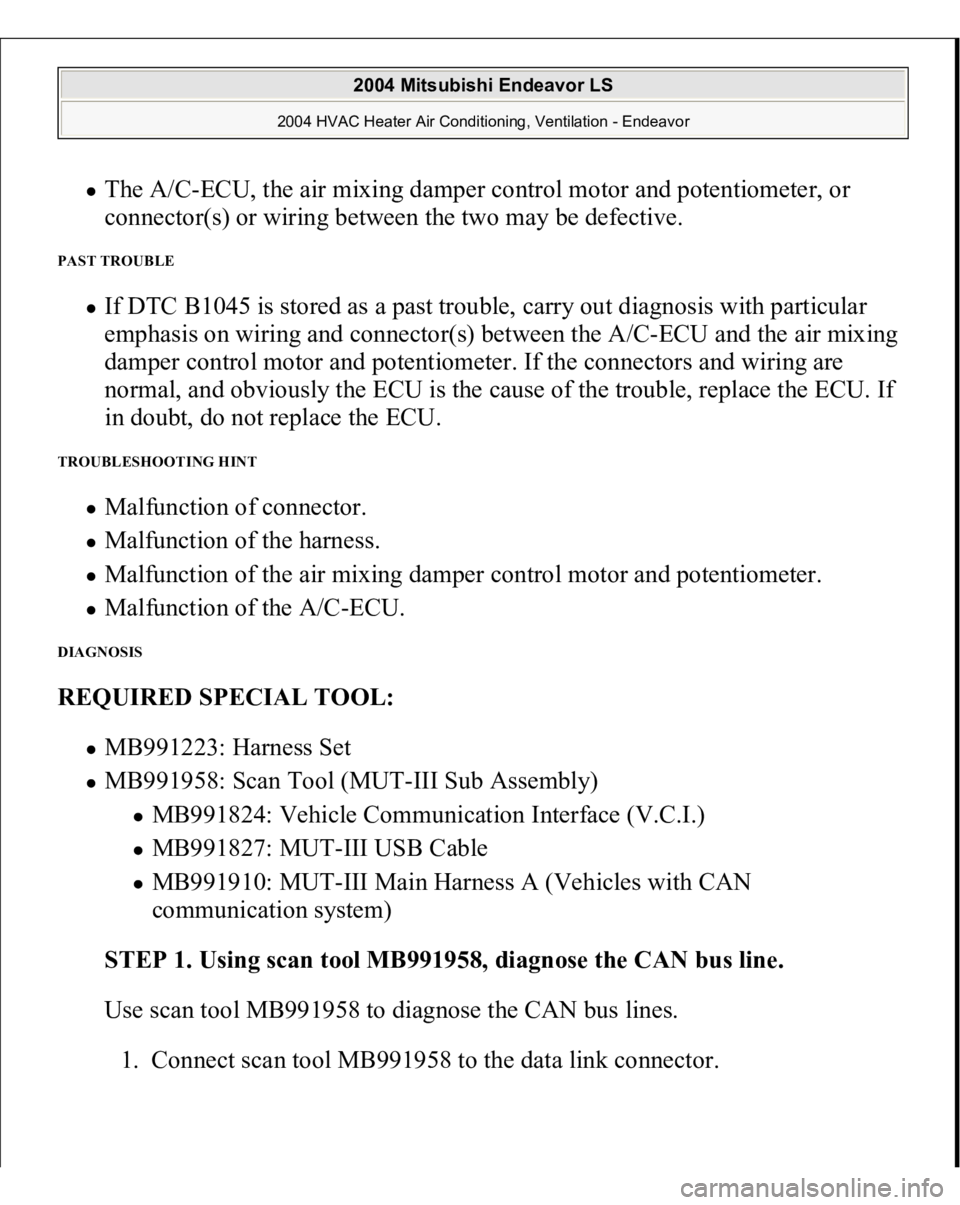

MITSUBISHI ENDEAVOR 2004 Service Repair Manual The A/C-ECU, the air mixing damper control motor and potentiometer, or connector(s) or wiring between the two may be defective. PAST TROUBLE If DTC B1045 is stored as a past trouble, carry out dia

Page 2092 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 66: Connectin g Scan Tool (MB991958) To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2093 of 3870

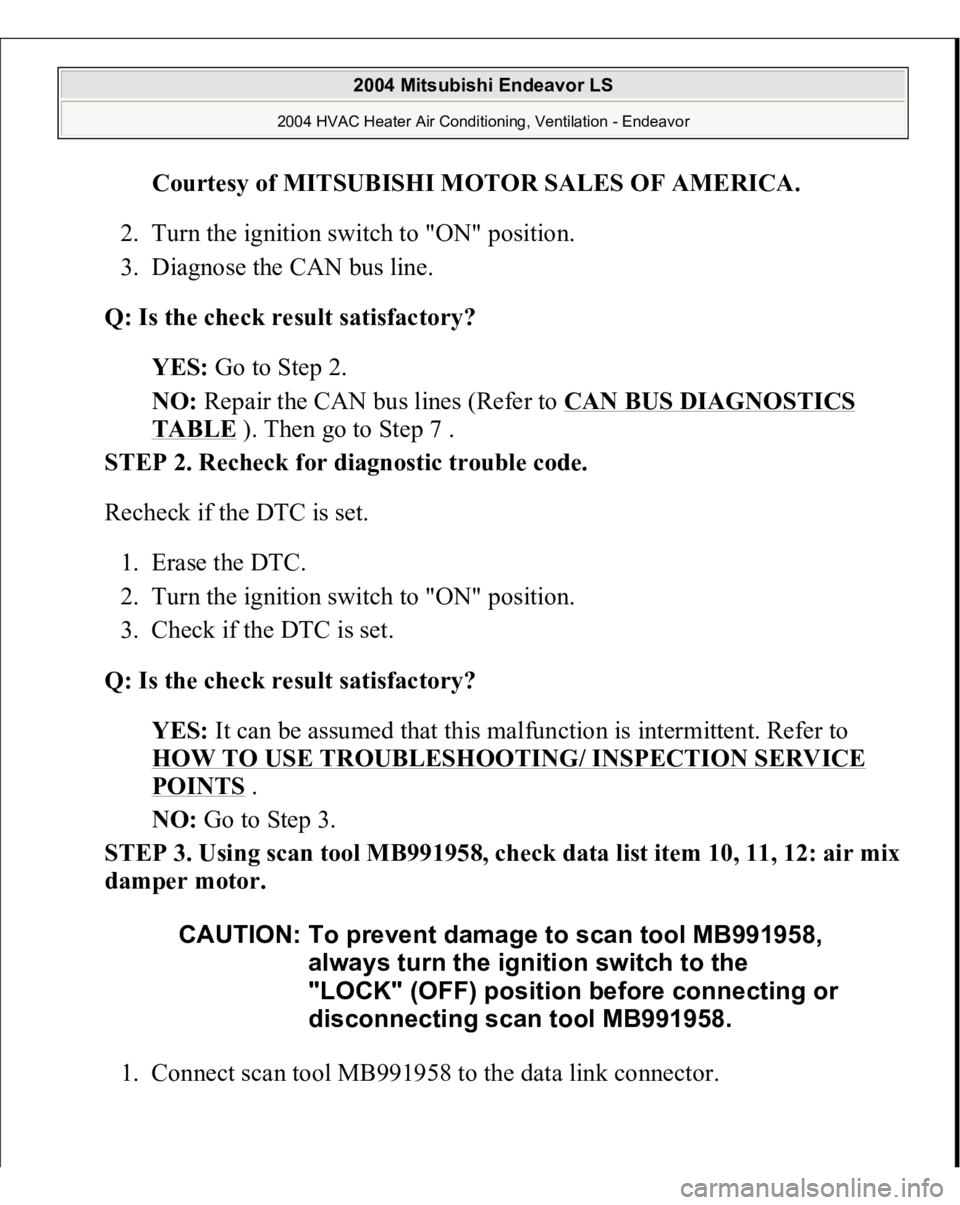

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Turn the ignition switch to "ON" position. 3. Diagnose the CAN bus line. Q: Is the check result satisfactory? YES: Go to Step 2. N

Page 2094 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 67: Connectin g Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2095 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 2. Start the engine. 3. Check the data list. 4. Use scan tool MB991958 to run the actuator test. Item 10: air mix damper motor (MAX COOL position)

Page 2096 of 3870

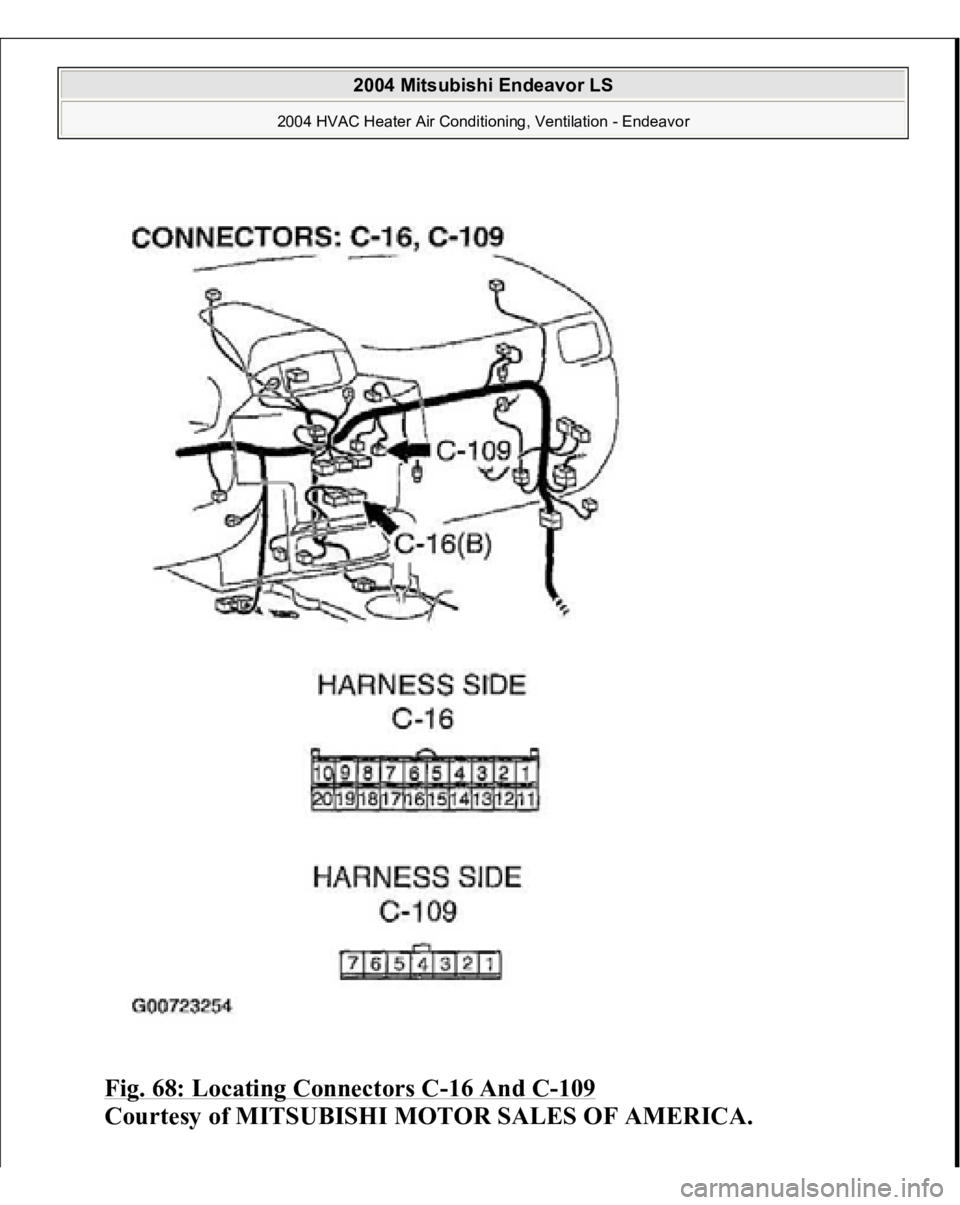

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 68: Locating Connectors C -16 And C -109 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor
