Page 145 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 84: G -Sensor Circuit Diagram < AWD > Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 85: Identifying Connectors A -02, C -04, C -23, C -214, C -215 Courtesy of MITSUBISHI MOTOR SALES OF

Page 146 of 3870

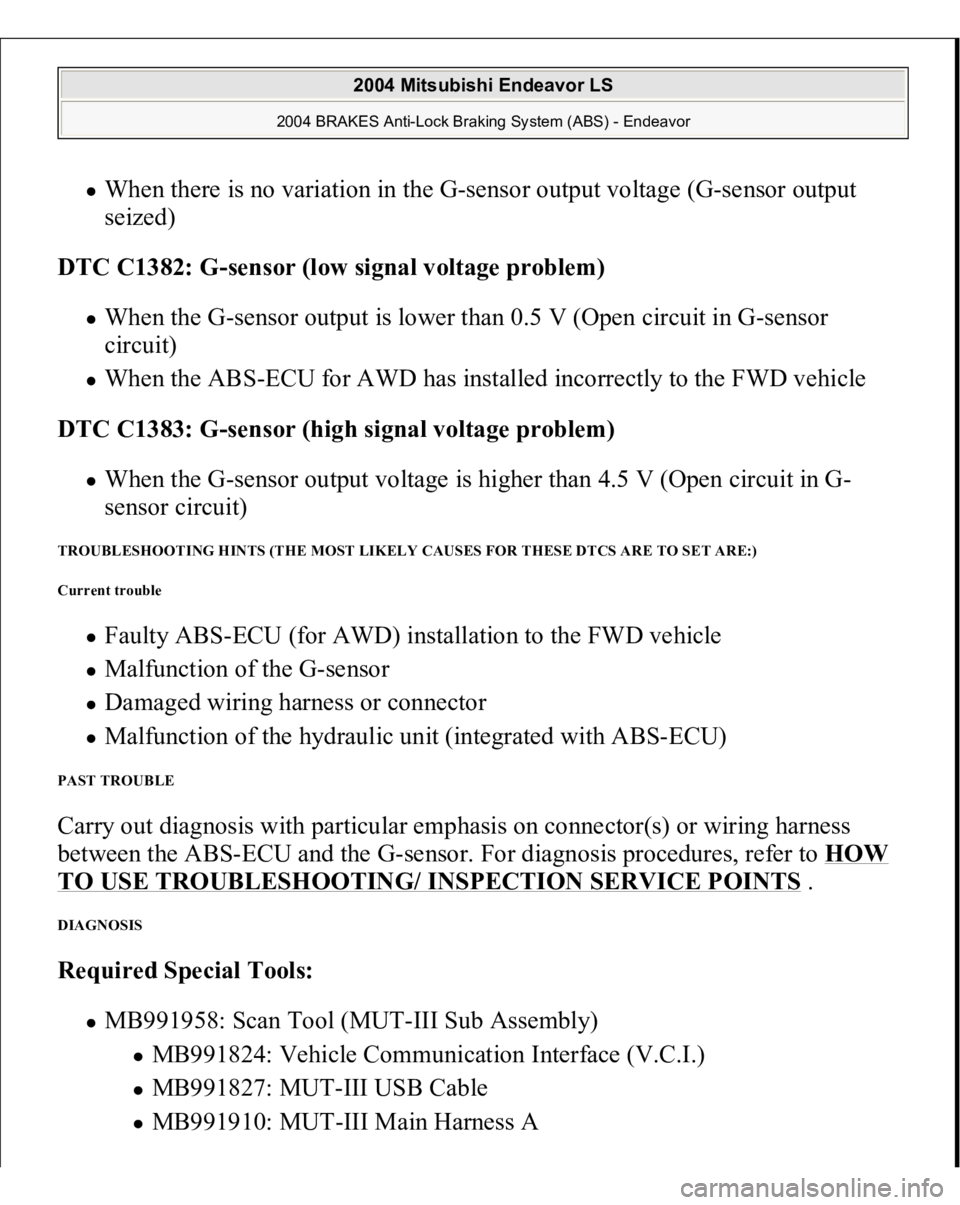

MITSUBISHI ENDEAVOR 2004 Service Repair Manual When there is no variation in the G-sensor output voltage (G-sensor output seized) DTC C1382: G-sensor (low signal voltage problem) When the G-sensor output is lower than 0.5 V (Open circuit in G-

Page 147 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 1. Using scan tool MB991958, diagnose the CAN bus line. 1. Connect scan tool MB991958 to the data link connec tor. CAUTION: If the ABS-ECU for AWD has installed incorrectly to FWD vehicle, DTC

Page 148 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 86: Connecting Scan Tool MB991958 To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 149 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Diagnose the CAN bus line. 4. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is the CAN bus line found to be norma

Page 150 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 87: Recheckin g For Dia gnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 151 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1381, C1382 or C1383 set? YES: Go to Step 3. NO: The procedure is co

Page 152 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 88: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor
