Page 3377 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1505 or C1506 set? YES < C1505 is set>: Go to Step 3. YES < C1506 is set>: Check the steering wheel sensor DTC, and

Page 3378 of 3870

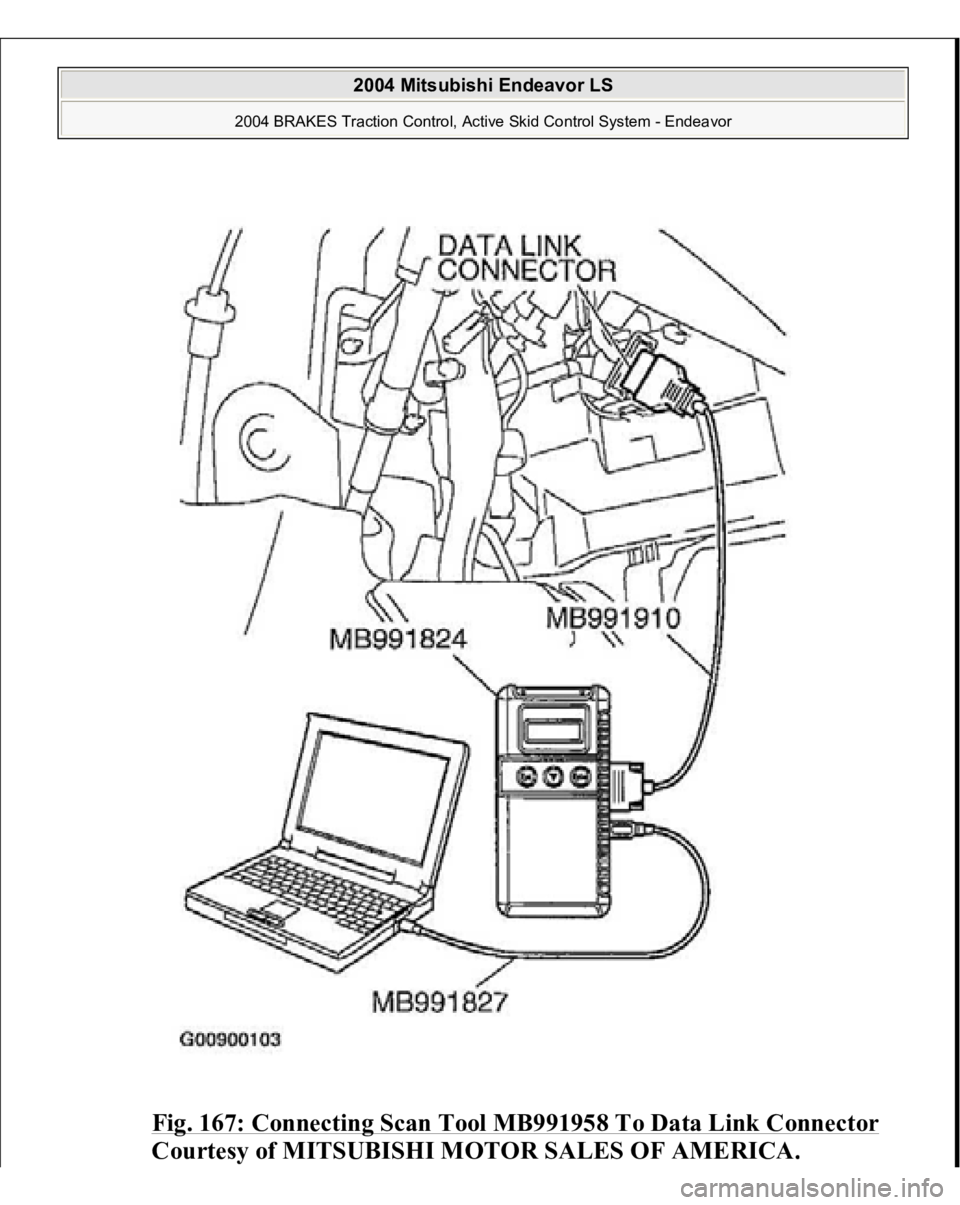

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 167: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control Syste

Page 3379 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position. 3. Set scan tool MB991958 to data reading mode for item 32, Steering angle. Correct angle is displayed as the steering wheel is turned. Q

Page 3380 of 3870

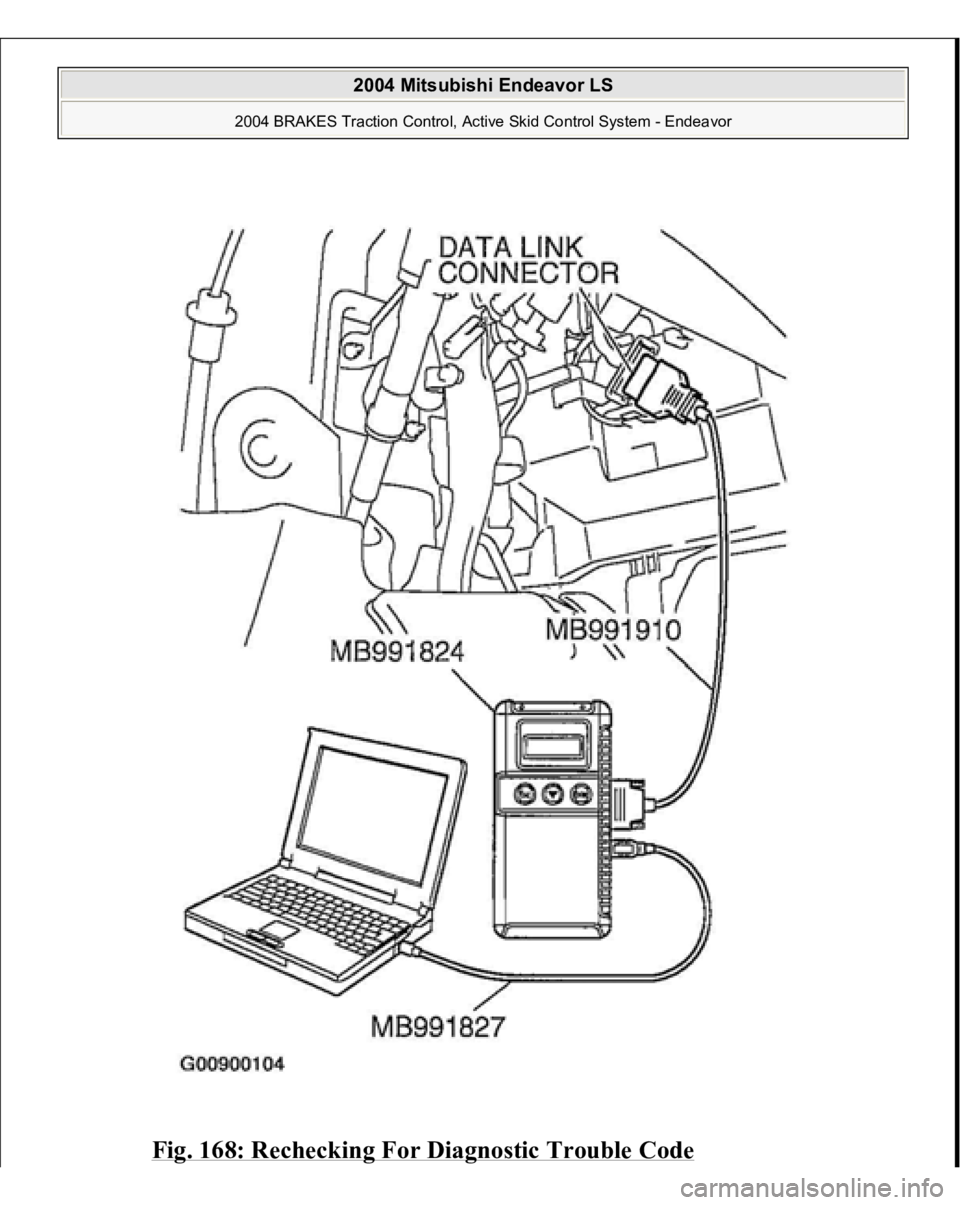

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 168: Rechecking For Diagnostic Trouble Code 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor

Page 3381 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . 6. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is DTC C1505 set? YES: Go to Step 5. NO: The procedure is complete. STEP 5

Page 3382 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 169: Connecting Scan Tool MB991958 To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System

Page 3383 of 3870

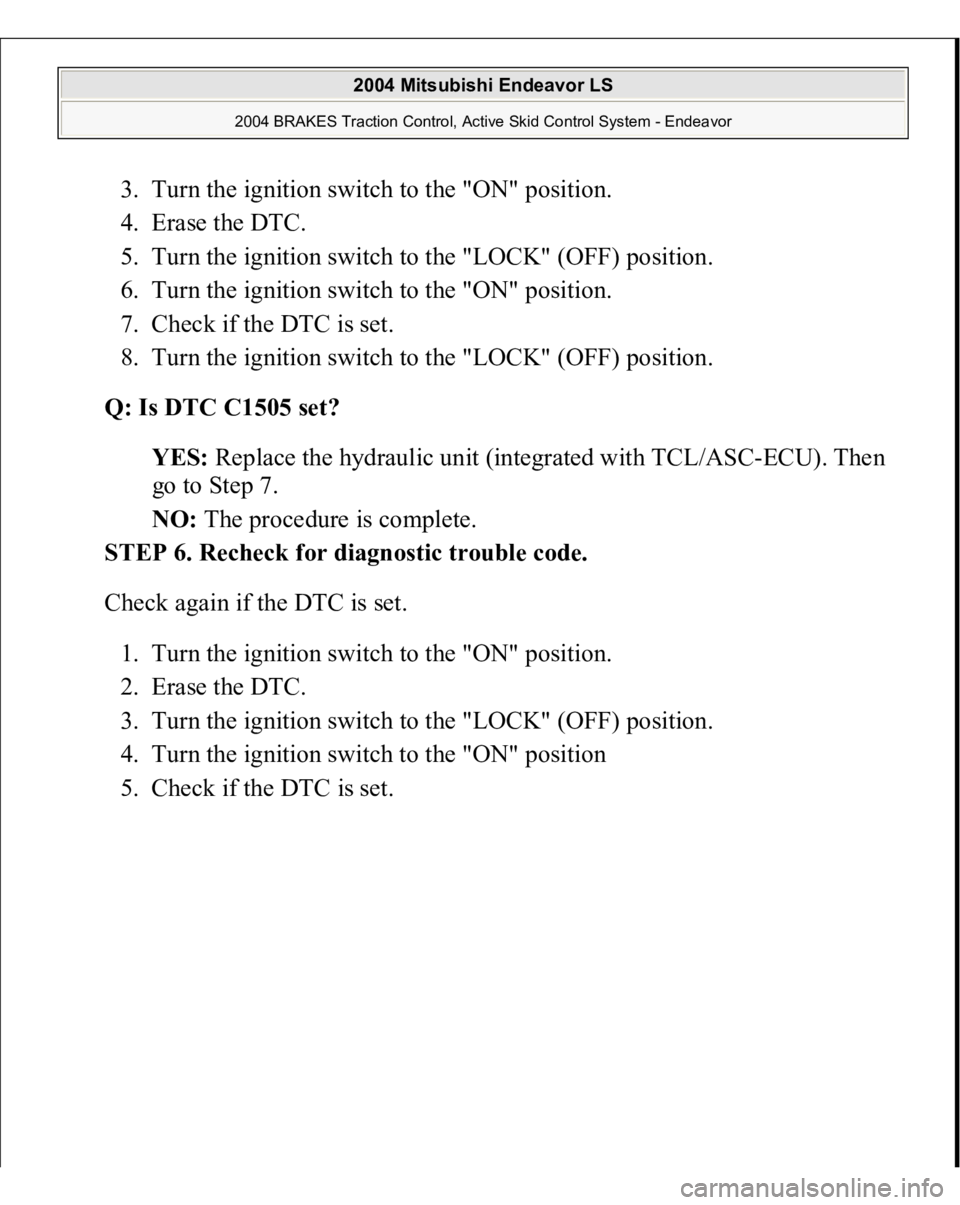

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. Turn the ignition switch to the "ON" position. 4. Erase the DTC. 5. Turn the ignition switch to the "LOCK" (OFF) position. 6. Turn the ignition switch to the "ON" posi

Page 3384 of 3870

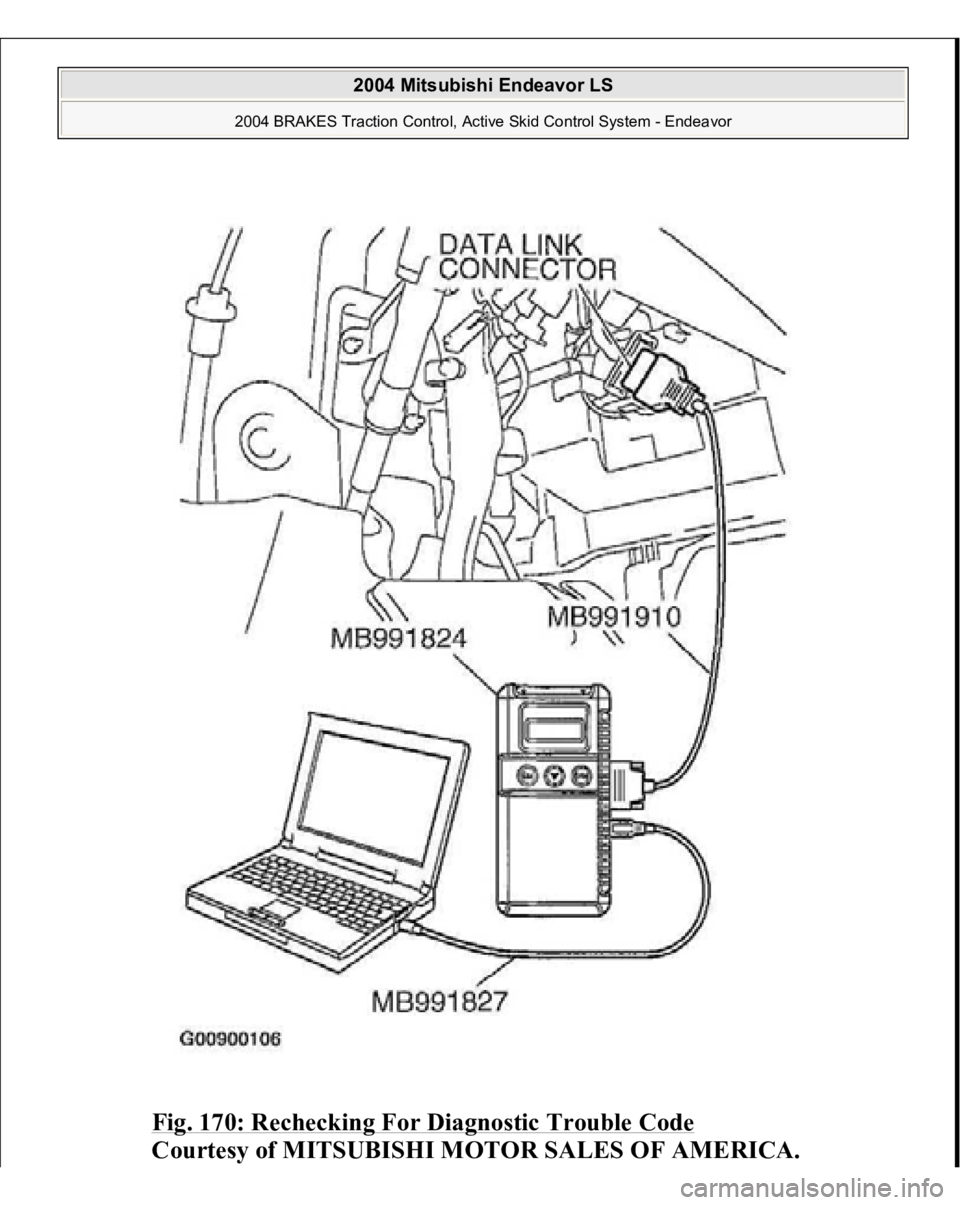

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 170: Rechecking For Diagnostic Trouble Code Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Traction Control, Active Skid Control System - Endeavor
