Page 529 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 73: Installing Special Tool In A Dial Gauge Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 19. Select a pressure plate whose thickness corresponds to the measured amount of movement from the

Page 530 of 3870

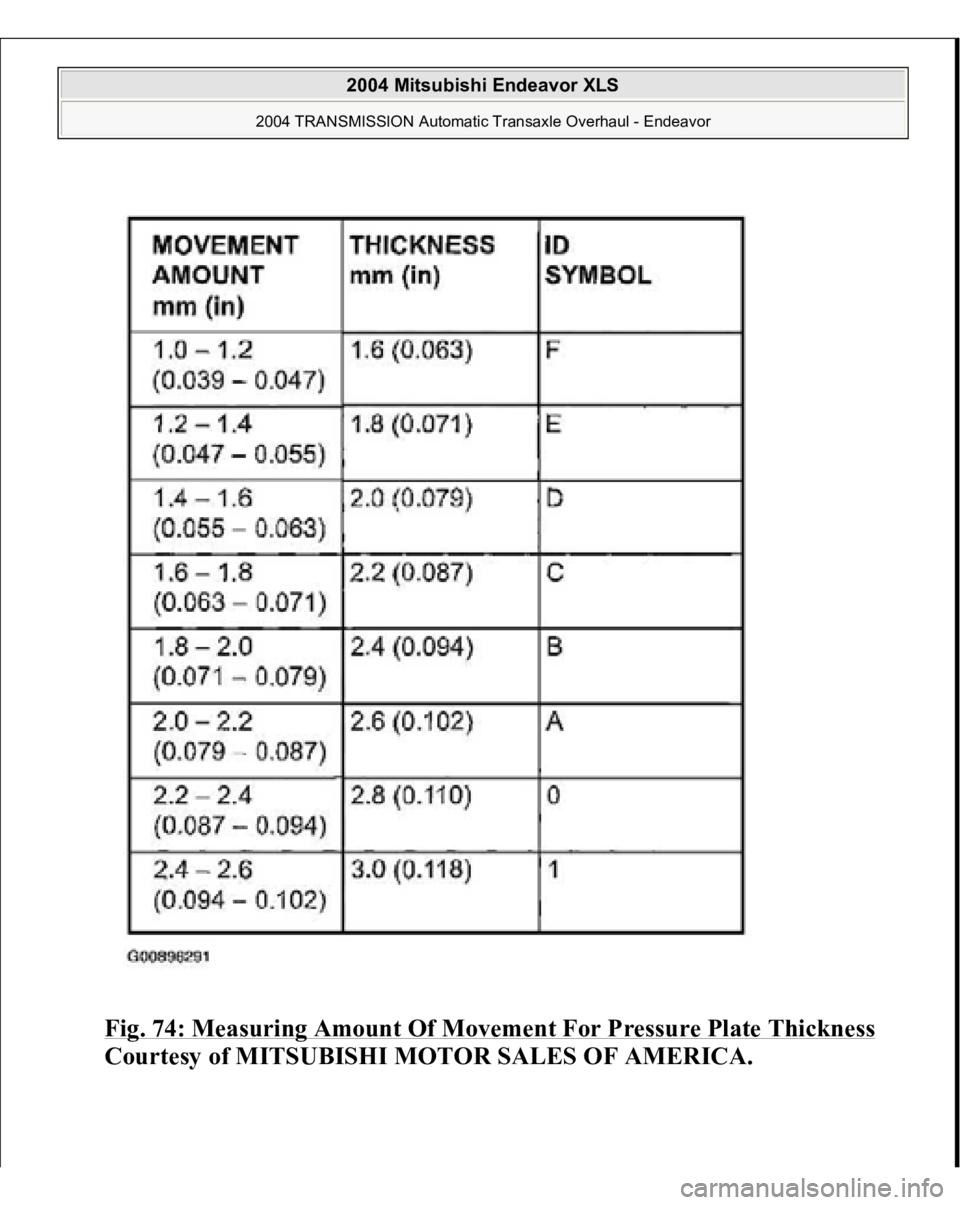

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 74: Measuring Amount Of Movement For Pressure Plate Thickness Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul - End

Page 531 of 3870

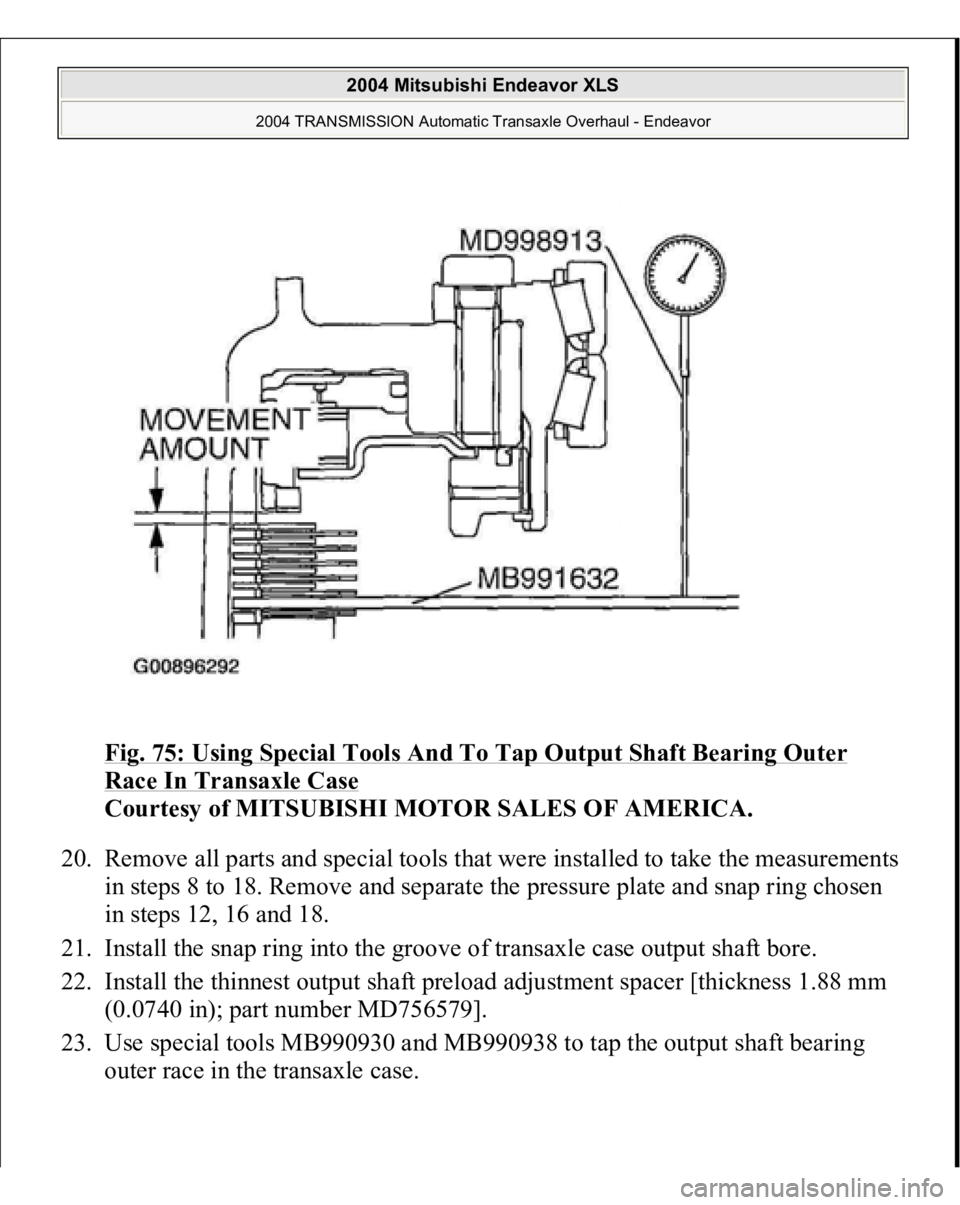

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 75: Using Special Tools And To Tap Output Shaft Bearing Outer Race In Transaxle Case Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 20. Remove all parts and special tools that were installed t

Page 532 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 76: Pressure Plate Thickness Moving Amount Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 24. Tighten the mounting bolts of the output shaft bearing retainer to the specified torque. T

Page 533 of 3870

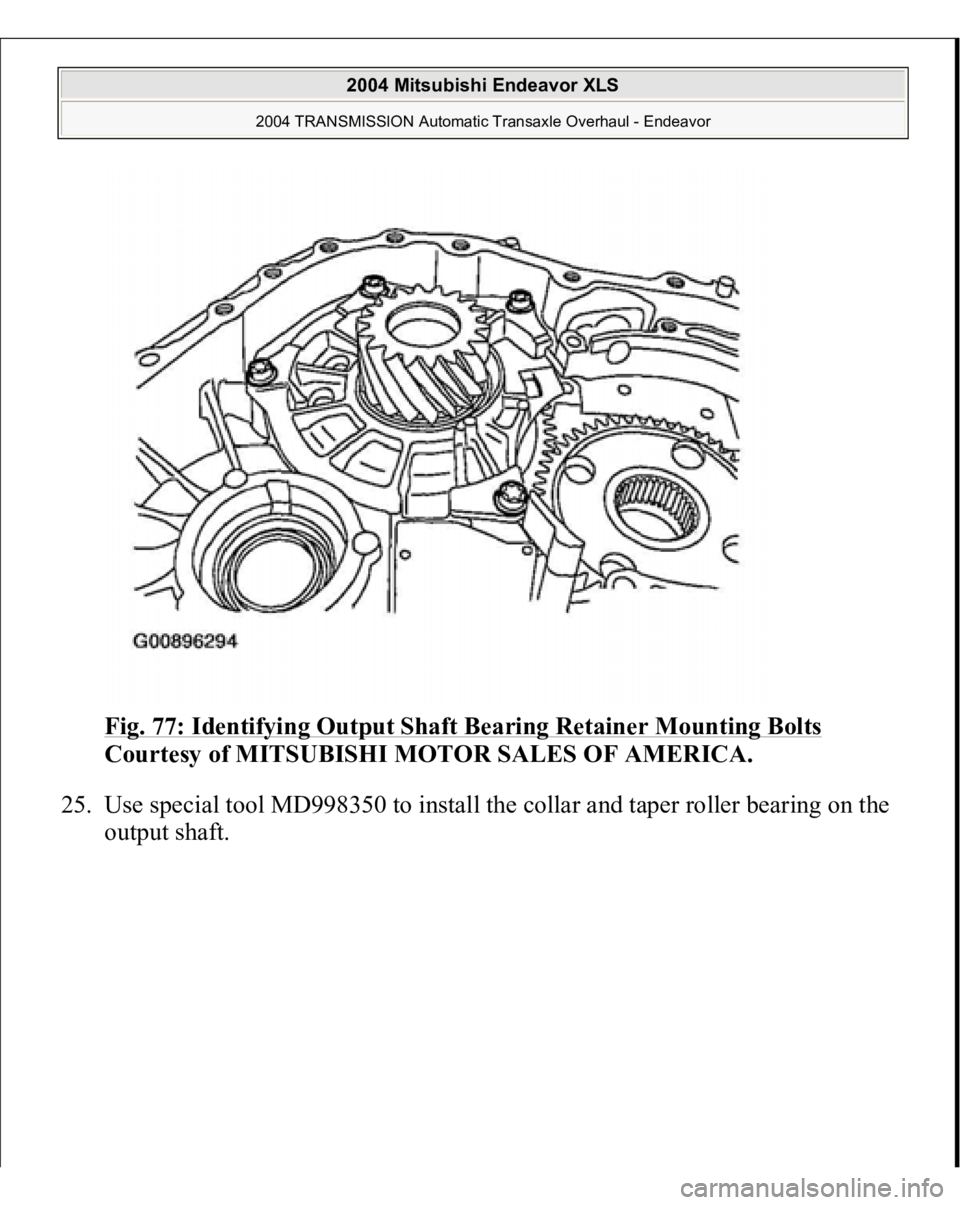

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 77: Identifying Output Shaft Bearing Retainer Mounting Bolts Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 25. Use special tool MD998350 to install the collar and taper roller bearing on the

Page 534 of 3870

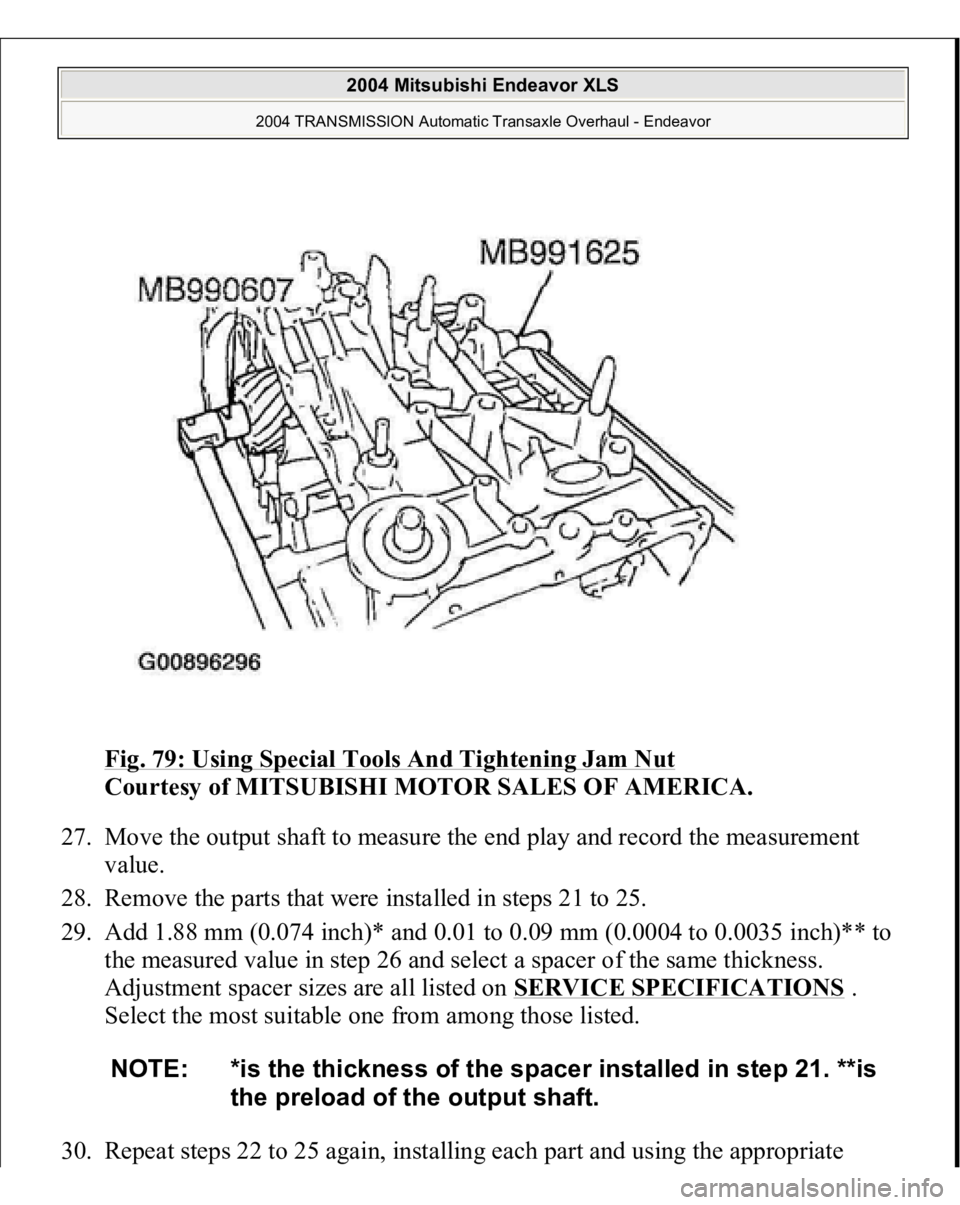

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 78: Using Special Tool To Installing Collar And Taper Roller Bearing Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 26. Apply ATF to a new jam nut, and use special tools MB990607 and MB991625

Page 535 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 79: Using Special Tools And Tightening Jam Nut Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 27. Move the output shaft to measure the end play and record the measurement value. 28. Remove

Page 536 of 3870

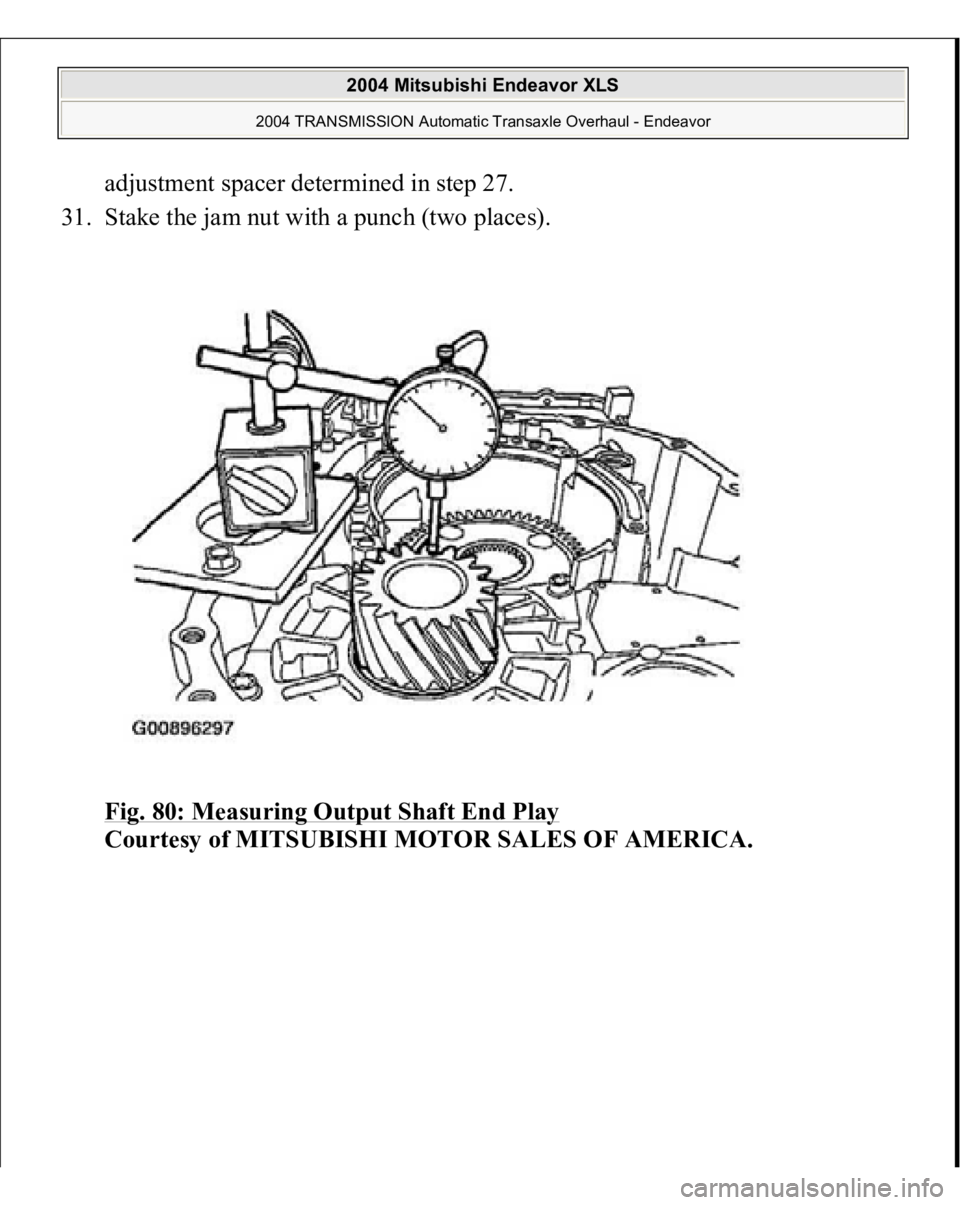

MITSUBISHI ENDEAVOR 2004 Service Repair Manual adjustment spacer determined in step 27. 31. Stake the jam nut with a punch (two places). Fig. 80: Measuring Output Shaft End Play Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi
