Page 593 of 3870

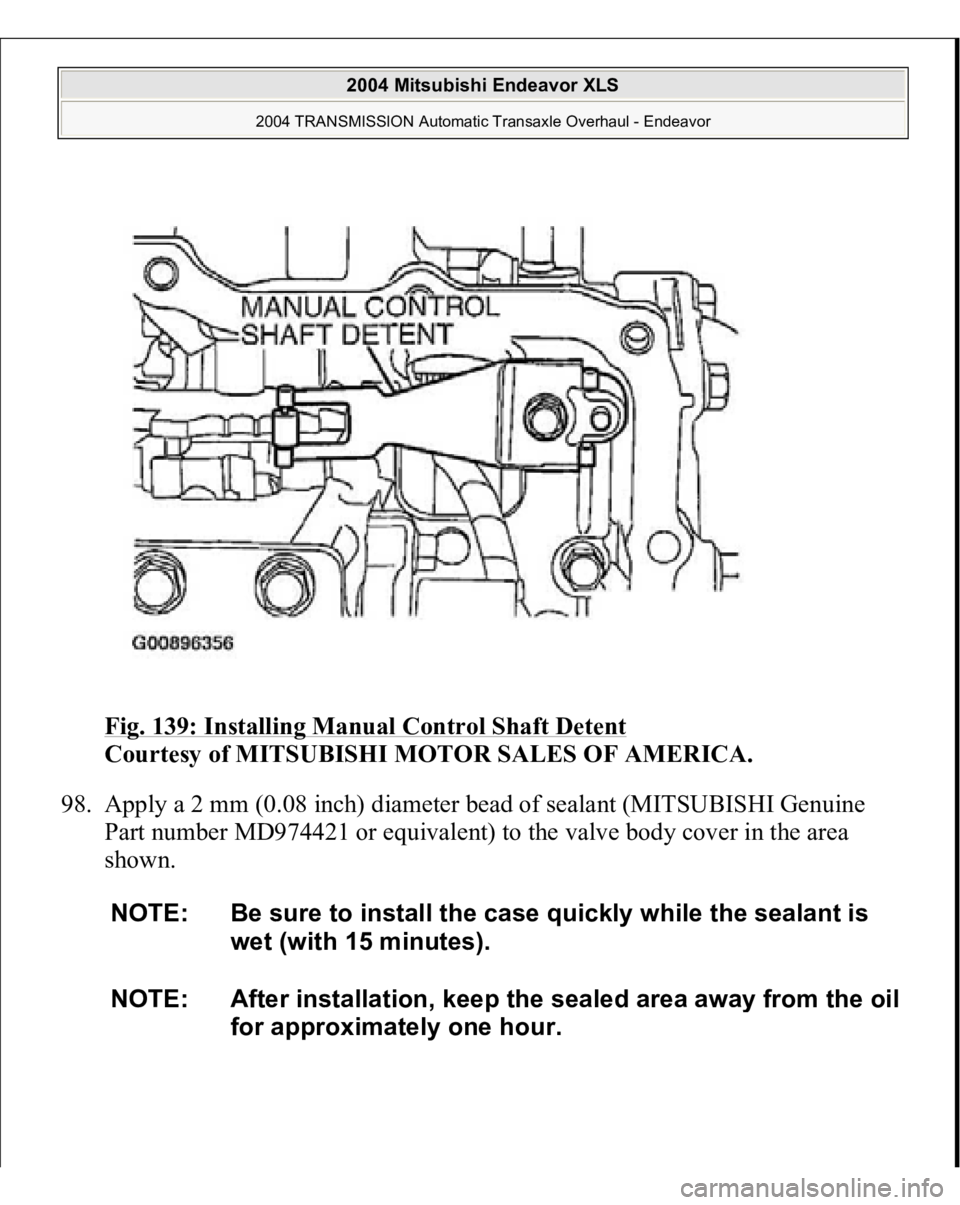

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 139: Installing Manual Control Shaft Detent Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 98. Apply a 2 mm (0.08 inch) diameter bead of sealant (MITSUBISHI Genuine Part number MD974421 or eq

Page 594 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 140: Applying Bead Of Sealant To Valve Body Cover Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 99. Install the valve body cover, and then tighten its mounting bolts to the specified torque.

Page 595 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 141: Installing Valve Body Cover Mounting Bolts Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 100. Install the Sealing cap and tighten the bolt to the specified torque. Tightening torque: 5.

Page 596 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 142: Identifying Sealing Cap Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 101. Install the park/neutral position switch and tighten the bolt to specified torque. Tightening torque: 11 +/- 1

Page 597 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 143: Identifying Manual Control Lever And Park/Neutral Position Switch Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 103. Install the input shaft speed sensor and output shaft speed sensor an

Page 598 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 144: Installing Input Shaft Speed Sensor And Output Shaft Speed Sensor Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 104. Press Face "A" of the air breather to be even with Face "

Page 599 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 108. Install the cable support bracket. Tightening torque: 23 +/- 3 N.m (17 +/- 2 ft-lb) 109. Install the roll stopper brackets. Tightening torque: 70 +/- 10 N.m (51 +/- 7 ft-lb) Fig. 145: Identi

Page 600 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Reference value : Approximately 9.4 mm (0.37 inch) 111. Install the transfer together with new o-ring and tighten the bolts to the specified torque < W4A5A > Tightening torque: 69 +/- 9 N.m (51
