Page 2425 of 3870

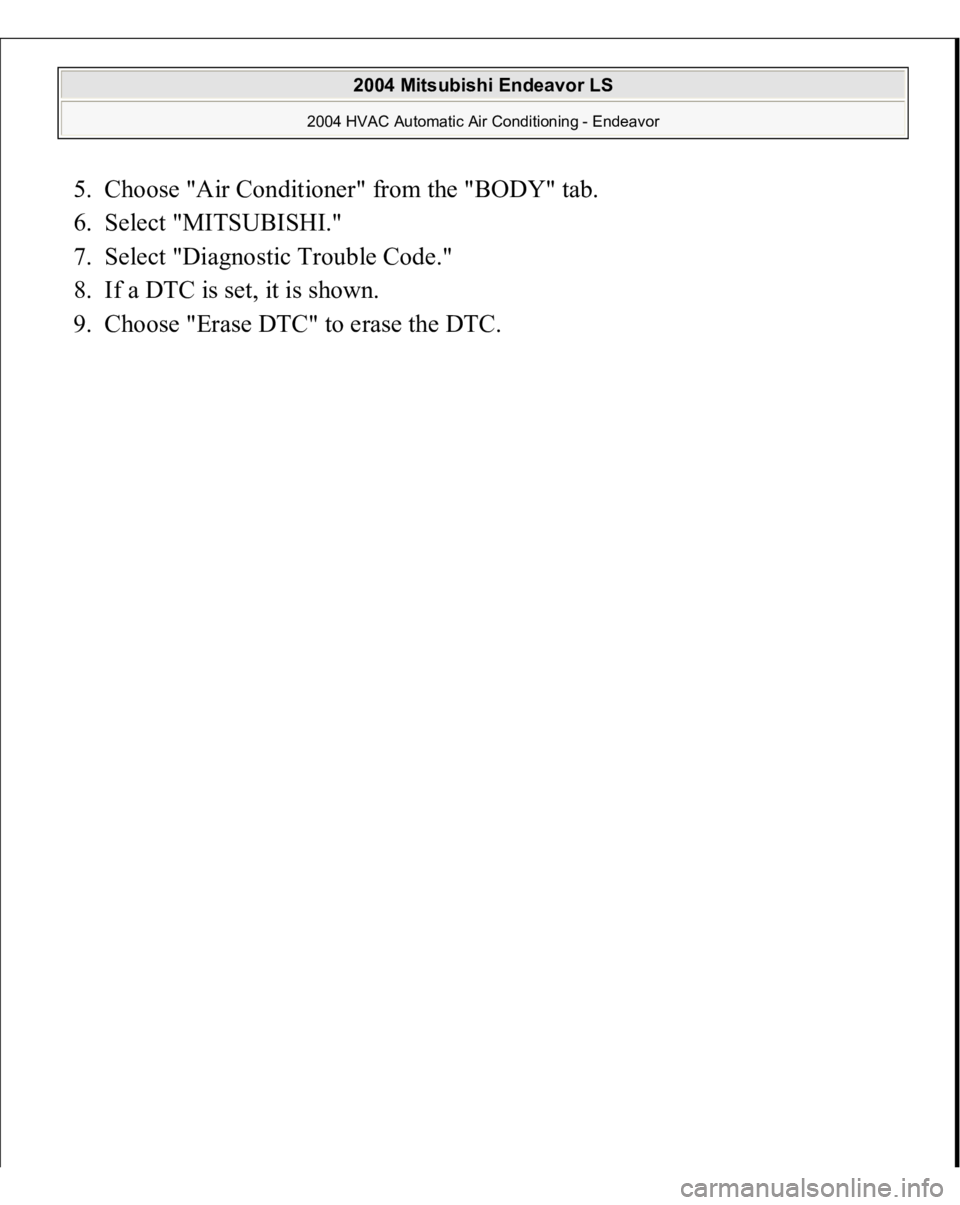

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 6. Turn the power switch of special tool MB991824 to the "ON" position. 7. Start the MUT-III system on the personal computer. HOW TO READ AND ERASE DIAGNOSTIC TROUBLE CODES Required Special

Page 2426 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 5. Choose "Air Conditioner" from the "BODY" tab. 6. Select "MITSUBISHI." 7. Select "Diagnostic Trouble Code." 8. If a DTC is set, it is shown. 9. Choose "Er

Page 2427 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 HVAC Automatic Air Conditioning - Endeavor

Page 2428 of 3870

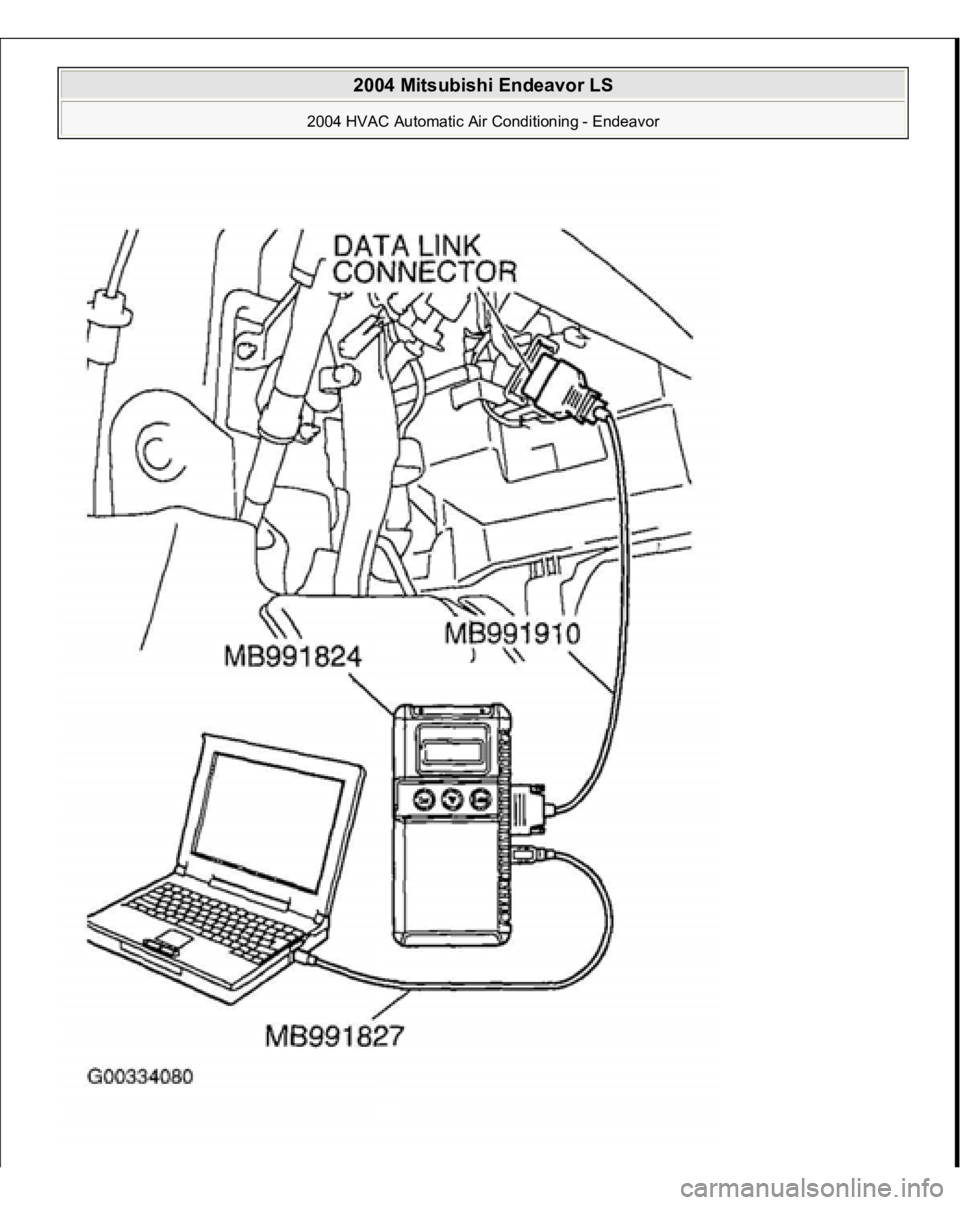

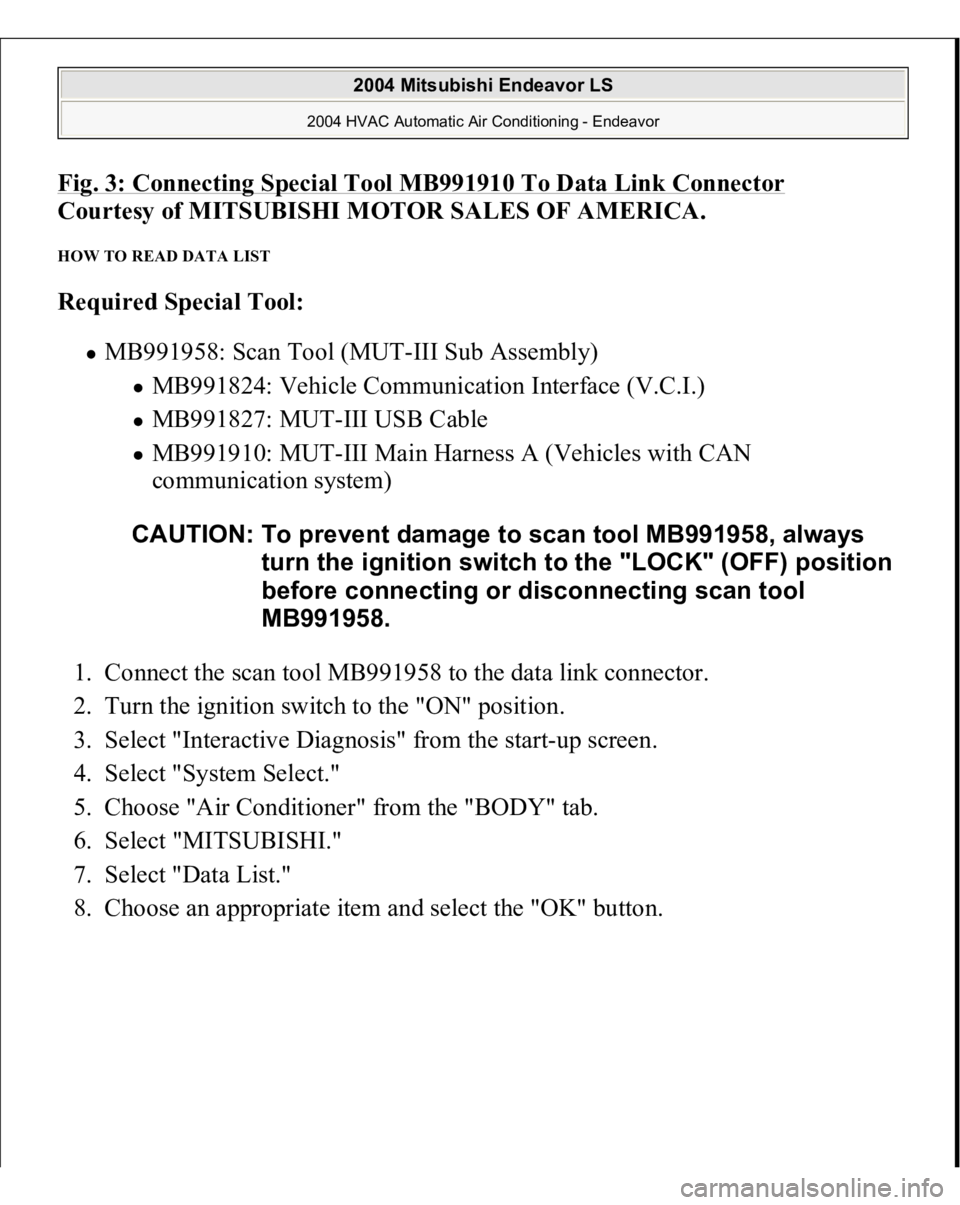

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 3: Connecting Special Tool MB991910 To Data Link Connector Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. HOW TO READ DATA LIST Required Special Tool: MB991958: Scan Tool (MUT-III Sub Asse

Page 2429 of 3870

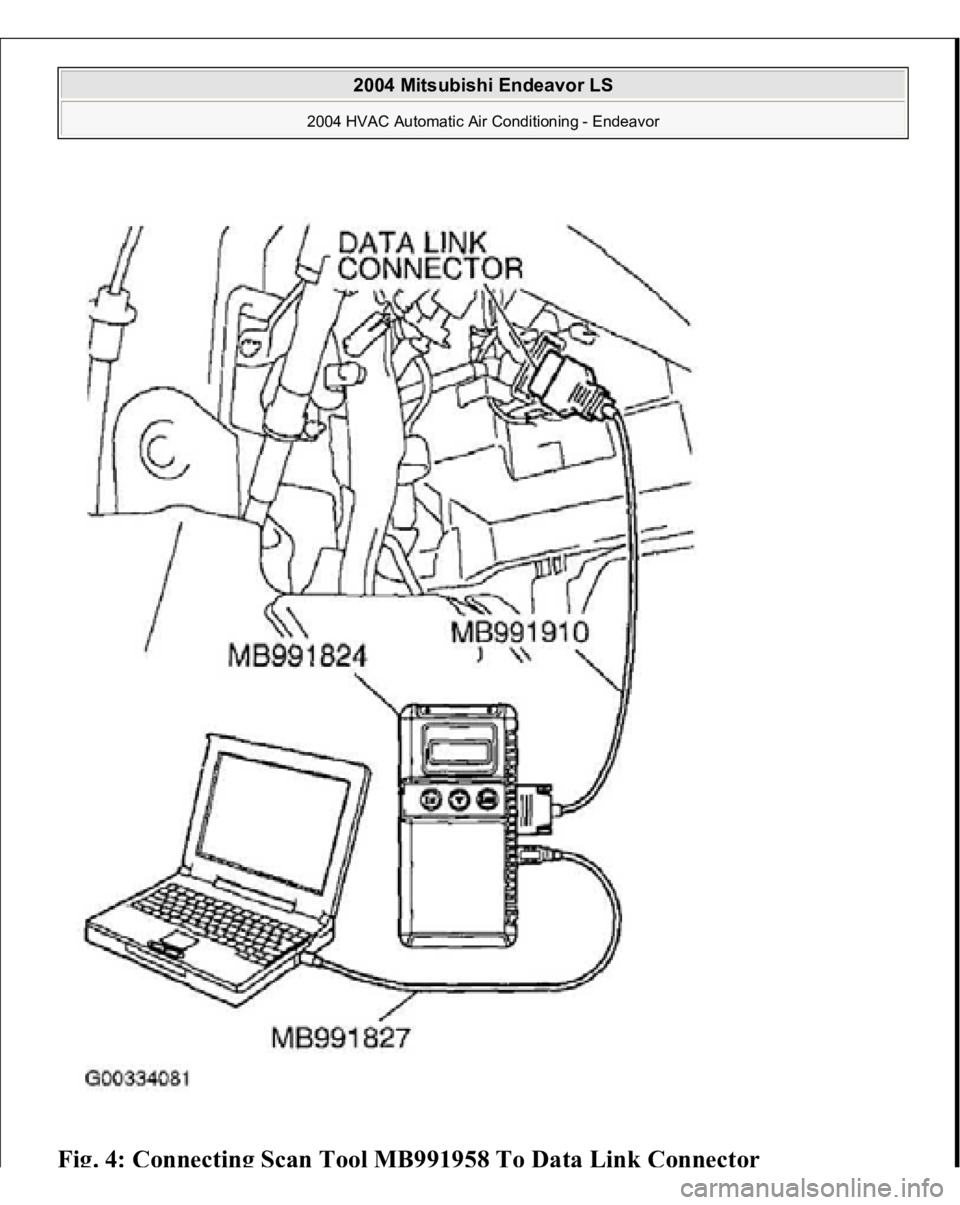

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 4: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 HVAC Automatic Air Conditioning - Endeavor

Page 2430 of 3870

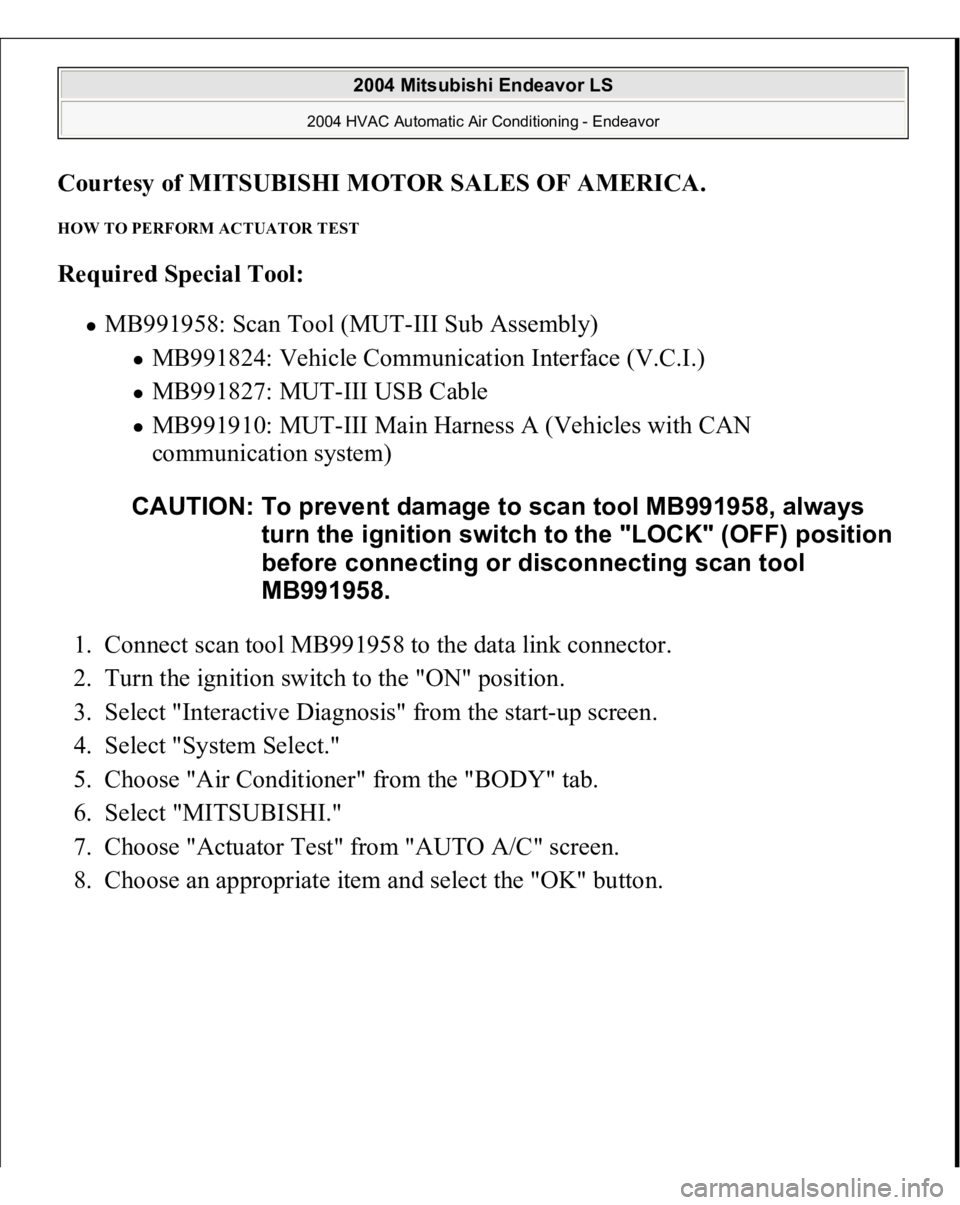

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . HOW TO PERFORM ACTUATOR TEST Required Special Tool: MB991958: Scan Tool (MUT-III Sub Assembly) MB991824: Vehicle Communication Interface (V.C.I.)

Page 2431 of 3870

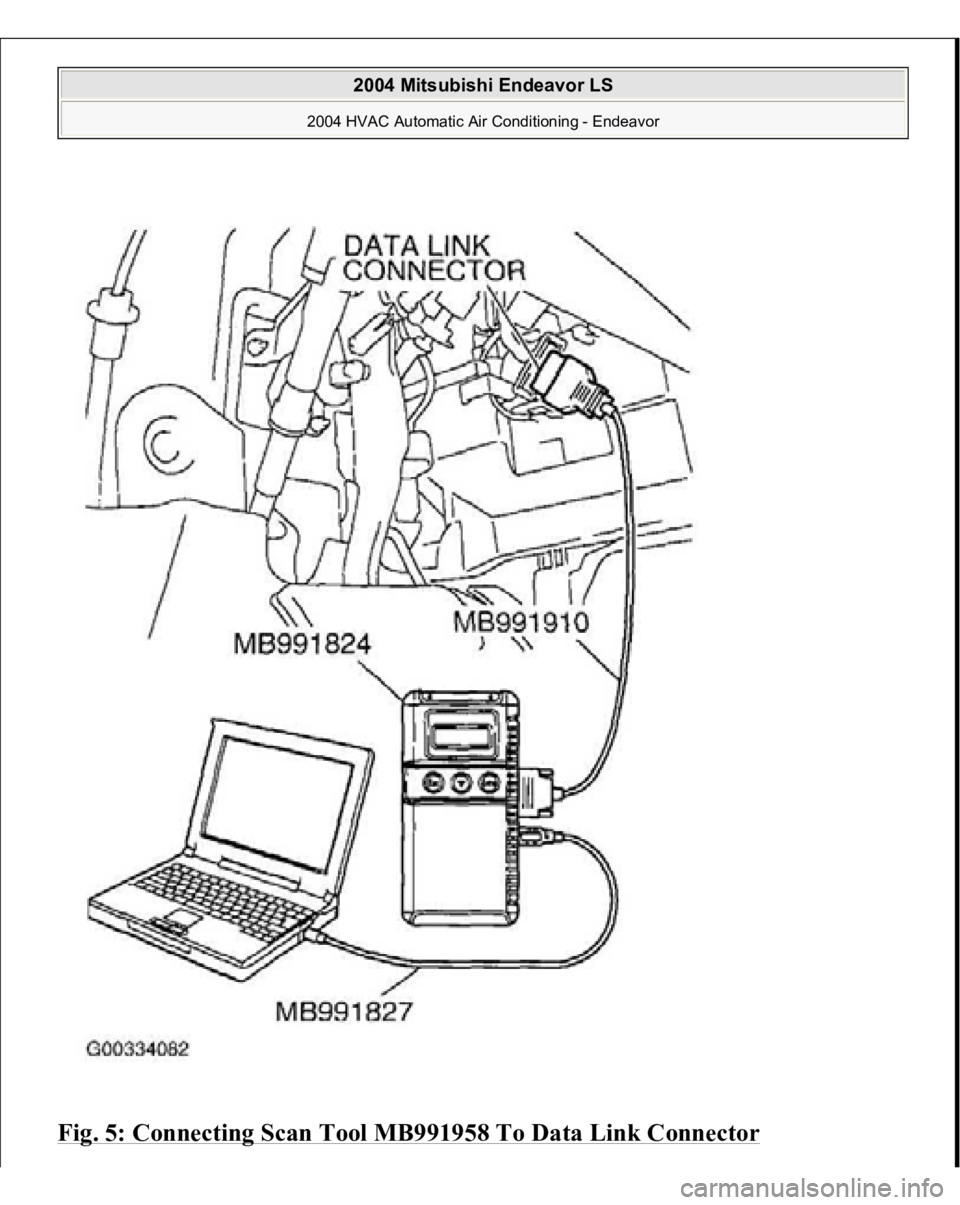

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 5: Connecting Scan Tool MB991958 To Data Link Connector 2004 Mitsubishi Endeavor LS 2004 HVAC Automatic Air Conditioning - Endeavor

Page 2432 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Courtesy of MITSUBISHI MOTOR SALES OF AMERICA . DIAGNOSTIC TROUBLE CODE CHART Fig. 6: Automatic Air Conditioning Diagnostic Trouble Code Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. DIAGN
