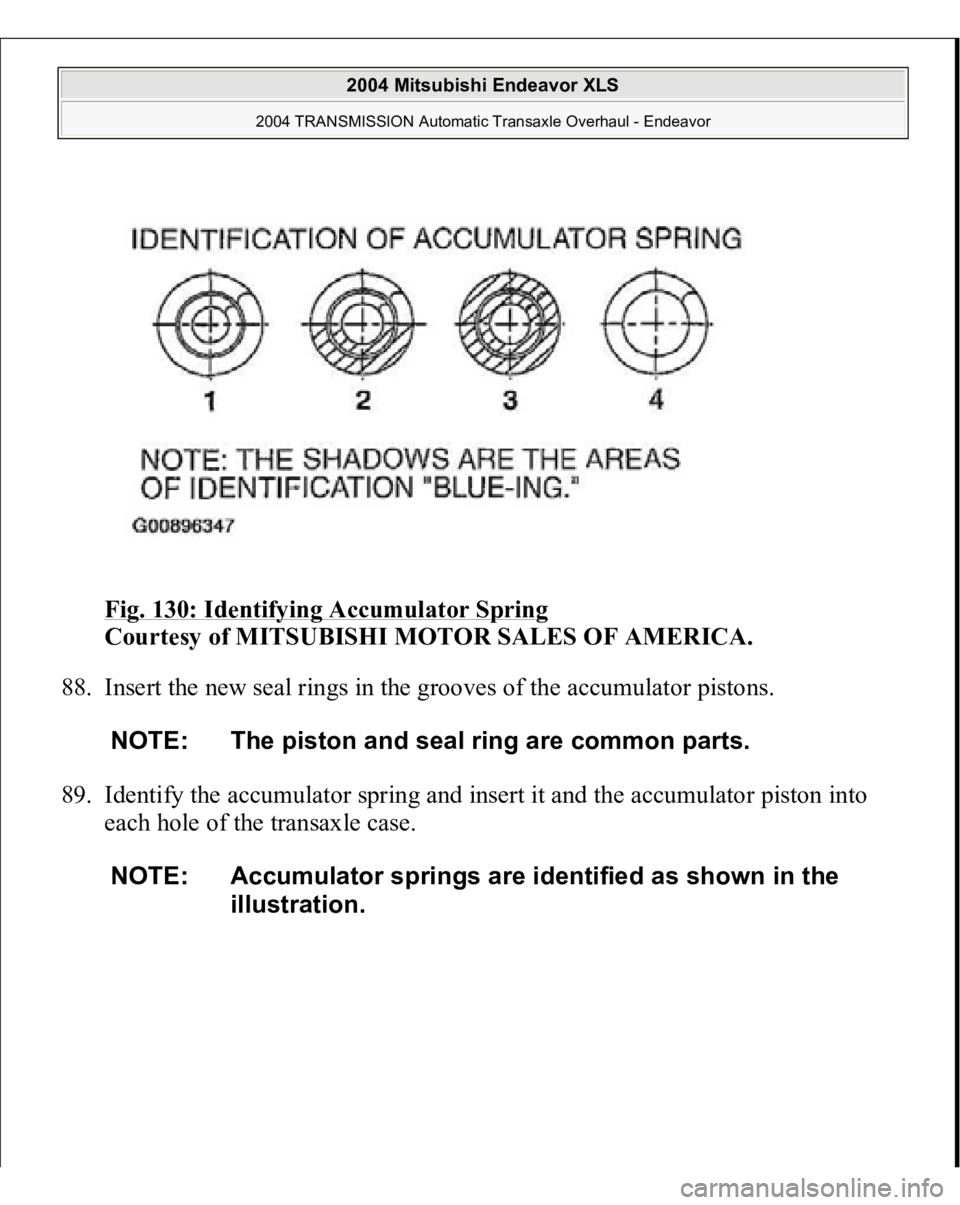

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 130: Identifying Accumulator Spring Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 88. Insert the new seal rings in the grooves of the accumulator pistons. 89. Identify the accumulator spring

Page 586 of 3870

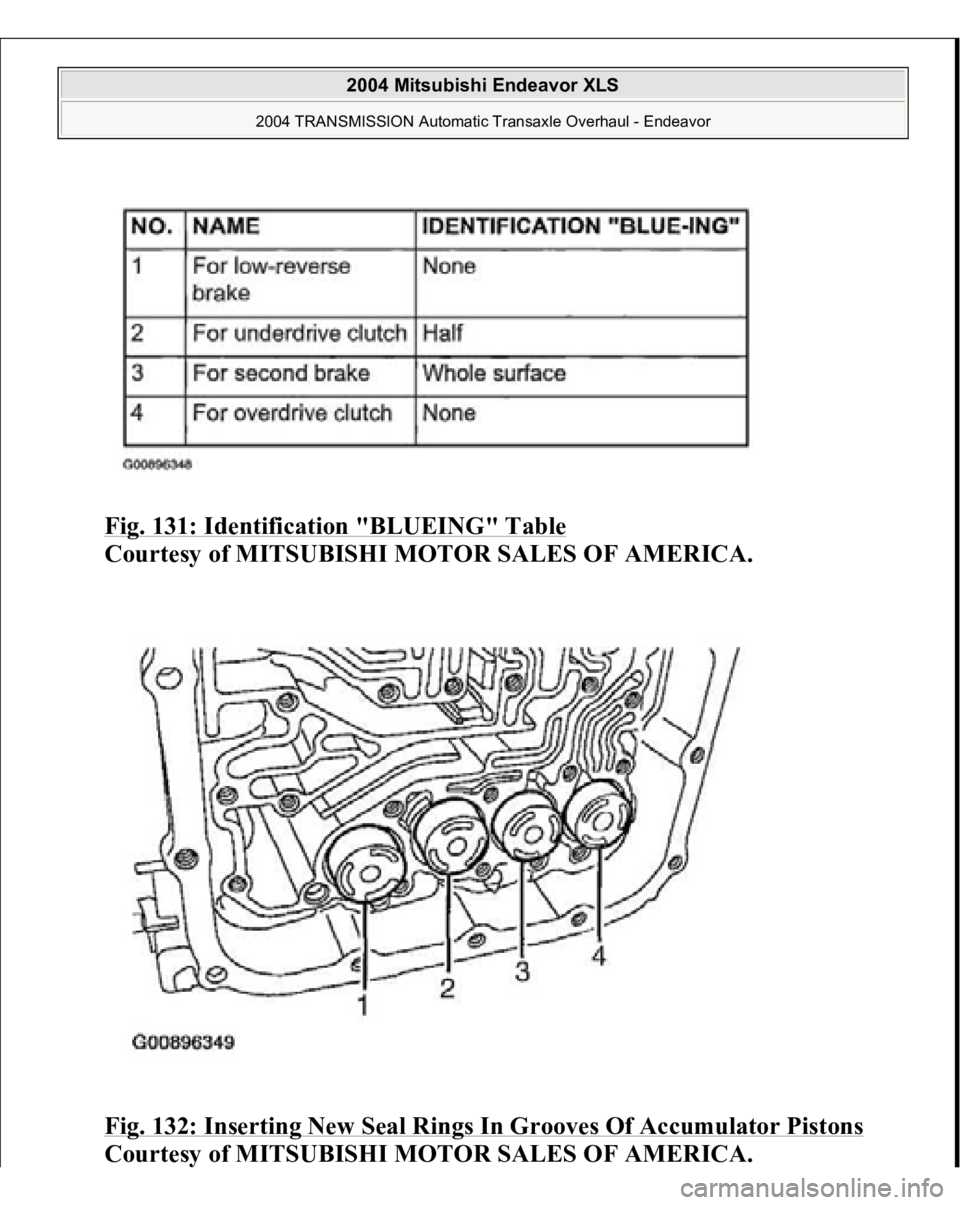

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 131: Identification "BLUEING" Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Fig. 132: Inserting New Seal Rings In Grooves Of Accumulator Pistons Courtesy of MITSUBISHI MOTOR S

Page 587 of 3870

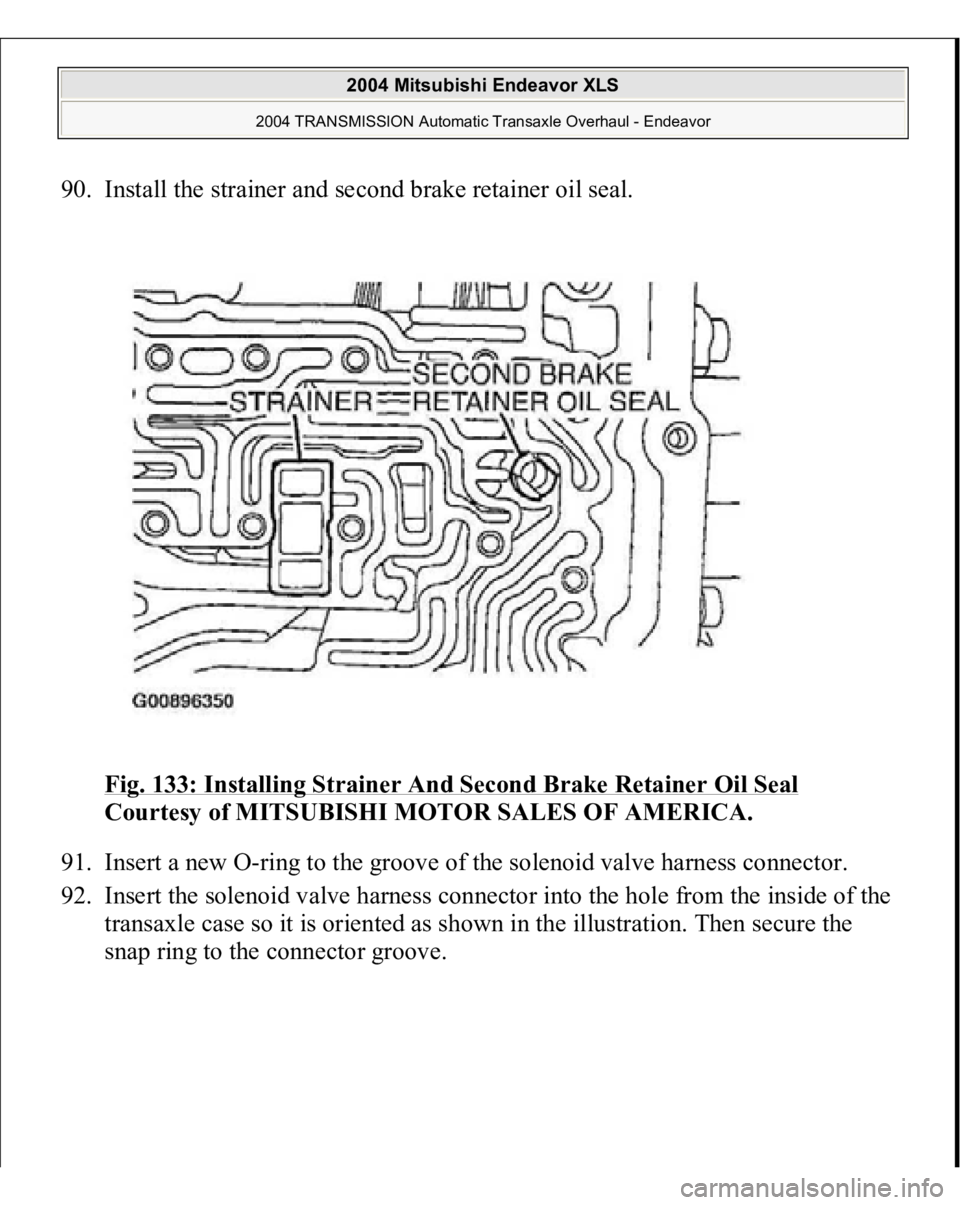

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 90. Install the strainer and second brake retainer oil seal. Fig. 133: Installing Strainer And Second Brake Retainer Oil Seal Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 91. Insert a new O-ring

Page 588 of 3870

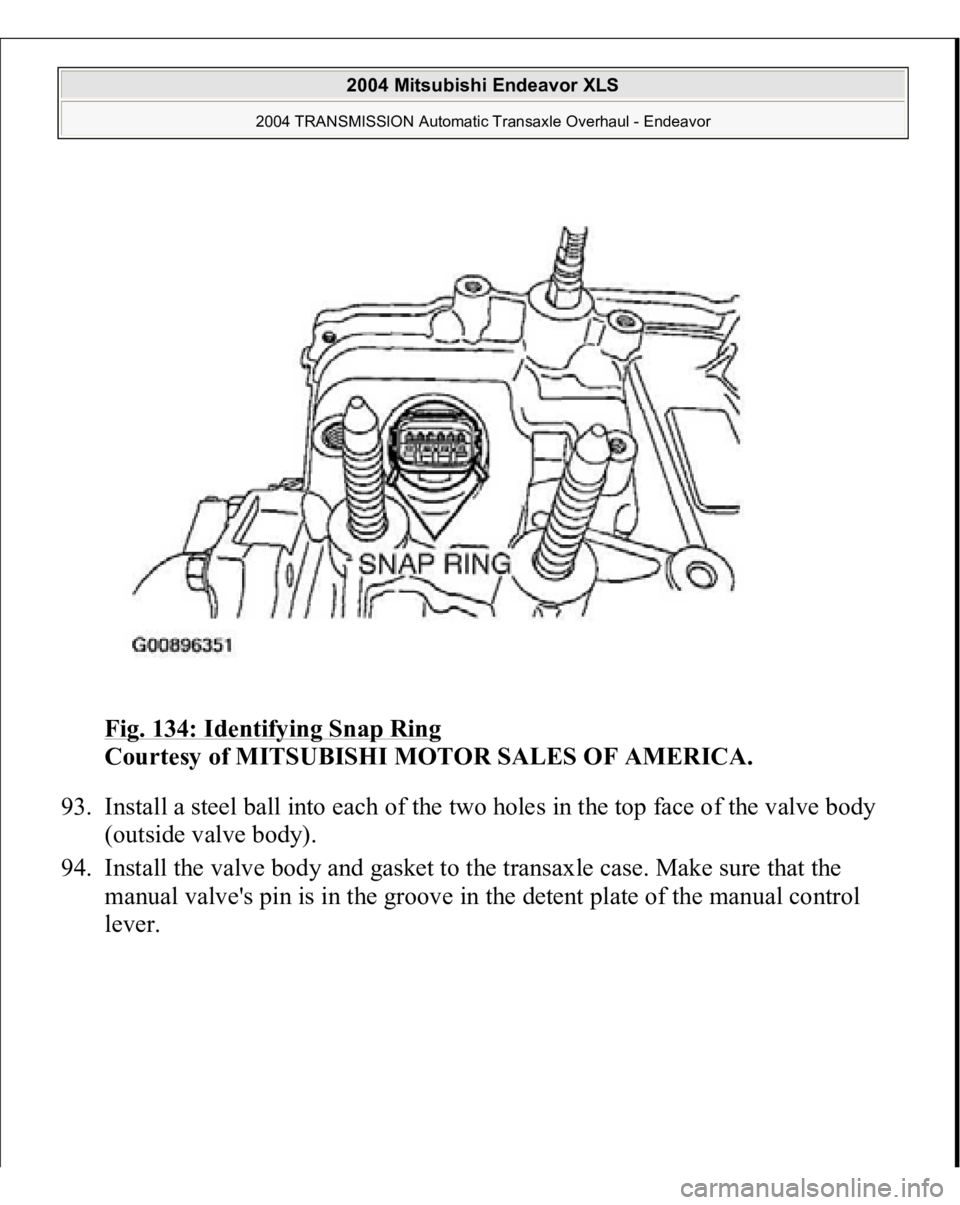

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 134: Identifying Snap Ring Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 93. Install a steel ball into each of the two holes in the top face of the valve body (outside valve body). 94. Ins

Page 589 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 135: Installing Valve Body And Gasket To Transaxle Case Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 95. Install the 27 valve body mounting bolts, and tighten to the specified torque. Tight

Page 590 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 136: Installing Valve Body Mounting Bolts Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 96. Attach the solenoid valve harness to the valve body by connecting the fluid tem perature sensor an

Page 591 of 3870

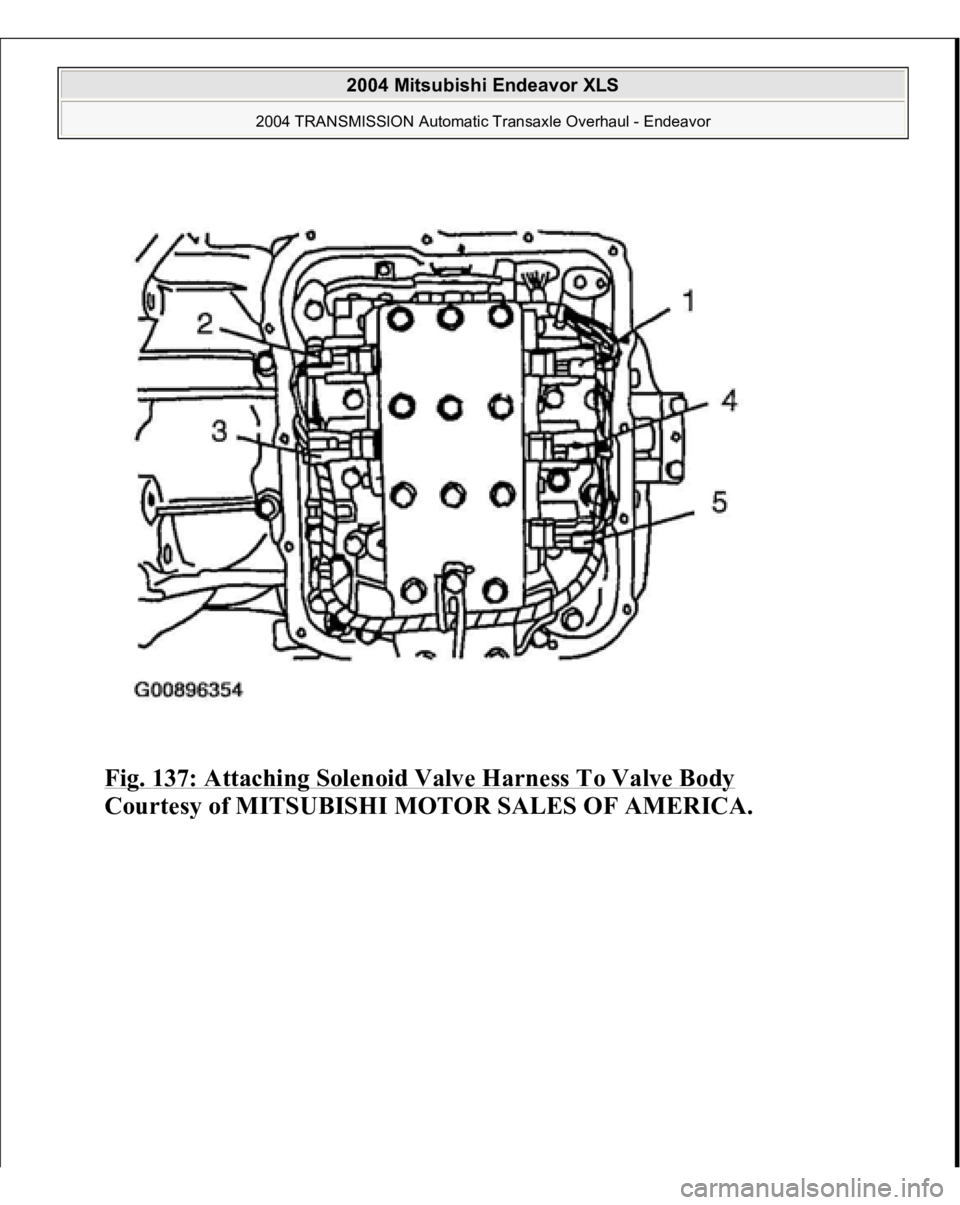

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 137: Attaching Solenoid Valve Harness To Valve Body Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor XLS 2004 TRANSMISSION Automatic Transaxle Overhaul - Endeavor

Page 592 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 138: Solenoid Valve Harness Cable Color Identification Table Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 97. Install the manual control shaft detent and tighten the bolt to the specified t
