Page 249 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 148: Terminal No. Specification Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 250 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 3. Manually turn the wheel to be measured 1/2 to 1 turn/second. Measure the output voltage with a voltmeter or oscilloscope. Output voltage: Minimal voltmeter reading: 42 mV Maximum voltmeter rea

Page 251 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 252 of 3870

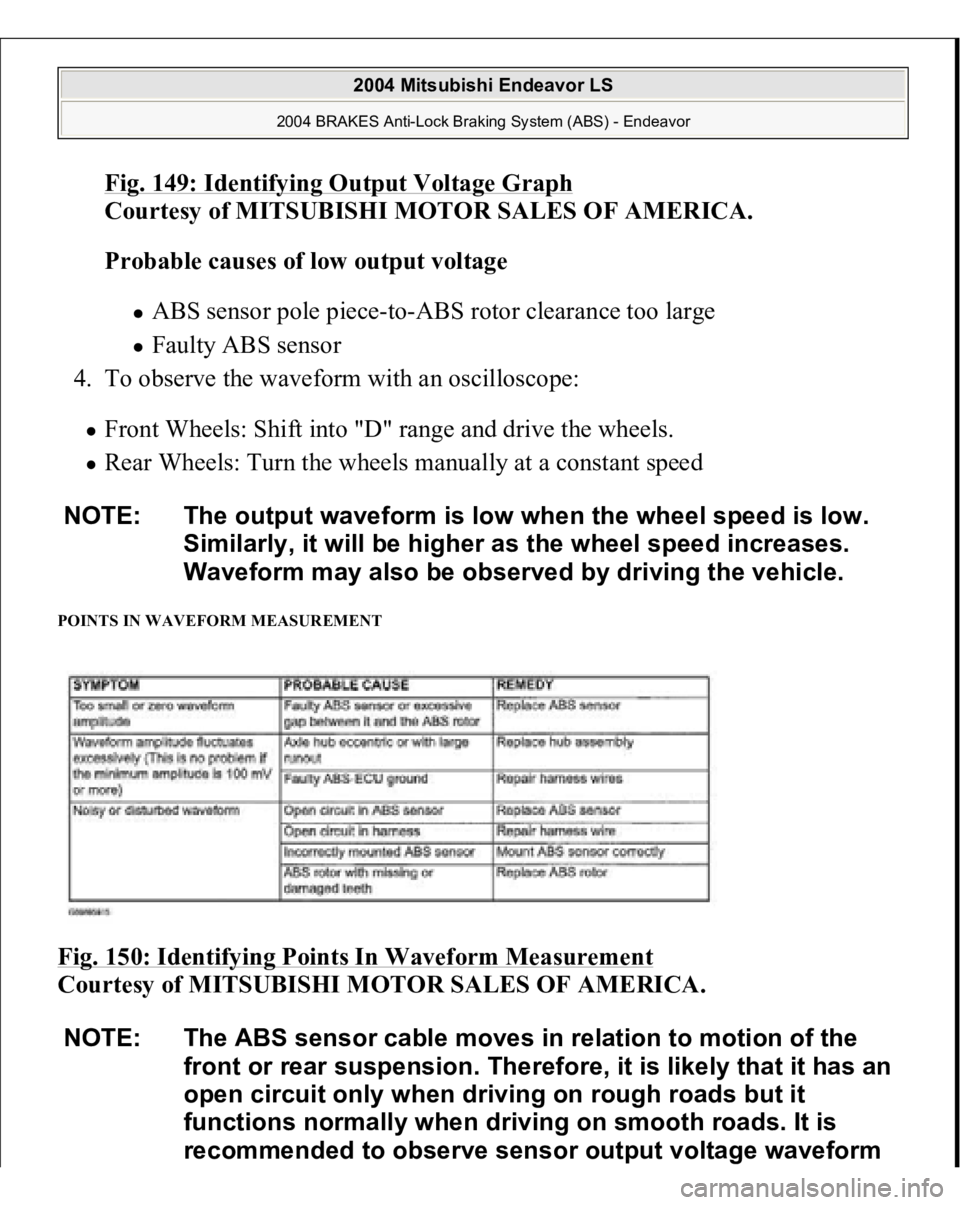

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 149: Identifying Output Voltage Grap h Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Probable causes of low output voltage ABS sensor pole piece-to-ABS rotor clearance too large Faulty ABS

Page 253 of 3870

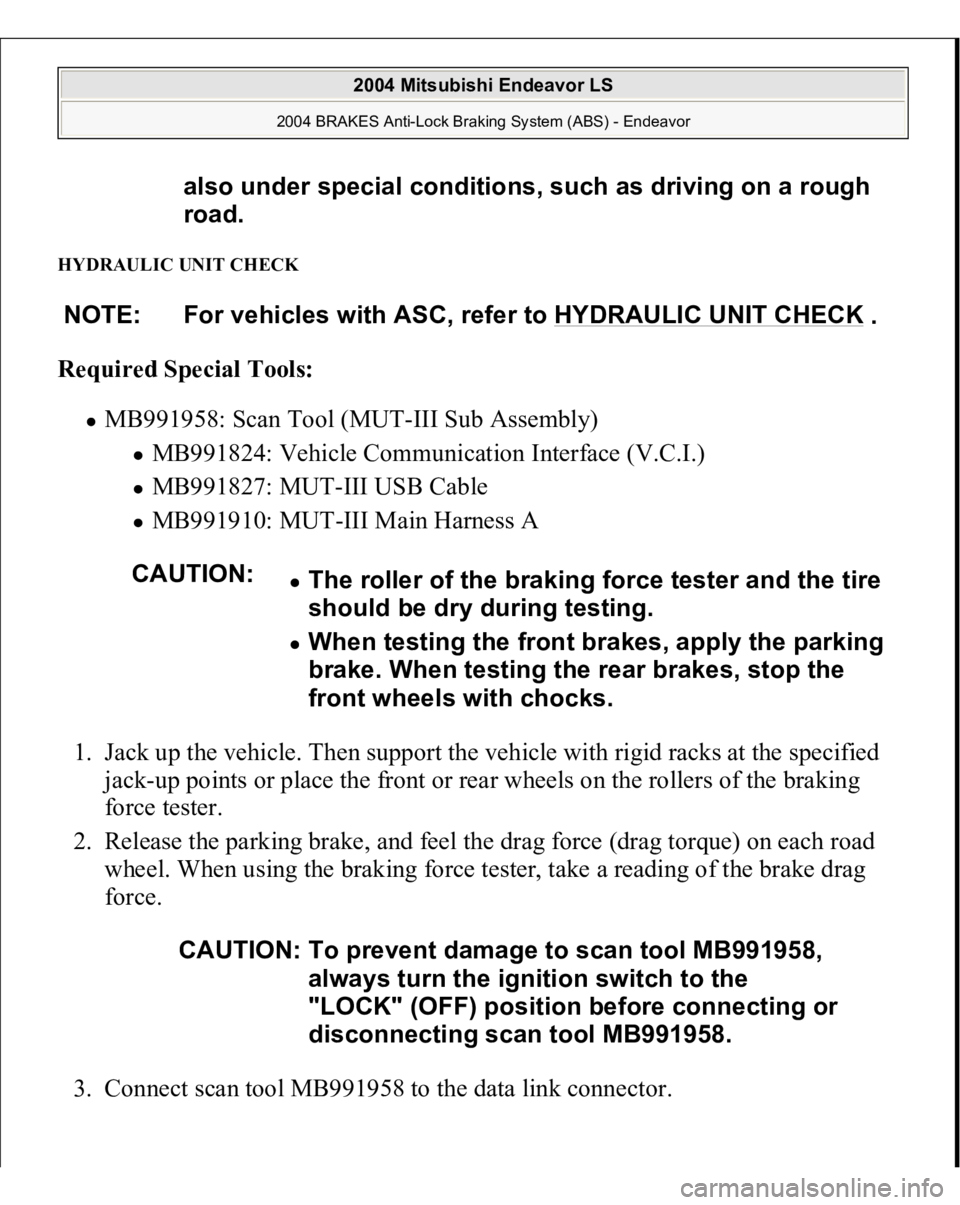

MITSUBISHI ENDEAVOR 2004 Service Repair Manual HYDRAULIC UNIT CHECK Required Special Tools: MB991958: Scan Tool (MUT-III Sub Assembly) MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harne

Page 254 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 151: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 BRAKES Anti-Lock Braking System (ABS) - Endeavor

Page 255 of 3870

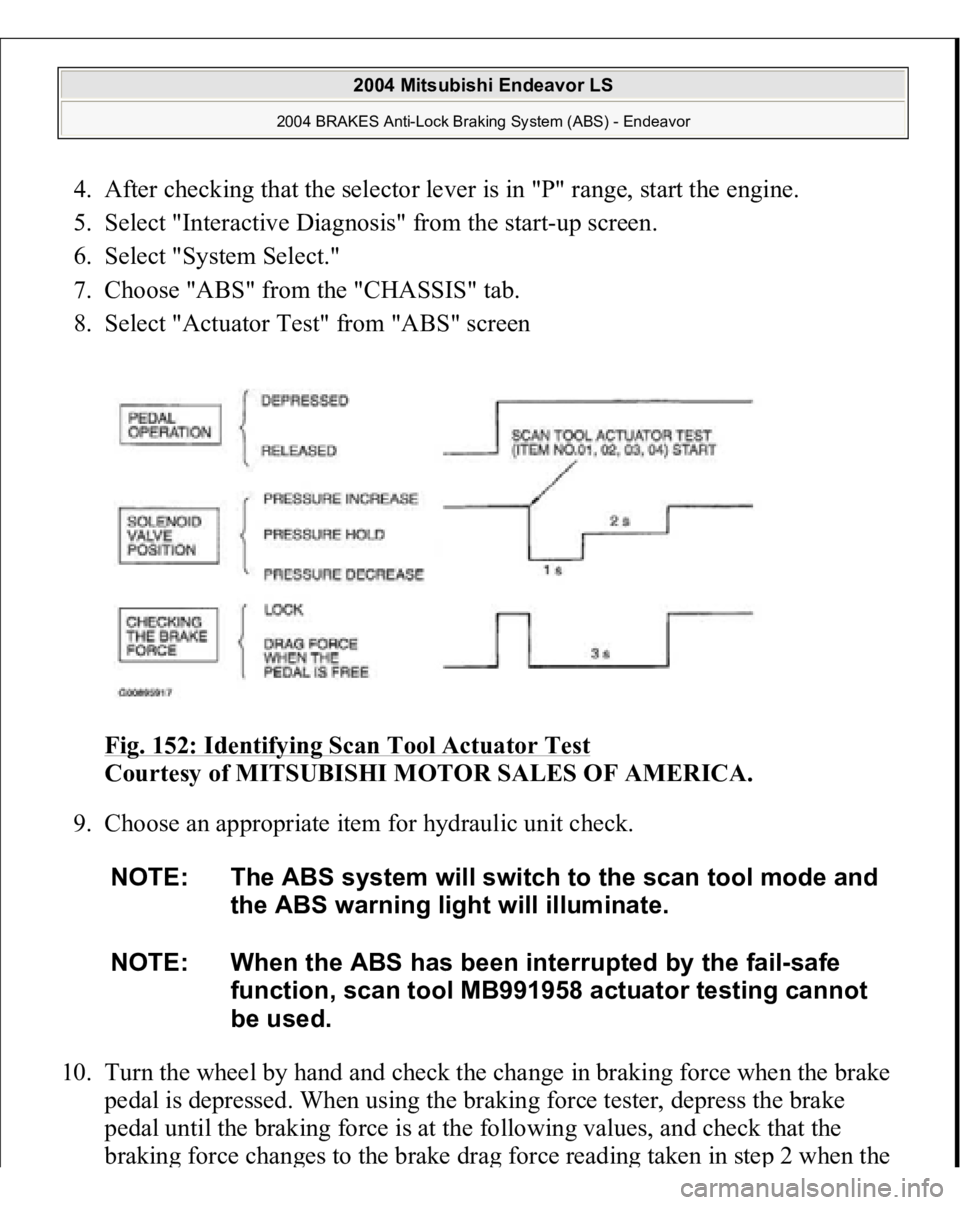

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 4. After checking that the selector lever is in "P" range, start the engine. 5. Select "Interactive Diagnosis" from the start-up screen. 6. Select "System Select." 7. Cho

Page 256 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual actuator is force-driven. The result should be as shown in the diagram above. HYDRAULIC UNIT CHECK 11. If the result of inspection is abnormal, repair according to the Diagnosis Table below. Fig.
