Page 3737 of 3870

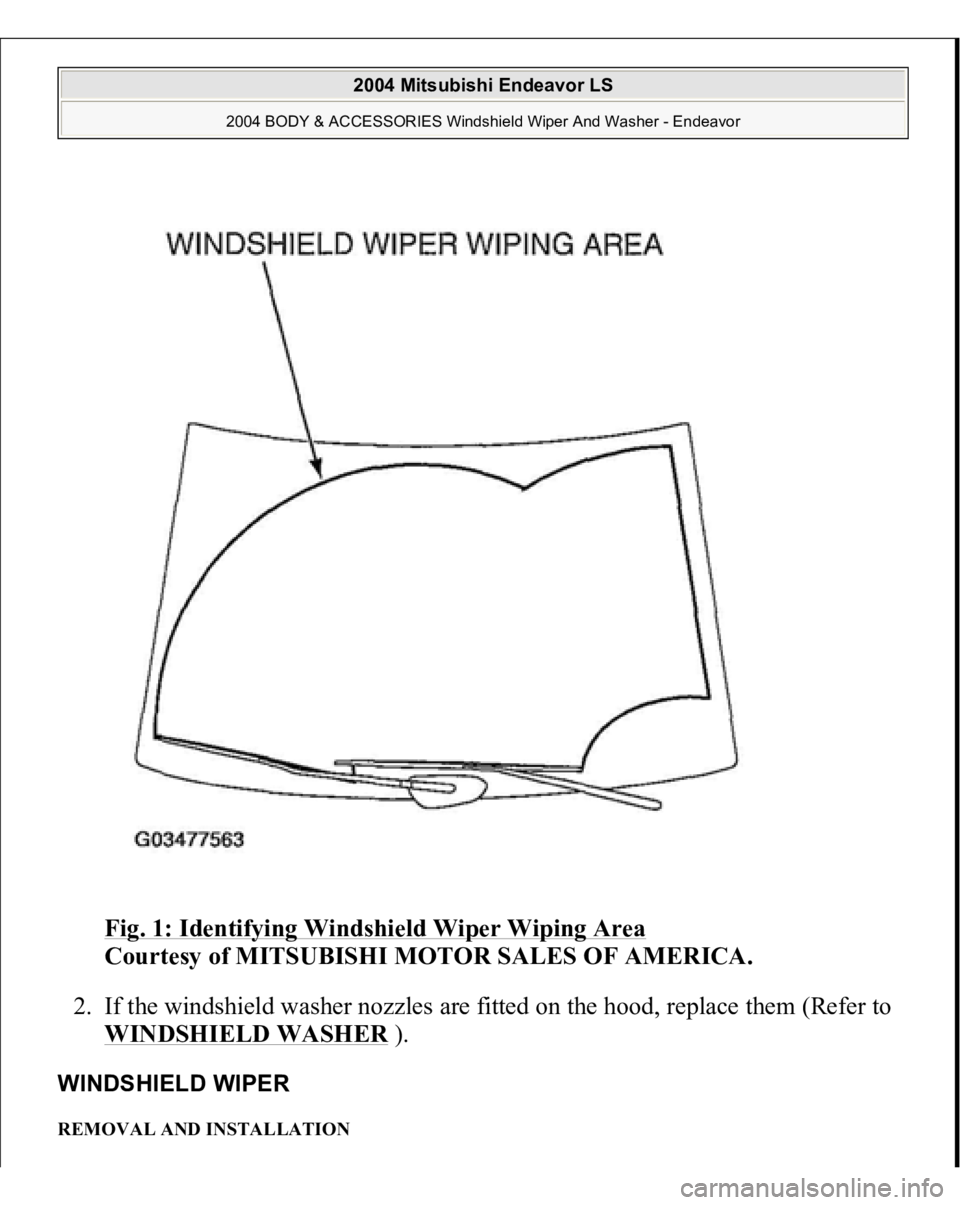

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 1: Identifying Windshield Wiper Wiping Area Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. If the windshield washer nozzles are fitted on the hood, replace them (Refer to WINDSHIELD WASHER

Page 3738 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

Page 3739 of 3870

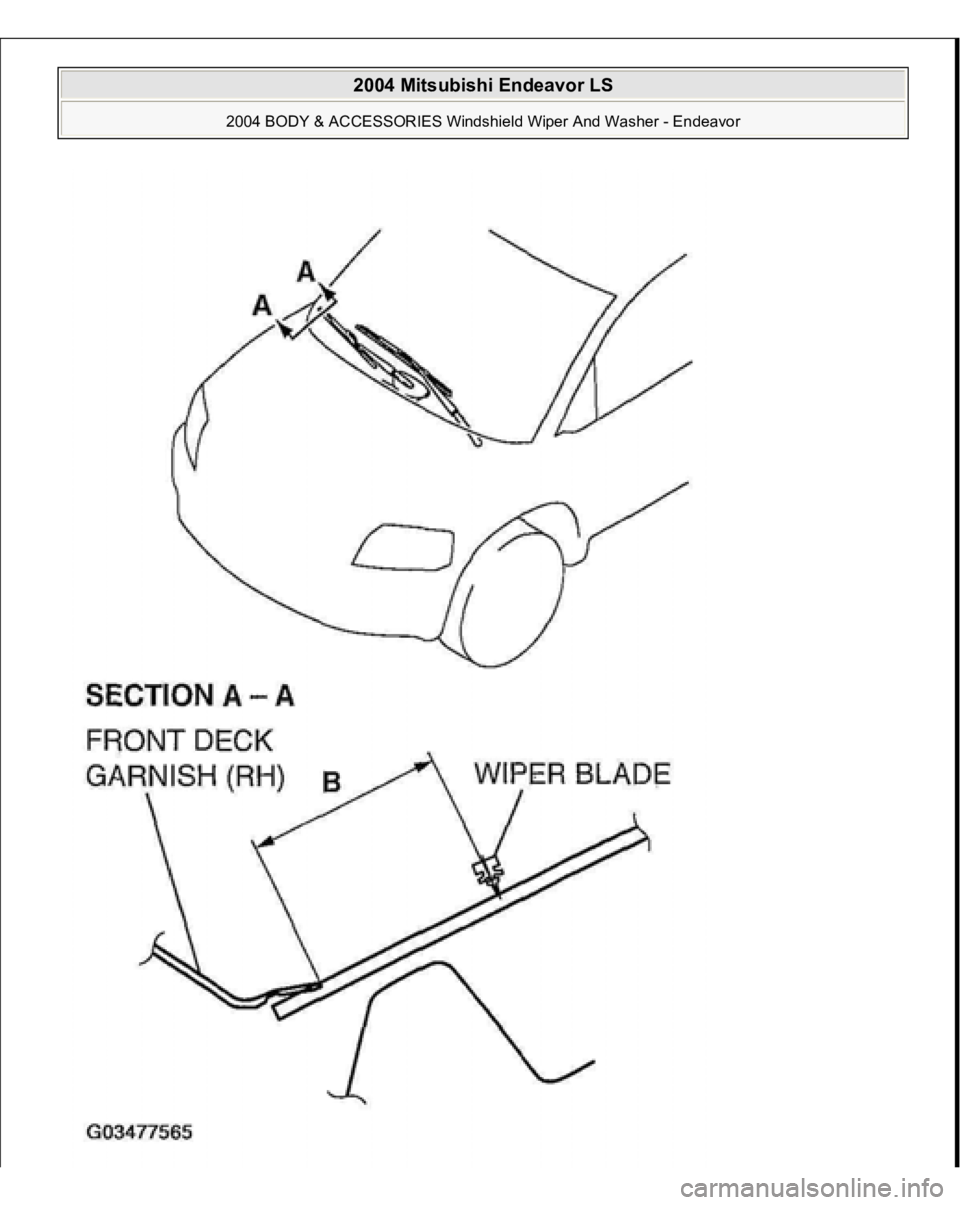

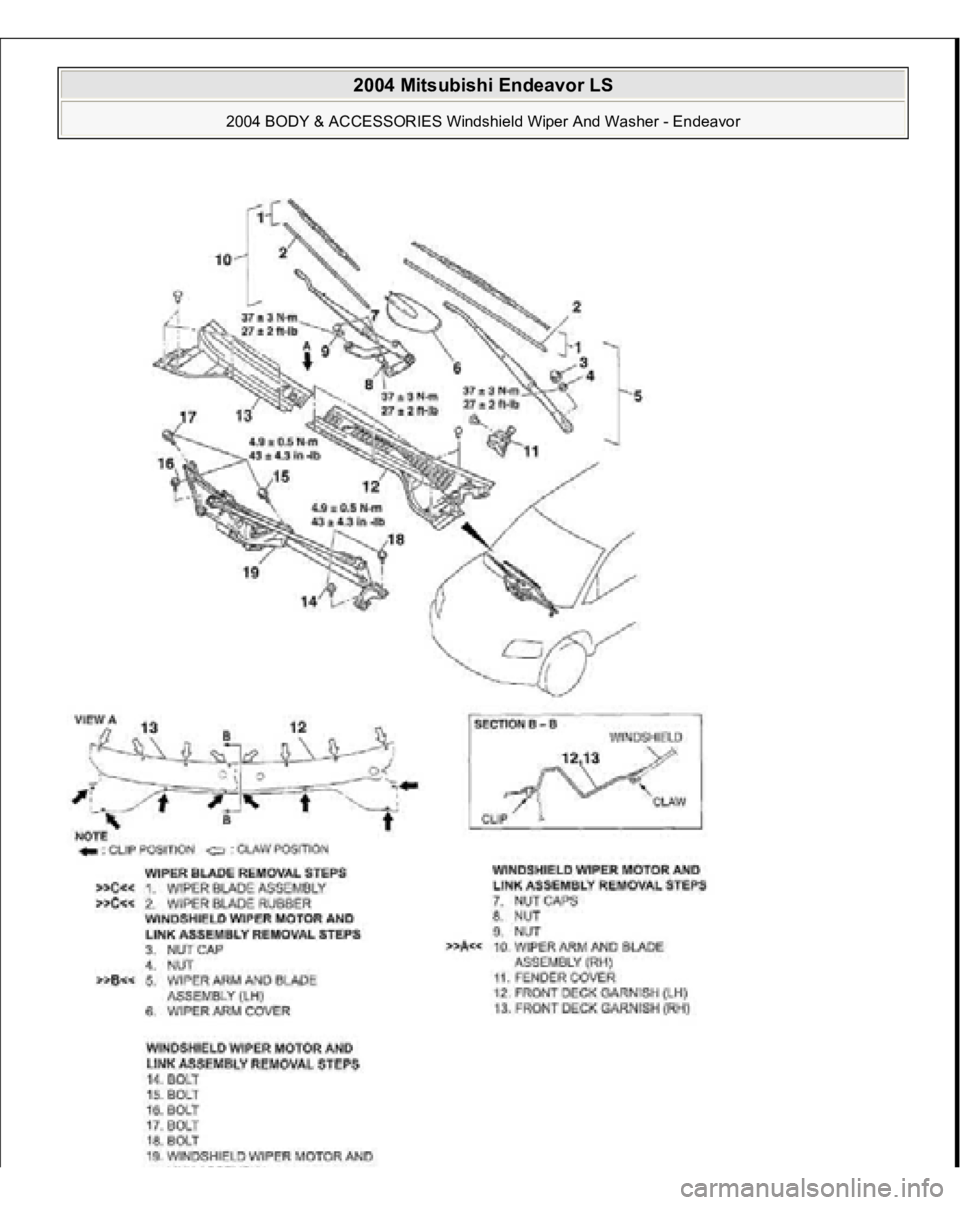

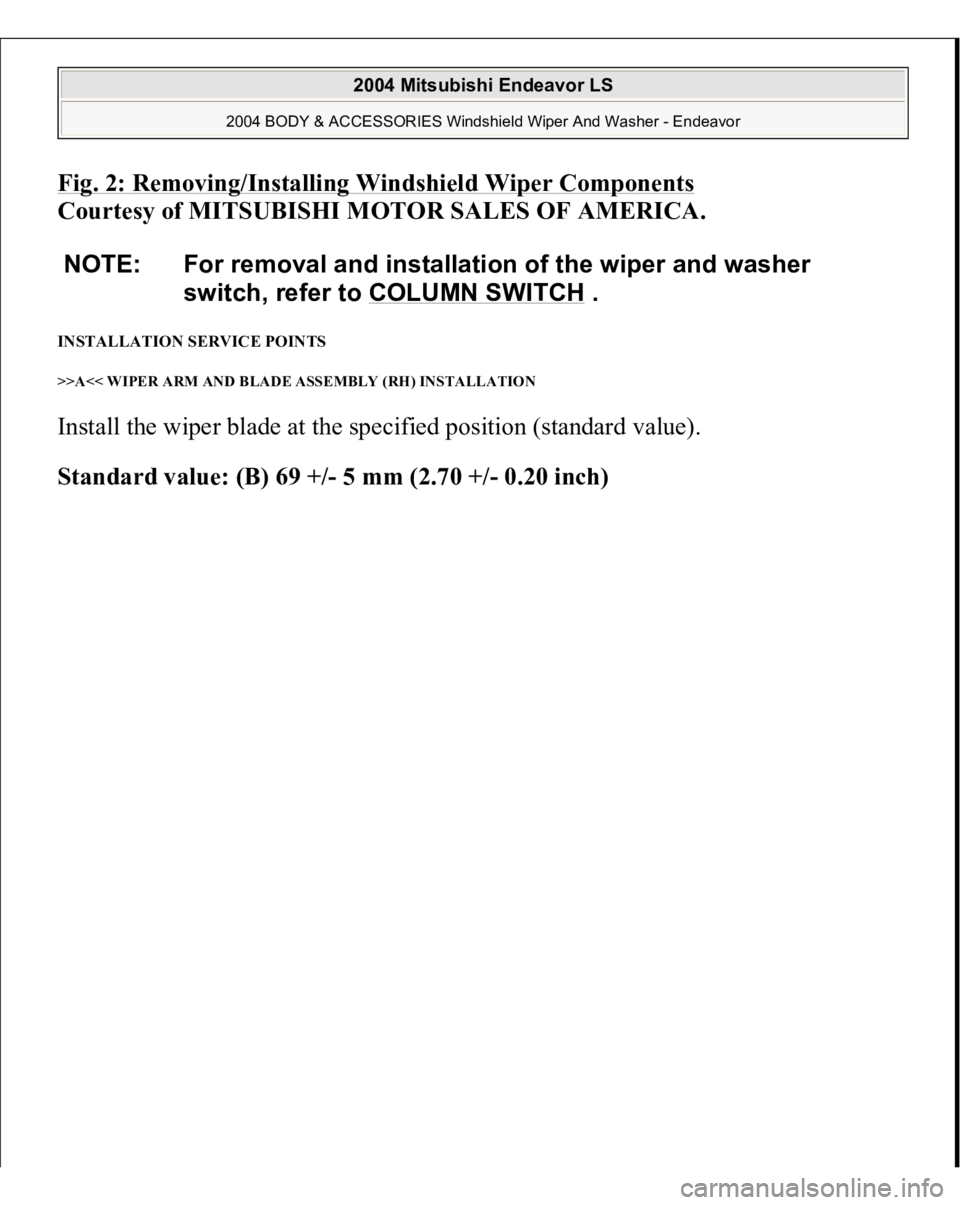

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 2: Removing/Installing Windshield Wiper Components Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. INSTALLATION SERVICE POINTS >>A<< WIPER ARM AND BLADE ASSEMBLY (RH) INSTALLATION Install the w

Page 3740 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

Page 3741 of 3870

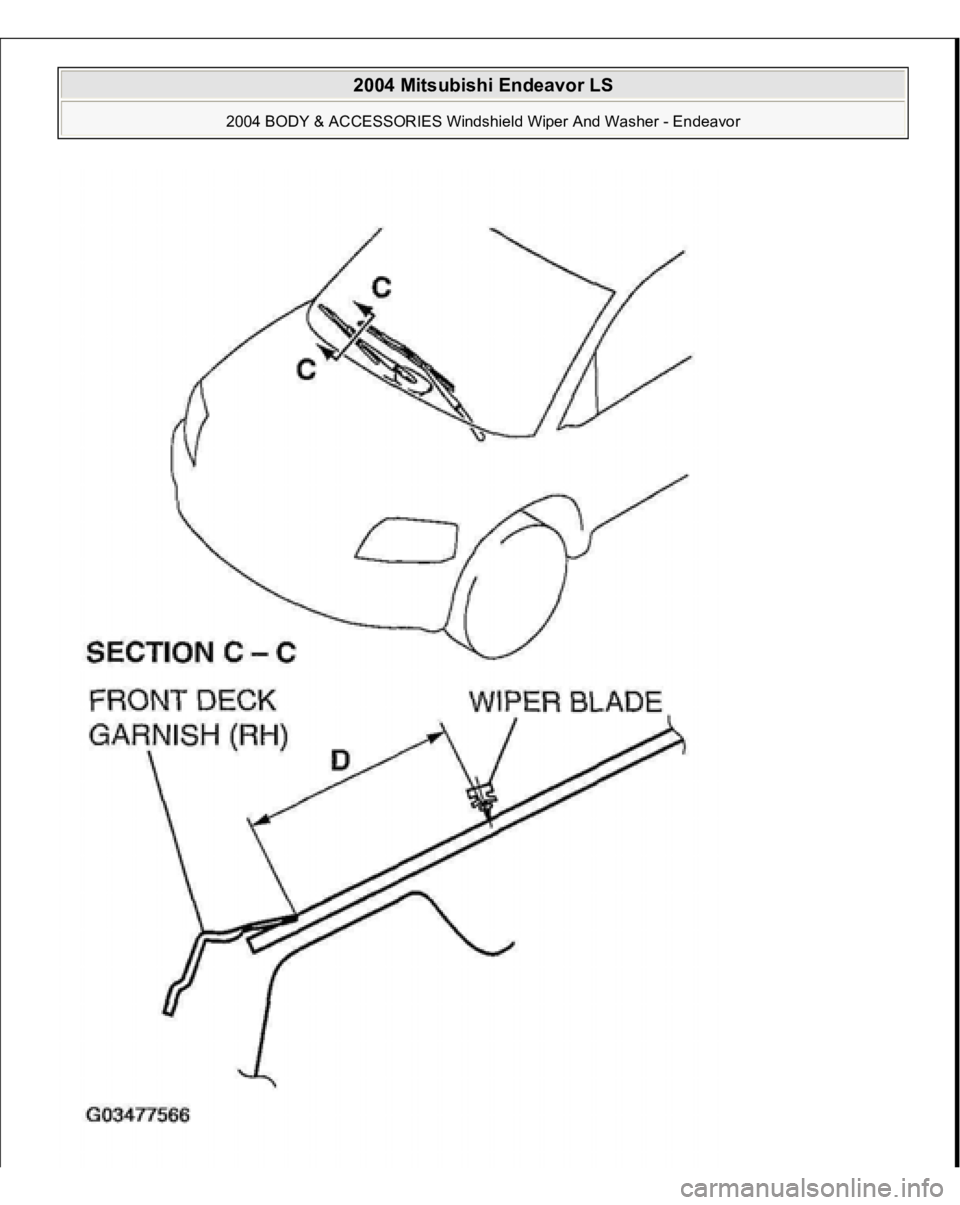

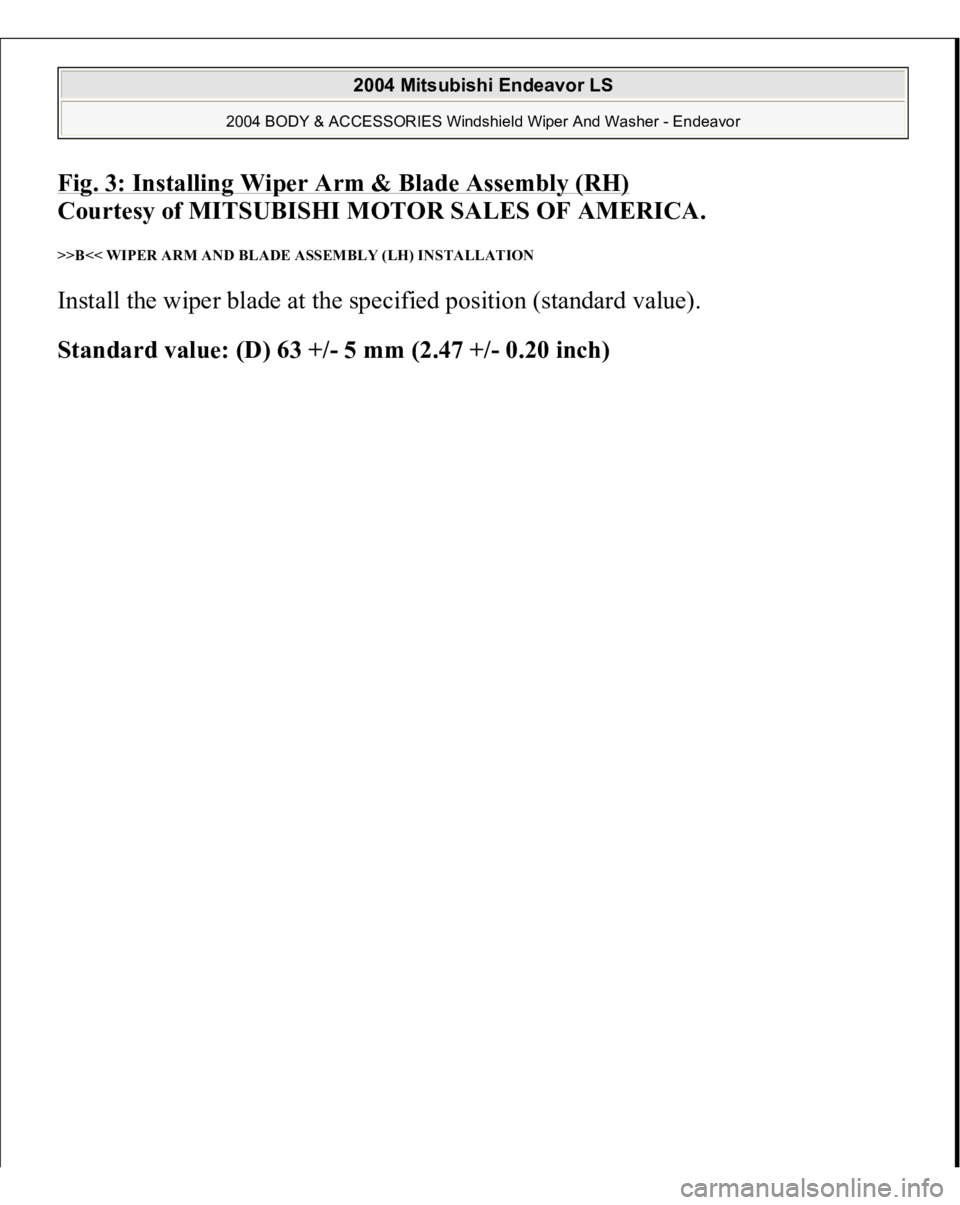

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 3: Installing Wiper Arm & Blade Assembly (RH) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>B<< WIPER ARM AND BLADE ASSEMBLY (LH) INSTALLATION Install the wiper blade at the specified posit

Page 3742 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 Mitsubishi Endeavor LS 2004 BODY & ACCESSORIES Windshield Wiper And Washer - Endeavor

Page 3743 of 3870

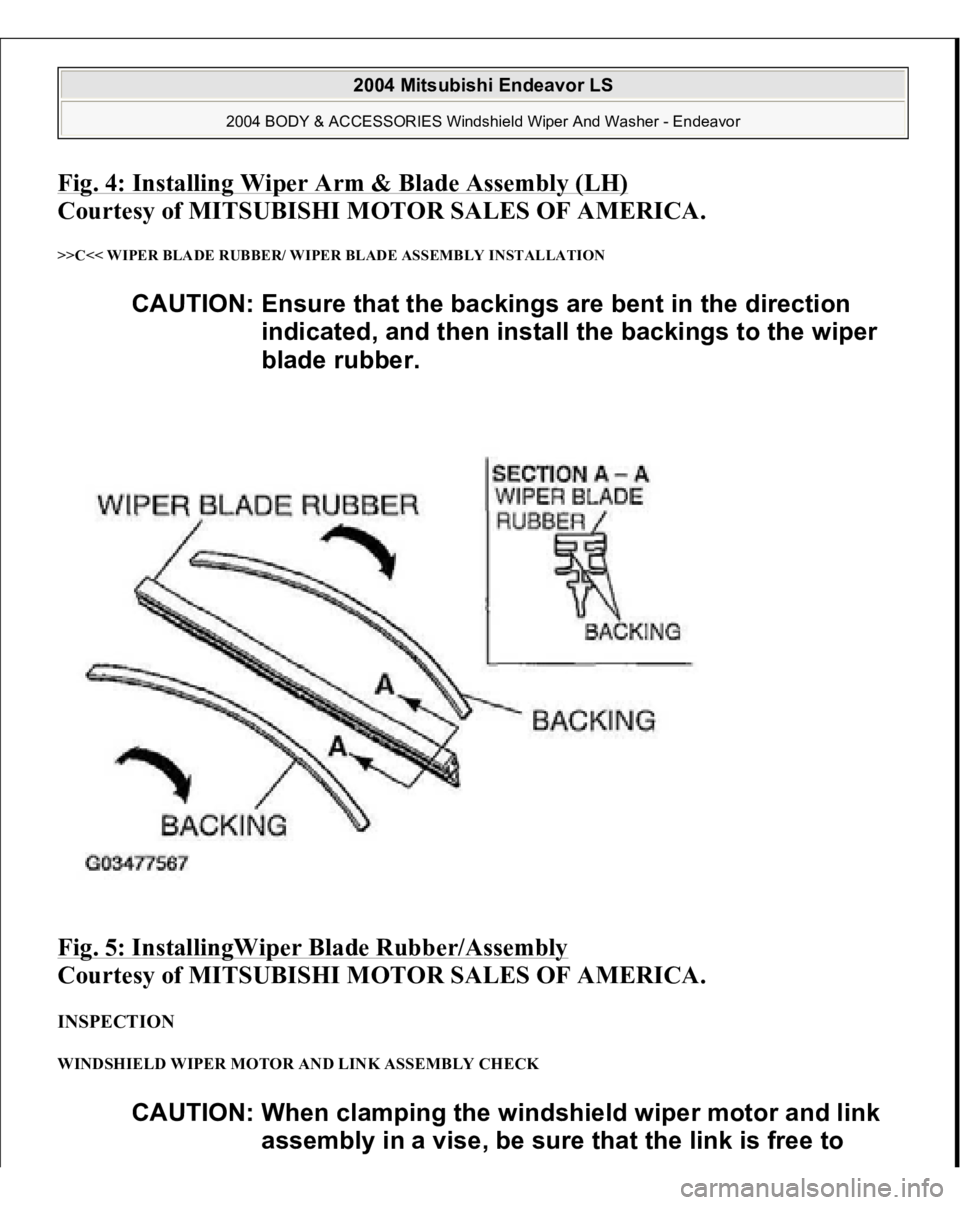

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 4: Installing Wiper Arm & Blade Assembly (LH) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>C<< WIPER BLADE RUBBER/ WIPER BLADE ASSEMBLY INSTALLATION Fig. 5: InstallingWiper Blade Rubber/As

Page 3744 of 3870

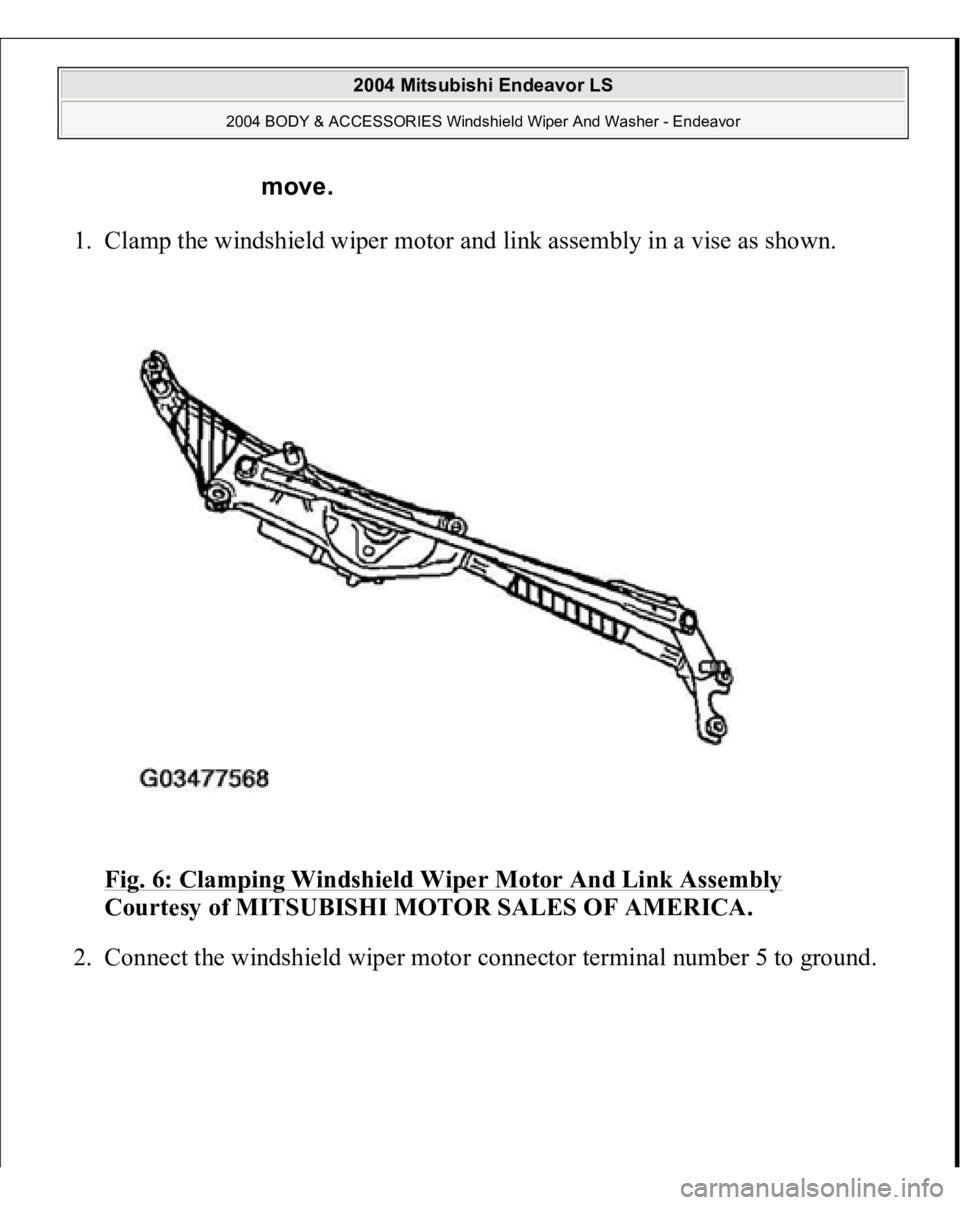

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 1. Clamp the windshield wiper motor and link assembly in a vise as shown. Fig. 6: Clamping Windshield Wiper Motor And Link Assembly Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2. Connect the wi
