MITSUBISHI ENDEAVOR 2004 Service Repair Manual GENERAL SPECIFICATIONS Fig. 314: General Specifications Chart Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SERVICE SPECIFICATIONS Fig. 315: Service Specifications Chart Courtes y of MITSUBISHI

Page 2418 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual LUBRICANTS Lubricants Specifications ITEM SPECIFIED LUBRICANT QUANTITY Each connection of refrigerant line SUN PAG 56 As required Compressor refrigerant unit lubricant cm 3 (fl.oz) SUN PAG 56 140

Page 2419 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2004 HVAC Automatic Air Conditioning - Endeavor GENERAL DESCRIPTION For the heater and air conditioning system, the heater and cooling units are combined in a single unit, which, with the a mode fil

Page 2420 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual handling R-134a. R-134a evaporates so rapidly at normal atmospheric pressures and temperatures that it tends to freeze anything it contacts. For this reason, extreme care must be taken to prevent a

Page 2421 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual When metering R-134a into the refrigeration system, keep the supply tank or cans in an upright position. If the refrigerant container is on its side or upside down, liquid refrigerant will enter the

Page 2422 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 1: Identifying A/C Compressor Clutch Relay ON Condition Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. AUTO A/C DIAGNOSIS INTRODUCTION After air is taken in through the damper, it is fed to t

Page 2423 of 3870

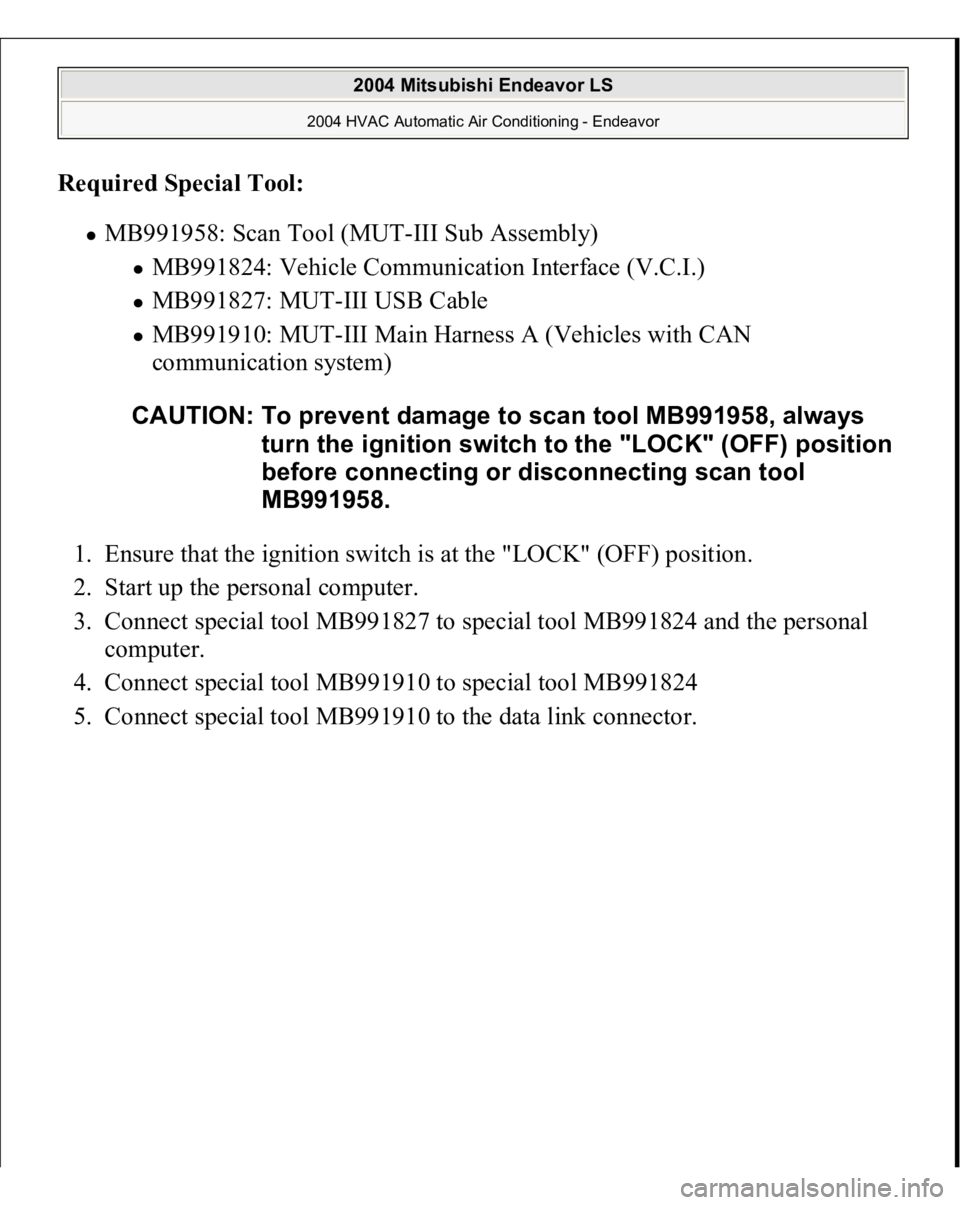

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Required Special Tool : MB991958: Scan Tool (MUT-III Sub Assembly) MB991824: Vehicle Communication Interface (V.C.I.) MB991827: MUT-III USB Cable MB991910: MUT-III Main Harness A (Vehicles with C

Page 2424 of 3870

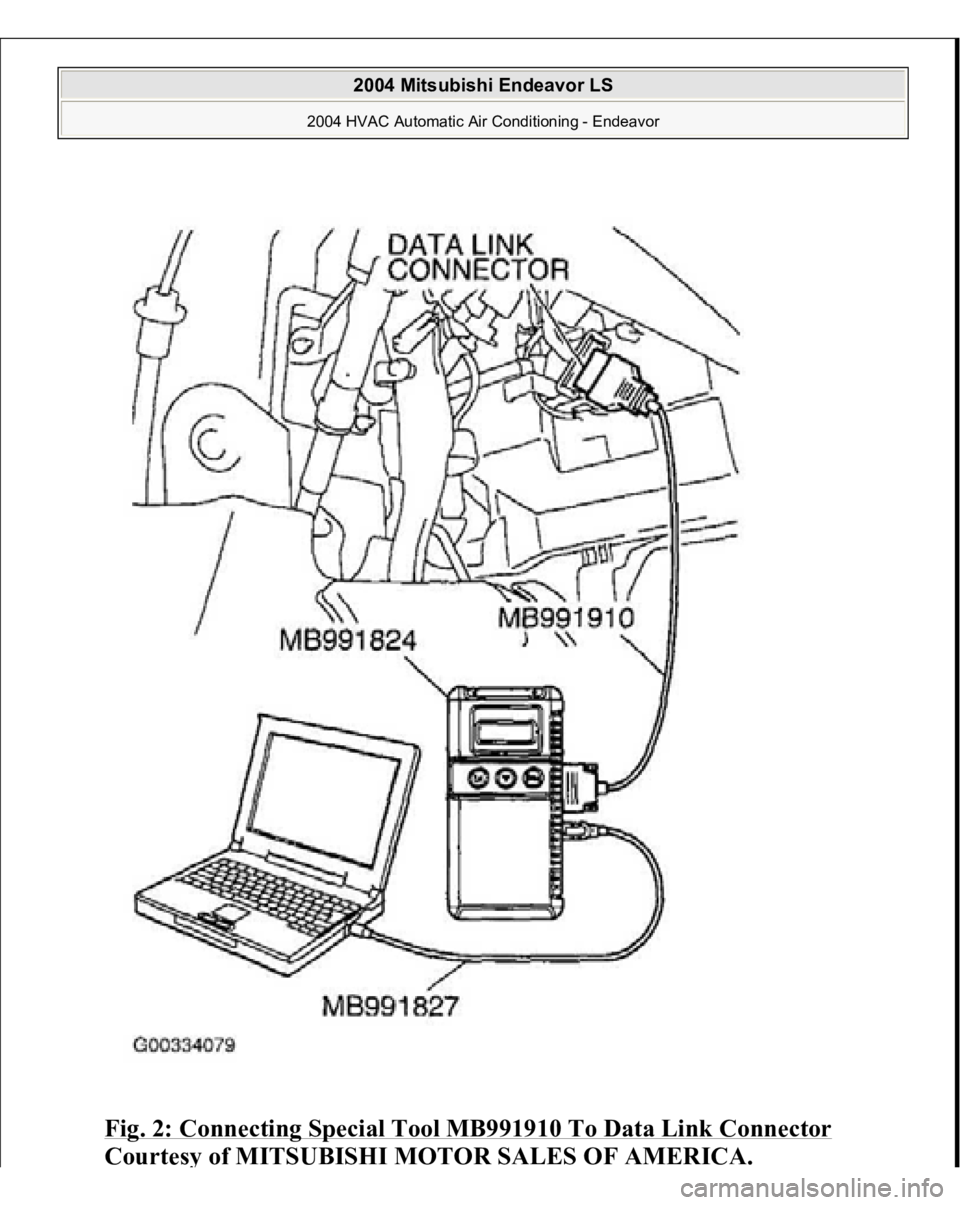

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 2: Connecting Special Tool MB991910 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Automatic Air Conditioning - Endeavor
