Page 2945 of 3870

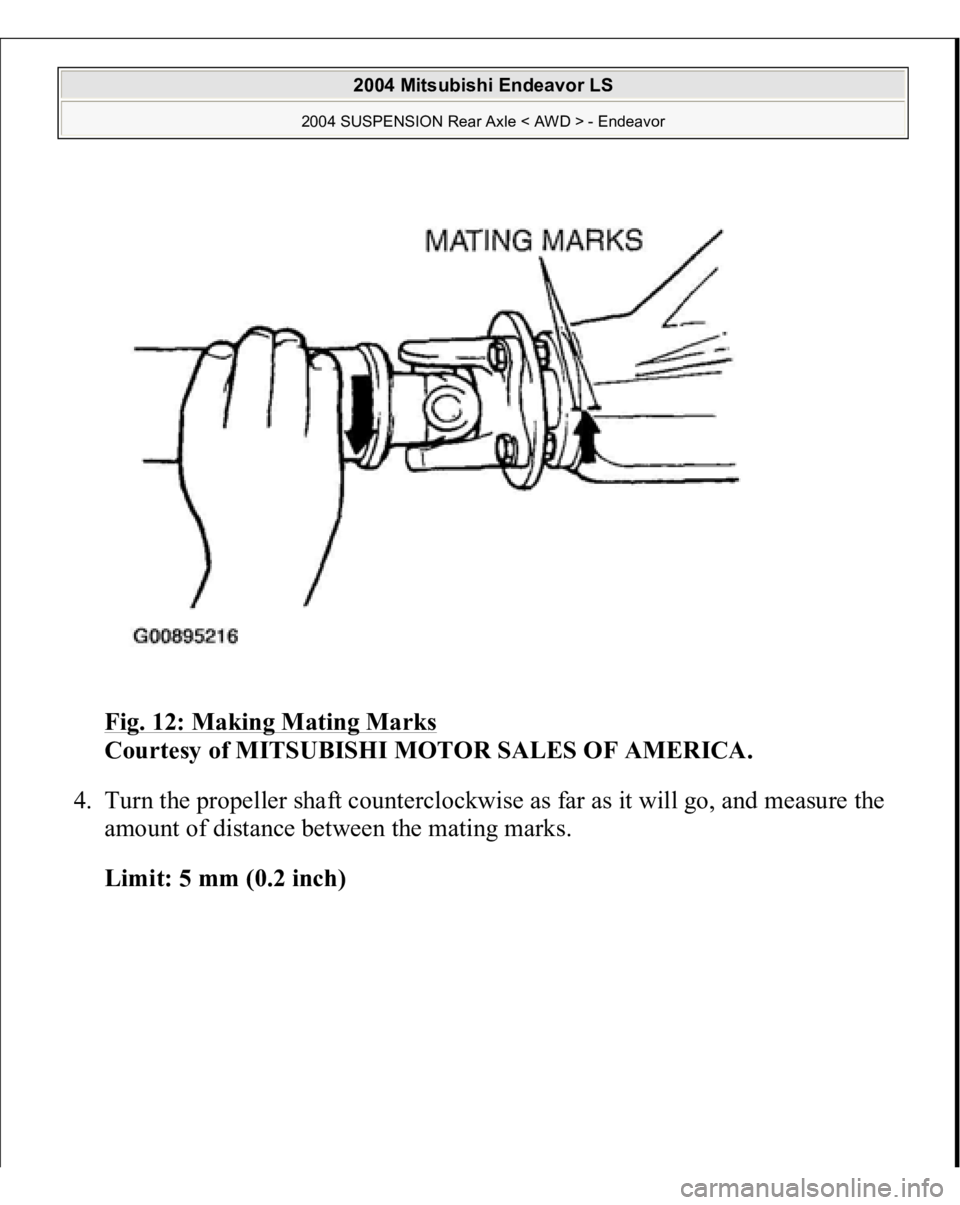

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 12: Making Mating Marks Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 4. Turn the propeller shaft counterclockwise as far as it will go, and measure the amount of distance between the mating

Page 2946 of 3870

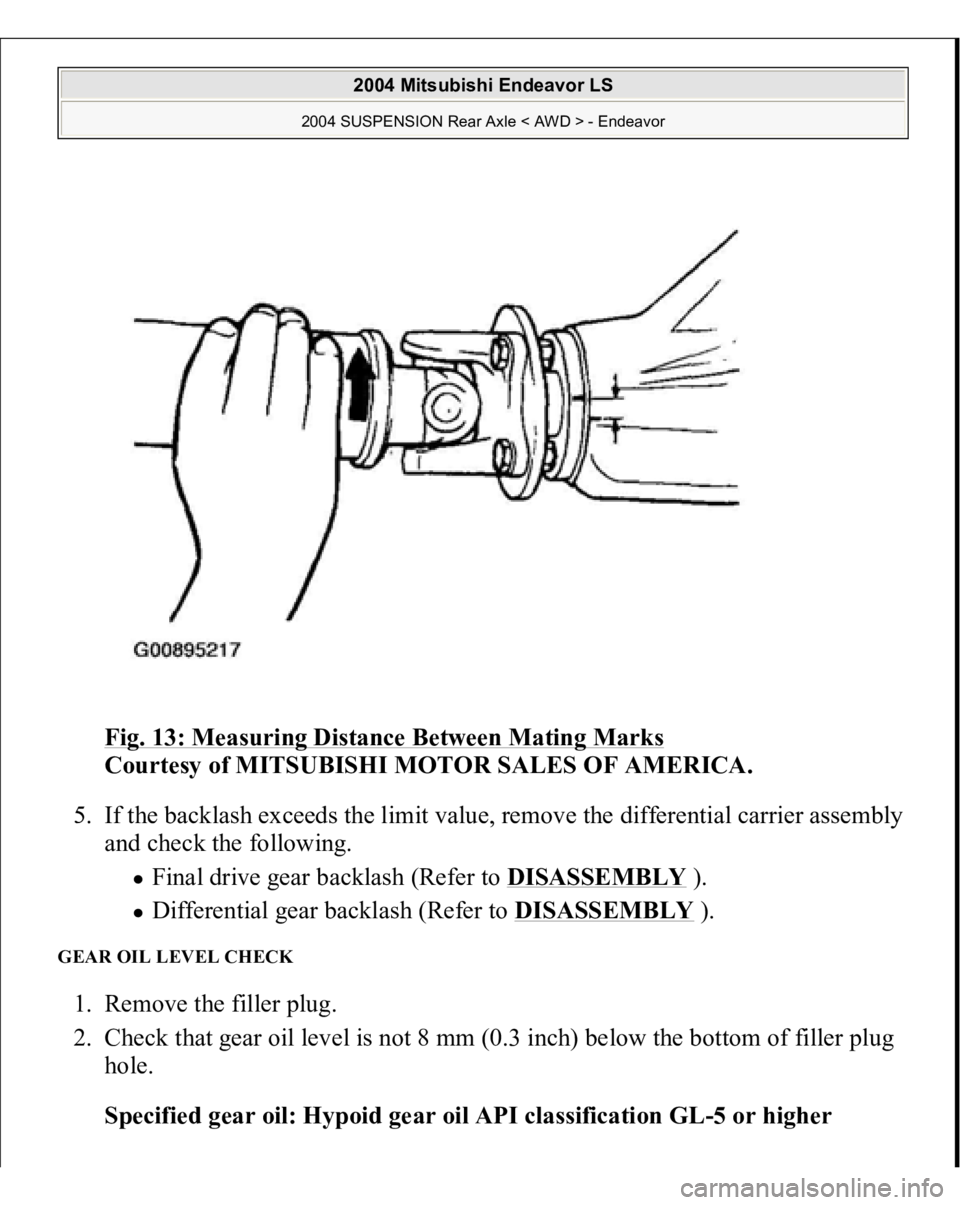

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 13: Measuring Distance Between Mating Marks Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 5. If the backlash exceeds the limit value, remove the differential carrier assembly and check the f

Page 2947 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Above-23°C (-10°F): SAE 90, 85W-90, 80W-90 From-34 to-23°C (-30 to-10°F): SAE 80W, 80W-90 Below-34°C (-30°F): SAE 75W Fig. 14: Checking Gear Oil Level Courtesy of MITSUBISHI MOTOR SALES

Page 2948 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Tightening torque: 49 +/- 9 N.m (37 + /-6 f t-lb) WHEEL BEARING END PLAY CHECK 1. Remove the caliper assembly, and suspend the caliper assembly with a wire and remove the brake disc. 2. Fit the d

Page 2949 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 15: Fitting The Dial Gauge To Hub Wheel Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. If the play exceeds the limit, replace the wheel bearing (Refer to TRAILING ARM ). 4. Install the b

Page 2950 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Tightening torque: 60 +/- 5 N.m (45 + /-3 f t-lb) DIFFERENTIAL CARRIER OIL SEAL REPLACEMENT Required Special Tools: MB991380: Oil Seal Installer MB990938: Bar 1. Remove the drive shaft from the

Page 2951 of 3870

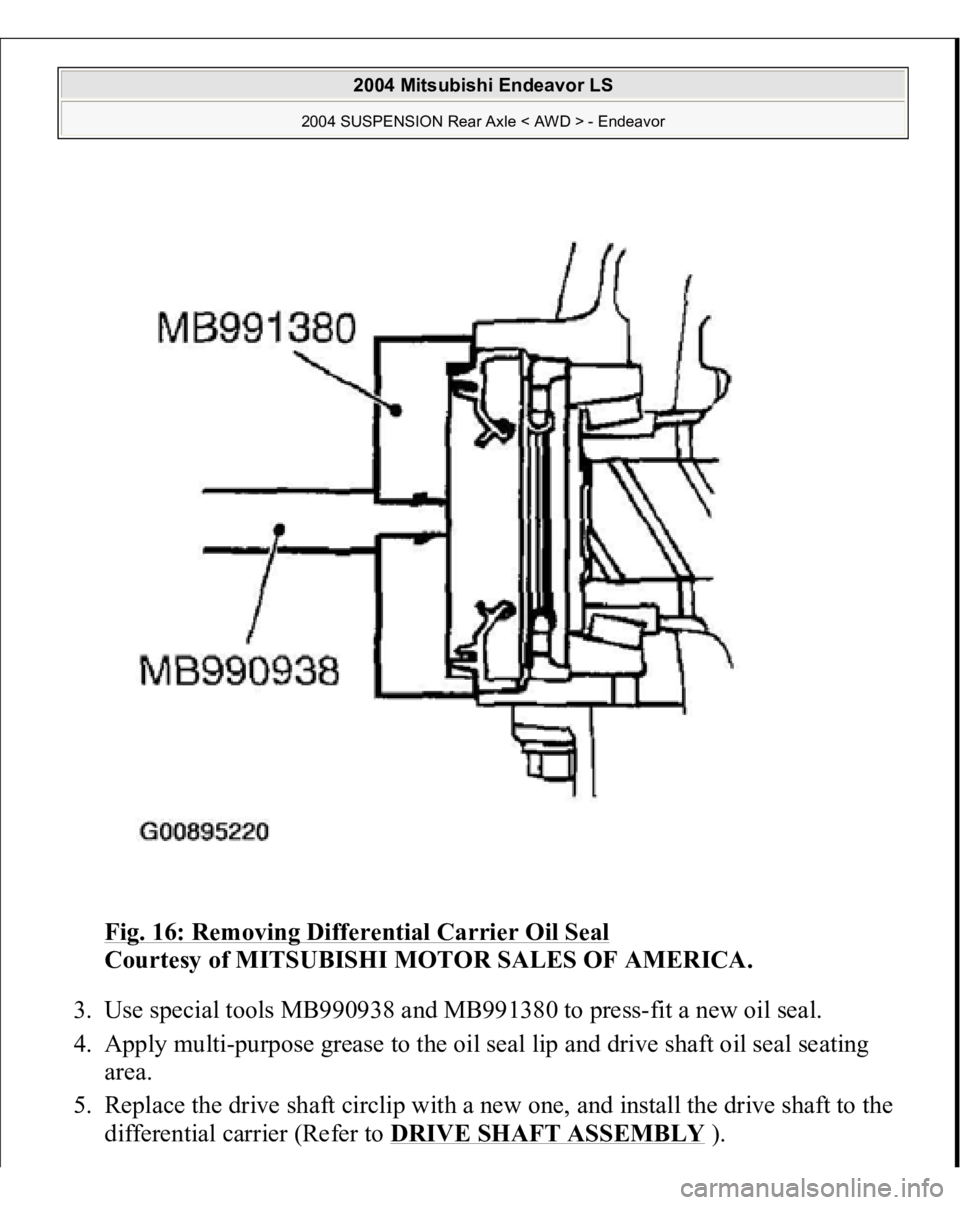

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 16: Removing Differential Carrier Oil Seal Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Use special tools MB990938 and MB991380 to press-fit a new oil seal. 4. Apply multi-purpose greas

Page 2952 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual REAR AXLE HUB ASSEMBL Y REMOVAL AND INSTALLATION Fig. 17: Removing/Installing Rear Axle Hub Assembly Components Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. Required Special Tool: MB990767: End
