Page 2193 of 3870

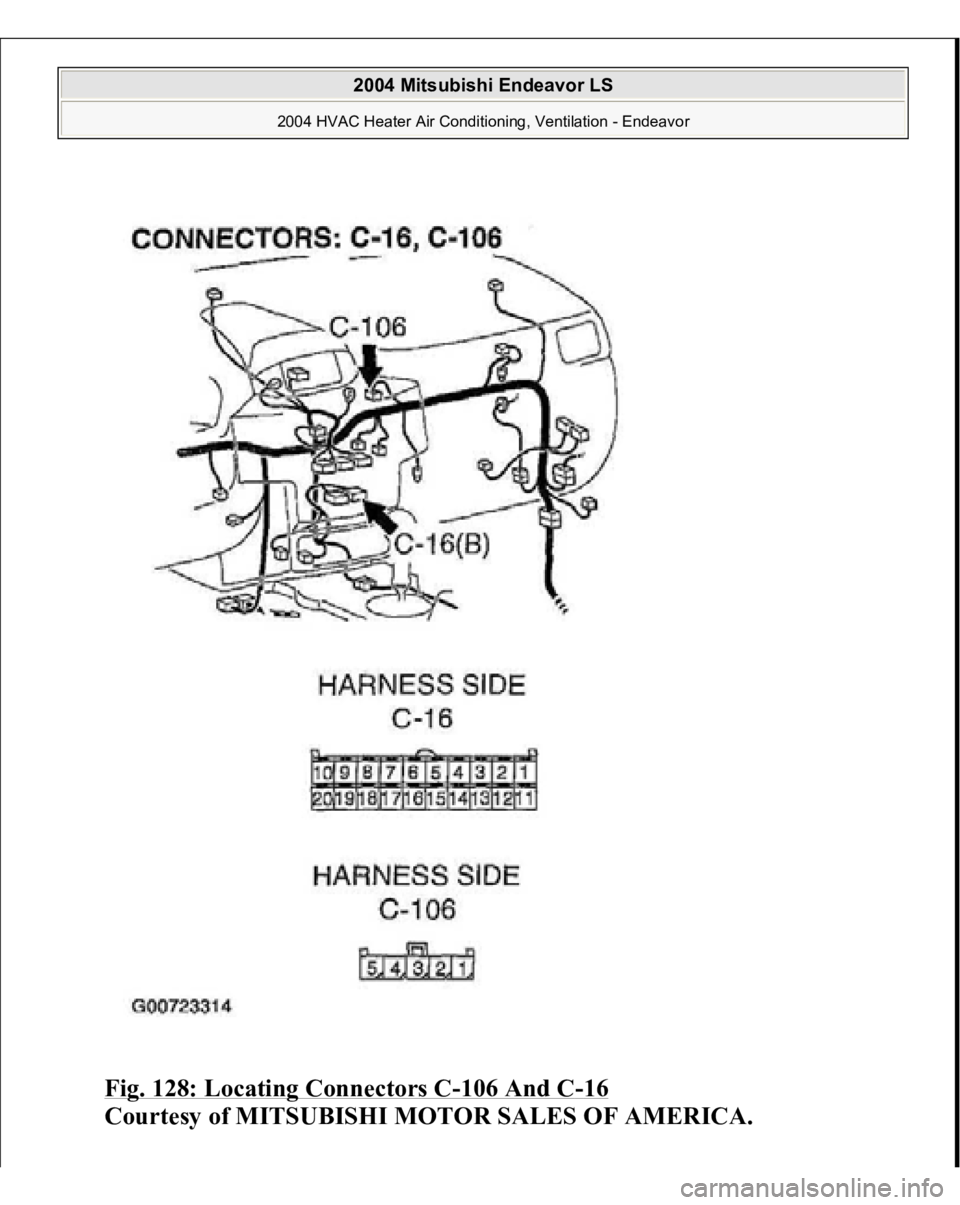

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 128: Locating Connectors C -106 And C -16 Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2194 of 3870

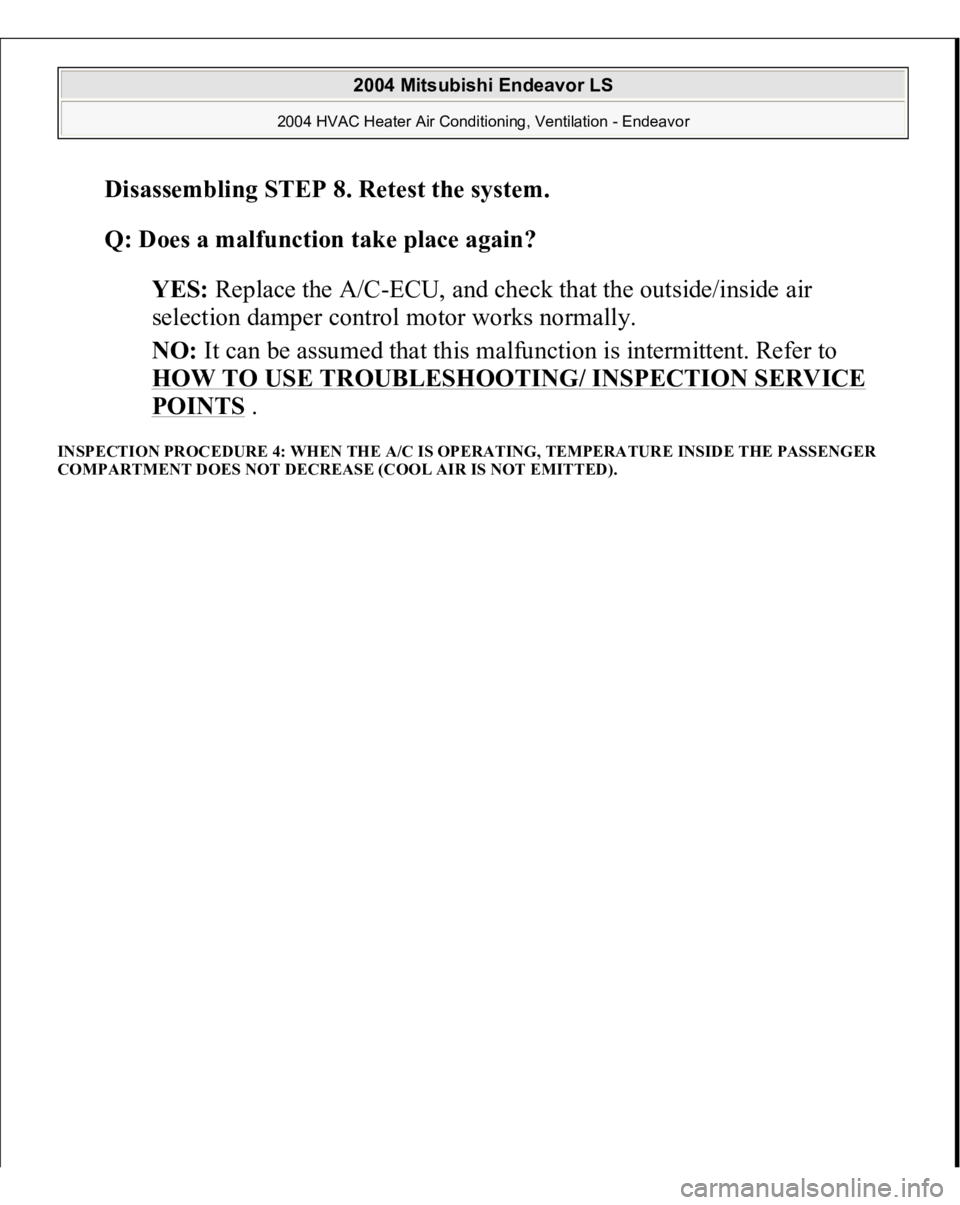

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Disassembling STEP 8. Retest the system. Q: Does a malfunction take place again? YES: Replace the A/C-ECU, and check that the outside/inside air selection damper control motor works normally.

Page 2195 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 129: View Of A/C Compressor Sensor Circuit Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2196 of 3870

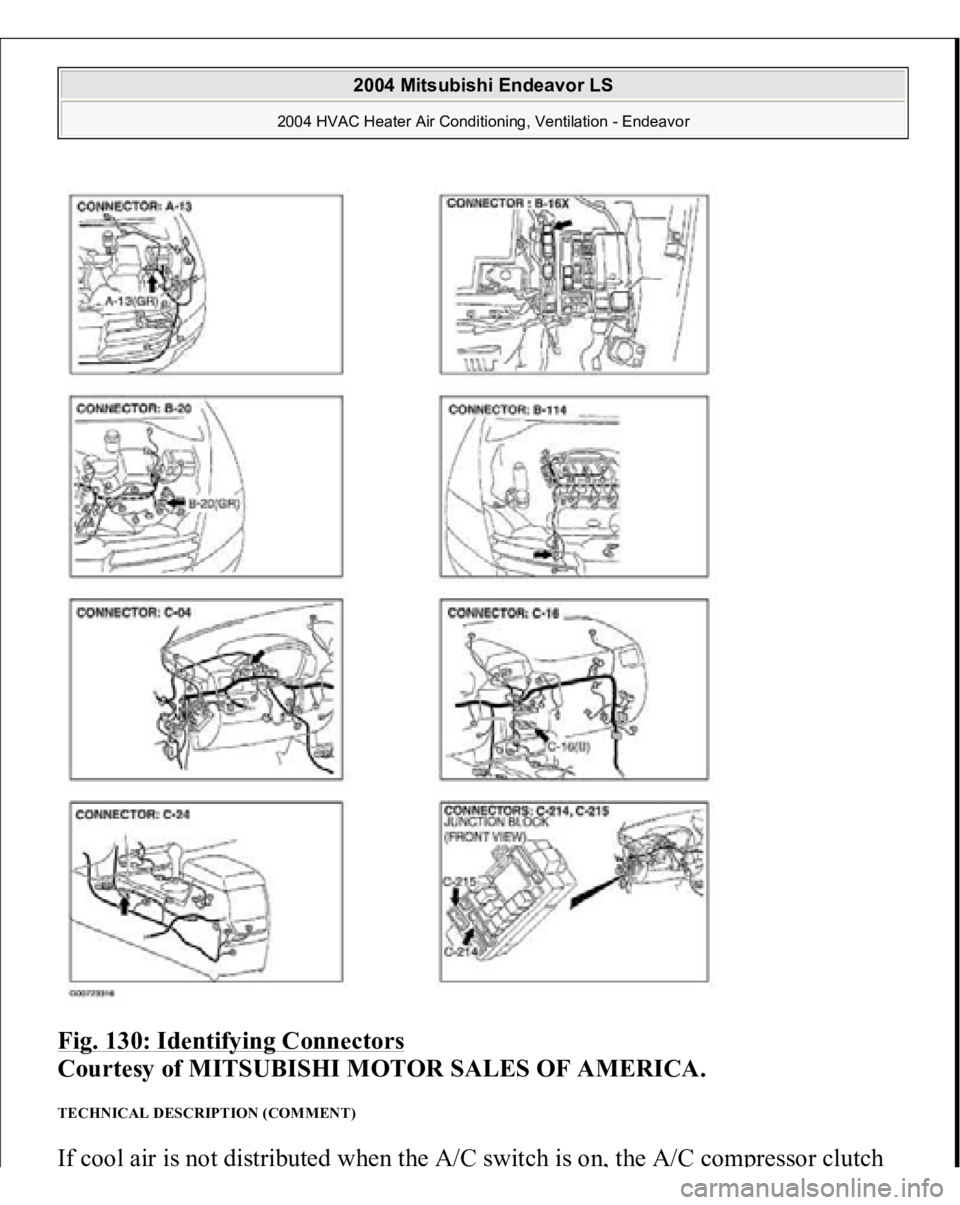

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 130: Identifying Connectors Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. TECHNICAL DESCRIPTION (COMMENT) If cool air is not distributed when the A/C switch is on , the A/C com pressor clutc

Page 2197 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual relay system may be defective. TROUBLESHOOTING HINTS Improper amount of refrigerant Malfunction of the air thermo sensor Malfunction of the ambient air temperature sensor Malfunction of the A/C pr

Page 2198 of 3870

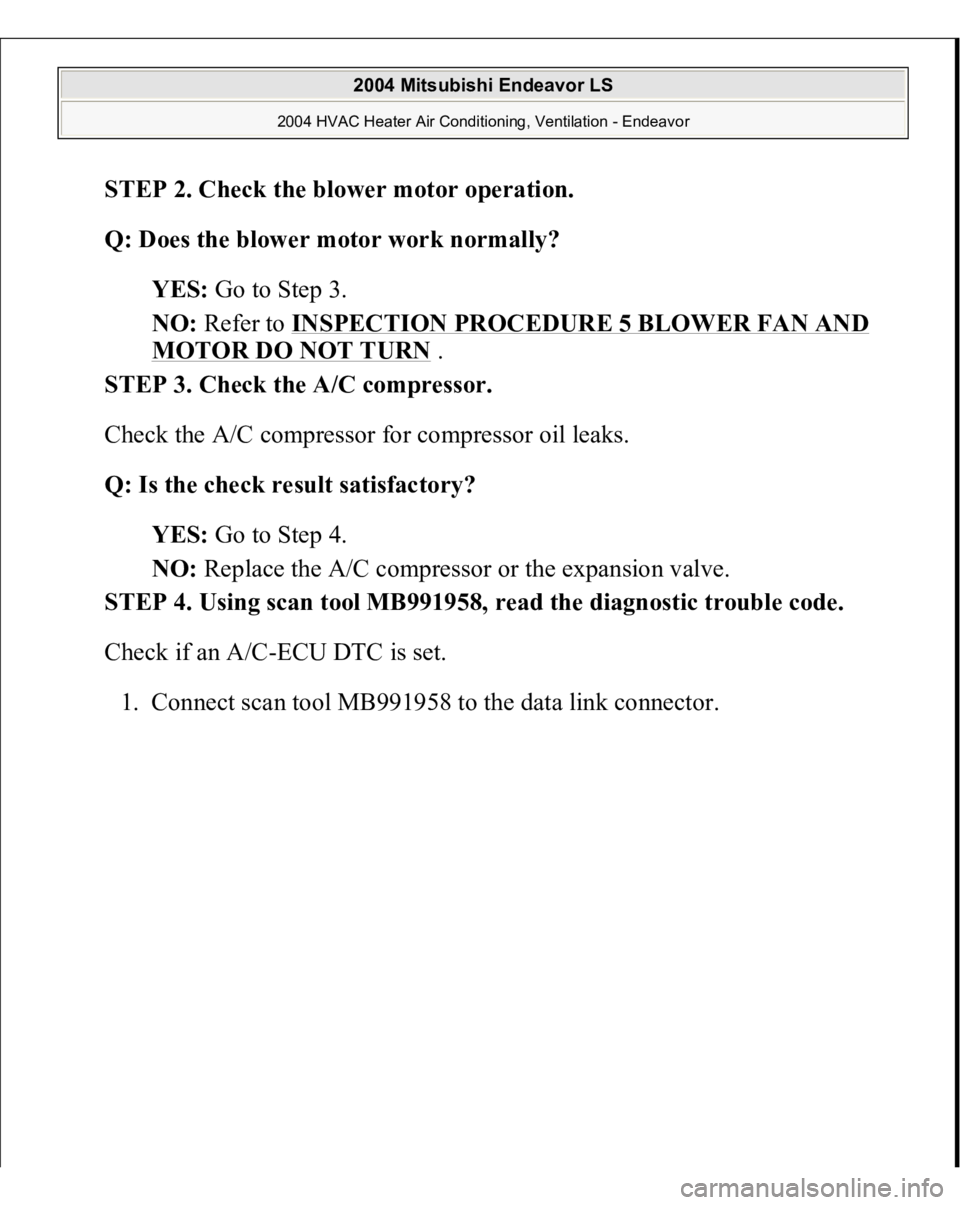

MITSUBISHI ENDEAVOR 2004 Service Repair Manual STEP 2. Check the blower motor operation. Q: Does the blower motor work normally? YES: Go to Step 3. NO: Refer to INSPECTION PROCEDURE 5 BLOWER FAN AND MOTOR DO NOT TURN . STEP 3. Check

Page 2199 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 131: Connecting Scan Tool MB991958 To Data Link Connector Courtes y of MITSUBISHI MOTOR SALES OF AMERICA . 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeav

Page 2200 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual 2. Turn the ignition switch to the "ON" position 3. Check if the DTC is set. 4. Turn the ignition switch to the "LOCK" (OFF) position. Q: Is the check result satisfactory? YES:
