Page 2409 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual REMOVAL SERVICE POINTS << A >> RESERVE TANK ASSEMBLY REMOVAL Position the reserve tank assembly out of the way. The reserve tank assembly cannot be removed completely from the engine compartment. Fig

Page 2410 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual To prevent the entry of dust or other foreign bodies, plug the dismantled hose and condenser assembly nipples. INSTALLATION SERVICE POINT >> A << CONDENSER INSTALLATION When replacing the condenser,

Page 2411 of 3870

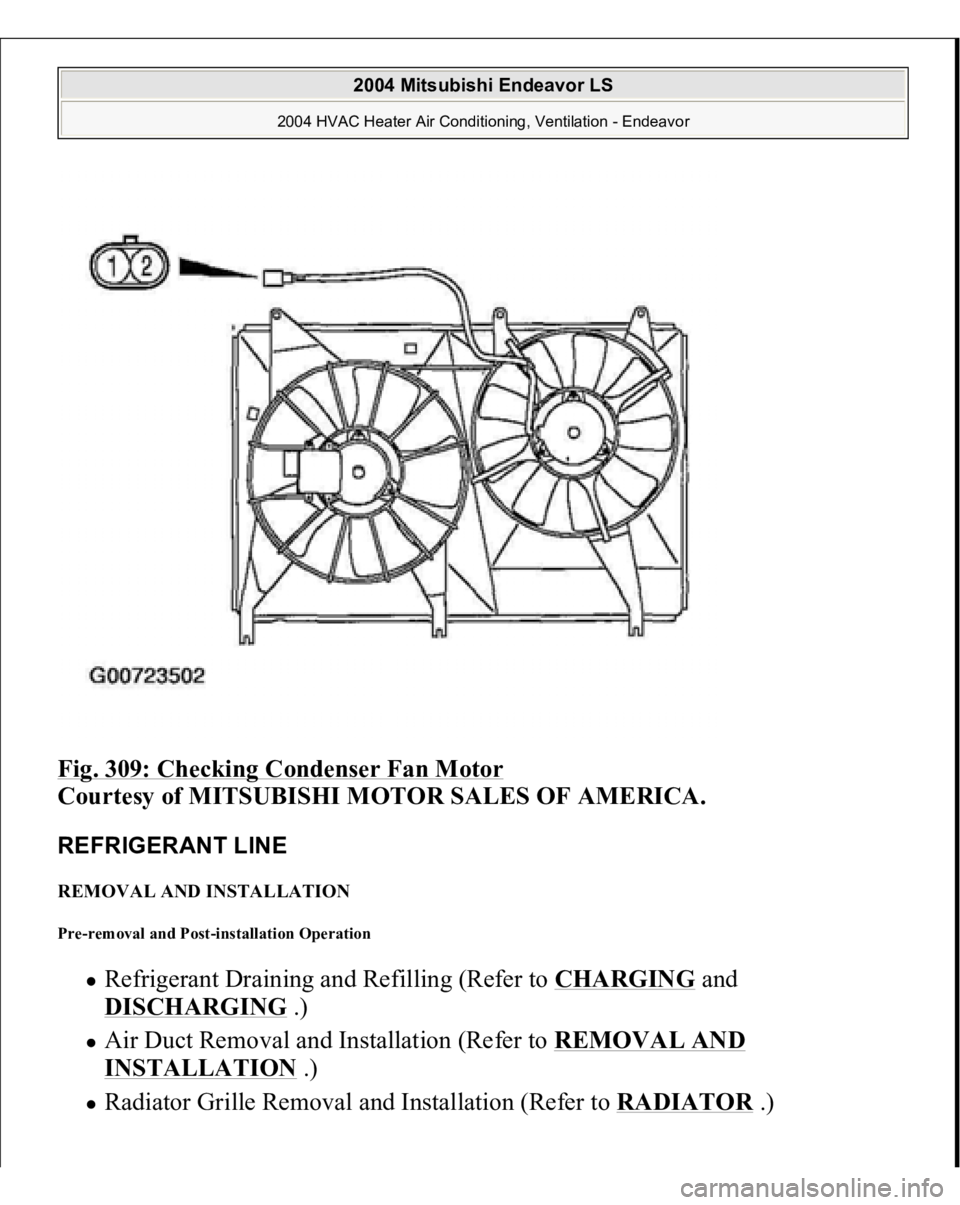

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 309: Checking Condenser Fan Motor Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REFRIGERANT LINE REMOVAL AND INSTALLATION Pre-removal and Post-installation Operation Refrigerant Draining an

Page 2412 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 310: Removing And Installing Refrigerant Line Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. REMOVAL SERVICE POINT << A >> HOSE/PIPE DISCONNECTION To prevent the entry of other foreign bodies

Page 2413 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual To disconnect the suction hose from the suction flexible hose, lift the lug on the suction pipe and twist the suction flexible hose union counterclockwise. Plug the hose nipple to prevent entry of d

Page 2414 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Compressor oil: SUN PAG 56 Quantity: Suction hose: 10 cm 3 (0.3 fl.oz) VENTILATORS REMOVAL AND INSTALLATION 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Ende

Page 2415 of 3870

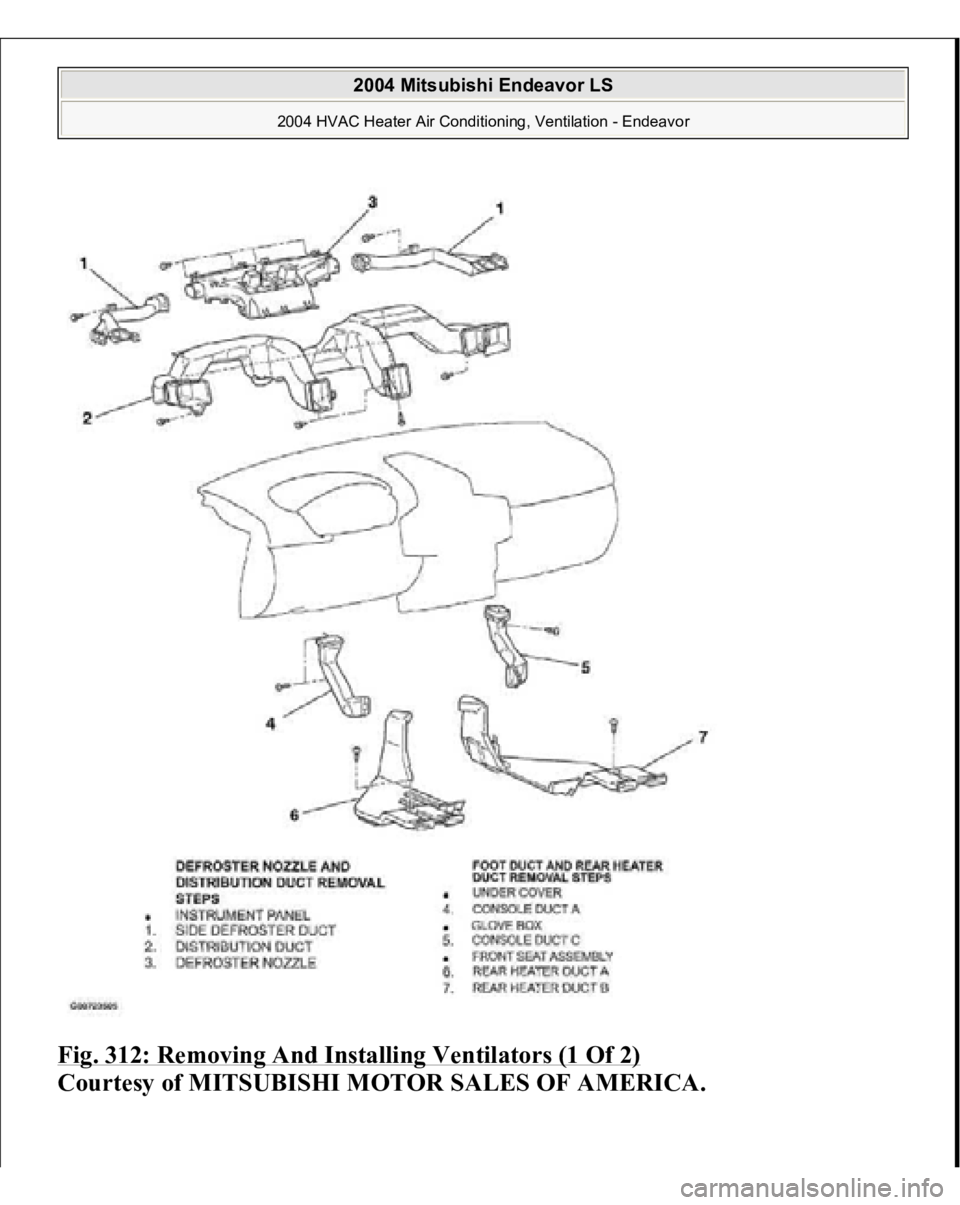

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 312: Removing And Installing Ventilators (1 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 2004 Mitsubishi Endeavor LS 2004 HVAC Heater Air Conditioning, Ventilation - Endeavor

Page 2416 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 313: Removing And Installing Ventilators (2 Of 2) Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. SPECIFICATIONS FASTENER TIGHTENING SPECIFICATIONS FASTENER TIGHTENING TORQUE SPECIFICATIONS
Load next 8 pages
