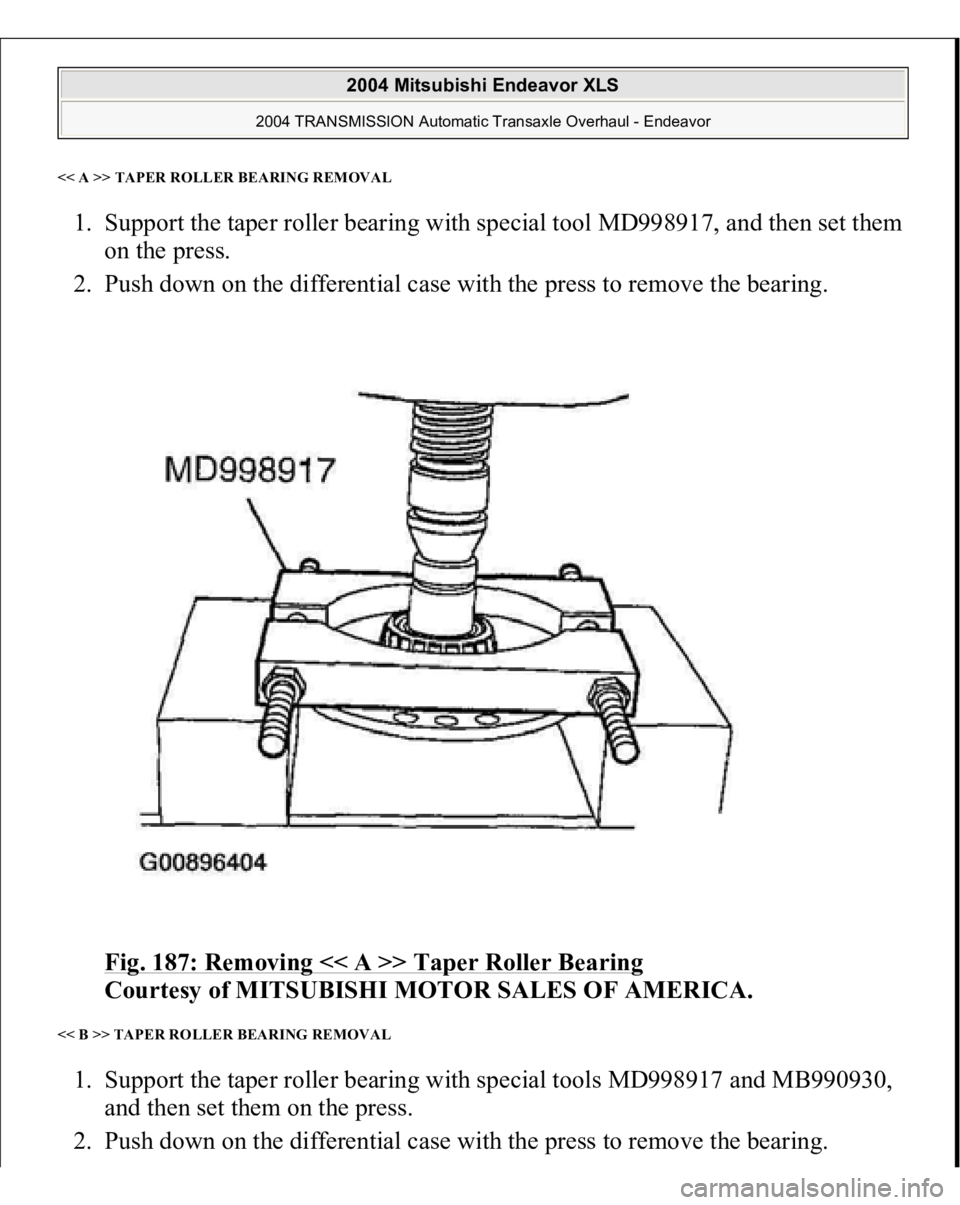

MITSUBISHI ENDEAVOR 2004 Service Repair Manual << A >> TAPER ROLLER BEARING REMOVAL1. Support the taper roller bearing with special tool MD998917, and then set them on the press. 2. Push down on the differential case with the press to remove th

Page 642 of 3870

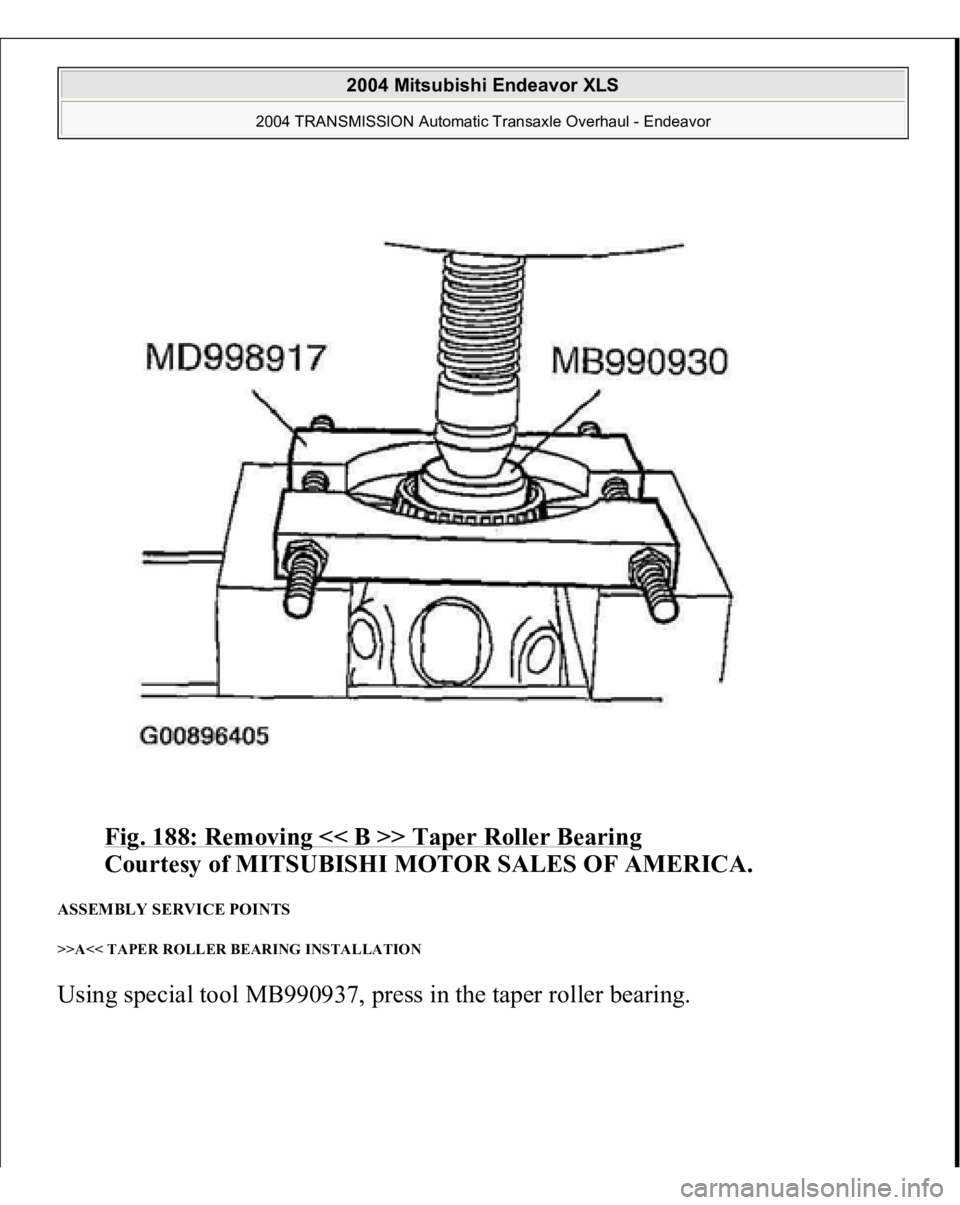

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 188: Removing << B >> Taper Roller Bearing Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. ASSEMBLY SERVICE POINTS >>A<< TAPER ROLLER BEARING INSTALLATION Usin g special tool MB990937, press i

Page 643 of 3870

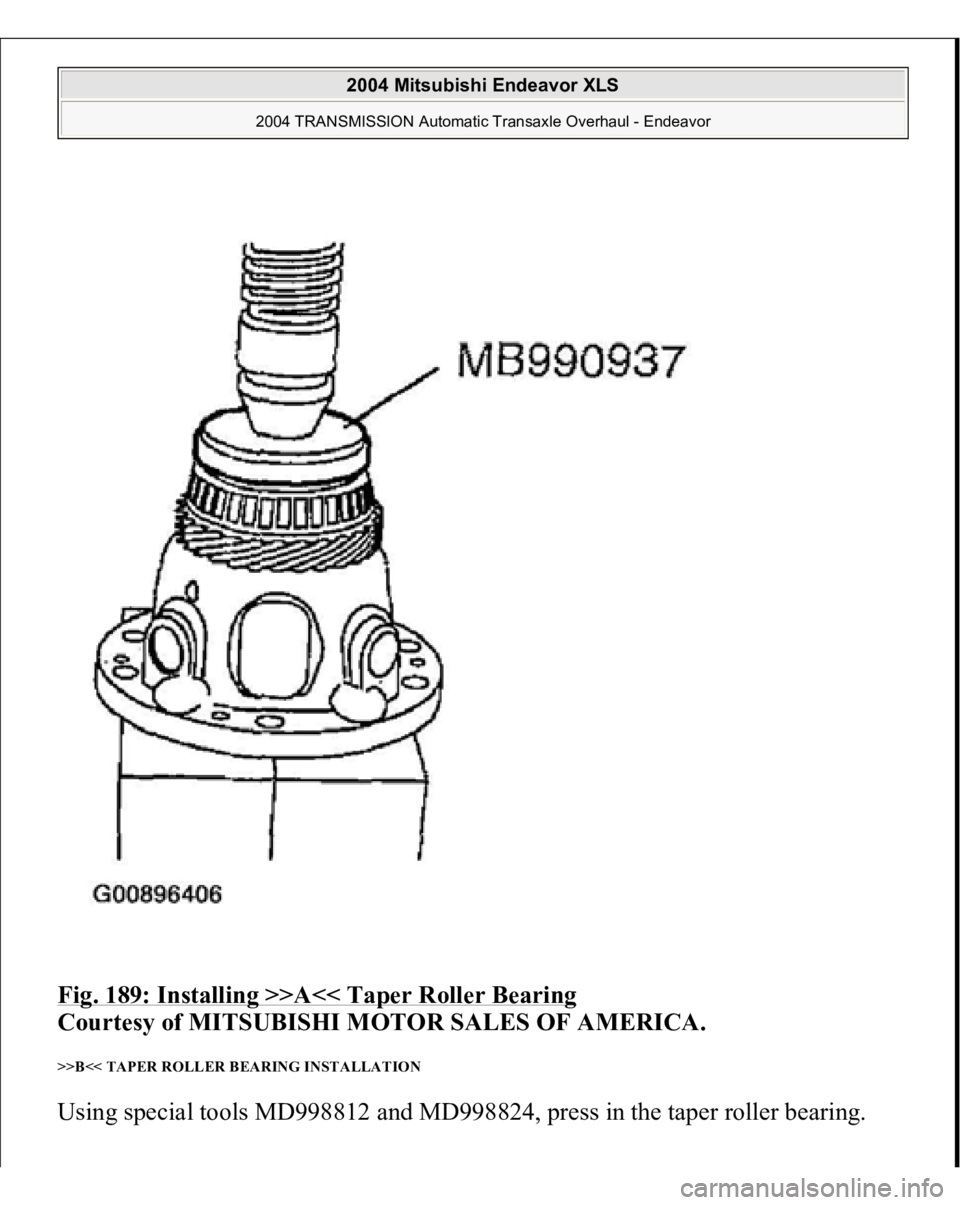

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 189: Installing >>A<< Taper Roller Bearing Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>B<< TAPER ROLLER BEARING INSTALLATION Usin g special tools MD998812 and MD998824, press in the ta p

Page 644 of 3870

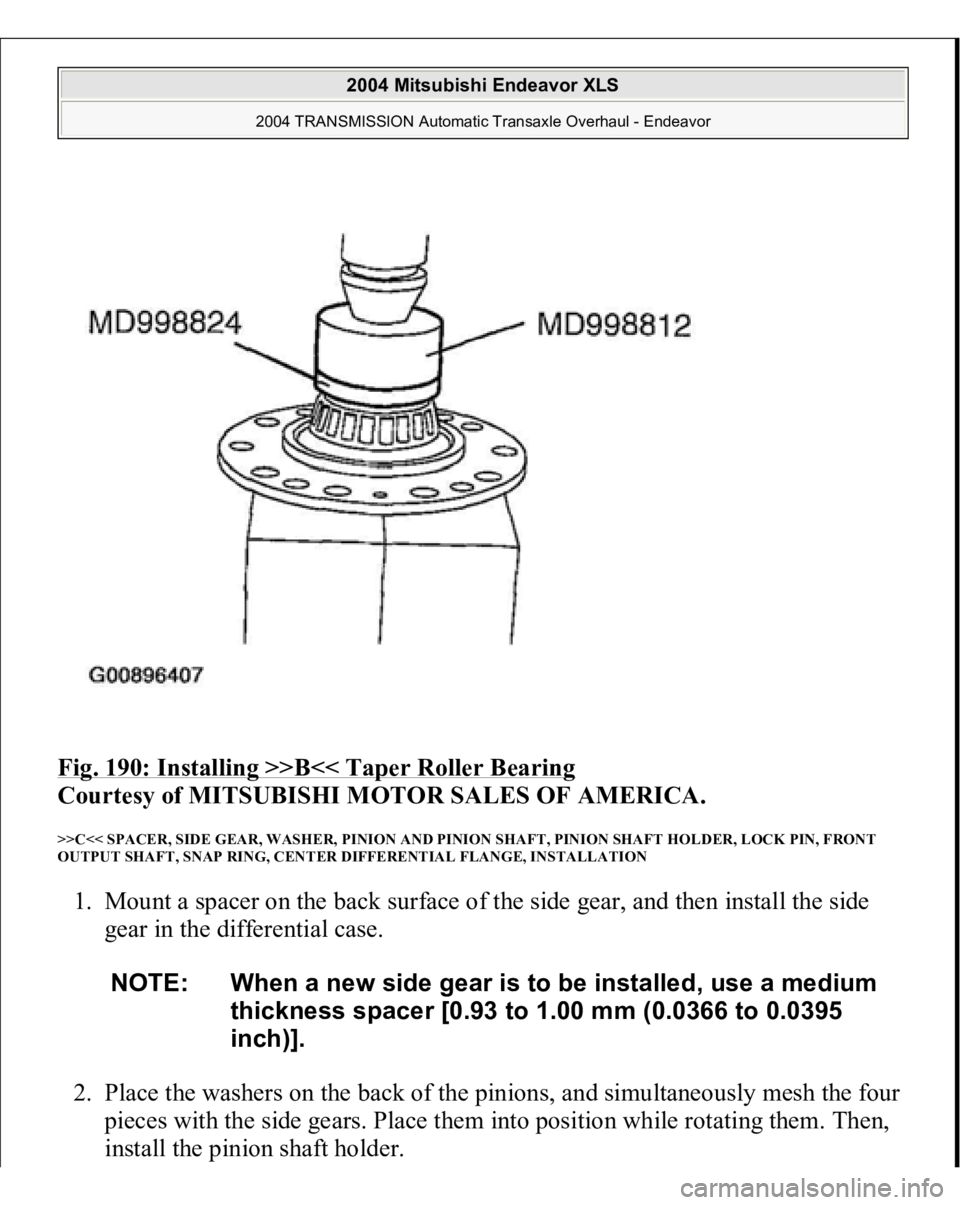

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 190: Installing >>B<< Taper Roller Bearing Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>C<< SPACER, SIDE GEAR, WASHER, PINION AND PINION SHAFT, PINION SHAFT HOLDER, LOCK PIN, FRONT OUTPUT

Page 645 of 3870

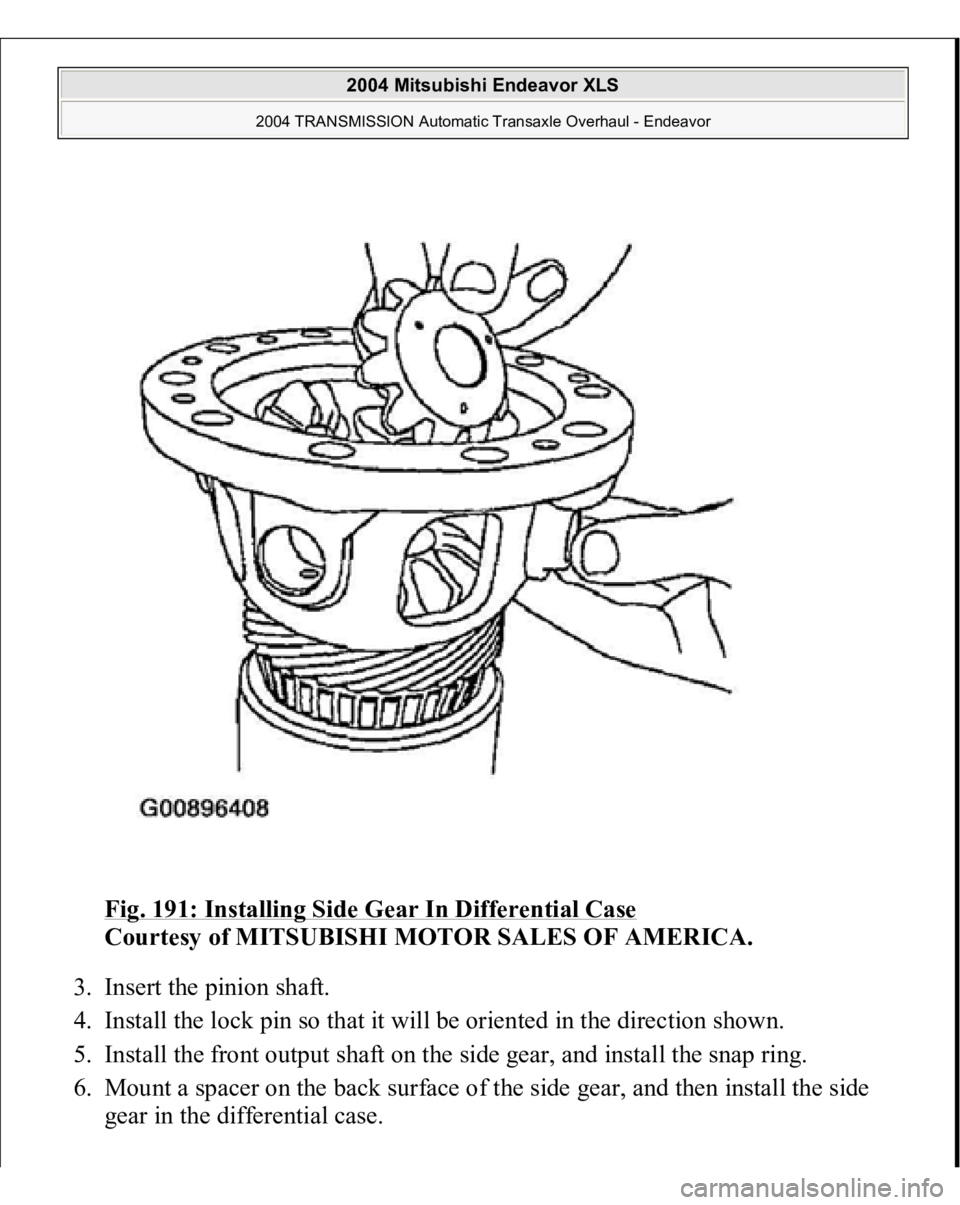

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 191: Installing Side Gear In Differential Case Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 3. Insert the pinion shaft. 4. Install the lock pin so that it will be oriented in the direction

Page 646 of 3870

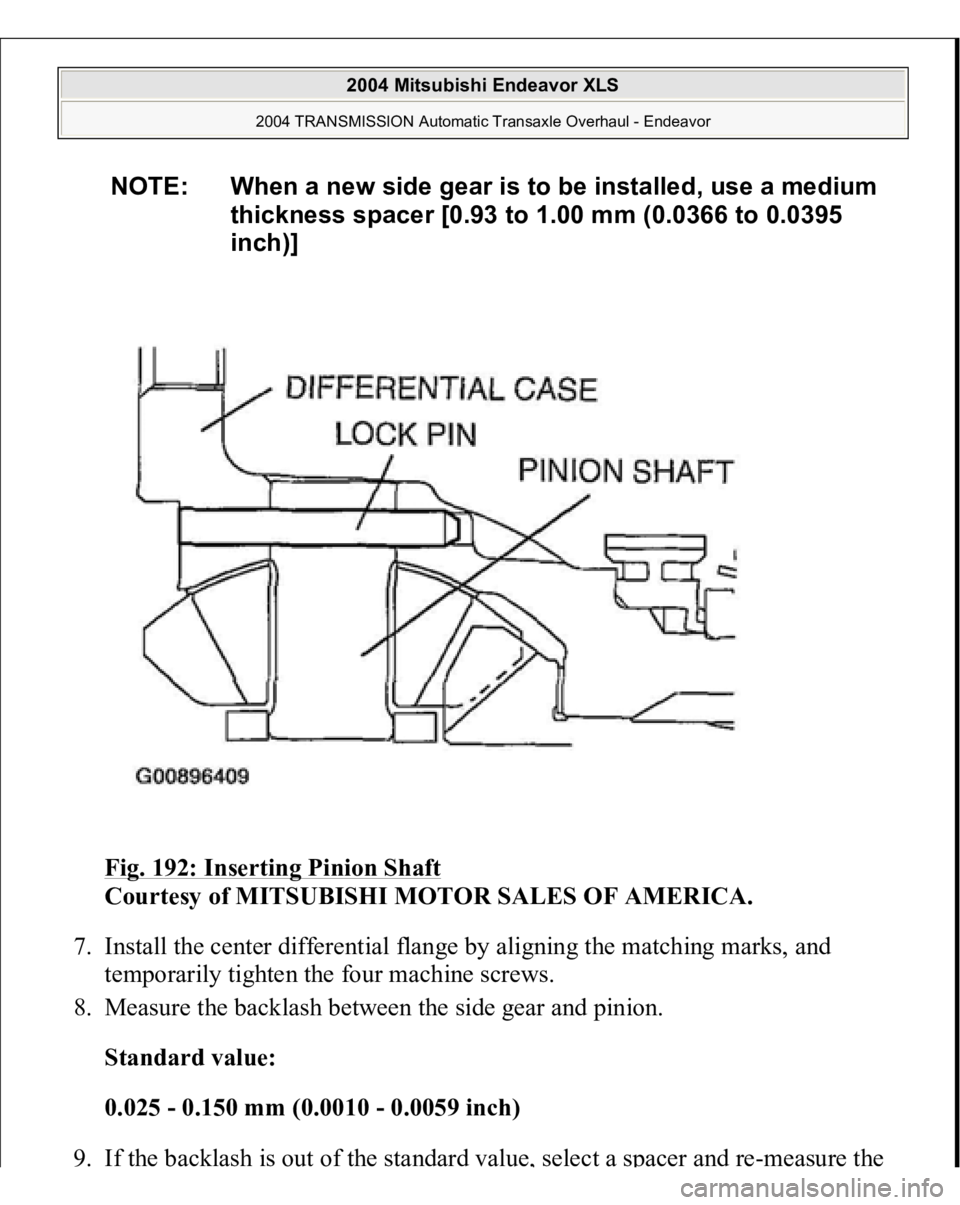

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Fig. 192: Inserting Pinion Shaft Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. 7. Install the center differential flange by aligning the matching marks, and temporarily tighten the four machine s

Page 647 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual backlash. Fig. 193: Measuring Backlash Between Side Gear And Pinion Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. >>D<< DIFFERENTIAL DRIVE GEAR INSTALLATION Apply ATF to the bolts, and then tigh

Page 648 of 3870

MITSUBISHI ENDEAVOR 2004 Service Repair Manual Tightening torque: 135 +/- 5 N.m (100 +/- 4 f t-lb) Fig. 194: Identifying Differential Drive Gear Courtesy of MITSUBISHI MOTOR SALES OF AMERICA. VALVE BODY DISASSEMBLY AND ASSEMBLY 2004 Mitsubis
